Atomos 4.3-inch Ninja 2 Video Recorder (Bare Bones Version)
Couldn't load pickup availability
Product highlights
Product highlights
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

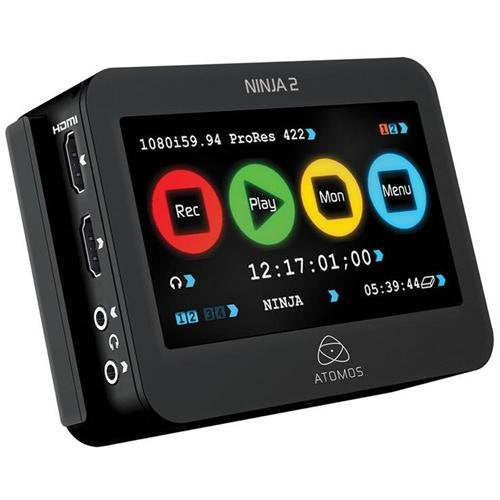

The Bare Bones Version of the Atomos Ninja 2 Video Recorder is an HDMI recorder built into an 800 x 480 resolution monitor that records up to 1080/30p/60i resolution directly from your camera's sensor. It records to an optional HDD or SSD in using Apple's ProRes or Avid's DNxHD edit-ready codecs. The Ninja 2 supports 10-bit 4:2:2 color sampling for vivid images superior to most DSLR internal recording capabilities, and you can still record 8-bit video to the Ninja 2. Built-in exposure tools such as false color and zebra bars provide useful aids in exposing your footage, while the built-in focus peaking tool can alert you to out of focus shots may be difficult to see on an on-camera monitor.

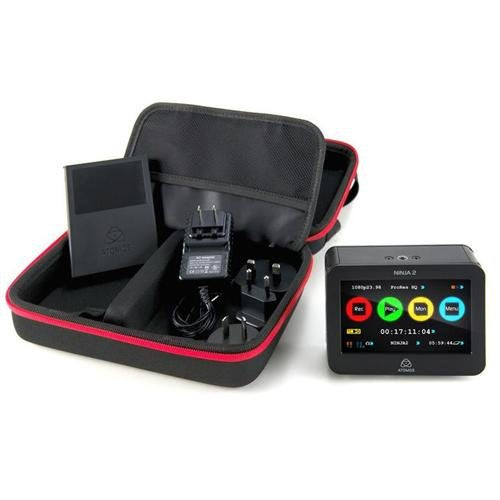

The 4.3-inch touchscreen features a resistive touchscreen that functions using pressure, this allows you to operate the touchscreen with your fingers, even while wearing gloves, which is important when working in the cold. The Ninja 2 incorporates anti-shock technology that allows you to continue to record even if your HDD skips a few frames from being jarred. The Master Caddy system allows you to choose to use optional 2.5-inch HDDs or SSDs with your Ninja 2. SmartLog editing tools allow you to mark selects during playback or recording, and can save you time when you go to edit. It includes a single master drive caddy, a power supply and a soft shell case.
Input
| Video input | |
| Uncompressed 10/8-bit 4 | 2:2 |
| HDMI 1.4 x1 | |
| Audio input | |
| 2 channels on HDMI video input | |
| 2 analog channels with gain controls |
Output
| Video output | HDMI 1.4 x1 (reclocked, ultra low jitter) |
| Audio output | |
| 2 channels on HDMI video output | |
| Stereo x1 | |
| Headphone x1 | |
| Supported Formats | HD 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, |
| 1080p24, 1080p23.98, 1080p30(60i), 1080p25(50i), | |
| 1080p24(60i), 1080p23.98(60i), 720p60, 720p59.94, | |
| 20p50, SD 480i, 576i | |
| Encoding | Realtime hardware encoding, 1920 x 1080 8/10-bit 4:2:2 to |
| HQ - 220Mbps (10-bit) | |
| 422 - 150Mbps (10-bit) | |
| LT - 100Mbps (10-bit) | |
| Avid DNxHD-220X - 220Mbps (10-bit) | |
| Avid DNxHD-220 - 36 Mbps (8-bit) | |
| Avid DNxHD-145 - 36 Mbps (8-bit) | |
| Avid DNxHD |
Screen
| Size | 4.3 inches diagonal (11 cm) |
| Resolution | 800 x 480 |
| Aspect ratio | 16:9 native / 4:3 letterbox / SMPTE color specification |
| Native frame rate playback (48 - 60Hz) | |
| Remote Start / Stop | HDMI start/stop flags (Canon compatible); |
| LANC trigger via optional LANC adapter | |
| Customizable Remote Controls | (control all Ninja functions): System integrator custom controls available on request from ATOMOS |
| Timecode | Sony and Canon compatible HDMI timecode in and out |
| Recording Time | Records for the same amount of time whether onto HDDs or SSDs |
| Edit formats | I-frame only, 422, 8/10-bit |
| 250GB = 2.5 hrs, 500GB = 5 hrs, 1TB = 10 hrs | |
| 250GB = 2.5 hrs, 500GB = 5 hrs, 1TB = 10 hrs | |
| 250GB = 4 hrs, 500GB = 8 hrs, 1TB = 16 hrs | |
| 250GB = 4 hrs, 500GB = 8 hrs, 1TB = 16 hrs | |
| 250GB = 5.5 hrs, 500GB = 11 hrs, 1TB = 22 hrs | |
| ProRes LT (10 bit, 100Mbps) |
Operating Power
| Monitoring | 3W |
| Rec, Mon & Play | 6W |
| Batteries | All 7.4V |
| 7.2V - 14.4V battery system compatible | 2600mAh - up to 10 hours |
| Any source | 5200mAh - up to 20 hours |
| NP series | 7800mAh - up to 30 hours |
| DTap | AC power via adapter plate (option) |
| Supporting accessories | DTap dummy battery (cables sold separately) |
| Continuous PowerPrimary-secondary battery system | |
| Change batteries without losing power | |
| Loop batteries continuously |
Construction
| Material | Aircraft grade aluminum |
| Dimensions | 4.5 x 3.4 x 1.6 in (11.5 x 8.7 x 4.1 cm) |
| Weight | |
| Without batteries and HDD | .8 lbs (.37 kg) |
| With batteries and HDD | 1.48 lbs (.67 kg) |
Packaging Info
| Package Weight | 2.2 lb |
| Box Dimensions (LxWxH) | 8.9 x 6.2 x 4.4 in |
