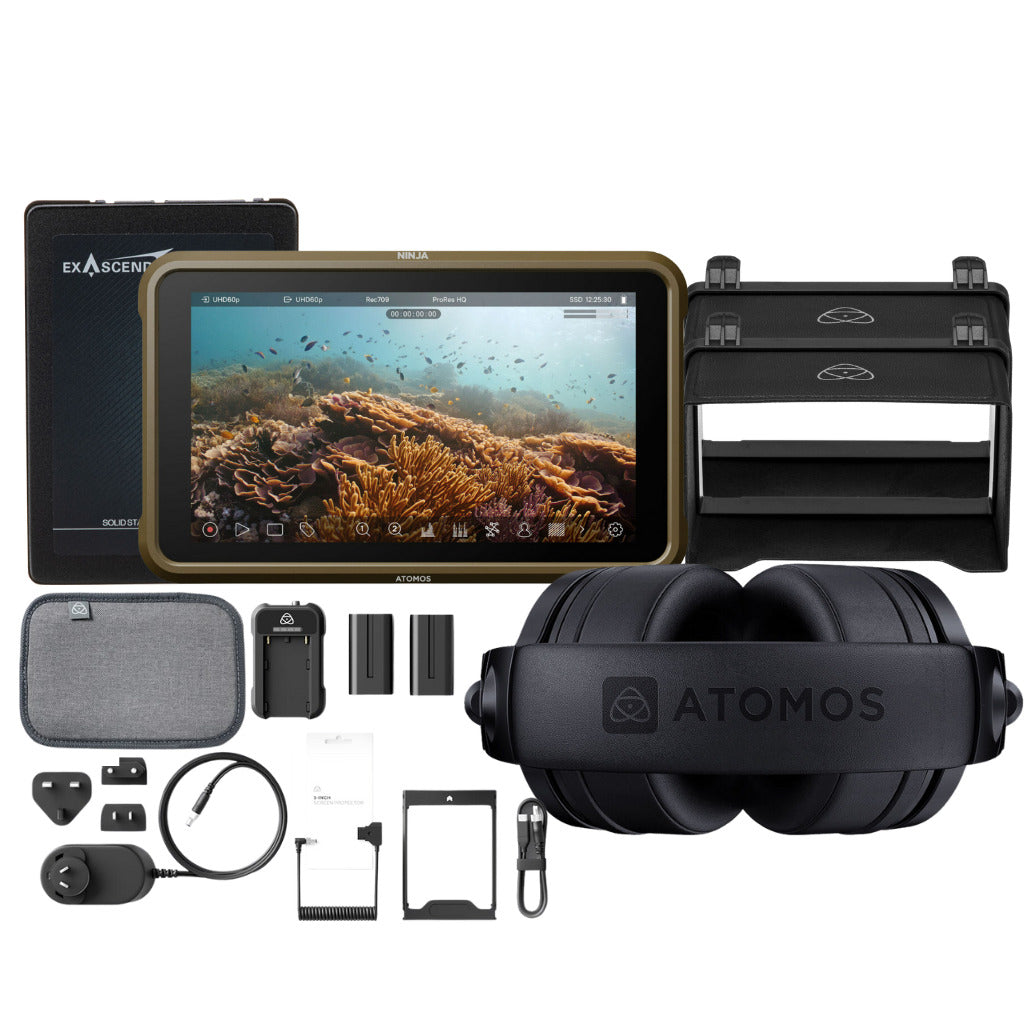

Atomos Ninja 5.2-Inch Touchscreen 1000nit HDR Monitor-Recorder Bundle
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

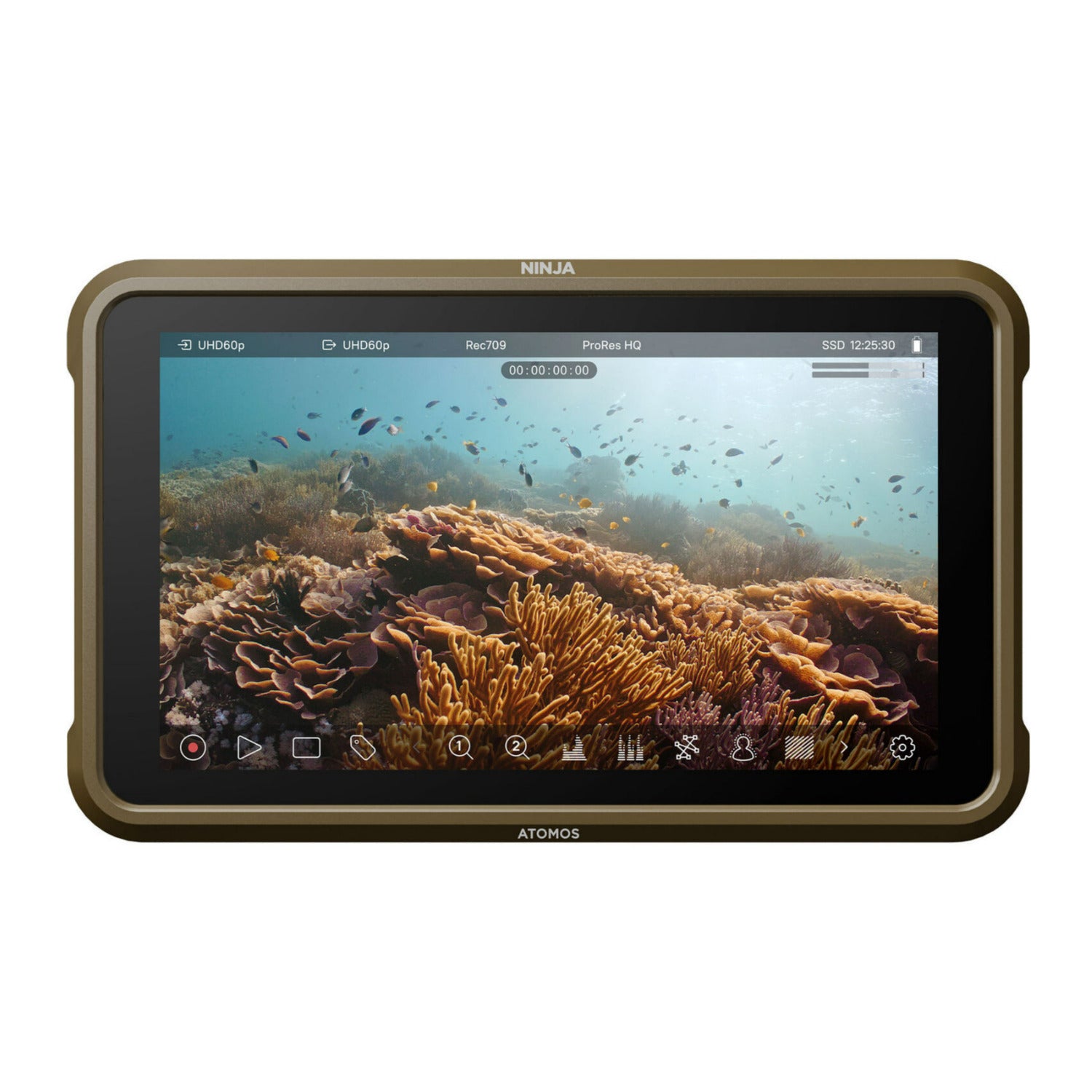

Atomos Ninja 5.2-Inch Touchscreen 1000nit HDR Monitor-Recorder For DSLR And Mirrorless Cameras
The Atomos Ninja is a compact 5.2-inch 1000nit HDR touchscreen monitor-recorder designed for DSLR, mirrorless, and cinema cameras, supporting HDMI and SDI sources from brands like Canon, Sony, Nikon, RED, ARRI, and more. Lightweight and durable, it features a bright 10-bit HDR display, AtomOS 11 for intuitive operation, and advanced monitoring tools like Focus Peaking, Vectorscopes, and AtomHDR for real-time Log>PQ/HLG previewing. Ninja supports ProRes and ProRes RAW recording, including RAW over HDMI or SDI with compatible cameras, offering professional-grade workflows and maximum image flexibility. With the Atomos Connect module, it enables cloud workflows, remote viewing, NDI network integration, and 4K HDR capture for filmmaking, live production, and gaming.
Atomos StudioSonic Professional Wired Headphones - 10Hz–40kHz Hi-Res Audio, Noise Isolation (Black)
The Atomos StudioSonic Professional Wired Headphones are over-ear headphones designed for content creators, engineers, and studio professionals, offering precise, true-to-source audio for recording, editing, mixing, and mastering. Featuring large 50mm high-resolution drivers and a 10Hz–40kHz frequency response, they deliver deep lows, detailed mids, and clear highs without distortion. The headphones provide passive noise isolation, 180-degree swivel ear cups for one-ear monitoring, a detachable 2-meter coiled cable, and dual 3.5mm and 6.3mm jack plugs, requiring no external amplifier.

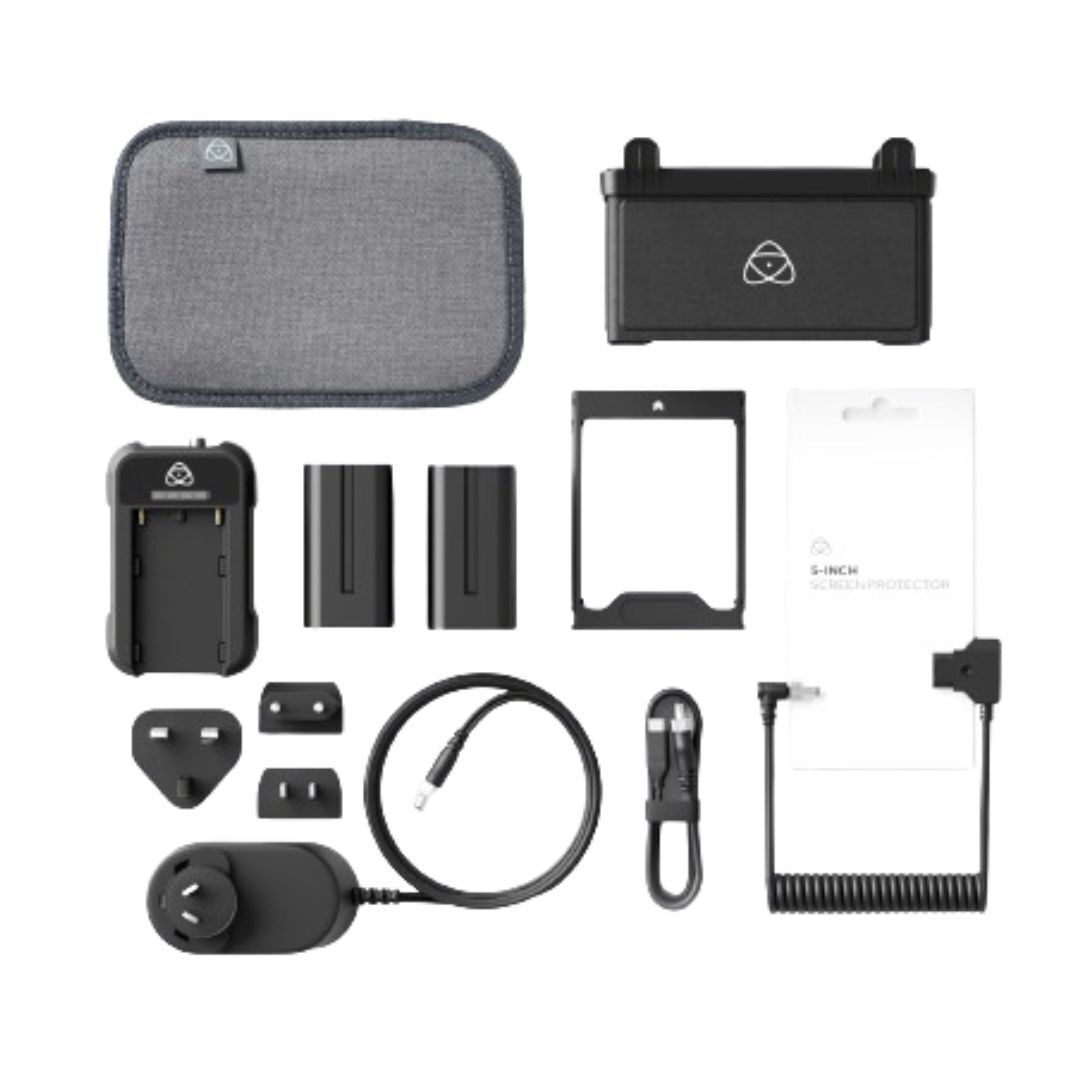

Atomos 5-Inch Monitor and Recorder Accessory Kit with Power Options and SSD Caddy (Version II)
Elevate your Atomos 5-inch monitor and recorder experience with this all-inclusive accessory kit. Stay powered up with versatile power options, ensuring uninterrupted operation wherever your work takes you. The included SSD caddy in Atomos 5-Inch Monitor and Recorder Accessory Kit provides ample storage space and easy access to your media files. Protect your screen with the durable screen protector, keeping it pristine for crystal-clear viewing. Additionally, the sunhood enhances visibility in sunny environments, allowing you to focus on capturing the perfect shot. Upgrade your Atomos setup today with this essential accessory kit.
Atomos Sunhood for Ninja V (Black)
To keep your Atomos Ninja V fully visible in bright light, use the Atomos Sunhood for Ninja V (Black). Designed to block out sunlight, the sunhood features a quick attach/release that will reduce glare and outdoor reflections, enabling full visibility of your Atomos Ninja.
Atomos 240GB SE4 SATA III 2.5 Inch SSD with 555MB/s Read and 530MB/s Write 3D TLC Flash (Black)
The Atomos 240GB SE4 SATA III 2.5-inch SSD delivers up to 555 MB/s read and 530 MB/s write speeds for Atomos Ninja, Ninja Ultra, Sumo, and Shinobi monitors via Master Caddy II or III. With 3D TLC NAND, DDR3 DRAM cache, LDPC error correction, wear leveling, hardware power-off protection, 256-bit AES encryption, and a 2 million-hour MTBF, it ensures reliable, high-speed performance in a compact 7 mm form factor, ideal for professional video recording and editing.
- 5200mAh - up to 2hrs (monitor & record 4K 60p)
- 7800mAh - up to 3hrs (monitor & record 4K 60p)
- Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3,
- Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320
- / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /
- LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog,
- JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm
- Flog, PQ (HDR10), HLG, Nikon N-Log
- Bt2020, DCI P3, PDCI p3 65 Sony SGamut / SGamut3 / SGamut3.cine /
- Canon Cinema / DCI P3 / DCI P3+ / BT2020
- Panasonic V Gamut
- Arri Alexa Wide Gamut
- Rec709
- JVC LS300
- Red DragonColor / DragonColor2 / RedColor2 /
- RedColor3 / RedColor4 / RedWideGamut
- 3D LU+A76T Display: .Cube Format
- 3D LUT Down Stream: Loop out
- 3DLUT 50/50: Yes
- Monitoring Modes: Native / HLG / PQ / 3D LUT
- HDR output Conversion: Log / HDR to HLG / PQ / Dolby Vision
- Colour selected / threshold setting / colour
- / Mono / edges only
- 24/25/30pSF > 24/25/30p (2:2 pulldown)
- 60i > 24p (3:2 pulldown)
- Auto HDMI Trigger, Supported Protocols - Canon, Sony,
- Atomos Open Standard
Atomos Ninja 5.2-Inch 1000nit HDR Monitor-Recorder for DSLR and Mirrorless Cameras
Physical Specifications
| Dimensions (W x H x D mm) | : 151 x 91.5 x 31mm |
| Weight | 360g / 12.7oz |
| Mount points | 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom |
Environmental
| Ambient operating temperature | Up to 40 degrees Celsius |
Construction & Control
| Body | Aluminium with ABS plastic |
| Cooling | Actively controlled fan and heat sink |
| Tally light | Rear and front |
| Multi-function button | Power / lock screen |
| AtomXpansion slot | Yes |
Power
| Input voltage | 6.2V to 16.8V |
| Operating power | 5.8-7.2v (Battery) or min 30W via USB C PD cable |
| Compatible batteries | NPF L series |
| Built in battery | No |
| Battery run time Record | |
| DC in connector | Via DC jack on battery eliminator |
| DTAP | Via battery eliminator and optional DTap to DC cable |
Display
| Touchscreen | SuperAtom IPS panel (capacitive touch) |
| Size | 5.2-inch |
| Resolution | 1920 x 1080 |
| PPI | 427 |
| Bit depth | 10-bit (8+2 FRC) |
| Backlight Type | Edge lit |
| Brightness (cdm2 / Nits) | 1000 |
| Aspect ratio | 16:09 |
| Color Gamut | Rec.709 |
| Calibration support | Atomos Calibrator with Calibrite ColorChecker Display Pro & ColorChecker Display Plus |
| De-interlace mode |
Color Pipeline
| Gamma | |
| Gamut |
Video Input
| HDMI | 1 x HDMI (2.0) 4Kp60 |
| HDMI RAW | Apples ProRes RAW up to 6K with compatible cameras |
| SDI | Optional Via Atomos Connect module |
| SDI RAW | Optional Via Atomos Connect module |
| Bit Depth | 8/10-bit video / RAW up to 16-bit |
| Video Chroma Subsampling | 4:2:2 |
| HDCP copy protection | Not supported |
Metadata
| HDMI | RAW - white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut |
Video Output
| HDMI | 1 x HDMI (2.0) 4Kp60 |
| RJ45 / GigE | Optional Via Atomos Connect module |
| Wi-Fi 6 | Optional Via Atomos Connect module |
| Video Chroma Subsampling | 4:2:2 |
| Bit Depth | 10-bit video |
Web Streaming
| USB UVC | Optional Via Atomos Nexus 4K or AtomX Cast |
| RJ45 / GigE | Optional Via Atomos Connect module |
| RTMP / S | Optional Via Atomos Connect module |
Video Signal Conversion
| HDMI to SDI | Optional Via Atomos Connect module |
| SDI to HDMI | Optional Via Atomos Connect module |
Audio In/Out
| Audio Quality | 24/48kHz |
| Audio Codec | PCM |
| HDMI | 8ch 24-bit, input dependent |
| SDI | 12ch 24-bit, input dependent |
| Analogue Audio in | 3.5mm 2ch. |
| Headphone out | 3.5mm 2ch. |
| Audio input delay | User definable from menu |
Timecode / Sync / Control
| Embedded | HDMI and SDI |
| Time of day | Yes, Time and Date |
| LTC | Optional Via Atomos Connect module |
| Genlock | Optional Via Atomos Connect module |
| Wireless AirGlu RF Server and Client | Optional Via Atomos Connect module |
| Wireless AirGlu BT Server | Optional Via Atomos Connect module |
Resolution & Frame Rates (Record, Monitor & Playback)
| 6K | RAW Only up to 30p via HDMI |
| 4K DCI | 23.98/24/25/29.9/30/50/59.94/60p |
| 4K UHD | 23.98/24/25/29.9/30/50/59.94/60p |
| 2K DCI 2046 x 1080 | Optional via AtomX SDI module |
| Anamorphic | 3.5k: RAW up to 60p (from supported cameras only) |
| FHD 1920 x 1080 Progressive | 23.98/24/25/29.9/30/50/59.94/60/100/120p |
| FHD 1920 x 1080 PsF | converted to P and looped out PsF |
| FHD 1920 x 1080 Interlaced | 23.98/24/25/29.9/30/50/59.94/60i |
| 1280 x 720p | 50/59.94/60p |
| Supported base resolution & FPS |
Recording CODEC
| Apple ProRes Raw | ProRes RAW, HQ |
| Apple ProRes | LT, 422, 422HQ |
| Avid DNxHD | DNxHD 220x,220,145,36 |
| Avid DNxHR | LB, SQ, HQ, HQX. |
| H.265 | LQ,MQ,HQ,XQ in 8/10Bit, 4 2 2 and 4 2 0 |
Playback
| Playlist | Yes, Create customer play lists from full or sub clips |
| Loop | Yes, with user customisable in / out markers |
| Apple ProRes Raw | Yes, recorded clips |
| Apple ProRes | Yes, with Linear PCM audio |
| Avid DNx | Yes, with Linear PCM audio |
| H.265 | Yes |
Recording functions
| Pre-roll record | Yes (HD 8s, 4K 2s) - Not available in RAW |
| Timelapse | Yes |
| Simultaneous proxy record | Yes |
Multi Input / Switching
| Multiple HDMI input | Optional via AtomX Cast |
| Multiview Display | Optional via AtomX Cast |
| Multiview Ouput | Optional via AtomX Cast |
| Picture in Picture (PIP) | Optional via AtomX Cast |
| Graphic overlays | Optional via AtomX Cast |
| Input transitions | Optional via AtomX Cast |
Supported media
| Master Caddy I | Not compatible |
| Master Caddy II | For 2.5-inch hard drives in MasterCaddy II |
| Master Caddy III | For 2.5-inch hard drives in MasterCaddy III (needed for Atomos Connect) |
| SSDmini | Native size and fit |
| CFAST II | With supported cards via optional SSDmini CFAST II Adaptor |
| File Naming | Unit Name - Scene/Shot/Take |
| File System | ExFAT |
On screen tools
| Waveform | Yes, 3 size / Position |
| RGB parade | Yes, 3 size / Position |
| Vector scope | Yes, 2 size / Position |
| 1 x Zoom | Yes. 1:1 Pixel mapping for 4K |
| 2 x Zoom | Yes |
| Focus peaking | |
| Atomos False color | Yes, with Scale |
| ARRI False color | Yes |
| EL Zone | Yes |
| Zebra | Yes, Adjustable |
| Isolate color channel | Blue Only |
| Cine Frame Guides | 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
| Social Frame guides | 9:16, 1:1, 191:1, 4:5 |
| Onion Skin | Yes |
| Safe areas | Action and Graphic |
| Grid markers | 9 grid |
| Anamorphic desqueeze | 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x |
| Display Flip | Vertical Only |
Onboard Signal Processing
| Pulldown removal | |
| 4K UHD downscale for HD | Loop out - 4K UHD to FHD |
| DCI Crop | Loop out - 17:9 to 16:9 Crop |
Remote Control
| HDMI | |
| SDI | SDI trigger camera selectable with Atomos Connect |
| LANC control and calibration via optional USB to serial cable | |
| AirGlu BT | Optional Via Atomos Connect module |
| AirGlu RF | Optional Via Atomos Connect module |
| Serial 2.5mm Jack |
External Device Control
| Serial 2.5mm Jack | Camera control for supported cameras via Optional USB to Serial Cable |
| Bluetooth LE | Optional Via Atomos Connect module |
| Wireless RF | Optional Via Atomos Connect module |
Supported Applications
| XML | Cut tag EDL in FCPX XML |
| Apple ProRes Raw | Apple FCPX, Adobe Premiere, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light. |
| Video Codecs | All Applications with support for Apple ProRes and Avid DNx in .MOV wrapper |
Warranty
| Standard | 1 year. Extended to 2 years on product registration. Atomos Care360 available as subscription |

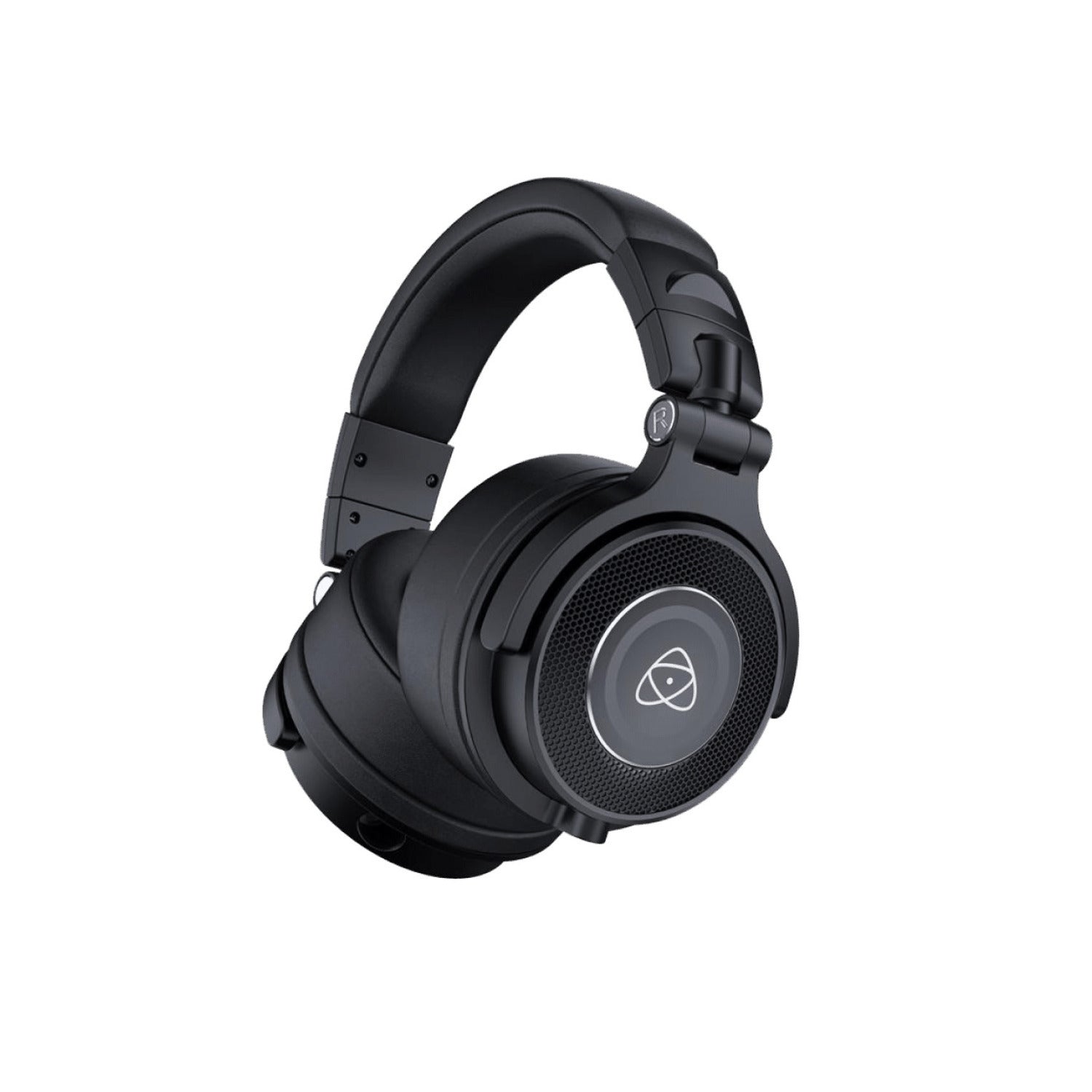

Atomos StudioSonic Professional Wired Headphones (Black)
| Dimensions (W x H x D mm) | 200mm x 205mm x 105mm |
| Ambient operating temperature | Up to 55 degrees Celsius |
| Body | ABS |
| Operating power | 10mW |
| Type | Dynamic Speaker |
| Sensitivity | 105 ±3dB |
| Impedance | 38Ω ±15% @ 1KHz |
| Frequency | 20Hz-20KHz |
| Voice coil | CCAW |
| Magnet | Nd-Fe-B |
| Warranty | Standard 1 year. Extended to 2 years on product registration |
Atomos 240GB SE4 SATA III 2.5 Inch SSD with 555MB/s Read and 530MB/s Write 3D TLC Flash (Black)
| Storage Capacity | 240 GB |
| Interface | SATA III (6 Gb/s) |
| Maximum Read Speed | 555 MB/s |
| Maximum Write Speed | 530 MB/s |
| MTBF (Mean Time Between Failures) | 2,000,000 Hours |
| Error Correction | LDPC |
| Wear Leveling | Static and Dynamic |
| Cache | DDR3 DRAM |
| Flash Type | 3D TLC NAND |
| Encryption | 256-Bit AES |
| Operating Temperature | 0 degrees to 70 degrees Celsius (32 degrees to 158 degrees Fahrenheit) |
| Shock Resistance | 50 G / 11.00 ms |
| Form Factor | 2.5 inch / 7mm |
| Compatibility | Atomos Ninja, Ninja Ultra, Sumo, Shinobi series via Master Caddy II or III |
