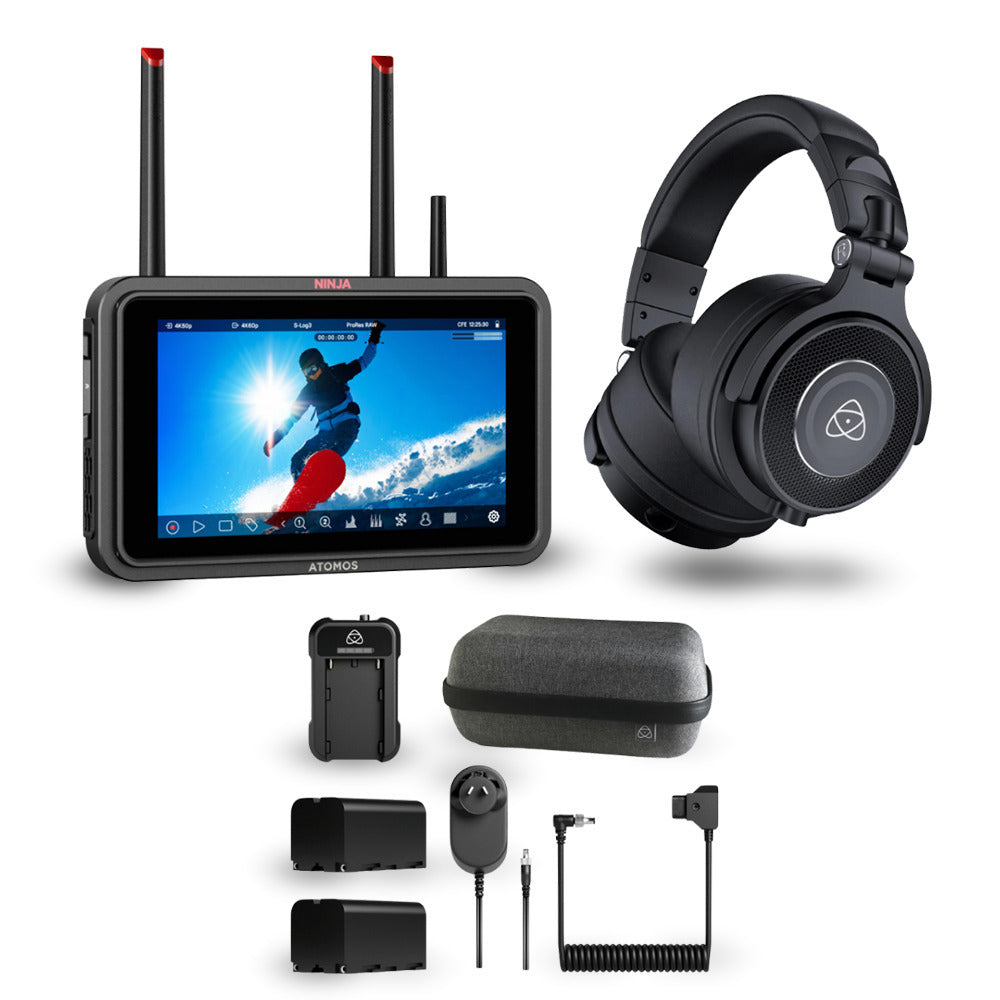

Atomos Ninja TX 5-inch Monitor Recorder Bundle with Headphones and ...

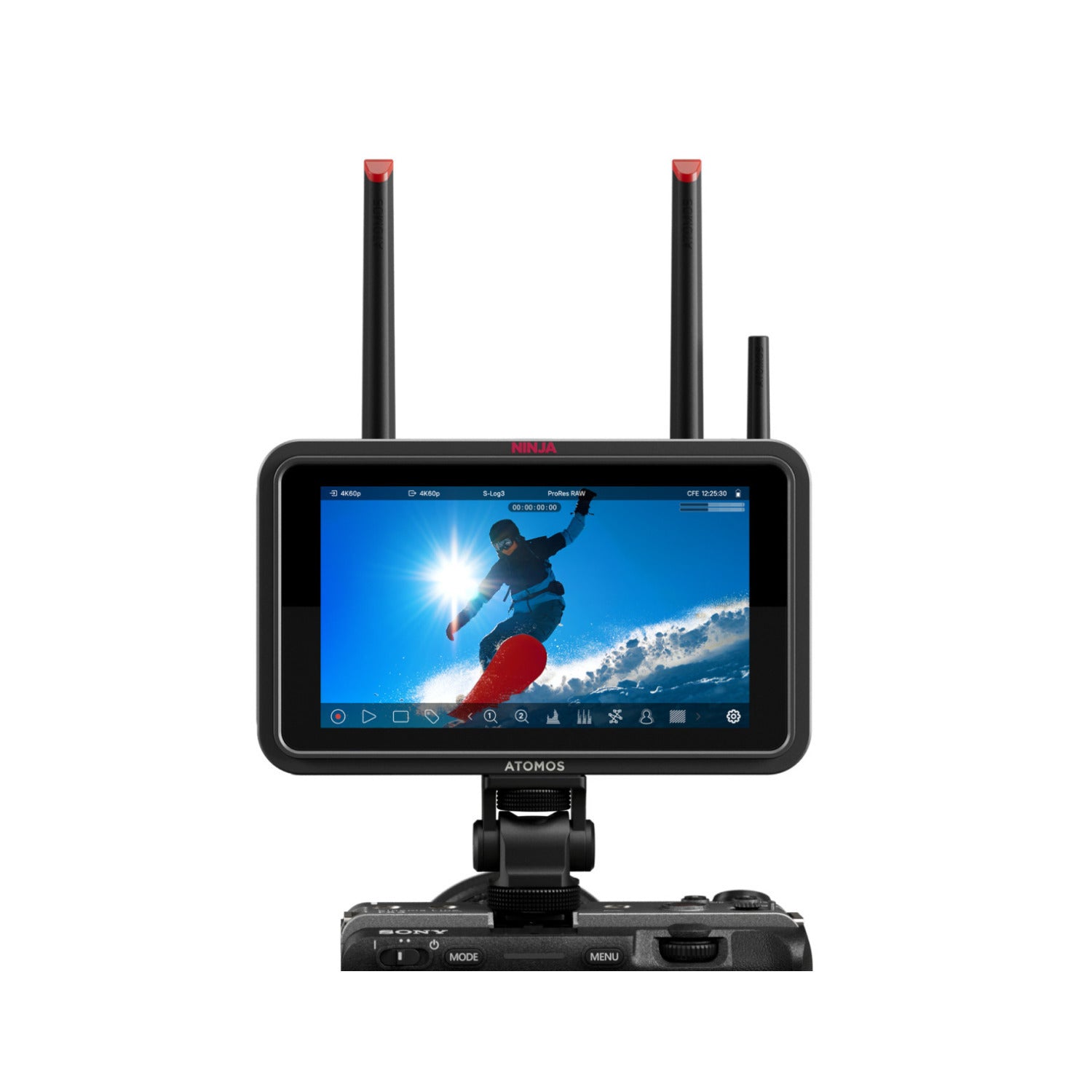

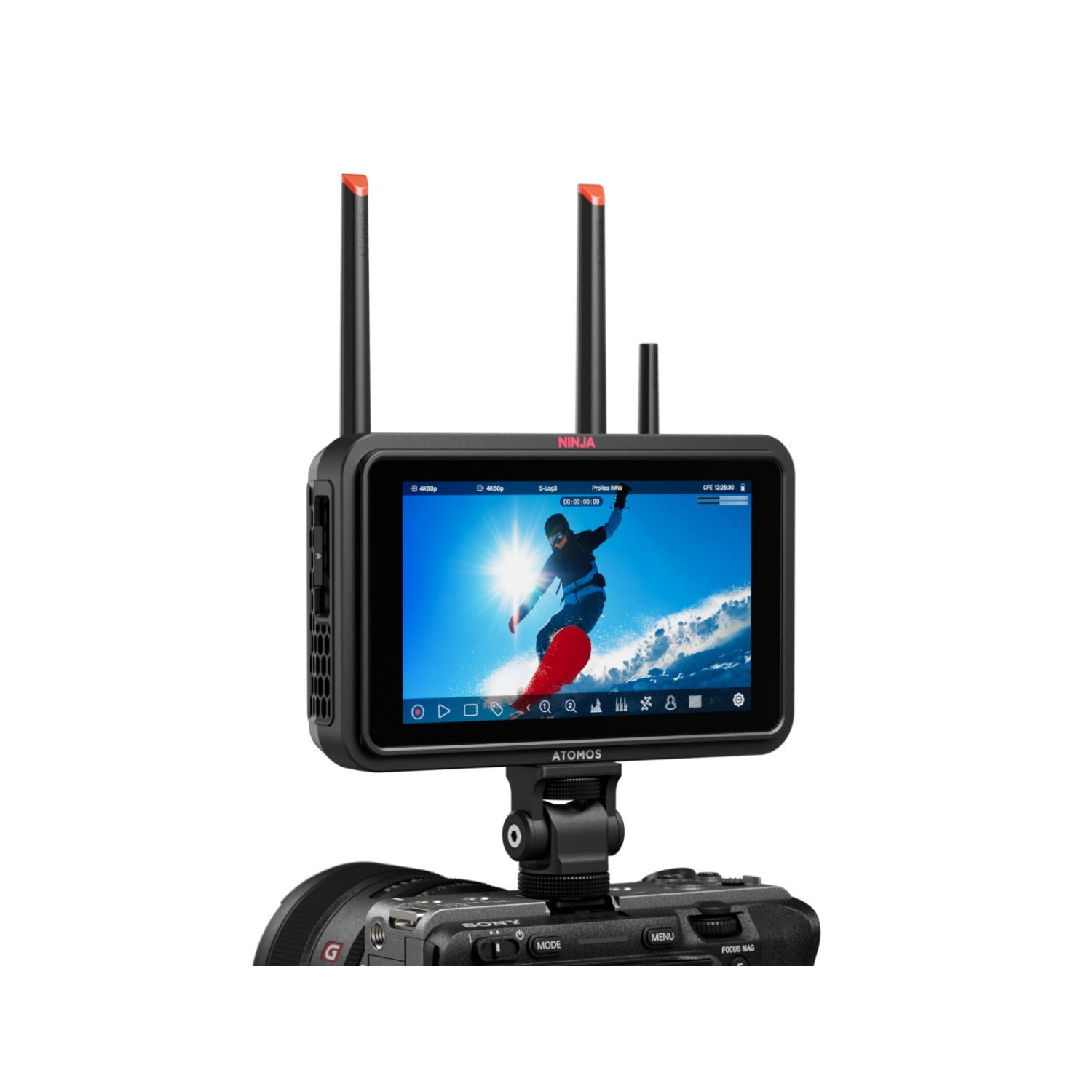

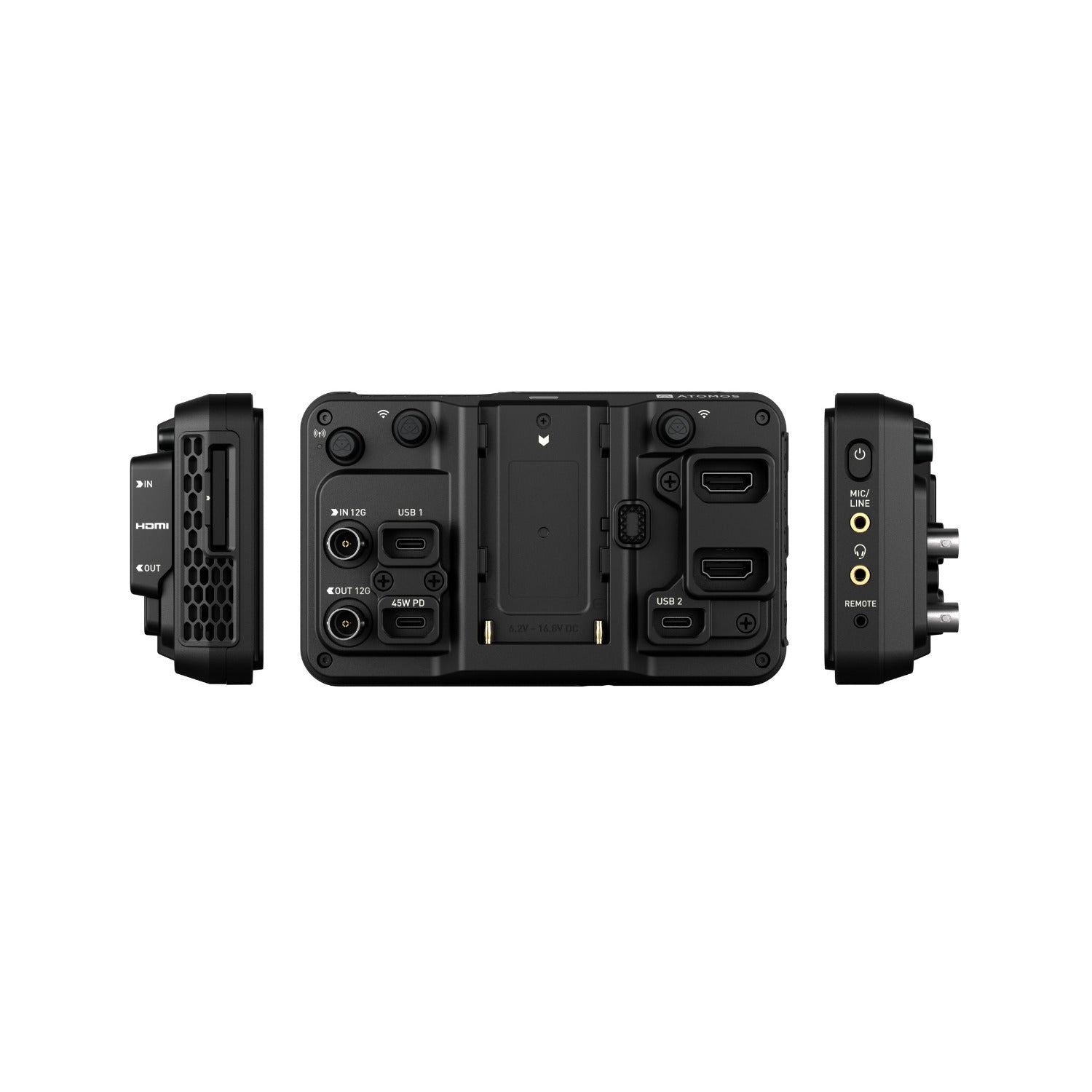

Atomos Ninja TX 5-inch 1500nit Monitor Recorder with 8K RAW Capture Apple ProRes HDMI SDI Inputs
Ninja TX combines SDI and HDMI inputs and outputs, Apple ProRes/RAW recording to ultra-fast CFexpress or external USB media, with a full suite of professional monitoring tools. It features built-in camera-to-cloud with free ATOMOSphere membership, supports NDI 6 streaming, and runs on the lightning-fast AtomOS Linux platform. No other monitor-recorder packs so much performance and compatibility into such a compact, connected device.
Key Features
- Record in Apple ProRes, Avid DNx or H.265/H.264

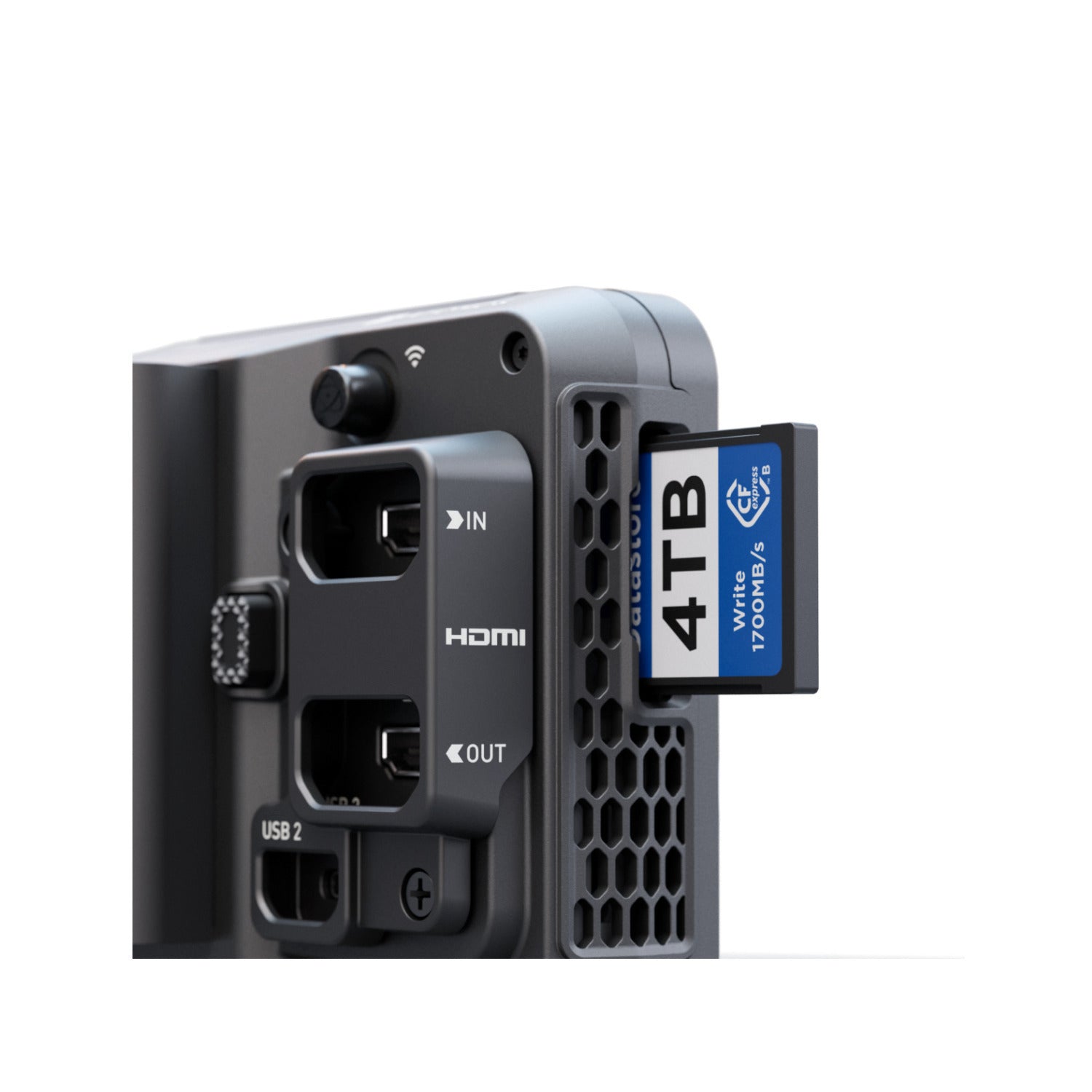

- Capture up to 8K RAW to CFexpress Type B or USB-C storage
- Super-bright, 1500nit 5-inch touchscreen display
- HDMI 2.0, 12G-SDI and Wi-Fi 6E input and output
- Supports NDI streaming (TX and RX)
- AtomOS Linux-based operating system
- Direct upload to ATOMOSphere, Frame.io, Dropbox
- Timecode sync over RF or Bluetooth
- Powered by USB-C, NP-F battery or AC adaptor
- Get 20GB cloud storage FREE with ATOMOSphere

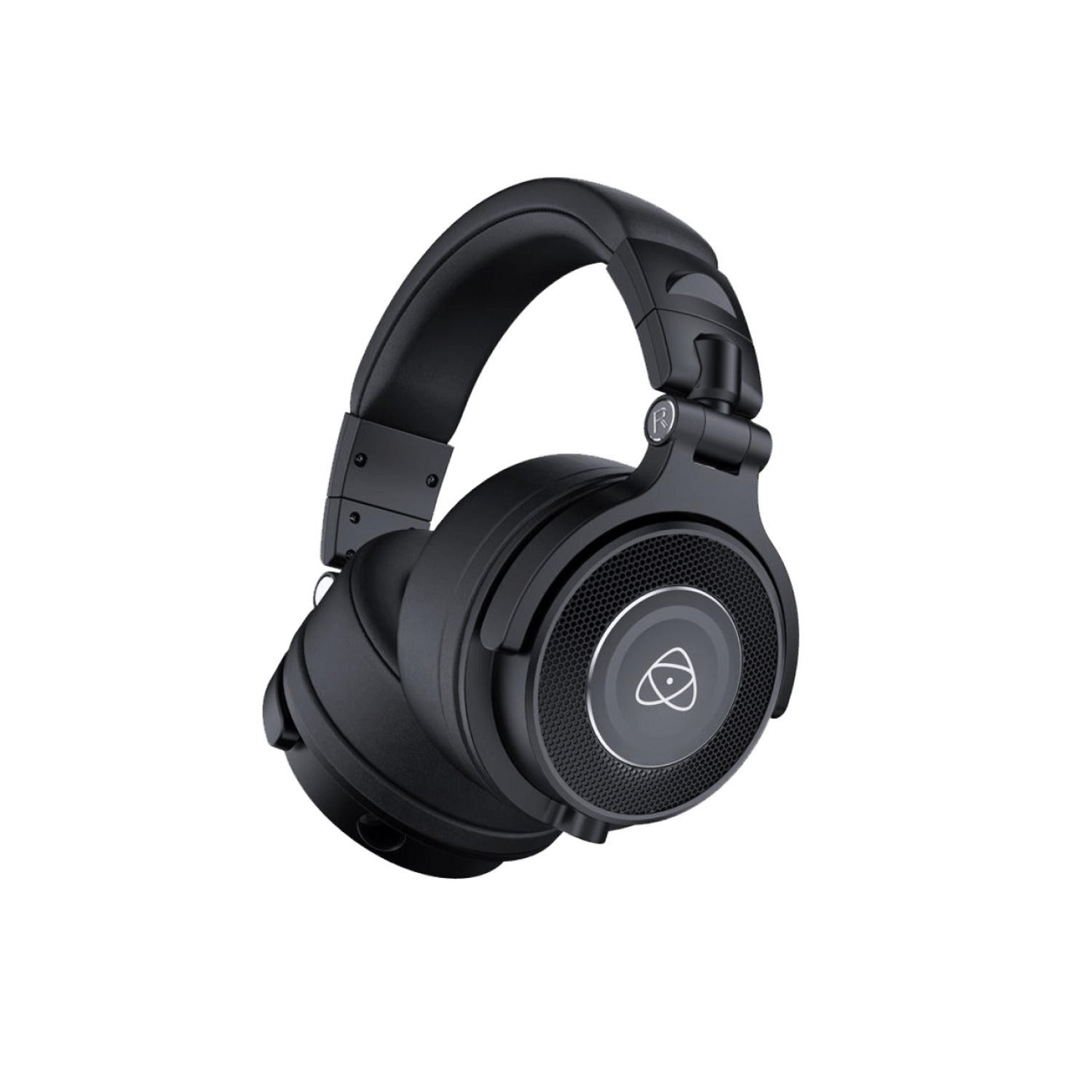

Atomos StudioSonic Professional Wired Headphones - 10Hz–40kHz Hi-Res Audio, Noise Isolation (Black)
StudioSonic wired over-ear headphones are designed for content creators, engineers, and studio professionals who demand accurate, true-to-source audio. Featuring large 50mm high-resolution drivers and an ultra-wide 10Hz–40kHz frequency response, they deliver deep lows, detailed mids, and crystal-clear highs without artificial enhancements or distortion. The over-ear design offers passive noise isolation, while 180-degree swivel ear cups enable one-ear monitoring. A detachable 2-meter coiled cable and dual 3.5mm + 6.3mm jack plugs provide flexible connectivity—no external amplifier required.
Atomos Universal Power Kit for Monitors and Monitor-Recorders with NP-F Batteries and AC-DC Adapter
Keep your monitors and monitor-recorders powered anytime, anywhere with this complete Universal Power Kit. Designed for professionals on the go, it includes everything you need for reliable, portable power. The durable, waterproof carry case ensures safe transport, while two high-capacity 5200mAh NP-F batteries provide extended runtime. Charge efficiently with the fast battery charger, or power devices directly using the 12V 3A AC-DC adaptor. The included D-Tap to DC cable adds versatility, making this kit ideal for a wide range of setups.
Atomos Ninja TX 5-inch 1500nit Monitor Recorder with 8K RAW Capture Apple ProRes HDMI SDI Inputs
Environmental
| Ambient operating temperature | Up to 40 degrees Celsius |
Construction
| Body | Aluminium with ABS plastic |
| Cooling | Actively controlled fan and heat sink |
Power
| Input voltage | 6.2V to 16.8V DC |
| Operating power | Up to 30W |
| Multi-function button | Power / lock screen |
| Continuous power | Via NP-F battery or USB-C PD Power |
| DC in connector | Via Battery Eliminator (optional) |
| DTAP | Up to 13W |
| USB PD IN | 45W capable, power supply required |
| USB PD OUT | Up to 13W |
Display
| Size | 5.2-inch |
| Resolution | 1920 × 1080 |
| Backlight Type | Edge lit |
| Brightness (cdm2 / Nits) | 1500 |
| Aspect ratio | 16:9 |
| Color Gamut | Rec. 709 |
| Calibration support | Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable |
Color Pipeline
| Gamma | Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / |
| LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC | |
| J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log | |
| Gamut | BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / |
| RedColor2 / RedColor3 / RedColor4 / RedWideGamut | |
| 3D LUT Display | .Cube format |
| 3D LUT Down Stream | Loop out |
| 3DLUT 50/50 | Yes |
| Monitoring Modes | Native / HLG / PQ / 3D LUT |
| HDR Output Conversion | Log / HDR to HLG / PQ |

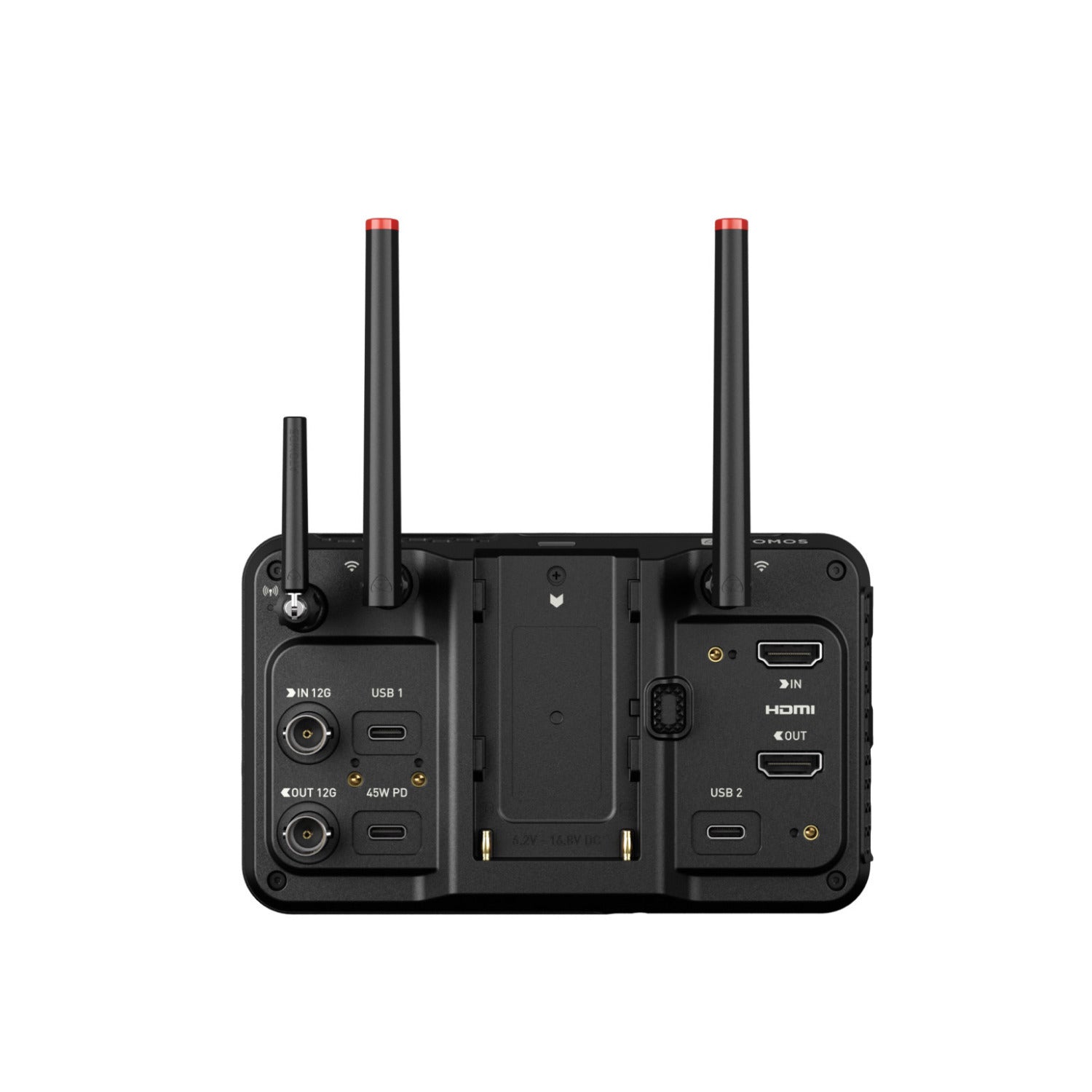

Video Input
| HDMI | 1 x HDMI (2.0) up to 4K60P + RAW |
| Locking port | Optional |
| SDI | 12G |
| Wi-Fi | Wi-Fi 6E |
| USB | 2 x USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
| Video Chroma Subsampling | 4:2:2 |
Video Output
| HDMI | 1 x HDMI 2.0 |
| Locking port | Bracket provided; HDMI locking cable purchased separately |
| SDI | 12G |
| Wi-Fi | Wi-Fi 6E |
| USB | 2 x USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
| Video Chroma Subsampling | 4:2:2 |
Metadata
| HDMI | RAW - white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut |
Network
| Wi-Fi | Wi-Fi 6E |
| USB | 2 x USB-C 3.0 |
Connectivity
| Bluetooth | Yes |
| LANC | Yes |
Video Signal Conversion
| HDMI to SDI | Yes |
| SDI to HDMI | Yes |
Audio In/Out
| HDMI | 8-channel, 24-bit |
| SDI | 12-channel, 24-bit |
| Analogue Audio Line In | 3.5mm headphone jack, 2-channel input |
| Headphone Out | 3.5mm headphone jack, 2-channel |
Timecode
| Embedded | HDMI & SDI |
| Time of day | Yes |
| Reference / Genlock input | No |
| LTC | No |
| Wireless AirGlu RF Server and Client | Yes |
| Wireless AirGlu BT Server | Yes |
| Resolution and Frame Rates (Record, Monitor and Playback) | |
| RAW | Up to 6Kp60/8Kp30 |
| 4K DCI | 23.98/24/25/29.9/30/50/59.94/60p |
| 4K UHD | 23.98/24/25/29.9/30/50/59.94/60p |
| 2K DCI 2048 × 1080 | Yes |
| 1080p | 23.98/24/25/29.9/30/50/59.94/60/100/120p |
| 1080 PsF | Converted to P and looped out PsF |
| 1080i | 50/59.94/60i |
| 720p | 50/59.94/60p |
Supported Media
| CF Express | Atomos certified CF Express type B media |
| USB | Atomos certified USB 3.0 media |
| File System | EXFAT |
Codecs
| Apple ProRes RAW | ProRes RAW, ProRes RAW HQ |
| Apple ProRes | LT, 422, 422 HQ |
| Avid DNxHD | DNXHD 220x, 220, 145, 36 |
| Avid DNxHR | LB, SQ, HQ, HaX |
| H.265 | LQ, MO, HQ, XQ in 8/10-bit, 4:2:2 and 4:2:0 |
Playback
| Playlist | Yes - create customer playlists from full or sub-cli |
| Loop | Yes, with user-customizable in/out markers |
| Apple ProRes RAW | Yes - recorded clips |
| Apple ProRes | Yes, with linear PCM audio |
| Avid DNx | Yes, with linear PCM audio |
| H.265 | Yes |
Recording
| Pre-roll | ProRes, DNxHD only |
| Timelapse | Yes |
| Simultaneous Proxy Record | Yes |
On-screen Monitoring Tools
| Waveform | 3 sizes - adjustable opacity and brightness |
| RGB parade | 3 sizes - adjustable opacity and brightness |
| Vectorscope | 2 sizes - adjustable opacity and brightness |
| 1 x Zoom | Yes. 1:1 pixel mapping for 4K |
| 2 x Zoom | Yes |
| Focus peaking | Colour selected / threshold setting / colour / mono / edges only |
| Atomos False Color | Yes, with scale |
| ARRI False Color | Yes |
| EL ZONE | Yes |
| Zebra | Yes, adjustable |
| Isolate color channel | Blue Only |
| Cine Frame Guides | Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
| Social Frame guides | Presets for 9:16, 1:1, 191:1, 4:5 |
| Onion Skin | Yes |
| Safe areas | Action and graphic |
| Grid markers | 9 grid |
| Anamorphic desqueeze | 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x |
| Display Flip | Vertical only |
Onboard Signal Processing
| Pulldown removal | 24 / 25 / pSF pSF > 24/25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown) |
| 4K UHD downscale for HD | Loop out - 4K UHD to FHD |
| DCI Crop | Loop out - 17:9 to 16:9 crop |
Remote Control
| HDMI | Auto HDMI trigger, supported protocols - Canon, Sony, Atomos |
| SDI | SDI trigger camera selectable |
| Serial 2.5mm Jack | Calibration via optional USB to serial cable |
| AirGlu BT | Yes |
| AirGlu RF | Yes |
Camera to Cloud
| ATOMOSphere | Direct progressive upload supported (20GB free storage) |
| Adobe Frame.io | Direct progressive upload supported (separate purchase) |
| Dropbox | Direct progressive upload supported (separate purchase) |

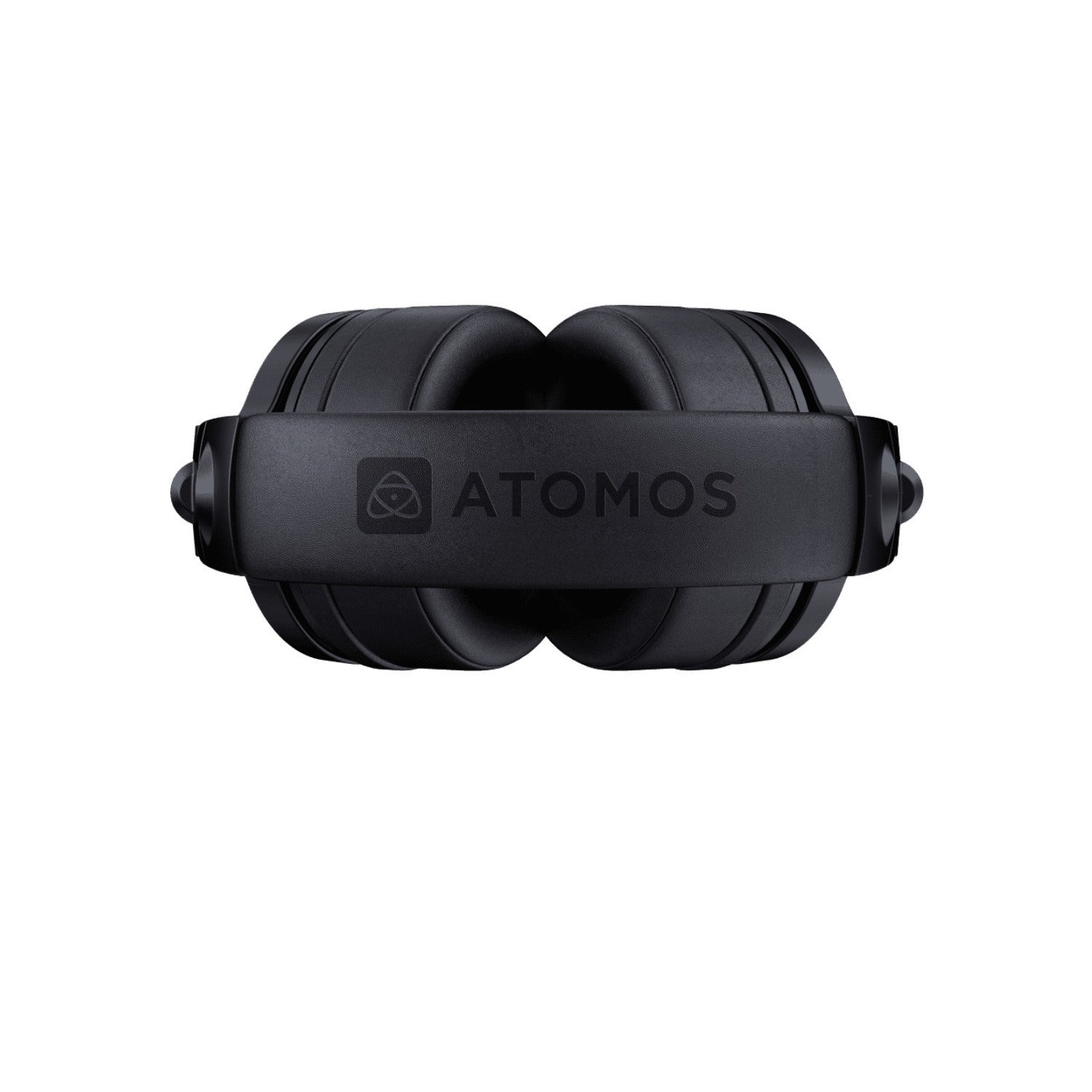

Atomos StudioSonic Professional Wired Headphones - 10Hz–40kHz Hi-Res Audio, Noise Isolation (Black)
| Dimensions (W x H x D mm) | 200mm x 205mm x 105mm |
| Ambient operating temperature | Up to 55 degrees Celsius |
| Body | ABS |
| Operating power | 10mW |
| Type | Dynamic Speaker |
| Sensitivity | 105 ±3dB |
| Impedance | 38Ω ±15% @ 1KHz |
| Frequency | 20Hz-20KHz |
| Voice coil | CCAW |
| Magnet | Nd-Fe-B |
| Warranty | Standard 1 year. Extended to 2 years on product registration |
Atomos Universal Power Kit for Monitors and Monitor-Recorders with NP-F Batteries and AC-DC Adapter
General
| Compatibility | Atomos Ninja Series / Shinobi Series / Shogun Series / Legacy Monitors |
Power
| Power Source | Battery (Included), AC Input (Included) |
| Battery Type | 2 x Sony L-Series Lithium-Ion |
| Cable Type | 1 x D-Tap to DC Barrel, 1 x AC Wall Outlet to DC Barrel |
Physical
| Color | Black |
Packaging Info
| Package Weight | 3.1 lb |
| Box Dimensions (L x W x H) | 7.1 x 4.2 x 1.5 Inches |
