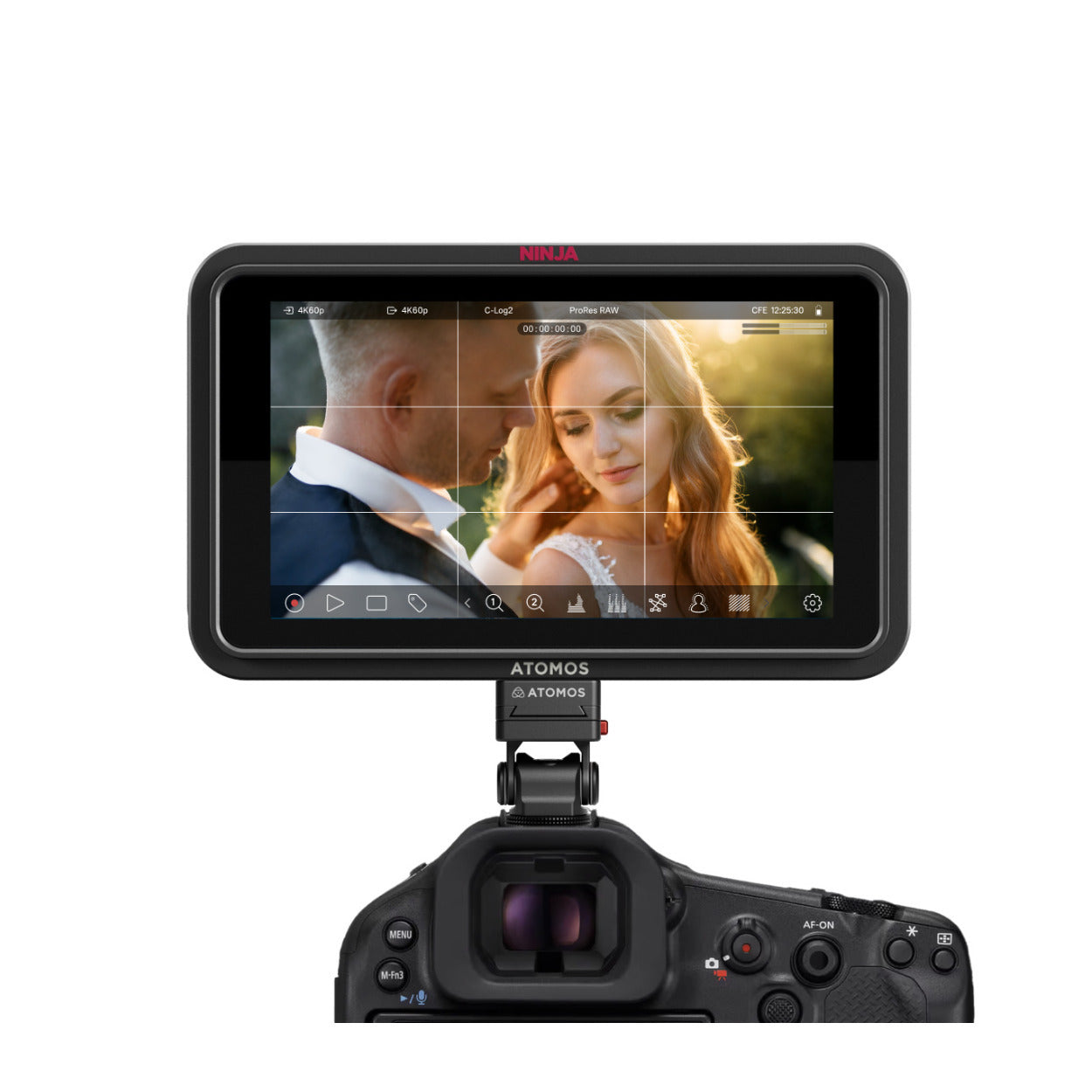

Atomos Ninja TX GO with Super-Bright 1500nit 5-Inch Touchscreen Display
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Ninja TX GO combines HDMI I/O, Apple ProRes/RAW recording to ultra-fast CFexpress or external USB media, with a full suite of professional monitoring tools, camera control and touch to focus. It features built-in camera-to-cloud, supports NDI 6 streaming, and runs on the lightning-fast AtomOS Linux platform. Ideal for content creators with HDMI DSLRs and mirrorless cameras.
High-Resolution Touchscreen Display

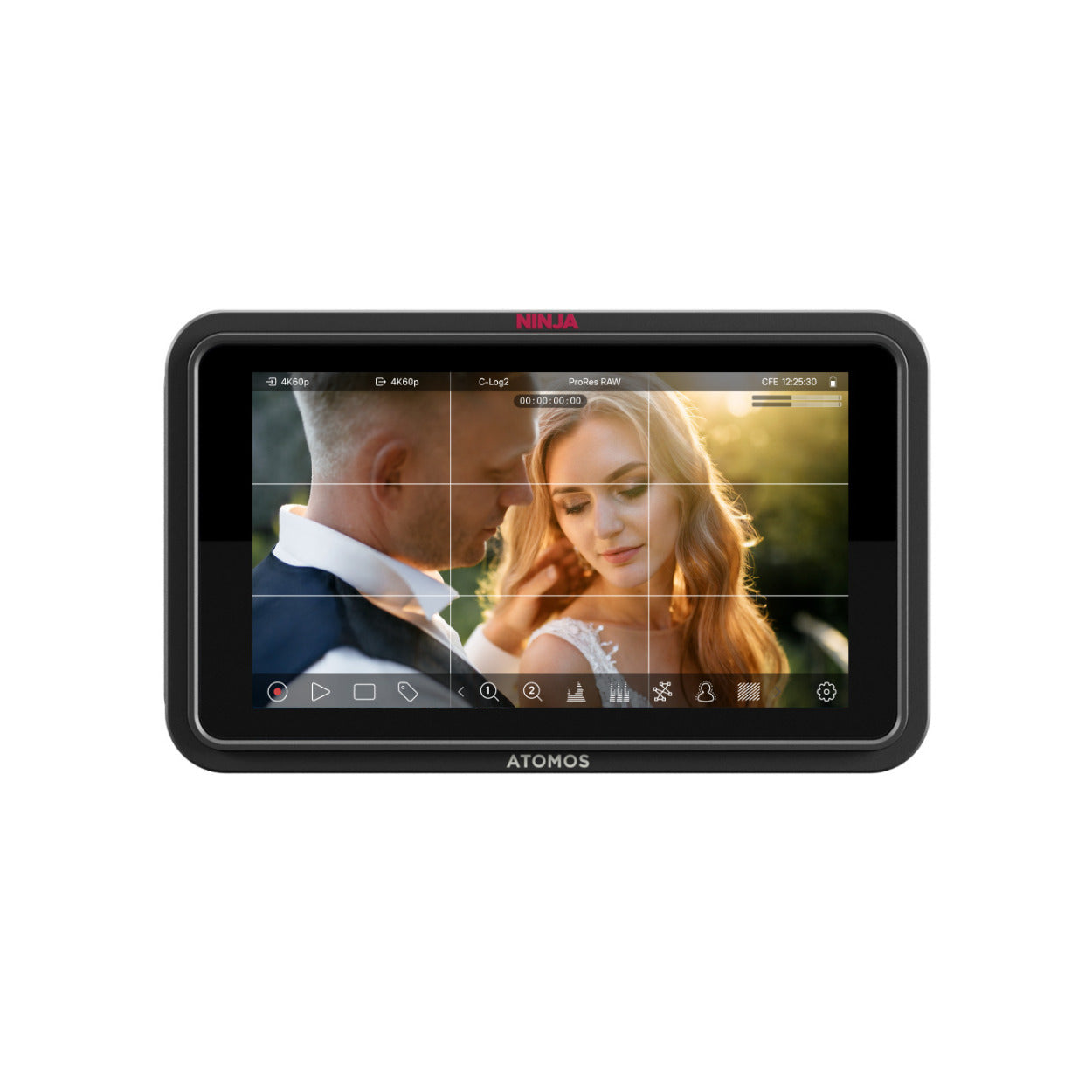

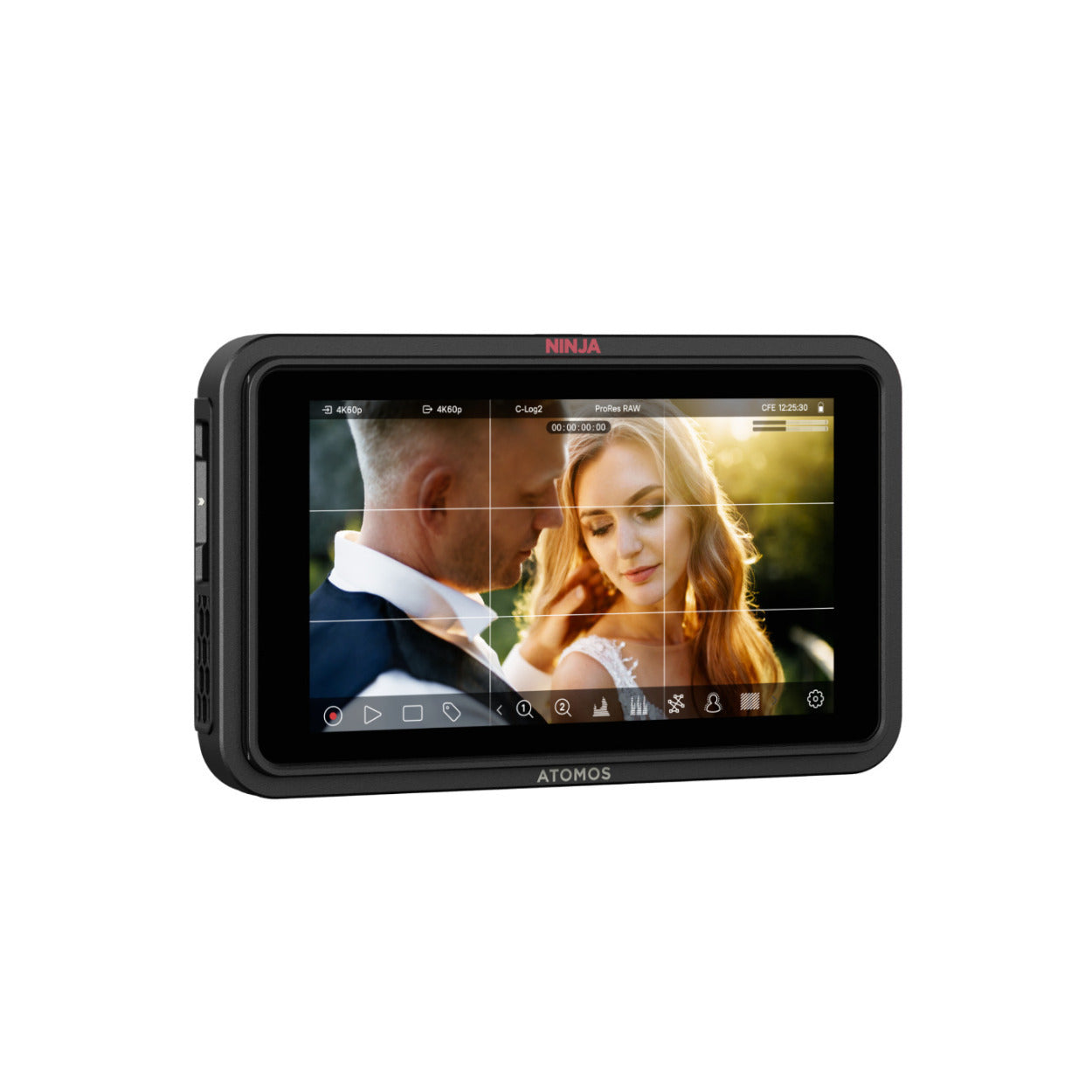

Equipped with a 5-inch, 1500nit touchscreen display, the Ninja TX GO provides clear visibility even in bright lighting. The screen allows for easy access to settings, touch-to-focus functionality, and intuitive control during shoots.
Professional Recording Formats
Record directly in Apple ProRes, ProRes RAW, Avid DNx, or H.265/H.264. All codecs are pre-loaded for efficient, ready-to-use recording without additional setup. This flexibility ensures compatibility with major editing software like DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro, and Avid Media Composer.
Versatile Media Support

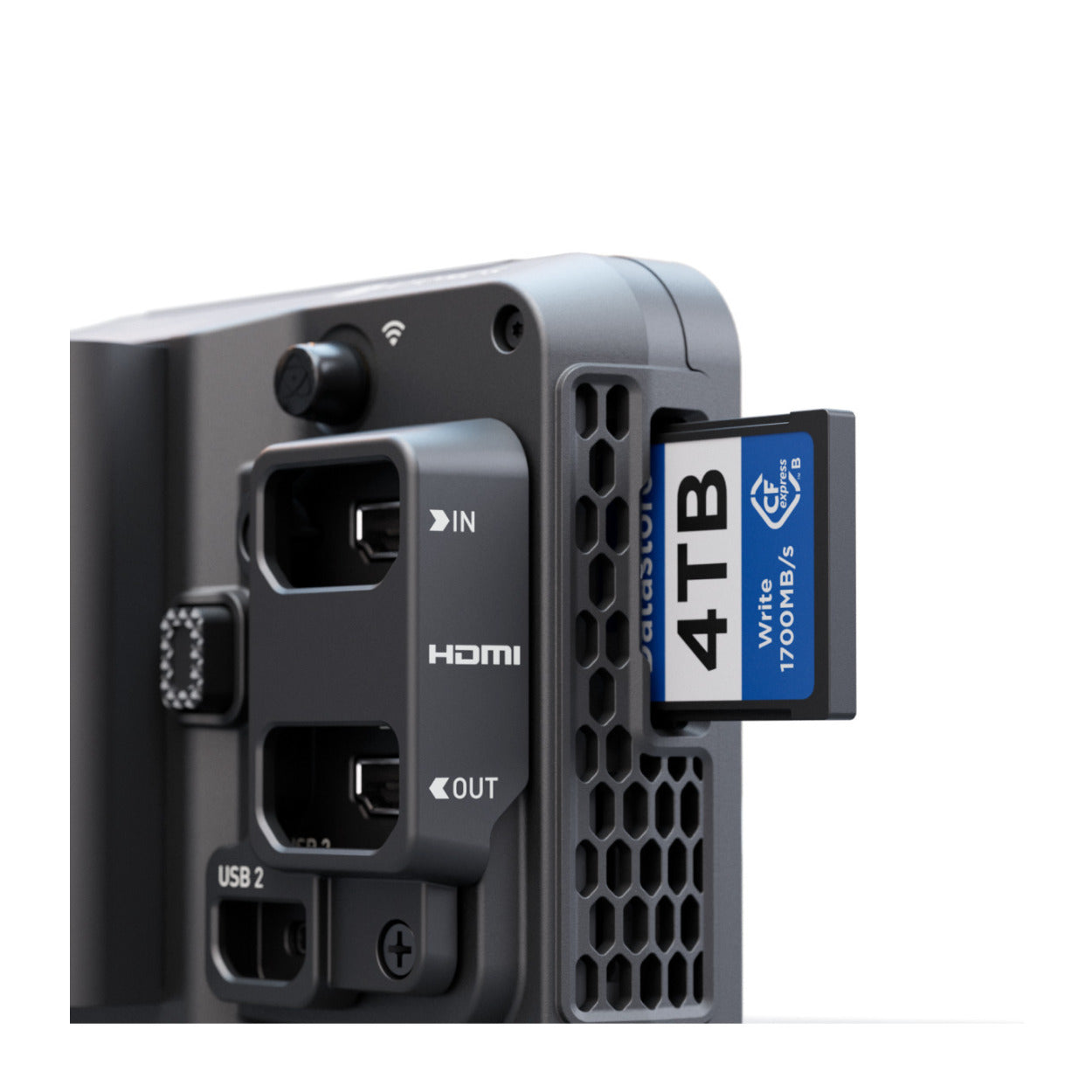

Capture up to 6K RAW footage to CFexpress Type B or USB-C storage devices. This flexibility allows creators to choose between internal or external media, ensuring faster data transfer and extended recording time.
Advanced Connectivity Options

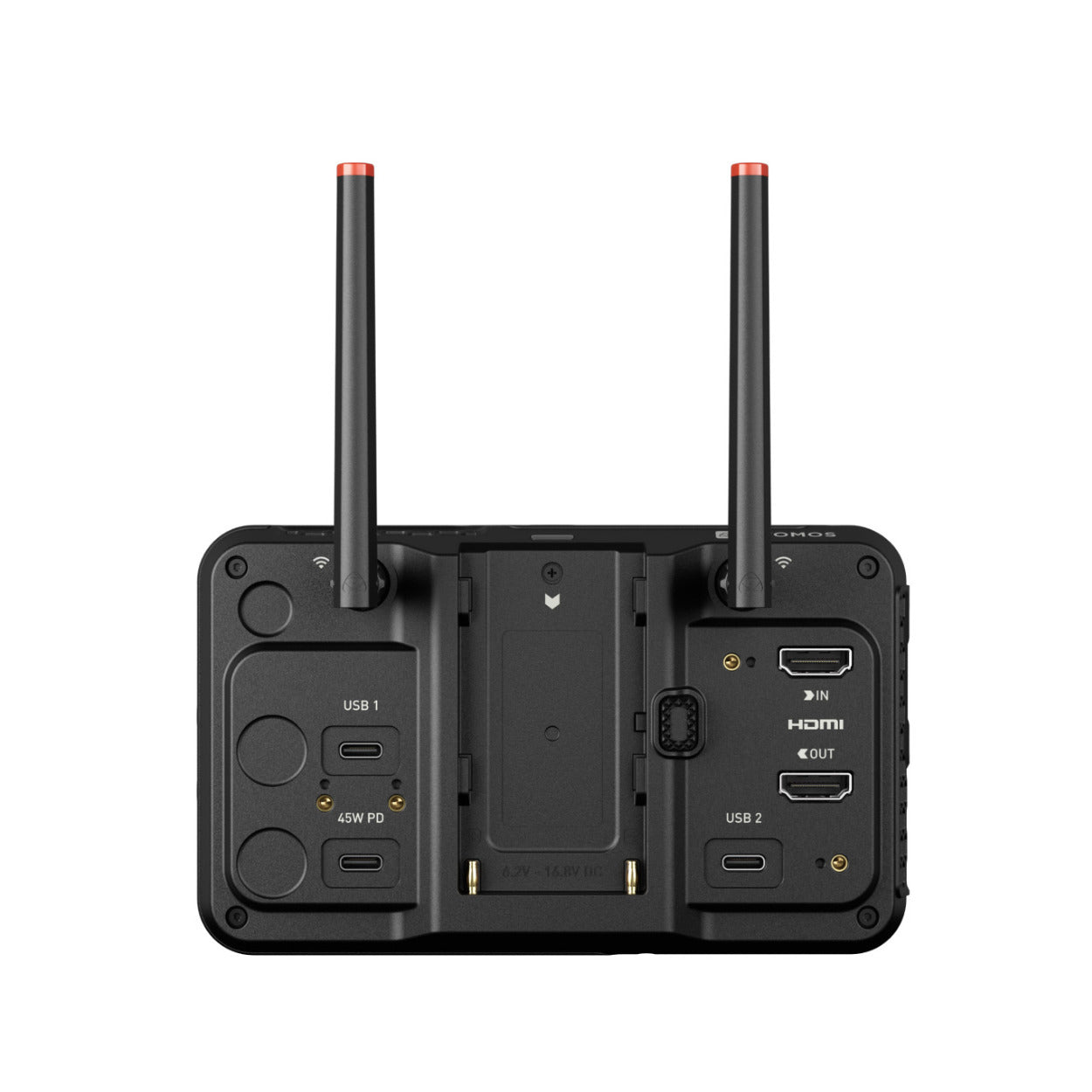

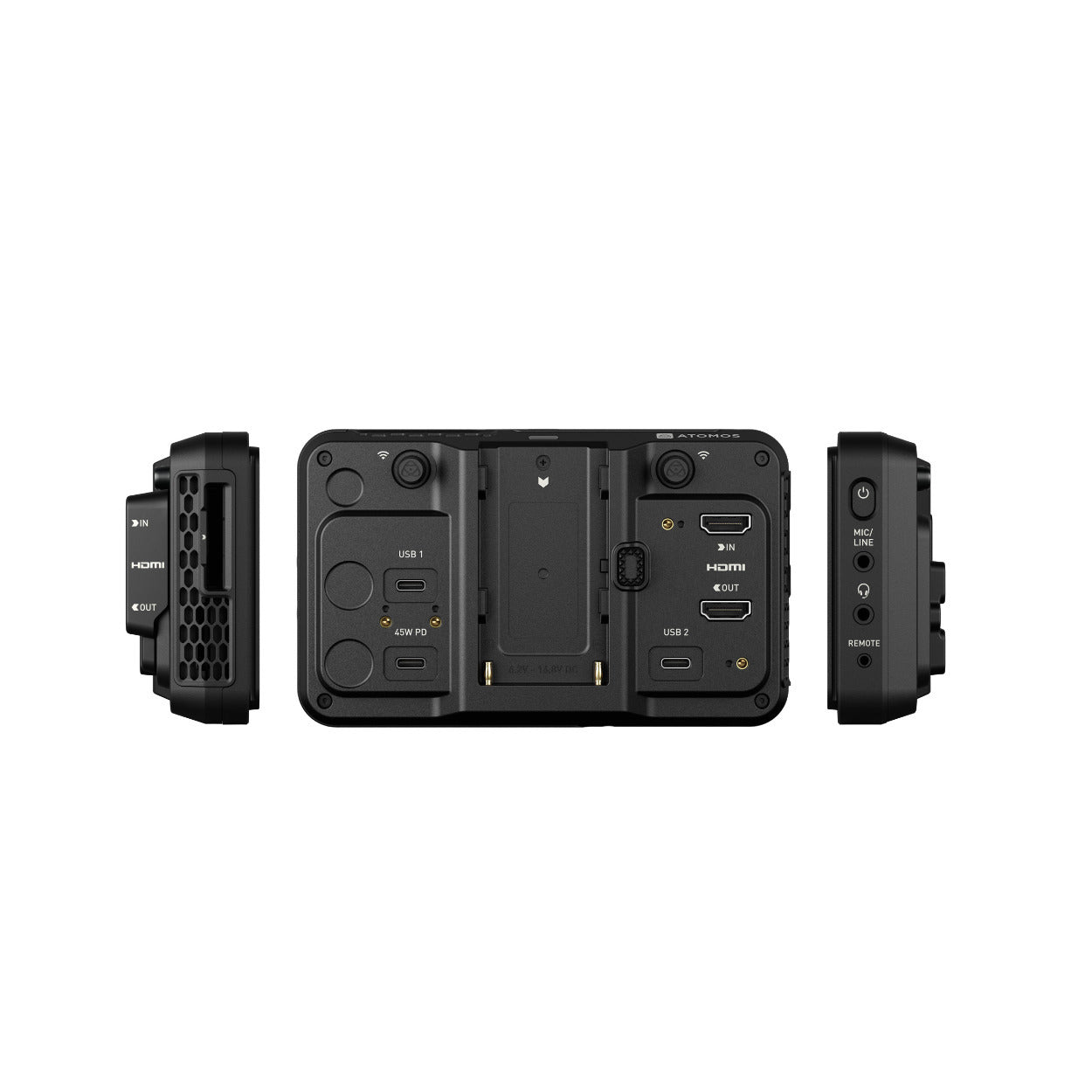

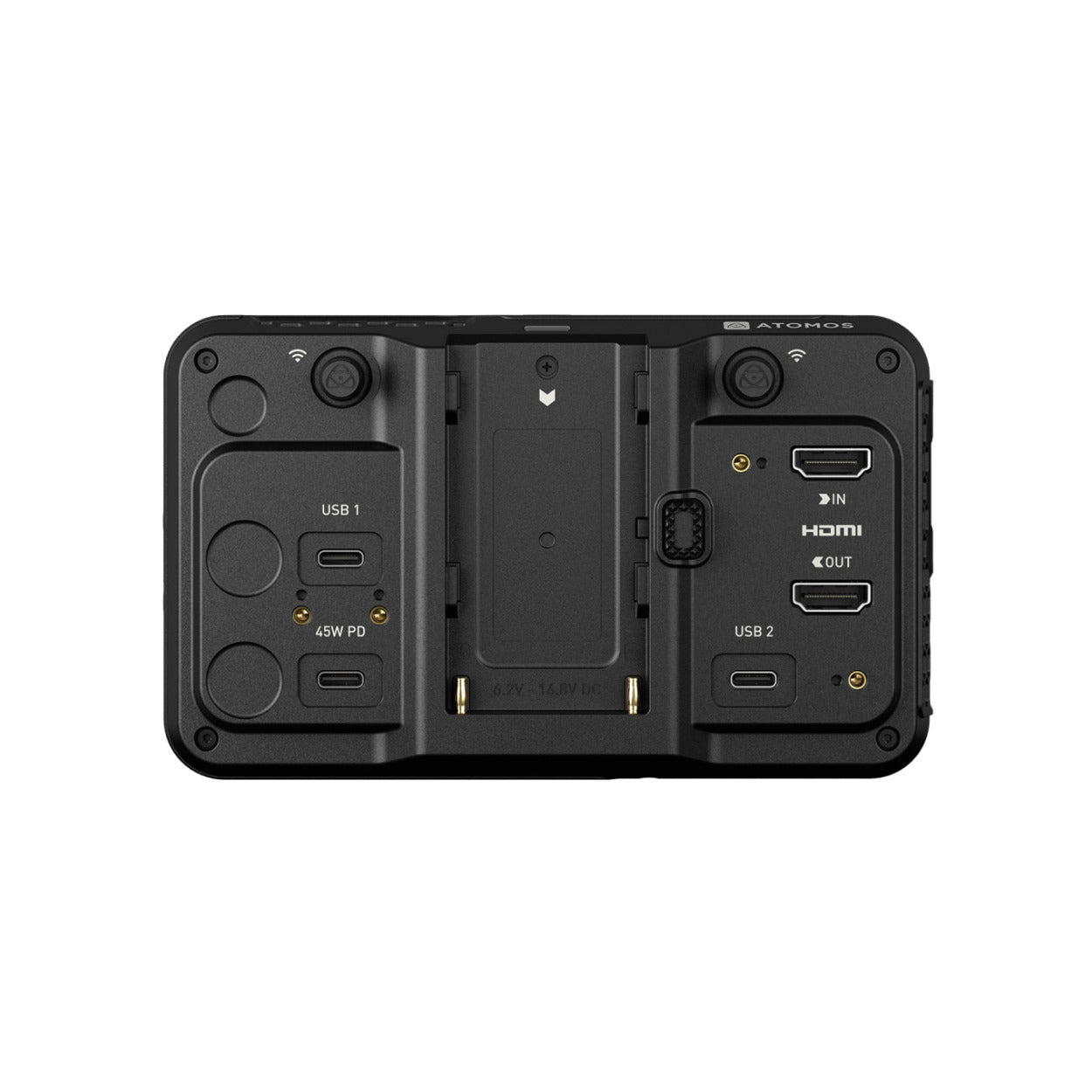

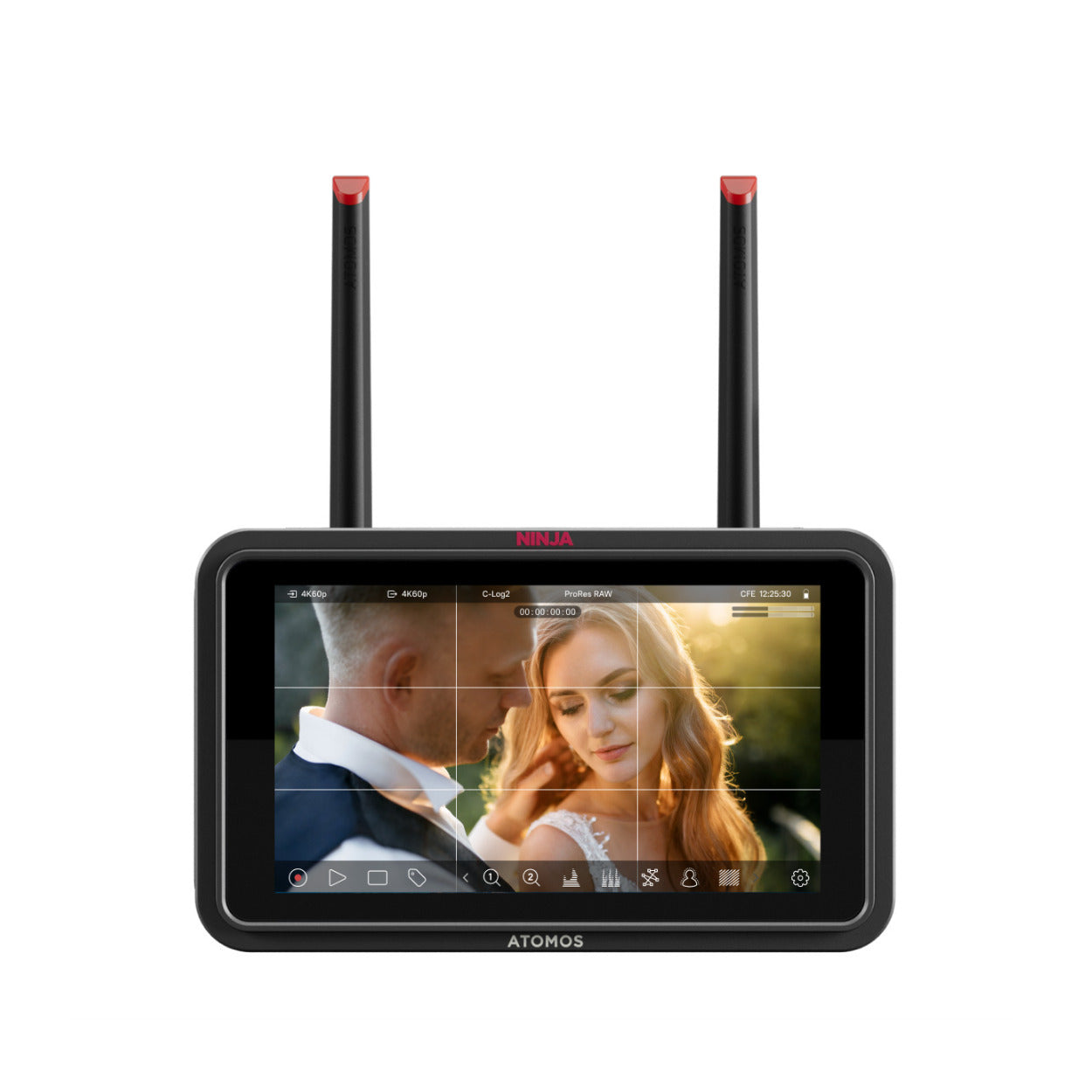

With HDMI and Wi-Fi 6E input and output, plus two USB-C ports, the Ninja TX GO supports various configurations. It can be used for external storage, network adaptors, or calibration probes (sold separately), giving users control and scalability in production environments.
Built-In Cloud and NDI Integration
Easily upload content to ATOMOSphere, Frame.io, or Dropbox (accounts sold separately) through built-in camera-to-cloud connectivity. NDI 6 streaming support allows for smooth transmission over networks, perfect for live production and remote collaboration.
Flexible Power Options
The Ninja TX GO can be powered through USB-C, NP-F batteries, or an AC adaptor, ensuring consistent performance whether on location or in the studio.
Camera Control and Touch to Focus Update
Good news! A new OTA (Over-The-Air) firmware update is rolling out for the Atomos Ninja TX and Atomos Ninja TX GO. This free update brings two powerful new features: full camera control (adjust ISO, shutter, aperture, frame rate, start/stop recording) directly from the touchscreen, and touch-to-focus on supported cameras — letting you set your focus point just by tapping the screen.
Key Features
| 5.2-inch 1920 x 1080 touchscreen display with 1500 nits brightness | |
| Supports recording and monitoring up to 6Kp30 ProRes RAW, H.265, and DNxHR | |
| Extensive gamma and gamut options for major camera brands including ARRI, RED, Canon, Sony, Panasonic, and Nikon | |
| Edge-lit HDR display supporting HLG, PQ, and 3D LUT workflows | |
| Versatile connectivity including HDMI 2.0, USB-C, and Wi-Fi 6E | |
| Durable aluminum and ABS body with active cooling and up to 40°C operating temperature | |
| Continuous power via NP-F battery, USB-C PD, or D-Tap | |
| Professional on-screen monitoring tools including waveform, vectorscope, false color, and focus peaking |
Dimensions & Weight
| Dimensions (W × H × D) | 151 × 92 × 36 mm |
| Weight | 400 g |
| Mount Points | 1 × anti-rotation 1/4-inch / 3/8-inch top and bottom |
Environmental
| Operating Temperature | Up to 40°C |
Construction
| Body | Aluminium with ABS plastic |
| Cooling | Actively controlled fan and heat sink |
Power
| Input Voltage | 6.2V – 16.8V DC |
| Operating Power | Up to 30W |
| Continuous Power | Via NP-F battery or USB-C PD |
| DC In Connector | Via Battery Eliminator (optional) |
| D-Tap | Up to 13W |
| USB PD IN | 45W capable power supply required |
| USB PD OUT | Up to 13W |
| Multi-function Button | Power / Lock Screen |
Display
| Size | 5.2-inch |
| Resolution | 1920 × 1080 |
| Backlight Type | Edge lit |
| Brightness | 1500 nits |
| Aspect Ratio | 16:9 |
| Color Gamut | Rec.709 |
| Calibration Support | Calibrite Display Pro/Plus (via Atomos LANC cable) |
Color Pipeline
| Gamma | Sony SLog/SLog2/SLog3, Canon C-Log/C-Log2/C-Log3, ARRI Log CEI160–1600, Panasonic V-Log/HLG, JVC J-Log, RED Log3G10/Log3G12, Fujifilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
| Gamut | BT.2020, DCI-P3, DCI-P3 D65, Rec.709, S-Gamut3, Canon Cinema DCI-P3, Panasonic V-Gamut, ARRI Alexa Wide Gamut, RED DragonColor/RedWideGamut |
| 3D LUT Display | .cube format |
| 3D LUT Down Stream | Loop out |
| 3D LUT 50/50 | Yes |
| Monitoring Modes | Native / HLG / PQ / 3D LUT |
| HDR Output Conversion | Log/HDR to HLG/PQ |
Video Input
| HDMI | 1 × HDMI 2.0 up to 6Kp30 (optional locking port) |
| Wi-Fi | Wi-Fi 6E |
| USB | 2 × USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
| Chroma Subsampling | 4:2:2 |
Video Output
| HDMI | 1 × HDMI 2.0 up to 6Kp30 (optional locking port) |
| Wi-Fi | Wi-Fi 6E |
| USB | 2 × USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
| Chroma Subsampling | 4:2:2 |
Metadata
| HDMI RAW | White balance, exposure index, shutter speed/angle, iris, ISO, gamma, gamut |
Network & Connectivity
| Wi-Fi | Wi-Fi 6E |
| USB | 2 × USB-C 2.0/3.0 |
| Bluetooth | No |
| LANC | Yes |

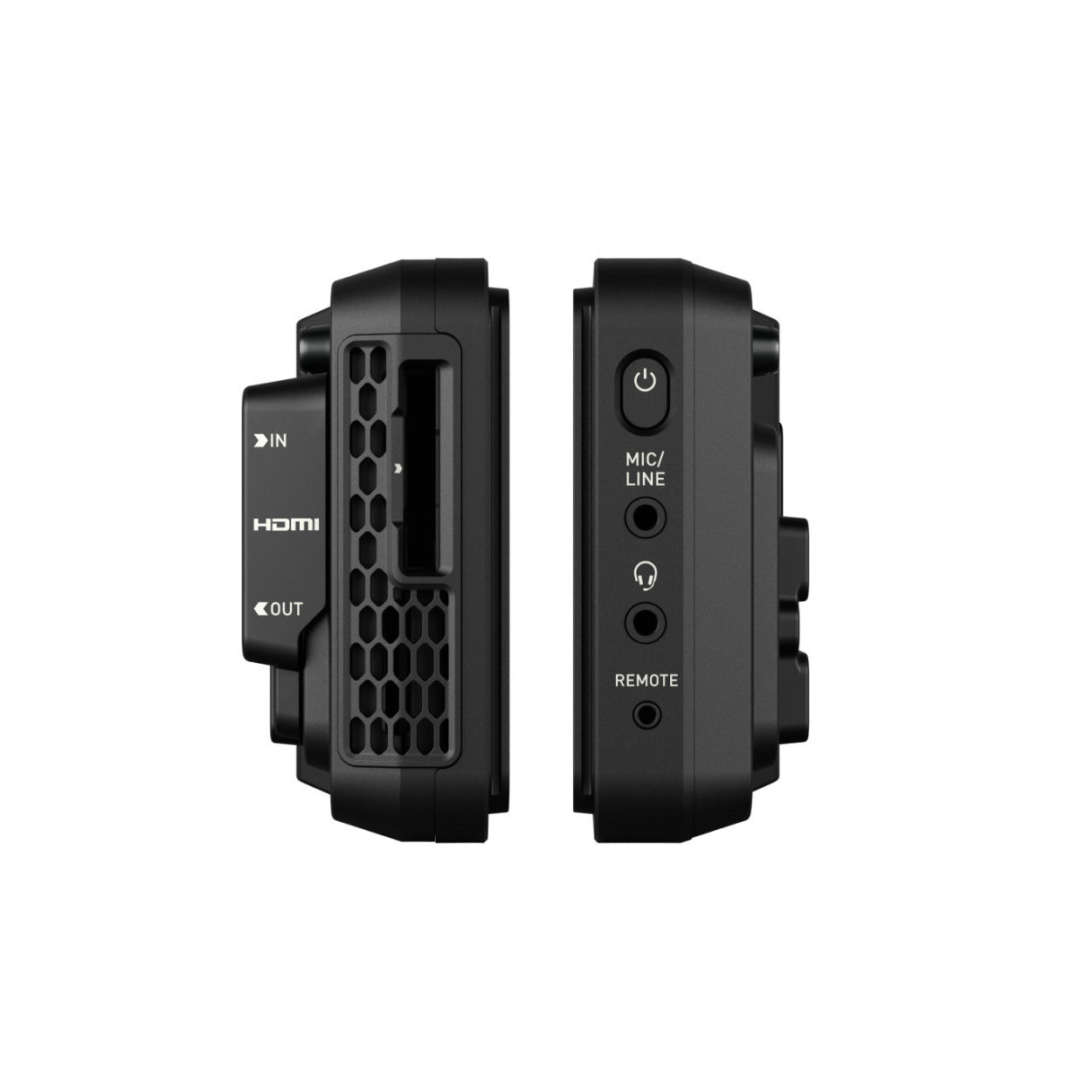

Audio
| HDMI | 8-channel 24-bit audio |
| Analog Line In | 3.5mm headphone jack (2-channel input) |
| Headphone Out | 3.5mm headphone jack (2-channel output) |
Timecode
| Embedded | HDMI |
| Time of Day | Yes |
| Reference/Genlock | No |
| LTC | No |
Resolution & Frame Rates
| RAW | Up to 6Kp30 |
| 4K DCI | 23.98/24/25/29.97/30/50/59.94/60p |
| 4K UHD | 23.98/24/25/29.97/30/50/59.94/60p |
| 2K DCI | 2048 × 1080 |
| 1080p | 23.98–120p |
| 1080 PsF | Converted to P and looped out PsF |
| 1080i | 50/59.94/60i |
| 720p | 50/59.94/60p |
Supported Media
| CFexpress | Atomos certified CFexpress Type B media |
| USB | Atomos certified USB 3.0 media |
| File System | ExFAT |
Codecs
| Apple ProRes RAW | ProRes RAW / ProRes RAW HQ |
| Apple ProRes | LT / 422 / 422 HQ |
| Avid DNxHD | 220x / 220 / 145 / 36 |
| Avid DNxHR | LB / SQ / HQ / HQX |
| H.265 | LQ / MQ / HQ / XQ (8/10-bit 4:2:2 and 4:2:0) |
Playback
| Playlist | Yes (custom playlists from clips/sub-clips) |
| Loop | Yes with user-defined in/out markers |
| Supported Formats | ProRes RAW, ProRes, Avid DNx, H.265 |
Recording Features
| Pre-roll | ProRes/DNxHD only |
| Timelapse | Yes |
| Simultaneous Proxy Record | Yes |
Monitoring Tools
| Waveform (3 sizes, adjustable opacity) | |
| RGB Parade (3 sizes, adjustable) | |
| Vectorscope (2 sizes, adjustable) | |
| Zoom (1x / 2x) | |
| Focus Peaking (color threshold adjustable) | |
| False Color & ARRI False Color | |
| EL ZONE exposure reference | |
| Zebra patterns (adjustable) | |
| Color Channel Isolation (Blue Only) | |
| Cine and Social Frame Guides (2.4 | 1, 1.9:1, 9:16, 1:1, etc.) |
| Onion Skin & Safe Areas | |
| Grid Markers (9 grid) | |
| Anamorphic Desqueeze (1.25x–2x) | |
| Display Flip (Vertical only) |
Onboard Signal Processing
| Pulldown Removal | 24/25/30pSF → 24/25/30p (2:2 pulldown), 60i → 24p (3:2 pulldown) |
| 4K UHD Downscale | Loop out 4K UHD to HD |
| DCI Crop | Loop out 17:9 to 16:9 crop |
Remote Control
| HDMI | Auto trigger for Canon, Sony, Atomos protocols |
| Serial 2.5mm Jack | Calibration via optional USB-to-serial cable |
| AirGlu BT / RF | No |
Camera to Cloud
| ATOMOSphere | Direct progressive upload (20GB free storage) |
| Adobe Frame.io | Supported (separate subscription) |
| Dropbox | Supported (separate subscription) |
