- Atomos Shinobi II HDMI 4K Monitor with HDR Touchscreen and Lightweight Design (Black)
- USB-C 2.0 Cable
- HDMI and USB-C Locking Cable Adapter
- Quick Start Guide
- Limited 1-Year Warranty
Trusted & Verified
Atomos Shinobi II HDMI 4K Monitor with HDR Touchscreen and Lightweight Design (Black)
- Slimmer body and portable design
- 1500nit peak brightness HDR touchscreen
- Camera control via USB-C and LANC
- Powered via USB-C PD
- Power and charge your camera via USB-C PD
- HDMI and USB-C locking adaptor
- Includes latest Atomos monitoring tools
- All-day battery life
- Lightweight and adaptable
- Unique cable locking system
More hardware functionality, advanced touchscreen interface,
and sleeker design make the Atomos Shinobi II HDMI 4K Monitor in Black the most
versatile portable monitoring solution for creators on the move.

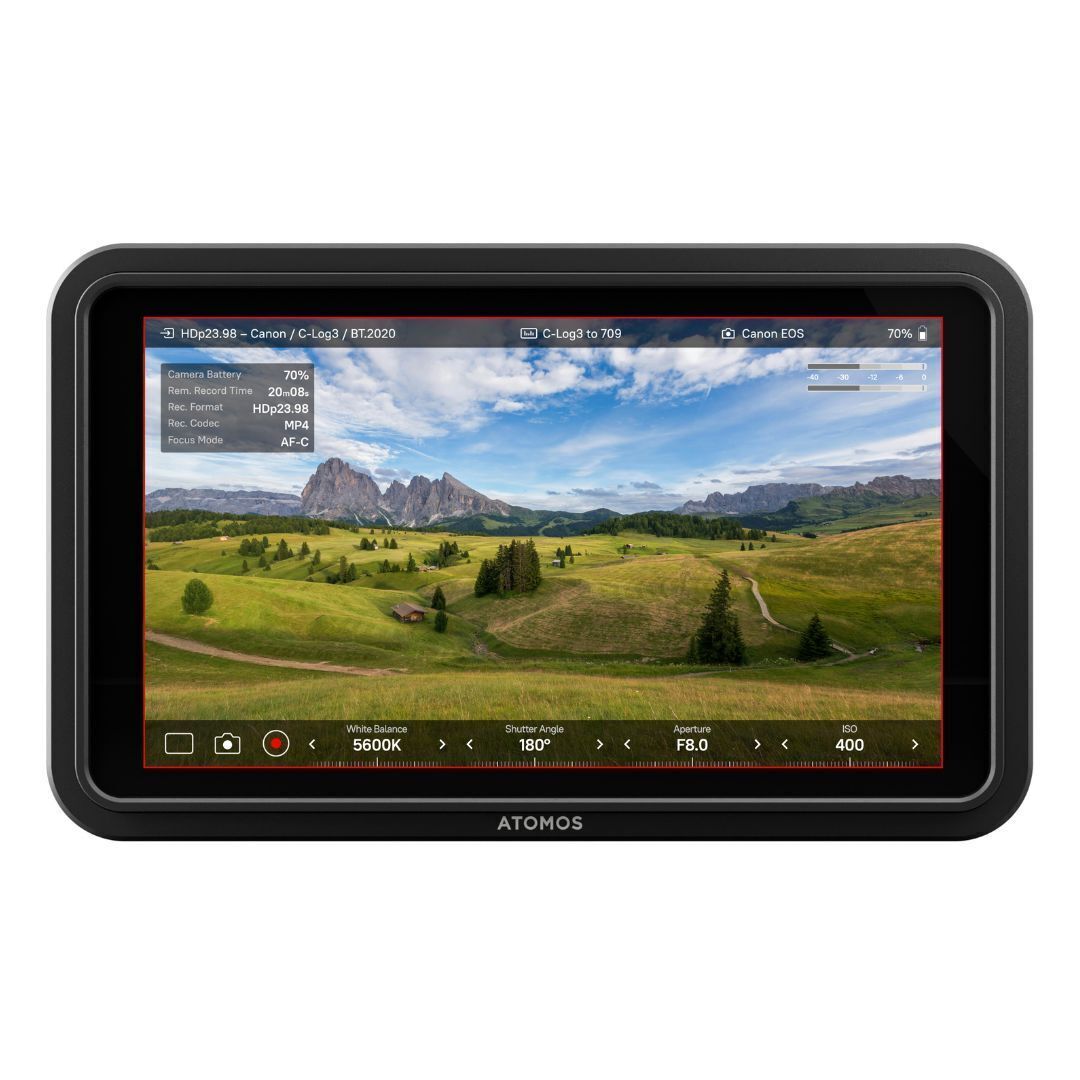

Camera Control
A highly requested feature from Shinobi users, the camera control interface has
been designed, with a focus on common settings that need to be adjusted on a
shot-by-shot basis. It harnesses the versatility of USB-C to allow for the
widest possible compatibility with most modern mirrorless and DSLR cameras. The
on-screen sliders adjust white balance, lens aperture, shutter speed and angle,
and ISO with immediate and responsive access to these settings. The red edge
display shows when the camera is recording internally, irrespective of whether
it is triggered by the camera or from the Shinobi II. It will be able to
control most Canon, Panasonic, and Sony mirrorless cameras and all Z CAM E2
series models - future plans to support cameras from Fujifilm, Nikon, OM
System, and SIGMA.

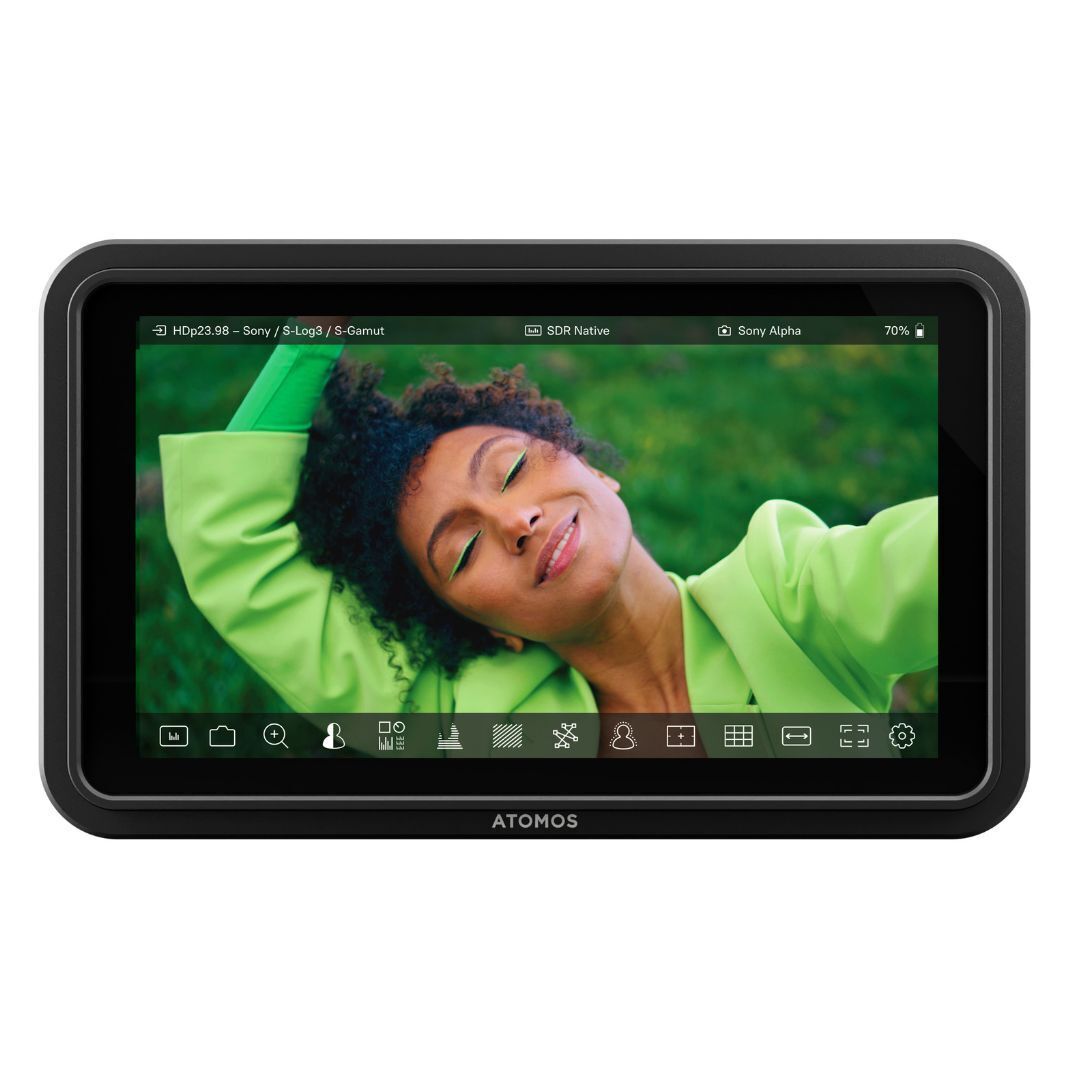

See the Bigger Picture
The camera status indicator shows the overview of the camera’s internal record
settings, battery charge, and remaining record time. The touchscreen control is
simple to navigate and is a user-friendly AtomOS 11 interface. Access familiar
monitoring tools for focus, exposure, and framing to get the perfect shot
on-set. Work under any lighting conditions with the 1500nit HDR display. Work

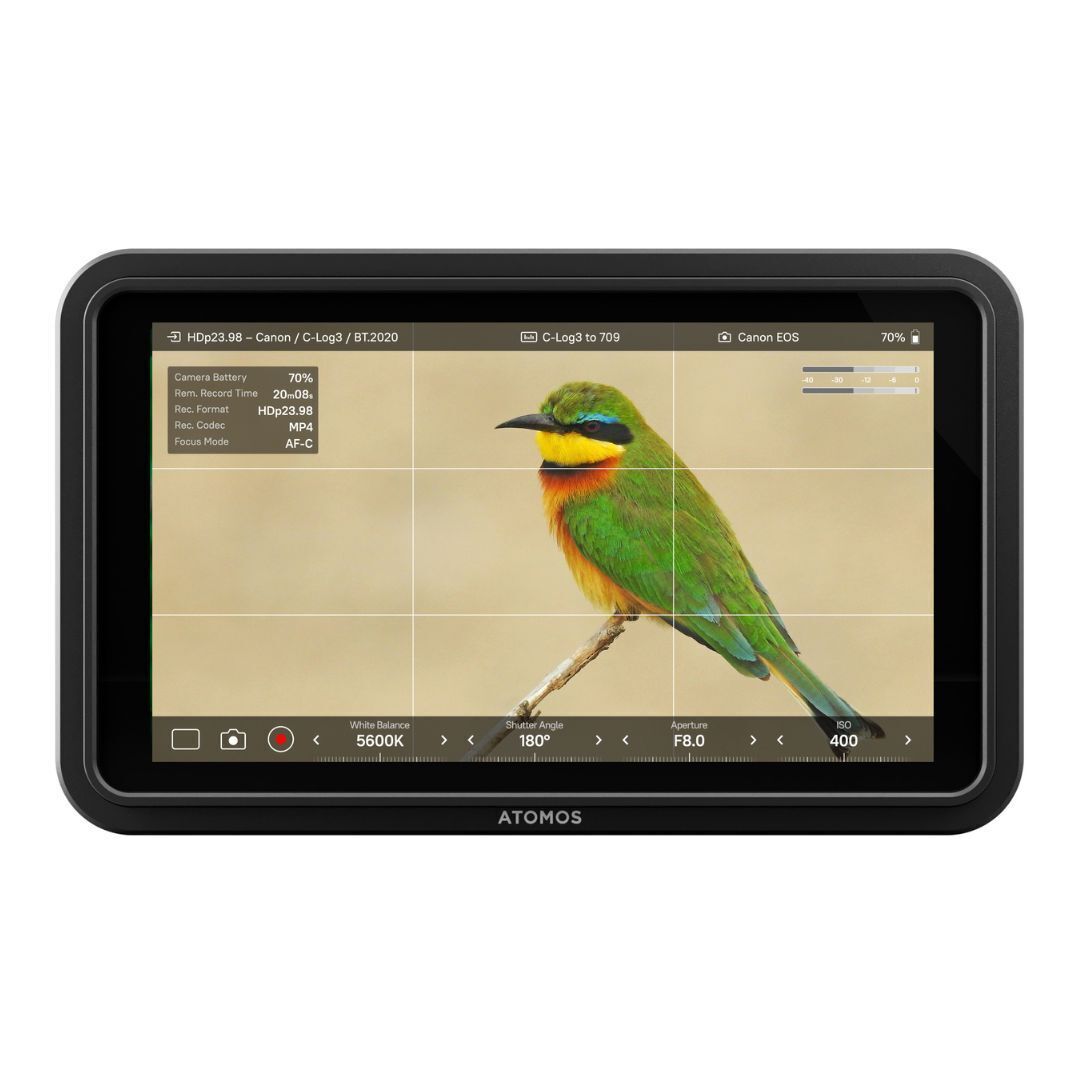

with a larger, brighter, high-resolution monitor. The nine grid and frame
guides are perfect for social media content creators and filmmakers alike.
Finally, it offers intuitive, easy-to-use camera control sliders for precise
exposure adjustment.

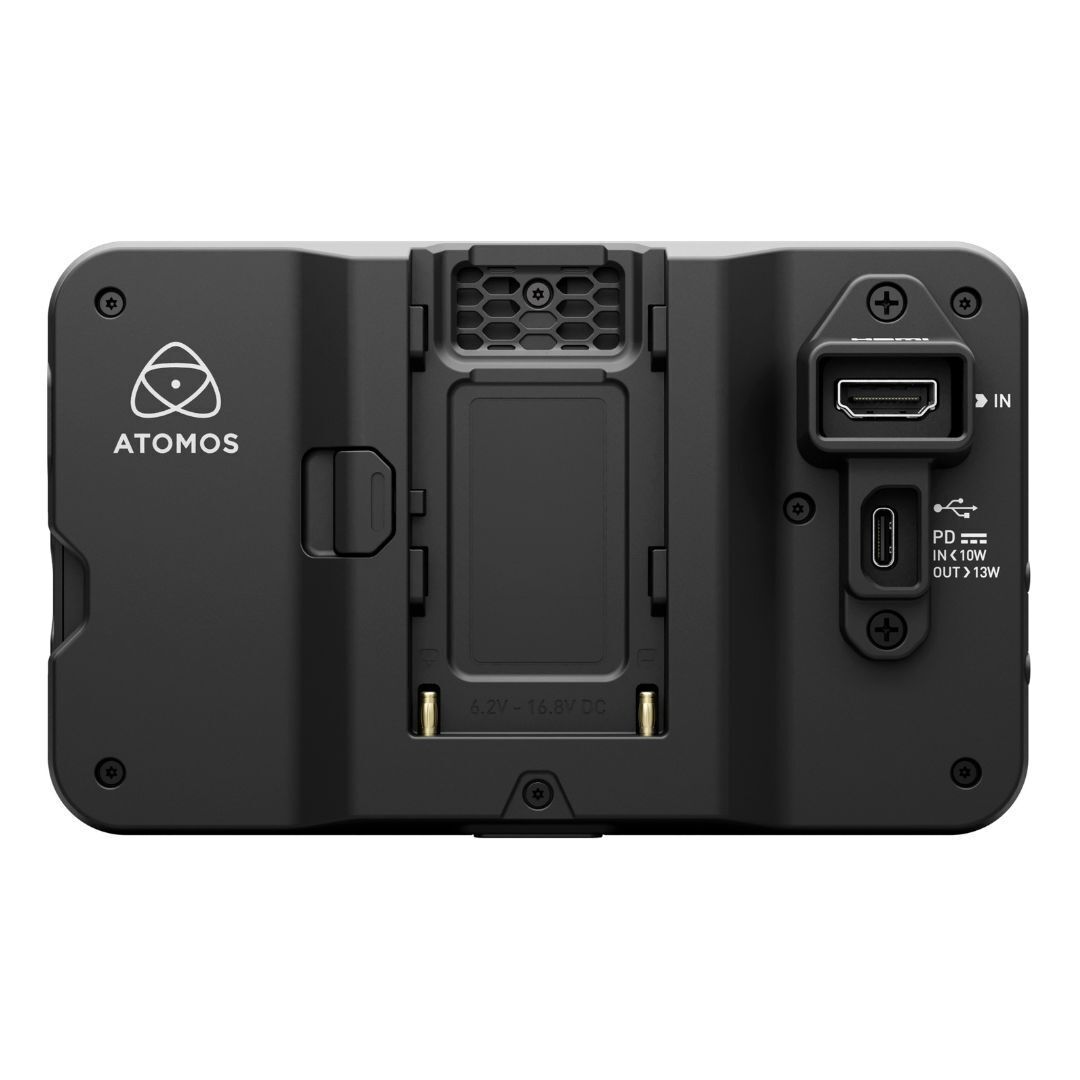

Connectivity and Power
The Shinobi II has a specialized locking cable system to ensure a solid
connection while you shoot. The HDMI In supports 4K signals up to 30p, 1080p up
to 60p. With USB-C control and power, get camera control, USB-C PD (in and
out), and on-device calibration (Calibrite probe required). Control LANC

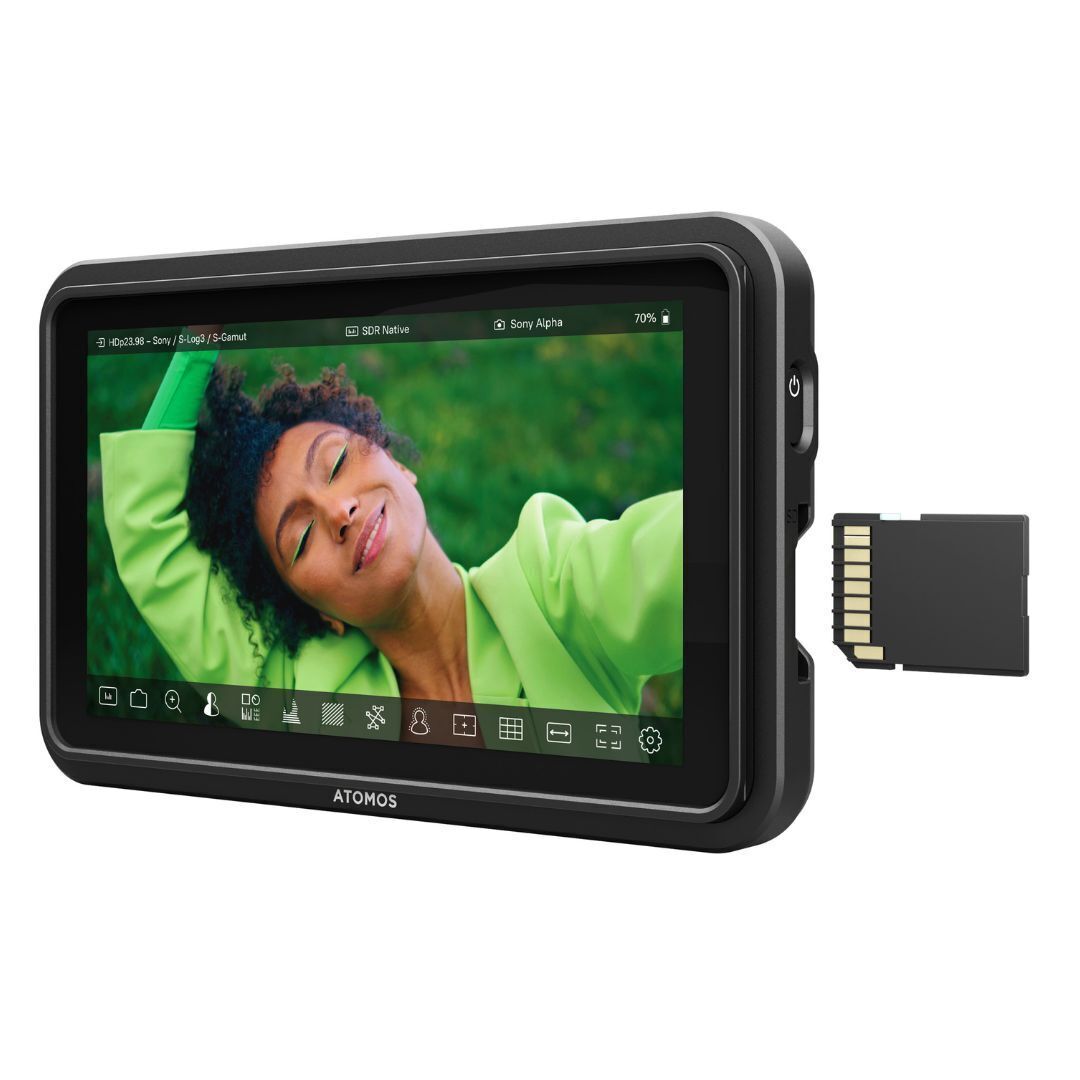

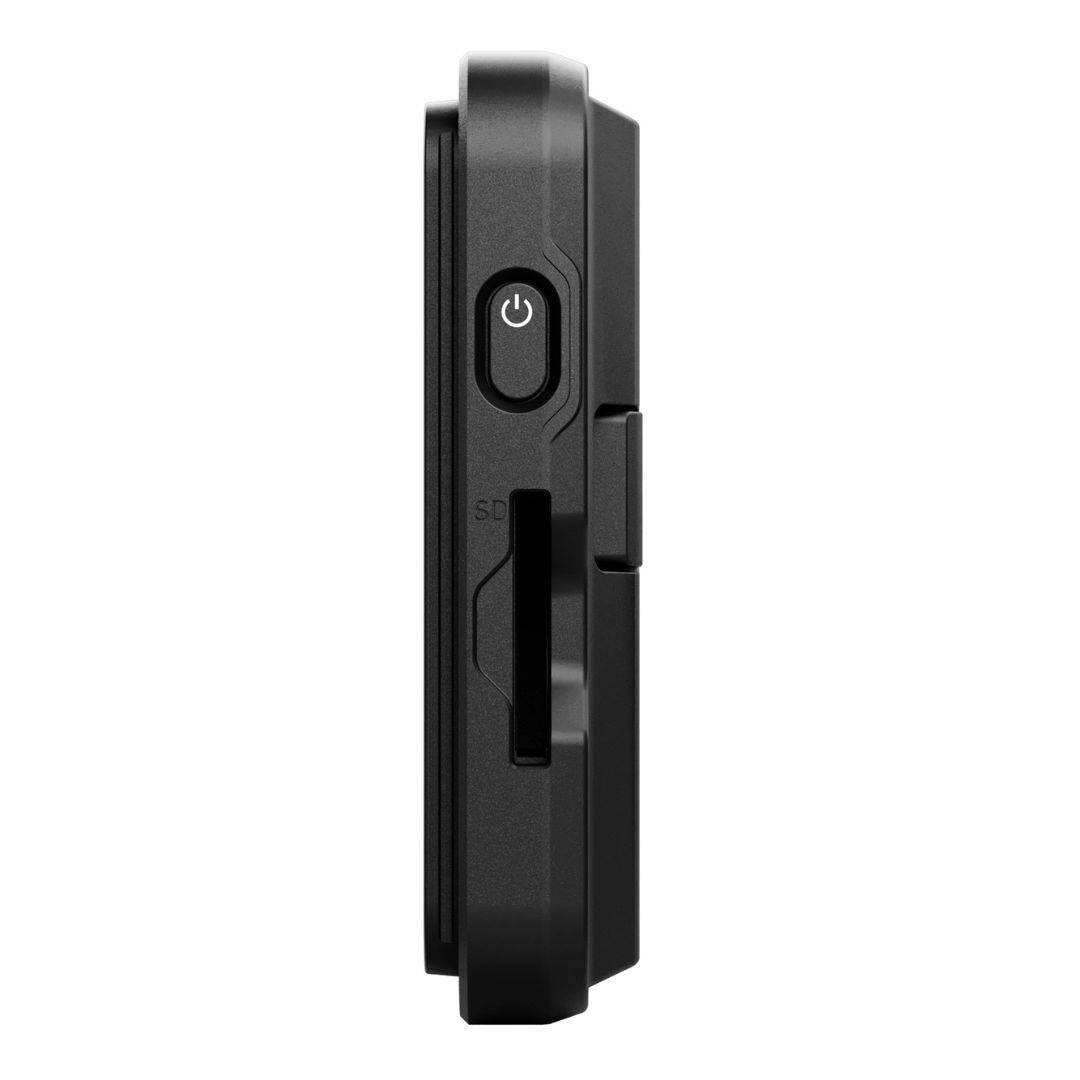

cameras or calibrate using Atomos Calibrator on PC or Mac. It features an SD card slot for easy installation of LUTs and firmware updates via SD card.

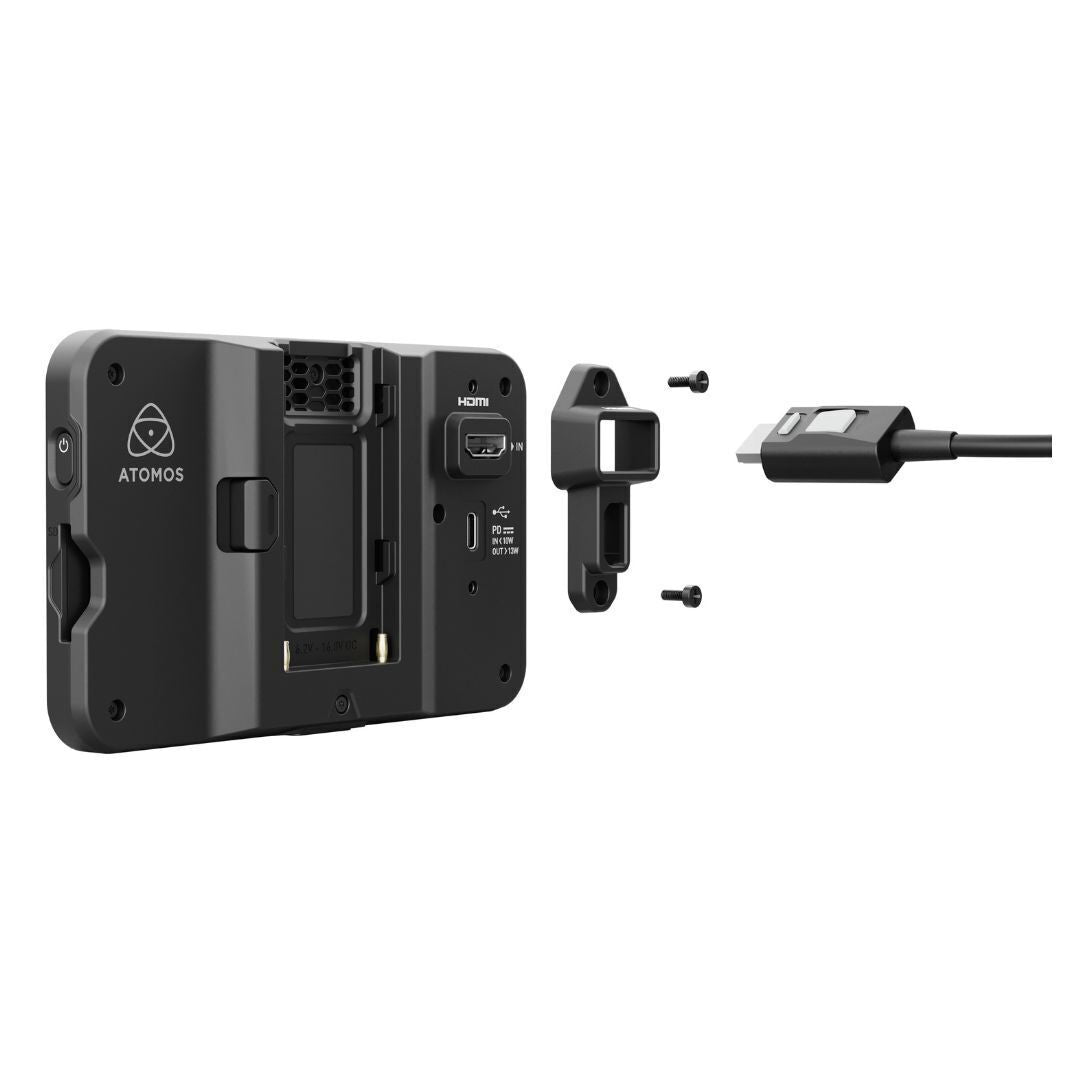

Cable Locking System
Atomos has developed a unique and rugged locking ecosystem to maintain a secure
grip on connected HDMI and USB-C cables. With Atomos locking cables, it is the
most robust capture cable system available today and is fully compatible with
standard, non-locking cables.
Other Features
The Shinobi II overcomes the limitations of small camera displays. It uses
Atomos’ latest suite of monitoring tools. It is lightweight and adaptable, so
position your monitor to suit your rig. It has a unique cable locking system
for rock-solid connectivity. Finally, it reduces the need to frequently
navigate complex camera menus.
Physical
| Dimensions (WxHxD) | 151 x 91.5 x 20.8 mm (without locking cable adaptor) |
| Weight | 210g (7.4oz.) |
| Mounting Points | Bottom: 1 x 1/4-inch 20 with anti-rotational points |
Environmental
| Ambient Operating Temperature | Up to 40 degrees C |
Construction
| Body | ABS Polycarbonate Plastic |
| Cooling | Passive heat sink |
| Multi-Function Button | Power / Lock Screen |
| Touch Screen | Capacitive Touch |
Power
| Input Voltage | 6.2V to 16.8V |
| Compatible Batteries | 1 x NP-F / L-Series |
| Built-in Battery | No |
| Continuous Power | Via NPF battery or USB-C PD |
| DC-In Connector | Via Battery Eliminator (separate purchase) |
| D-Tap | Via optionally available Battery Eliminator or D-Tap to DC-Barrel Cable |
Display
| Display Panel | SuperAtom IPS Panel (Capacitive Touch) |
| Size | 5.2-inch |
| Resolution | 1920 x 1080 |
| Viewing Angle | 178 + H and V |
| PPI | 427 |
| Bit Depth | 10-bit (8+2 FRC) |
| Backlight Type | Edge-lit |
| Brightness (cd/m2/nits) | 1500 |
| Aspect Ratio | 16:9 |
| Color Gamut | Rec.709 |
| Calibration Support | Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro and ColorChecker Display Plus + Simple on-device calibration (connect Calibrite probe directly to Shinobi II via USB-C) |
Color Pipeline
| Gamma | Sony S-Log / S-Log2 / S-Log3, Canon C-Log / C-Log 2 / C-Log3, Panasonic V-LOG, Arri LogCEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600 / LogC4, JVC J-Log1, RED Log3G12 / RED LogFilm / PQ10K / LOG3G10, Fujifilm F-Log / F-Log2, Nikon N-LOG / HLG, Olympus OM-LOG400 / FLAT, OM-System OM-LOG400 / FLAT, Leica L-LOG |
| Gamut | BT2020, DCI P3, DCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / DCI P3 / DCI P3+ / BT.2020, Panasonic V Gamut, ARRI Alexa Wide Gamut, Rec.709, JVC LS300, RED DragonColor / DragonColor2 / REDColor2 / REDColor3 / REDColor4 / REDWideGamut |
| 3D LUT Display | .Cube format (17 and 33 points supported) |
| 3D LUT 50/50 Split | Yes |
| Monitoring Modes | SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT |
| Display Controls | Backlight, Lift, Gamma, Gain |
| AtomHDR | Built-in Technical Log to HDR EOTF |
| 3D LUTs | Load .Cube files from SD Card into 8 LUT Slots On-Device and use for Monitoring |
Video Input
| HDMI | 1 x HDMI (1.4) |
| Bit Depth | 8/10-Bit |
| Chroma Subsampling | YCbCr 4:2:0 and 4:2:2 |
Audio In/Out
| HDMI Embedded | 2-channel, 24-bit, input dependent |
| Headphone Out | 3.5mm headphone jack, 2-channel |
Resolution and Frame Rates (Monitoring)
| 4K DCI | 23.98/24/25/29.97/30 |
| 4K UHD | 23.98/24/25/29.97/30 |
| FHD 1920 x 1080 Progressive | 23.98/24/25/29.97/30/50/59.94/60 |
| FHD 1920 x 1080 Interlaced | 50i/60i |
| 1280 x 720 Progressive | 50/59.94/60p |
Supported Media
| SD Card | Update firmware and upload LUTs |
| File System | FAT32, NTFS |
On-Screen Tools
| MultiScope Analysis View | Image, waveform, histogram, and vectorscope |
| Waveform | 3 sizes - adjustable opacity and brightness |
| Histogram | 3 sizes - adjustable opacity and brightness |
| RGB Parade | 3 sizes - adjustable opacity and brightness |
| Vectorscope | 1 size - adjustable opacity and brightness |
| 1x Zoom | Tap to Zoom |
| 2x Zoom | Tap to Zoom |
| 4x Zoom | Tap to Zoom |
| Focus Peaking | 4 modes (color, black and white, outline, edge sharpening) with adjustable outline color and peaking intensity |
| Colorized Exposure | Atomos and Arri False Color, EL Zone System |
| Zebra | Adjustable threshold (50% to 105%) |
| Isolate Color Channel | Blue only |
| Cine Frame Guides | Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
| Social Frame Guides | Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
| Safe Areas | SMPTE Safe Title Area - 93% and 90% |
| Grid Markers | 9 grid |
| Anamorphic Desqueeze | 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x |
| Display Flip | Horizontal and Vertical |
External Device Control
| USB-C | Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator. |
| Serial 2.5mm Jack | Camera control for Z CAM cameras via optional USB to Serial Cable |
