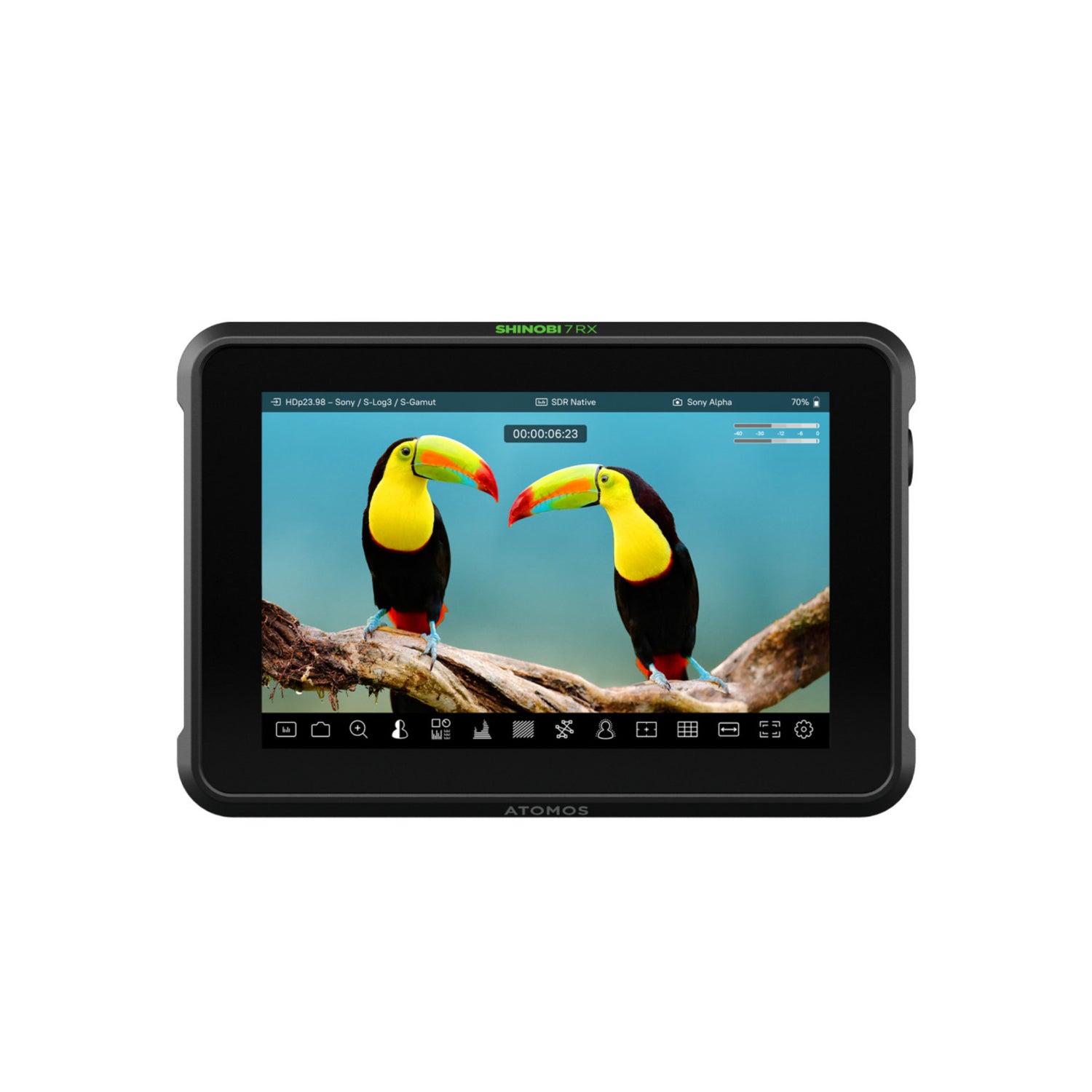

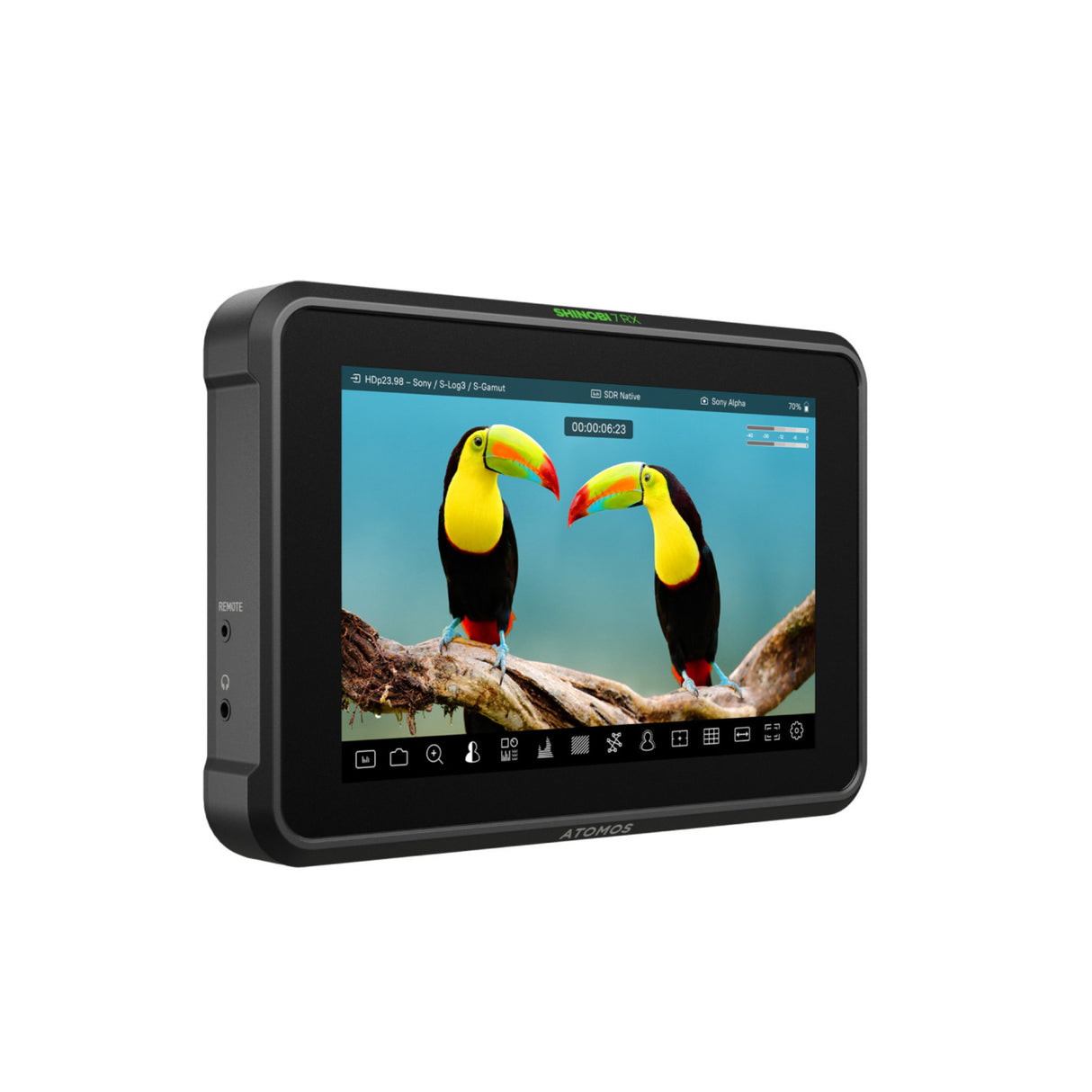

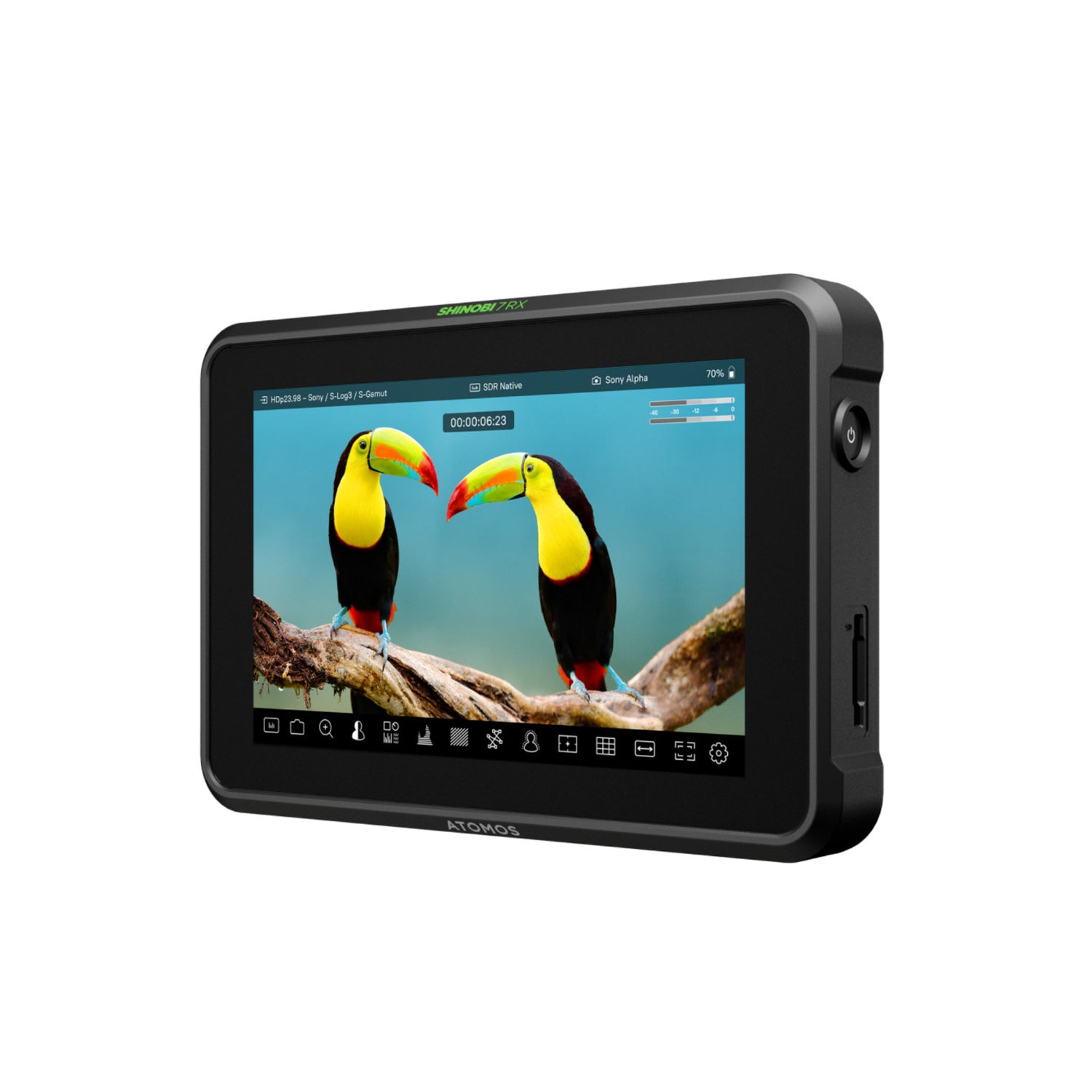

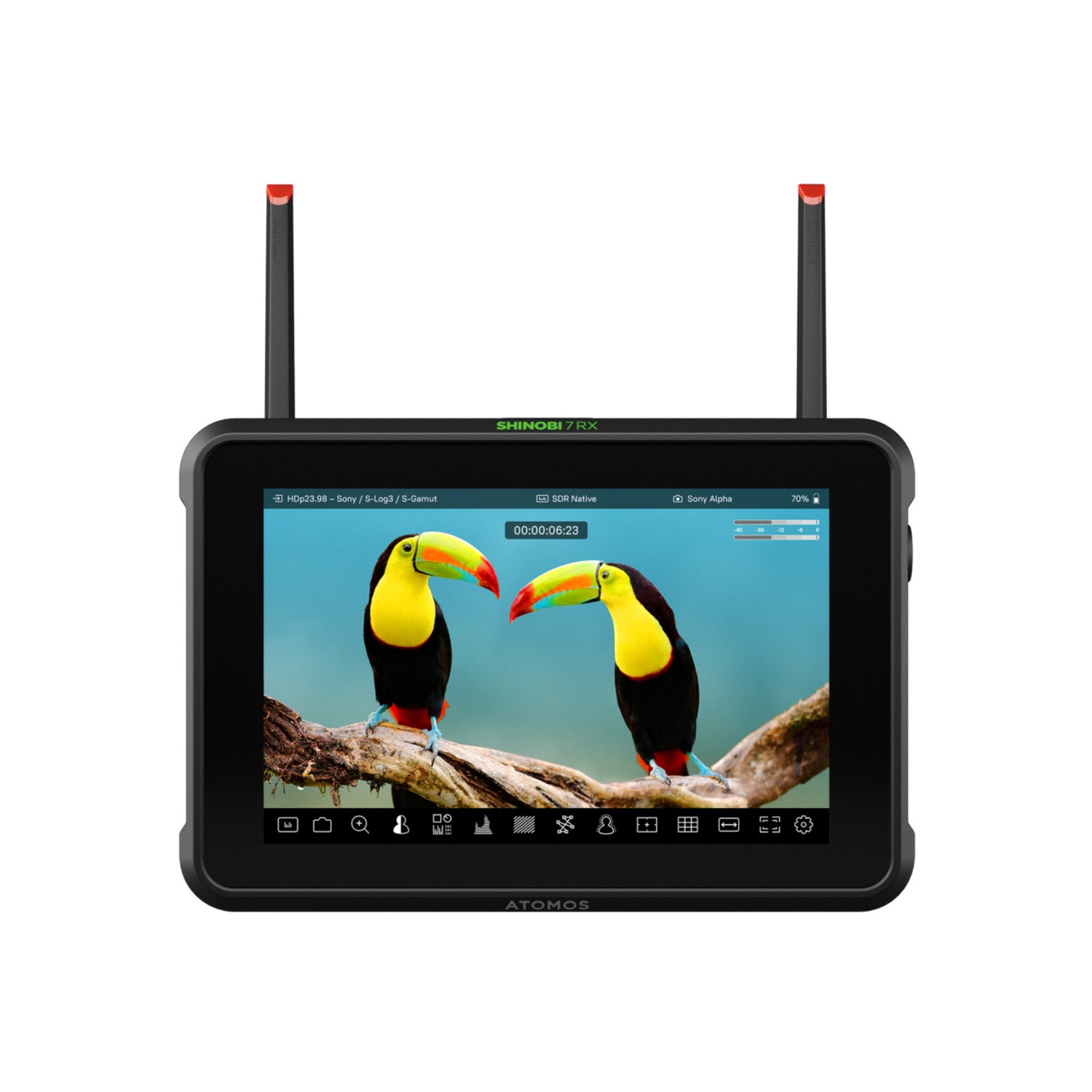

Shinobi 7 RX combines a larger 7-inch HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor-only functions of Shinobi. Can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or HDp60 via 3G-SDI. Take control of Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C, plus Z CAM cameras via an optional USB-C to serial cable. The addition of Wi-Fi connectivity provides a stable link between the Shinobi 7 RX and the TX component of Atomos’ TX-RX wireless video system, or an RTSP H.264 stream. An ideal director’s monitor, focus puller’s monitor, program or preview display for video switchers.
Key Features:
- 7-inch HDR screen with a calibrated peak brightness of 2200nits
- Professional monitoring tools include EL Zone/ARRI false color, histogram, waveform, zebra, and focus peaking
- HDMI / 3G-SDI input and output
- Camera control over USB-C (see website for supported models)
- Touch to focus (see website for supported models)
- Integrated 5G Wi-Fi for low latency (<60ms) receive from Atomos TX
- Stunning 10+ stops of dynamic range in real-time from Log/PQ/HLG signals
- Built-in 3D LUT box
- Supports 8-channel, 24-bit audio input via SDI
- Dual NPF battery slots
Display & Performance
| Size & Panel | A 7-inch HDR touchscreen with edge-lit LED backlight technology. |
| Resolution | 1920 x 1080 native display resolution. |
| Brightness | An ultra-bright 2200nits (cdm2) peak brightness, making it suitable for outdoor viewing in daylight. |
| Aspect Ratio | Standard 16:9. |
| Bit Depth | Supports 8/10-bit video processing. |
Video & Connectivity
| HDMI I/O | 1 x HDMI (2.0) input, capable of accepting DCI or UHD 4K video signals up to 60 frames per second (4Kp60). |
| SDI I/O | Supports up to 3G-SDI, allowing for professional HD video signals up to 60 frames per second (HDp60). |
| Wireless | Features Wi-Fi 6E for fast and reliable control or connectivity options. |
| Data/Control Port | 1 x USB-C 2.0/3.0, typically used for device configuration and firmware updates. |
Color & Gamma Processing
| Native Gamut | Supports Rec. 709 color space. |
| HDR Standards | Supports industry-standard HDR formats including HLG and PQ (HDR10). |
| Supported Gamma/Log Profiles (Decoding) | Extensive support for professional camera log formats, including Sony (SLog, SLog2, SLog3), Canon (C-Log, C-Log2, C-Log3), ARRI Log CEI, Panasonic (V-Log), JVC (J-Log), Red (RedLogFilm, Log3G10, Log3G12), and FujiFilm (F-Log). |
| Supported Gamut Profiles | Compatible with wide color gamuts such as BT.2020, DCI P3, and camera-specific profiles like Sony S-Gamut, Canon Cinema, Panasonic V Gamut, and ARRI Alexa Wide Gamut. |
