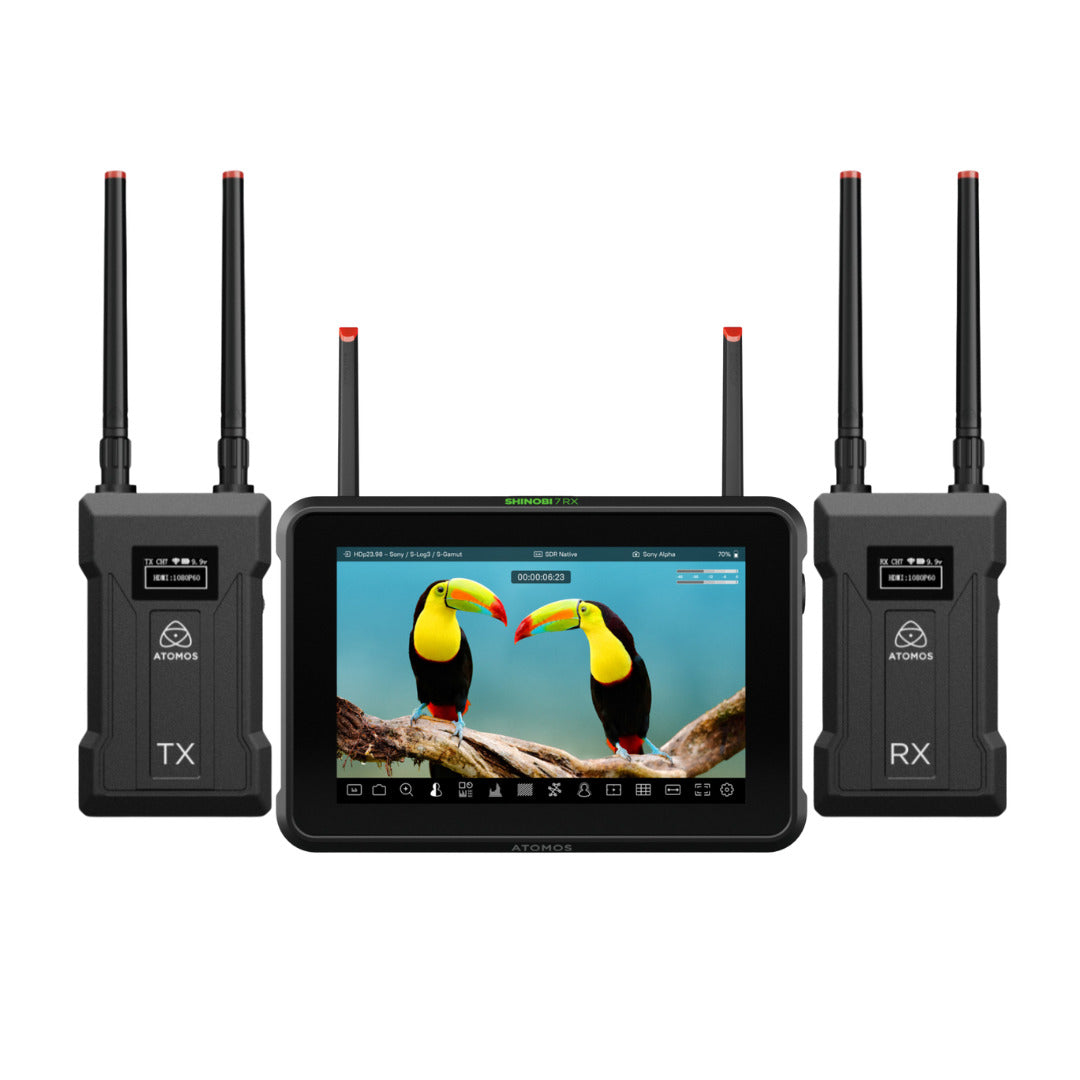

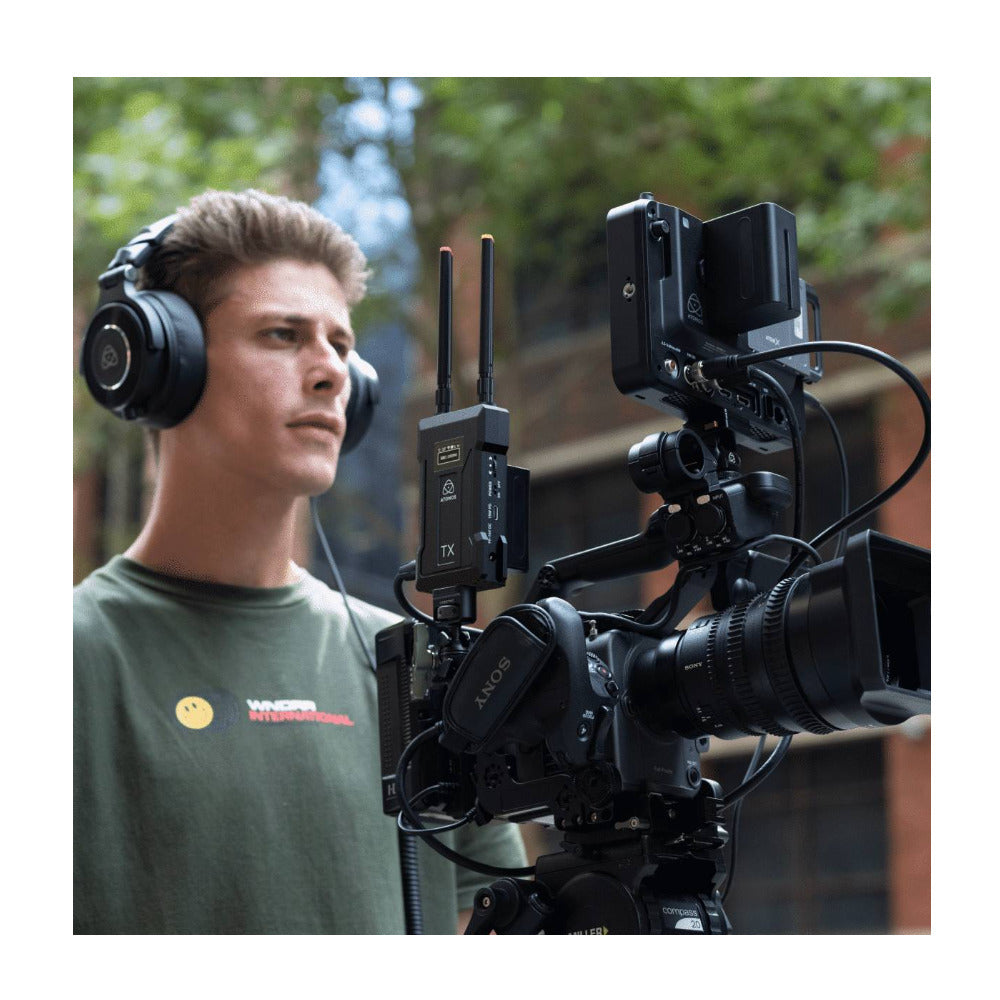

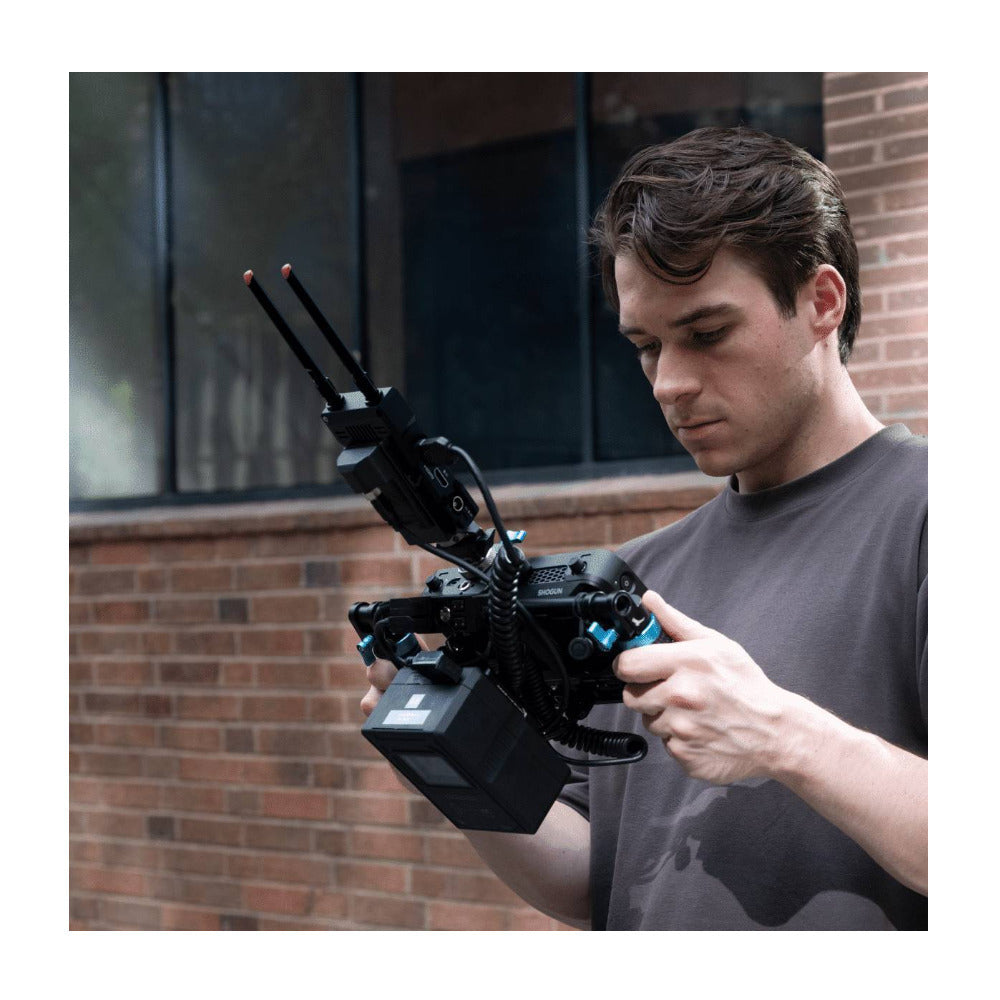

Atomos Shinobi 7 RX 7-inch HDR Monitor Bundle with Transmitter and Receiver Set
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

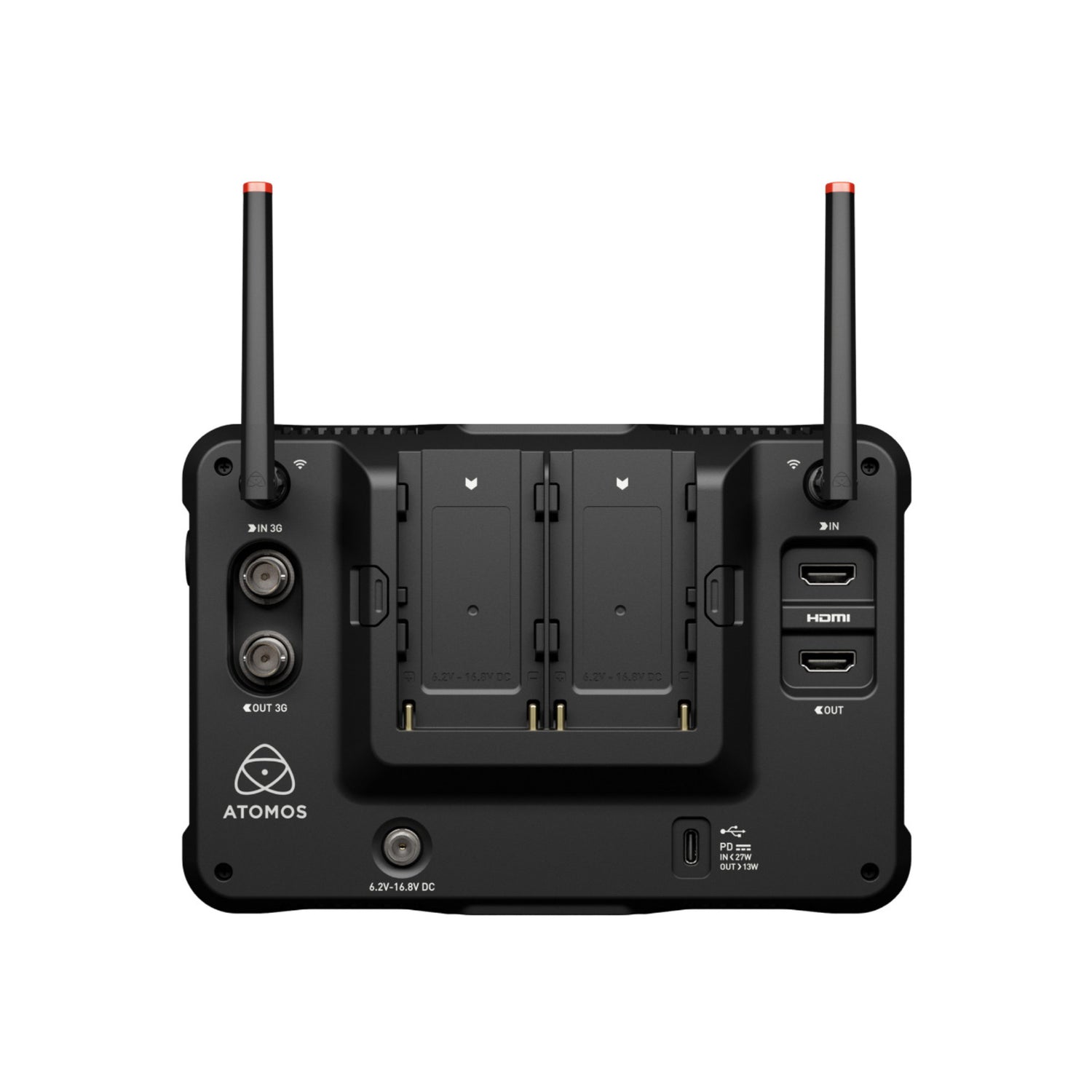

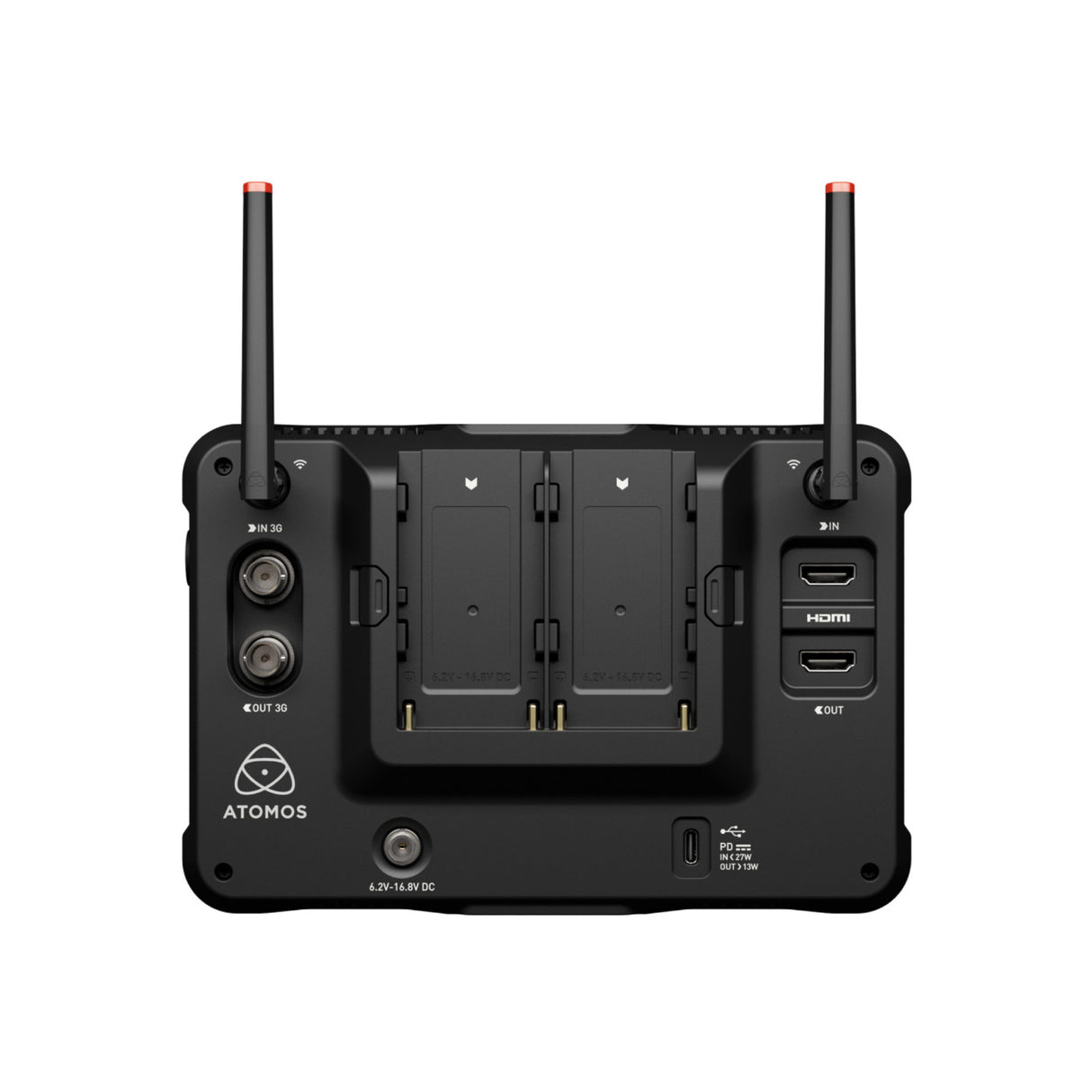

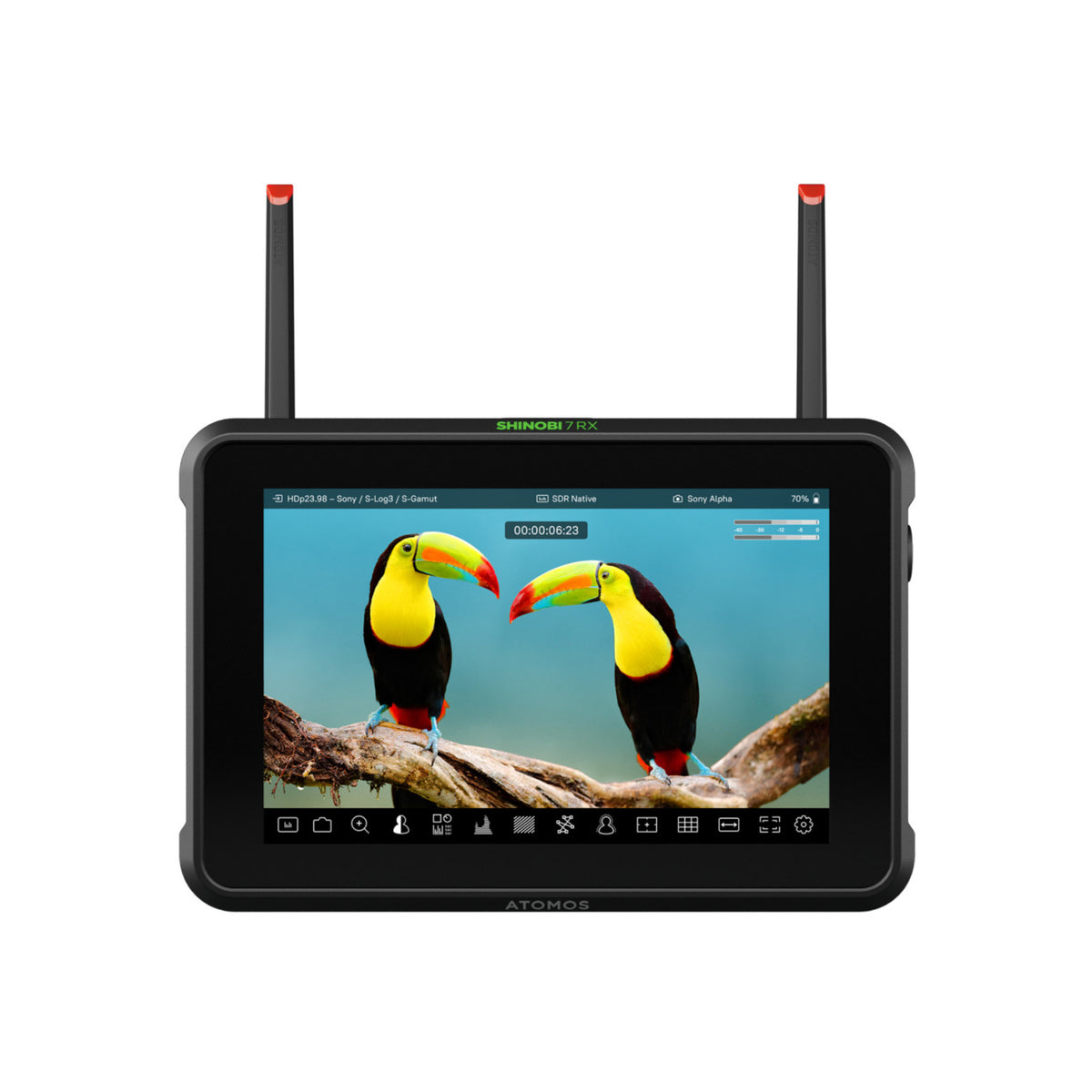

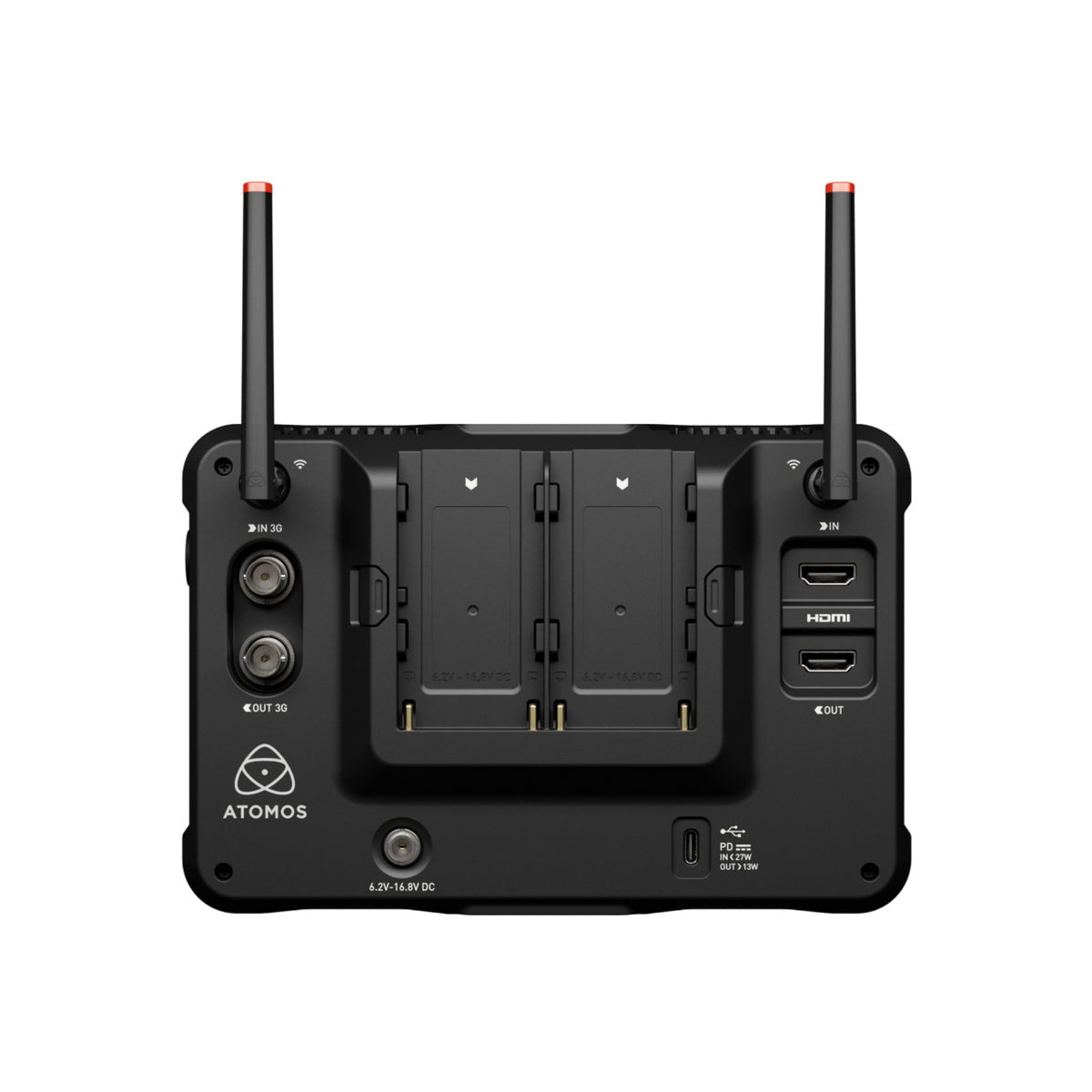

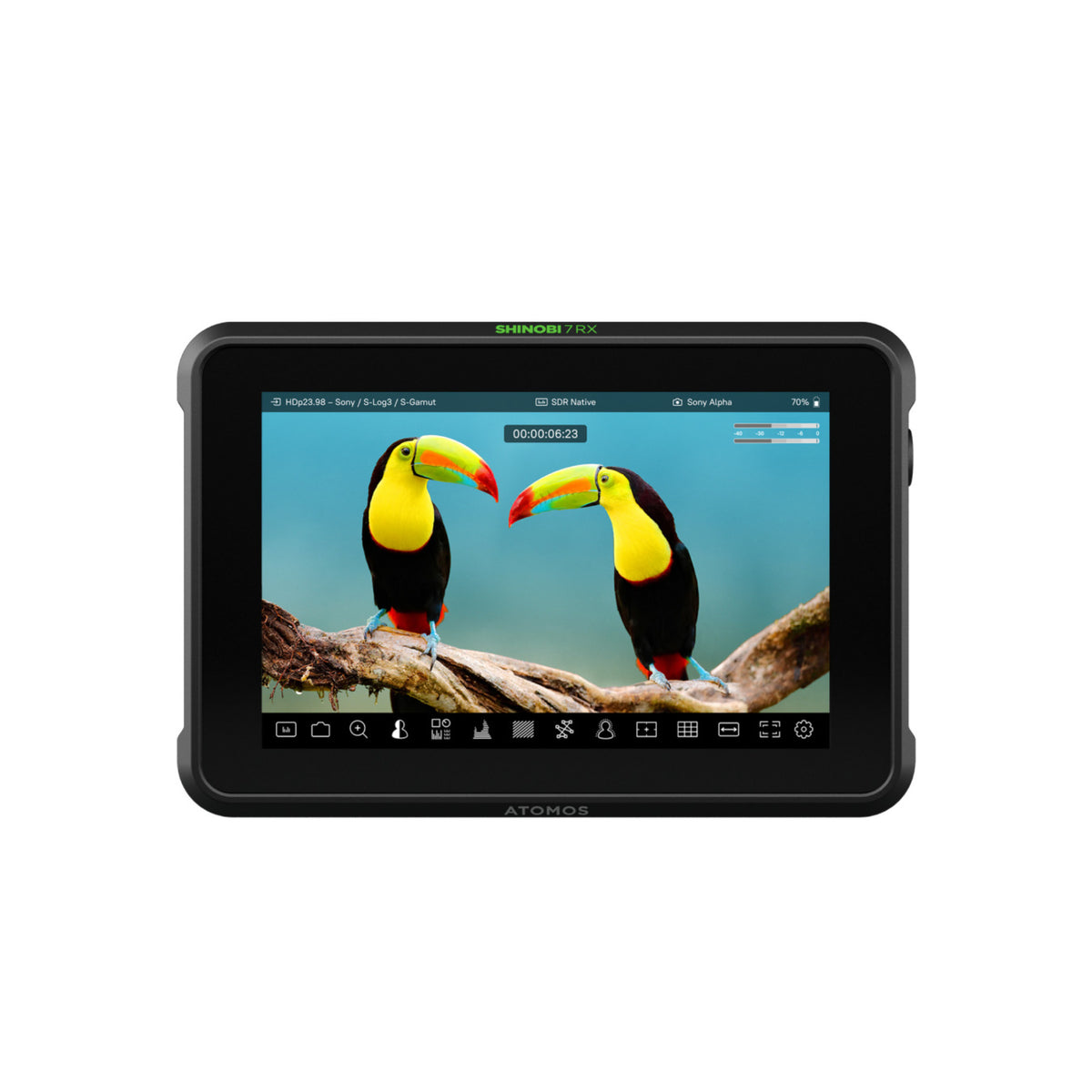

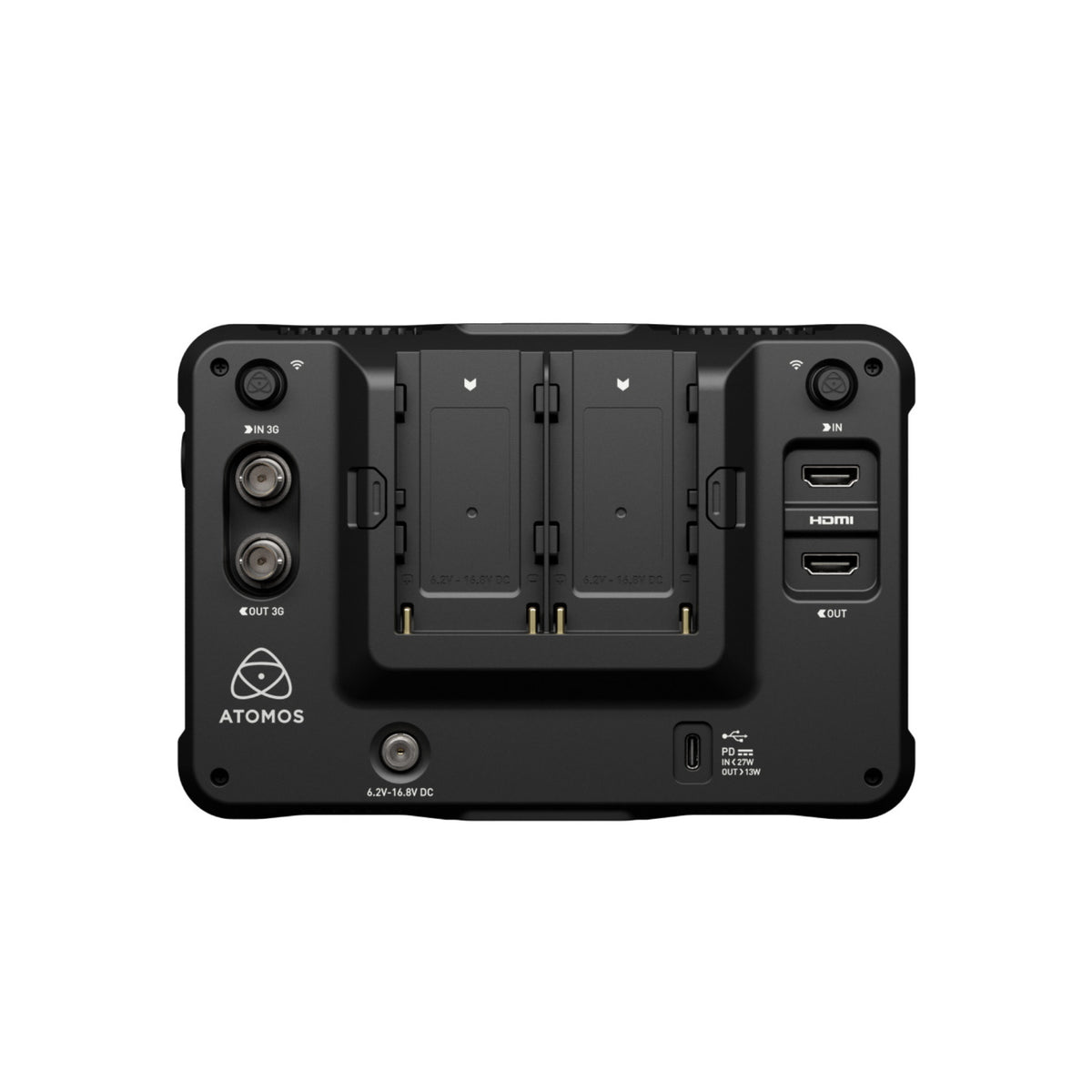

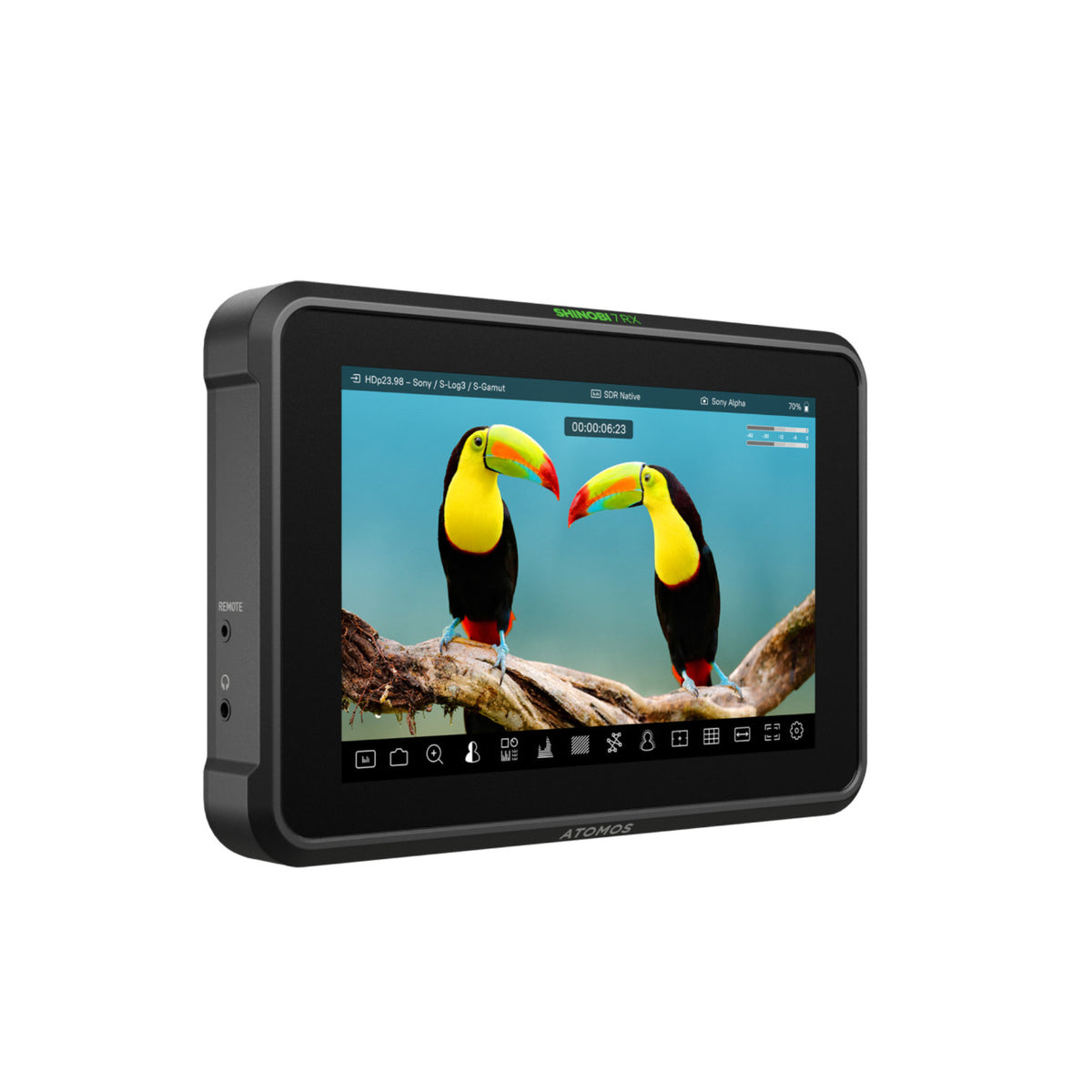

Atomos Shinobi 7 RX 7-inch HDR Monitor - 2200nit Ultra-Bright Touchscreen, 4Kp60 HDMI, HDp60 3G-SDI
The Atomos Shinobi 7 RX is a 7-inch HDR monitor with a calibrated 2200-nit ultra-bright touchscreen, designed for professional monitoring in even the brightest environments. It supports signals up to 4Kp60 via HDMI and HDp60 via 3G-SDI, and provides advanced monitoring tools including EL Zone/ARRI false color, histogram, waveform, zebra, and focus peaking. The monitor allows camera control via USB-C for Canon, Fujifilm, Nikon, Panasonic, and Sony cameras, with optional serial support for Z CAM, and touch-to-focus functionality on compatible models. Integrated 5G Wi-Fi enables low-latency streaming from Atomos TX or RTSP H.264 streams, while features like a built-in 3D LUT box, over 10 stops of dynamic range from Log/PQ/HLG signals, 8-channel 24-bit SDI audio, and dual NPF battery slots make it an ideal tool for directors, focus pullers, and video switcher previews.

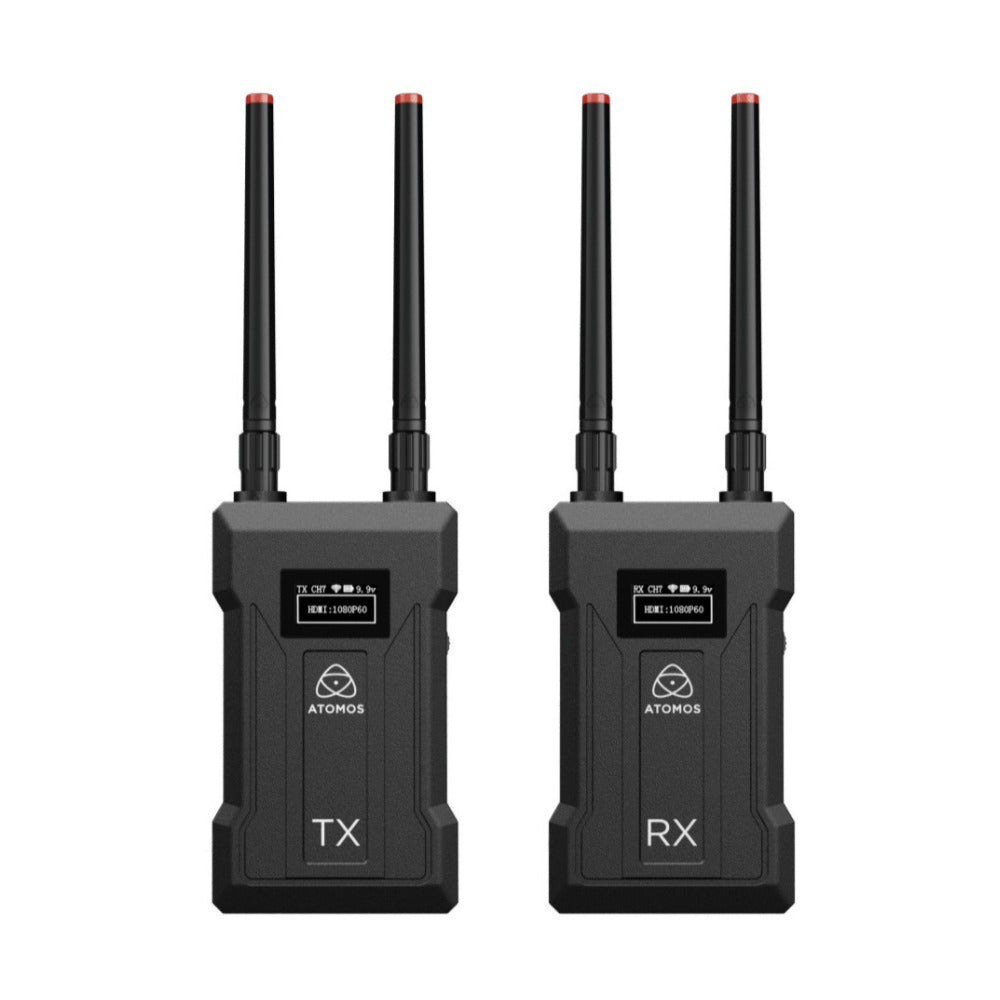

Atomos TX-RX 4K/HD Wireless Video Monitoring Transmitter and Receiver Set
The Atomos TX-RX is a versatile wireless video transmitter and receiver set designed for filmmakers, content creators, and broadcast professionals, delivering high-quality 4Kp30 over HDMI and 1080p60 over SDI with ultra-low latency across distances up to 300 meters (985 feet). Supporting up to four receivers per transmitter, it allows multiple viewing setups for directors, clients, or crew, while eliminating long video cables for a cleaner, more mobile workflow. Compact and lightweight, the TX-RX integrates seamlessly into handheld rigs, gimbals, tripods, or camera cages, and can be powered via NP-F batteries, USB-C, or 9–16V DC. With dual HDMI/SDI connectivity and expandable system options, it provides professional-grade monitoring for on-set, studio, or location production, combining flexibility, reliability, and uncompromised video quality.
- Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
- BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec 709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
- 1 x 3G-SDI input
- 1 x HDMI input
- 1 x HDMI loop-through
- 1 x 3G-SDI output
- 2 x HDMI dual output
- 4K30, 4K25
- 1080P60, 1080P50, 1080P30, 1080P25
- 1080i60, 1080i50
- 720P60, 720P50
- 1080P60, 1080P50, 1080P30, 1080P25
- 1080i60, 1080i50
- 720P60, 720P50
Atomos Shinobi 7 RX 7-inch HDR Monitor - 2200nit Ultra-Bright Touchscreen, 4Kp60 HDMI, HDp60 3G-SDI
| Size | 7-inch HDR screen with a calibrated peak brightness of 2200nits |
| Resolution | 1920 x 1080 |
| Backlight Type | Edge-lit |
| Brightness (cdm2 / Nits) | 2200 |
| Aspect ratio | 16:9 |
| Color Gamut | Rec. 709 |
| Gamma | |
| Gamut | |
| HDMI | 1 x HDMI (2.0) |
| SDI | 3G |
| Wi-Fi | Wi-Fi 6E |
| USB | 1 x USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
Atomos TX-RX 4K/HD Wireless Video Monitoring Transmitter and Receiver Set
Physical
| Dimensions (W x H x D) | 42mm x 67mm x 120mm (TX & RX) |
| Weight | 231g (TX & RX) |
| Mount Points | 1 x 1/4-inch 20 screw mount on bottom of device |
Environmental
| Ambient Operating Temperature | Up to 50°C |
Construction & Control
| Body Material | Aluminium alloy |
| Rotary Control | For channel selection |
| Power Switch | On/Off |
Power
| Input Voltage | 9–16V |
| Operating Power | 4W (TX & RX) |
| Compatible Batteries | NP-F970 / NP-F750 / NP-F550 (not included) |
| Built-in Battery | No |
Display
| Resolution | 128 x 64 pixels |
| Display Size | 21.8mm x 10.8mm |
Video Input/Output
| Transmitter (TX) | |
| Receiver (RX) | |
Wi-Fi
| Frequency | 5GHz |
| Channels | 9 (CH0–CH08) |
| Latency | 60ms |
| Transmission Distance (Line of Sight) | Up to 300m (985ft) |
Audio
| Audio Format | PCM dual channel |
Resolution & Frame Rates Supported
| HDMI | |
| 3G-SDI | |
Warranty
| Standard | 1 year |
| Extended | 2 years with product registration |
