Atomos Shogun Ultra 7-Inch HDR Monitor Bundle
Couldn't load pickup availability
Product highlights
Product highlights

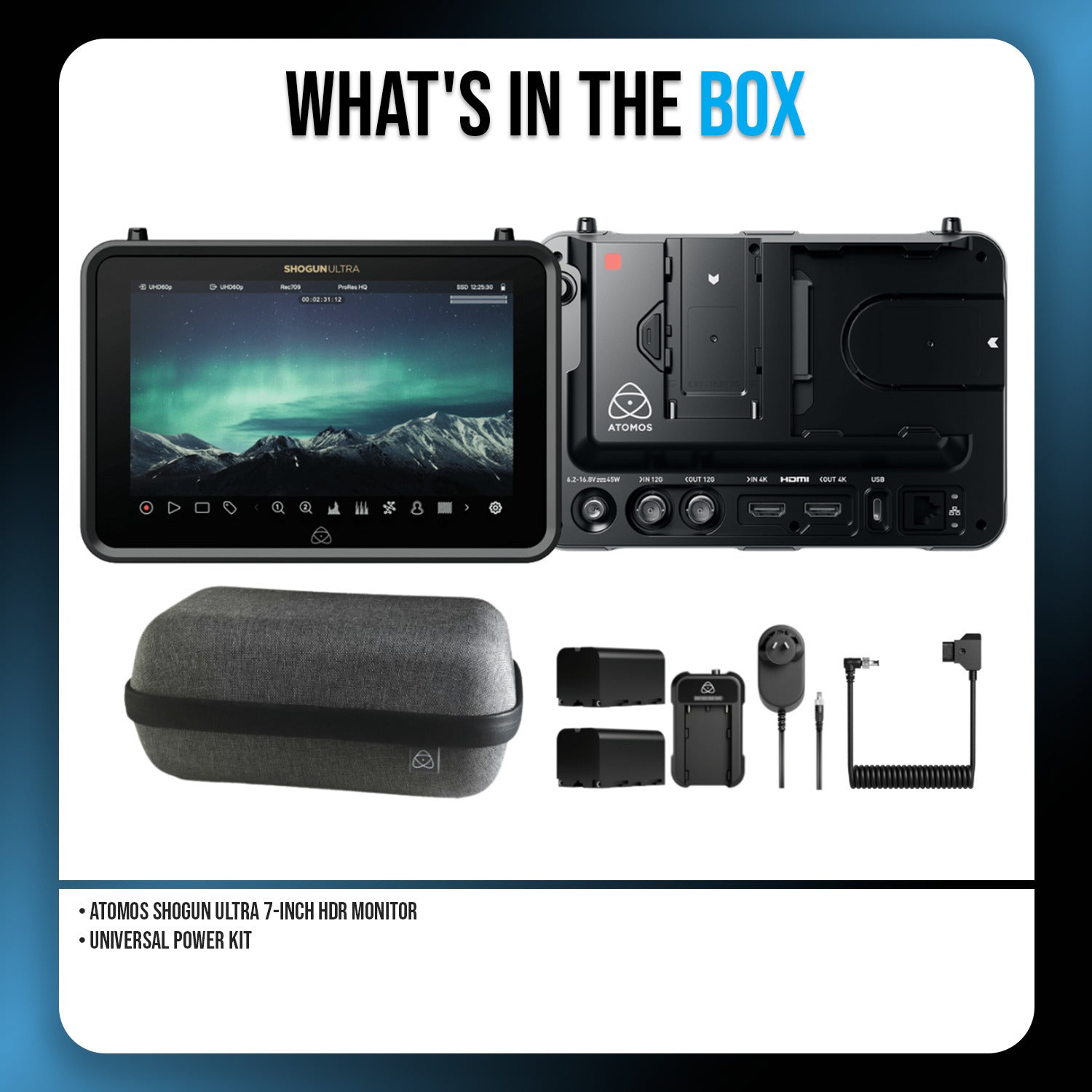

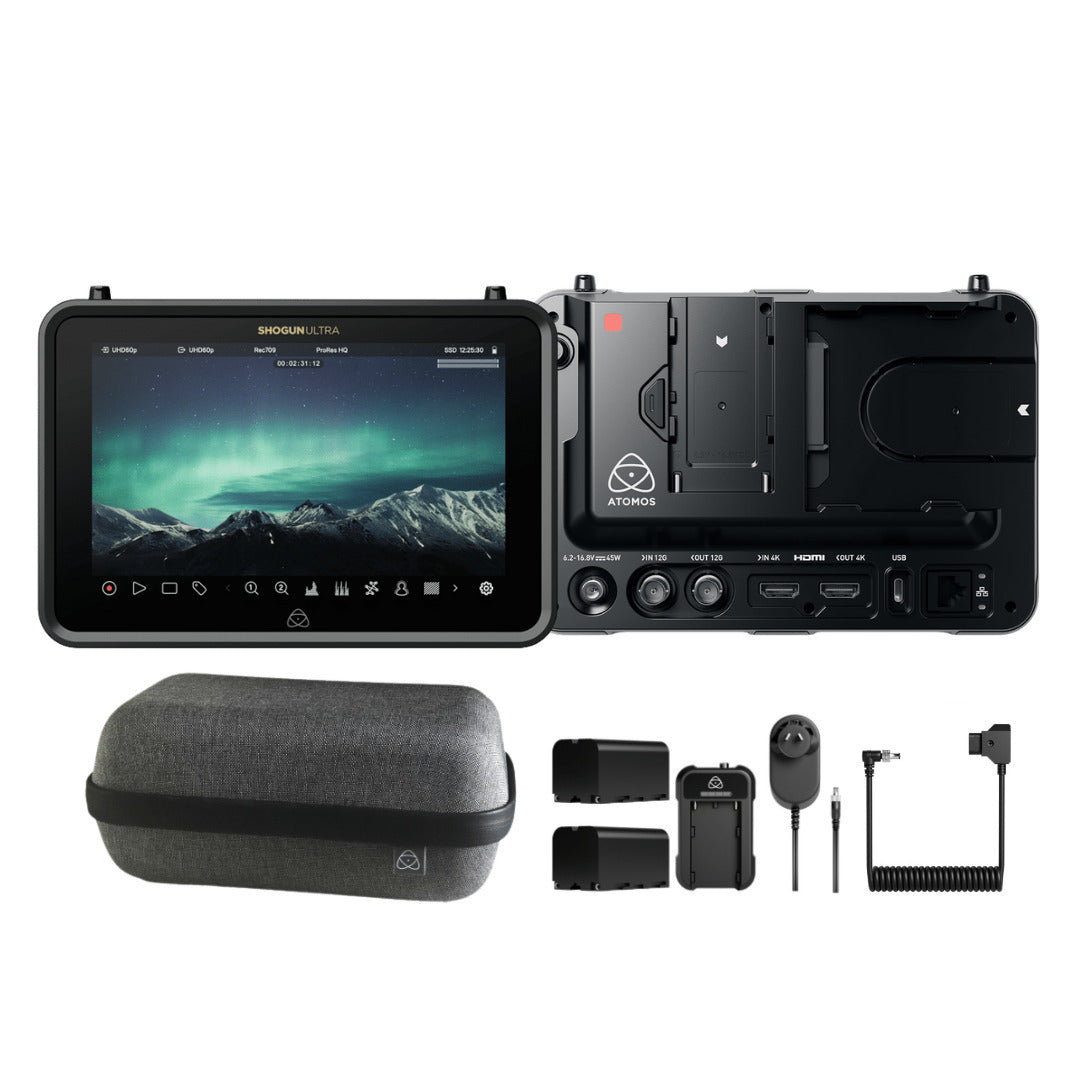

In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

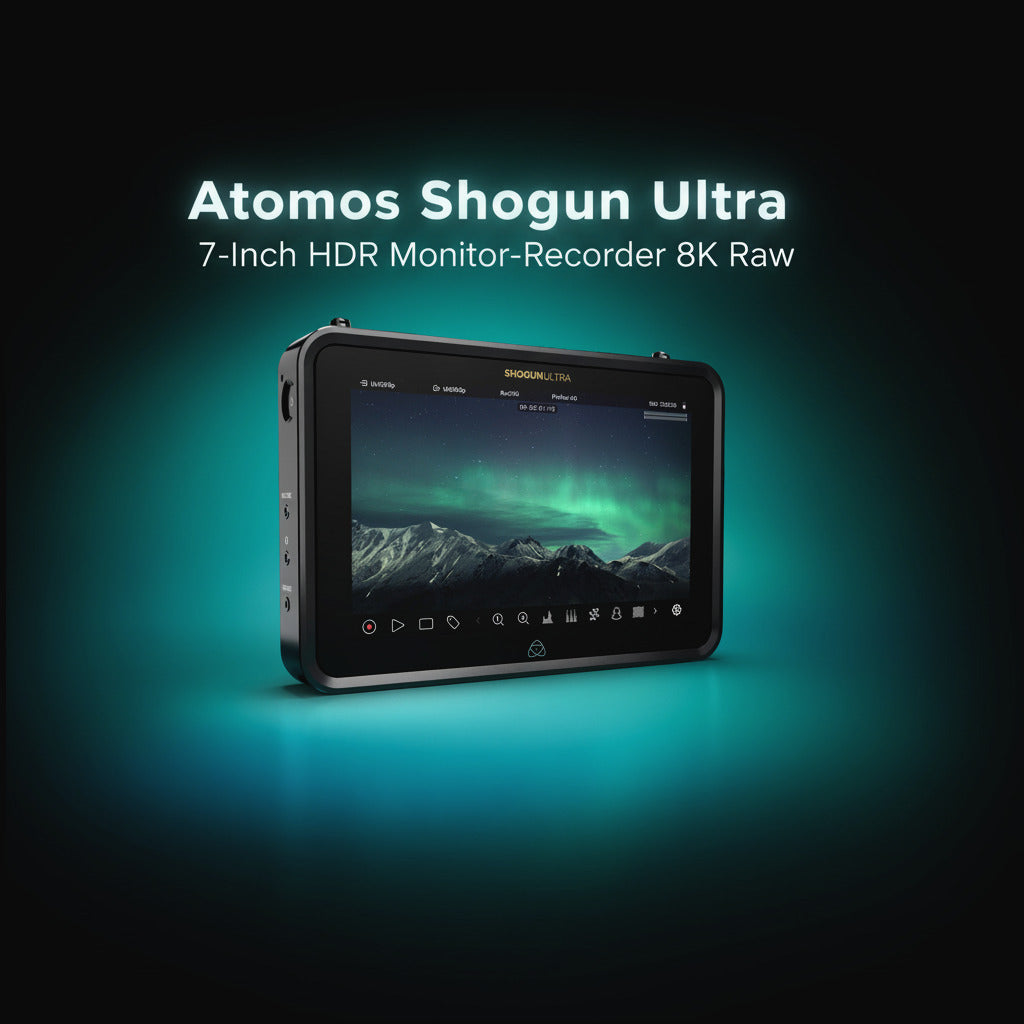

Atomos Shogun Ultra 7-Inch HDR Monitor-Recorder 8K Raw
Atomos Shogun Ultra is a leap forward in filmaking technology that captures your vision in ProRes RAW up to 8K 30P, 6K 60P & 4K 120P with full codec flexibility choice between ProRes RAW, ProRes, DNxHD and H.265 (HEVC). Shogun Ultra has two faces - Local and Cloud. Use it conventionally, and you have an incredible HDR screen, new monitoring tools and both HDMI and 12G SDI. Turn on its wireless and network capabilities, and you have the best-of-breed Wi-Fi, Ethernet and AirGlu wireless sync technology - and you have access to new and productive cloud workflows like camera to cloud and Atomos Edit. You can even edit your project in the cloud and publish directly to social media within minutes of shooting the action.
Features
Shogun Ultra has been built with a new operating system AtomOS 11 that host new and exclusive monitoring and recording features that bring creativity to live in every project, from cinematic to social media. RecordAssist and PlayBackAssist cover pre-arranged or remote shots , while improved false color tools like Arri False Color or EL Zone system fit with today's creators needs. It opens up ultra-efficient cloud workflows, including dual record ProRes RAW and H.265 for Camera to Cloud and 4K H.265 for instant publishing from the cloud, and the SDI Cine feature for automated matching filenames, timecode and record trigger from ARRI, Canon, RED and Sony SDI cameras. Share what’s on your Atomos screen with other Atomos OS11 users, iPads, Macs and Apple TVs wirelessly in the same premises or anywhere in the world with full audio comunication between devices in the included feature Atomos RemoteView. These new features bring even more versatility to the Shogun Ultra, providing professional I/O options for a multitude of cameras 12G-SDI, AirGlu wireless timecode and control and up to 4K NDI - from entry level mirrorless cameras through to the latest compact cinema and high-end professional cameras. Shogun Ultra supports WiFi 6E that boosts cloud video workflows offering more a stable conection. Atomos’ close partnerships with major camera manufacturers ensure that Shogun Ultra works flawlessly with an increasing range of DSLR, mirrorless and cinematic cameras.
Universal Power Kit
Keep your monitors and monitor-recorders powered anytime, anywhere with this complete Universal Power Kit. Designed for professionals on the go, it includes everything you need for reliable, portable power. The durable, waterproof carry case ensures safe transport, while two high-capacity 5200mAh NP-F batteries provide extended runtime. Charge efficiently with the fast battery charger, or power devices directly using the 12V 3A AC-DC adaptor. The included D-Tap to DC cable adds versatility, making this kit ideal for a wide range of setups.
- Top: 1 x 1/4-20 or 3/8 inch with anti-rotational points
- Bottom: 1 x 1/4-20 or 3/8 inch with anti-rotational points
- Right: 1 x 1/4-20 or 3/8 inch with anti-rotational points
Atomos Shogun Ultra 7-Inch HDR Monitor-Recorder 8K Raw
Physical
| Dimensions (W x H x D) | 198 × 133 × 40 mm (7.8 × 5.2 × 1.57 inches) |
| Weight | 730 g (1.6 lbs) |
| Mounting Points | |
| Operating Temperature | Up to 40°C |
| Construction | Aluminium alloy chassis with ABS polycarbonate rear enclosure |
| Cooling | Heat sink + actively controlled fan |
| Tally Light | Rear LED |
| Multi-Function Button | Power / Lock screen |
| Touch Screen | Capacitive touch |
Power
| Input Voltage | 6.2V – 16.8V |
| Compatible Batteries | 1 x NP-F / L-Series |
| DC Input | Locking DC jack (5.5 mm OD & 2.1 mm ID) |
| D-Tap | Via optional D-Tap to DC-barrel cable |
| Fan Control | Low, Medium, Auto / Turbo Cool / Dim Display |
Display
| Panel | SuperAtom IPS (capacitive touch) |
| Size | 7 inch |
| Resolution | 1920 × 1200 (1920 × 1080 image display) |
| Viewing Angle | 178° H/V |
| Pixel Density | 325 PPI |
| Bit Depth | 10-bit (8+2 FRC) |
| Backlight Type | Edge-lit |
| Brightness | 2000 nits ±10% |
| Aspect Ratio | 16:10 (16:9 image display) |
| Color Gamut | Rec.709 |
| Calibration Support | ATOMOS Calibrator with Calibrite ColorChecker Display Pro/Plus |
Color Pipeline & Management
| Supported Gammas | Sony S-Log/S-Log2/S-Log3, Canon C-Log series, Arri Log, Panasonic V-Log, JVC J-Log1, RED LogFilm/Log3G10/Log3G12, Fuji F-Log, PQ (HDR10), HLG, Nikon N-Log, Z-Log2, Olympus OM-Log400, Leica L-Log |
| Supported Gamuts | BT.2020, DCI-P3, P3-65, SGamut/SGamut3.cine, Canon Cinema, V-Gamut, Alexa Wide Gamut, RedColor series, etc. |
| 3D LUT Support | .cube (17 & 33-point), output loop-through, compare 50/50 option |
| Monitoring Modes | Native / 709 / HLG / PQ / 3D LUT |
| HDR Output Conversion | HLG / PQ |
| Display Controls | Backlight, Lift, Gamma, Gain |
| AtomHDR | Built-in technical Log-to-HDR EOTF |
| 3D LUT Storage | 8 LUT slots (monitoring, bake-in, or output) |
| Legal Range Conversion | Available via input menu |
Video Input
| HDMI | 1 x HDMI 2.0 |
| SDI | 1 x 12G-SDI |
| Bit Depth | 8/10-bit video, up to 12-bit RAW |
| Chroma Subsampling | YCbCr 4:2:0 / 4:2:2 |
| HDR | Auto detection |
| Metadata (HDMI/SDI) | White balance, exposure, shutter, iris, ISO, gamma, gamut |
| File Naming | Scene/Shot/Take; auto-matched filenames via SDI from ARRI, Canon, RED, Sony |
Video Output
| HDMI | 1 x HDMI 2.0 |
| SDI Loop/Play Out | 1 x 12G-SDI |
| Chroma Subsampling | 4:2:2, 10-bit |
| HDR | Auto detection supported |
Network & Connectivity
| Ethernet | 1 GbE (RJ45) |

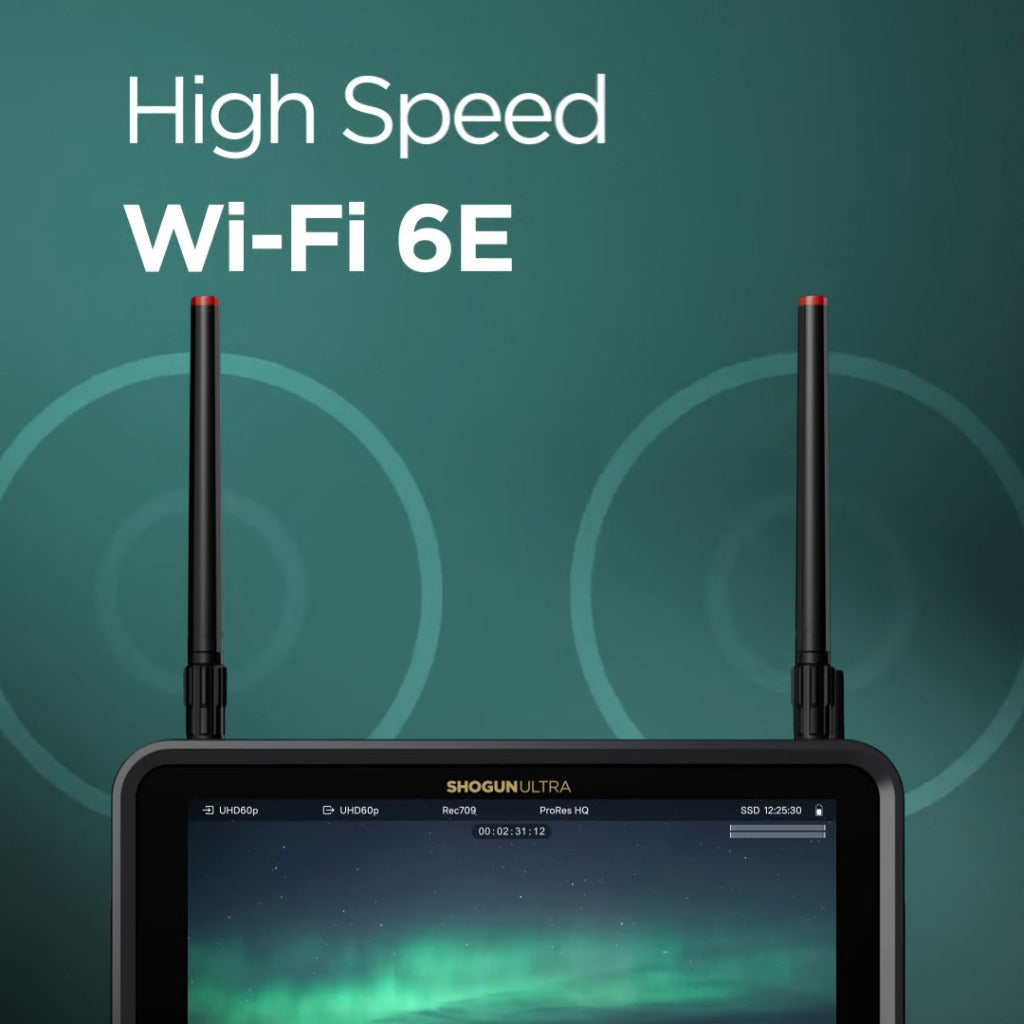

| Wi-Fi | Wi-Fi 6E |
| Wireless RF | AirGlu SYNC Timecode Network |
| Cloud Integration | Capture to Cloud (Atomos Edit, Frame.io, Sony Ci), live streaming (Facebook, Twitch, YouTube, custom RTMP) |
| Cellular | Connect via hotspot (Wi-Fi) |
| Web Streaming | RTMP/S via Atomos Cloud Studio |
Video Signal Conversion
| HDMI SDI Conversion | Supported both directions |
Audio
| Quality | 24-bit / 48 kHz PCM |
| HDMI Input | 8-ch, 24-bit (input dependent) |
| SDI Input | 12-ch, 24-bit (input dependent) |
| Analog Input/Output | 3.5 mm jacks for line in & headphone out |
| Audio Input Delay | Frame delay + automatic calibration via AtomOS |
Timecode / Sync
| HDMI/SDI Embedded | Supported |
| Wireless Sync | AirGlu timecode network |
| RF Range | Up to 300 m |
| Bluetooth Range | 10–15 m (2 clients) |
| RF Channels | 12 per region |
Resolution & Frame Rates
| 8K RAW | up to 8Kp30 (HDMI) |
| 6K RAW | up to 6Kp60 (HDMI) / 6Kp30 (SDI) |
| 4K RAW | up to 4Kp120 (HDMI/SDI) |
| 3.5K Anamorphic RAW | up to 3.5Kp60 (HDMI) |
| 2K RAW | up to 2Kp240 (SDI) |
| 4K DCI/UHD | up to 4Kp60 |
| 2K DCI / FHD / 720p | up to 1080p120 / 720p60 |
Recording Codecs
| Apple ProRes RAW | RAW / RAW HQ |
| Apple ProRes | HQ, 422, LT |
| Avid DNxHD | 220x, 220, 145, 36 (.MOV; MXF coming soon) |
| Avid DNxHR | HQX, HQ, SQ, LB (.MOV; MXF coming soon) |
| H.265 (HEVC) | XQ, HQ, MQ, LQ (.MOV) |
Recording Functions
| Camera to Cloud | Upload via Atomos Edit, Frame.io, Sony Ci |

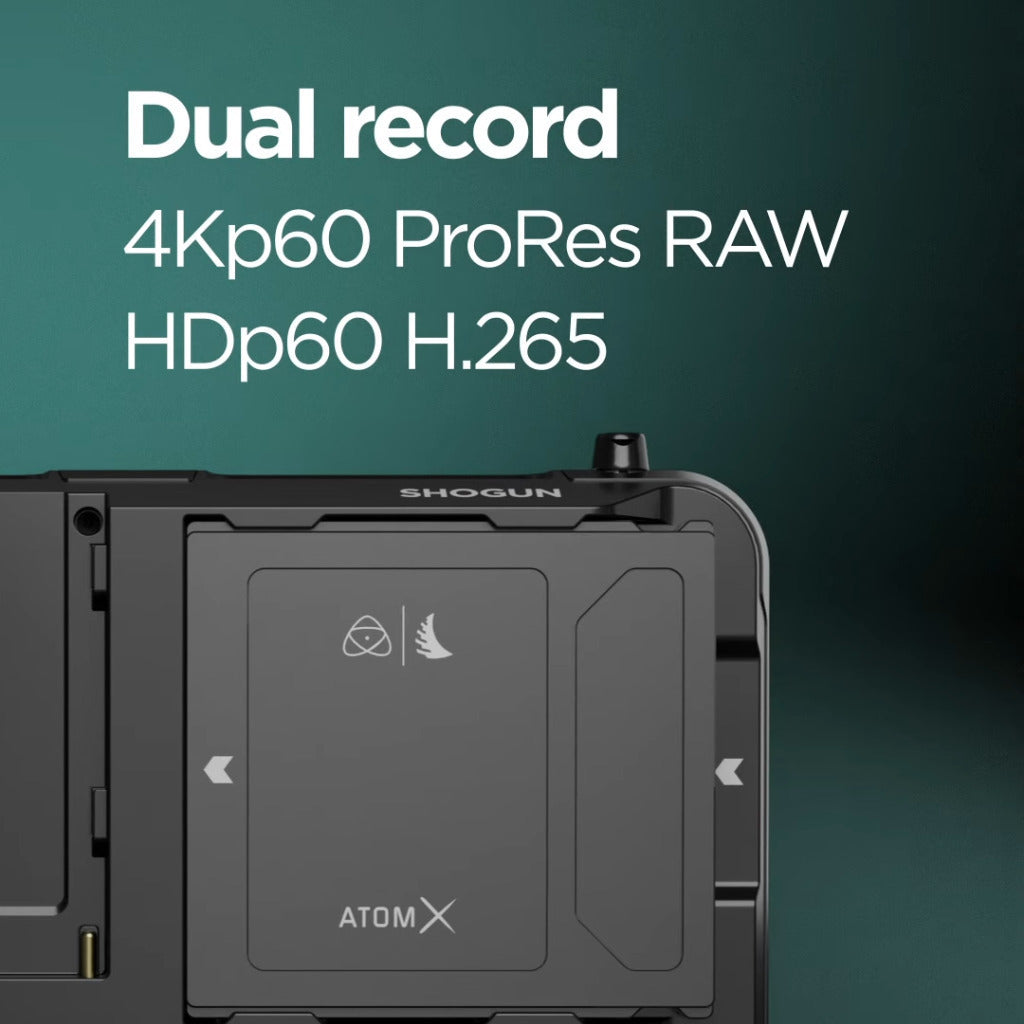

| Simultaneous Proxy Recording | ProRes RAW/ProRes/DNx + H.265 proxy |
| Pre-Roll | 8s (HD) / 2s (4K) |
| Timelapse | Supported |
| Gang Control | AirGlu network |
| Scheduled Recording | Time-based triggers |
Playback
| Playlist Modes | Selected clips, favorites, or combined |
| Loop & Timed Playback | Supported |
| Codec Playback | ProRes RAW/ProRes/DNx/H.265 |
| Scheduled Playback | Time-based |
Supported Media
| Master Caddy | II & III supported (I not supported) |
| SSDmini | Supported |
| CFast 2.0 | Supported via optional AtomX adapter |
| Interface | SATA 3.0 |
| File System | exFAT |
On-Screen Tools
| Waveform, RGB Parade, Vector Scope | Adjustable size, opacity, brightness |
| Zoom | 1x / 2x tap-to-zoom |
| Focus Peaking | 3 modes (color, B&W, outline) |
| Zebra | Adjustable (50–105%) |
| Frame Guides | Cine & Social presets with custom calculator |
| Safe Areas & Grid Markers | SMPTE 93% / 90%, 9-grid |
| Anamorphic Desqueeze | 2x to 1.25x |
| False Color | Atomos, Arri, EL Zone |
| Frame Grab + Onion Skin Overlay | 1920×1080 lossless capture |
| Display Flip | Vertical |
Onboard Signal Processing
| 4K UHD Downscale for HD (Available on loop out) | |
| DCI Crop (Available on loop out) | |
| 8K RAW to 4K Video Loop Out (Available on loop out) | |
| Interlaced to Progressive (2 | 2 / 3:2 pulldown) |
| PsF to Progressive (2 | 2 / 3:2 pulldown) |
| Optional NDI HX3 activation via my.atomos.com |
Remote Control
| HDMI/SDI | Trigger recording via camera record button |
| Serial (2.5 mm) | Start/stop via LANC remote or USB-serial cable |
| Bluetooth LE | Control via AtomRemote app |
| AirGlu | Gang control over RF network |
| External Control | Z CAM via USB-C cable |
Cut & Tag / Supported Applications
| XML | Apple Final Cut Pro (.fcpxml) |
| ProRes RAW | Compatible with FCP, Premiere, Avid, Edius, Baselight, SCRATCH |
| Video Codecs | Supported by all NLEs with ProRes, DNx, or H.265 support |
Universal Power Kit
General
| Compatibility | Atomos Ninja Series / Shinobi Series / Shogun Series / Legacy Monitors |
Power
| Power Source | Battery (Included), AC Input (Included) |
| Battery Type | 2 x Sony L-Series Lithium-Ion |
| Cable Type | 1 x D-Tap to DC Barrel, 1 x AC Wall Outlet to DC Barrel |
Physical
| Color | Black |
Packaging Info
| Package Weight | 3.1 lb |
| Box Dimensions (L x W x H) | 7.1 x 4.2 x 1.5 Inches |
