Atomos Sumo19 SE 19-Inch HDR Pro/Cinema Monitor-Record-Switcher
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
More than just a monitor Sumo 19 is the perfect tool to bridge your 4K HDR workflow across multiple cameras, audio, and Atomos devices. Sumo 19 is a Monitor-Record-Switcher, and highly adaptable to suit various applications. Unlock the true potential of your RAW cinema cameras with the Sumo 19. Preserve your sensor’s new pixels in ProRes RAW at up to 5.7kp30, 4kp120 DCI/UHD, and 2kp240 DCI/HD. CDNG supports up to 4kp30 DCI. Sumo 19 is compatible with the Sony FS series, Canon C300MKII/C500, Panasonic EVA-1/Varicam LT, and more.
Live Quad-Channel HD Switching and Recording
Take full advantage of 4 x SDI inputs and let Sumo 19 step into the role of a large-format quad view live switcher and recorder on your multi-camera shoots. Record up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real-time with a simple touch of the screen. Sumo 19 allows users to record a fifth ‘program’ channel of your switched feed. Display the resulting mixed output (via HDMI or SDI) live on set. Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras. You can easily output the switched feed for live streaming with a solution as simple as the Atomos Connect 4K. For professional productions large and small you save significant space by replacing several boxes in your rack, or decks and monitors on your desk with a single Sumo 19.
HDR In The Field and In The Studio
HDR comes to life on Sumo 19. Its 19-inch 1920 x 1080 LCD panel with 10-bit processing takes the RAW/Log/PQ/HLG output from cameras or gaming consoles and precisely maps to display 10+ stops of dynamic range in real-time. Use as a director or client monitor in the field, or as an affordable HDR studio monitor.
10-bit ProRes and DNx Up To 4Kp60
Video from any camera or digital video source can be captured via SDI or HDMI. Record up to 10-bit 4:2:2 in ProRes or DNxHR codecs at 4Kp60 or 2Kp240, depending on the camera’s capability. The depth and quality of the image are preserved with data rates of up to 1.8Gbs, 220MB/s.
Two Stereo Balanced XLR Inputs With 48V
Use full-size XLR connections with 48V Phantom power to connect two external microphones with balanced analog audio recording and monitoring. The Sumo19 has dedicated meters, gain controls, and adjustments for frame delay on each channel. Mic or line-level audio can be seamlessly synchronized with embedded audio from HDMI and SDI sources.
Display & Color Specifications
| Touchscreen | SuperAtom IPS panel (capacitive touch). |
| Size | 19 inch. |
| Resolution | 1920 x 1080 (Full HD). |
| Brightness (cdm2 / nits) | 1200nit (+/- 10% at center) (High brightness for daylight viewing and **HDR monitoring**). |
| Bit Depth | 10Bit (8+2 FRC). |
| Color Gamut | Rec.709. |
| Supported Gamut | BT2020, DCI P3, Sony SGamut, Canon Cinema, Arri Alexa Wide Gamut, and more. |
| Supported Gamma | Sony SLog, Canon CLog, Arri Log CEI, Panasonic Vlog, Red LogFilm, PQ (HDR10), HLG, and others. |
| Calibration Support | Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail). |
| Monitoring Modes | Native / HLG / PQ / 3D LUT. |
| 3D LUT Display | .Cube Format. |
Video Input/Output & Switching
| Video Input (SDI) | 2 x 12G and 2 x 3G (Supports up to four simultaneous 3G SDI inputs for **multi-camera switching**). |
| Video Input (HDMI) | 1 x HDMI (2.0) 4k p60. |
| SDI RAW Recording | Apple ProRes RAW up to 6k (High-resolution RAW capture via SDI). |
| Video Output (HDMI) | 1 x HDMI (2.0) 4k p60. |
| SDI Loop/Play Out | 1 x 12G SDI (Backwards compatible Autodetection level A and B selectable). |
| Signal Conversion | HDMI to SDI and SDI to HDMI (Supports both Video and RAW conversion). |
| Multi-Input / Switching | Up to 4 x up to 1080p 60 (3G SDI Level A ONLY) with Switched program record and Input transitions. |
Recording & Codecs
| Recording CODEC (RAW) | CDNG (For SDI RAW inputs Only), Apple ProRes RAW (ProRes RAW, HQ). |
| Recording CODEC (Video) | Apple ProRes (LT, 422, 422HQ), Avid DNxHD/HR (LB, SQ, HQ, HQX). |
| Recording Media | SSDmini (ONLY with optional SSDmini handle) (Provides high-capacity, high-speed recording). |
| Maximum Resolution/Rate | 6k RAW Only up to 30p via SDI Only, 4k DCI/UHD up to 60p, FHD up to 120p. |
| Pre-roll Record | Yes (HD 8s, 4K 2s) (Captures footage before the record button is pressed, not available in RAW). |
| ISO Record | Up to 4 x ISO up to 1080p 60 (3G SDI Level A ONLY) (Records up to four isolated camera feeds simultaneously). |

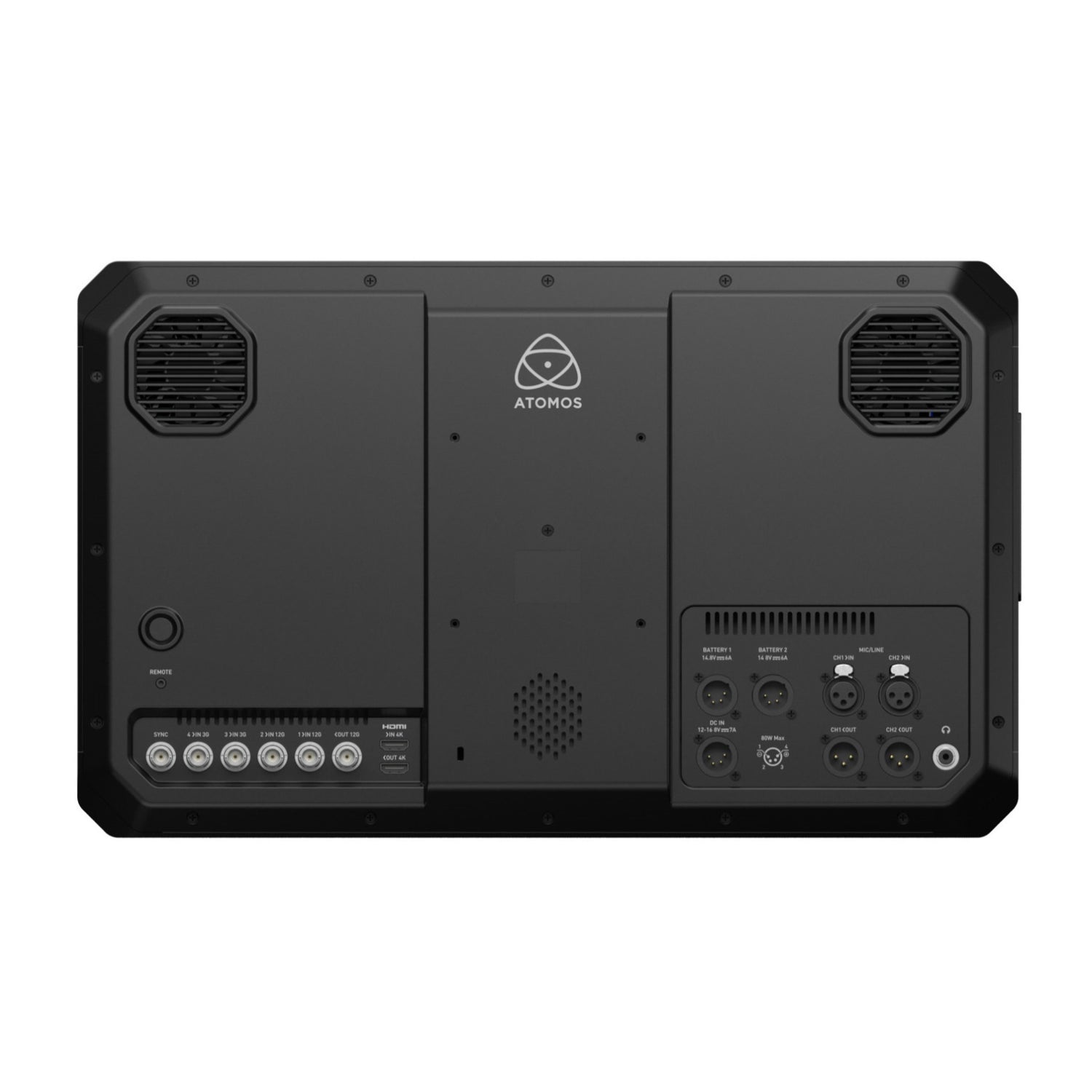

Physical, Power & Audio
| Dimensions (Without Feet) | 19.8 x 12.2 x 2.5 inch (504 x 310 x 63 mm). |
| Weight (Monitor Only) | 13.7 lb (6.2 kg). |
| Mount Points | Multiple 1/4-20 and 3/8-16 screw points, VESA mount (100x100mm). |
| DC In Connector | 4 pin XLR (Standard professional power connection). |
| Power Input Voltage | DC 12-16.8v, Battery 14.4V nominal. |
| Continuous Power | Dual Battery input via dedicated 4 pin XLR (Allows for hot-swapping batteries for uninterrupted power). |
| Audio In | 2 x XLR, HDMI (8ch 24Bit), SDI (12ch 24Bit). |
| Audio Out | 2 x XLR, 3.5mm Headphone out, 2 x 5w Speakers. |
