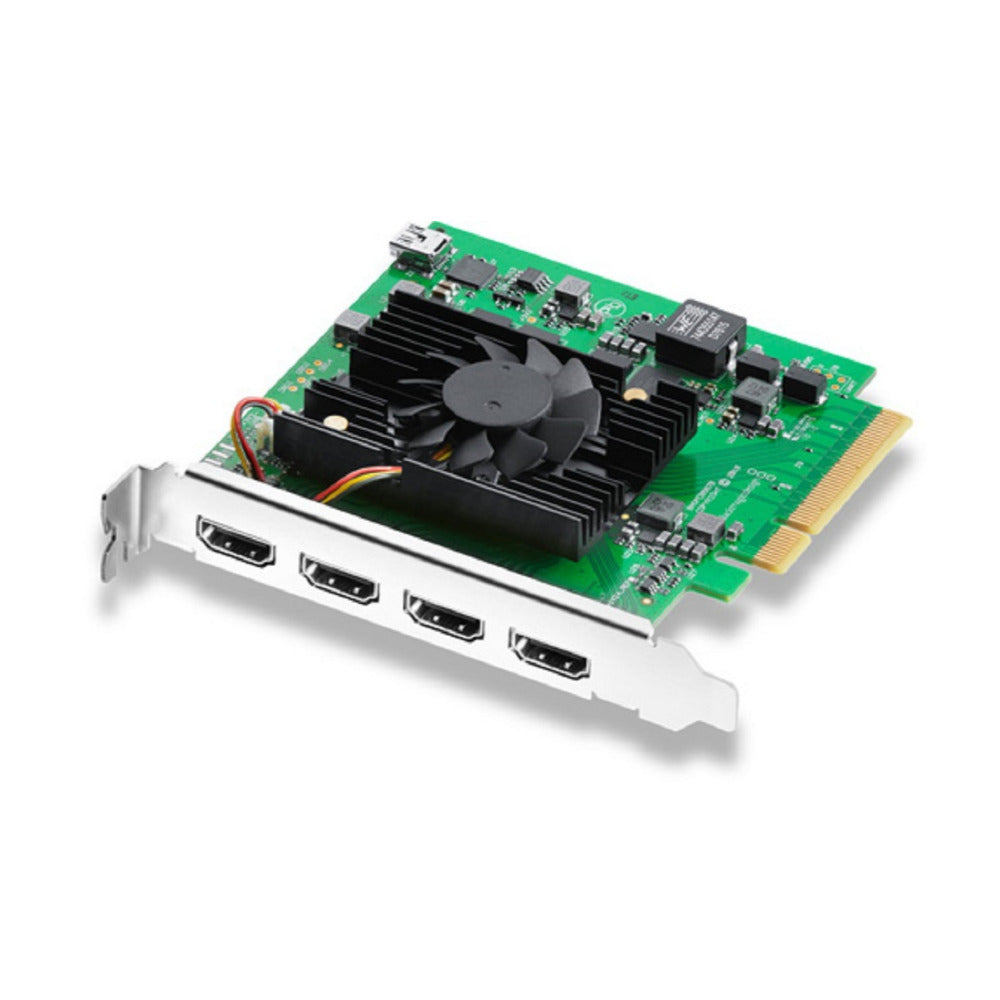

DeckLink Quad HDMI Recorder is a high-performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K, and even computer formats, all at the same time! Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real-time computer game capture, streaming, and more.
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080i50, 1080i59.94, 1080i60
Blackmagic Design DeckLink Quad HDMI Recorder
Connections
| HDMI 2.0b video inputs | 4 |
| HDMI audio inputs | 8 Channels embedded in SD/HD/UHD/4K |
| Computer interface | PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots. |
Supported Codecs
| AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4 | 2:2, Uncompressed 10‑bit 4:2:2 |
Software
| Software included | Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux |
| Internal software upgrade | Firmware built into software driver. Loaded at system start or via updater software |
| Physical installation | PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux |
Software Applications
| Wirecast | |
| vMix | |
| OBS | |
| Other supported applications include | Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go and [REC]Marker, Zoom |
Video Standards
| SD video standards | 525i59.94 NTSC, 625i50 PAL |
| HD video standards | |
| Ultra HD video standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K video standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| Digital video interface (dvi) standards | 640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60 |
| Audio sampling | Television standard sample rate of 48 kHz and 24 bit |
| HDMI color precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 and 4:2:0 in all modes. 8‑bit RGB 4:4:4 in all DVI modes |
| Color space | REC 601, REC 709, REC 2020 |
| HDMI video sampling | 4:4:4, 4:2:2 and 4:2:0 |
| HDMI configuration | HDMI 2.0b supports Deep Color and HDR. |
| Multiple rate support | HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes. |
| Copy protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Physical Specifications
| Weight | 128 g |
| Width | 109 mm |
Operating Systems
| Mac 11.1 Big Sur | |
| Mac 12.0 Monterey or later. | |
| Windows 8.1, 10 and 11, all 64-bit. | |
| Linux |
Power Requirements
| Power consumption | 23 W |
Environmental Specifications
| Operating temperature | 5 to 40-degree-Celcius (41-degree to 104-degree Fahrenheit) |
| Storage temperature | -20 to 45-degree-Celcius (-4-degree to 113-degree Fahrenheit) |
| Relative humidity | 0% to 90% non-condensing |
