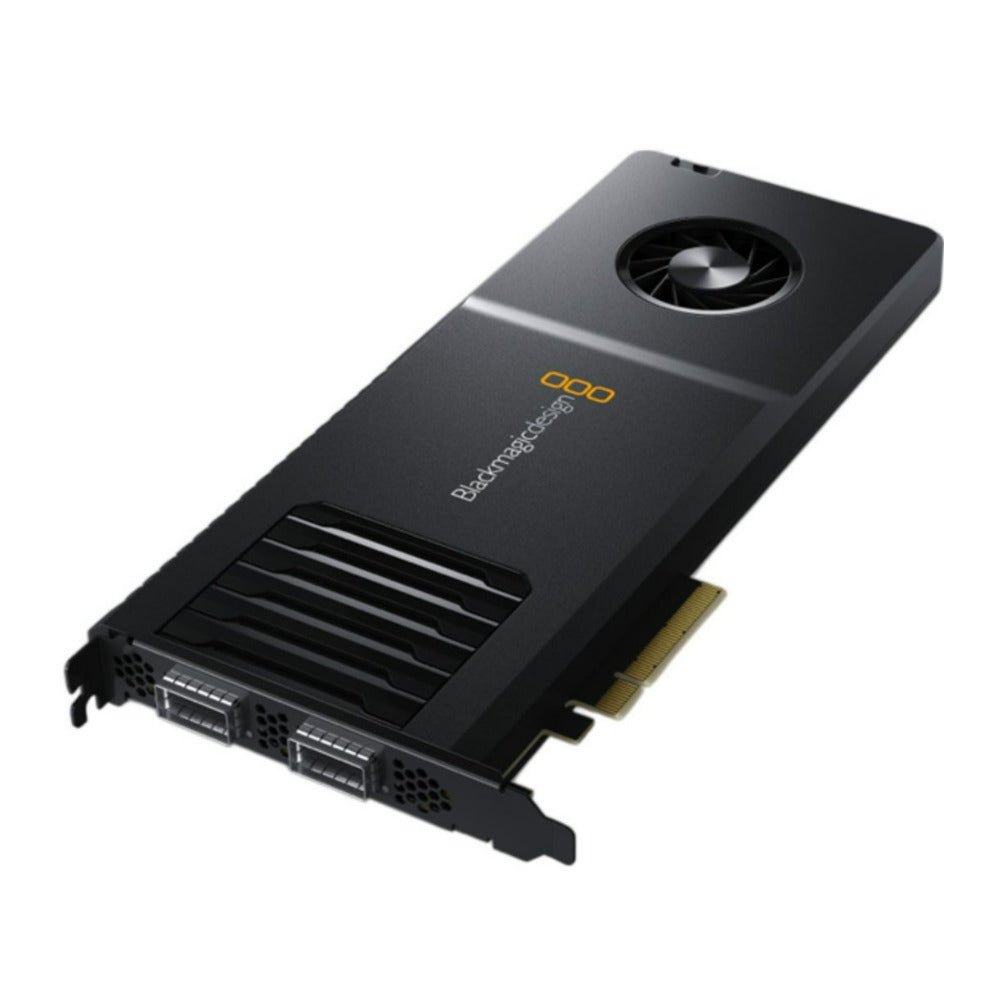

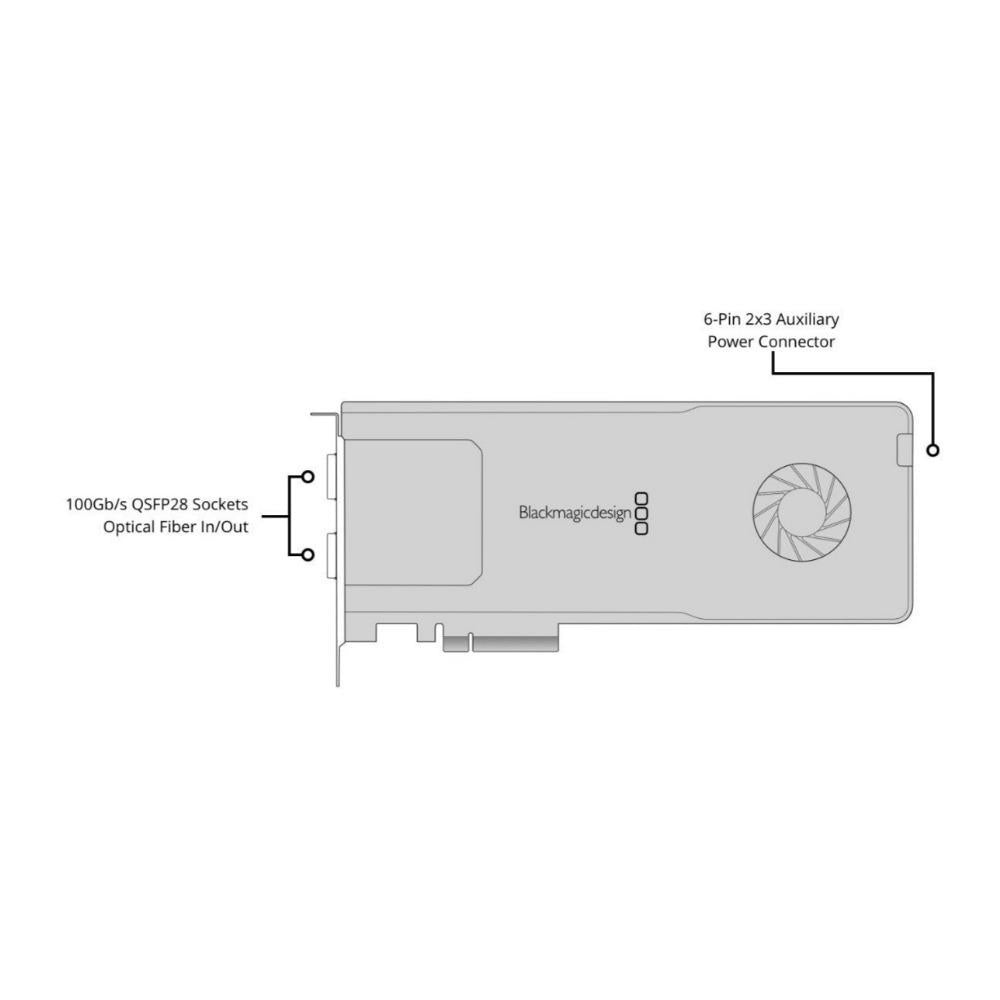

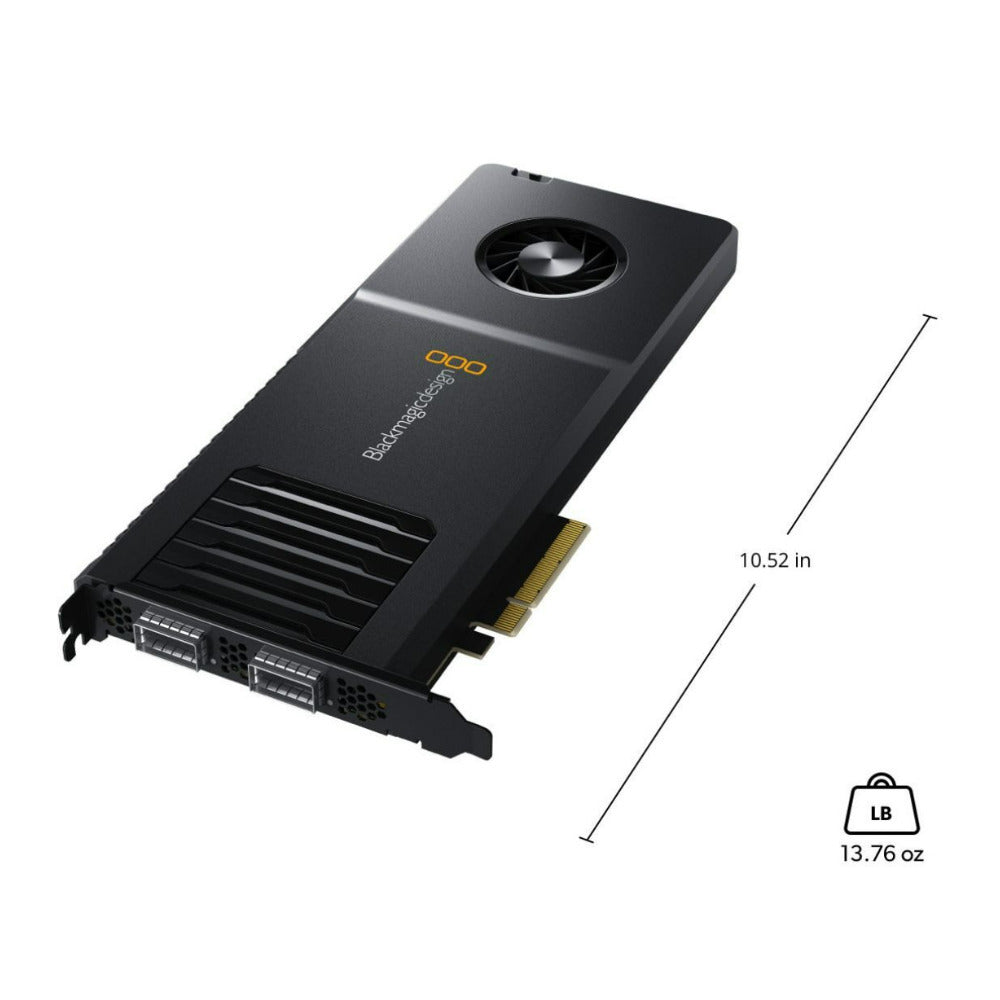

The Blackmagic Design Decklink IP 100G Card is the easiest way to capture and play back video directly. DeckLink IP card supports multiple video channels plus each channel can capture and play back at the same time. This means you can build racks of servers generating broadcast graphics, virtual sets or GPU based AI image processing, all directly integrated into 2110 IP broadcast infrastructure. You can even use DaVinci Resolve for 2110 IP based broadcast editing workstations. DeckLink IP features a high speed PCIe connection so it works on the latest Mac Pro, Windows and Linux computers. It features 8 channels of Ultra HD video, in simultaneous capture and playback via 100G Ethernet. It also features 2 100G Ethernet QSFP ports, providing full redundancy.

10G Ethernet for Multiple SMPTE 2110 IP Channels

DeckLink IP card conforms to the SMPTE ST2110 standard for IP video, which specifies the transport, synchronization and description of video, audio and ancillary data over managed IP networks for broadcast. It also keeps video sources in sync using a common PTP clock. DeckLink IP supports SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping and timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data.

Built in Video Firewall for Total IP Network Security

The problem with computers and 2110 IP video networks is the vulnerability to rogue software or even hackers. That’s because anyone can send data to the computer’s Ethernet connection. However DeckLink IP eliminates this problem because all video is transferred using frame buffers. It’s like a video based firewall. This means the DeckLink IP Ethernet port is isolated from anything other than video and audio. Instead, like all DeckLink cards, the video and audio are transferred to on board DeckLink frame buffers where video playback is managed and then converted to 2110 IP video channels.

High Speed PCIe Connection

DeckLink IP card features a fast connection to the host computer that can handle multiple HD and Ultra HD video channels depending on the model, as well as simultaneous capture and playback on each of the channels. PCI Express offers low latency and highly accurate time synchronization to software capturing or playing video. Only DeckLink IP card offers such exceptional performance while utilizing a simple and low-cost PCIe card-based design.

Supports All SD, HD and Ultra HD Standards to 2160p60

The DeckLink IP model includes both 2110 IP and 3G-SDI, so it can connect to SDI equipment, while simultaneously connecting to new IP based infrastructure. In standard definition, DeckLink IP supports both 525i59.94 and 625i50 standards. In HD, all DeckLink IP cards support 720p, 1080i and 1080p standards up to 1080p60. In Ultra HD you get support for all standards up to 2160p60. Video standard can be set independently for each channel and switches instantly when set using the default video standard setting in the Desktop Video Utility or directly via the DeckLink SDK.

Get True 10-Bit Broadcast Video Quality

DeckLink IP card is designed to support the highest quality video. You get support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed, so you’re never locked into a single file format. 10-bit is the most commonly used television standard as colors can be represented with 4 times the precision of 8-bit video. Only working with 10-bit uncompressed video will ensure all images are a perfect pixel for pixel clone of the original source, so you’re always working at the absolute highest quality possible. This means you get the sharpest green screen keying, seamless VFX compositions and superior color correction.
