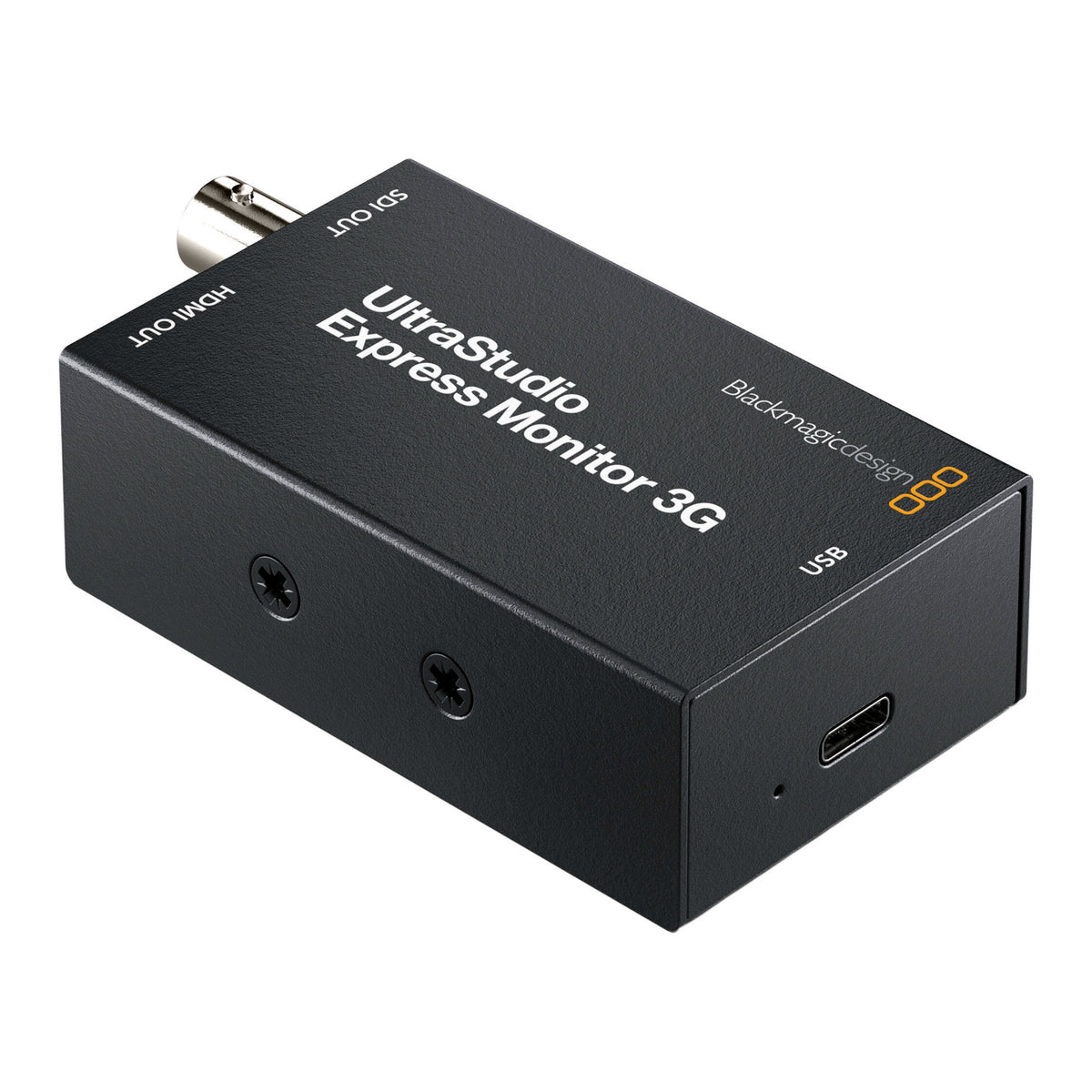

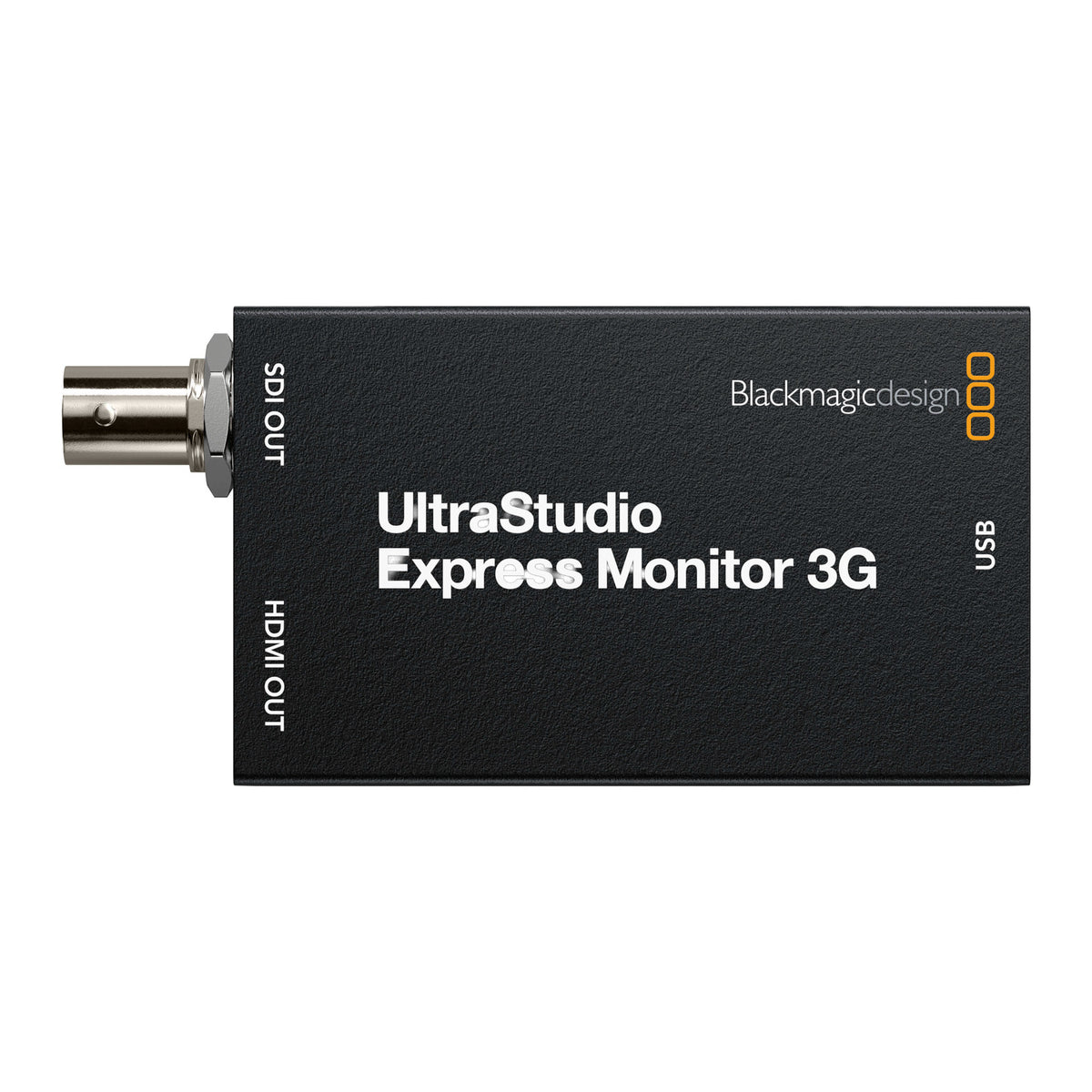

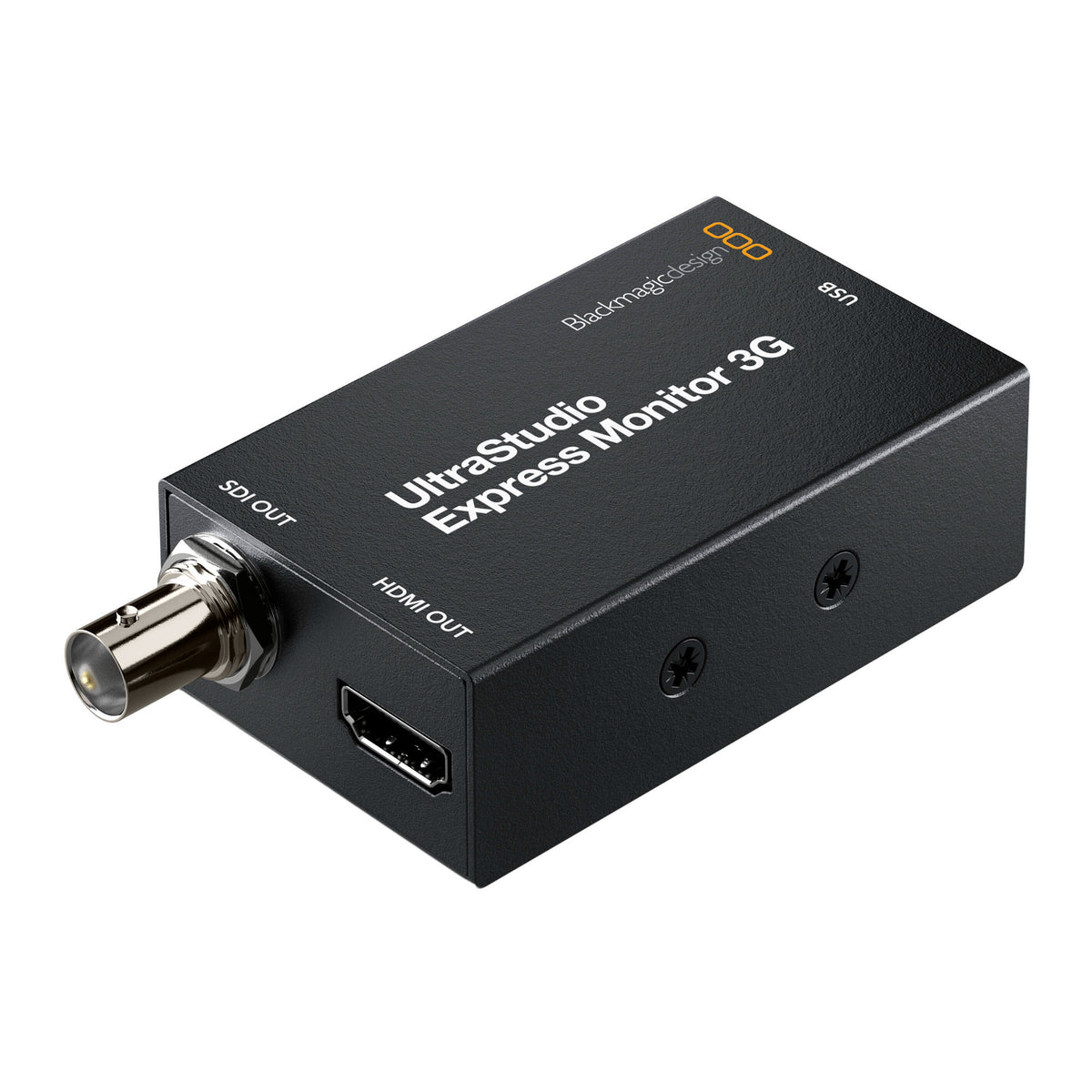

- Blackmagic Design UltraStudio Express Monitor 3G Playback Device
Blackmagic Design UltraStudio Express Monitor 3G Playback Device
- Outputs professional SD and HD video through 3G-SDI and HDMI
- Supports common video standards up to 1080p60
- Provides broadcast-quality 10-bit SDI output
- Connects to USB4 and Thunderbolt 4 computers
- Supports HDR metadata with HLG and PQ workflows
- Carries up to 16 embedded audio channels through SDI
- Works with supported Mac, Windows, and Linux systems
- Compatible with major editing and broadcast graphics applications
Send professional video from your editing workstation to an external monitor with the Blackmagic Design UltraStudio Express Monitor 3G. This compact playback device connects to compatible USB4 and Thunderbolt 4 computers, then provides dedicated 3G-SDI and HDMI outputs for monitoring SD and HD projects. It supports video standards up to 1080p60, making it a practical interface for editing, color correction, broadcast graphics, and post-production review.
Professional SDI and HDMI Output
The UltraStudio Express Monitor 3G provides one switchable SD and HD 3G-SDI output and one HDMI 2.0 output. The SDI connection carries up to 16 embedded audio channels, while HDMI carries up to 8 embedded audio channels. Support for 10-bit SDI video, multiple color spaces, and common broadcast frame rates helps maintain a consistent monitoring workflow across professional displays and production environments.
HDR and Color Workflow Support
SDI and HDMI outputs support HDR metadata packing with HLG and PQ transfer characteristics. The device also supports Rec 601, Rec 709, and Rec 2020 color spaces. Hardware-based real-time color space conversion and broad video sampling support make the interface useful for evaluating projects across a range of SD and HD delivery standards.
Built for Modern Editing Systems
A USB Type-C interface supports USB 40Gbps connectivity and supplies power from the connected computer. The device works with supported Mac, Windows, and Linux systems and integrates with applications including DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, and other professional video tools. Its compact format fits easily into desktop editing suites, mobile production systems, and broadcast graphics workstations.
SDI Connections
| SDI Video Outputs | 1 x 10-bit SD and HD Switchable |
| SDI Rates | 270 Mb, 1.5G, 3G |
| SDI Audio Outputs | 16 Embedded Channels in SD and HD |
| SDI Compliance | SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE ST2108-1 |
| SDI Metadata Support | RP 188, SMPTE 12M-2, Closed Captioning |
| SDI Audio Sampling | 48 kHz, 24 Bit |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Color Precision | 8, 10, and 12 Bit RGB 4:4:4 up to 1080p30 |
| SDI YUV Precision | 8 and 10 Bit YUV 4:2:2 in All Standards |
| SDI Color Space | Rec 601, Rec 709, Rec 2020 |
| SDI HDR Support | HDR Metadata Packing, HLG, PQ |
HDMI Connections
| HDMI Video Outputs | 1 x HDMI 2.0 Type A Connector |
| HDMI Audio Outputs | 8 Embedded Channels in SD and HD |
| HDMI Audio Sampling | 48 kHz, 24 Bit |
| HDMI Video Sampling | 4:2:2 and 4:4:4 |
| HDMI Color Precision | 10 and 12 Bit RGB 4:4:4 up to 1080p30 |
| HDMI Additional Precision | 8 Bit RGB 4:4:4 and 12 Bit YUV 4:2:2 in All Standards |
| HDMI Configuration | HDMI 2.0a with Deep Color and HDR |
| HDMI Color Space | Rec 601, Rec 709, Rec 2020 |
| HDMI HDR Support | HDR Metadata Packing, HLG, PQ |
Computer Interface
| Interface | 1 x USB Type-C |
| Data Rate | USB 40Gbps |
| Compatible Connections | USB4 and Thunderbolt 4 |
| Power | Supplied Through USB Type-C Cable |
Supported Video Standards
| SD | 525i59.94 NTSC, 625i50 PAL |
| 720p | 50, 59.94, 60 |
| 1080i | 50, 59.94, 60 |
| 1080p | 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 |
Processing
| Color Space Conversion | Hardware Based Real Time |
| Hardware Frame Buffer | v210, 2vuy, ARGB, BGRA, r210, R12B, R12L |
Operating Systems
| Mac | Mac 15.0 Sequoia, Mac 26.0 Tahoe or Later |
| Windows | Windows 10 64 Bit, Windows 11 |
| Linux | Supported |
Environmental
| Operating Temperature | 5 to 40 Degrees C, 32 to 104 Degrees F |
| Storage Temperature | Minus 20 to 45 Degrees C, Minus 4 to 113 Degrees F |
| Relative Humidity | 0 Percent to 90 Percent Noncondensing |
