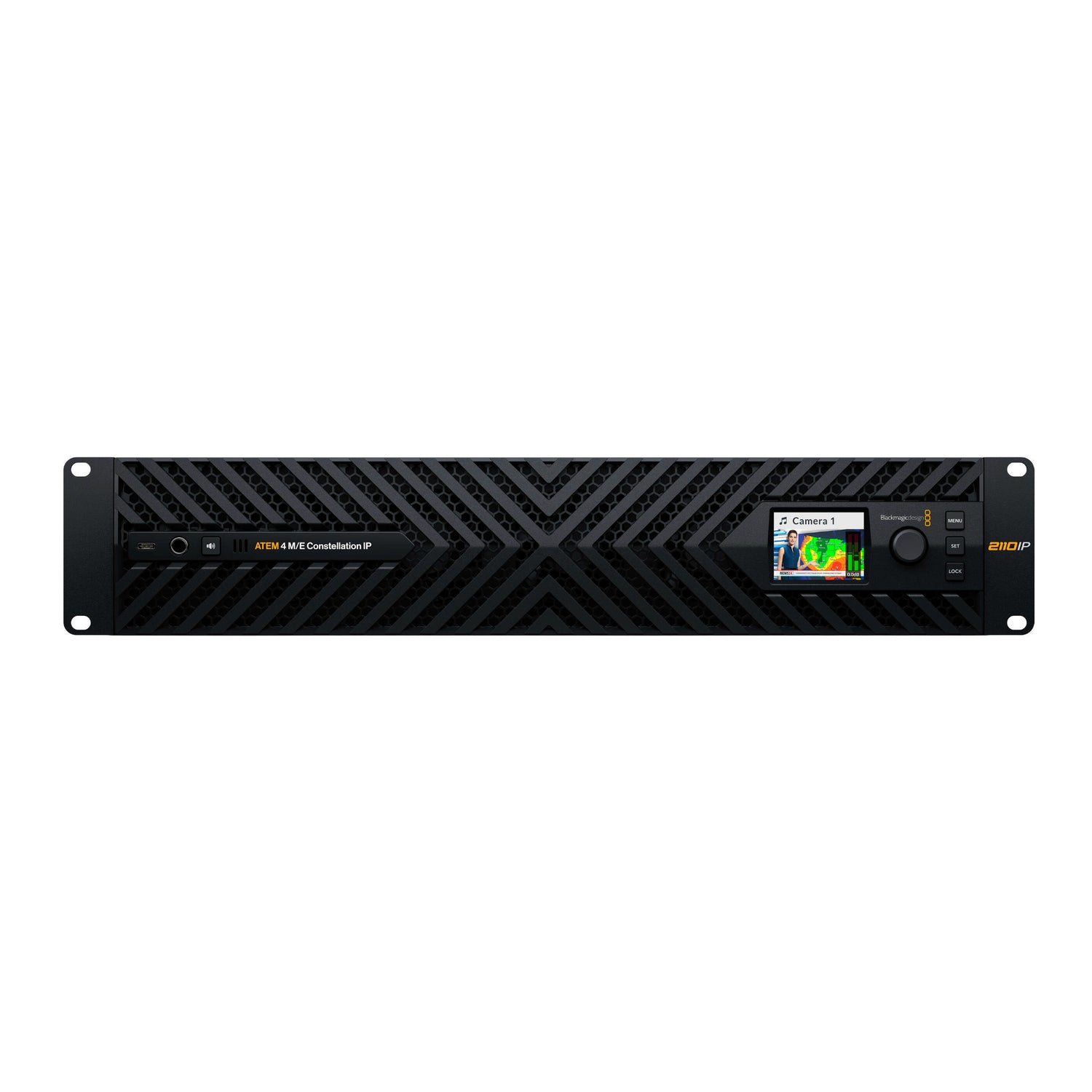

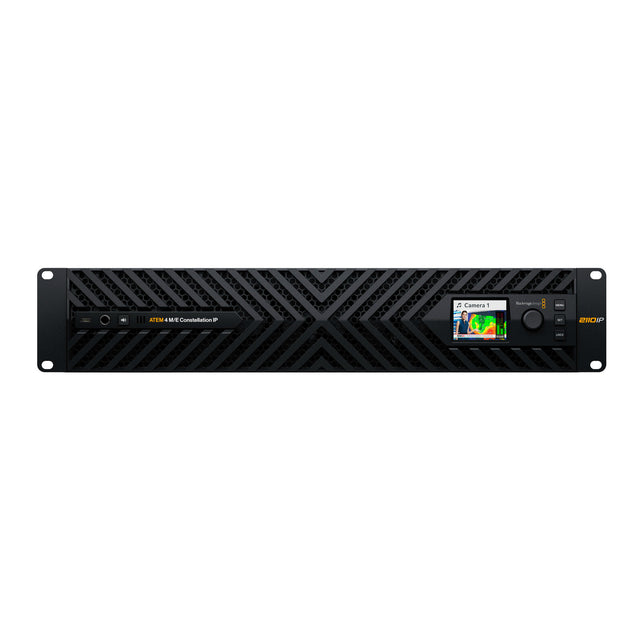

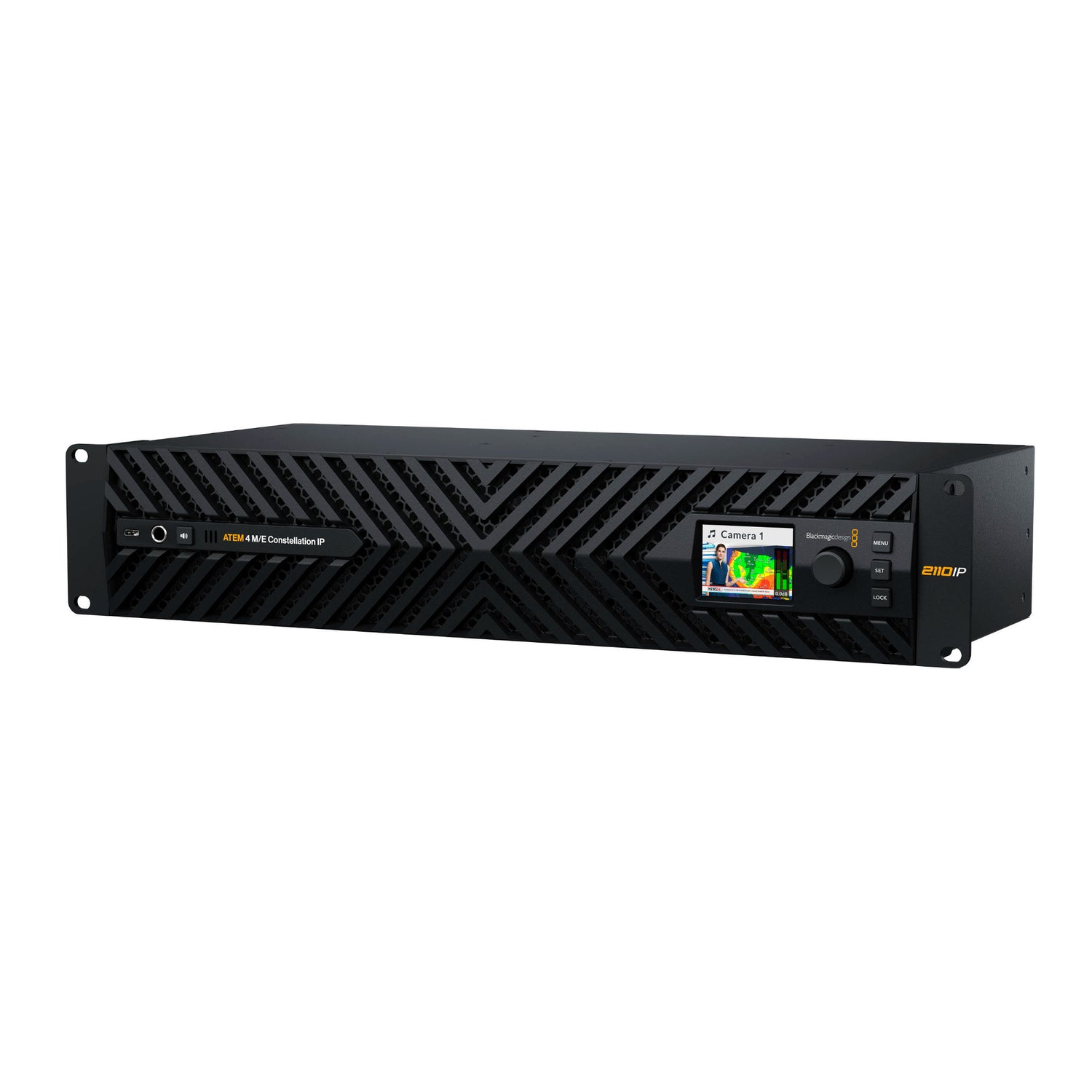

The Blackmagic Design ATEM 4 M/E Constellation IP Switcher is a powerful, broadcast-grade live production solution designed for high-end IP workflows. Built in a compact 2RU rackmount design, it delivers exceptional performance with advanced redundancy, flexible control, and professional-grade switching capabilities for demanding live environments.
32 SMPTE 2110 IP Inputs and 28 Outputs
Supports large-scale productions with 32 inputs and 28 outputs, including multiview, all via high-speed 100G Ethernet connections.
Full Standards Conversion on Every Input
Each input features a dedicated frame rate and format converter, allowing seamless integration of mixed video formats without manual setup.
Redundant 100G Ethernet Connectivity
Every connection is duplicated for reliability, supporting SMPTE 2022-7 seamless protection switching to ensure uninterrupted operation.
Advanced Broadcast Switching (4 M/E)
Professional program and preview workflow with 4 mix effects rows, enabling complex live switching and layered productions.
12 Digital Video Effects (DVEs) and SuperSource
Includes multiple DVEs for picture-in-picture and motion effects, plus two SuperSource processors for advanced multi-layer compositions.
Customizable Multiview Monitoring
Monitor up to 64 sources across four multiview outputs with flexible layouts, tally indicators, labels, and audio meters.
Professional Transitions and Keying
Offers broadcast-quality transitions (mix, dip, wipe) and 16 advanced keyers for graphics, overlays, and chroma key virtual sets.
Integrated Media Pool and Graphics Playback
Store and instantly recall up to 60 stills and 400 frames of animation using built-in media players.
Flexible Control Options
Operate via ATEM Software Control or optional hardware panels, with support for custom automation through the developer SDK.
USB-C Webcam Output
Use the switcher as a webcam source for live streaming or video conferencing with professional multi-camera output.
Built-In Talkback System
Supports two-way communication with compatible cameras and crew using dedicated audio channels.
Fairlight Audio Integration
Compatible with Fairlight Live for advanced audio mixing, supporting stereo, surround, and immersive audio workflows.
Reliable Cooling and Redundant Power
Designed for continuous operation with front-to-back airflow, four quiet fans, and dual redundant power supplies.
- Fiber (10-Bit 4:2:2)
- UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
- 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
- 1080i: 50/59.94/60 fps
- 720p: 50/59.94/60 fps
- Fiber (10-Bit 4:2:2)
- UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
- 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
- 1080i: 50/59.94/60 fps
- 720p: 50/59.94/60 fps
Mix Effects
| Available M/E Layers | 4 M/E |
| Effect Types | 20x Luma Key, 4x DVE, 4x Transition, 4x Stinger |
| Graphics Memory | 64 Images |
| Downstream Keys | 4x DVE |
| Generators | 21x Pattern |
| Audio Mixing | 68-Channel Mixing |
Processing
| Switching Type | Software |
| Processing Resolution | UHD 4K at 60 |
| Color Processing | 10-Bit 4:2:2 |
Input
| Number of Video Input Sources | 32 |
| Video Inputs | 8x QSFP28 Female |
| Input Video Format |
Output
| Video Output Channels | 28 |
| Video Outputs | 8x QSFP28 Female |
| Output Video Format | |
| Multiview Output | 64-Way Multiview |

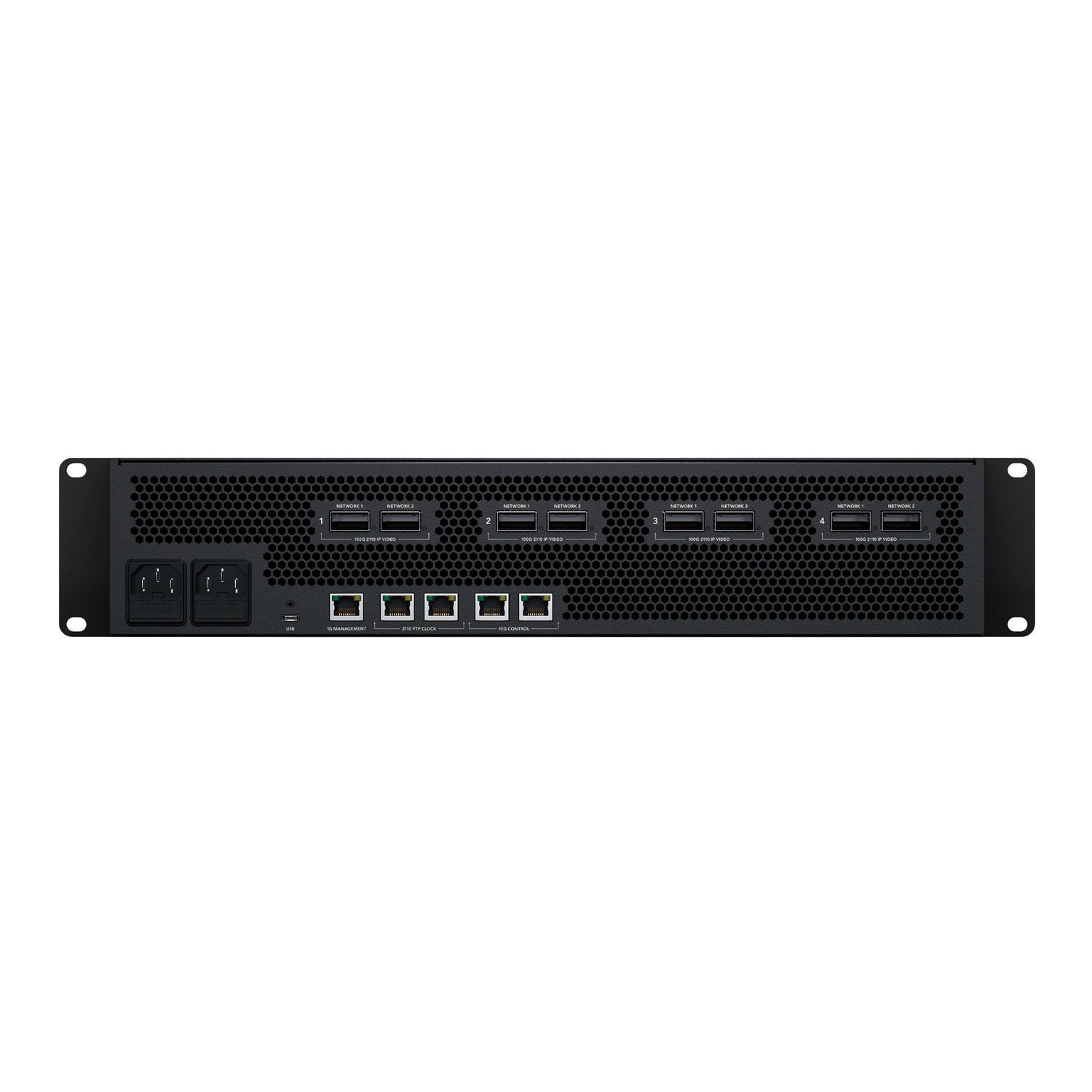

Connectivity
| 2x RJ45 Control Input and Output | |
| 2x RJ45 Reference Input and Output | |
| 1x RJ45 LAN Input and Output | |
| Video Standard Compliance | SMPTE ST-2110 |
| Other I/O |
Hardware
| OS Compatibility | macOS 15 or later and Windows 11 or later |
| Processor | Not specified |
| Wireless | No |
Power
| Power I/O | 2x IEC C14 Input |
General
| Operating Conditions | 32 to 104°F (0 to 40°C) up to 90% humidity |
| Storage Conditions | -4 to 140°F (-20 to 60°C) up to 90% humidity |
| Rack Form Factor | 2 RU |
| Dimensions | 19 x 8.66 x 3.48 inches (48.3 x 22 x 8.84 cm) |
