Blackmagic Design Camera Fiber Converter
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

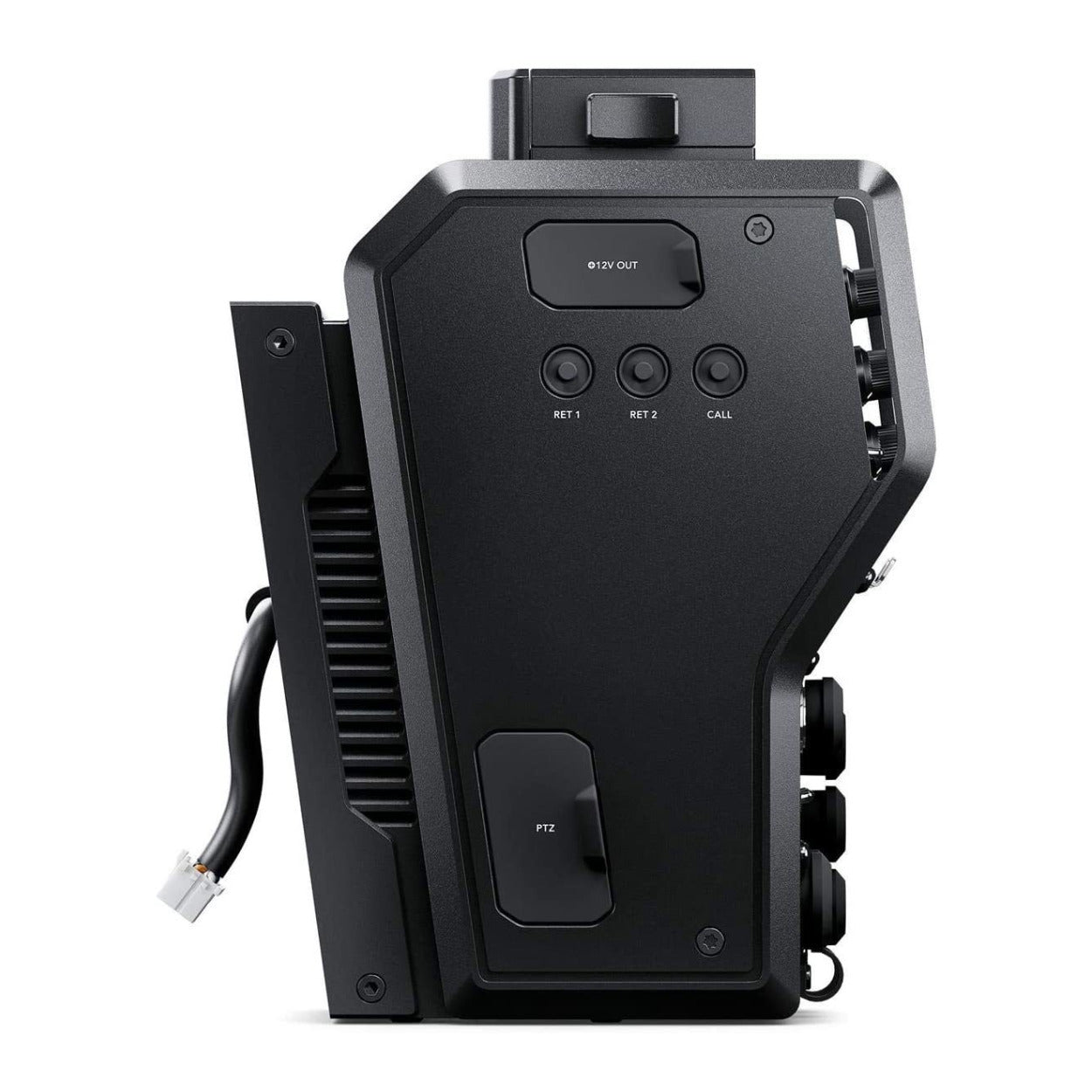

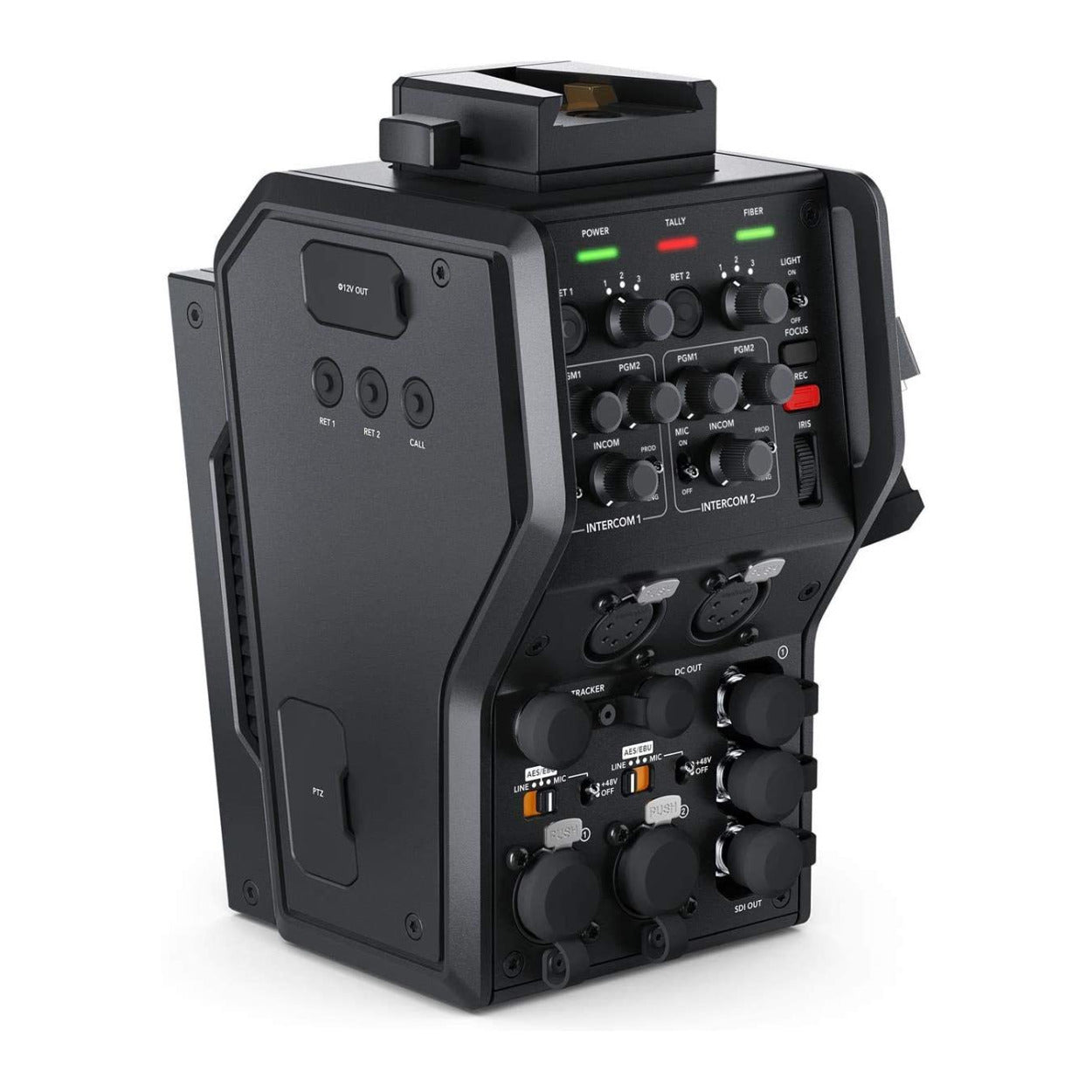

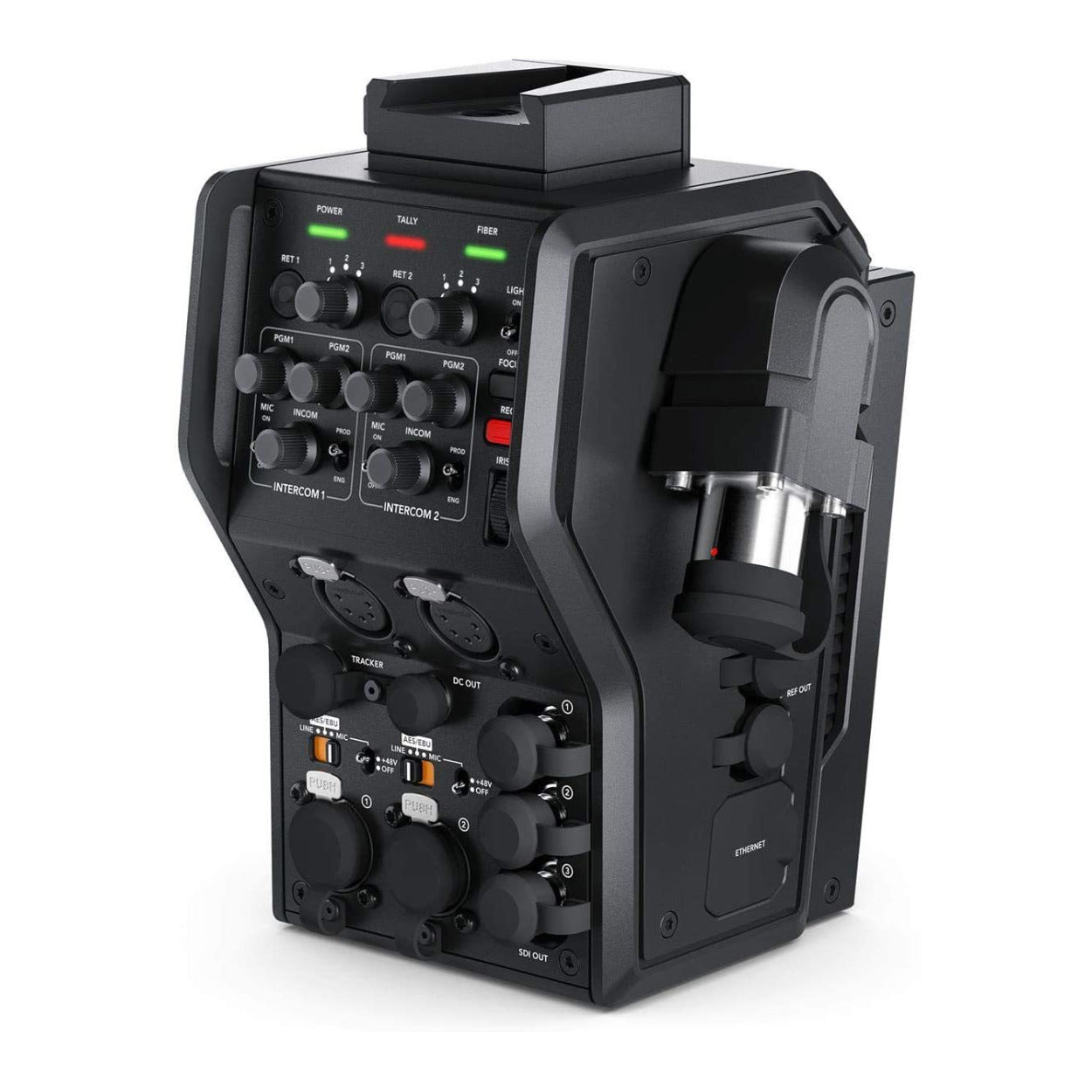

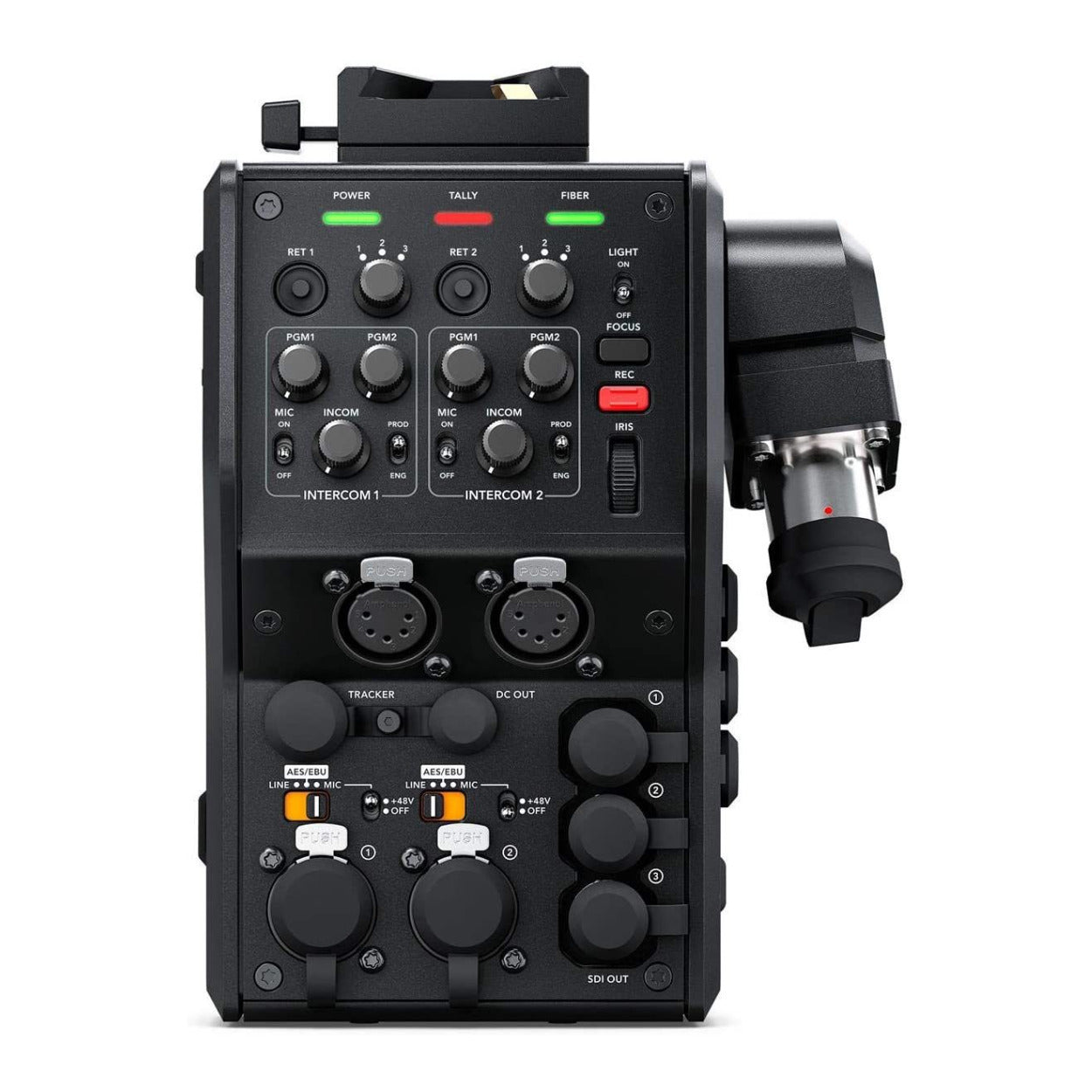

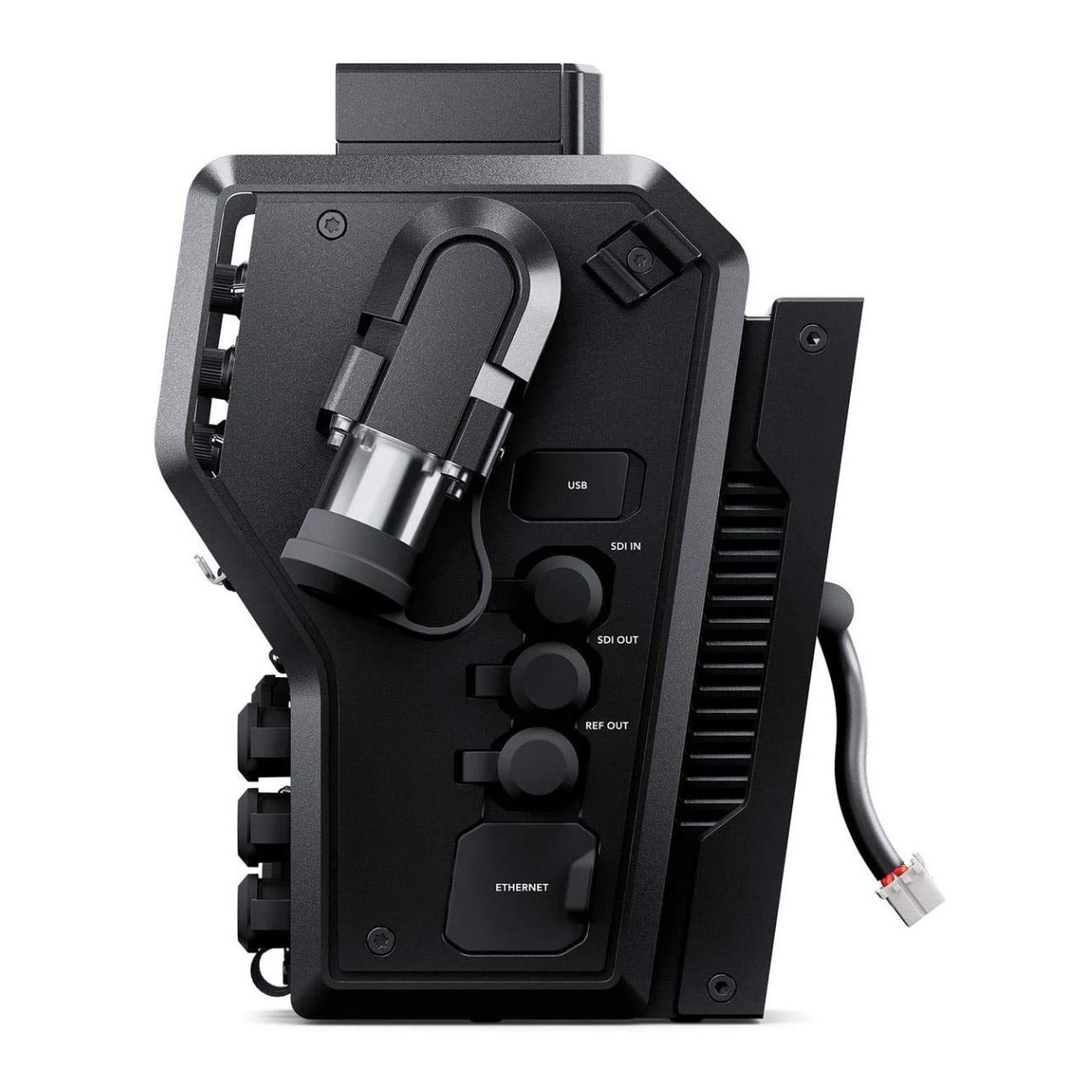

The Blackmagic Camera Fiber Converter lets you extend and power your URSA Broadcast from up to 2km away using industry standard SMPTE fiber cables. It also includes common live camera controls with multiple channels of talkback and standard television industry talkback headset connections. The Blackmagic Camera Fiber Converter features one Ultra HD camera feed, plus three HD return feeds in a compact IP video based design.
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
Blackmagic Design Camera Fiber Converter
Connections
| Optical fiber input | 1x SMPTE Hybrid Fiber Optic with SMPTE 304 connector (Male) |
| SDI video input | 1x 12G SDI for camera feed |
| SDI video output | 1x 3G SDI for Camera return feed, 3x 3G SDI for Return SDI Outputs |
| Talkback audio | 2x 5-pin XLR for headset with three-way audio mixer per output, 1x Tracker output |
| Analog audio | 2x 3-pin XLR Inputs for AES, Line or Mic input. Phantom Power available |
| Computer interface | 1x USB-C connector |
Standards
| HD video standards | |
| Ultra HD video standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60 |
| SDI compliance | SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M |
| Audio sampling | Television standard sample rate of 48kHz, 24-bit A/D conversion |
| Video sampling | 4:2:2 |
| Color precision | 10-bit |
| Color space | REC 709, REC 2020 |
| Multiple rate support | SDI switches between HD, 3G-SDI, 6G-SDI and 12G‑SDI |
Software
| Software included | Camera Utility for firmware update |
Operating Systems
| Mac 10.14 Mojave, 10.15 Catalina or later | |
| Windows 8.1 and 10 |
Environmental Specifications
| Operating temperature | 32 to 104-degree-F (0 to 40-degree-C) |
| Storage temperature | -4 to 113-degree-F (-20 to 45-degree-C) |
| Relative humidity | 0 to 90% non-condensing |
Physical Specifications
| Dimensions | 7.51 x 5.51 x 5.43 inch |
| Weight | 4.85 lb |
