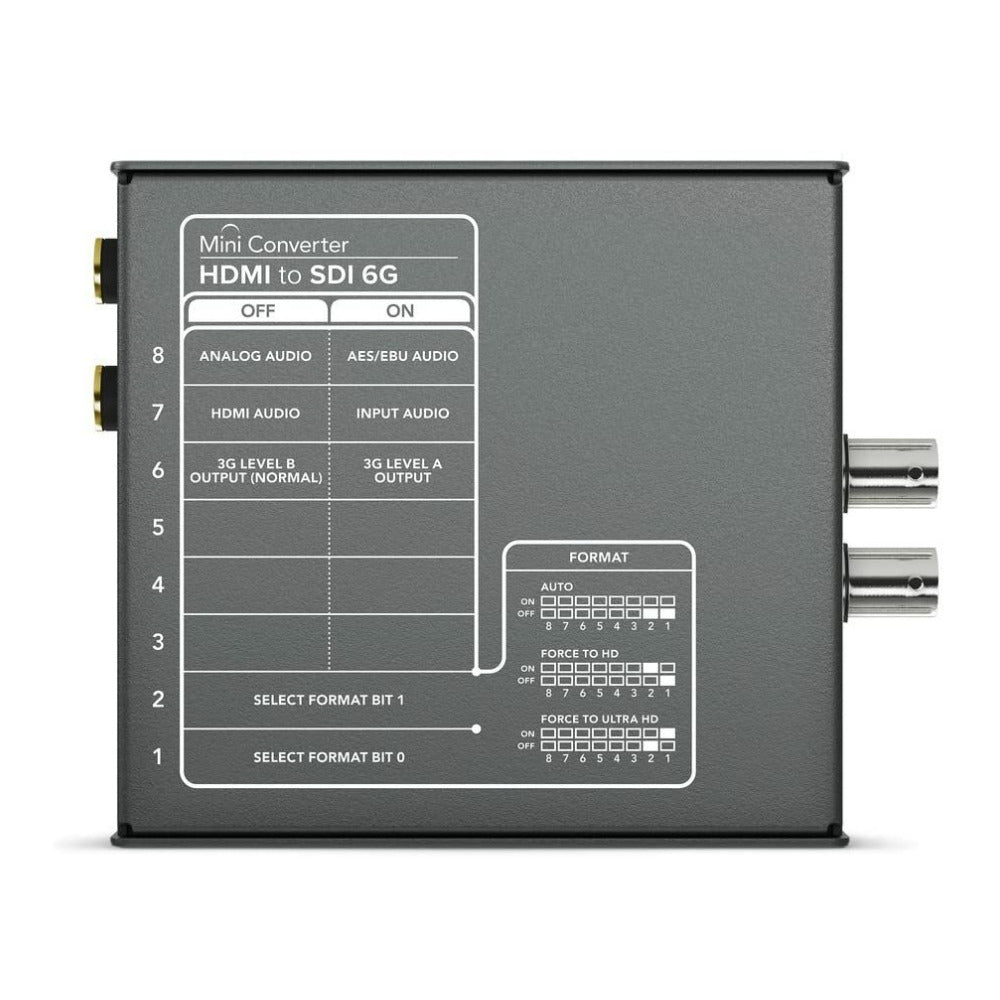

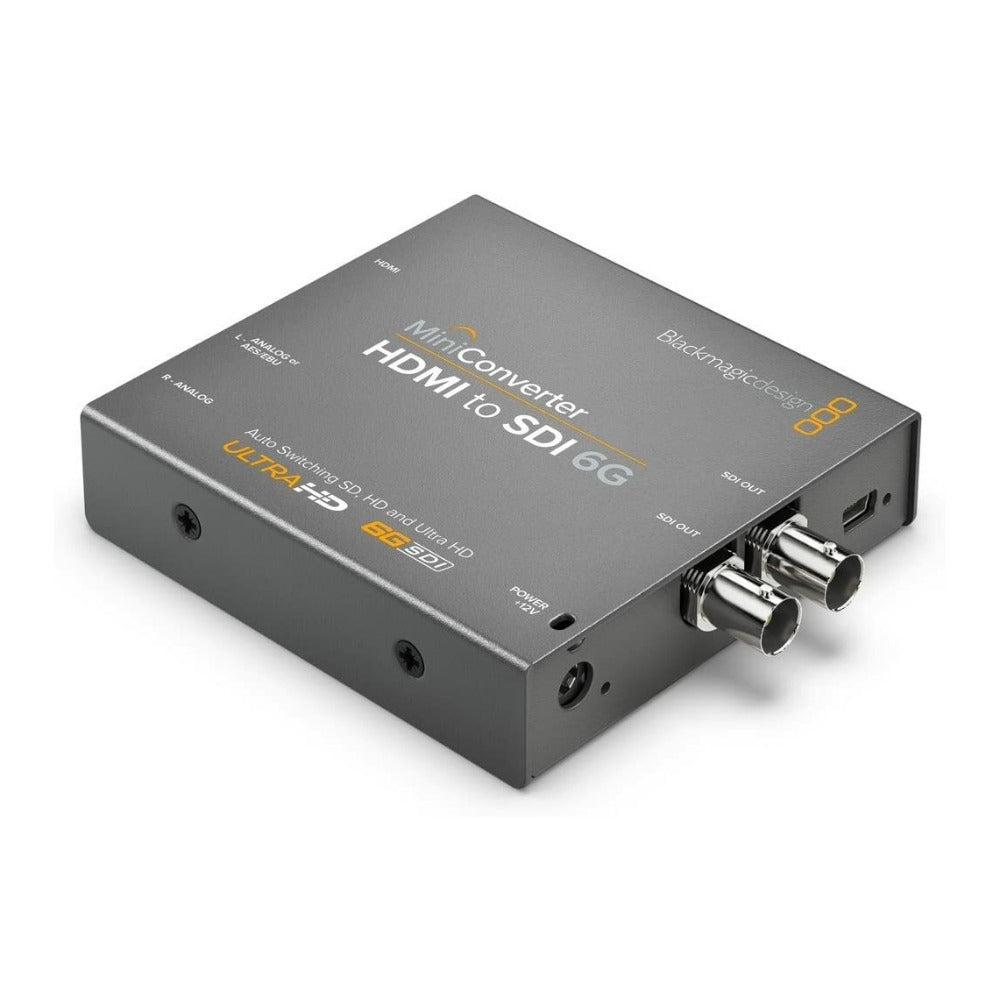

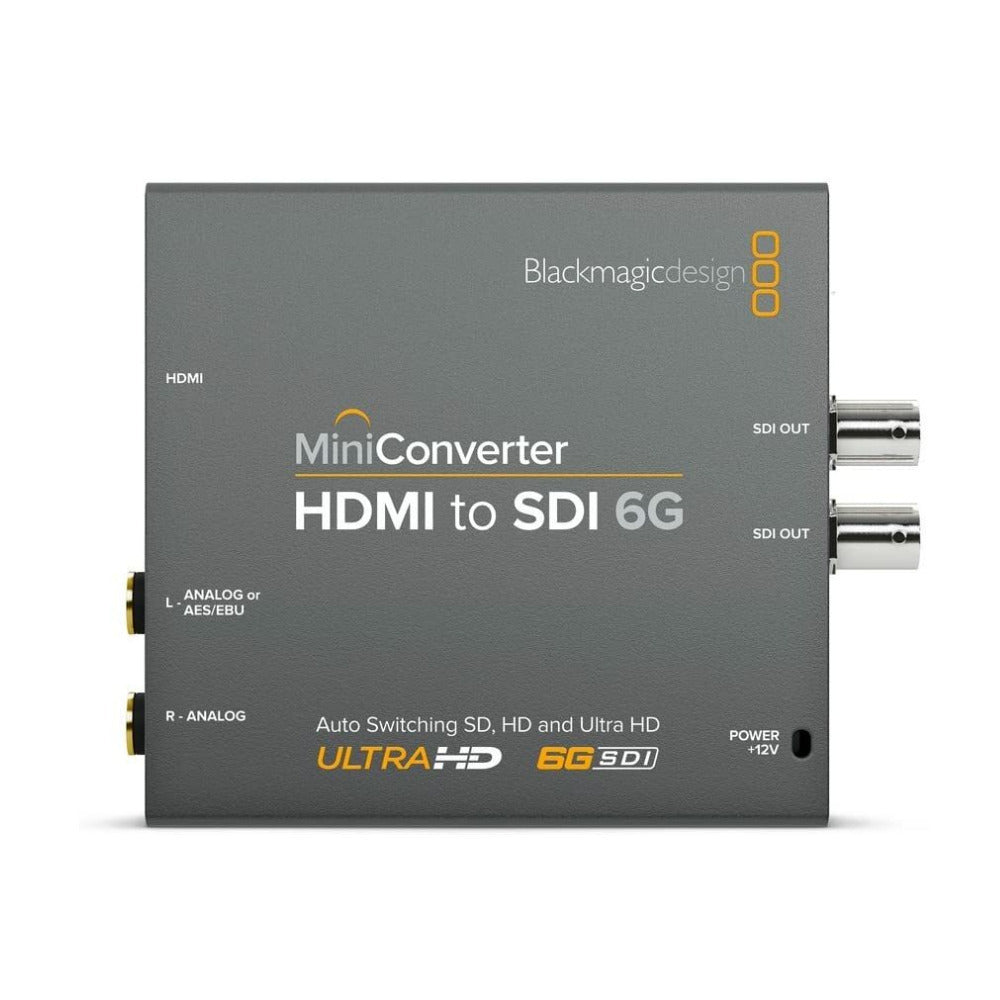

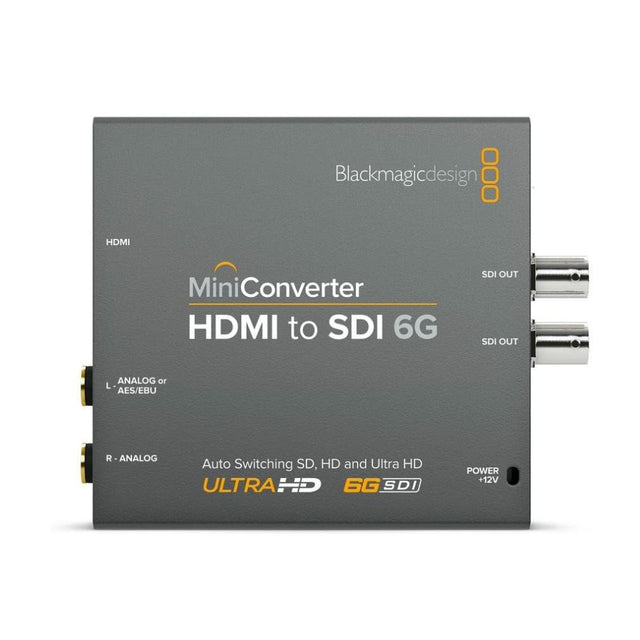

Blackmagic Design Mini Converter HDMI to SDI 6G
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Mini Converter HDMI to SDI 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD, and Ultra HD video formats. With independent audio connections, you can also embed SDI audio from HDMI, AES/EBU, or balanced analog audio inputs. Mini Converter HDMI to SDI 6G is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI.
Blackmagic Design Mini Converter HDMI to SDI 6G
Connections
| SDI video outputs | 2 x SDI Video Outputs. Automatically matches the SD, HD and 6G‑SDI HDMI video input. |
| HDMI video inputs | HDMI type A in |
| Analog audio inputs | 2 channels of professional balanced analog audio with standard 1/4 inch jack connections |
| Digital audio inputs | 4 channels of AES/EBU digital audio |
| Multi rate support | Auto detection of SD, HD or 6G‑SDI |
| Updates and configuration | USB |
| Reclocking | Yes |
Standards
| SD video standards | 625i25 PAL, 525i29.97 NTSC |
| HD video standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD video standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K video standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI video rates | SDI video inputs are automatically detected between standard definition, high definition, 3G‑SDI and 6G-SDI. HDMI to SDI 6G supports level B only on 3G-SDI output |
| SDI video sampling | 4:2:2 |
| SDI audio sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI color precision | 4:2:2 |
| SDI color space | YUV |
| SDI auto-switching | Automatically detects SD, HD or 6G‑SDI. |
| HDMI video standards | 625i25 PAL, 525i29.97 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| HDMI color space | YUV and RGB |
| HDMI color precision | 4:2:2 and 4:4:4 |
| Copy protection | HDMI input is unable to capture from copy-protected HDMI sources. Always confirm copyright ownership before capture or distribution of content |
Format Conversion
| HD down-conversion |
Software
| Software control | Mac OS and Windows software upgrade via USB |
| Internal software upgrade | Via included updater application |
Operating Systems
| Mac 10.15 Catalina, | |
| Mac 11.1 Big Sur or later | |
| Windows Icon | |
| Windows 10, 64-bit |
Settings Control
| Mini Switches or USB software. |
Power Requirements
| Power supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point |
| Power consumption | 4.44 Watts |
| Operational voltage range | 12 to 18V DC |
Physical Specifications
| Dimension (HxWxD) | 0.90 x 3.63 x 4.49 inch |
Environmental Specifications
| Operating temperature | 0-degree to 40-degree-Celcius (32-degree to 104 degree-F) |
| Storage temperature | -20-degree to 45-degree-Celcius (‑4-degree to 113-degree-F) |
| Relative humidity | 0% to 90% non‑condensing |
