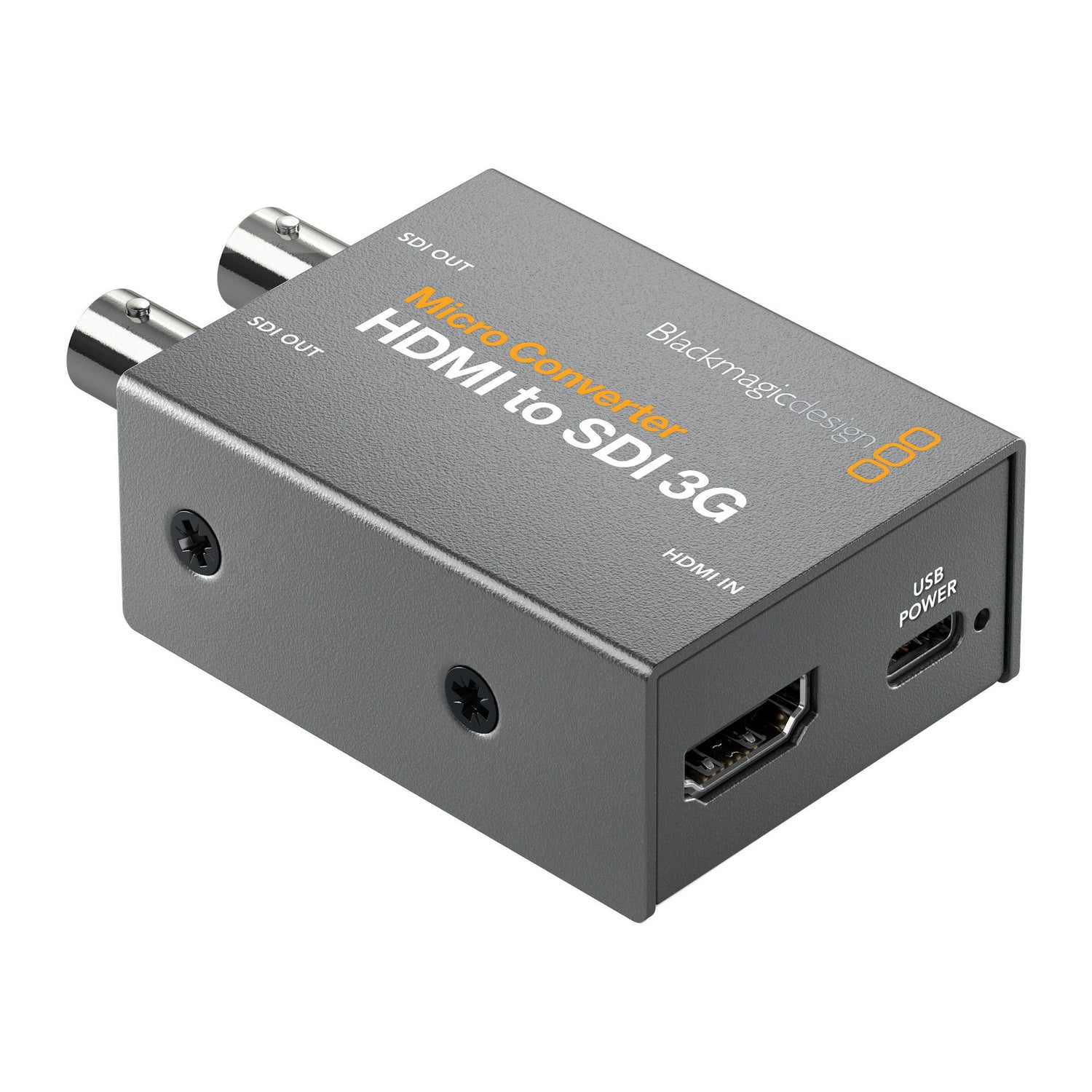

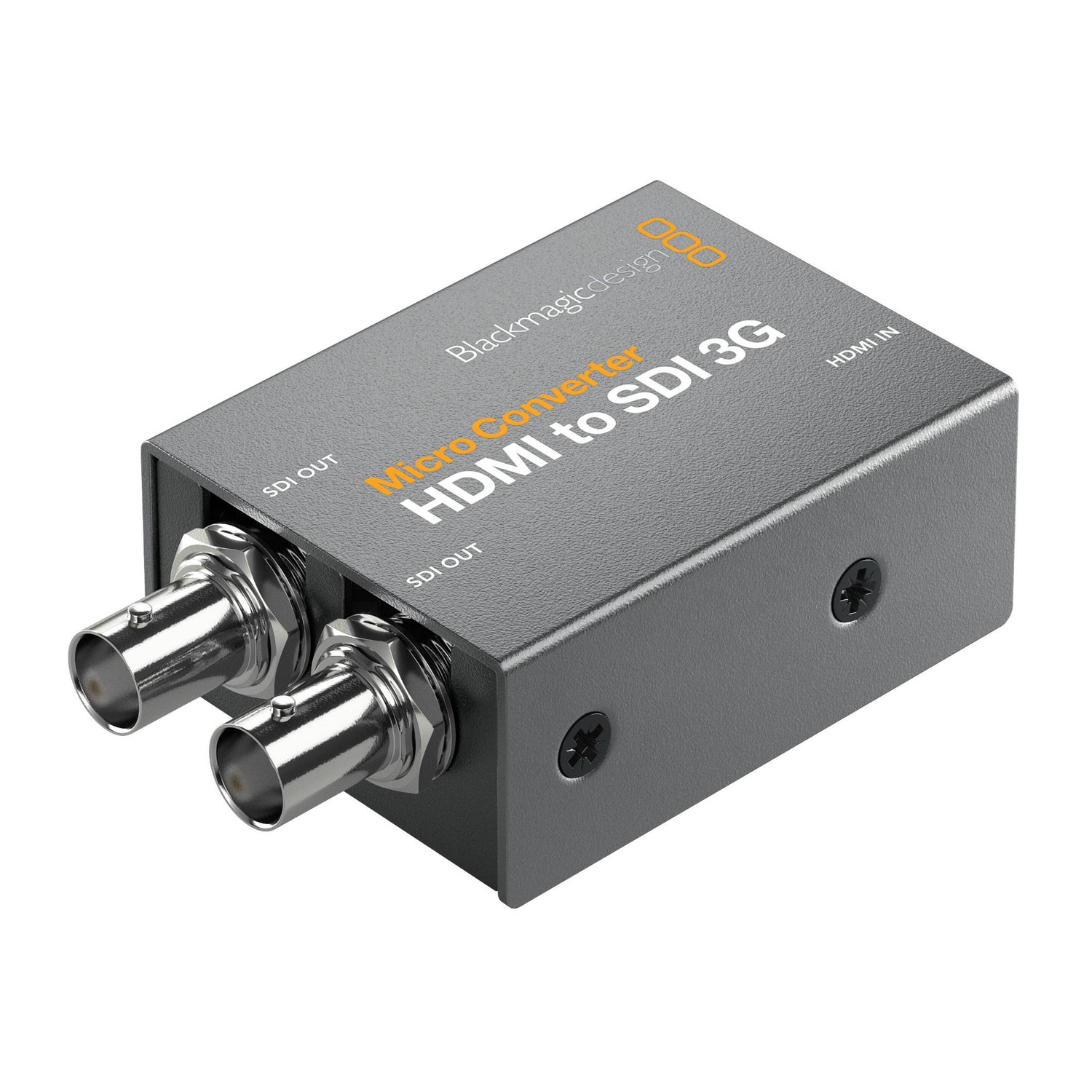

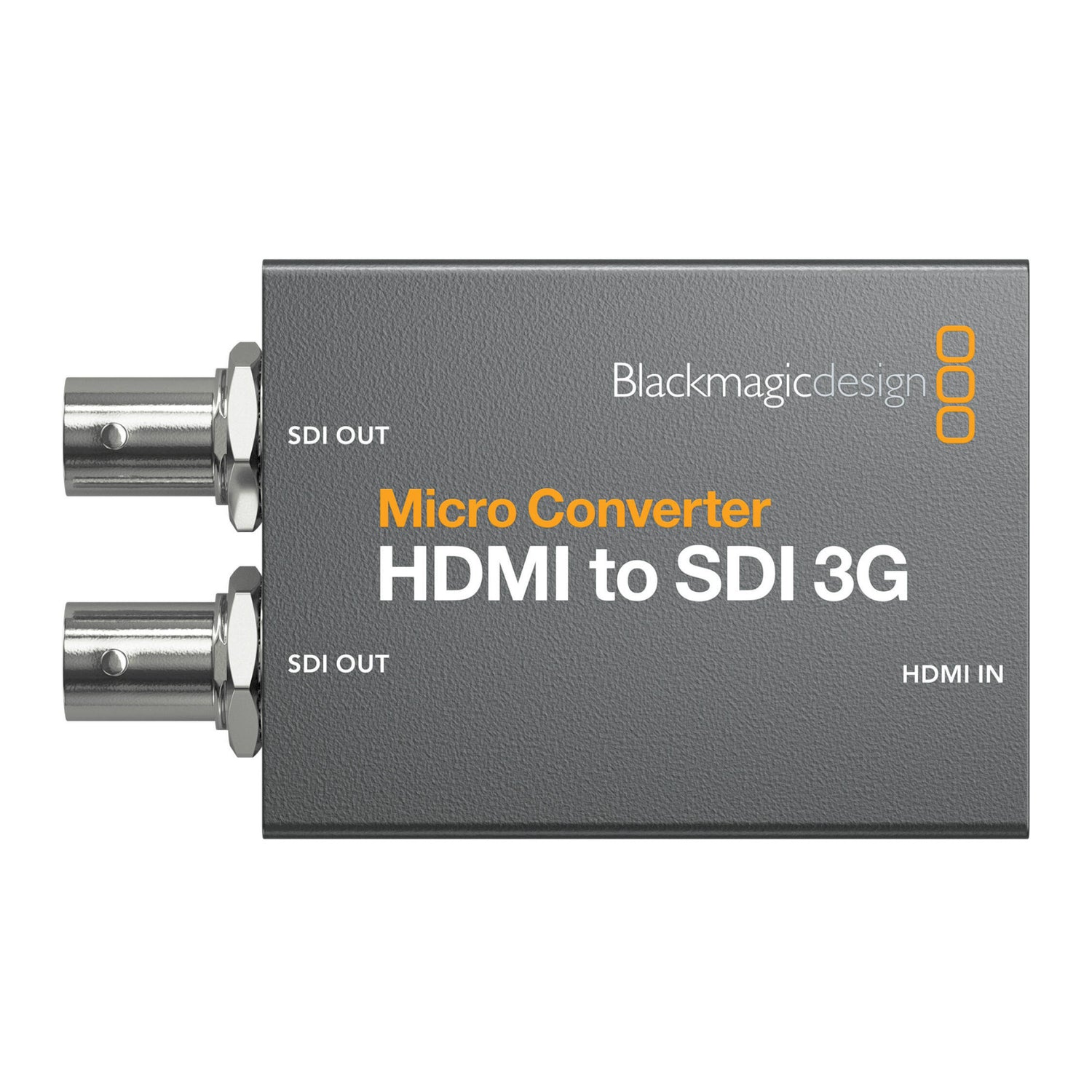

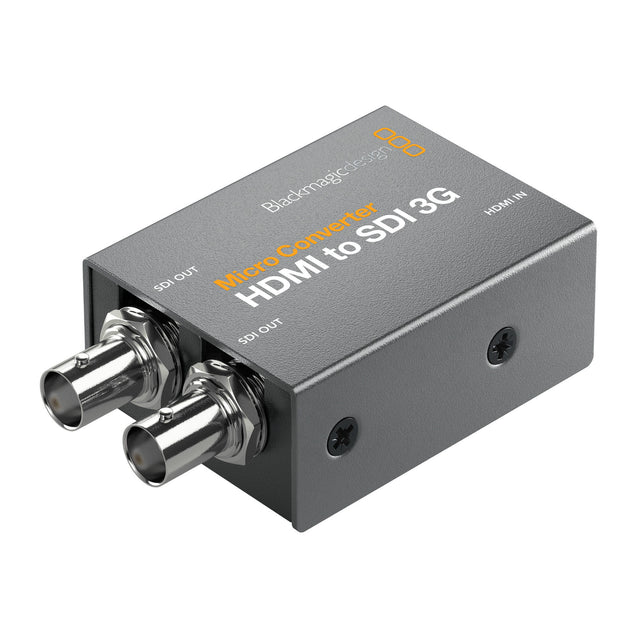

Blackmagic Design Micro Converter HDMI to SDI 3G
The Blackmagic Design Micro Converter HDMI to SDI 3G is a compact and durable converter that allows you to connect HDMI cameras, computers, or consumer devices to professional SDI equipment. With one HDMI input and dual 3G-SDI outputs, it supports industry-standard broadcast formats up to 1080p60 while ensuring reliable long-distance cable transmission through built-in SDI re-clocking. Designed for professional workflows, it features HDMI timecode conversion, embedded audio support, and automatic signal detection. The rugged metal design, USB Type-C power, and pocket-sized form make it perfect for live production, streaming, broadcasting, and field use.
HDMI to Dual SDI Output
One HDMI input paired with two 3G-SDI outputs allows simultaneous monitoring or routing to multiple devices.
Supports Up to 1080p60
Handles professional SD, HD, and 3G signals, including high-frame-rate formats for broadcast and cine workflows.
Selectable SDI Level A/B
Compatible with a wide range of professional equipment by supporting both Level A and B SDI standards.
Automatic Input Signal Detection
Automatically matches the SDI output to the incoming HDMI signal for seamless setup and operation.
SDI Re-Clocking Technology
Ensures a stable, clean signal over longer SDI cable runs by reducing jitter and signal loss.
Timecode Support
Converts embedded HDMI timecode into SDI, maintaining accurate sync in multi-camera productions.
Embedded Audio
Transfers high-quality audio directly without needing additional cables or equipment.
Compact, Rugged Construction
Metal housing and reinforced connectors are built for frequent handling in demanding environments.
USB Type-C Power and Updates
Convenient powering from a laptop, monitor, or other device, with firmware updates via the same port.
LED Status Indicators
Instant visual confirmation of power and video signal for quick troubleshooting.
Inputs/Outputs
| Video Input | 1 × HDMI (2.0) |
| Video Output | 2 × BNC 3G-SDI |
| Other I/O | 1 × USB-C (power and updates) |
| Embedded Audio | HDMI / SDI |
Supported Input Video Formats
| 1080p | 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps |
| 1080i | 50, 59.94, 60 fps |
| 720p | 50, 59.94, 60 fps |
| 480i 29.97 fps / 525 lines | |
| 576i 25 fps / 625 lines | |
| 8/10-bit 4 | 2:2 RGB/YUV |
Supported Output Video Formats
| DCI 2K | 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps |
| DCI 2KPsF | 25, 29.97, 30 fps |
| 1080p | 23.98 to 60 fps |
| 1080PsF | 25, 29.97, 30 fps |
| 1080i | 50, 59.94, 60 fps |
| 720p | 50, 59.94, 60 fps |
| 480i / 525 lines and 576i / 625 lines |
Standards Compliance
| SMPTE 259M, 292M, 296M, 424M, 425M | |
| HDCP 2.2 support | |
| System Compatibility | |
| macOS 10.14.15 or later | |
| Windows 10 |
Power
| Input | USB-C (4.4 to 5.2 VDC) |
| Power Consumption | 2 W |
Environmental
| Operating Temperature | 0 to 40°C (32 to 72°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 0 to 90% |
Physical
| Dimensions | 3.01 × 1.8 × 0.98 in (76.45 × 45.7 × 24.89 mm) |
| Weight | 150 g (5.29 oz) |
Packaging
| Box Weight | 0.35 lb |
| Box Size | 3.1 × 2 × 1 in |
