- 1 x Blackmagic Design Fairlight Live Audio Panel 20 Surface
- 1 x Welcome Wallet with QR Code for Software Download
Trusted & Verified

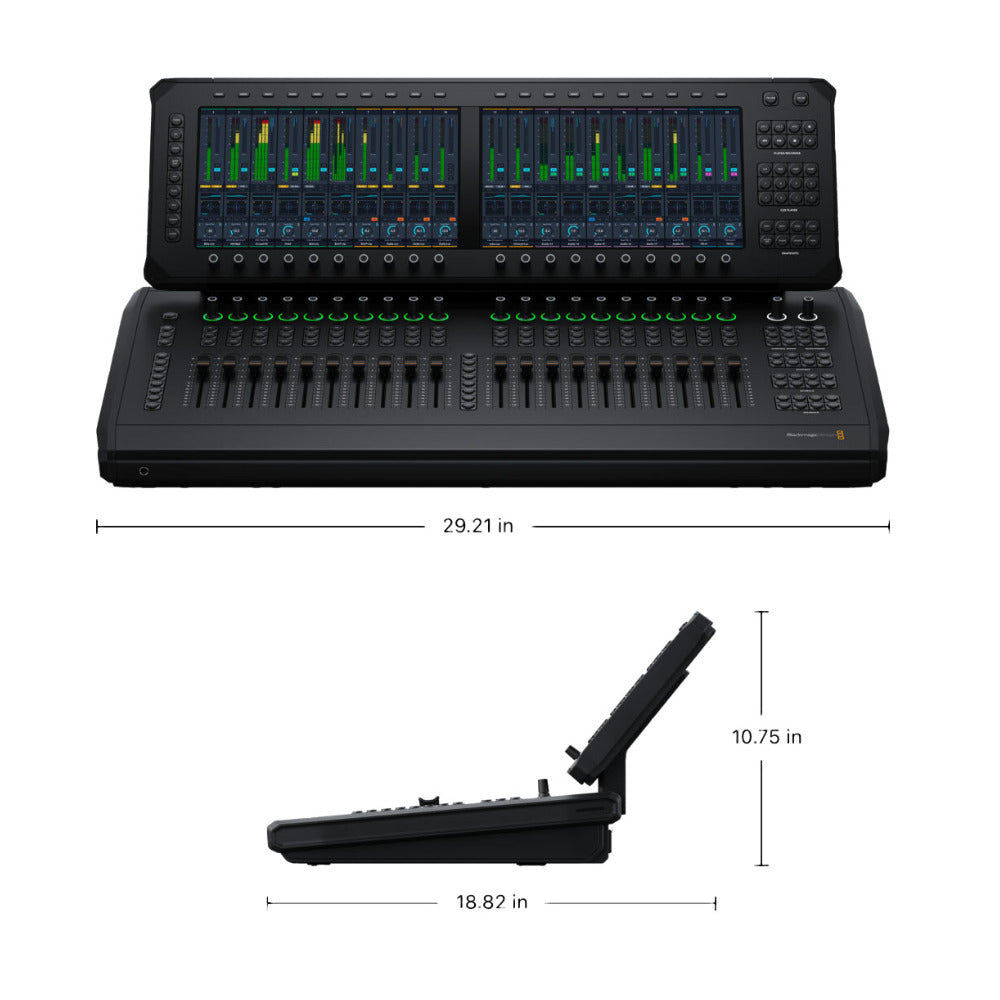

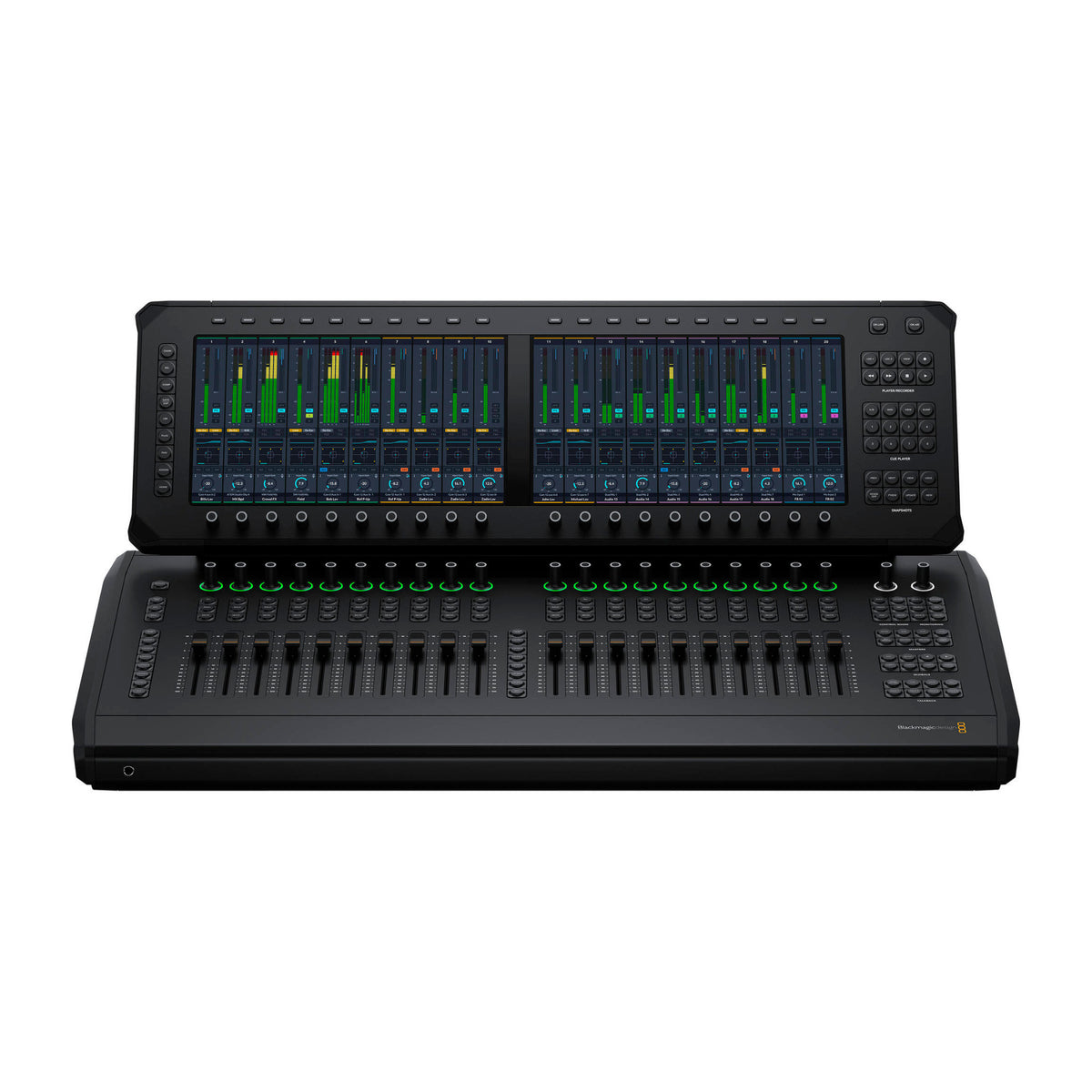

Blackmagic Design Fairlight Live Audio Panel 20 Desktop Control Surface with 20 Flying Faders
- 20 Flying Faders for Direct Level Control
- Dual 11.6-inch 1920x1080p Touchscreens Display Channels
- Dedicated Select, Solo, and Mute Controls in all Channels
- Contextual Knobs and Buttons
- Built-in Player, Cue Player, Snapshots, Monitoring, Masters, and Talkback Keypads
- Dual 10G Ethernet Connections
- Support for 2110 IP Video and Audio Networks
- Analog Monitoring, Headphone, Microphone, and Talk-back Connections
- Dual Internal Power Supplies
- Fairlight Live and Blackmagic OS are included
- Fully Supports compatible Mac and Windows 11 Systems

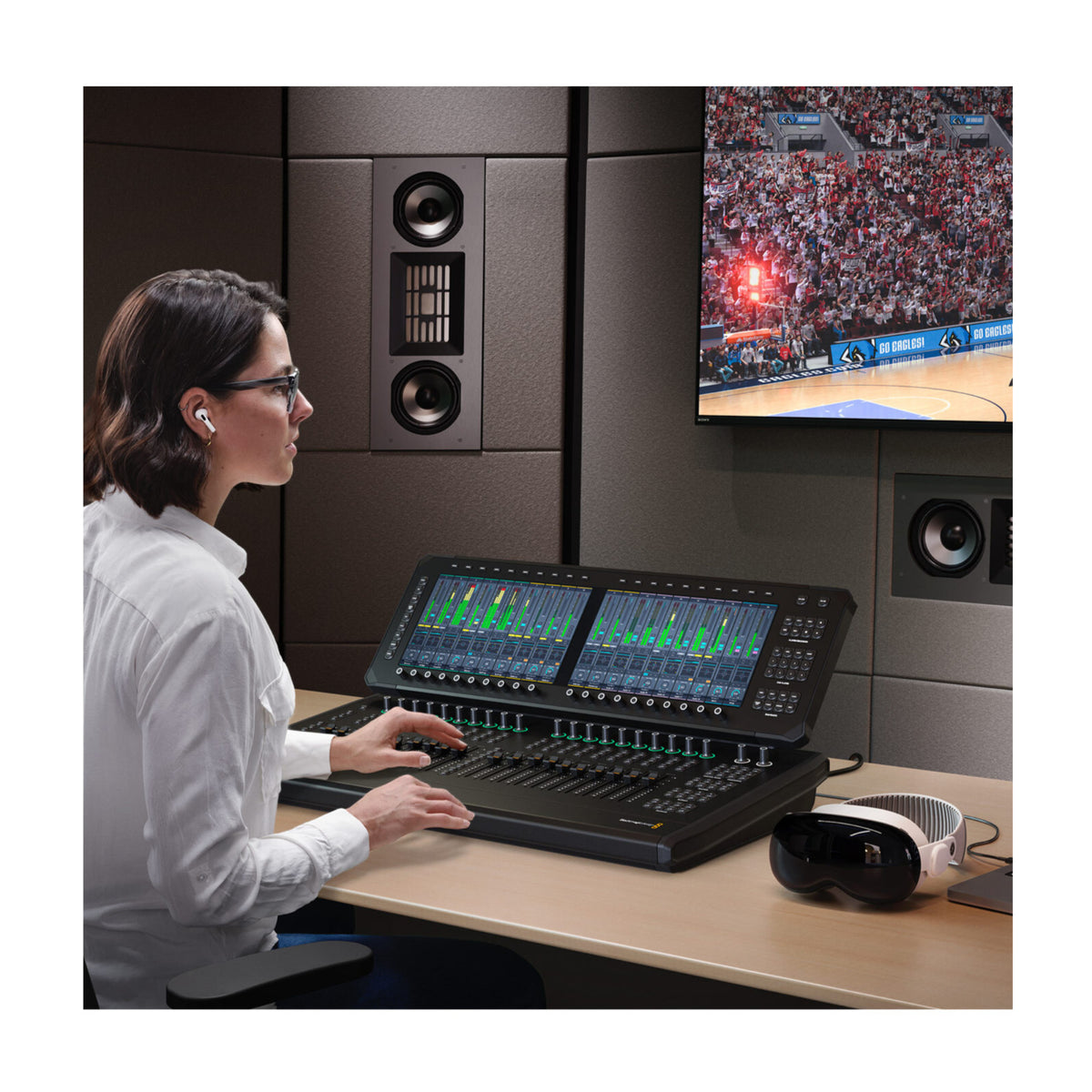

Take direct control of professional live audio mixes with the Blackmagic Design Fairlight Live Audio Panel 20. This desktop surface combines 20 motorized faders with two large touchscreens and dedicated controls for channels, buses, matrices, auxiliary sends, VCAs, submasters, monitoring, talkback, snapshots, and playback. It is fully integrated with Fairlight Live and sized for home studios and mid sized productions.
20 Motorized Channel Strips
20 flying faders provide immediate level control, while 20 multi-function rotary knobs with LED rings offer fast parameter adjustment. Every channel includes dedicated Select, Solo, and Mute buttons. An additional set of 20 contextual knobs and 20 contextual buttons follows the parameters shown on the lower and upper rows of the touchscreens.
Dual Full HD Touchscreens
2 built-in 11.6-inch LCD touchscreens provide 1920 x 1080 resolution. They display channel strip information, metering, equalization, dynamics processing, and compatible plugin interfaces. An High-Definition Multimedia Interface compatible output can send HD or Ultra HD monitoring to an external display using supported video standards up to 2160p at 60fps.
Live Production and Talkback Control
Dedicated keypads provide access to Player and Recorder functions, virtual sound checks, sound effects playback, MIDI cues, snapshot storage and recall, source monitoring, master views, user assigned functions, and four talk-back groups. A built in microphone, headset connection, external microphone input, dual headphone sockets, and XLR monitor outputs support production communication and listening.
Dual 10G Ethernet ports connect 2110 IP video and audio networks, while a separate 1G Ethernet connection and USB Type-C interface handle computer control, configuration, and software updates. Dual internal AC power supplies provide two IEC power inputs for redundant power connection.
General
| Brand | Blackmagic Design |
| Model | Fairlight Live Audio Panel 20 |
| Product Type | Desktop Live Audio Control Surface |
| Primary Software | Fairlight Live |
| Recommended Application | Home Studios and Mid Sized Productions |
Channel Controls
| Motorized Channel Faders | 20 |
| Multifunction Channel Rotary Knobs | 20 |
| Rotary Indicators | Ring LED |
| Channel Buttons | Select, Solo, and Mute |
| Contextual Rotary Knobs | 20 |
| Contextual Buttons | 20 |
Built In Displays
| Display Count | 2 |
| Display Size | 11.6 Inches Each |
| Display Type | LCD Touchscreen |
| Display Resolution | 1920 x 1080 each |
Display Functions
| Channel Strip Information | Supported |
| Level Metering | Supported |
| Equalization Controls | Supported |
| Dynamics Processing Controls | Supported |
| Plugin Interfaces | Supported |
Live Production Controls
| Channel Focus Controls | Processing and Input Control for Selected Channel |
| Online Mode | Follows Timecode from an External Source |
| On Air Mode | Locks the Panel |
| Player and Recorder Controls | Recording and Playback |
| Virtual Sound Check Playback | Supported |
| Cue Player | Sound Effects, Stingers, and MIDI Cues |
| Snapshot Storage and Recall | Supported |
| Control Room and Monitoring Controls | Supported |
| Master View and Master Fader Controls | Supported |
| User Defined Buttons | 3 |
Talkback
| Built-in Talkback Microphone | 1 |
| Talkback Groups | 4 |
| Talkback Selection | Groups, Direct to Channel, or All |
| Talkback Headset Connection | 1 x 5 Pin XLR |
| External Microphone Input | 1 x 3 Pin XLR |
| Headphone Outputs | 2 x 6.35 mm |
| Audio Monitor Outputs | 2 x 3 Pin XLR |

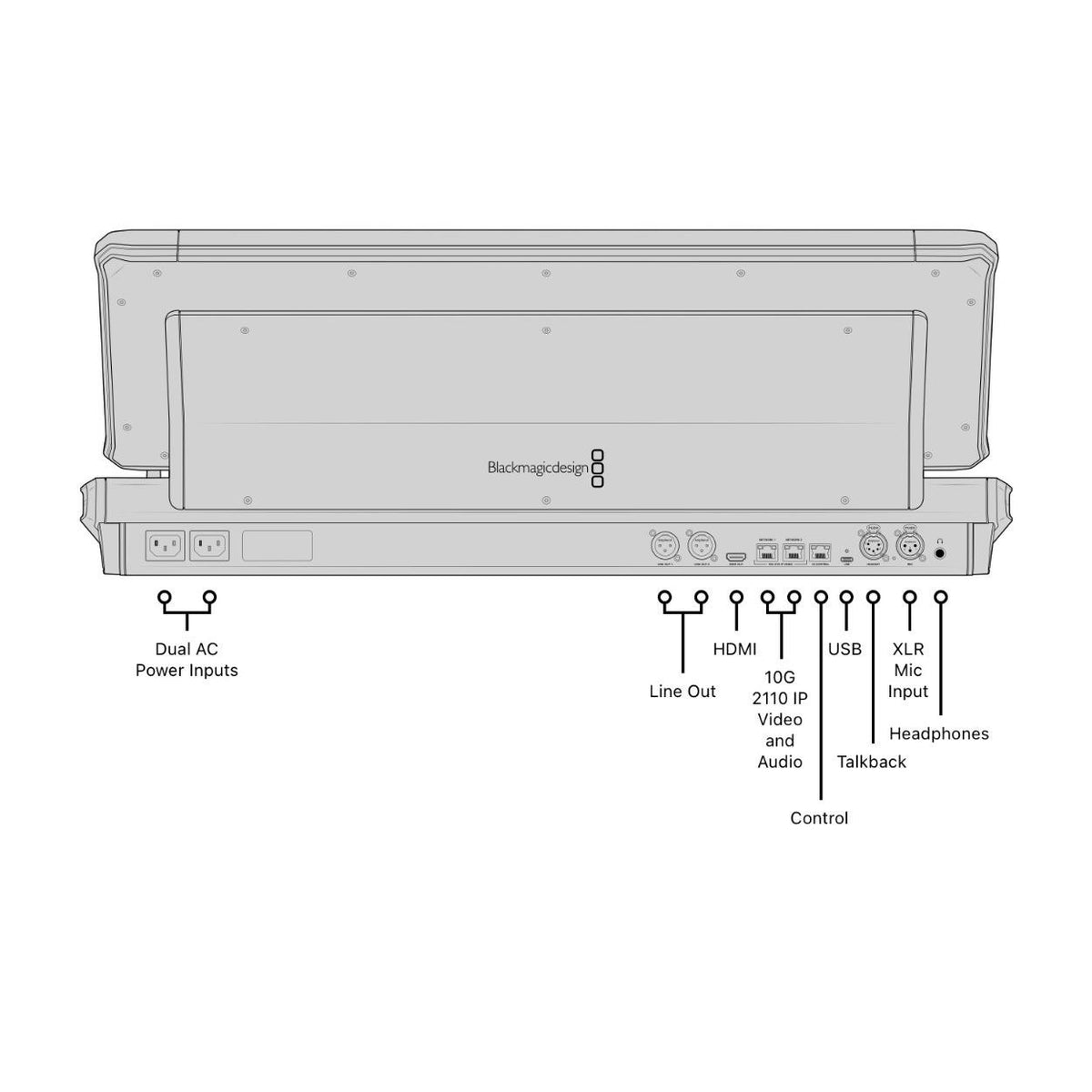

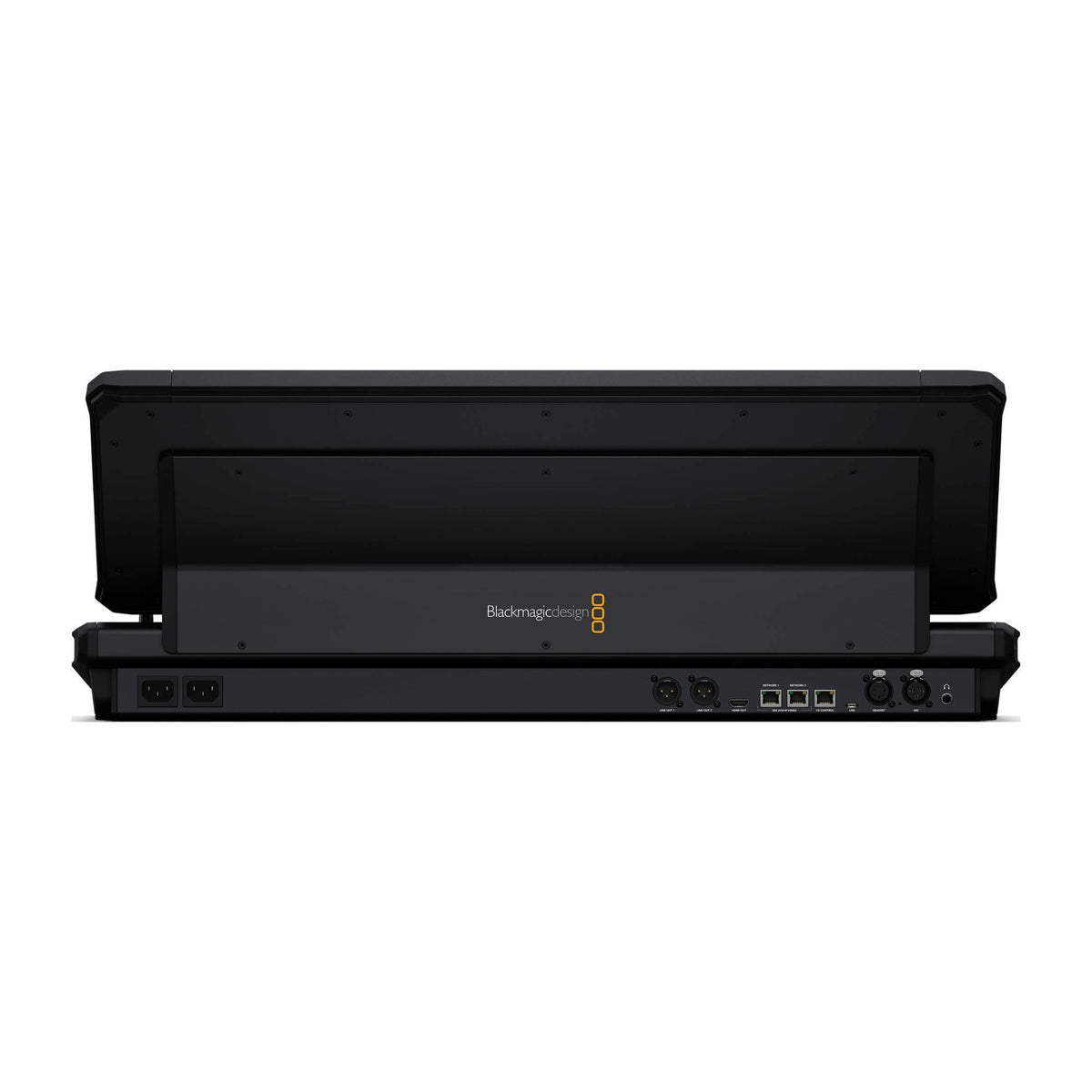

Network Connections
| 2110 IP Network Connections | 2 x 10G RJ45 Ethernet |
| 2110 Network Support | IP Video and Audio |
| Control Network | 1 x 1G RJ45 Ethernet |
| Control Network Functions | Computer Connection, Configuration, and Software Updates |
Analog Audio Inputs
| Microphone Input | 1 x 3 Pin XLR at Microphone Level |
| Talkback Headset Input | 1 x 5 Pin XLR |
Analog Audio Outputs
| Line Level Outputs | 2 x 3 Pin XLR |
| Talkback Headset Output | 1 x 5 Pin XLR |
| Headphone Outputs | 2 x 6.35 mm |
Computer Interface
| USB Interface | 1 x USB Type C |
| USB Functions | Computer Connection, Configuration, and Software Updates |
High-Definition Multimedia Interface Monitoring
| High-Definition Multimedia Interface Output | 1 x HDMI Type A |
| Output Resolution Support | HD and Ultra HD |
| Maximum Listed Standard | 2160p 60fps |
Supported Video Standards
| 720p | 50, 59.94, and 60 |
| 1080i | 50, 59.94, and 60 |
| 1080p | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 |
| 2160p | 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 |
Software
| Included Software | Fairlight Live |
| Operating System | Blackmagic OS |
| Software Updates | Internal Upgrade through Updater Application |
| Settings Control | Fairlight Live through Ethernet or USB |
Computer Operating Systems
| Mac Compatibility | macOS 15 Sequoia, macOS 26 Tahoe or Later |
| Windows Compatibility | Windows 11 |
Power
| Internal Power Supplies | 2 |
| Power Supply Input | 100 to 240 V AC, 50 or 60 Hz |
| Power Inputs | 2 x IEC C14 |
Environmental Requirements
| Operating Temperature | 0 to 40 degrees C |
| Storage Temperature | -20 to 60 degrees C |
| Relative Humidity | 0 to 90% Noncondensing |
