The Blackmagic Design HyperDeck Shuttle 4K Pro is an advanced recorder and player with a large 7-inch LCD touchscreen for monitoring and scopes. The large search dial and broadcast controls are perfect for scrolling through media to find the media you want to play. 12G-SDI connections allow you to connect to professional broadcast equipment. Supports HDMI 4K, H.264, H.265, ProRes or DNx files, HD proxies, scopes, 3D LUT, and network recording via fast 10G Ethernet. The HyperDeck Shuttle 4K Pro model has 10G Ethernet and internal M.2 storage, so it can share media on your local network or record to network storage. It is perfectly designed for the desktop. This means the front panel can be operated with a single hand. The gentle angle allows your hand to rest on the search dial, and the control buttons are positioned under your fingertips. Scrolling media is fast as the machined metal search dial has a natural inertia, and the soft rubber surface feels nice to the touch. That's perfect when you're searching through lots of media. The HyperDeck Shuttle 4K Pro model boasts a large 7-inch LCD screen for live monitoring, complete with a 'heads up display' overlay. Plus, it features full menus with all the deck settings. The rear panel includes all video, audio and network connections.

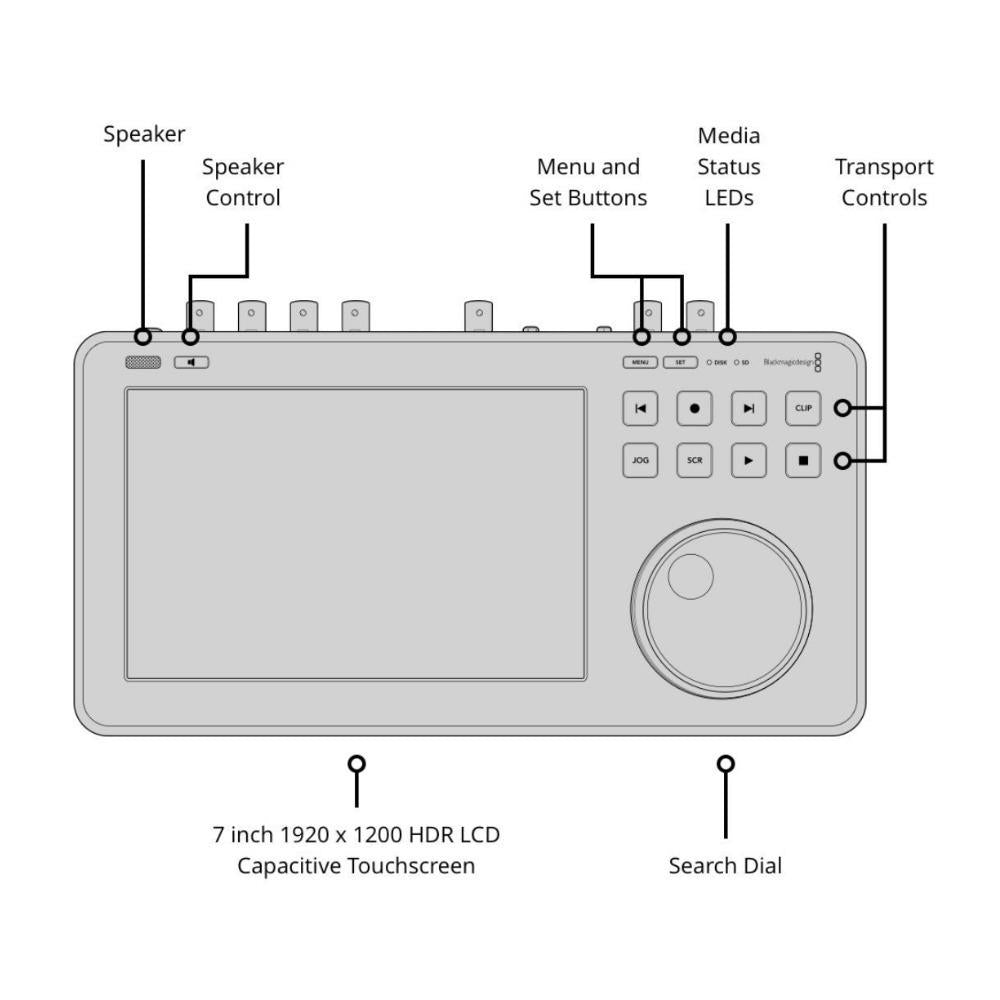

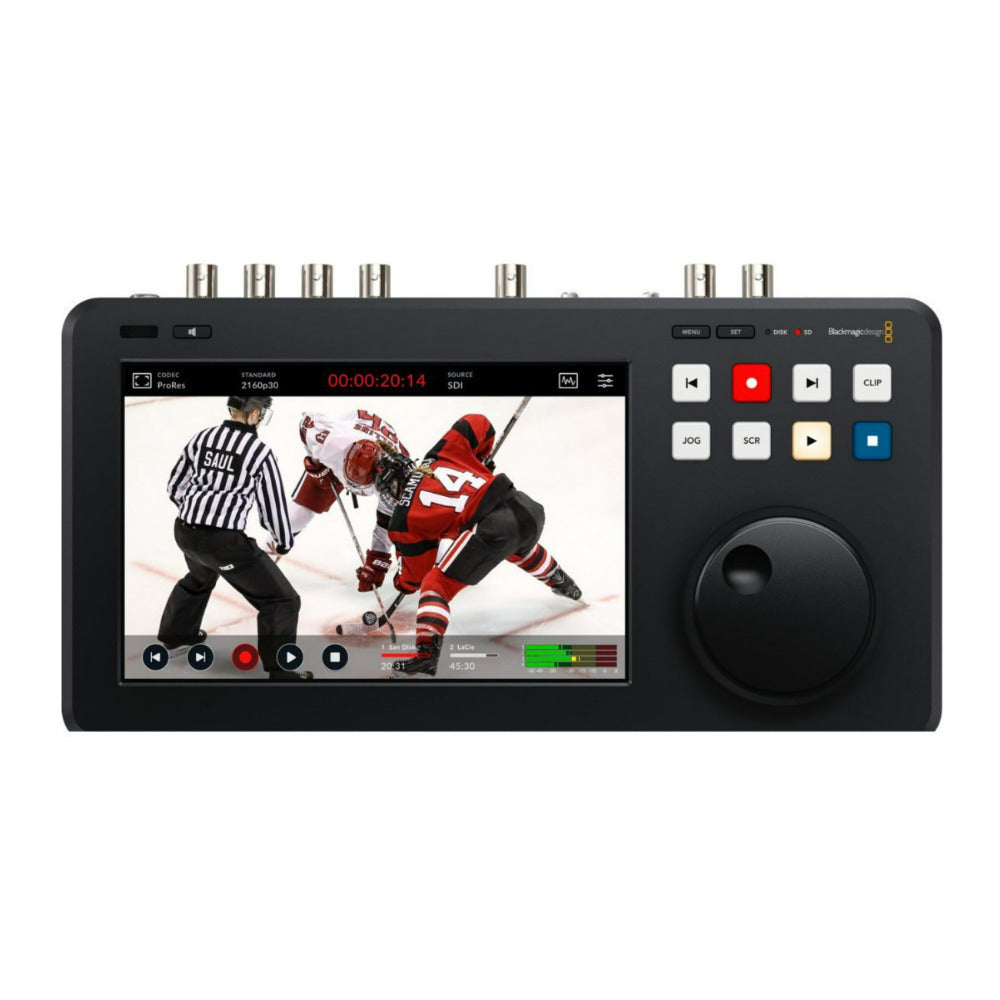

Built in 7-Inch Monitor for Fast Touch Control
The HyperDeck Shuttle 4K Pro model features an innovative touch LCD user interface for interactive control, built-in monitoring, and menu settings. The large 7-inch HDR display has buttons for playback, pause and recording functions, as well as a mini playback timeline so you can scroll through your clips. A 'HUD', or heads-up display, is included that overlays important information such as timecode, media status, and audio meters. You can also enable full broadcast scopes via the touch screen, and enable features such as focus assist and an RGB exposure histogram. The HyperDeck Shuttle 4K Pro's settings can also be changed through the on-screen menus. Plus you can load and save 3D LUTs.
Record to Internal or External Network Storage
The HyperDeck Shuttle 4K Pro model has space for M.2 flash storage cards, so the network storage is built in. This means any editing system can just log into the HyperDeck Shuttle 4K Pro and access all the media in one location.
Popular ProRes, DNx, H.265 and H.264 Files
The HyperDeck Shuttle 4K Pro model handles H.265 record and playback. You get tight 60:1 to 285:1 compression ratios for small files at full broadcast quality. You can choose uncompressed PCM or AAC audio for uploading files to YouTube. HyperDeck Shuttle supports both ExFAT on Windows and HFS Plus on Mac disk formats, allowing disks to be mounted and read on both platforms.
Latest Multi-Rate 12G-SDI for SD, HD and Ultra HD
The extremely advanced HyperDeck Shuttle 4K Pro model includes the latest 12G-SDI video connections. 12G-SDI is multi-rate, so a single connection can connect to SD, HD, and Ultra HD equipment. Standard definition support includes NTSC and PAL. 720p HD standards include 720p50 and 59.94p. 1080i HD interlaced standards include 1080i50 and 1080i59.94. 1080p HD television standards include 1080p23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p. HyperDeck Shuttle 4K Pro even handles 1080 PsF formats. The 12G-SDI also handles Ultra HD in all television standards including 2160p23.98, 24, 25, 29.97, 50, 59.94 and 60p. There is also support for both level A and level B when working in 3G-SDI rates.
Main
| Configuration | Core |
| Color | Black |
- 1 x BNC In,
- Tri-Sync or Black Burst.
- Reference Output
- 1 x BNC Out
- 525i59.94 NTSC, 625i50 PAL
- 720p50, 720p59.94, 720p60
- 1080i50, 1080i59.94, 1080i60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
- Ultra HD Video Standards
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
- SMPTE 259M, SMPTE 292M, SMPTE 424M.
- SDI Metadata Support
- Television standard 24‑bit, 48 kHz sample rate.
- 525i59.94 NTSC, 625i50 PAL,
- 720p50, 720p59.94, 720p60,
- 1080i50, 1080i59.94, 1080i60,
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
- 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI,
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60,
- 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
- Television standard 24‑bit, 48 kHz sample rate.
- 4:2:2 YUV
- REC 601, REC 709, REC 2020.
- 33 point 3D LUTS can be applied to SDI monitor out.
- Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
- Auto detection of SD, HD, 6G‑SDI and 12G‑SDI.
- HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
- Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gbps. 60mm 80mm and 110mm supported.
- 1 x SD card slot
- 1 x USB‑C 3.1 Gen 1 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI.
- UHS-I and UHS-II SD cards.
- Can format media to ExFAT (Windows/Mac)or HFS Plus (Mac) file systems
- ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60.
- Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs.
- DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps.
- DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps.
- H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps.
- H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
- AAC 2 Channels.
- PCM 2, 4, 8, 16, 32 or 64 Channels.
- Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit
- Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom
- Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. 11 buttons for transport and device control with search dial
- 11 buttons for transport and device control with search dial
- Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate.
- Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)
- Blackmagic OS
- Blackmagic HyperDeck Setup
- Loaded at system start, or via Blackmagic HyperDeck Setup using USB port
- 1 x Locking 5.5mm barrel 12V DC Infor external power supply or battery use
- 60 W max
Blackmagic Design HyperDeck Shuttle 4K Pro Recorder and Player with 7-Inch LCD Touchscreen

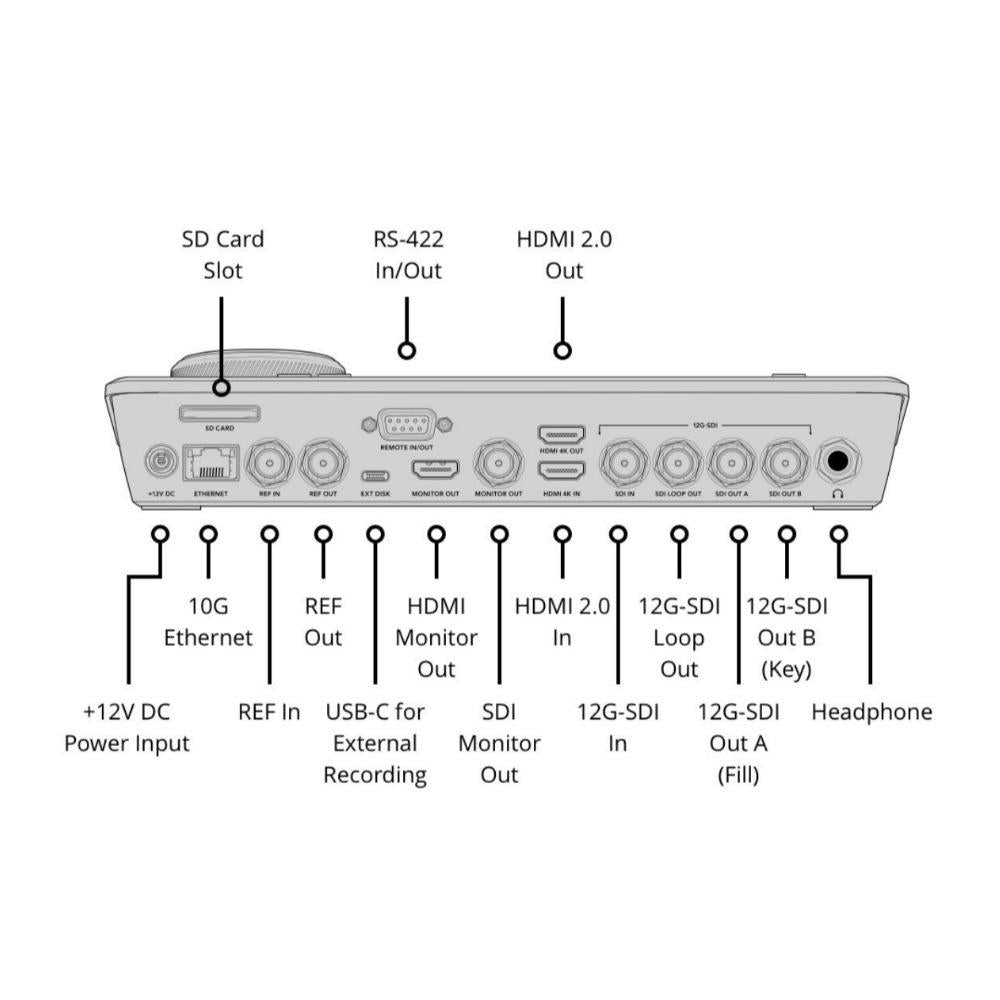

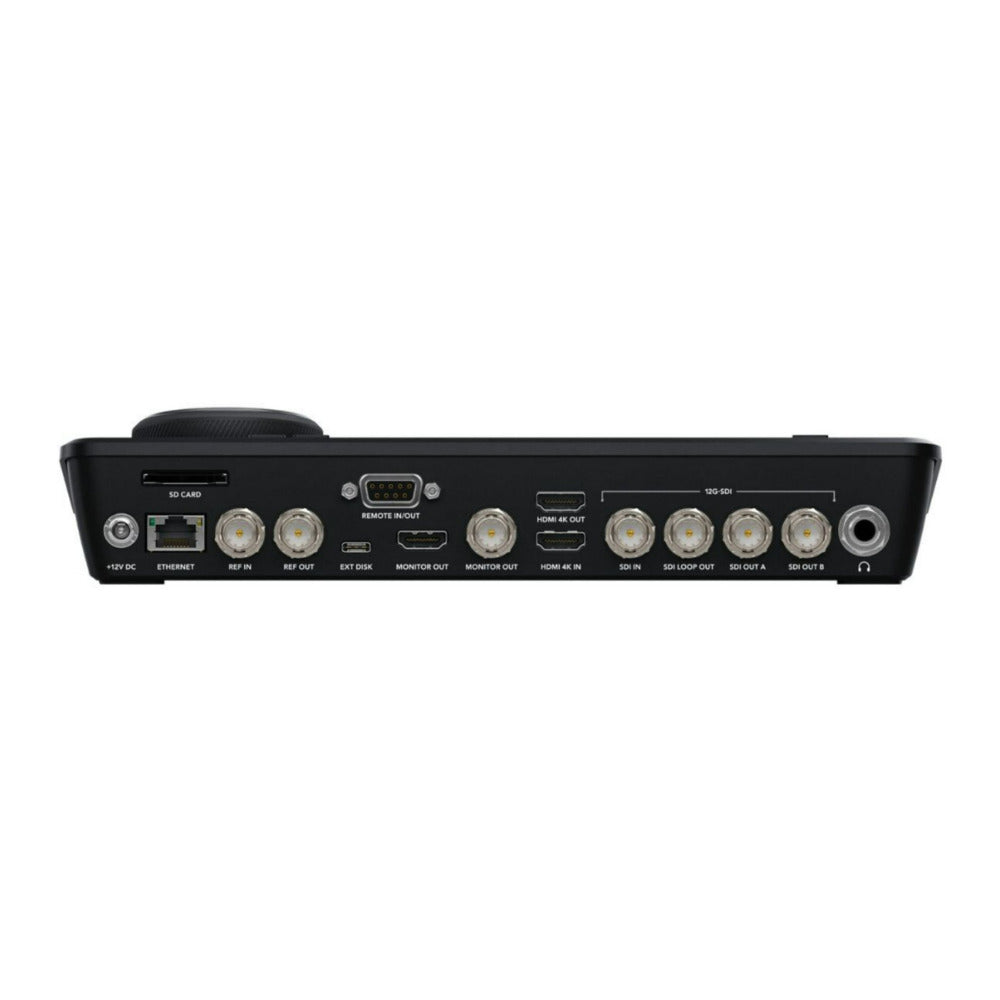

Connections
| SDI Video Inputs | 1 |
| SDI Loop Outputs | 1 |
| SDI Video Outputs | 2 |
| SDI Monitor Outputs | 1 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| HDMI 2.0 Video Inputs | 1 |
| HDMI 2.0 Video Outputs | 1 |
| HDMI Monitor Outputs | 1 |
| Built-in Speaker | Mono |
| Audio Output | 1 x 6.35 mm headphone jack |
| Screen | 7-inch LCD |
| Reference Input | |
| SDI Audio Inputs | 64 channels embedded audio |
| SDI Audio Outputs | 64 channels embedded audio |
| HDMI Audio Inputs | 8 channels embedded audio |
| HDMI Audio Outputs | 8 channels embedded audio |
| Remote Control | 1 x RS-422 In |
| Recorder Configuration | Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol |
| Ethernet | 1 x 10Gbps RJ‑45 connector supporting 1000 or 10G BASE‑T |
| External Recording | 1 x USB-C 3.1 Gen 1 (up to 5Gbps) for external disk recording |
| Computer Interface | 1 x USB-C for software updates |
Standards
| SD Video Standards | |
| HD Video Standards | |
| 2K DCI Video Standards | |
| 4K DCI Video Standards | |
| SDI Compliance | |
| Supported HDMI Formats | |
| Audio Sampling | |
| Video Sampling | |
| Color Precision | |
| HDR Support | |
| Multi Rate Support | |
| Copy Protection | |
Media
| Cache Recording | |
| Media | |
| Media Type | |
| Media Format | |
Supported Codecs
| Video Codecs | |
| Audio Codecs | |
Scopes
| Scopes | |
| Viewing Modes | |
Control
| Built in Control Panel | |
| External Control | |
Teleprompter
| Multi Rate Support | |
| Supported File Formats | |
Software
| Software Included | |
| Internal Software Upgrade | |
Operating System
| Mac 14.0 Sonoma, | |
| Mac 15.0 Sequoia or later | |
| Windows 10 and 11 |
Displays
| Built in LCD for video, audio and timecode monitoring and menu settings. |
Power Requirements
| Power Supply | |
| Power Usage | |
Physical Specifications
| Dimensions (L x W x H) | 10.55 x 5.98 x 2.83 inch |
| Weight | 2.39 lb |
Environmental Specifications
| Operating Temperature | 0 to 40-degree-C (32 to 104-degree-F) |
| Storage Temperature | -20 to 60-degree-C (-4 to 140-degree-F) |
| Relative Humidity | 0 to 90 percent non‑condensing |
