- 1 x Blackmagic Design Media Dock Ultra
- 1 x Welcome Wallet with Software Download QR Code
Trusted & Verified
Blackmagic Design Media Dock Ultra 3RU Network Storage Dock with 200G Combined Bandwidth for Film
- Holds up to 3 Blackmagic Media Modules
- Supports direct network access to compatible production media
- Two independent 100G ports support separate networks
- Managed switching enables up to 200G combined bandwidth
- Separate 1G Ethernet handles management traffic
- Two SDI outputs provide live system monitoring
- Digital monitor output displays storage and network status
- SMB and NFS support up to 200 computer connections
- Cloud synchronization supports distributed collaboration
- Dual power supplies and cooling fans support redundancy

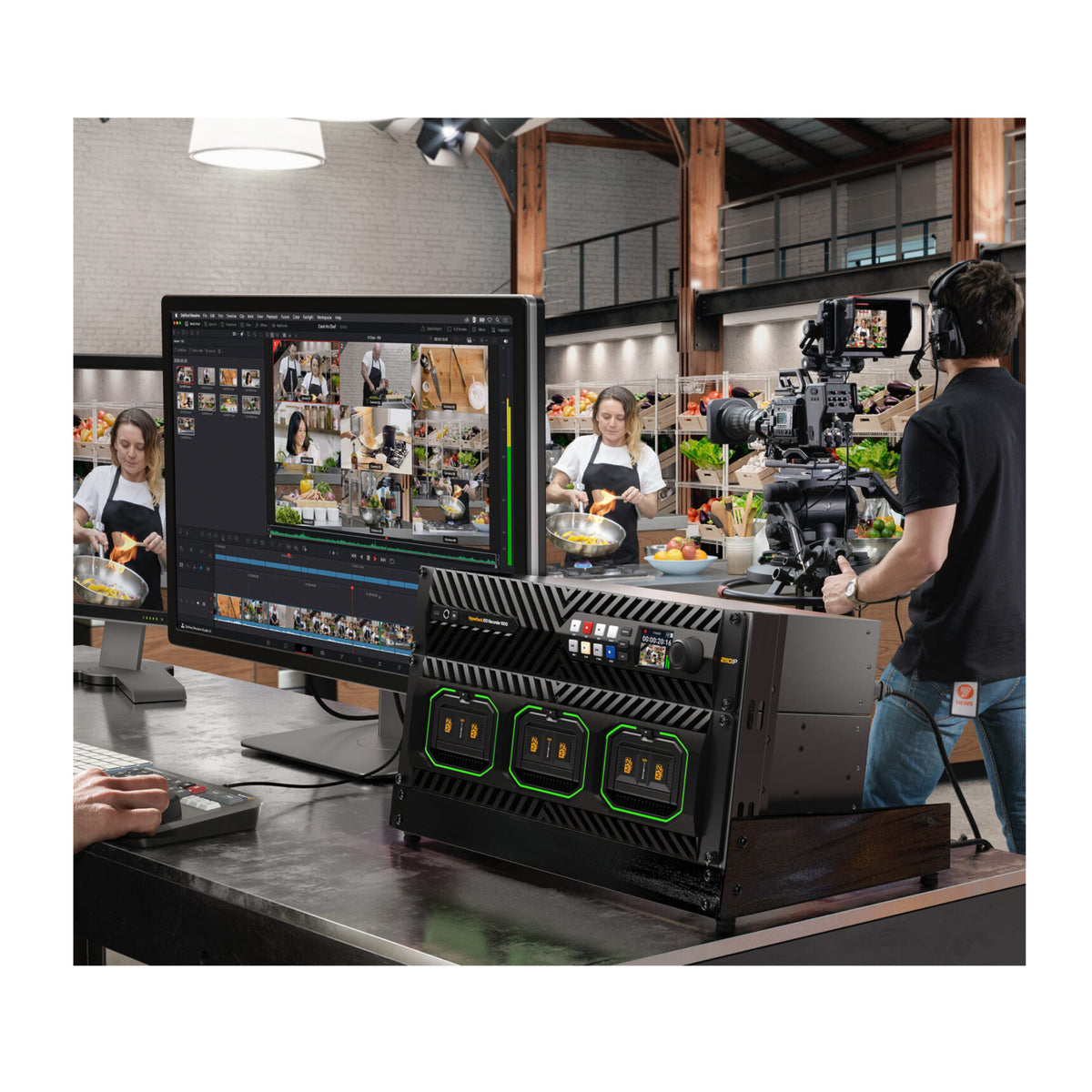

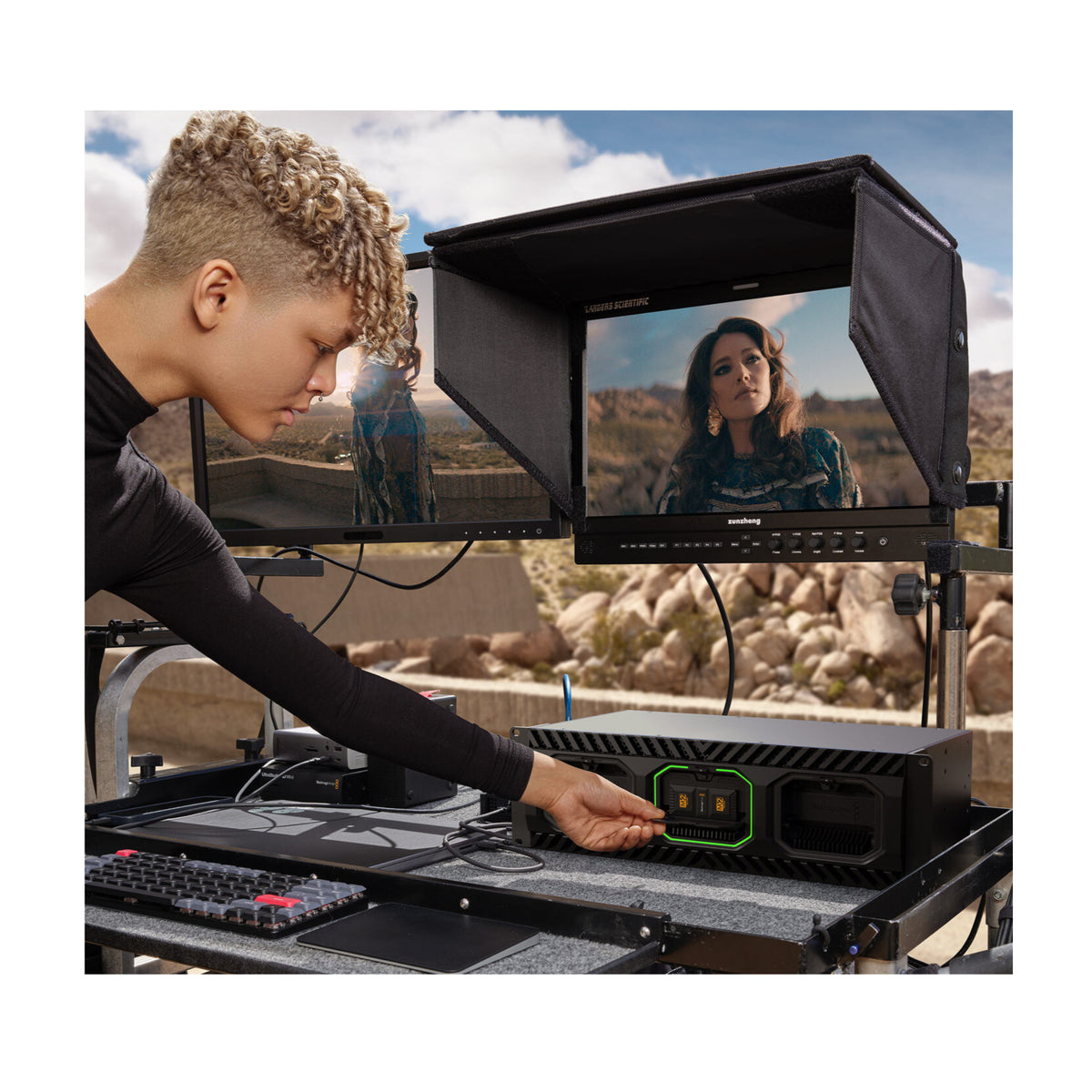

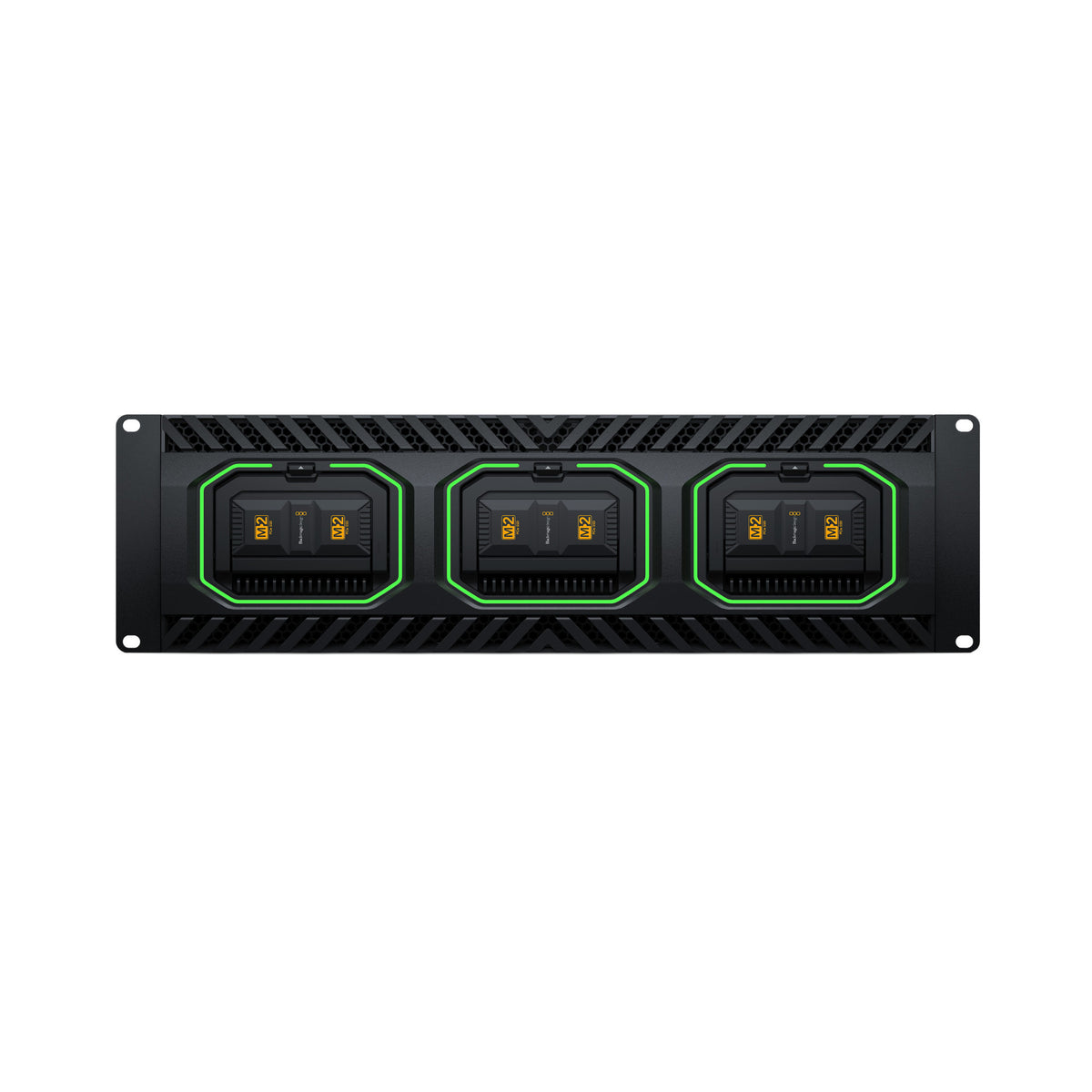

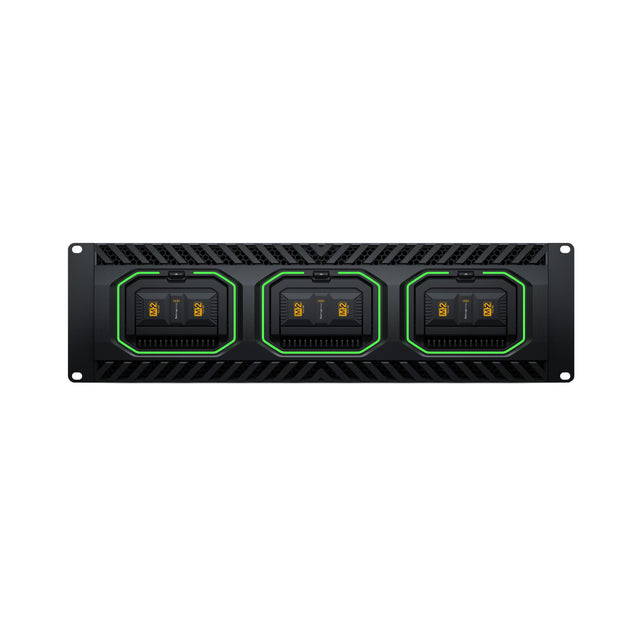

Move high resolution camera media into shared editing and live production workflows with the Blackmagic Design Media Dock Ultra. Its 3RU rack design accepts up to 3 removable Blackmagic Media Modules, allowing production teams to access recorded footage over a network without first copying it to another storage system.
Dual 100G Network Performance
Two independent 100G QSFP28 Ethernet connections provide separate paths for recording, editing, replay, or network distribution. Each port can use its own IP address and subnet mask. When connected through a managed switch, the system supports up to 200G of combined bandwidth and load balancing. A separate 1G management port keeps setup, monitoring, and software update traffic isolated from media transfers.
Live Status Monitoring
Two SDI outputs and one digital monitor output display storage capacity, media usage, cloud synchronization, connected users, hardware status, storage maps, and network transfer graphs. LED rings around the media bays show read and write activity directly on the front panel, giving operators immediate visual confirmation during production.
Cloud and Production Integration
The Media Dock Ultra supports SMB and NFS file sharing for up to 200 computer connections. Blackmagic Cloud and Amazon Web Services S3 synchronization support distributed post production workflows. Dual internal power supplies, separate IEC power inputs, and redundant cooling help keep storage available during demanding live and post production sessions.
General
| Brand | Blackmagic Design |
| Model | Media Dock Ultra |
| Product Type | Removable Media Network Storage Dock |
| Physical Installation | 3 Rack Units |
Storage
| Supported Storage | Up to 3 Blackmagic Media Modules |
| External Storage Format | Blackmagic, Formatted in Camera |
| Media Bay Status Indicators | LED Bezel Rings |
100G Network Connections
| 100G Ethernet Ports | 2 x QSFP28 |
| Network Configuration | Independent IP Address and Sub-net Mask per Port |
| Maximum Combined Bandwidth | Up to 200G with a Managed Switch |
| Load Balancing | Supported with a Managed Switch |
Management Network
| Management Port | 1 x RJ45 Ethernet |
| Supported Speeds | 10, 100, and 1000 BASE T |
| Functions | Setup Utility Access and Software Updates |
Computer Interface
| USB Connection | 1 x USB C |
| USB Functions | Setup Utility Access, Status Monitoring, Software Updates, and Emergency Local Computer Connection |
File Sharing
| Protocols | SMB and NFS |
| NFS Disk Requirement | HFS Plus Formatted Disks |
| Maximum Computer Connections | 200 |
Cloud Synchronization
| Blackmagic Cloud Synchronization | Supported |
| Amazon Web Services S3 Synchronization | Supported |
Monitoring Outputs
| SDI Monitor Outputs | 2 |
| SDI Rates | 1.5G and 3G |
| Digital Monitor Outputs | 1 |
Monitor Output and Display Information
| Supported SDI Standards | 1080p50, 1080p59.94, and 1080p60 |
| Supported Digital Monitor Standards | 1080p50, 1080p59.94, and 1080p60 |
| Monitor Display Information | Device Name, Storage Capacity and Usage, Cloud Synchronization Status, User Activity, Hardware Status, Storage Map, Network Data Rate Graph |
Software
| Blackmagic Cloud Setup Utility | Available |
| Blackmagic Proxy Generator Lite | Available |
| Software Upgrades | Internal Software Upgrade through Blackmagic Cloud Setup |
Operating System Compatibility
| Mac | macOS 15 Sequoia, macOS 26 Tahoe or Later |
| Windows | Windows 10 (64 Bit), Windows 11 |
Power
| Internal Power Supplies | 2 |
| Power Supply Input | 100 to 240 V AC, 50 or 60 Hz |
| Power Inputs | 2 x IEC C14 |
Cooling
| Cooling Direction | Front to Rear |
| Cooling Design | Multiple Fans with Redundancy |
Physical and Environmental

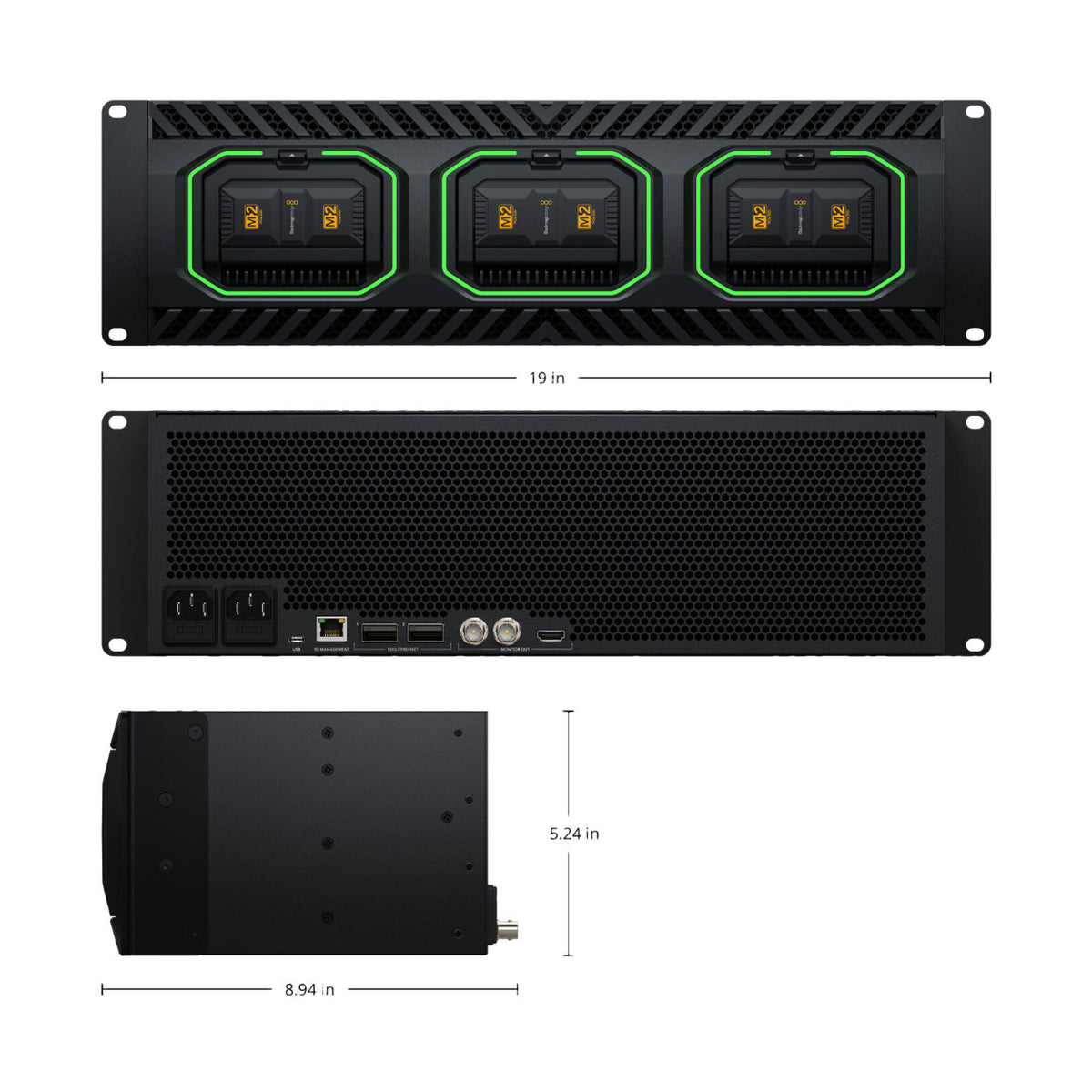

| Dimensions (LxHxW) | 19 x 5.24 x 8.94 inches |
| Operating Temperature | 0 to 40 Degrees Celsius |
| Storage Temperature | Minus 20 to 60 Degrees Celsius |
| Relative Humidity | 0 to 90 Percent Non-condensing |
