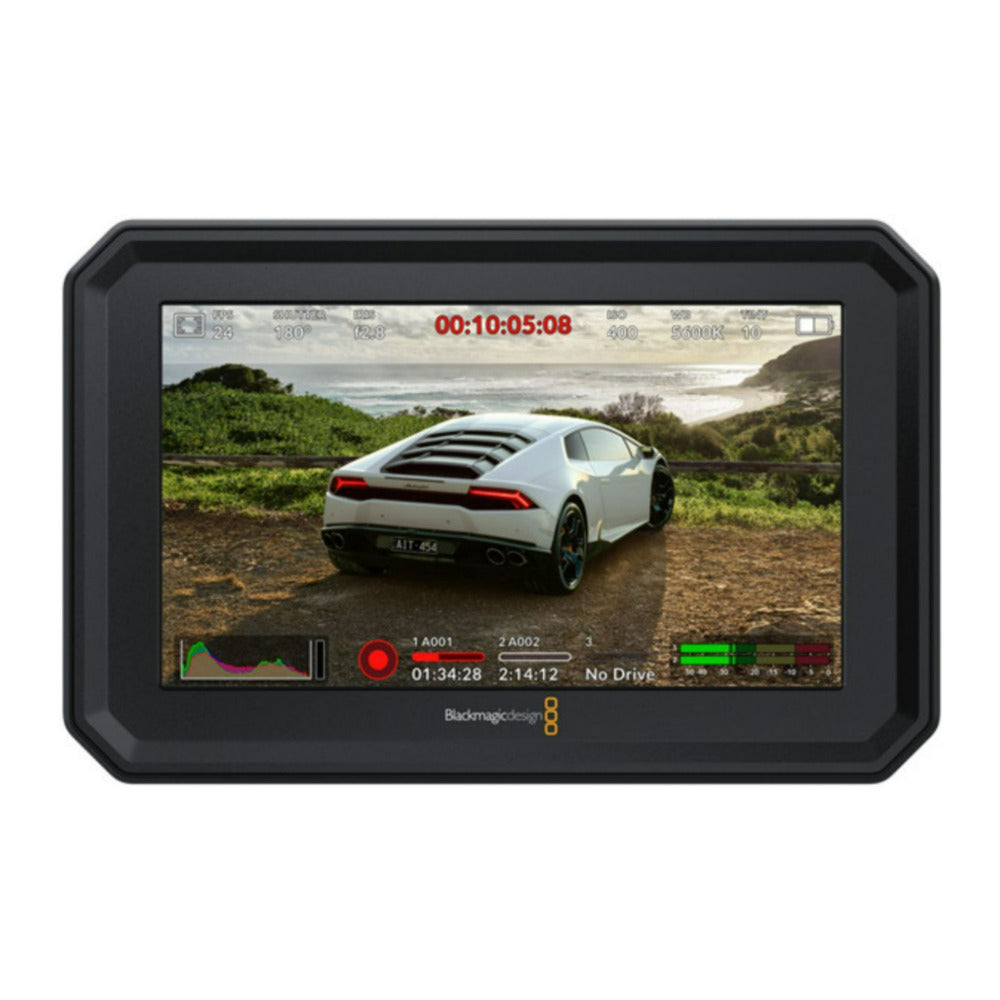

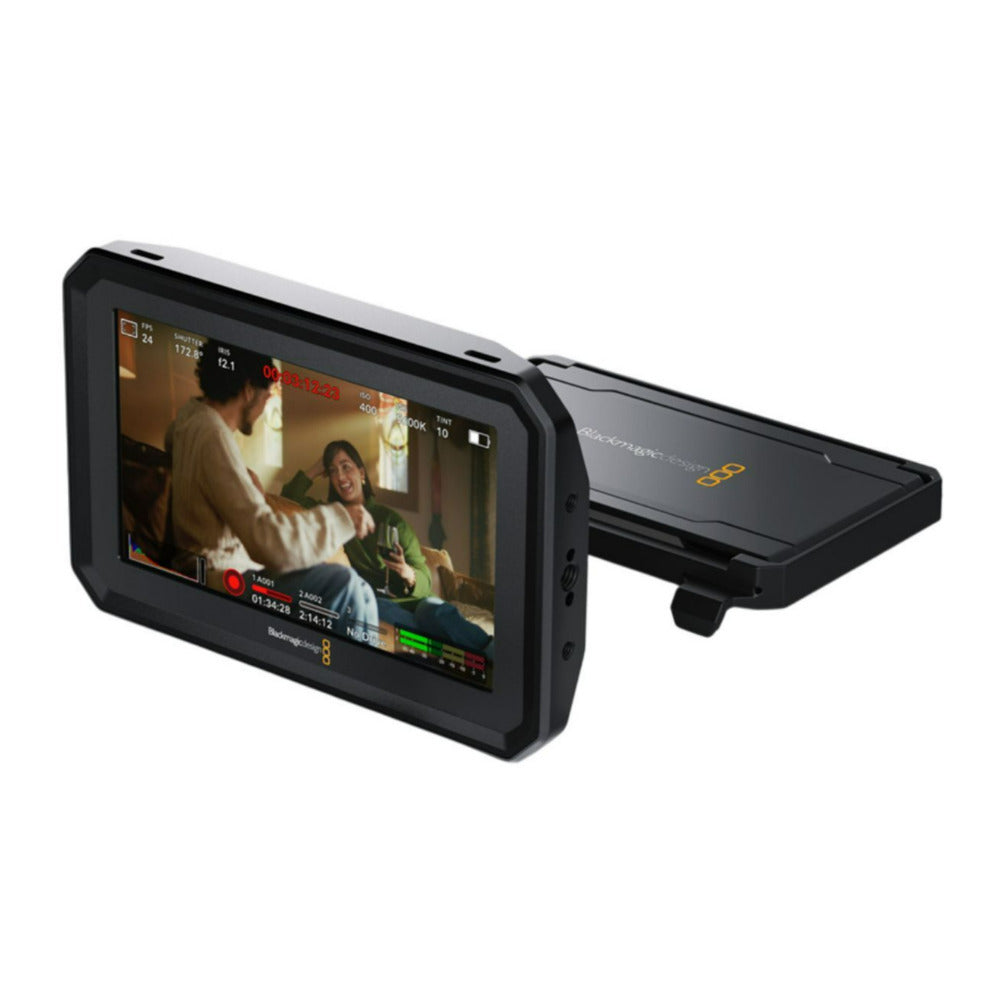

The Blackmagic Design PYXIS Monitor in Black is a versatile 5-Inch HDR Touchscreen Monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere, so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high-brightness screen makes monitoring easy, even in bright sunlight, and includes a removable sunshade that also folds up to protect the monitor. The Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power, and camera control.
Connectivity
| External Ports | 1 x USB Type-C |
Environmental
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Temperature | 0°to 40°C (32° to 104°F) |
| Operating Humidity | 0 to 90% |
Physical
| Weight | 0.46 lbs. |
| Lock Slot | No |
Display
| Resolution | 1920 x 1080 |
| Brightness | 1500 cd/m² |
| TV Screen Size (Diagonal) | 5" |
| Touch Screen | 42190 |
| Panel Type | LCD |
- FPS: Preset Value
- Iris: Preset Value
- WB: Preset Value
- ISO: Preset Value
- Shutter: Preset Value
- 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern
- 2 x M4 bottom mounting points
- 1 x 1/4-20 side mounting point with ARRI locating pin pattern
- 2 x M4 side mounting points
Blackmagic Design PYXIS 5-Inch HDR Touchscreen Monitor with 1500-Nit and Full Camera Control
| Color | Black |
Connections
| USB-C with Locking Connector | |
| Video, power, data, and software updates |
Features
| Display Size | 5 inch |
| Display Resolution | Full 1920 x 1080 |
| Display Type | LCD capacitive touchscreen |
| Display Brightness | 1500 nits |
| Frame Rates | Up to 60 fps |
| Tally | Rear-facing LED tally light |
| Accelerometer | Automatically rotates image when monitor mounted upside down |
Control
| On Screen Controls | Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start or Stop, Media, Audio, Focus Zoom, Digital Slate, and camera menus |

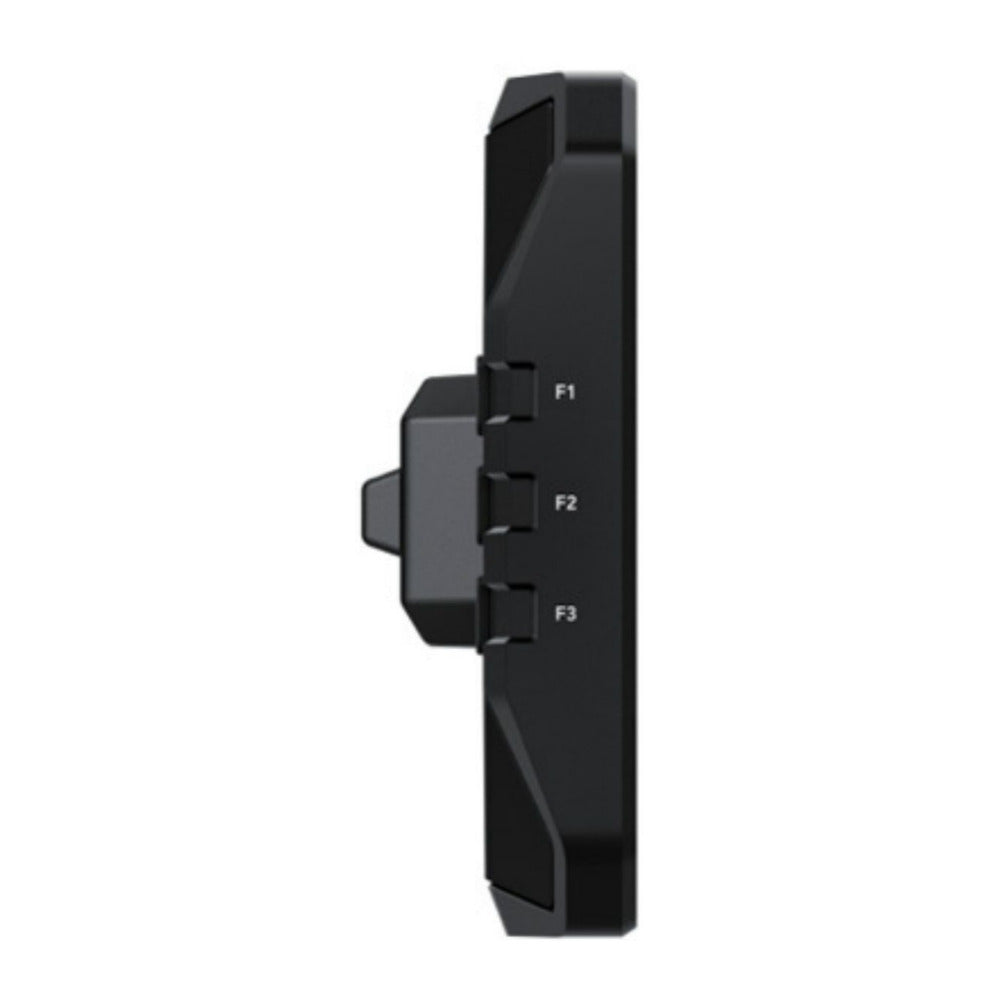

| Button Controls | Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions |
| Function Button Presets | |
| Function Button Toggle | Clean Feed, Status Text, Display LUT, Frame Guides, Focus Assist, False Color, Zebra, Grid, Safe Area Guide, Off Speed Rec, Focus Zoom, Focus, Record, Auto White Balance, Color Bars, Playback, False Color plus Zebra, OIS, Stream, and Still |
Mounting
| Mounting Points |
Compatible Cameras
| Blackmagic PYXIS 6K | |
| Blackmagic PYXIS 6K PL | |
| Blackmagic PYXIS 6K EF | |
| Blackmagic URSA Cine 12K LF | |
| Blackmagic URSA Cine 17K 65 |
Operating Systems
| Mac 13.0 Ventura | |
| Mac 14.0 Sonoma or later | |
| Windows 10 and 11 |
Power Requirements
| Powered over USB-C |
Physical Specifications
| Dimension (L x W x H) | 5.61 x 1.18 x 3.62 inch |
| Weight | 7.37oz |
Environmental Specifications
| Operating Temperature | 0 to 40 degrees C (32 to 104 degrees F) |
| Storage Temperature | Minus 20 to 60 degrees C (Minus 4 to 140 degrees F) |
| Relative Humidity | 0 to 90 percent non-condensing |
