The Blackmagic Design StudioBridge 100G is designed to integrate SMPTE 2110 IP video into a stable and scalable broadcast environment. It connects a single 100G Ethernet feed into a dual 100G redundant system, helping maintain consistent signal delivery in live and studio workflows while supporting high-bandwidth production demands.
100G Ethernet Bridging
This system enables conversion of a single 100G SMPTE 2110 connection into a dual 100G redundant network. With support for ST 2022-7, it ensures continuous signal flow even if one connection fails, making it suitable for critical broadcast operations.
Dual 100G Camera Connectivity
The unit includes two 100G QSFP28 camera inputs that support high-resolution cameras and immersive formats. It allows flexible bandwidth allocation, enabling efficient multi-camera setups without exceeding total capacity.
Dedicated 10G Network Expansion
Separate 10G SFP and RJ45 connections allow integration of additional devices and video streams. This keeps accessory traffic independent from the main 100G workflow while supporting multiple Ultra HD or HD channels.
NMOS Control and Integration
A dedicated 1G control port supports NMOS for device discovery, configuration, and connection management. This helps streamline integration into modern IP-based broadcast systems and improves workflow control.
Embedded Audio Over IP
Each video stream supports up to 16 channels of embedded audio, maintaining synchronization across the network. This ensures reliable audio handling for professional production environments.
Multi-Format Video Support
The system automatically detects HD, Ultra HD, and 4K formats across a wide range of frame rates. This allows compatibility with different production standards without requiring manual adjustments.
Built-In Monitoring and Control

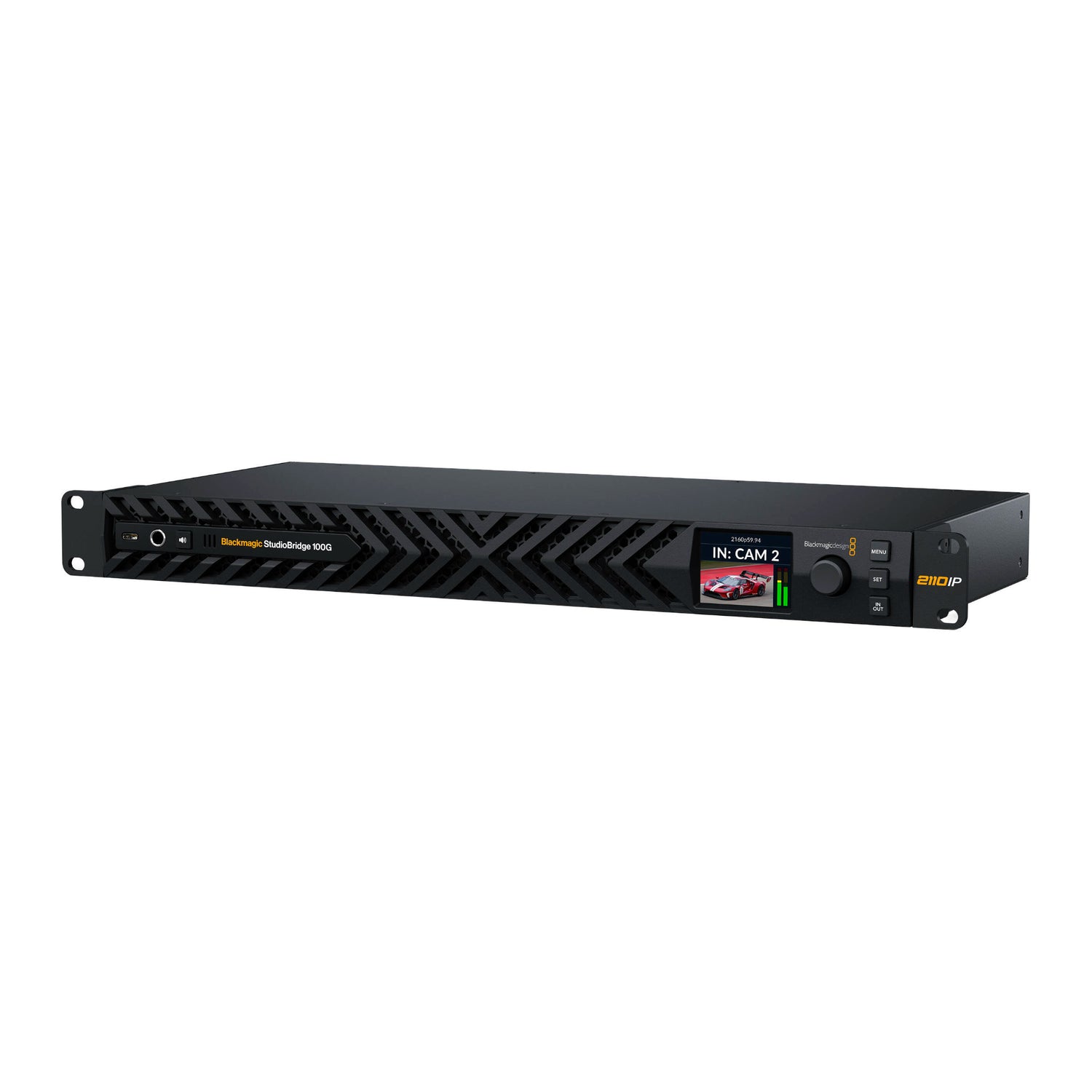

A 2.2-inch LCD provides real-time monitoring of video, audio, and system status. Front panel controls allow quick access to inputs and configuration settings, reducing the need for external tools.
Redundant Power Design
Dual IEC power inputs provide backup power support to maintain continuous operation. This reduces the risk of downtime and supports long-duration broadcast workflows.
- 1 x 100G URSA Cine or
- 2 x URSA Cine Immersive / URSA Immersive
- 2 x 10G SFP optical fiber connections
- 2 x 10G RJ45 connections
- Mac 15.0 Sequoia, Mac 26.0 Tahoe or later
- Windows 11
Connections
| 100G 2110 IP Networks | 2 x 100G QSFP28 Network connections. Supports ST 2022-7 redundant delivery of IP streams over the two ‘100G 2110 IP Video’ network connections |
| 100G 2110 IP Camera | 2 x 100G QSFP28 Camera connections |
| Senders and Receivers per 100G Pair | |
| 10G 2110 IP Networks | |
| Senders and Receivers per 100G Pair | 8 x Ultra HD or HD |
| 1G Control Network | 1 x 1G RJ45 for NMOS control, configuration and software updates |
| SMPTE ST 2110 IP Audio Inputs | 16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet |
| SMPTE ST 2110 IP Audio Outputs | 16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet |
| Multi Rate Support | Auto detection of HD, Ultra HD and 4K |
| Computer Interface | 1 x USB-C for configuration and firmware updates |

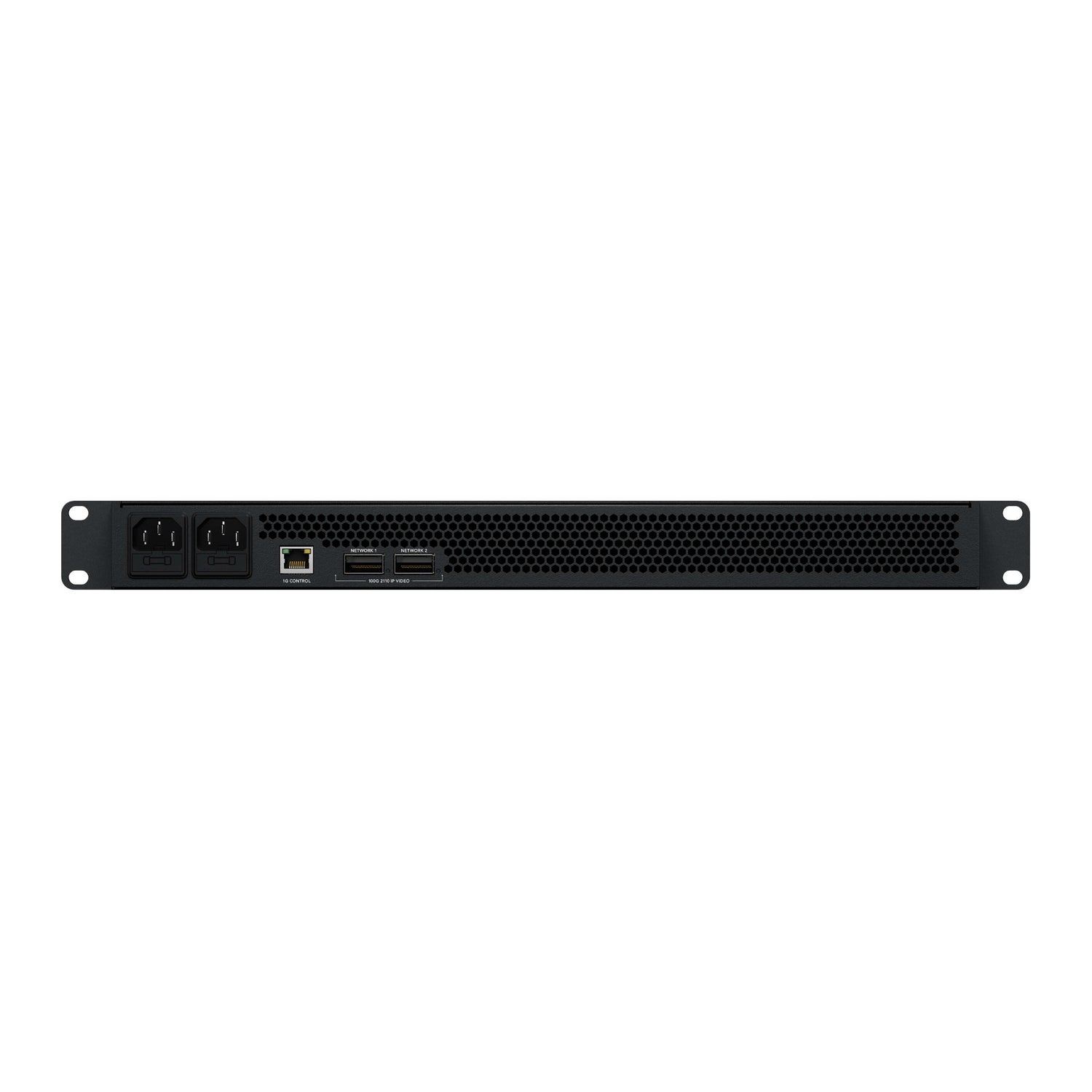

| Power | 2 x IEC C14 power inputs |
Video Standards
| HD Video Standards | 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080PsF25, 1080PsF29.97, 1080PsF30 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 8K Video Standards | 8160 x 7200 x 2 stereo immersive |
| SMPTE Compliance | SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7 |
| Color Precision | 10-bit 4:2:2 YUV |
| Color Space | Rec. 709, Rec. 2020 |
| SDI Auto Switching | Automatically detects HD and Ultra HD |
IP Video Compliance
| SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow. Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188-SMPTE 12M-2, closed captioning and HDR static metadata |
| Codec | Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2); ST 2059-1; ST 2059-2 |
| NMOS IS-04 Discovery and Registration | v1.3.2. Peer-to-peer via mDNS-DNS-SD |
| NMOS IS-05 Connection Management | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver capabilities |
Displays
| Display | Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel |
Control
| Built in Control Panel | 2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings |
| External Control | RJ-45 Ethernet and USB-C |
| Operating Systems | |
Power Requirements
| Power Supply | 2 x 100 - 240V AC 50-60Hz internal power supplies |
| Power Inputs | 2 x IEC C14 sockets |
| Power Usage | TBC |
| Physical Installation | 1 rack unit |
Environmental Specifications
| Operating Temperature | 5° to 40° C (41° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
