- 1 x Blackmagic Design SDI Expander 8x12G
- 1 x Welcome Wallet with Software Download QR Code
Trusted & Verified

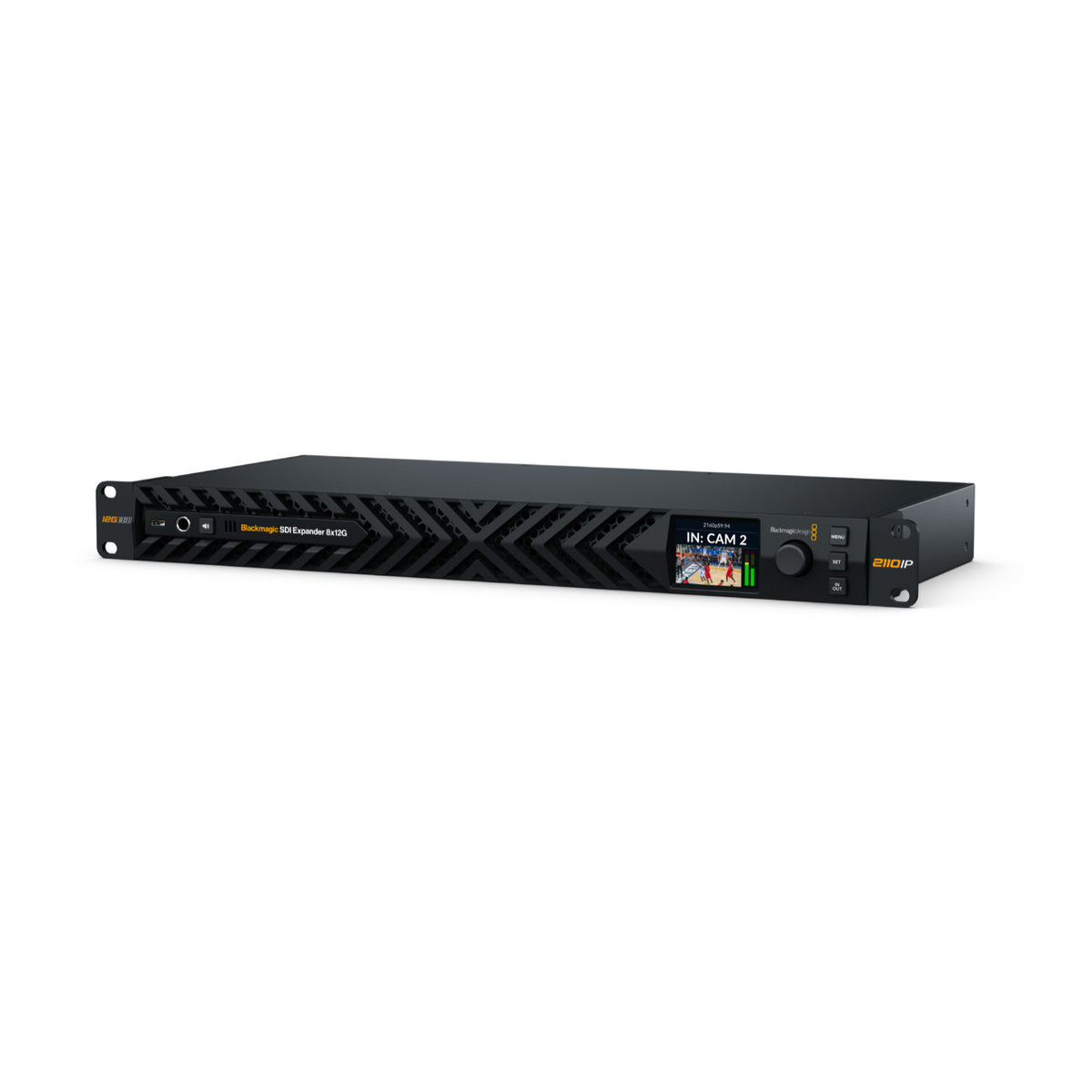

Blackmagic Design SDI Expander 8x12G 1RU Bidirectional IP Converter with Integrated 2.2-inch Display
- Simultaneous 8 channel SDI to IP and 8 channel IP to SDI conversion
- Supports HD and Ultra HD Video through 2160p60
- 2 x 100G QSFP28 Network Connections
- SMPTE 2022-7 Redundant 100G Ethernet Delivery
- 16 Embedded Audio Channels per Video Stream
- Dedicated NMOS Control Network Connection
- Integrated 2.2-inch Monitoring Display and Speaker
- Dual Internal Power Supplies with separate AC inputs
- Compact 1RU Rack Installation
- Support for current SMPTE 2110 and NMOS workflows
Connect professional 12G SDI equipment to modern 100G SMPTE 2110 production networks with the Blackmagic Design SDI Expander 8x12G. This 1RU converter processes video in both directions at the same time, converting 8 independent 12G SDI inputs to IP while converting a separate set of 8 IP streams back to 12G SDI.
16 Simultaneous Conversion Channels
Eight SDI inputs and 8 SDI outputs support separate send and receive paths for cameras, recorders, switchers, replay systems, and other compatible broadcast equipment. Each 100G network pair handles 8 HD or Ultra HD senders and receivers. Supported SDI rates include 1.5G, 3G, 6G, and 12G, with video formats through 2160p60.
Redundant 100G IP Networking

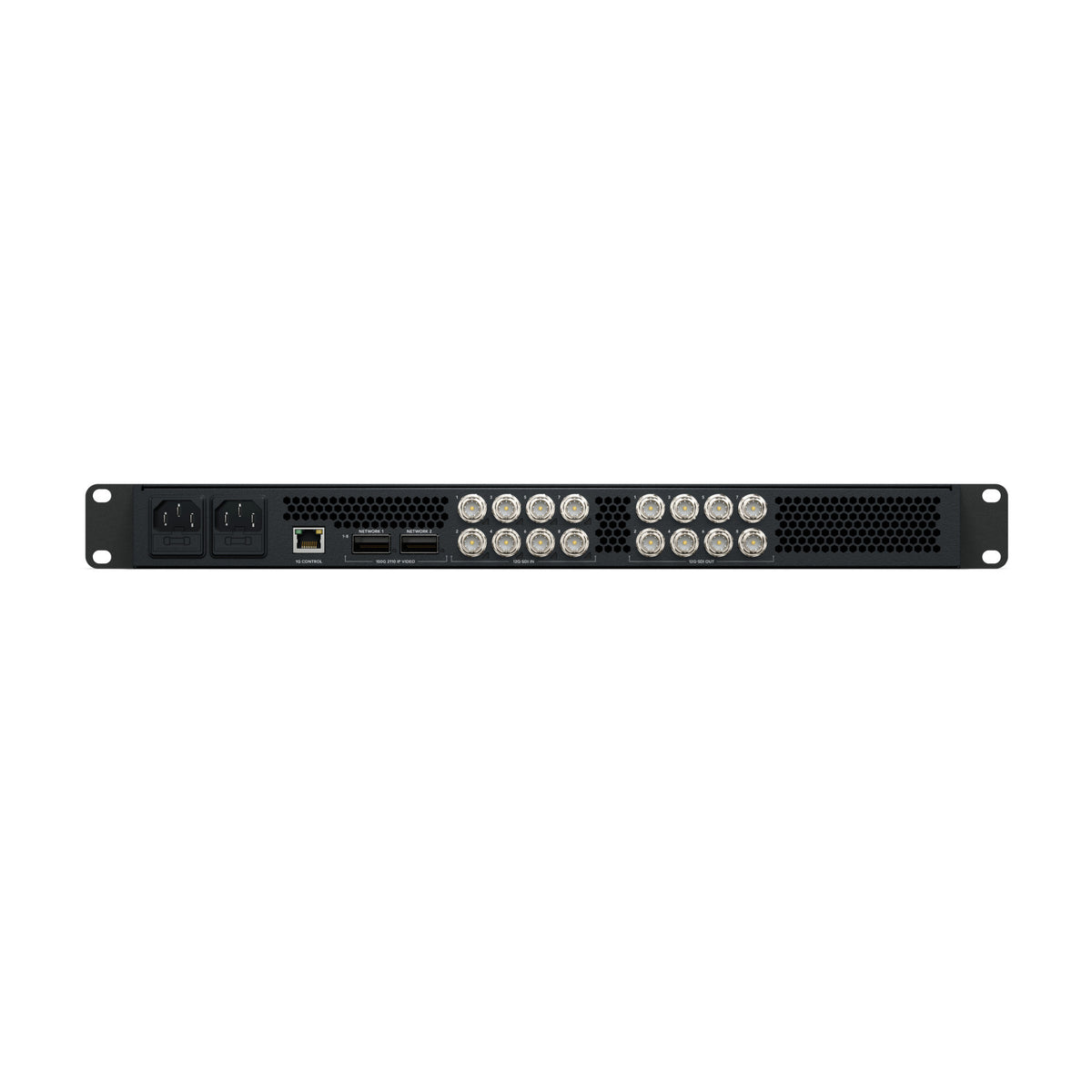

Two QSFP28 100G Ethernet connections support SMPTE 2022 7 redundant delivery across separate SMPTE 2110 networks. A dedicated 1G Ethernet connection provides NMOS control, configuration, and firmware updates. Supported NMOS functions include IS 04 discovery and registration, IS 05 connection management, natural grouping, and receiver capability reporting.
Integrated Monitoring and Reliable Power

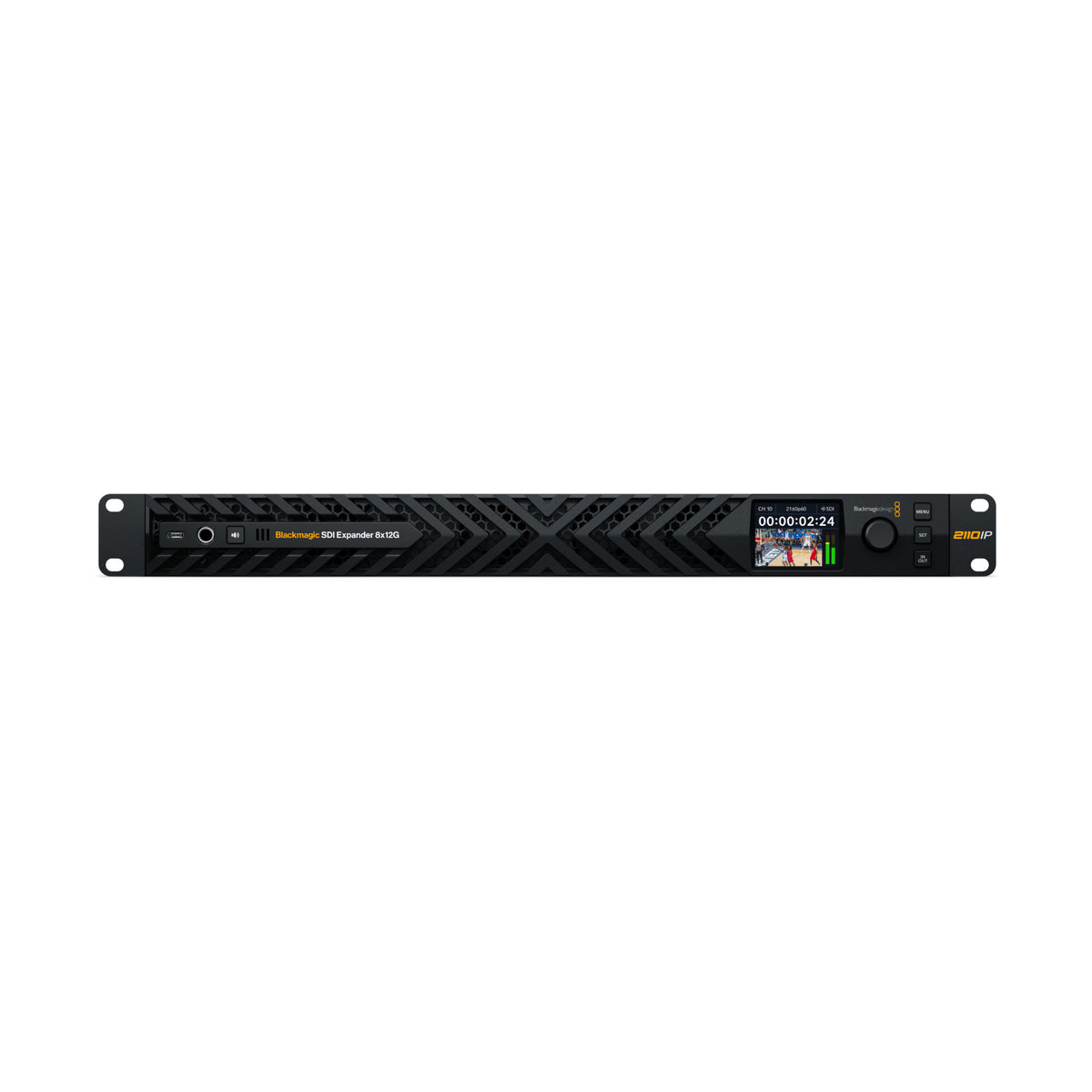

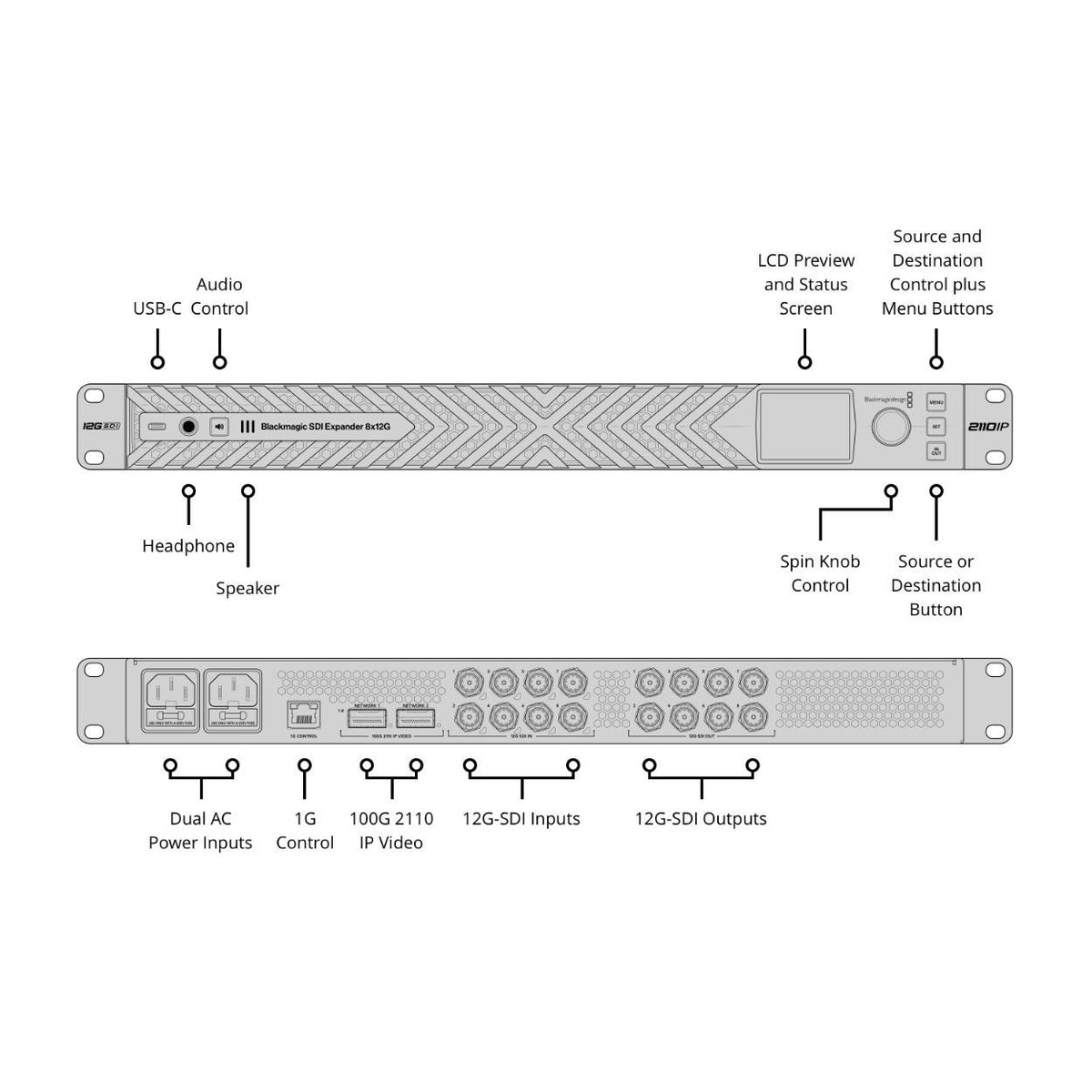

The front panel includes a 2.2-inch color display, speaker, headphone connection, buttons, and a spin knob for monitoring sources and configuring destinations. Dual internal power supplies and two IEC power inputs support redundant AC operation. The rackmount chassis fits within one rack unit for broadcast facilities, mobile production systems, and machine rooms.
General
| Brand | Blackmagic Design |
| Model | SDI Expander 8x12G |
| Product Type | Bidirectional SDI and SMPTE 2110 Converter |
| Physical Installation | 1 Rack Unit |
Conversion Capacity
| SDI to IP Conversion Channels | 8 |
| IP to SDI Conversion Channels | 8 |
| Total Simultaneous Conversion Channels | 16 |
| Senders and Receivers per 100G Pair | 8 HD or Ultra HD |
Network Connections
| 100G Network Connections | 2 x QSFP28 |
| Redundant Stream Delivery | SMPTE 2022 7 |
| Control Network | 1 x 1G RJ45 Ethernet |
| Control Network Functions | NMOS Control, Configuration, and Firmware Updates |
SDI Connections
| SDI Video Inputs | 8 |
| SDI Video Outputs | 8 |
| Supported SDI Rates | 1.5G, 3G, 6G, and 12G |
| SDI Audio Inputs | 16 Embedded Channels per Input |
| SDI Audio Outputs | 16 Embedded Channels per Output |
SMPTE 2110 Audio
| IP Audio Inputs | 16 Embedded Channels per Video Stream |
| IP Audio Outputs | 16 Embedded Channels per Video Stream |
Monitoring
| Built-in Display | 2.2-inch Color LCD |
| Display Functions | Video, Audio, Video Standard, Timecode, and Menu Monitoring |
| Built-in Speaker | Yes |
| Headphone Output | 1 x 6.35 mm |
| Source Selection | Front Spin Knob |
Control
| Front Panel Buttons | 3 |
| Front Panel Control | Spin Knob |
| External Control | RJ45 Ethernet and USB Type-C |
Video Standards
| SD Video Standards | 525i59.94 NTSC / 625i50 PAL |
| HD Video Standards | 720p50 / 720p59.94 / 720p60 / 1080i50 / 1080i59.94 / 1080i60 / 1080p23.98 / 1080p24 / 1080p25 / 1080p29.97 / 1080p30 / 1080p50 / 1080p59.94 / 1080p60 / 1080PsF25 / 1080PsF29.97 / 1080PsF30 |
| Ultra HD Video Standards | 2160p23.98 / 2160p24 / 2160p25 / 2160p29.97 / 2160p30 / 2160p50 / 2160p59.94 / 2160p60 |
Video Processing
| SDI Color Precision | 10 Bit 4:2:2 YUV |
| Color Space | Rec. 790 and Rec. 2020, as Listed by Manufacturer |
| SDI Auto Switching | Automatic HD and Ultra HD Detection |
| 3G SDI Input | Automatic Level A and Level B Detection |
| 3G SDI Output | User Selectable Level A or Level B |
SMPTE Compliance
| Compliant with | SMPTE 292M / SMPTE 296M / SMPTE 424M / SMPTE 425M / SMPTE 2022-7 / SMPTE 2081-1 / SMPTE 2081-10 / SMPTE 2082-1 / SMPTE 2082-10 / SMPTE 2084 / SMPTE 2108-1 / SMPTE ST 2110-20 / SMPTE ST 2110-21 / SMPTE ST 2110-30 /SMPTE ST 2110-40 |
IP Video Compliance
| SMPTE 2110-20 Uncompressed Video | IGMP v3 |
| SMPTE 2110-21 Sender | Narrow |
| SMPTE 2110-21 Receiver | Narrow, Wide Synchronous, and Asynchronous |
| SMPTE 2110-30 Audio Conformance | Level C |
| SMPTE 2110-40 | Full Ancillary Data Stream Access |
| Optional Codec | Blackmagic IP10 for 2160p59.94 and 2160p60 |
Timing
| Precision Time Protocol | IEEE 1588 2008, PTP v2 |
| Timing Standards | ST 2059 1 and ST 2059 2 |
NMOS Support
| IS-04 Discovery and Registration | Version 1.3.2 |
| Peer Discovery | mDNS and DNS SD |
| IS-05 Connection Management | Version 1.1.2 |
| BCP-002-01 | Natural Grouping |
| BCP-004-01 | Receiver Capabilities |
Operating System Compatibility
| Mac | macOS 15 Sequoia / macOS 26 Tahoe or Later |
| Windows | Windows 11 |
Power
| Internal Power Supplies | 2 |
| Power Input | 100-240V AC, 50/60 Hz |
| Power Connections | 2 x IEC C14 Sockets |
Physical

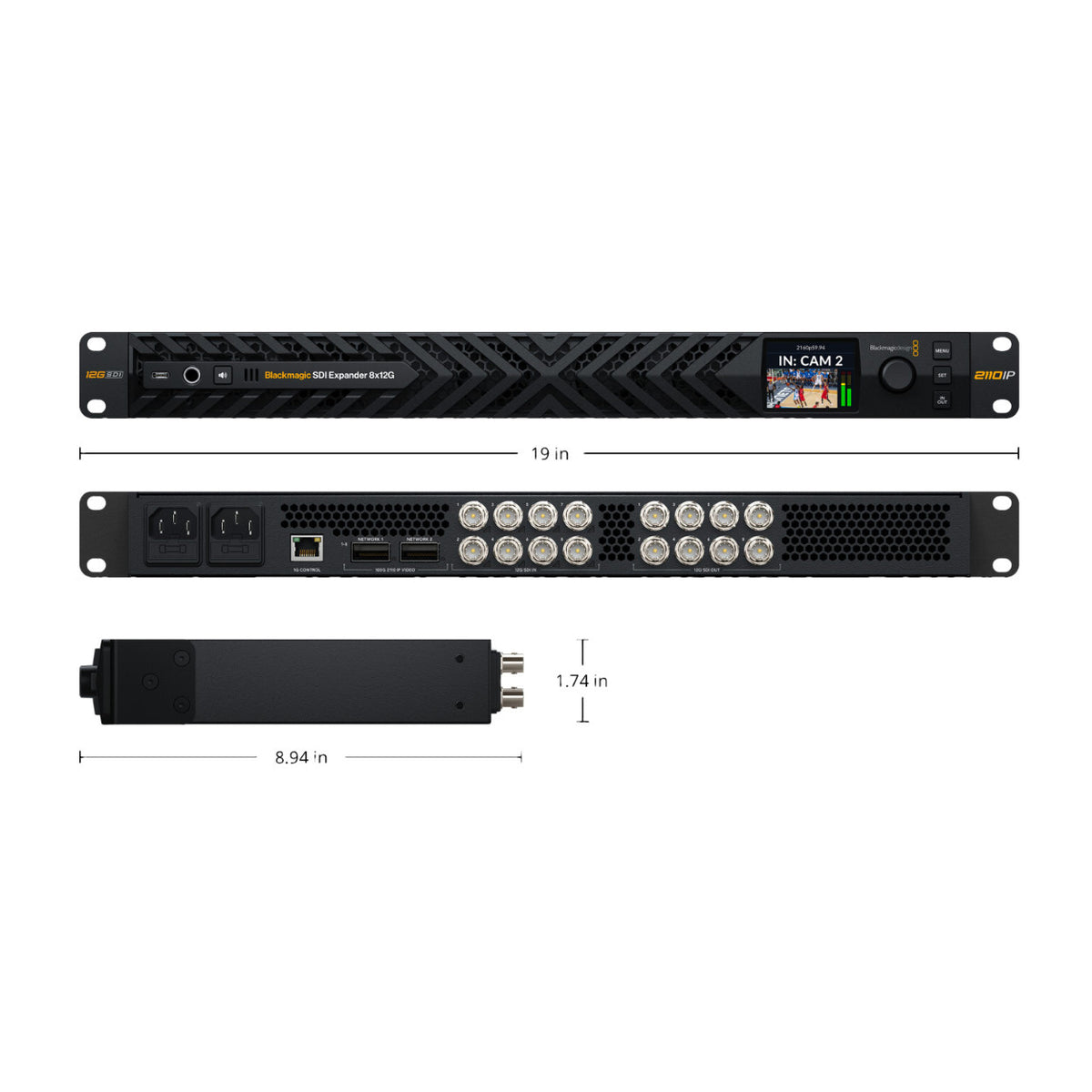

| Dimensions (LxHxW) | 19 x 1.74 x 8.94 inches |
| Operating Temperature | 5 to 40 degrees C |
| Storage Temperature | -20 to 45 degrees C |
| Relative Humidity | 0 to 90% Non-condensing |
