Blackmagic Design Studio Fiber Converter
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

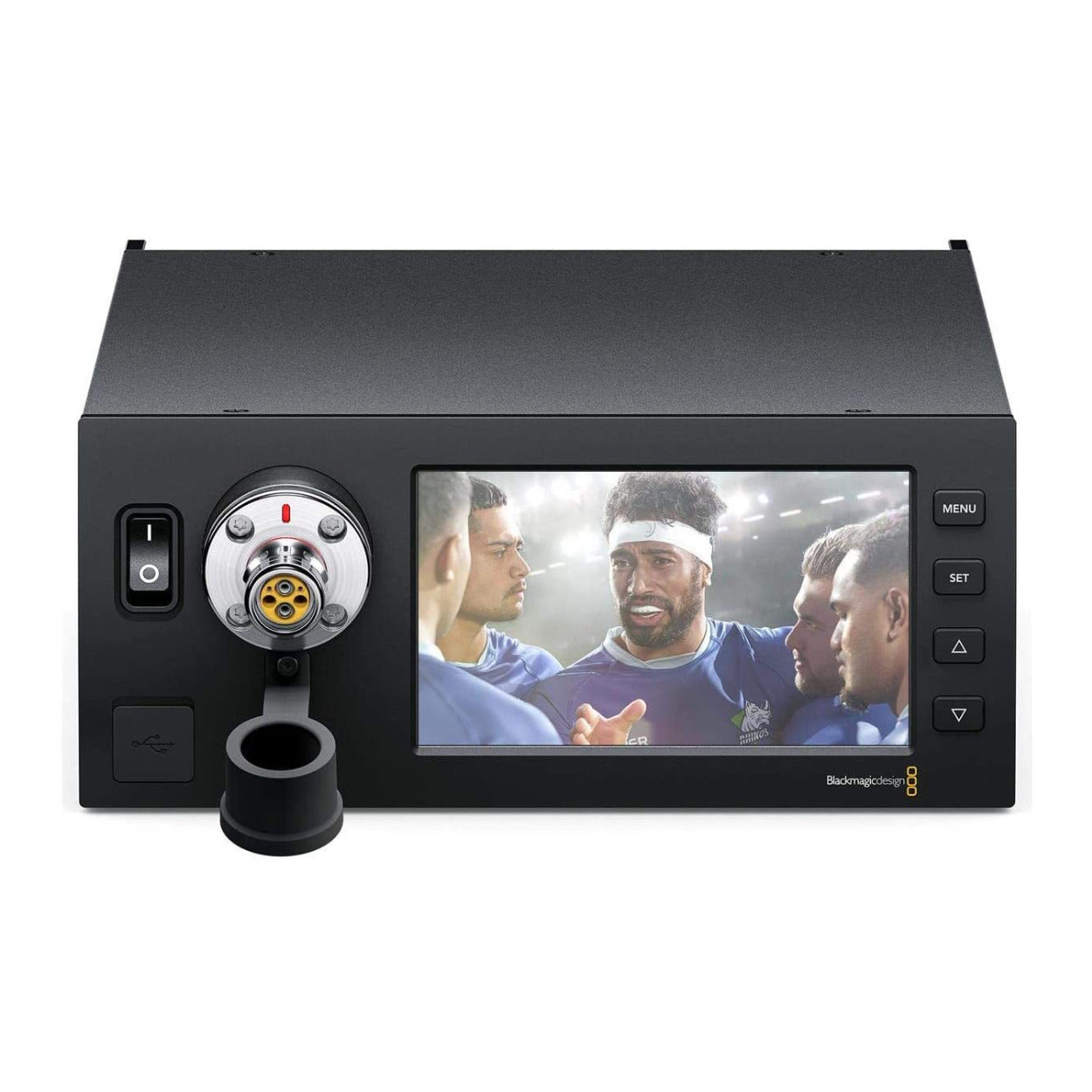

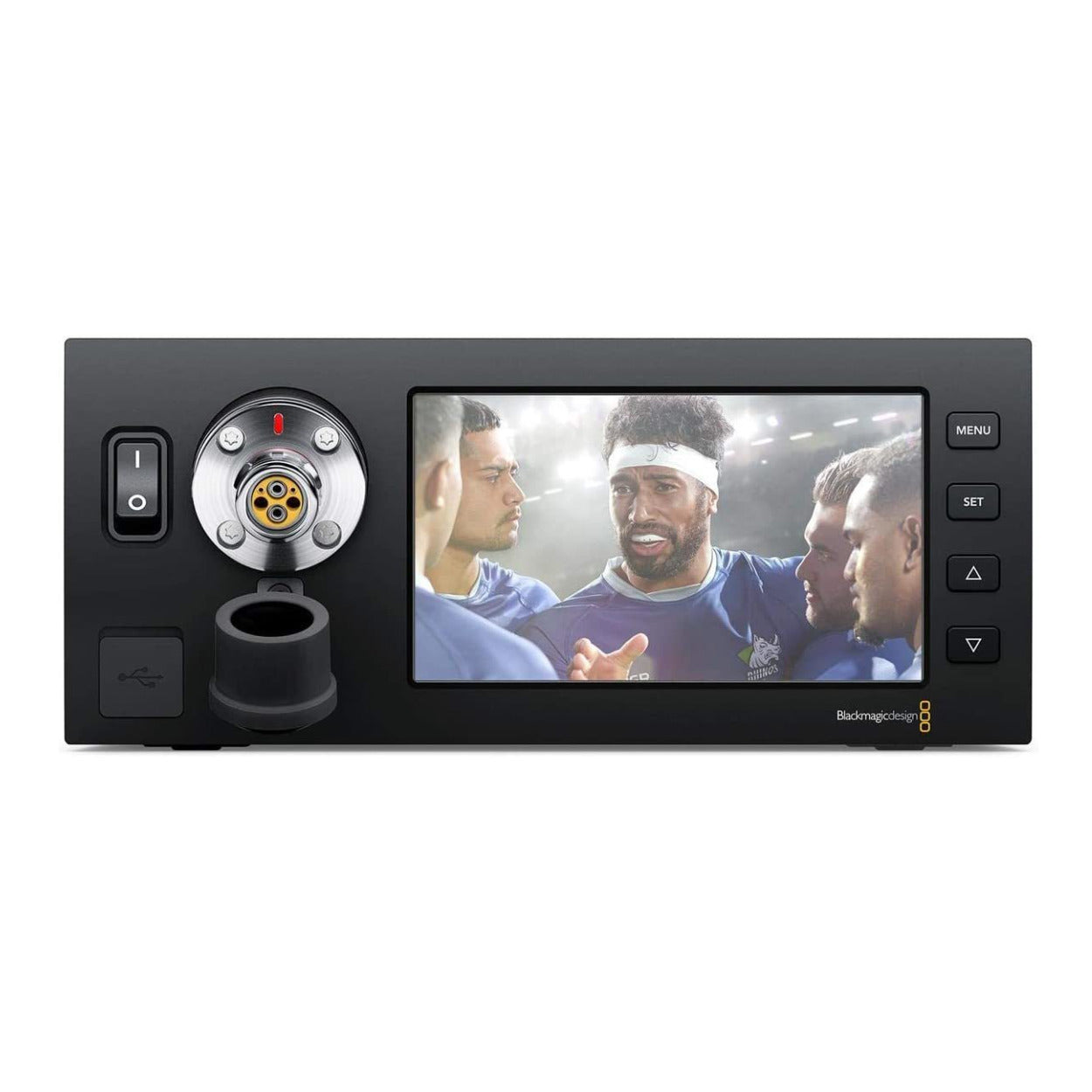

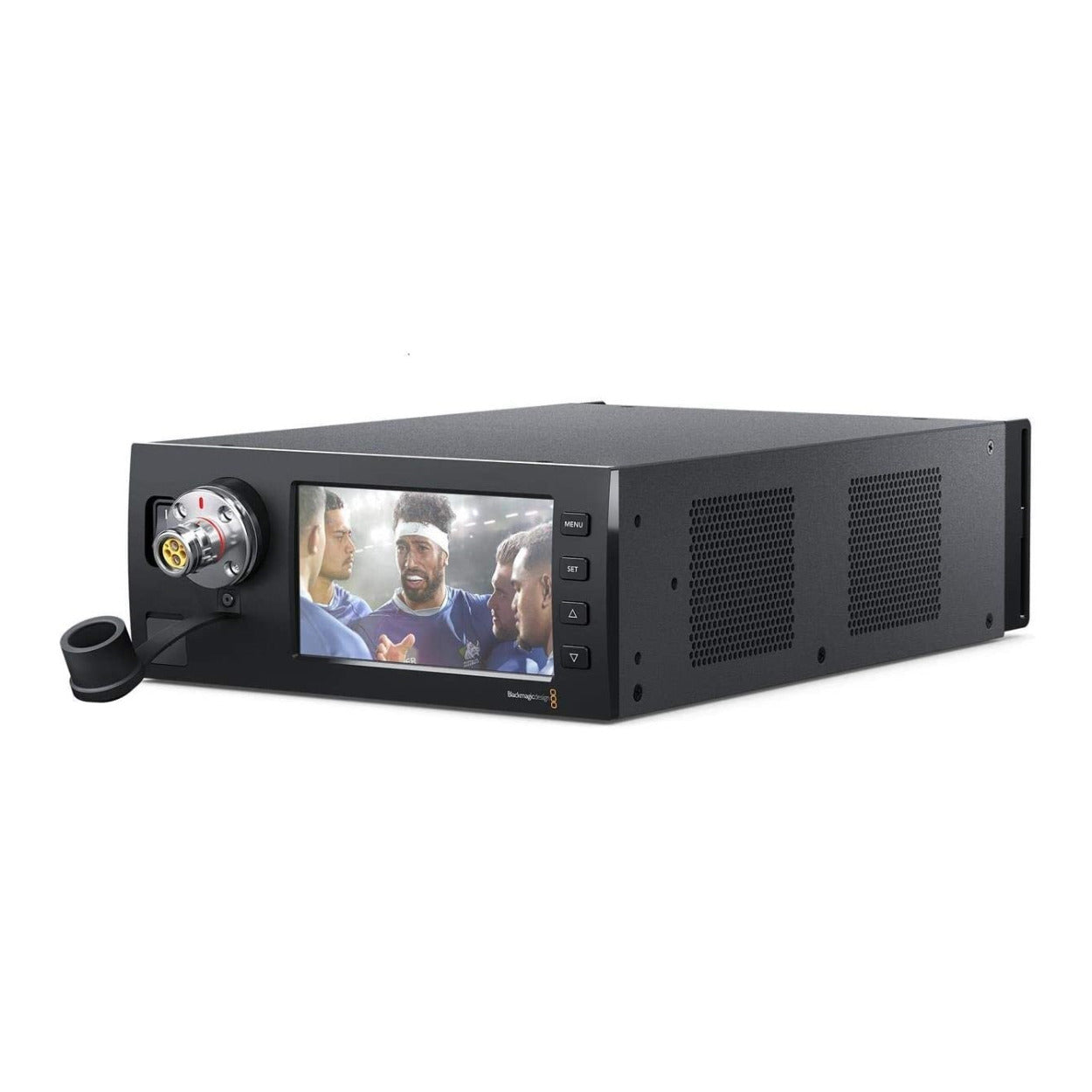

Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
Blackmagic Design Studio Fiber Converter

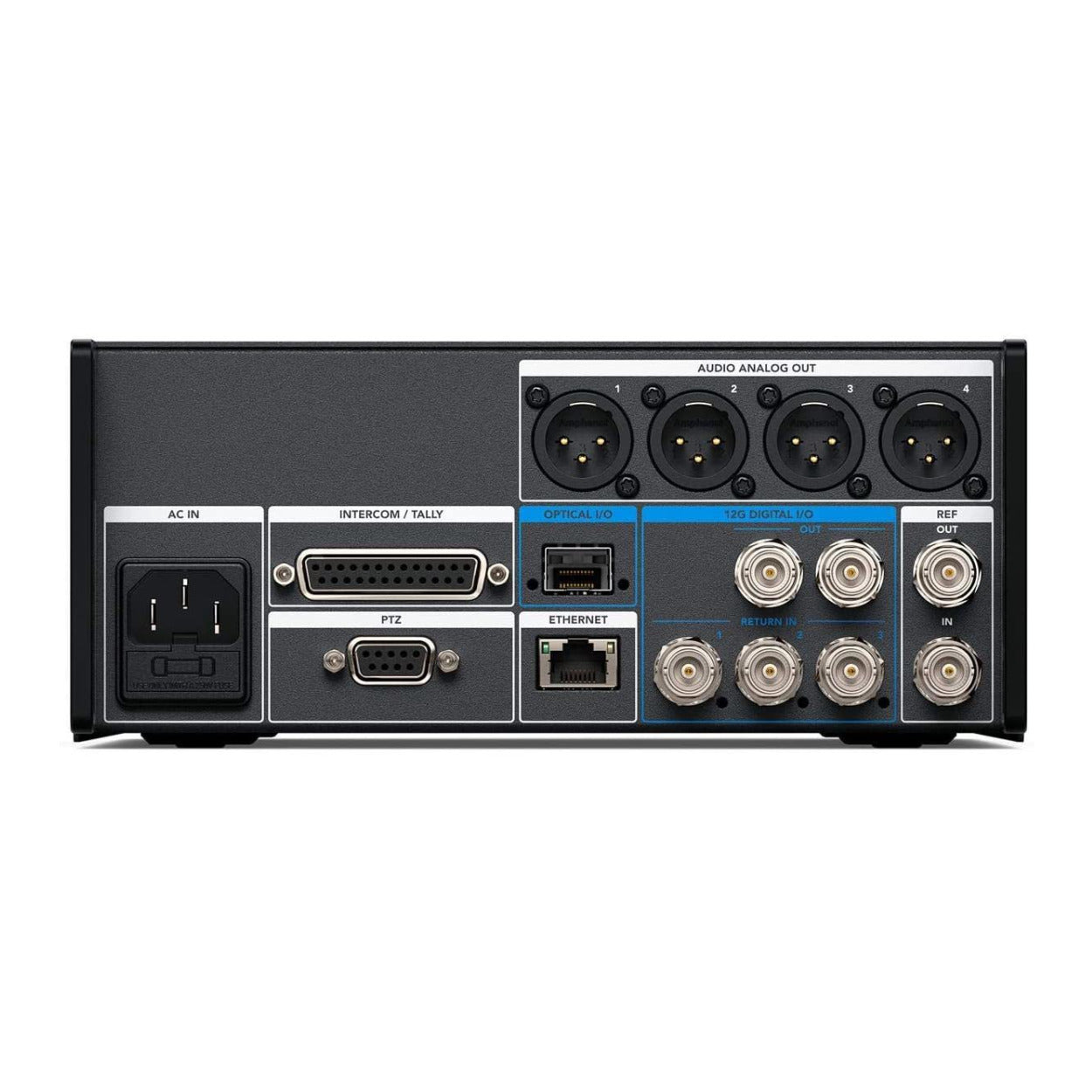

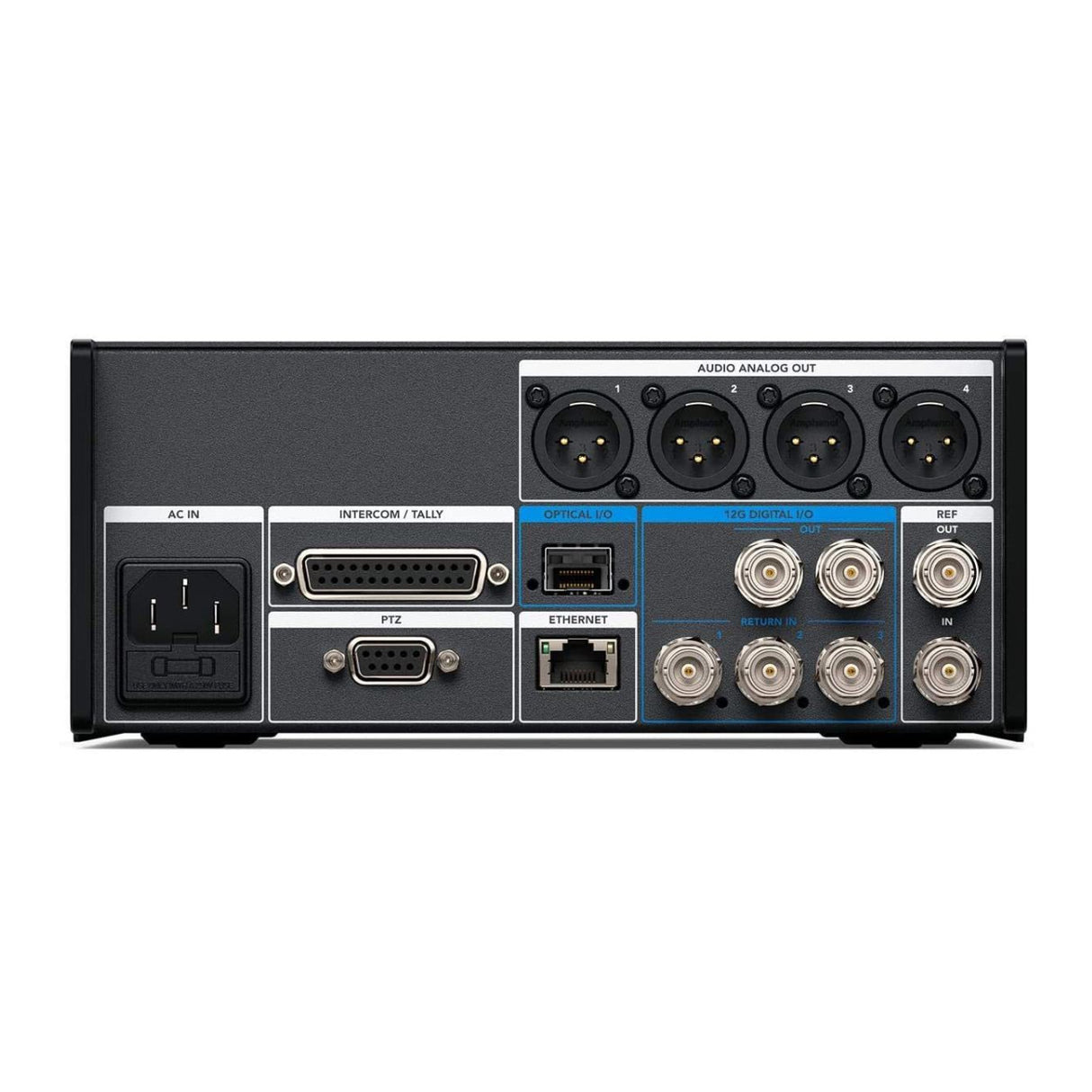

Connections
| Optical fiber input | 1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector |
| SDI video input | 3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1 |
| SDI video output | 2x 12G SDI for Ultra HD up to 60p |
| Talkback audio | SDI Channels 15 and 16 for Production, Analog in and out supported via 25-pin connector for Production and Engineering talkback support |
| Balanced XLR audio outputs | 4x camera analogue audio outputs |
| Optical fiber outputs | 1x Optical I/O via 10 Gb-E (not currently active) |
| Computer interface | 1x USB-C |
Standards
| HD video standards | |
| Ultra HD video standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60 |
| SDI compliance | SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M |
| Audio sampling | Television standard sample rate of 48kHz, 24-bit A/D conversion |
| Video sampling | 4:2:2 |
| Color precision | 10-bit |
| Color Space | REC 709, REC 2020 |
| Multiple rate support | SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI |
Software
| Software included | Camera Utility for firmware update |
Operating Systems
| Mac 10.14 Mojave, 10.15 Catalina or later | |
| Windows 8.1 and 10 |
Power Requirements
| Power supply | 110 - 240V AC input |
Environmental Specifications
| Operating temperature | 2 to 122-degree-F (0 to 50-degree-C) |
| Storage temperature | -4 to 113-degree-F (-20 to 45-degree-C) |
| Relative humidity | 0 to 90% non-condensing |
