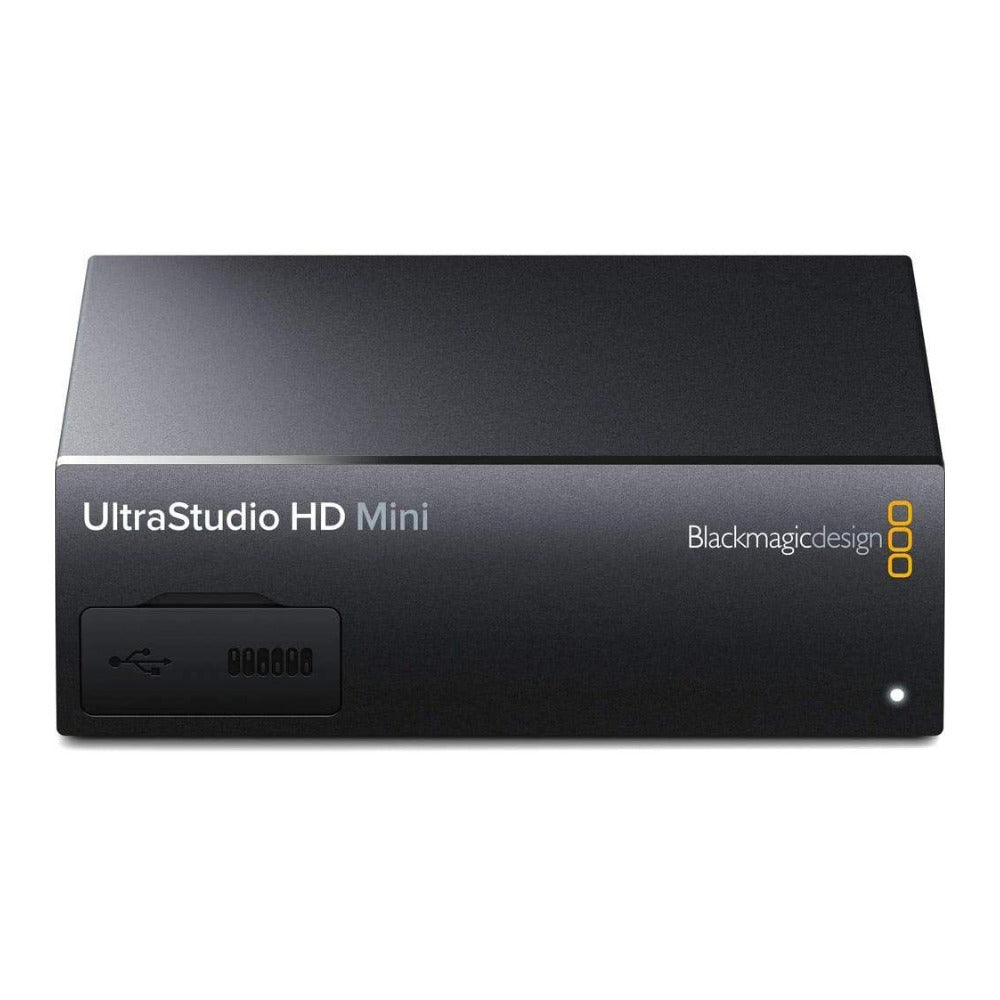

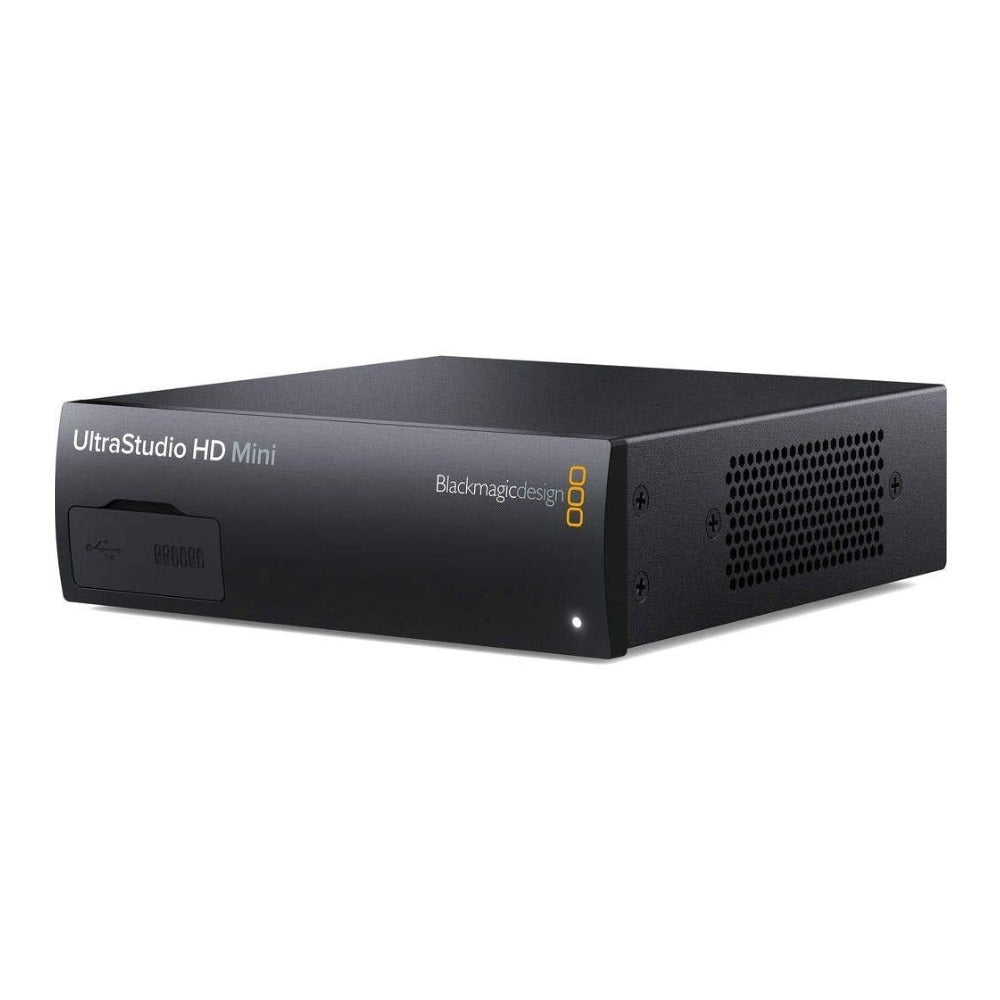

The Blackmagic Design UltraStudio HD Mini features professional broadcast-quality connections that include 3G-SDI, analog YUV and composite NTSC/PAL video inputs, along with a reference input. There are also two 1/4-inch audio connections for analog audio input that work with balanced and Hi-Fi sources. In addition, UltraStudio HD Mini can remote control professional broadcast decks using the built in RS-422 connection. For output, you get dual link 3G-SDI with fill and key, and an HDMI connection for monitoring video with a big screen television.
General
| Weight | 1.34 lb |
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
Blackmagic Design UltraStudio HD Mini Recorder with Thunderbolt 3 Interface

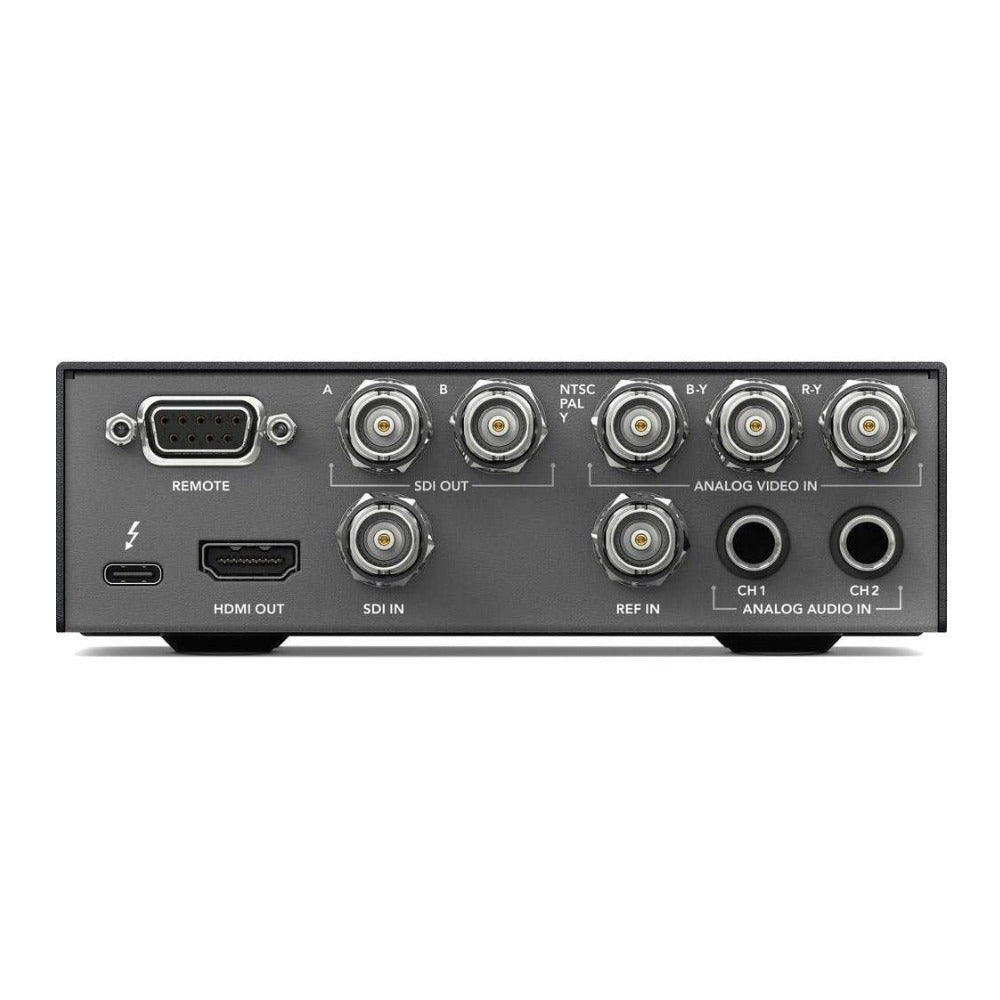

Connections
| SDI video inputs | 1 x 3Gb/s SD/HD switchable |
| SDI video outputs | 2 x 3Gb/s SD/HD switchable, supports fill and key |
| SDI rates | 270Mb, 1.5G, 3G |
| Optical SDI | None |
| HDMI video inputs | None |
| HDMI video outputs | 1 x HDMI 1.4b type A connector |
| Analog video inputs | Y, B-Y, R-Y/NTSC/PAL |
| Analog video outputs | None |
| Analog audio inputs | 2 x 1/4 inch jack connectors for balanced and unbalanced analog audio |
| Analog audio outputs | None, embedded audio only |
| SDI audio inputs | 16 Channels embedded in SD and HD |
| SDI audio outputs | 16 Channels embedded in SD and HD |
| HDMI audio outputs | 2 Channels embedded in SD and HD. |
| Timecode connection | None. RP-188 only |
| Reference input | Tri-Sync or Black Burst |
Supported Codecs
| AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4 | 2:2, Uncompressed 10‑bit 4:2:2 |
Software
| Software included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux |
| Internal software upgrade | Firmware built into software driver. Software driver loads upgrades at system start or via updater software |
Software Applications
| DaVinci Resolve | |
| Fusion | |
| Final Cut Pro X | |
| Adobe Premiere Pro CC | |
| Avid Media Composer | |
| Adobe After Effects CC | |
| Avid Pro Tools | |
| Steinberg Cubase | |
| Steinberg Nuendo | |
| Adobe Photoshop CC | |
| Other supported applications include | The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video Webclip2Go & [REC]Marker, Autodesk Flame, Zoom |
Video Standards
| SD video standards | 525i59.94 NTSC, 625i50 PAL |
| HD video standards | |
| 2K video standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD video standards | None |
| 4K video standards | None |
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B |
| SDI metadata support | RP 188/SMPTE 12M-2 and closed captioning |
| Audio sampling | Television rate of 48kHz and 24-bit |
| SDI video sampling | 4:2:2/4:4:4 |
| Color Space | REC 601, REC 709 |
| HDMI resolution | Pixel for pixel HD resolution input from connected device |
| Multiple rate support | SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s |
| Hardware frame buffer | v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB) |
Color Precision
| HDMI | 8-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards |
| SDI | 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards |
Computer Capture
| 1 x Thunderbolt 3 for Mac and Windows | |
| Powers from Thunderbolt host computer, includes Blackmagic Desktop Video SDK |
Control

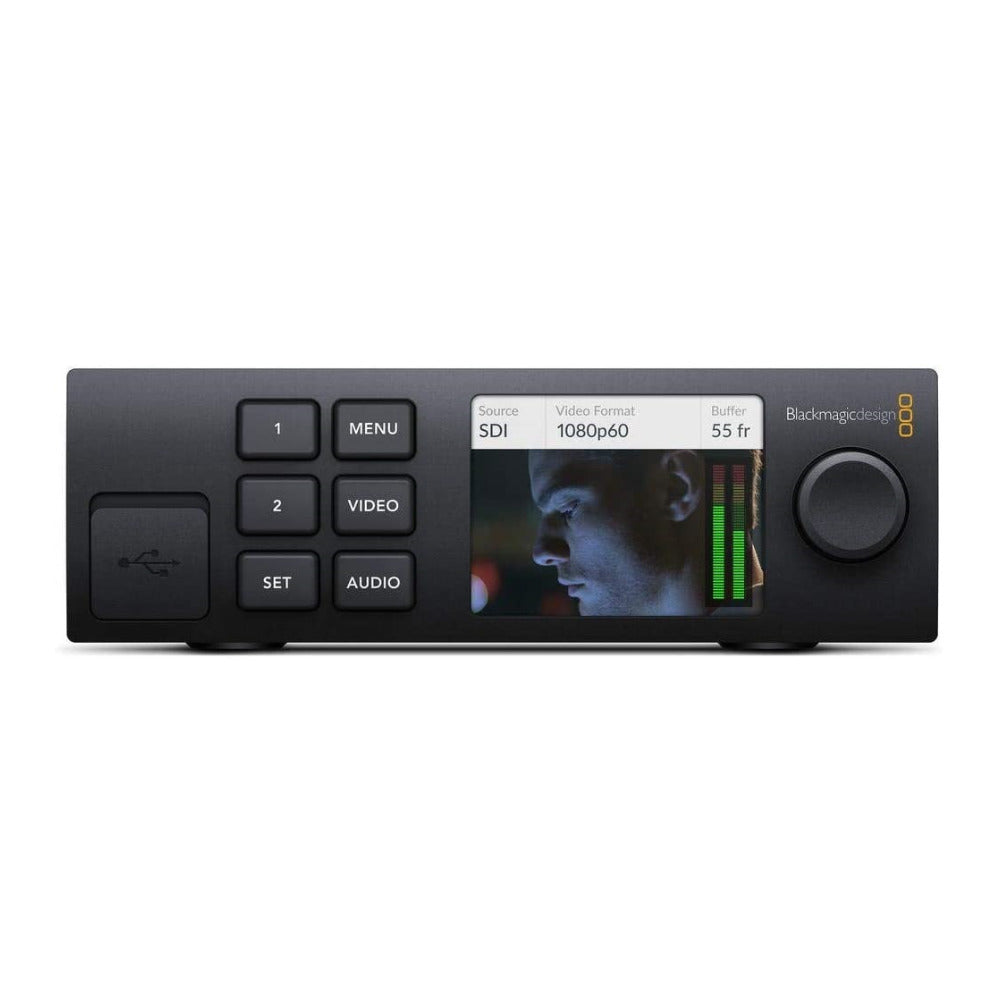

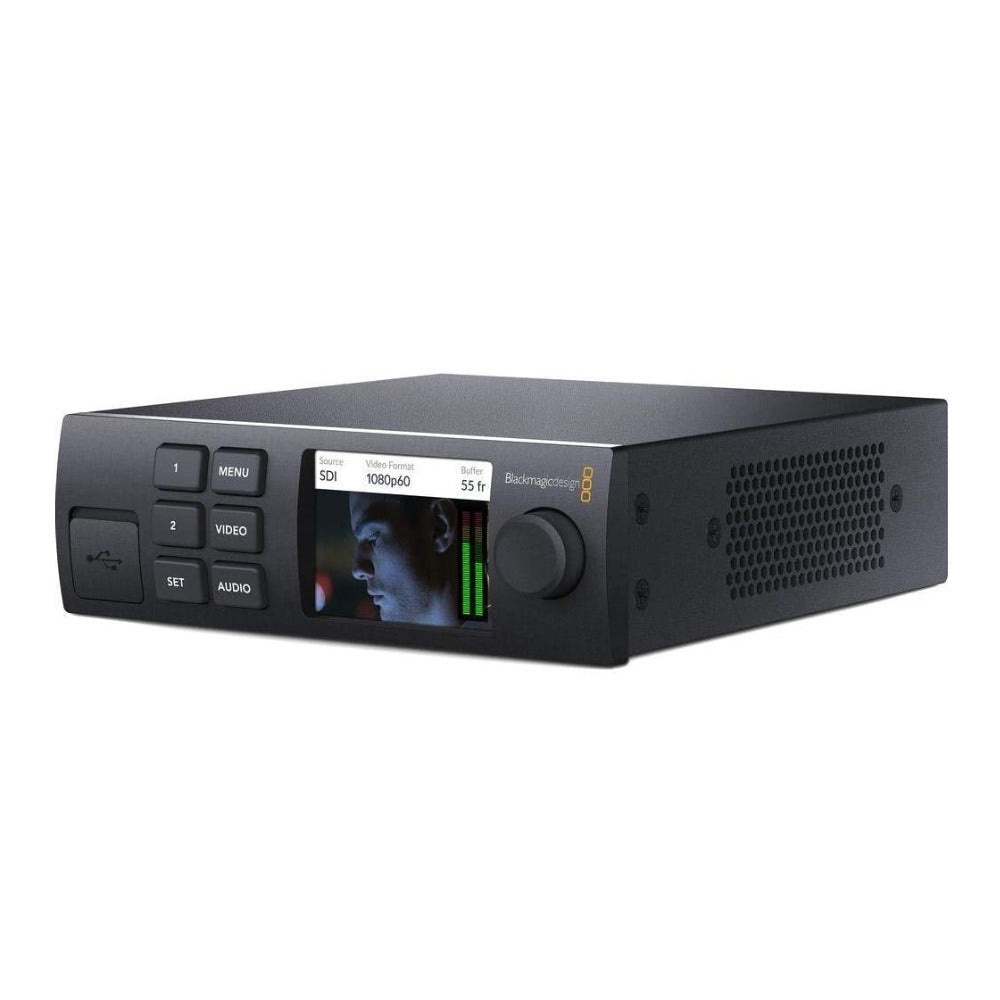

| Built-in control panel | None (Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status) |
| Device control | 1 x RS-422 deck control |
Processing
| Colorspace conversion | Hardware based real time |
| HD down conversion | Real time 10-bit hardware down conversion on SDI B output when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles |
| Real time effects | Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. DaVinci Resolve |
| Physical installation | Requires computer with a Thunderbolt 3 USB-C port |
Operating Systems
| Mac 10.14 Mojave, Mac 10.15 Catalina or later | |
| Windows 8.1 and 10, both 64-bit | |
| Linux |
Power Requirements
| Powered by Thunderbolt cable | |
| Requires computer with a Thunderbolt 3 USB-C port |
Environmental Specifications
| Operating temperature | 5 to 40-degree-C (32 to 104-degree-F) |
| Storage temperature | -20 to 45-degree-C (-4 to 113-degree-F) |
| Relative humidity | 0 to 90% non-condensing |
Physical Specifications
| Dimensions | 5.51 x 6.69 x 1.75 inch |
| Weight | 1.34 lb |
