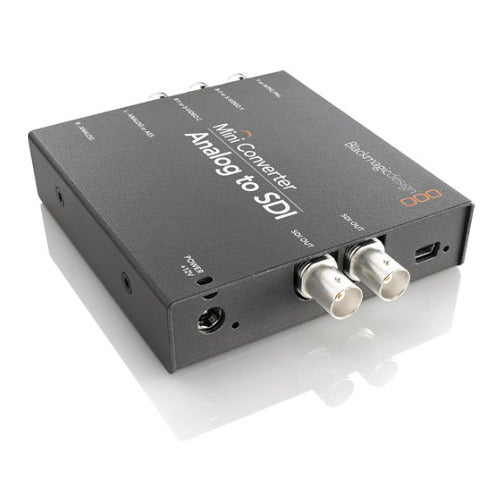

Blackmagic Design Analog to SDI Mini Converter
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
With your Blackmagic Design Analog to SDI Mini Converter you can convert video and audio from analog equipment such as Betacam SP decks, HDV cameras and game consoles to incredible quality SD/HD-SDI video. A choice of analog and digital formats is supported, including component SD/HD, S-Video, or composite NTSC and PAL. The converter’s HD-SDI outputs include the option to embed digital AES/EBU or analog audio. It is an ideal solution for converting analog component, S-video, NTSC/PAL composite to SDI video.
- 720p50, 720p59.94, 720p60
- 1080i50, 1080i59.94, 1080i60
- +12V universal power supply included with international socket adapters for all countries
- Cable tie point
Blackmagic Design Analog to SDI Mini Converter
Connections
| SDI video outputs | 2 x SDI video outputs |
| Analog video inputs | NTSC, PAL, S‑Video and Component SD/HD input |
| Analog audio inputs | 2 channels of balanced analog audio |
| Digital audio inputs | 2 channels of balanced AES/EBU audio |
| Multi rate support | Auto detection of SD or HD |
| Updates and configuration | Via USB 2.0 high speed (480 Mb/s) |
| Reclocking | Yes |
Standards
| SD video standards | 525i59.94 NTSC, 625i50 PAL |
| HD video standards | |
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI video rates | SDI video connections are switchable between standard definition and high definition. |
| SDI video sampling | 4:2:2 |
| SDI audio sampling | Television standard sample rate of 48 kHz and 24-bit |
| SDI color precision | 4:2:2 |
| SDI color space | YUV |
| SDI auto switching | Automatically follows format of analog input |
| Analog video standards | 525i29.97 NTSC, 625i25 PAL |
| Analog color space | YUV |
| Analog color precision | 4:2:2 |
Software
| Software control | Mac and Windows software upgrade via USB |
| Internal software upgrade | Via included updater application |
Power Requirements
| Power supply | |
| Power consumption | 6.5 W |
| Operational voltage range | 12 to 31 VDC |
Settings Control
| Mini Switches or USB software |
Operating Systems
| Mac 10.14 Mojave, Mac 10.15 Catalina or later | |
| Windows 8.1 and 10 |
Environmental Specifications
| Operating temperature | 32 to 104-degree-F (0 to 40-degree-C) |
| Storage temperature | -4 to 113-degree-F (-20 to 45-degree-C) |
| Relative humidity | 0 to 90% non‑condensing |
