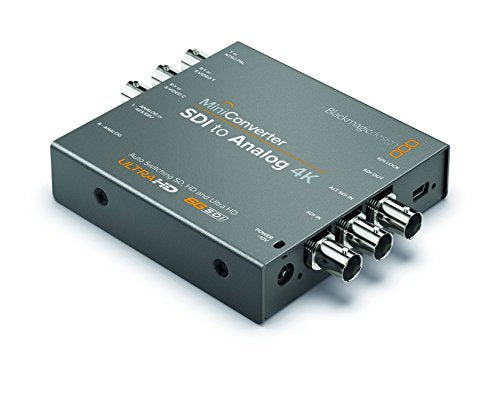

Blackmagic SDI to Analog 4K Mini Converter
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Integrate your recording environment with Blackmagic SDI to Analog 4K Mini Converter. Featuring the latest 6G-SDI technology, it lets you connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video. Work with analog equipment such as Betacam SP, VHS, and video monitors without replacing your old cables. The converter automatically detects input video format and changes instantly between standards.
Affordable
Save money on switching out all your old equipment by using a converter instead.
Ultra HD
Ultra HD is the broadcast standard of the future. Make the jump easily thanks to 6G-SDI technology in this converter. Now, you’re ready to build your system for Ultra HD compatibility with an incredible 4 times the resolution of regular 1080 HD video for a massive 3840 x 2160 frame size.
Audio Connection
Along with video, mini converters support embedded SDI and HDMI audio.
Connections
| SDI Video Input | Switchable between SD, HD and 6G-SDI. |
| SDI Video Output | Automatically matches the SD, HD and 6G-SDI video input. |
| Analog Video | NTSC, PAL, S-Video and component SD/HD from 6G-SDI input. |
| Analog Audio | 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
| AES/EBU Digital Audio | 2 channels of professional balanced digital with standard 1/4 inch jack connections. |
| SDI Redundant Input | Automatically switches over if main SDI input is lost. |
| Multi Rate Support | Auto detection of SD, HD or 6G-SDI. |
| Updates and Configuration | USB |
| Reclocking | Yes |
| SD Format Support | 525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL. |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60 |
| 2K Format Support | 2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25 |
| 4K Format Support | 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p24 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601. |
| SDI Video Rates | SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K. |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD or 6G-SDI. |
| Analog Format Support | 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. |
| Analog Color Space | YUV |
| Analog Color Precision | 4:2:2 |
| Format Conversion | HD Down Conversion |
| Software Control | Mac OS X and Windows software upgrade via USB. |
| Internal Software Upgrade | Via included updater application |
| Mac OS X 10.10 Yosemite, | |
| Mac OS X 10.11 El Capitan or later. | |
| Windows 8.1 or Windows 10. | |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 8.04 Watts |
| Operational Voltage Range | 12 - 31V DC |
| 4.84mm x 3.63mm x .90 in | |
| 10.68 oz | |
| Environmental Specifications | |
| Operating temperature | 0° to 40° C (32° to 104° F) |
| Storage temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | |
| 3 Year Limited Manufacturer's Warranty. |
