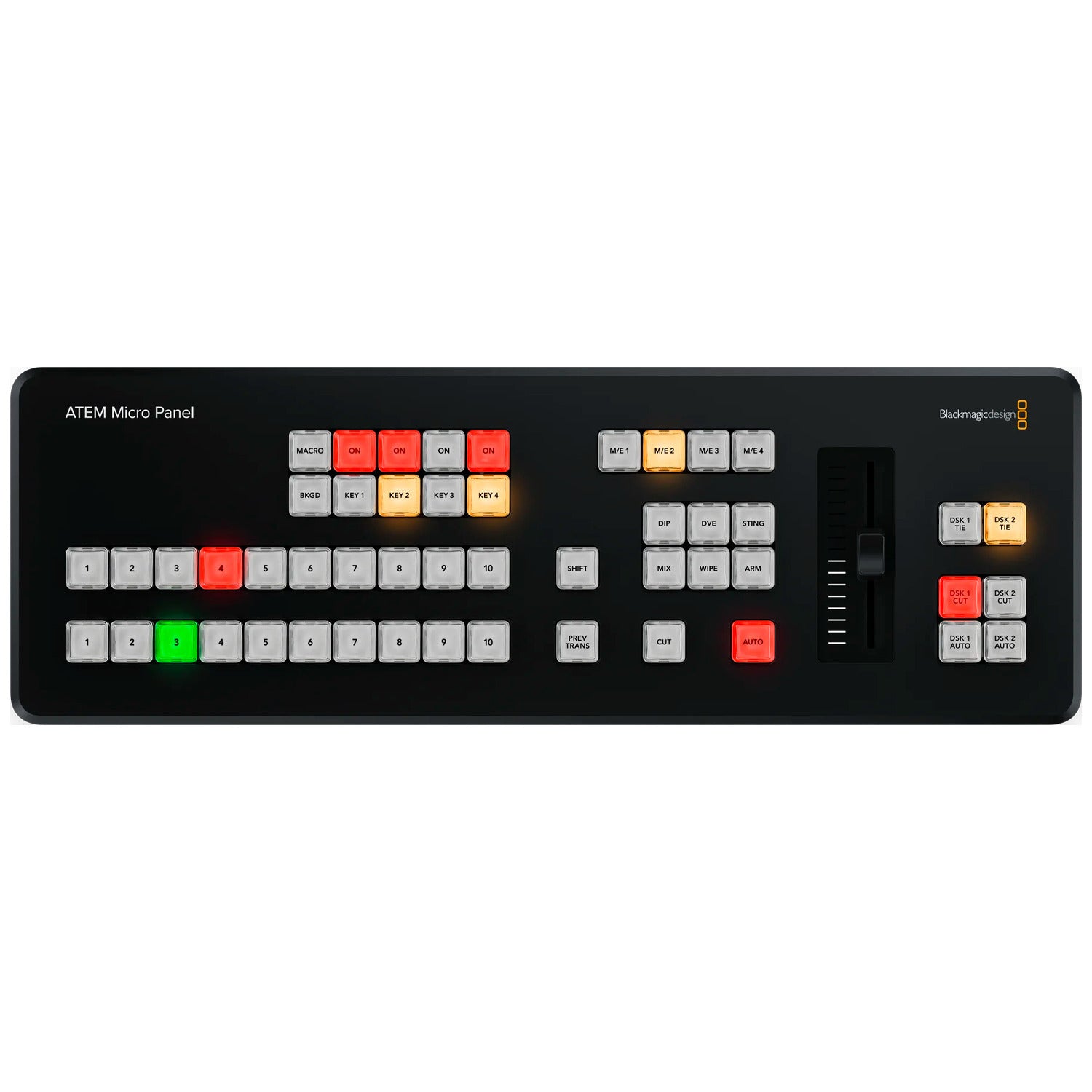

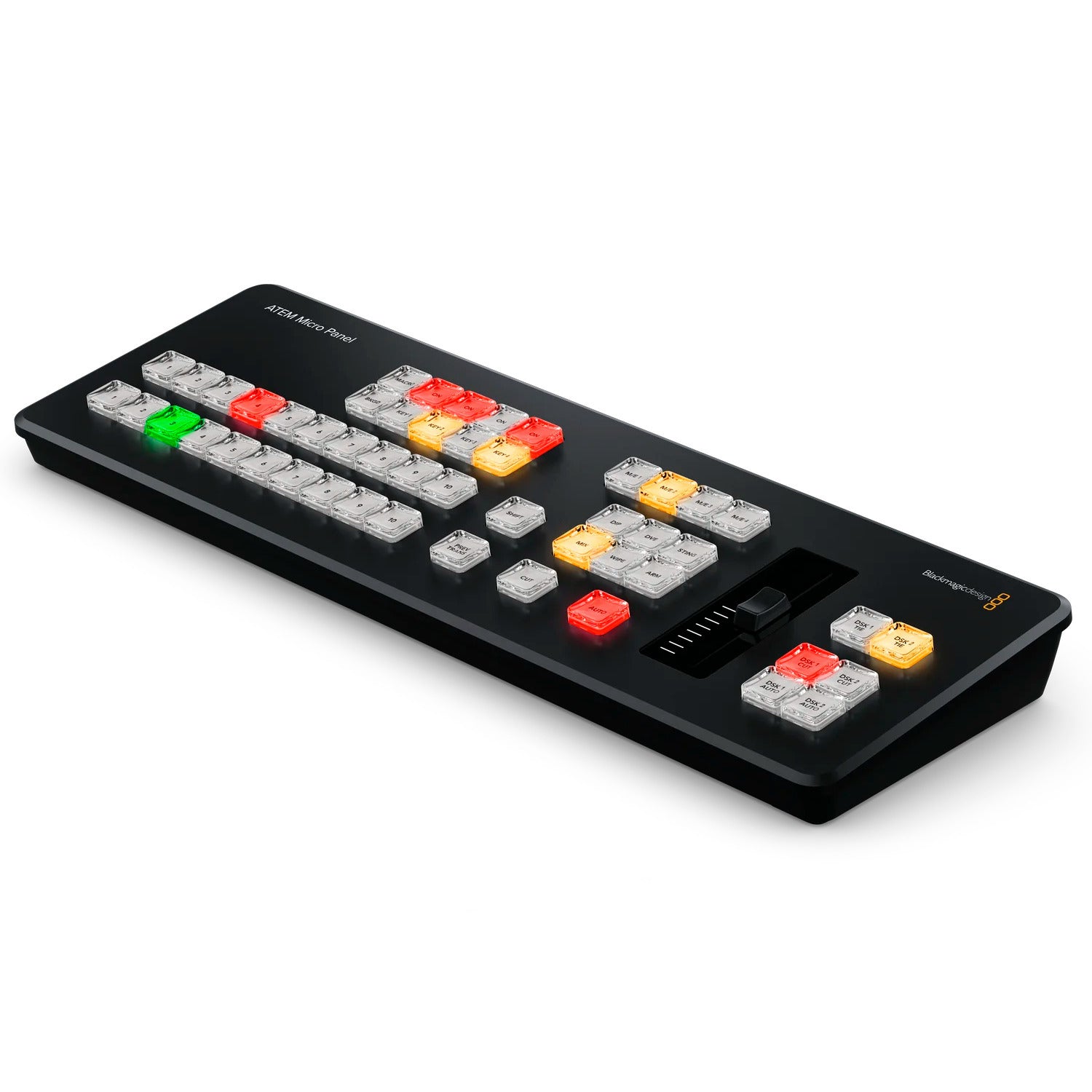

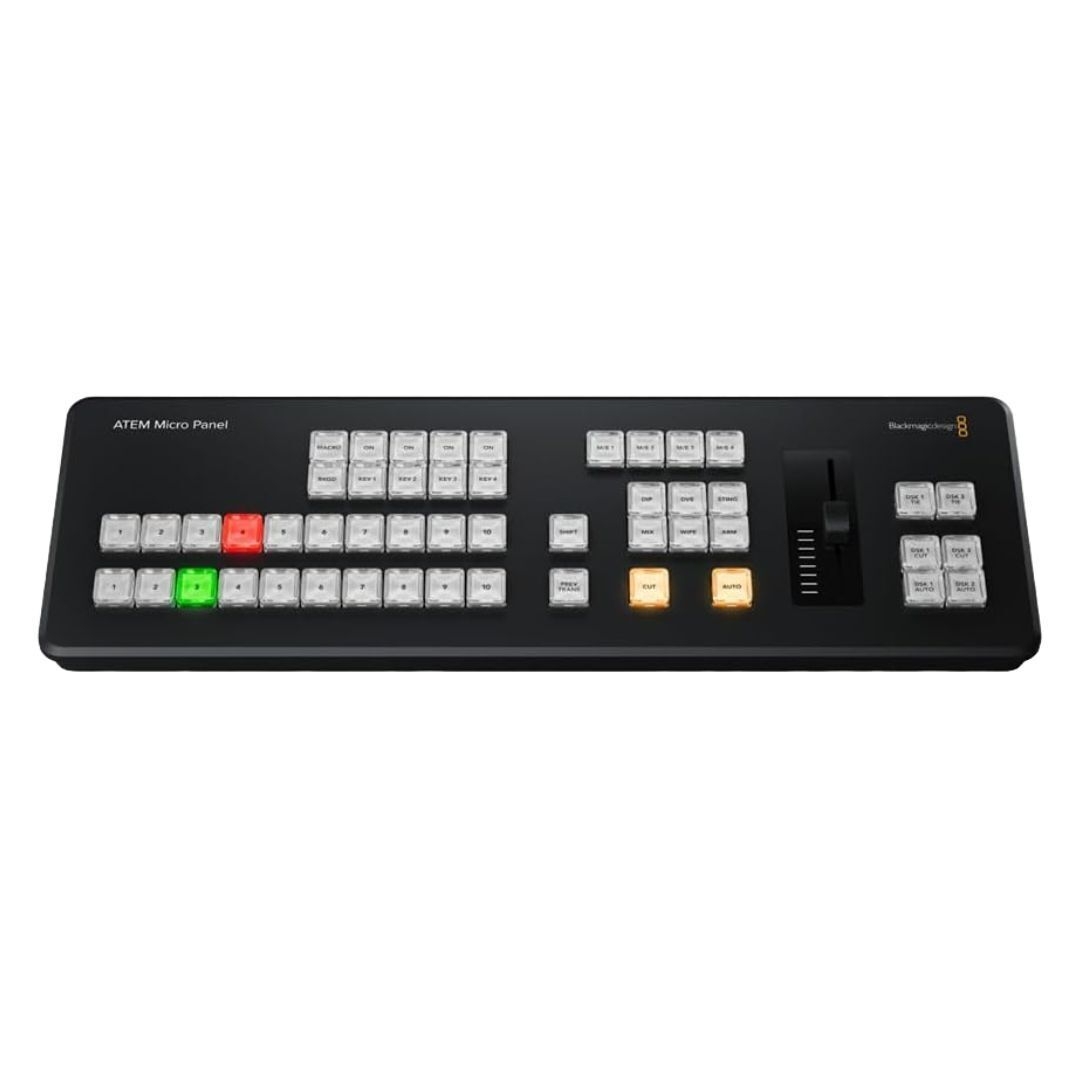

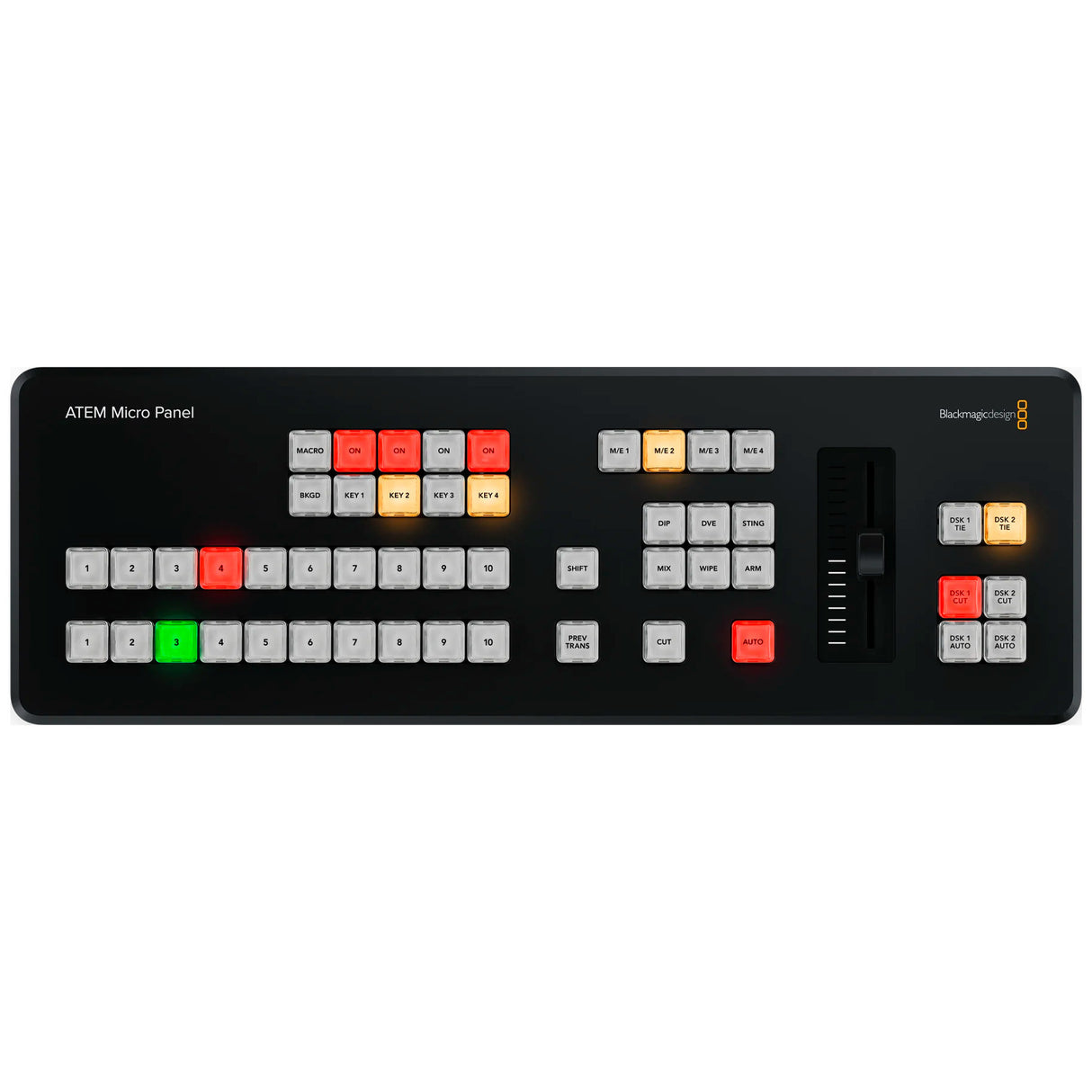

Blackmagic Design ATEM Micro Live Stream Switcher Panel with 50 Tri-Color LED Backlit Buttons
- Live stream switcher panel
- 50 tri-color LED backlit buttons and transition slider
- Two rows of ten input buttons for program and preview
- Bluetooth and USB connectivity for versatile pairing
- Emulates the ATEM software control interface
- Up to 6 hours of battery life
Unleash the full potential of your live productions with the Blackmagic Design ATEM Micro Live Stream Switcher Panel. This compact control surface is engineered to integrate seamlessly with ATEM Constellation switchers, providing tactile command over your live stream's visual narrative. Take the ATEM Software Control interface and turn it into a physical switcher with the Blackmagic Design ATEM Micro Live Stream Switcher Panel. The panel is designed to emulate the exact layout of the software with two rows of ten input buttons for both preview and program, transition controls, a macro key, and an onboard fader. This allows you to facilitate both manual and automatic control over your broadcast.
Intuitive Layout
Features two rows of ten input buttons for program and preview, along with transition controls, a macro key, and an onboard fader.
Seamless Connectivity
Offers both Bluetooth and USB connectivity for versatile pairing with ATEM Software Control.
Efficient Control
Emulates the ATEM Software Control interface, allowing for manual and automatic broadcast management.
Versatile Use
Equipped with 50 tri-color LED backlit buttons, a transition slider, and supports ATEM Software Control Panel features.
Extended Operation
Enjoy up to 6 hours of battery life for uninterrupted live streaming sessions Designed for broadcasters, content creators, and live stream professionals, the ATEM Micro Panel is your gateway to producing polished, multi-camera live streams with ease.
| Computer Interface | USB Type‑C |
| Bluetooth | Bluetooth 5.1 LE |
| Number of Mix Effects Rows | 1 |
| Direct Cross Points | 10 |
| Shifted Cross Points | 20 |
| Crosspoint Button Type | Tri-Color LED |
| Preview Transition | 1 |
| Switching Type Buttons | Cut and Auto |
| Transition Type Buttons | DIP, DVE, STINGER, MIX, WIPE. |
| M/E Select Buttons | 4 |
| Upstream Key Buttons | 4 with On/Off |
| Downstream Key Buttons | 2 with On/Off |

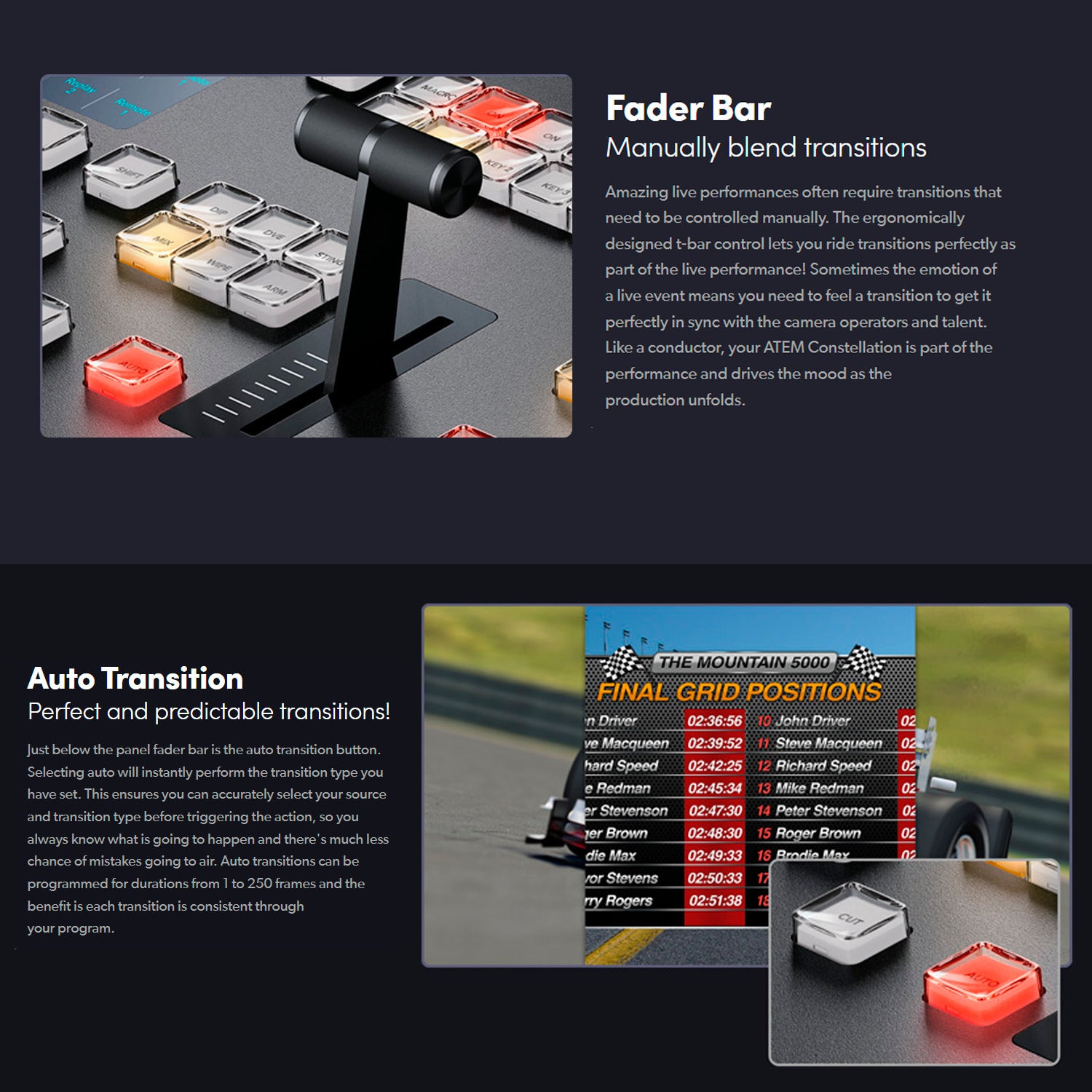

| Transition Slider | 1 |
| Software Applications | ATEM Micro Panel controls ATEM Software Control Panel running on the host computer. |
| Supported Operating Systems | Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10 and 11 |
| Power Supply | Internal battery with power switch. USB-C port for external power supply and battery charging. |
| Power Usage | 3 W max. |
| Battery Life | Minimum 6 hours. (under normal use) |
| Length | 16.14 inches |
| Height | 1.63 inches |
| Width | 5.35 inches |
| Operating Temperature | 5 to 40 Degrees C (41 to 104 Degrees F) |
| Storage Temperature | -20 to 45 Degrees C (-4 to 113 Degrees F) |
| Relative Humidity | 0 to 90% non‑condensing |
| Warranty | 1 Year Limited Manufacturer Warranty |
