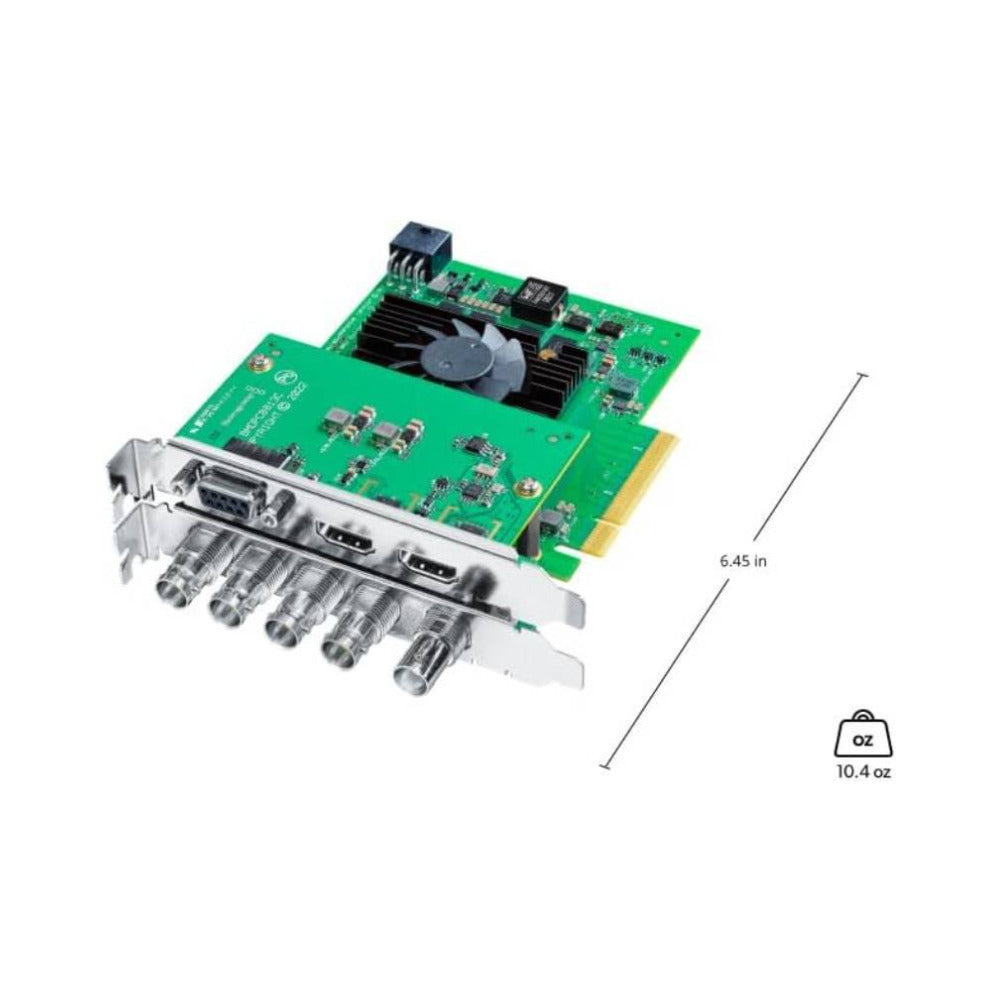

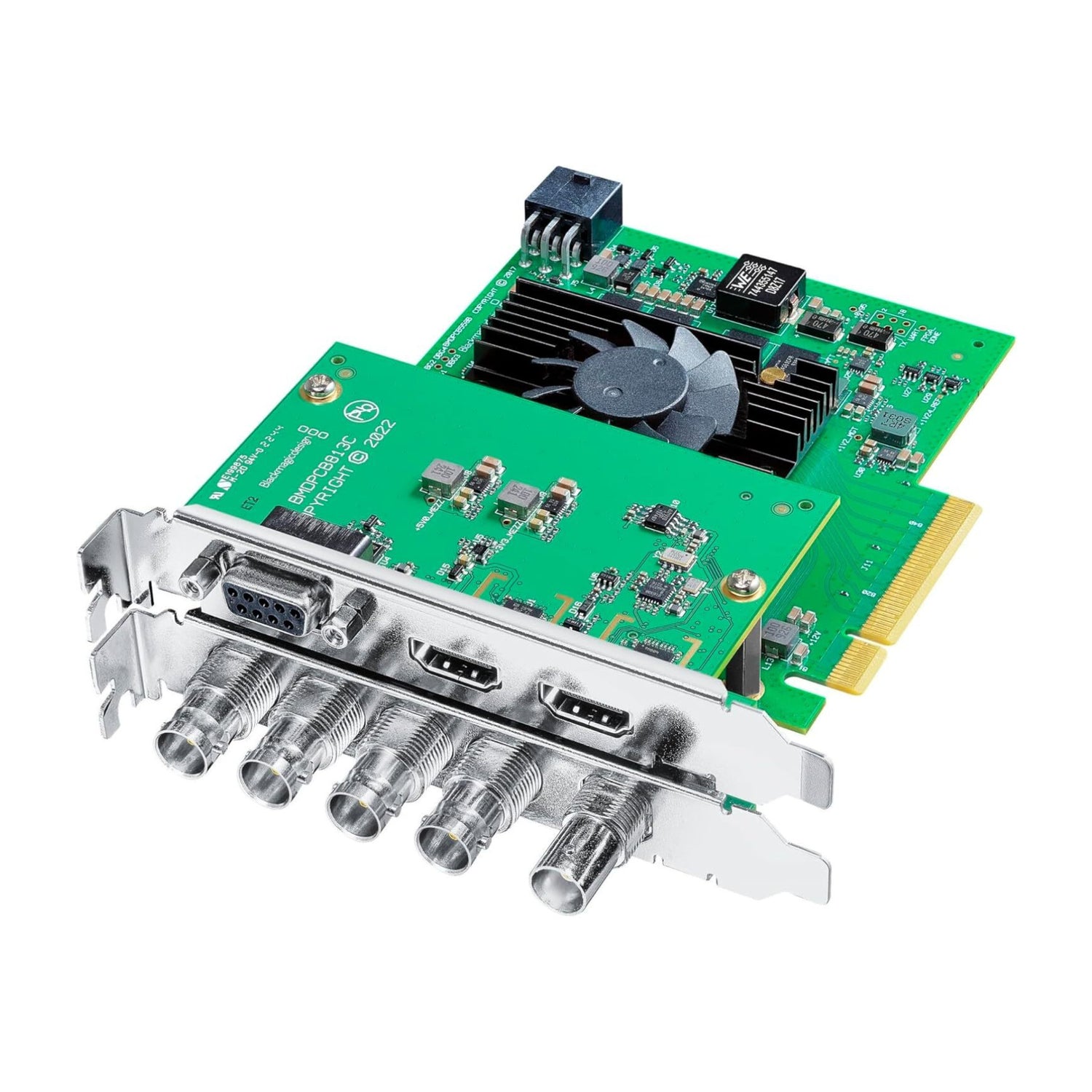

Blackmagic Design DeckLink 8K Pro G2 PCIe Video Capture and Playback Card
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
DeckLink 8K Pro G2 includes four bi-directional 12G-SDI plus HDMI 2.1 connections to support all SD, HD, Ultra HD, 4K and 8K standards, making it the ultimate professional 8K PCIe capture and playback card for designed for feature film production. You can also use the free DeckLink SDK to configure up to 4 video streams in any direction, format or frame rate up to 4K DCI 60p, for true multi channel capture and playback. DeckLink 8K Pro G2 supports 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 color. In addition, you can work at up to 120 frames per second in HD and 4K, and up to 60 frames per second in 8K. The four 12G-SDI connections support up to 64 channels of embedded audio. DeckLink 8K Pro G2 is perfect for the next generation of high resolution, high frame rate and high dynamic range workflows.
Multi-Format Video Support
DeckLink 8K Pro G2 lets you work with compressed video formats such as ProRes and DNxHD as well as 10 bit uncompressed YUV and 12 bit RGB video. It also lets you capture from cameras, decks and live feeds directly into editing, effects and design software applications such as DaVinci Resolve.
Universal Software Compatibility

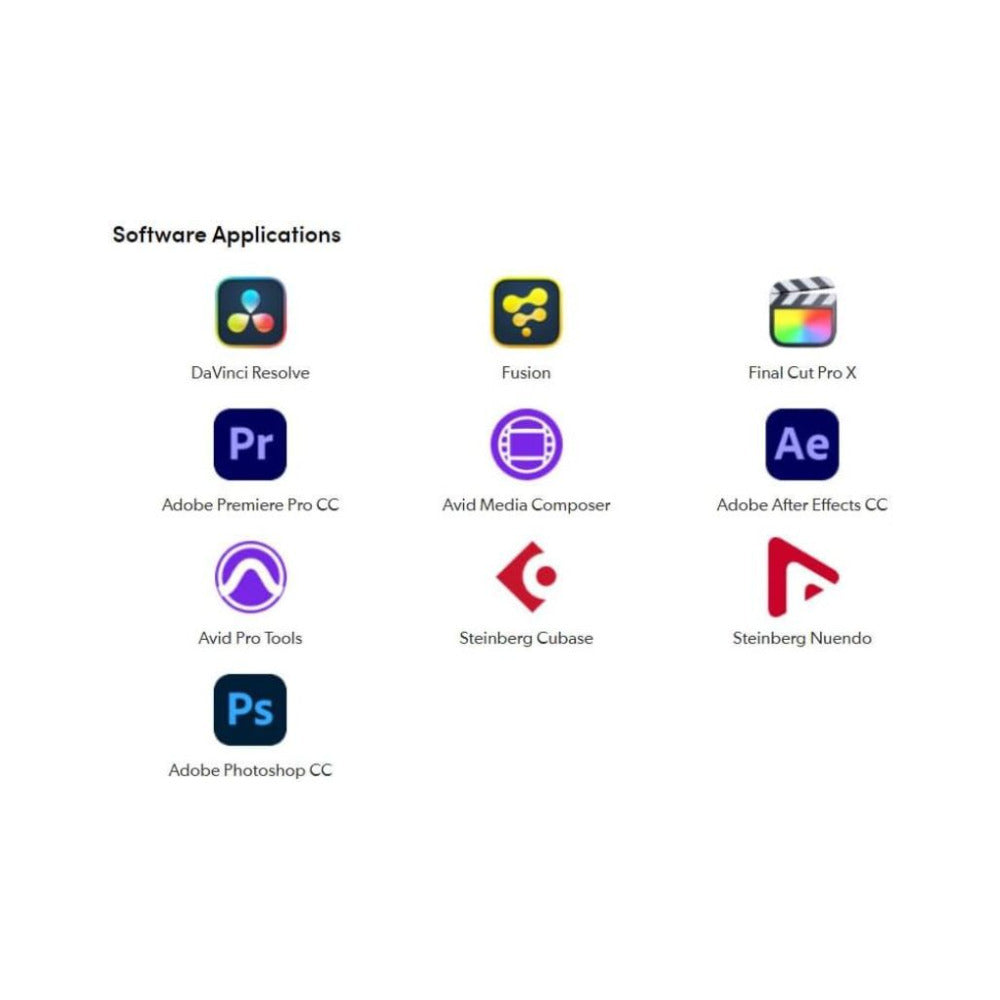

DeckLink 8K Pro G2 supports more editing, design and video software than any other capture card, freeing you to work with your favorite creative software. They also work with any Mac, Windows, and Linux applications. Get full editing compatibility with DaVinci Resolve, Final Cut Pro X, Media Composer, Premiere Pro and more! Create stunning visual effects with Fusion, After Effects and Photoshop. Perform unparalleled color correction using DaVinci Resolve. Work seamlessly with Fairlight audio in DaVinci Resolve or ProTools for audio production. With such a wide range of software support, DeckLink is perfect for every part of your workflow.
- 4 x bi-directional 12G-SDI
- Supports SD, HD, 2K, 4K, and 8K formats
- Single, dual link, and quad link support (4:2:2 / 4:4:4)
- 2D / 3D switchable
- 4 x bi-directional 12G-SDI
- Supports SD, HD, 2K, 4K, and 8K formats
- Single, dual link, and quad link support (4:2:2 / 4:4:4)
- 2D / 3D switchable
- 16 channels embedded in SD / HD / 2K
- 64 channels embedded in 4K / 8K
- 16 channels embedded in SD / HD / 2K
- 64 channels embedded in 4K / 8K
- 1 x HDMI 2.1
- 1 x HDMI 2.1
- 8 channels embedded in TMDS
- 32 channels embedded in FRL
- 8 channels embedded in TMDS
- 32 channels embedded in FRL
- PCI Express 8-lane Gen 3
- Compatible with 8-lane and 16-lane PCIe slots
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p up to 120 fps (various frame rates incl. PsF formats)
- 2Kp / 2KPsF from 23.98 up to 120 fps
- 2160p & 4K DCI up to 120 fps (various frame rates supported)
- 4320p & 8K DCI up to 60 fps
- Supported across HD, 2K, 4K, and 8K formats
- SMPTE 259M, 274M, 292M, 296M
- SMPTE 372M, 424M, 425M (Level A & B)
- SMPTE 2036-1, 2048-1
- SMPTE 2081 / 2082 series
- SMPTE ST 2108-1
- RP 188 / SMPTE 12M-2
- Closed captions
- 48 kHz, 24-bit
- 4:2:2, 4:4:4
- 8/10/12-bit RGB (up to 8Kp30 DCI)
- 8/10-bit YUV 4:2:2 (all modes)
- REC 601, REC 709, REC 2020
- HDR metadata packing
- HLG and PQ
- SDI connections switchable between SD / HD / 2K / 4K / 8K
- 720p50/59.94/60
- 1080i50/59.94/60
- 1080p up to 120 fps (multiple frame rates supported)
- 2160p up to 120 fps (various frame rates incl. 23.98–60 and beyond)
- 4Kp23.98 to 4Kp120 DCI (selected high frame rates uncompressed only)
- 4320p23.98 to 4320p60 (with select higher modes uncompressed only)
- 8Kp23.98 to 8Kp60 DCI (select modes uncompressed only)
- 48 kHz, 24-bit
- 4:2:2, 4:4:4, 4:2:0 (device dependent)
- 8-bit, 10-bit, 12-bit (device dependent)
- REC 601, REC 709, REC 2020
- Dolby Vision (up to 4K DCI / Ultra HD 60p)
- HLG
- PQ
- HDR static metadata
- HDMI 2.1 with Deep Color + HDR
- Auto-detects connected display
- Switchable between SD / HD / UHD / 4K
- Cannot capture HDCP-protected HDMI sources
- 5° to 50° C (41° to 122° F)
- -20° to 60° C (-4° to 140° F)
- 0% to 90% non‑condensing

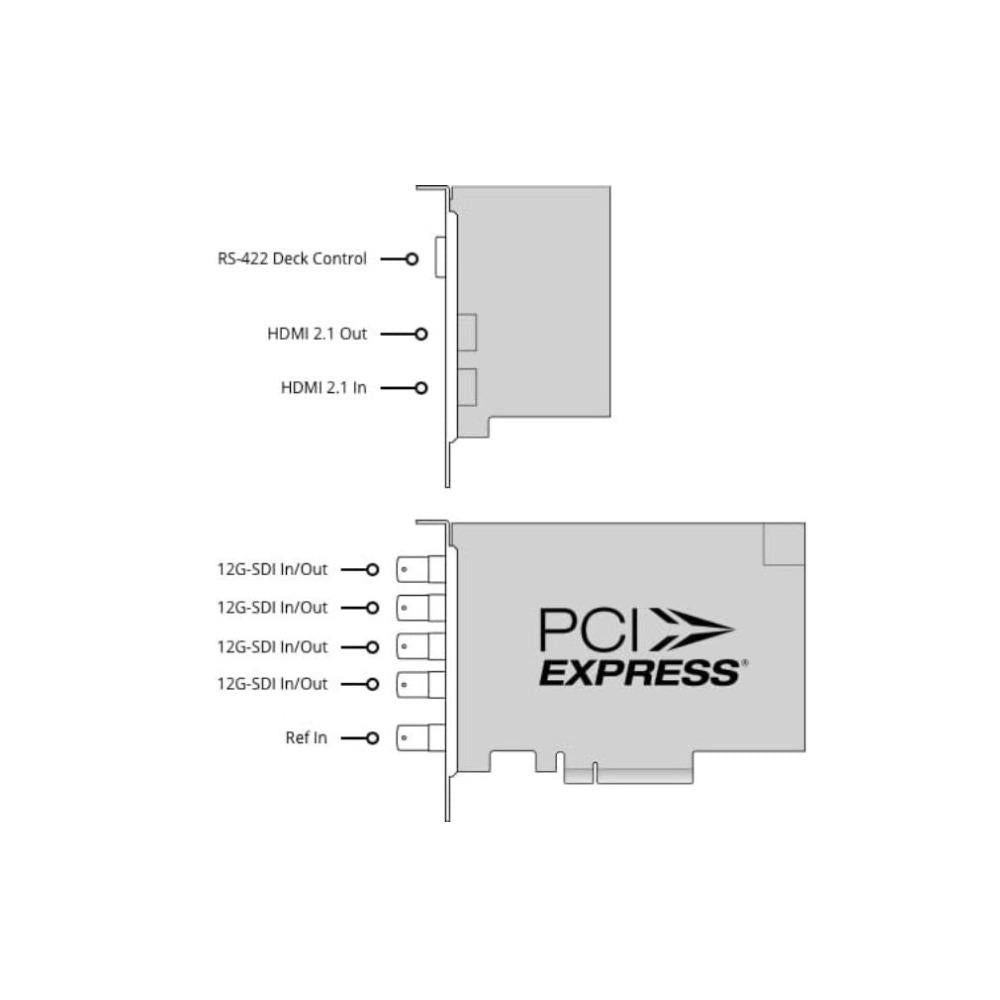

Connections
| SDI Video Inputs | |
| SDI Video Outputs | |
| SDI Audio Inputs | |
| SDI Audio Outputs | |
| HDMI Video Inputs | |
| HDMI Video Outputs | |
| HDMI Audio Inputs | |
| HDMI Audio Outputs | |
| Sync Input | Tri-Sync or Black Burst |
| Remote Control | 1 x RS-422 Out |
| Computer Interface | |
Supported Codecs
| AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4 | 2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4. |
Software
| Included Software (Mac & Windows) | DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, Blackmagic Driver |
| Included Software (Linux) | Media Express, Blackmagic Desktop Video Utility, Blackmagic Driver |
| Internal Software Upgrade | Firmware integrated into software driver; loads at system startup or via updater software |
SDI Video Standards
| SD | 525i59.94 NTSC, 625i50 PAL |
| HD | |
| 2K DCI | |
| 4K / Ultra HD | |
| 8K / 8K DCI | |
| 3D SDI | |
| SDI Compliance | |
| SDI Metadata Support | |
| Audio Sampling | |
| SDI Video Sampling | |
| SDI Color Precision | |
| Color Space | |
| HDR Support | |
| Multiple Rate Support | |
HDMI 2.1 Video Standards
| SD | 525i59.94 NTSC, 625i50 PAL |
| HD | |
| Ultra HD | |
| 4K DCI | |
| 8K | |
| 8K DCI | |
| HDMI Audio Sampling | |
| HDMI Video Sampling | |
| HDMI Color Precision | |
| HDMI Color Space | |
| HDR Support | |
| HDMI Configuration | |
| Multiple Rate Support | |
| Copy Protection | |
Operating Systems
| Mac 15.0 Sequoia | |
| Mac 26.0 Tahoe or later | |
| Windows 10, 64-bit | |
| Windows 11 | |
| Linux |
Power Requirements
| Power Consumption | 30 W |
Environmental
| Operating Temperature | |
| Storage Temperature | |
| Relative Humidity | |
