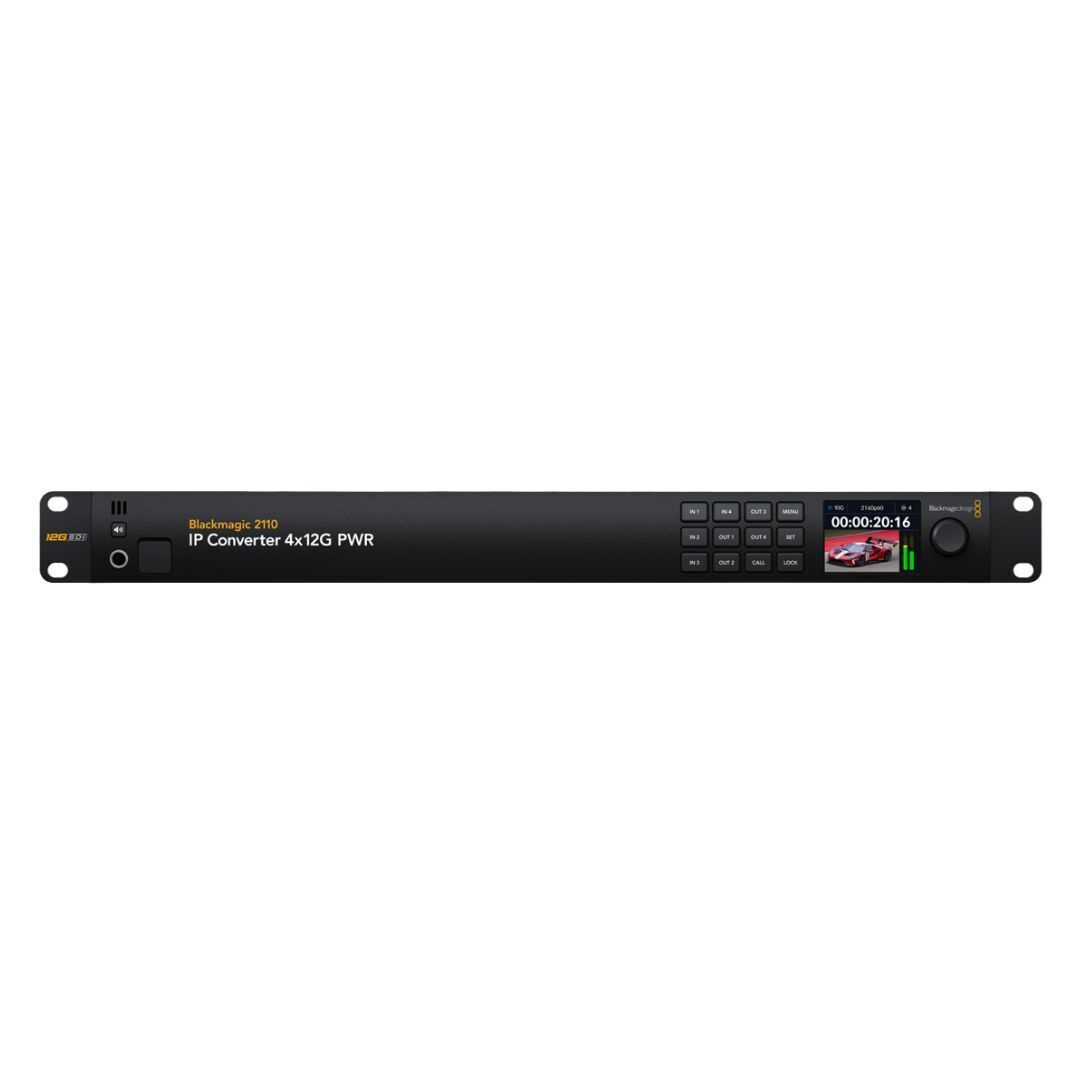

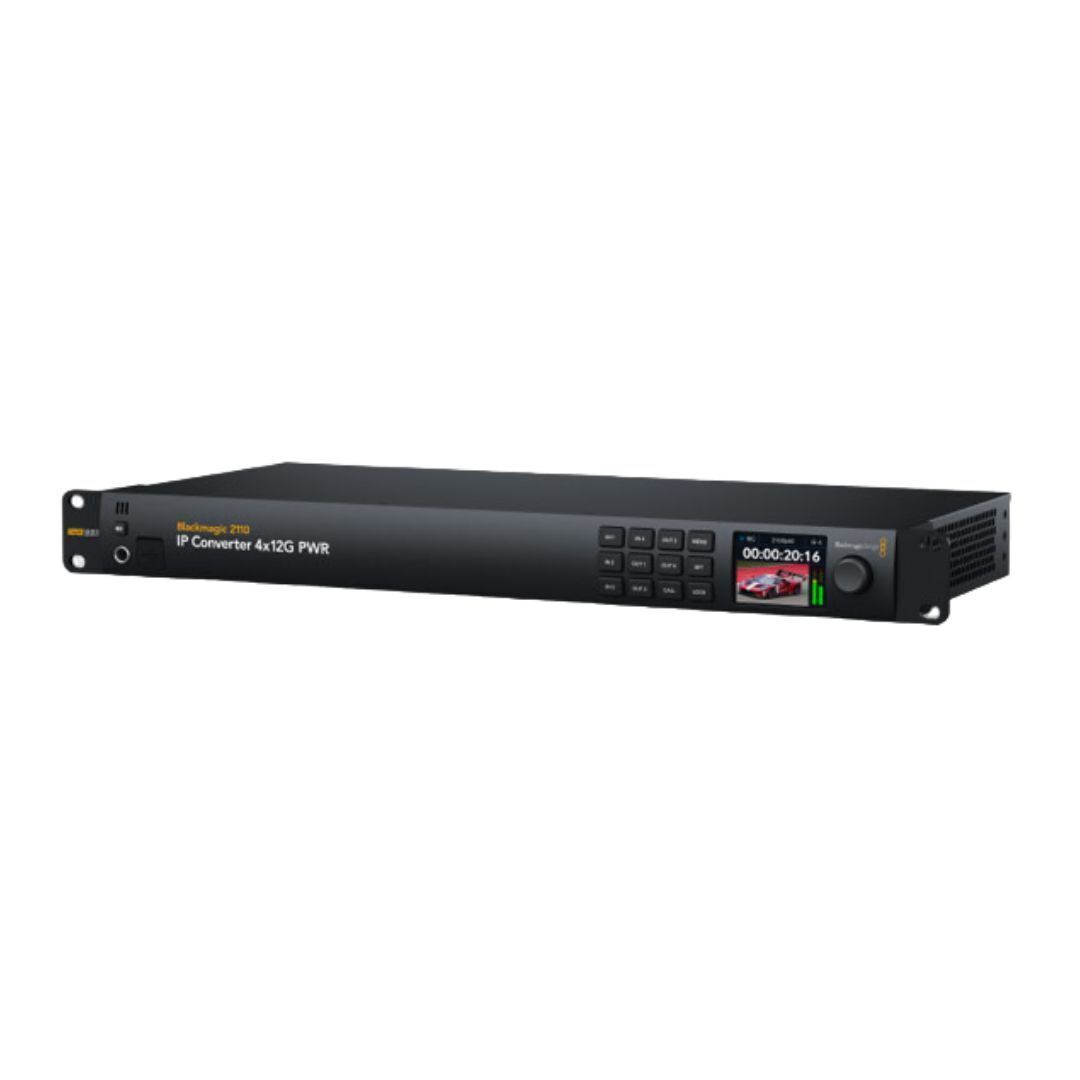

Blackmagic Design 2110 IP Converter 4x12G PWR
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Convert and
power up to 4 x 2110 IP video cameras or converters. Bi-Directional 4 channel
12G-SDI 2110 IP converter includes control panel with LCD and supports HD and
Ultra HD standards to 2160p60. This converter is designed to add SMPTE-2110 IP
video to 12G-SDI broadcast equipment. The Blackmagic Design 2110 IP Converter features a 1RU design with 4
independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45
10G Ethernet connections. This means it can also supply high power to each 10G
Ethernet connection guaranteed, so you can connect 4 Blackmagic Studio Camera
6K Pros, all at the same time. Each channel has a 12G-SDI input, but there's
even a 12G-SDI program return input that sends to all channels.
Build Professional SMPTE‑2110 Broadcast Systems
The
Blackmagic 2110 IP Converters have been designed to integrate SDI equipment
into 2110 IP broadcast systems. The rack mount model can be installed in
equipment racks right next to the equipment you're converting. Plus most
Blackmagic SMPTE-2110 IP video products can be remote powered. But adding
converters means you get a low cost way to transform all your video equipment
to SMPTE-2110. Simply add a Blackmagic 2110 IP Converter to live production
switchers, disk recorders, streaming processors, cameras, TVs and more.
Conforms to the SMPTE‑2110 IP Video Standard
Blackmagic 2110 IP products conform to the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronization and description of 10 bit video, audio and ancillary data over managed IP networks for broadcast. It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that’s also generated from the PTP clock. Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping or timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data. Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio and data from a single source to multiple destinations.
Core Function & IP Compliance
| Function | Four independent, bidirectional converters for integrating 12G-SDI equipment into SMPTE ST 2110 IP broadcast systems. |
| IP Standard | Fully compliant with the SMPTE ST 2110 standard, including ST 2110-20 (uncompressed video), ST 2110-30 (PCM embedded audio), and ST 2110-40 (ancillary data/metadata). |
| Network Control | Supports NMOS IS-04 (Discovery and Registration) and IS-05 (Connection Management) for integration with broadcast control systems and virtual routing. |
| Codec | Utilizes the Blackmagic IP10 codec for converting 12G-SDI video streams to fit over 10G Ethernet bandwidth. |

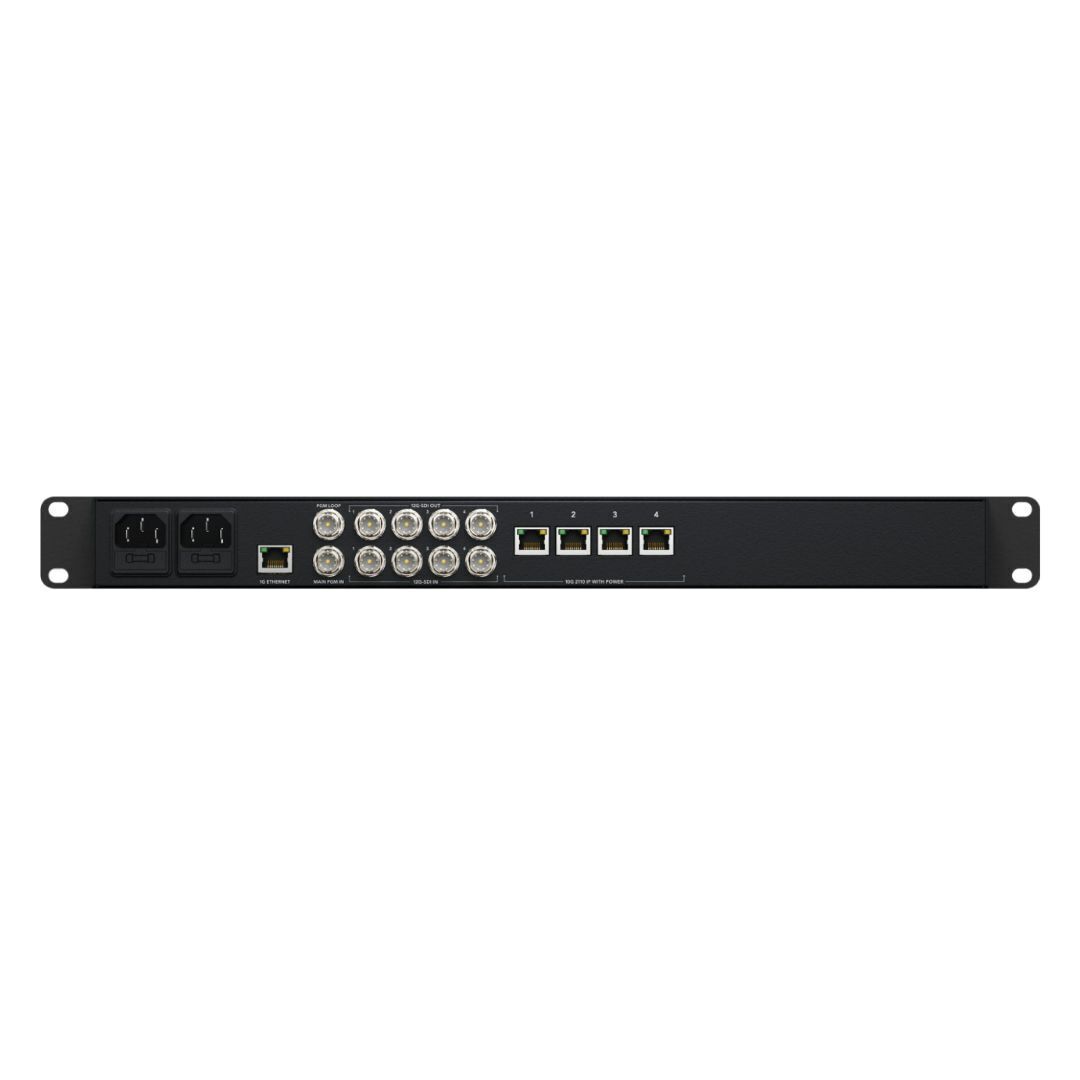

Connectivity & I/O
| SDI Video Inputs | 4 x BNC (12G-SDI) for independent channels. |
| SDI Program Input | 1 x BNC (12G-SDI) for a main program/return feed, sent to all channels via the IP stream. |
| SDI Video Outputs | 4 x BNC (12G-SDI) for independent channels. |
| SDI Program Output | 1 x BNC (12G-SDI) Loop Out. |
| IP Video Ports | 4 x 10Gb/s RJ-45 (Cat 6/7) connectors for SMPTE 2110 IP video in and out. |
| Control Ethernet | 1 x 1Gb/s RJ-45 for device configuration and firmware updates. |
| Computer Interface | 1 x USB-C 3.0 for configuration and updates. |
| Monitoring Audio | 1 x 6.35 mm headphone socket. |
Video Standards & Power
| Video Support | Auto-detection of SD, HD, Ultra HD, and 4K DCI standards. Supports formats up to 2160p60 (4K Ultra HD at 60 fps). |
| Multi-Rate SDI | SDI rates switchable between 270Mb, 1.5G, 3G, 6G, and 12G. |
| PoE Output | The 4 x 10G Ethernet ports feature PoE++ (Power over Ethernet) output to simultaneously power connected devices, such as Blackmagic Studio Cameras. |
| Re-clocking | SDI re-clocking on all BNC outputs. |
| Power Supply | 2 x Internal 100 ‑ 240V AC with Redundant Power capability. |
| Form Factor | 1 Rack Unit (1RU) design. |
| Control Panel | Built-in 2.2 inch color LCD for video standard, audio, timecode monitoring, and menu settings. |
