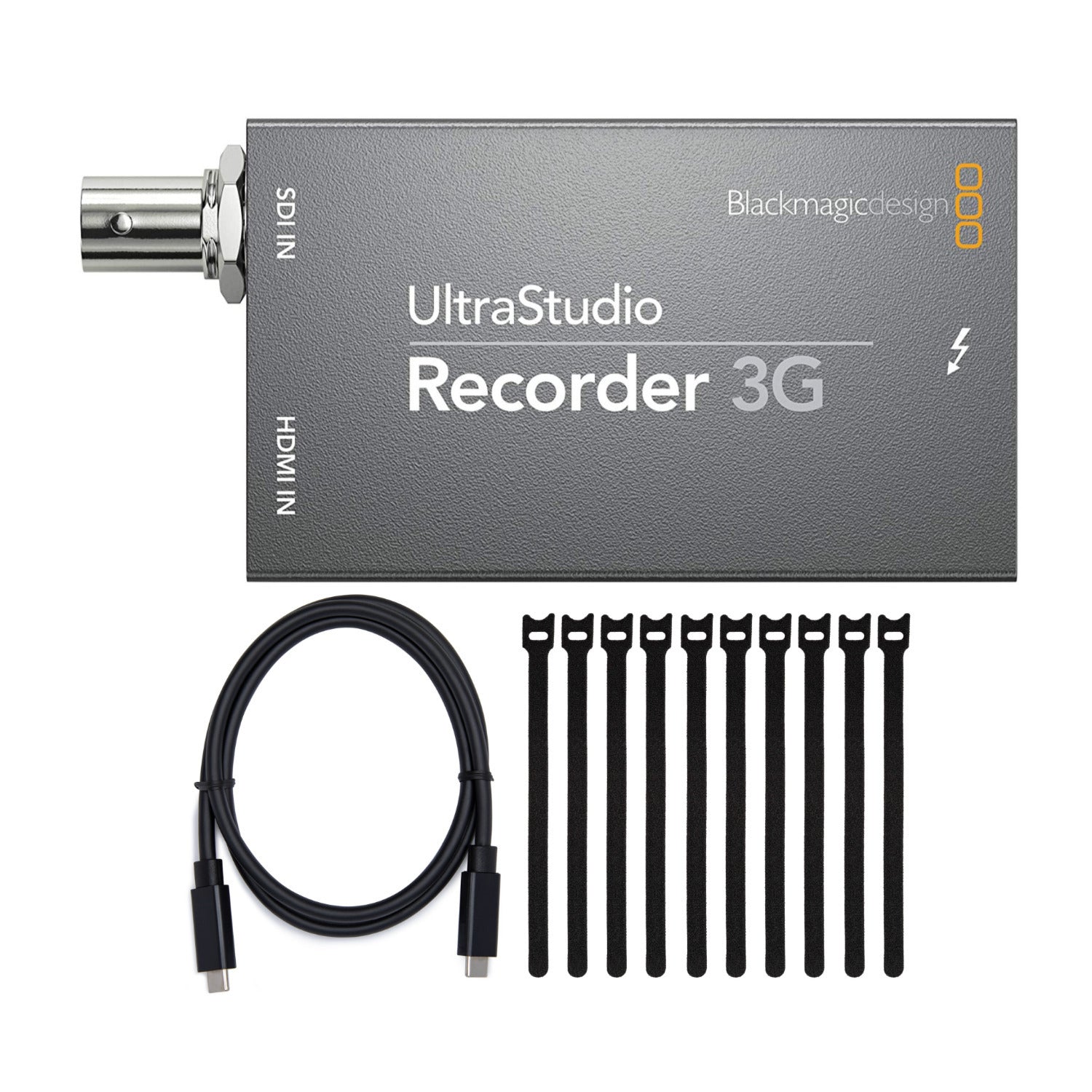

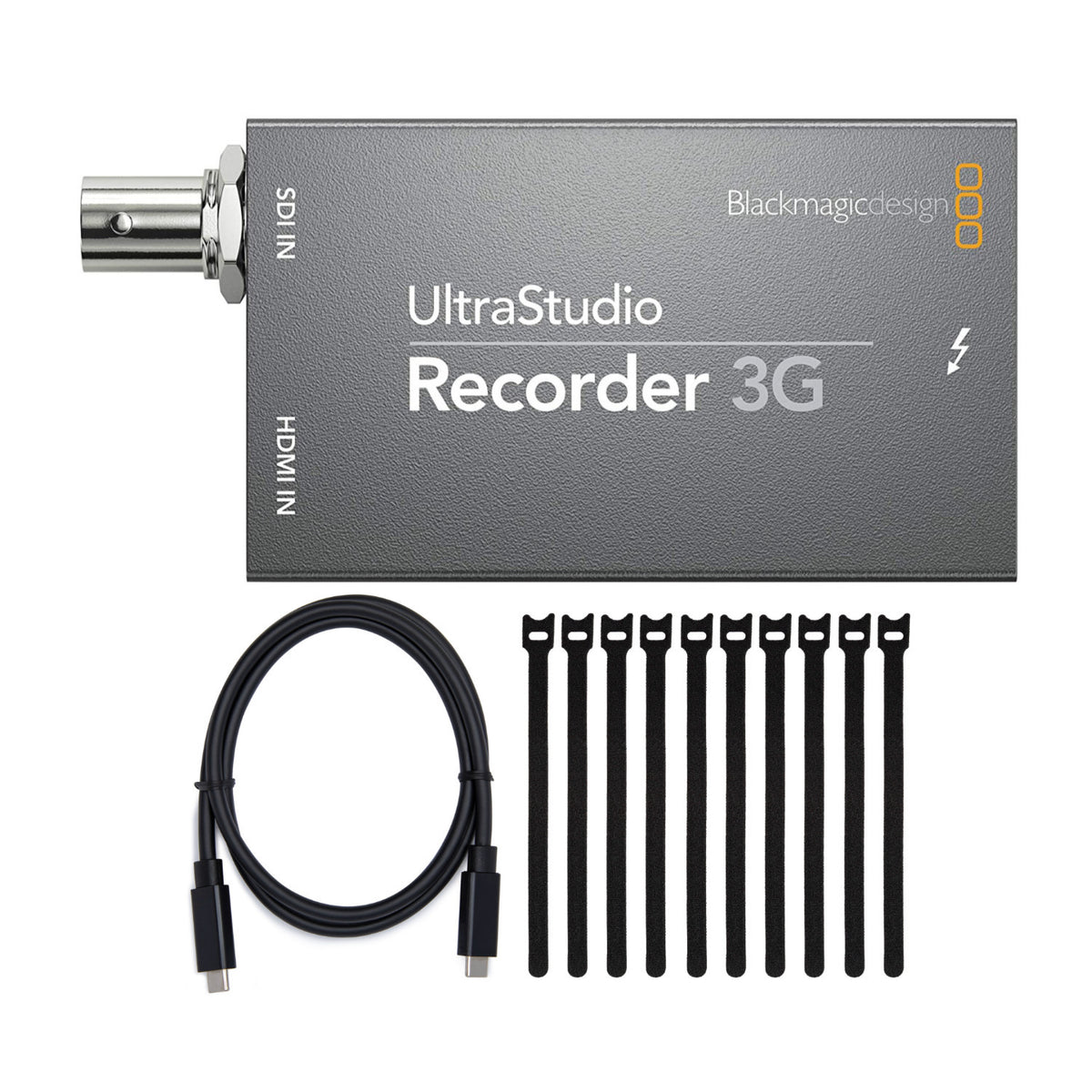

Blackmagic Design UltraStudio Recorder 3G Capture Device with Acces...

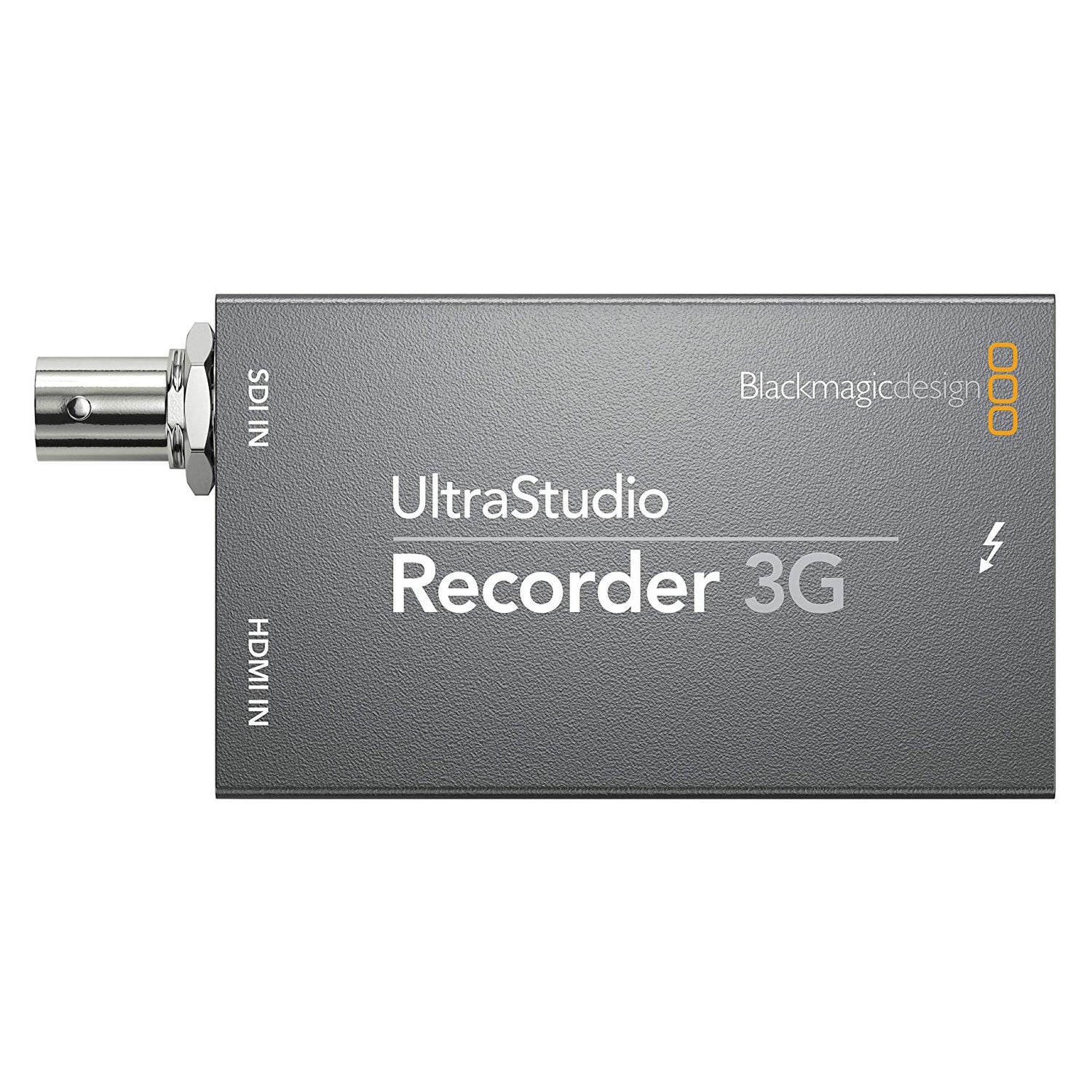

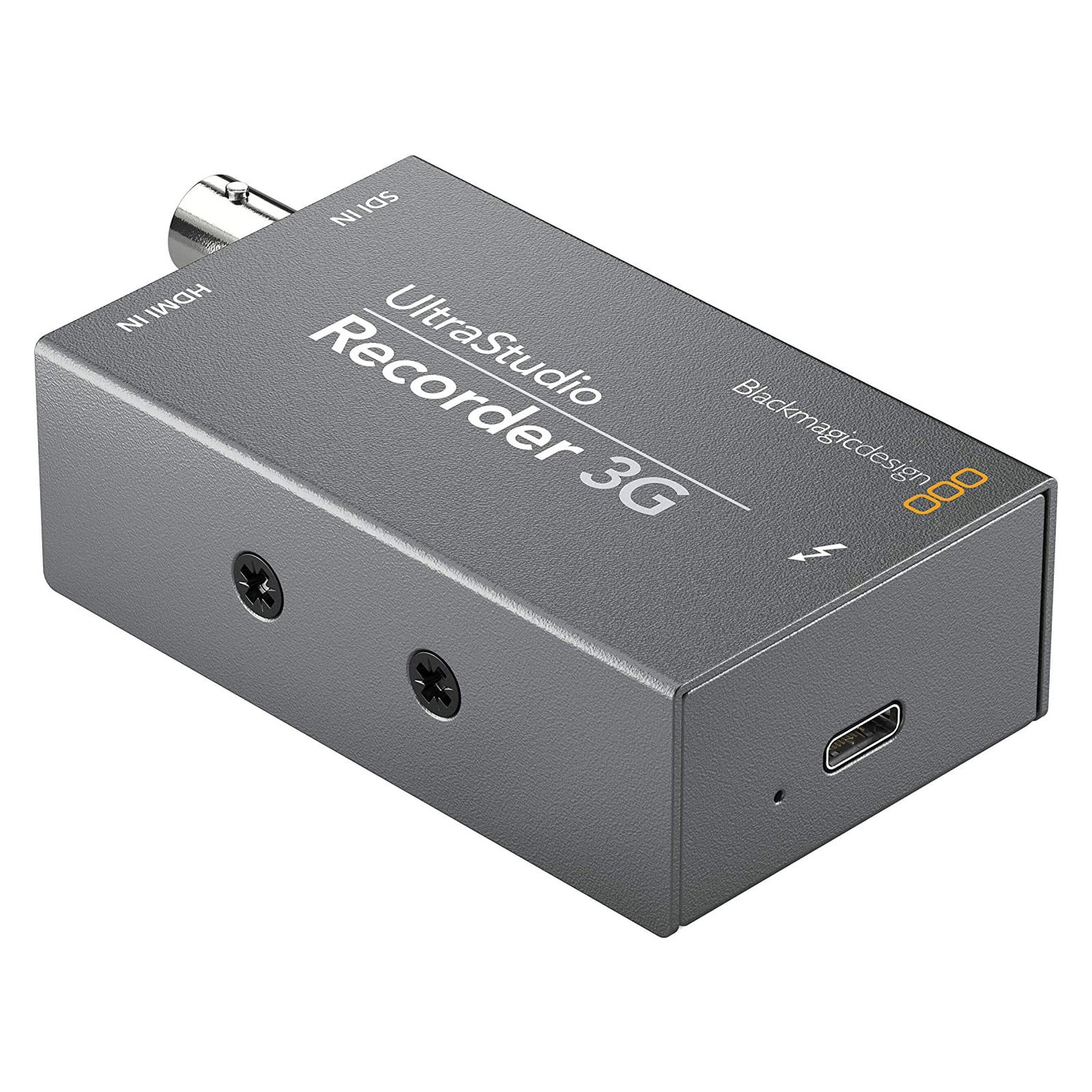

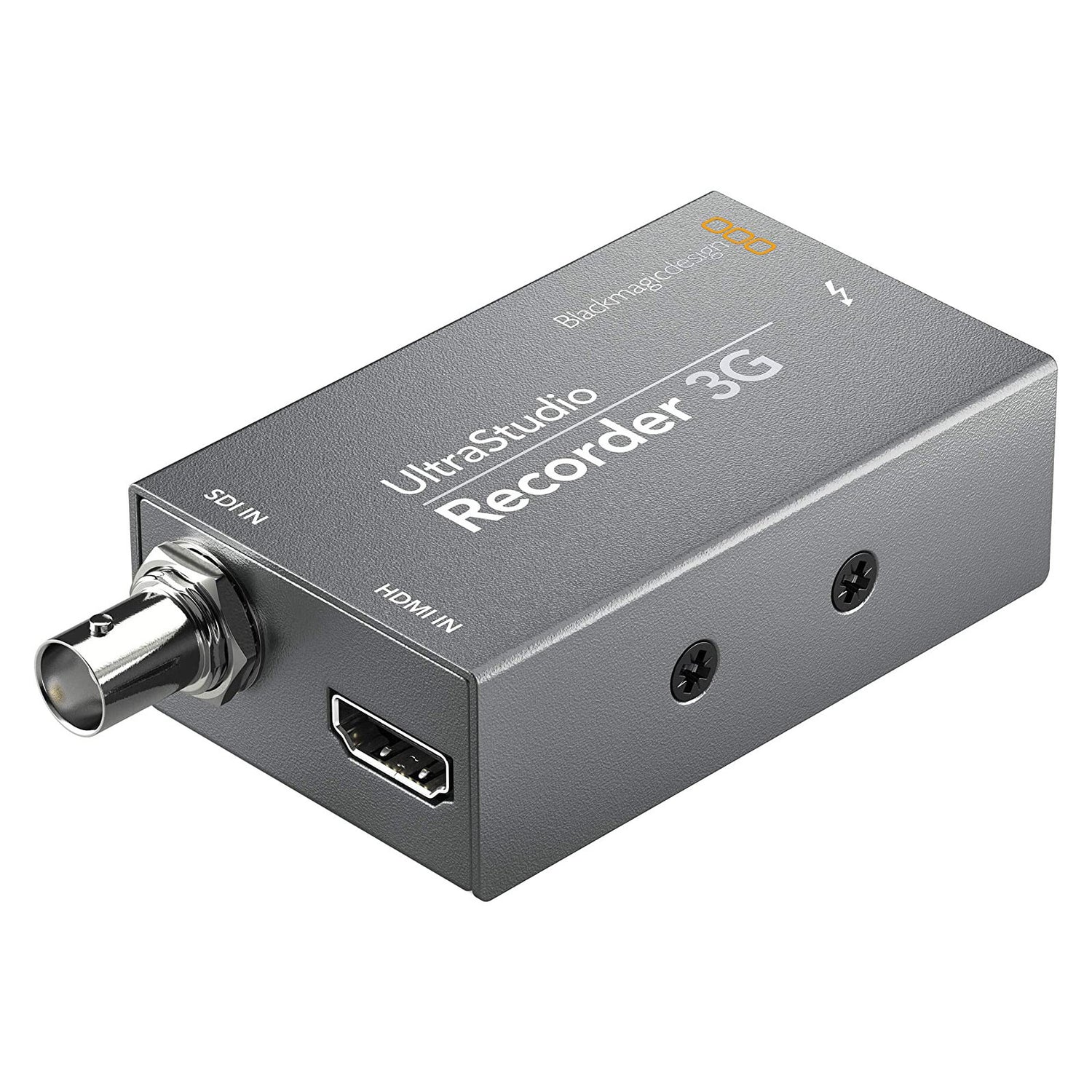

Blackmagic Design UltraStudio 3G Recorder
Great for streaming and capture from any HDMI or SDI broadcast quality video source, the Blackmagic Design UltraStudio 3G Recorder includes 3G-SDI and HDMI in all formats up to 1080p60. It is a compact pocket-sized SDI and HDMI video capture for your Thunderbolt 3 laptop or desktop computer. The UltraStudio 3G Recorder features the highest quality 10-bit uncompressed and compressed video capture that’s compatible with all popular video software including DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro CC and hundreds more!

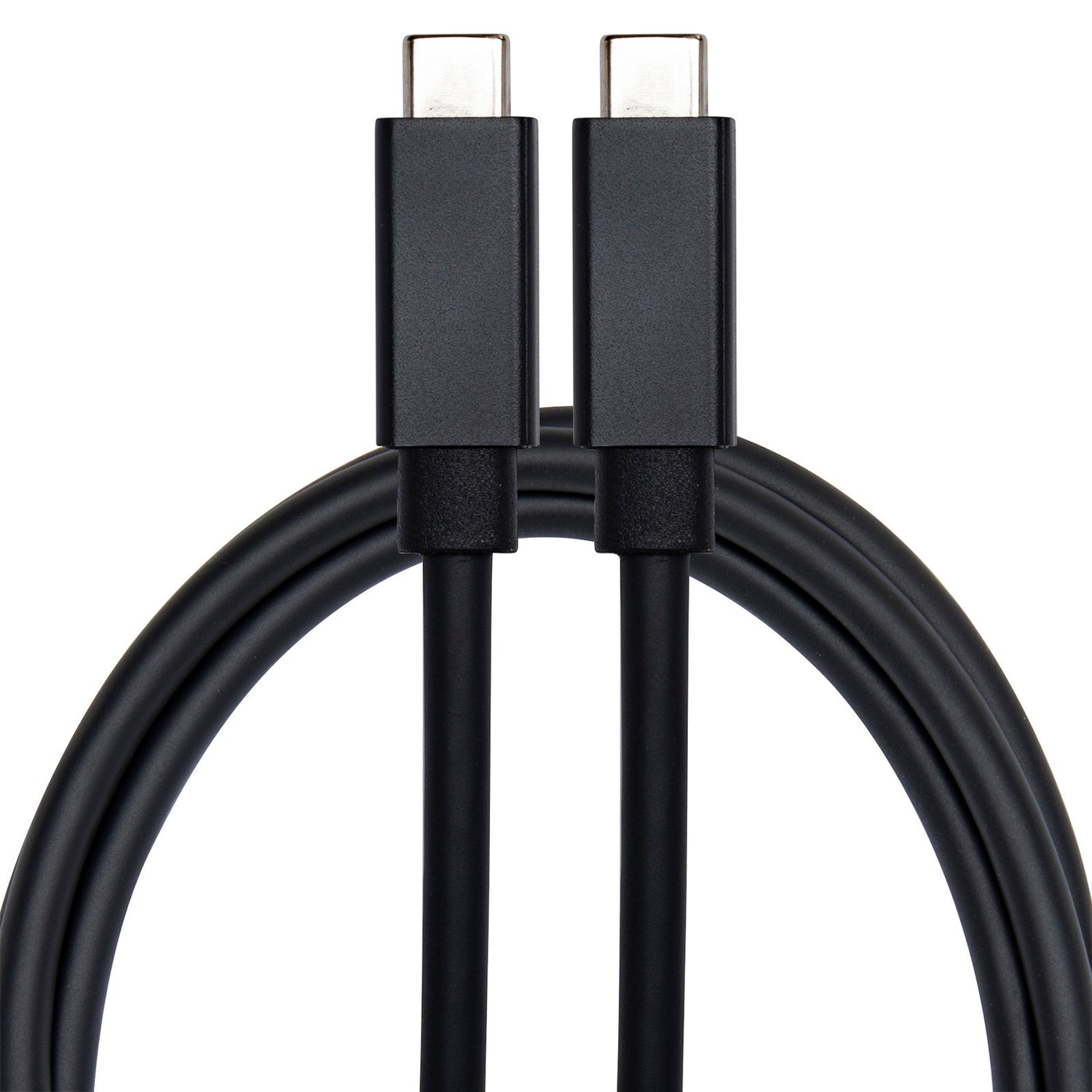

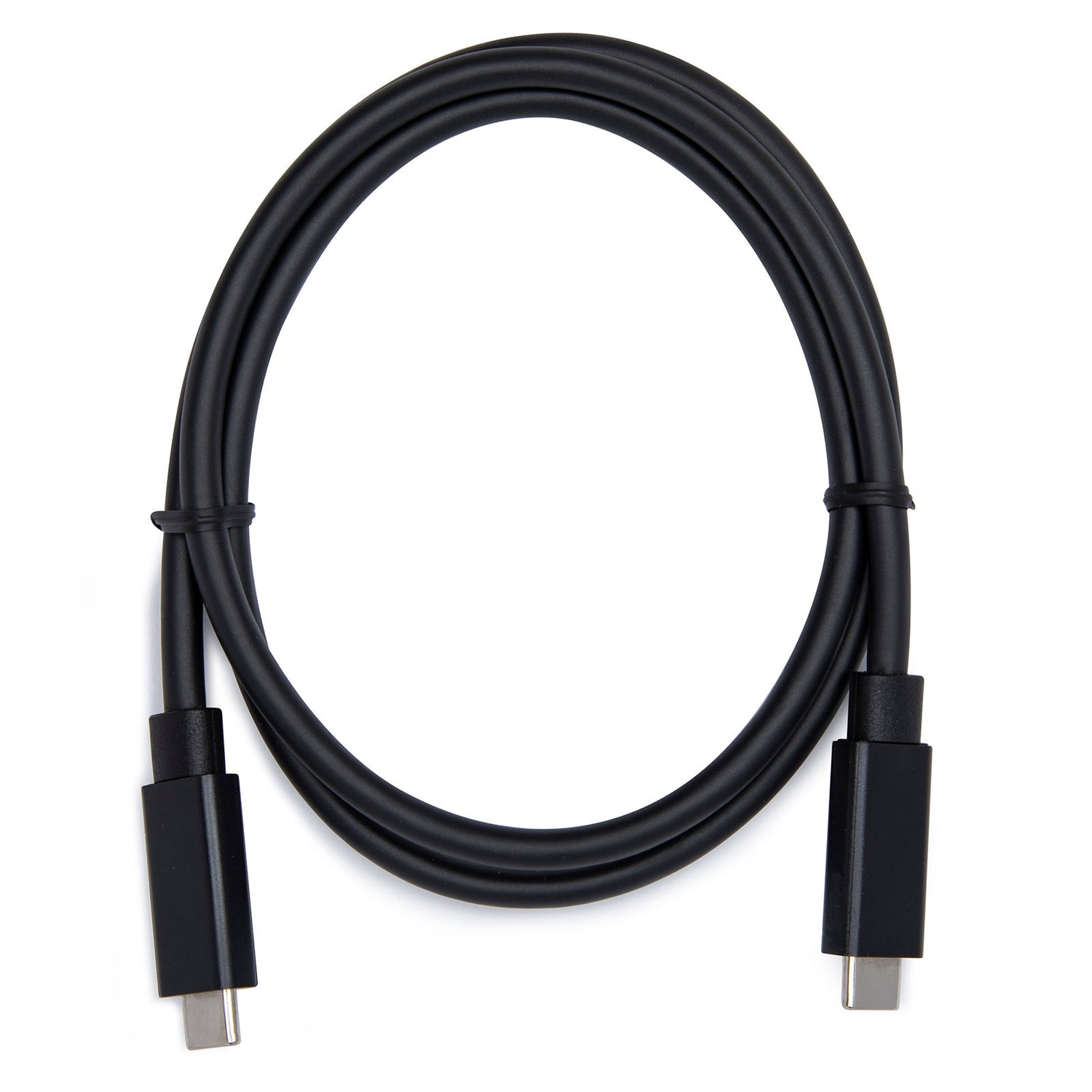

Koah Thunderbolt 3 USB-C Cable
Get high-speed charging and data transfer with the Koah Thunderbolt 3 (USB-C) Cable. This 2.5' cable supports 100-watt charging and features a data transfer rate of 40 gigabits per second. It's compatible with the Apple iPad Pro, Nexus 6P, Microsoft Lumia 950, Google Nexus 5X and many more devices.
Rapid Charging
The Koah Thunderbolt 3 (USB-C) Cable is compatible with rapid charging protocols, allowing it to support up to 100W charging. This cable will charge your smart device as fast as your device is cable of charging.
Fast Transmission
With a 40 Gbps data transfer rate, sync your music, movies, shows and other files in just seconds.
High-Quality Video
The Koah Thunderbolt 3 cable allows you to watch videos in 5K or to to stream video in 4K to two displays simultaneously.
Wide Compatibility
Compatible with the Apple iPad Pro, Nexus 6P, Microsoft Lumia 950, Google Nexus 5X and more (see Specifications for longer list), this cable works with all USB-C devices and supports USB 2.0, USB 3.1 Gen 1 and USB 3.1 Gen 2.

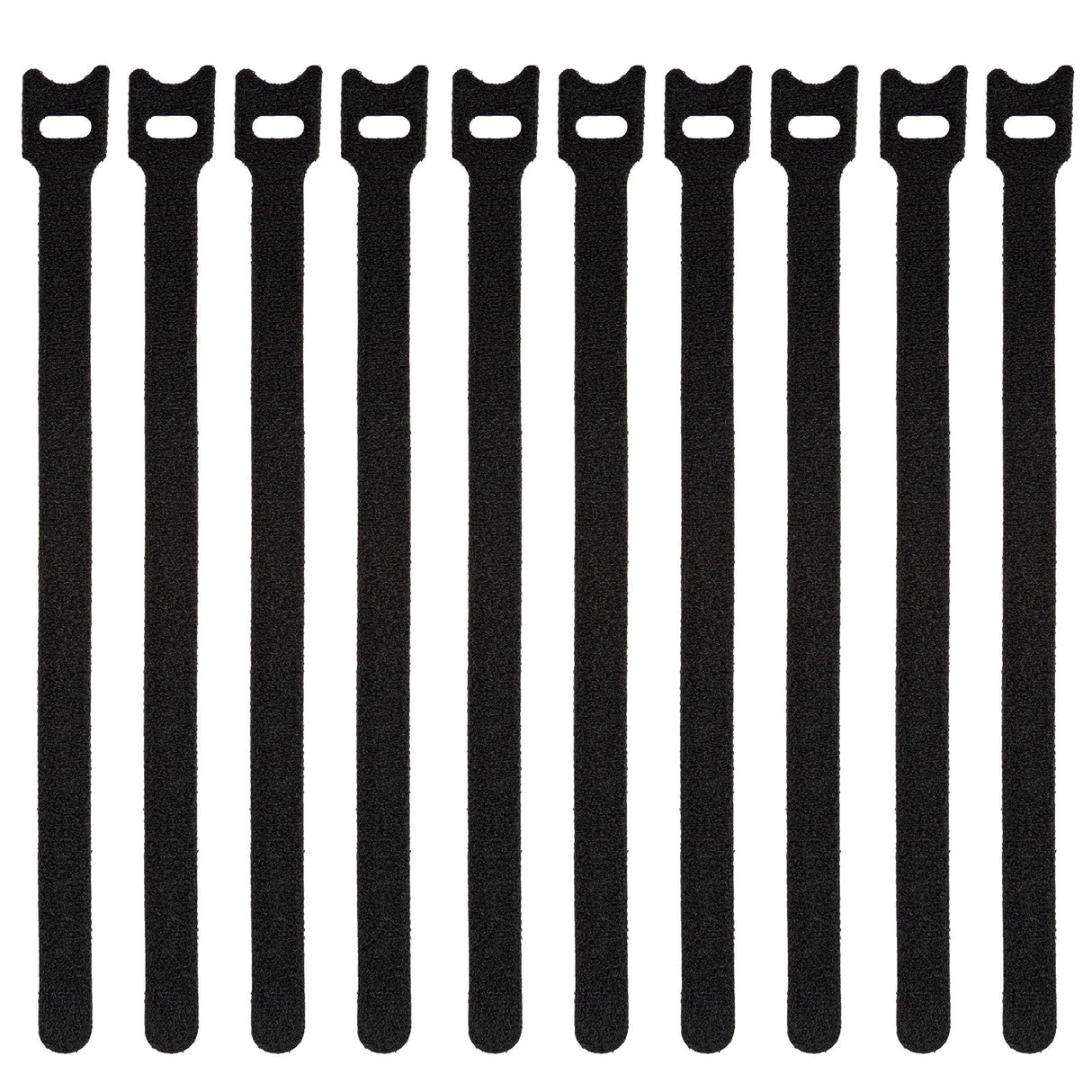

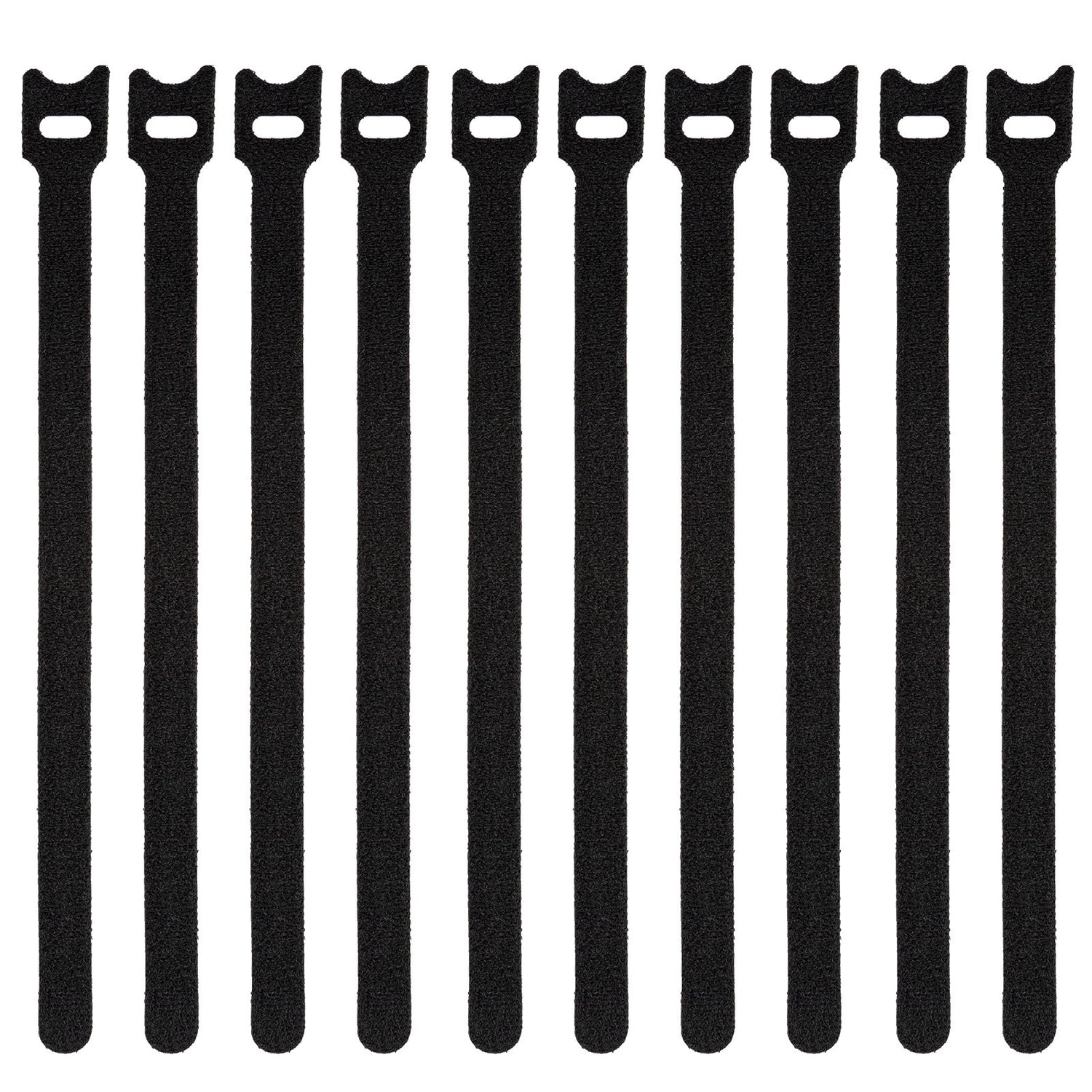

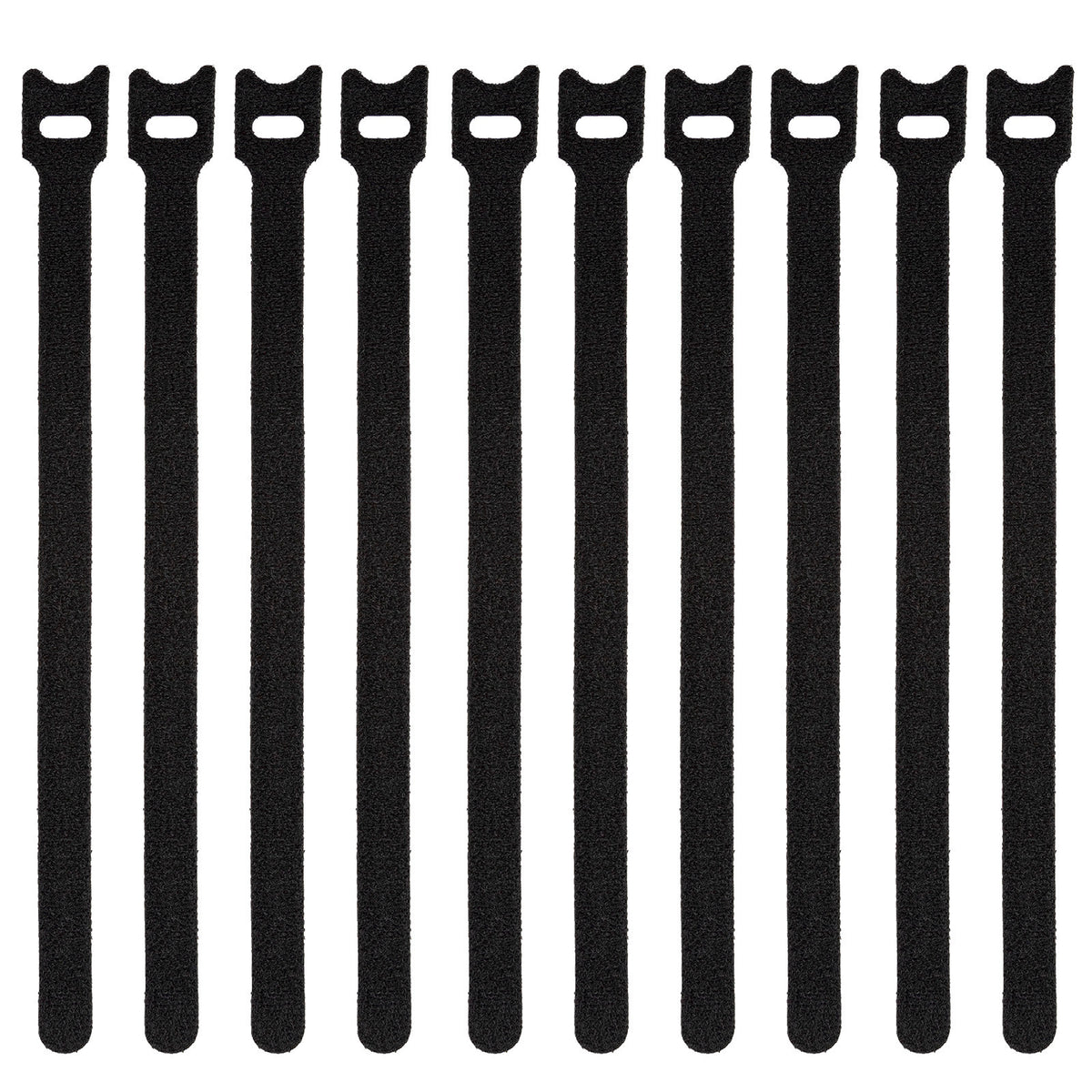

Focus Camera Hook-and-Loop Fastening Cable Ties
Declutter your office, living room or any electronics with the Focus Camera Hook-and-Loop Fastening Cable Ties (9-inch x 1/2-inch, 10-Pack). These reusable ties attach easily using hook-and-loop material. This pack features 10 ties that easily fasten cables and wires for better organization.
General
| Channels | 16 |
| Weight | 5.57 oz |
| Color | Black |
Power
| Operating Temperature | 32 to 104-degree-F (5 to 40-degree-C) |
Input / Output
| HDMI Inputs | 1 |
| Video Input | 3G-SDI |
- Requires computer with a Thunderbolt 3 USB-C port
- Please check support pages to see the full system requirements
- Fully compatible devices:
- Samsung Galaxy Note 10/10+/9/8
- Samsung Galaxy S8/ S8+/ S9/ S9+
- Samsung Galaxy S10/S10+/S10e
- Google Pixel 3
- Google Nexus 6P
- Nintendo Switch
- Huawei Matebook
- Apple iPad Pro 2020/2019/2018
- Apple MacBook Pro(2020/2019/2018/2017/2016) 13.3-inch
- Apple MacBook Air 2020/2019/2018
- Compatible devices (Limited charging speeds):
- Google Nexus 5X
- Apple MacBook Pro (2020/2019/2018/2017/2016) 15.4-inch
- Microsoft Lumia 950
- LG G5/G6/G7
- LG V20/ V30+/ V40
- Huawei Mate20/Mate20 Pro
- Huawei P30/P30 Pro
- Xiaomi 5
- Lenovo IdeaPad 720S 13
Blackmagic Design UltraStudio 3G Recorder
Connections
| SDI video input | 1 |
| SDI rates | 270Mb, 1.5G, 3G |
| SDI audio inputs | 16 Channels embedded in SD/HD |
| HDMI video input | 1 |
| HDMI audio inputs | 8 channels embedded in SD/HD |
| Computer interface | Thunderbolt 3 (Mac OS, Windows and Linux) |
Supported Codecs
| AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4 | 2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
Software
| Software included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal software upgrade | Firmware built into software driver. Software driver loads upgrades at system start or via updater software. |
Software Applications
| Wirecast | |
| vMix | |
| OBS | |
| Other supported applications include | Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC] Marker, Zoom. |
SDI Video Standards
| SD video standards | 525i59.94 NTSC, 625i50 PAL |
| HD video standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 |
| 2K video standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| SDI compliance | SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B |
| SDI metadata support | RP 188/SMPTE 12M-2 and closed captioning |
| SDI audio sampling | Television standard sample rate of 48 kHz and 24-bit |
| SDI video sampling | 4:2:2, 4:4:4 |
| SDI color precision | 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards |
| SDI color space | REC 601, REC 709 and REC 2020 |
| Multiple rate support | SDI video connection is switchable between SD and HD |
HDMI Video Standards
| SD video standards | 525i59.94 NTSC, 625i50 PAL |
| HD video standards | 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| HDMI audio sampling | Television standard sample rate of 48 kHz and 24 bit |
| HDMI video sampling | 4:2:2 and 4:4:4 |
| HDMI color precision | 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards. |
| HDMI configuration | HDMI 2.0a supports Deep Color |
| HDMI color space | REC 601, REC 709 and REC 2020 |
| Multiple rate support | HDMI video connection is switchable between SD and HD |
| Copy protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content |
Hardware Frame Buffer
| v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB) |
Processing
| Colorspace conversion | Hardware based real time |
| Physical installation |
Operating Systems
| Mac 10.14 Mojave, Mac 10.15 Catalina or later | |
| Windows 8.1 and 10, both 64-bit | |
| Linux |
Power Requirements
| Powered by Thunderbolt cable | |
| Requires computer with a Thunderbolt 3 USB-C port |
Environmental Specifications
| Operating temperature | 32 to 104-degree-F (5 to 40-degree-C) |
| Storage temperature | -4 to 113-degree-F (-20 to 45-degree-C) |
| Relative humidity | 0% to 90% non-condensing |
Physical Specifications
| Dimensions | 3.62 x 1.77 x 0.98 inch |
| Weight | 5.57 oz |
Koah Thunderbolt 3 USB-C Cable
| Connector type | USB Type C, USB 2.0 |
| Cable type | USB |
| Data transfer rate | 40.0 Gbps |
| Power | Supports 100W charging |
| Length | 2.5 feet |
| Compatibility list | |
| Color | Black |
| Warranty | 1-year limited warranty |
Focus Camera Hook-and-Loop Fastening Cable Ties
| Number of pieces | 10 |
| Dimensions | 9 x 1/2 inch |
| Color | Black |
| Country of origin | Made in China |
