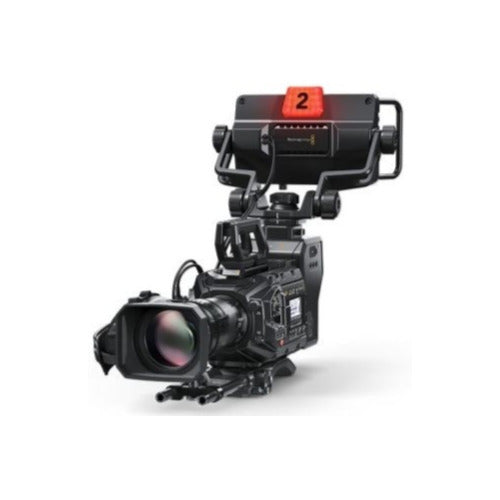

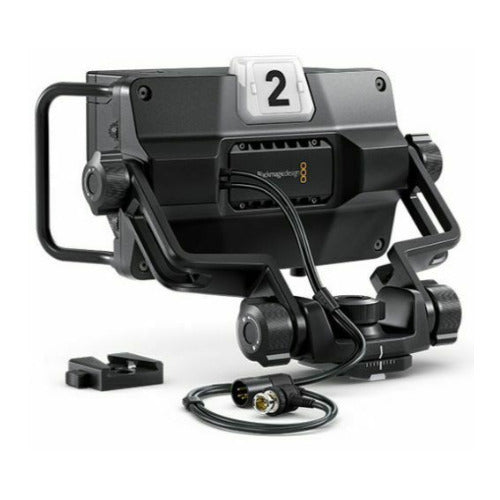

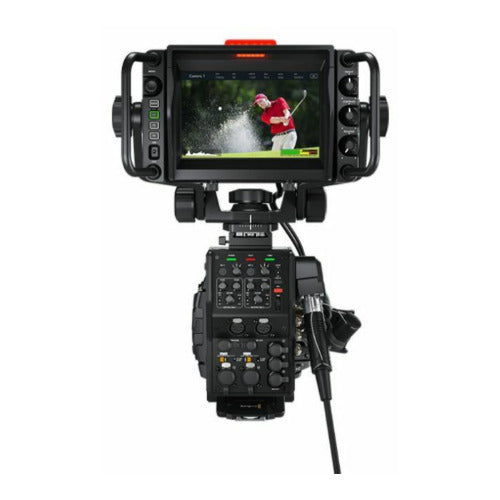

The Blackmagic Design 7-Inch URSA Studio Viewfinder G2 gives you everything you need to comfortably operate your URSA Mini in live production. The bright 7-Inch screen has a detachable sunshade and includes large handles and an articulated pivot mount that lets you position and move the viewfinder independent of the camera. The large rotary control dials and customizable function buttons let you make on-the-fly adjustments without having to take your eyes off the action. It features a quick setup that is easy using the included V-Lock plate and it connects directly to the SDI monitor and power output on your URSA Mini, so you don’t need additional cables or power supplies.
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080i50, 1080i59.94, 1080i60
Blackmagic Design 7-Inch URSA Studio Viewfinder G2
Connections
| SDI video input | 1 x HD/Ultra HD 3G-SDI via BNC |
| Power input | 1 x 4 pin XLR 12V |
| Screen type | 7-inch high brightness TFT LCD |
| Screen brightness | 2000 nits |
| Screen dimensions | 7-inch 1920 x 1200 resolution |
| Computer interface | 1 x USB type C connector for initial setup and software updates via Blackmagic camera setup software |
SDI Video Standards
| HD format support | |
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084 |
| Video sampling | 4:2:2 YUV |
| Color precision | 10-bit |
| Color space | REC 601, REC 709 |
| Multiple rate support | SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD |
Monitor Features
| Controls | Dial, knobs and customizable function buttons for settings, short cut features and navigating menus |
| Handles | Built in grab handles for positioning the monitor independently from the camera |
| Position adjustment options | Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments |
| Mounting options | Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle |
| Tally | Large LED tally light with customizable perspex camera numbers |
| Metadata support | Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more |
| Screen interface | On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more |
Operating Systems
| Mac 10.14 Mojave | |
| Mac 10.15 Catalina or later | |
| Windows 10 |
Power Requirements
| 12V power input via 4 pin XLR connected via URSA Mini 12V power output |
Environmental Specifications
| Operating temperature | 0 to 40-degree-C (32 to 104-degree-F) |
| Relative humidity | 0 to 90% non-condensing |
| Storage temperature | -20 to 60-degree-C (-4 to 140-degree-F) |
