High-Performance Network Storage with Global Sync
The Blackmagic Cloud Store is a very fast high capacity network disk that's designed to handle large media files used in Hollywood feature films. The design uses advanced flash memory so it easily handles lots of simultaneous users. Plus it's extremely easy to set up! With Dropbox live sync, files can be distributed between multiple units globally for very fast local file access, even on lower-cost internet connections. Unlike SAN systems, you don't need IT consultants and there are no subscription fees. There's even an HDMI monitor output with real-time storage status! All this means you get much better features than discount storage products sold at office supply stores.
Designed for Film and Television
Blackmagic Cloud Store is the perfect network storage solution for any use! But it's perfect for film and television where large media files need to be shared between multiple users for editing, color correction, audio post, and VFX work. It even handles massive 12K Blackmagic RAW digital cinema files! Each user gets zero latency and they don't need to store files on their local computer. It's the perfect solution for DaVinci Resolve! Dropbox sync allows multiple disks to be synchronized in different locations globally. Then each location gets the fastest editing experience possible. That’s critical for multi-cam editing where multiple media files are playing simultaneously!
Portable and Quiet Design

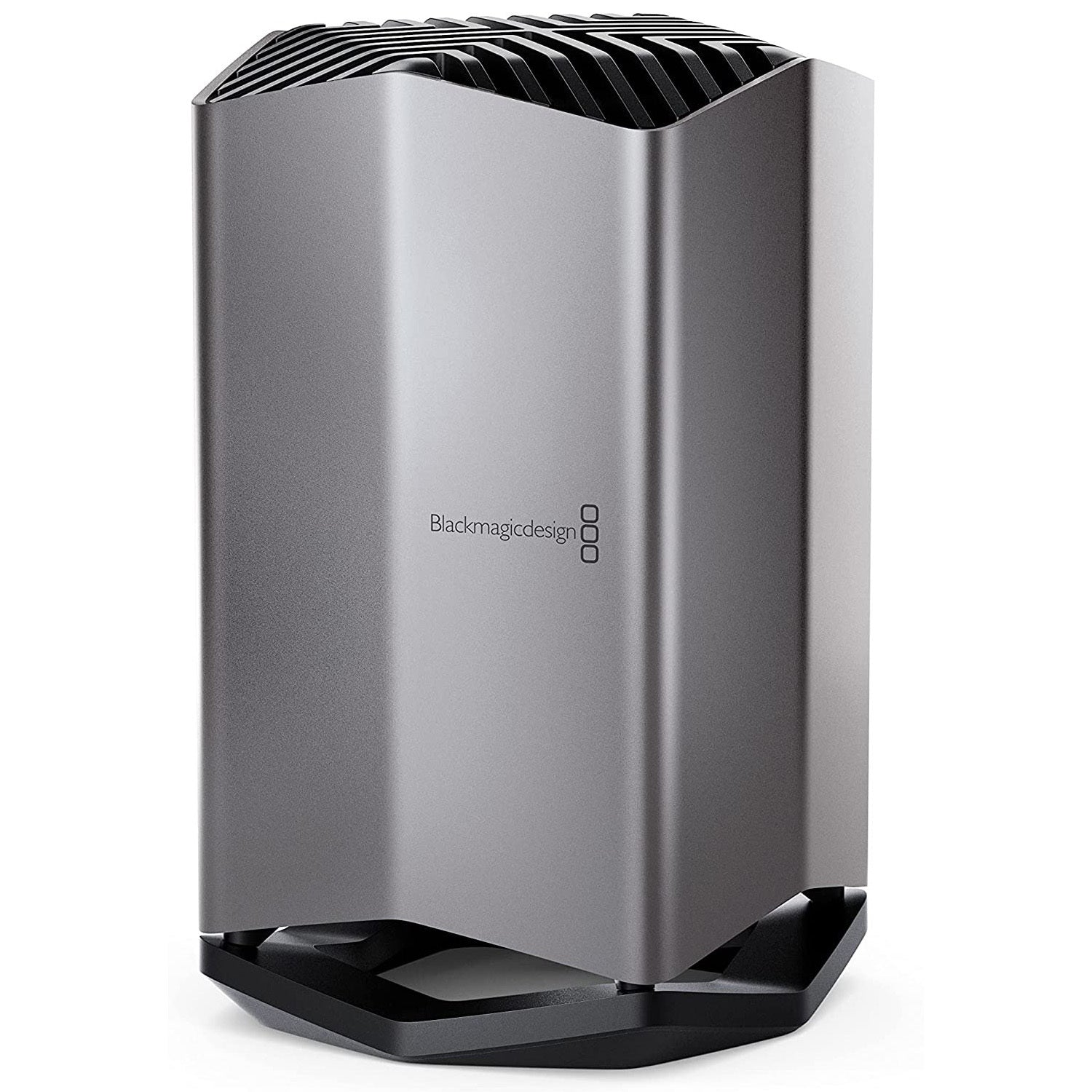

Unlike IT industry storage products that are rack-mounted and have loud cooling fans, the Blackmagic Cloud Store is an elegant vertical design that's portable. It's also whisper-quiet so it can be used on location. Internally it has an array of flash memory cards working in parallel for speed and data protection. There are even 2 redundant power supplies! The four 10G Ethernet ports operate as a switch so you can connect four separate computers, or they work together using link aggregation for a massive 40G Ethernet speed. There is also an HDMI monitoring output so you can watch a live graphic view of the storage operating on a TV or monitor. It can even be maintained and repaired!
Flash Memory AllowsMultiple Simultaneous Users
The Blackmagic Cloud Store is available in 20 TB, 80 TB, and massive 320 TB models, so you have lots of space for all your business files and video media. With video the standard for information delivery in business, that's enough capacity to store all your media in a single location on your network. M.2 flash memory cards are used for extreme reliability, high access speeds and zero seek times. Plus the M.2 cards are arranged in parallel RAID 5 groups so they can operate much faster than a single card. That ensures massive speed combined with fault tolerance. If a faulty M.2 card is detected, the cloud store will automatically enter read-only, so you can still access your files.
High Performance for Digital Film Files
With 4 separate very high speed 10G Ethernet connections, Blackmagic Cloud Store is extremely fast. The internal memory core has been designed to saturate all four 10G Ethernet ports to their theoretical maximum speed, all at the same time! It’s so fast, most computers cannot keep up! Plus file access is very low latency, so responsiveness is fast. That’s possible because of the massive parallel processing used by the memory core. At maximum speed, the Blackmagic Cloud Store is extremely quiet with very little cooling fan noise. Even when editing large 12K digital film RAW files. It’s so fast, multi-cam editing is incredibly smooth, even if it’s used with massive digital film camera files!
Ports
| External Ports | 10 Gigabit Ethernet |
| Ports | 7 |
Power
| Power Source | Phantom |
Enviromental
| Operating Humidity | 0 to 90% |
| Operating Temperature | 0° to 40° C (32°to 104° F) |
Network
| Data Transfer Rate | 5Gbps |
- Blackmagic Cloud Setup Utility
- Blackmagic Proxy Generator Lite
- Internal software upgrade via Blackmagic Cloud Setup using USB-C port.
Blackmagic Cloud Store (20TB)
Connections

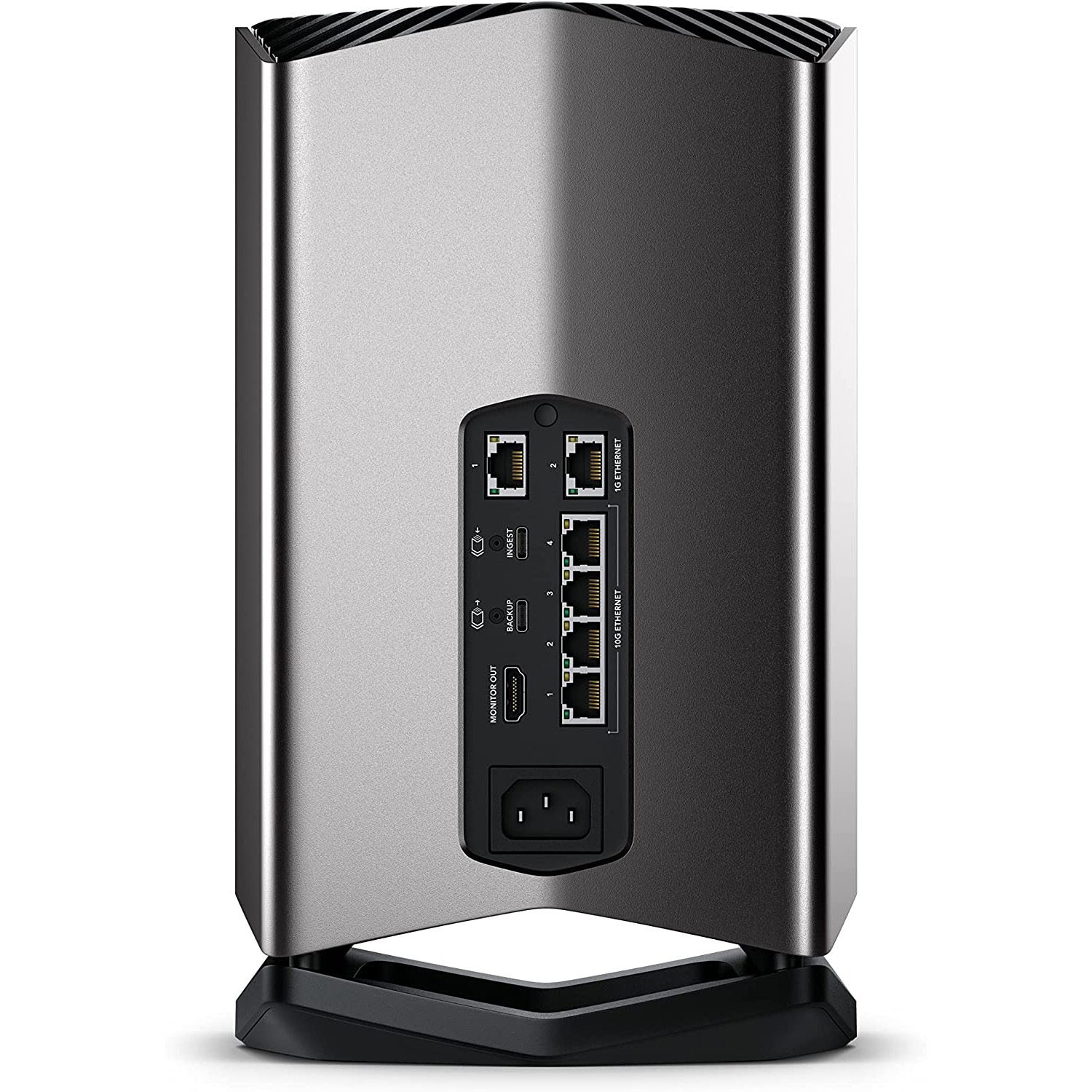

| 10G Ethernet ports | 4 x 100/1000/10G BASE-T |
| 1G Ethernet Ports | 2 x 100/1000 BASE-T |
| Ingest USB-C Port | 1 x USB 3.0 (up to 5Gb/s). Automatically transfers files from USB drive to Cloud Store. |
| Backup USB-C Port | 1 x USB 3.0 (up to 5Gb/s). Automatically backs up files from Cloud Store to USB drive. |
| HDMI Monitor Outputs | 1 |
| Computer interface | Ethernet for shared file access, configuration and software updates. USB-C for configuration and software updates. |
File Sharing Protocol
| Protocol | SMB |
| Computer connections | 50 max. |
Cloud Synchronization
| Compatible Services | Dropbox |
Storage
| Storage Type | M.2 NVMe SSD |
| Total Capacity | 20TB |
| Redundancy | RAID 5 distributed parity |
| External Storage | USB Disks |
| External Storage Format | ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
Displays
| HDMI monitor out standards | 1080p50, 1080p59.94, 1080p60 |
| Monitor out displays | Device Name, storage capacity, and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graphs |
| Status indicator | Underside white glow indicating normal operation or red glow indicating disk or power supply fault. |
Device Control
| External control | USB-C or Ethernet for configuration and software updates. |
Software
| Software included |
Operating Systems
| Mac 11.1 Big Sur, | |
| Mac 12.0 Monterey or later. | |
| Windows 10 and 11. |
Power Requirements
| Power supply | 2 x internal 100 - 240V AC 50/60Hz. |
| Power inputs | 1 x IEC C14 mains input. |
Power Usage
| 400W Max. |
Physical Specifications
| Width | 7 inches |
| Length | 7 inches |
| Height | 11.6 inch |
| Weight | 13.2 lb |
Environmental Specifications
| Operating temperature | 0-degree to 40-degree-C (32-degree to 104-degree-F) |
| Storage temperature | -20-degree to 60-degree-C (-4-degree to 140-degree-F) |
| Relative humidity | 0% to 90% non-condensing |
Warranty
| 12 Month Limited Manufacturer’s Warranty |
