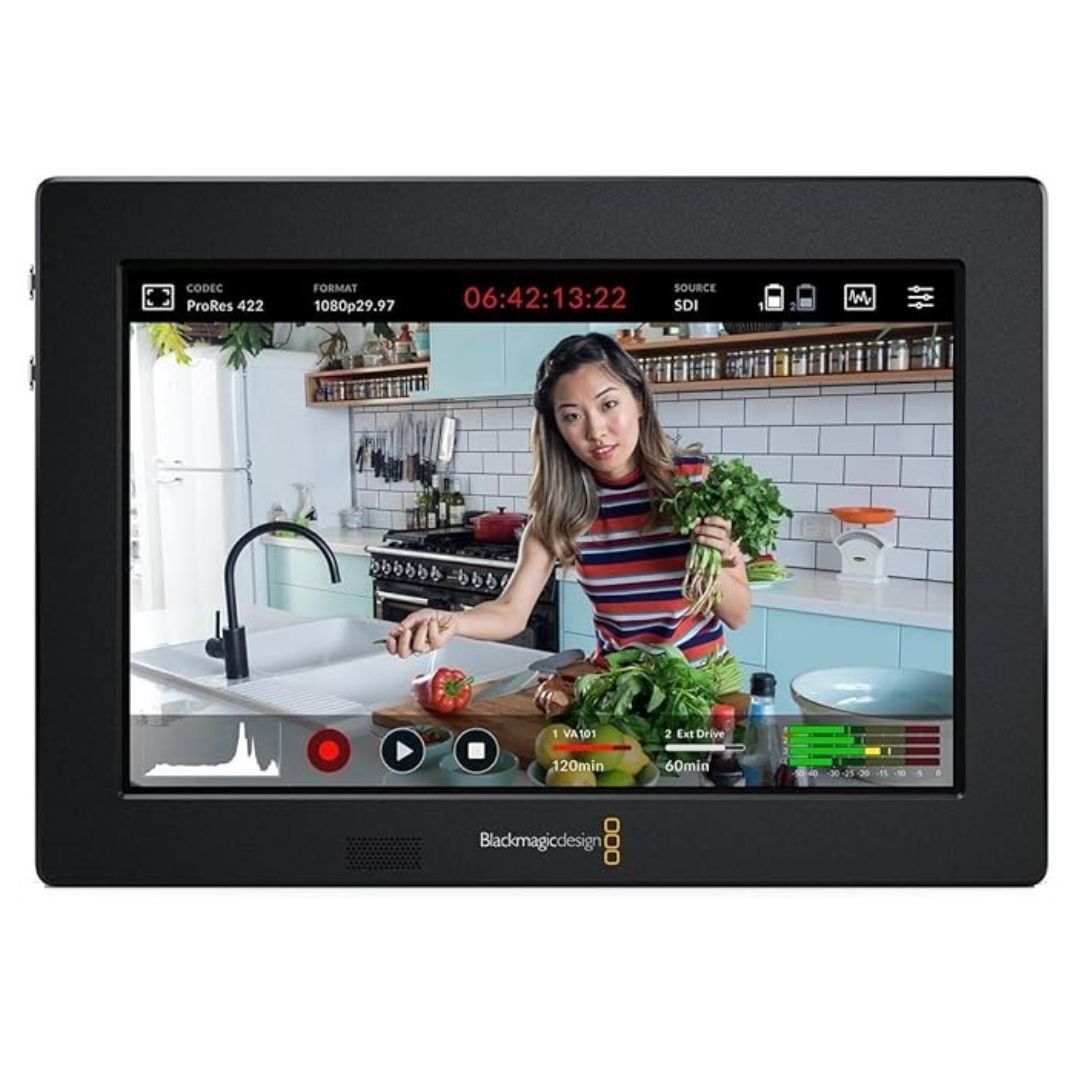

Introducing Blackmagic Design Video Assist 3G 7 Inch
Recorder Monitor, it is a portable monitor, a professional recorder, a
portable scope, and a fantastic camera viewfinder solution. You
can also add better-quality record codecs and a larger monitor to any
SDI or HDMI camera.
Innovative Design
The new design has innovations such as four built-in scopes, enhanced focus
assist features, a tally indicator, and built-in 3D LUTs. The 3G models support
formats up to 1080p60, perfect for Digital Cinema, Broadcast Test, and Live
Production.
Versatile Use
The Blackmagic Video Assist is so versatile it can be
used for hundreds of tasks. Add it onto your camera rig to get a
large-screen viewfinder with modern record codecs, focus assist features, and
3D LUTS. Video Assist is also an ultra-portable scope that lets you test
equipment in broadcast and live production to ensure your video levels are
correct and all your gear is working correctly.
Live Production Capability
If you're doing live production then Video Assist is just like a
large-screen HyperDeck so it can be used as a mastering recorder, or
as a clip player for inserting ads or promos into live programs. You can even
use it as an ISO recorder with each camera having a dedicated monitor
and recorder.
Technical Features
Blackmagic Video Assist 7-inch 3G model includes all the features of the 5-inch
model but has a much larger screen. This model has two SD Card
slots so recording can continue when a card becomes full. There are
also two mini XLR audio inputs with phantom power.
Connections
| SDI Video Inputs | 1 |
| SDI Video Outputs | 1 |
| SDI Rates | 270Mb, 1.5G, 3G |
| HDMI Video Inputs | 1 |
| HDMI Video Outputs | 1 |
| Analog Audio Inputs | 2 x balanced mini XLR with phantom power |
| Analog Audio Outputs | 1 x 3.5mm headphone jack. |
| Built in Speaker | Mono |
| Screen Dimensions | 7 inch 1920 x 1200. |
| Screen Brightness | 310nits |
| SDI Audio Inputs | 16 channels embedded via SDI |
| SDI Audio Outputs | 16 channels embedded via SDI |
| HDMI Audio Inputs | 8 channels embedded via HDMI |
| HDMI Audio Outputs | 8 channels embedded via HDMI |
| Remote Control | 1 x 2.5mm LANC for Record Start and Stop. |
| SD Interface | Dual UHS-I SD slots. |
| Storage Type | |
| SDXC UHS-I and SDHC UHS-I SD cards. | |
| Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards. | |
| Computer Interface | 1 x USB Type‑C for webcam out, initial setup, software updates and Video Assist Utility software control. |
SDI Video Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | |
| 720p50, 720p59.94, 720p60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 | |
| 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 | |
| 1080i50, 1080i59.94, 1080i60 | |
| 2K Video Standards | |
| 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI | |
| 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI | |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M |
| SDI Metadata Support | HD RP188 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| Video Sampling | 4:2:2 YUV |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| Multiple Rate Support | SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s. |
HDMI Video Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | |
| 720p50, 720p59.94, 720p60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 | |
| 1080i50, 1080i59.94, 1080i60 | |
| HDMI Color Precision | 10-bit |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
Media
| Media | 2 x UHS-I SD for HD recording. |
| Media Type | SDXC UHS-I and SDHC UHS-I SD cards. |
| Supported Codecs | |
| ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF. |
Control
| Recorder Control | Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus. |
| External Control | LANC, SDI and HDMI start/stop, timecode run. |
Software
| Software Included | |
| Blackmagic OS |
Scopes
| Scopes | |
| Waveform, RGB Parade, Vector, Histogram. | |
| Viewing Modes | |
| Scopes with picture in picture or picture overlay and opacity control. | |
| Operating Systems | |
| Mac 13.0 Ventura, Mac 14.0 Sonoma or later. | |
| Windows 11 |
Power Requirements
| Power Supply | |
| 1 x External 12V power supply. | |
| Compatible with Sony NP-F style batteries. | |
| (batteries not included) |
Physical Specifications
| Dimensions (L x W x H) | 7.6 x 1.45 x 5.14 in |
| Weight | 29.1 oz |
Environmental Specifications
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
