- Blackmagic Design ATEM Mini Pro ISO
- External 12V DC Power Supply with International Socket Adapters
- Koah Weatherproof Hard Case with Customizable Foam (13 x 11 x 6 Inch)
- Knox Gear Nylon-Braided 4K High-Speed HDMI Cable with Ethernet (6-Foot)
- Monoprice 6-Inch Hook and Loop Fastening Cable Ties (10-Pack, Black)
Trusted & Verified

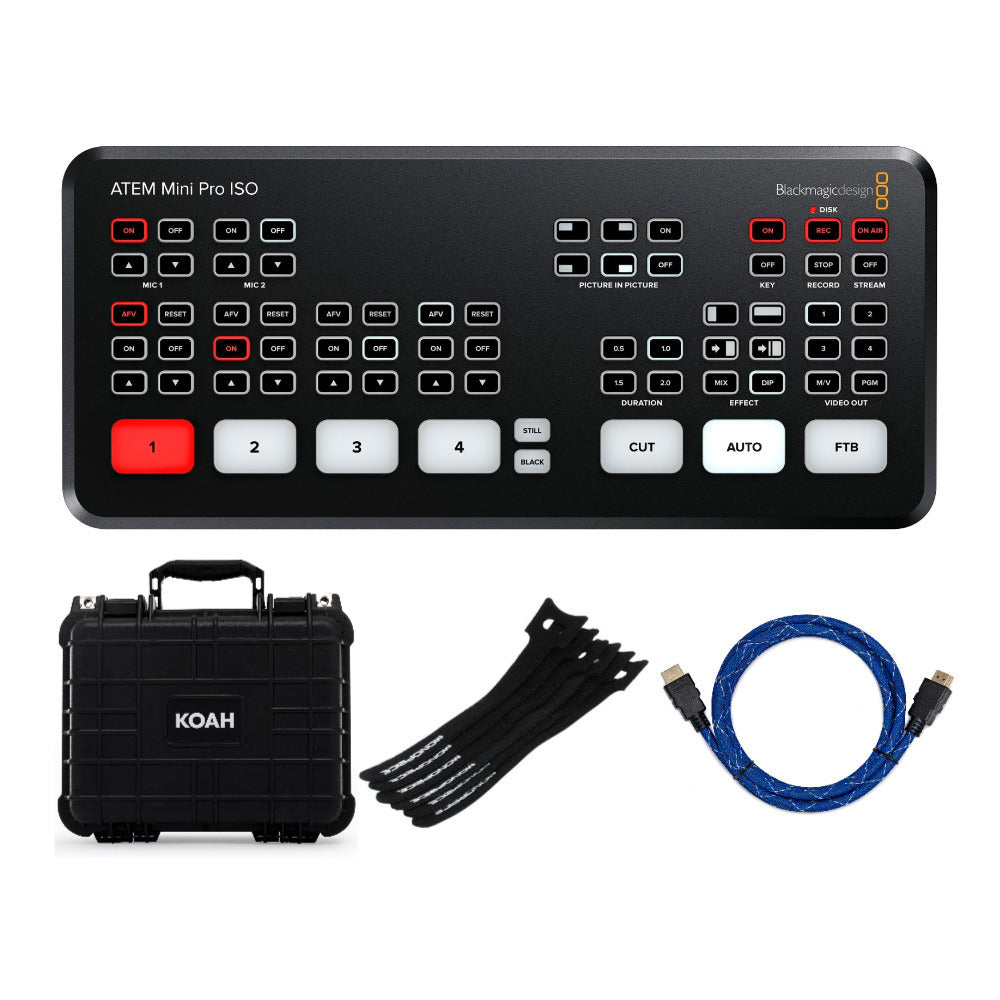

Blackmagic Design ATEM Mini Pro ISO with Cable and Case Bundle
- Built-in hardware streaming engine
- Includes recording to USB disks in H.264 format
- DaVinci project file
- 4 standards converted HDMI inputs
- USB webcam out and audio mixer with EQ
- Edit live production with separate ISO recordings
- Multi view allows users to see all cameras on a single monitor

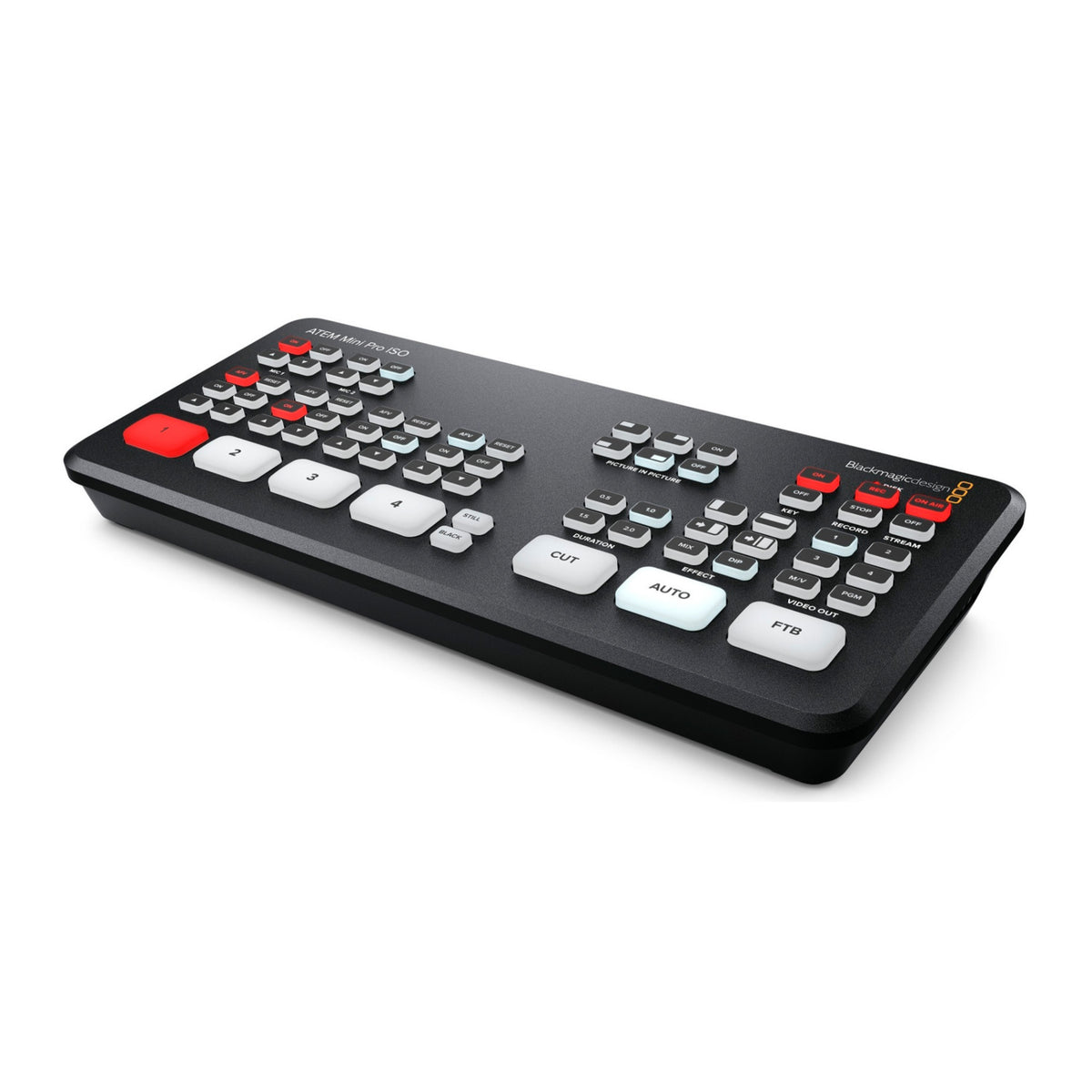

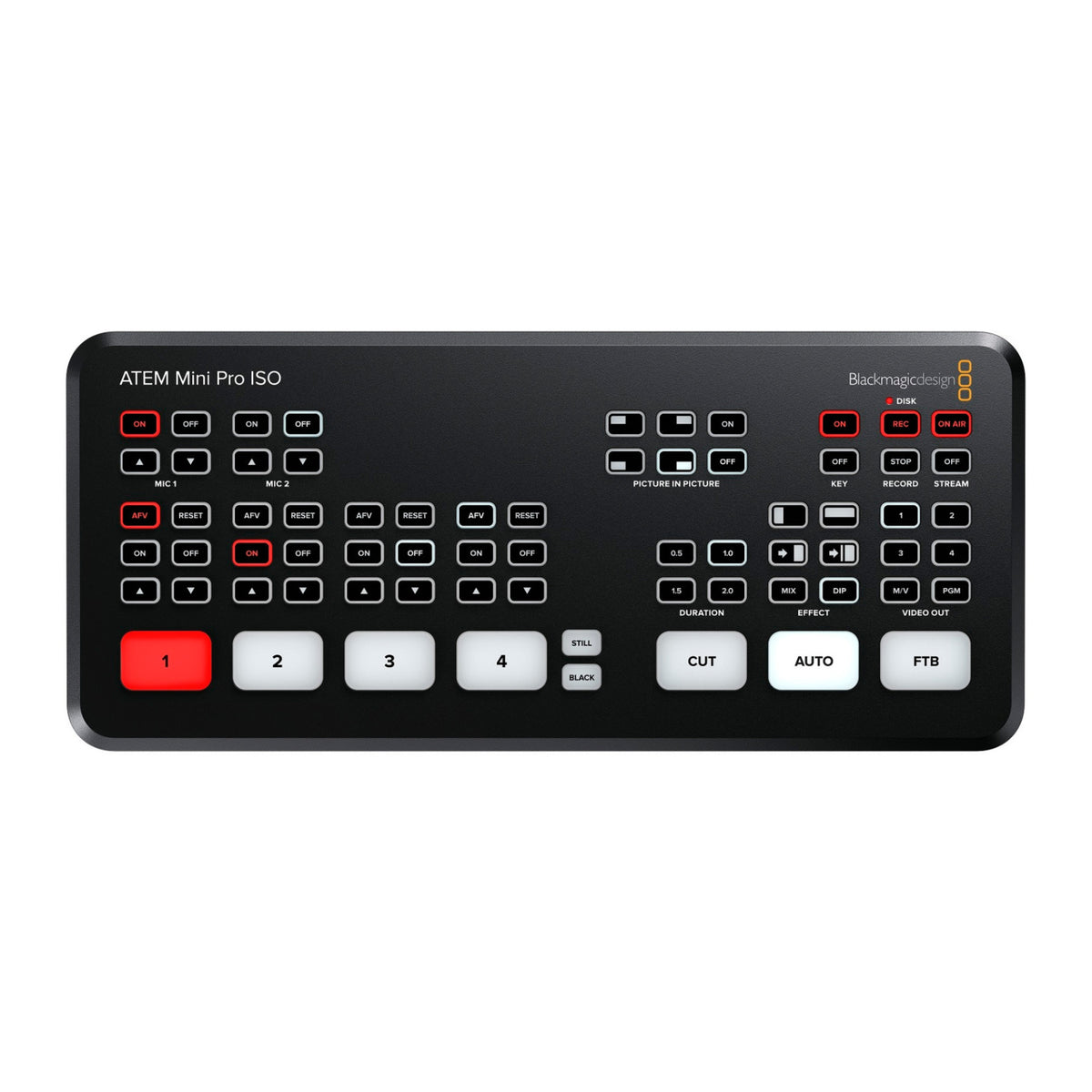

Blackmagic Design ATEM Mini Pro ISO
The Blackmagic Design ATEM Mini Pro ISO is an affordable live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles, and much more! ATEM Mini Pro also includes recording to USB disks in H.264 format, a built-in hardware streaming engine for YouTube Live, Facebook, Twitch, and more, plus multi view to see all cameras on a single monitor. Plus with the ATEM Mini Pro ISO model, you also get a recording of 5 streams including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround and Blackmagic RAW file relinking for finishing in Ultra HD.
Edit Live Production with Separate ISO Recordings
The ATEM Mini Pro ISO model lets you edit your live event because it can record 5 video streams, including clean feeds of all inputs and the program recording, all at the same time! Media pool images used are also saved with the video files. The video files include metadata tags such as synced timecode and camera numbers. Imagine re-editing your show with new color grades, effects, and graphics! Even the audio sources are all recorded so you can professionally remix your audio!
Edit Live Production in DaVinci Resolve
The ATEM Mini Pro ISO model can also save a DaVinci Resolve project file, so with a single click, you can open your live production as video edit. All cuts dissolves and media pool graphics will be loaded. This means you can fine-tune edit points or even completely replace shots! The DaVinci Resolve Sync Bin lets you select new shots via a multi view so it's very easy to use. You can even relink to Blackmagic RAW camera files for adding professional color correction and finishing in Ultra HD!

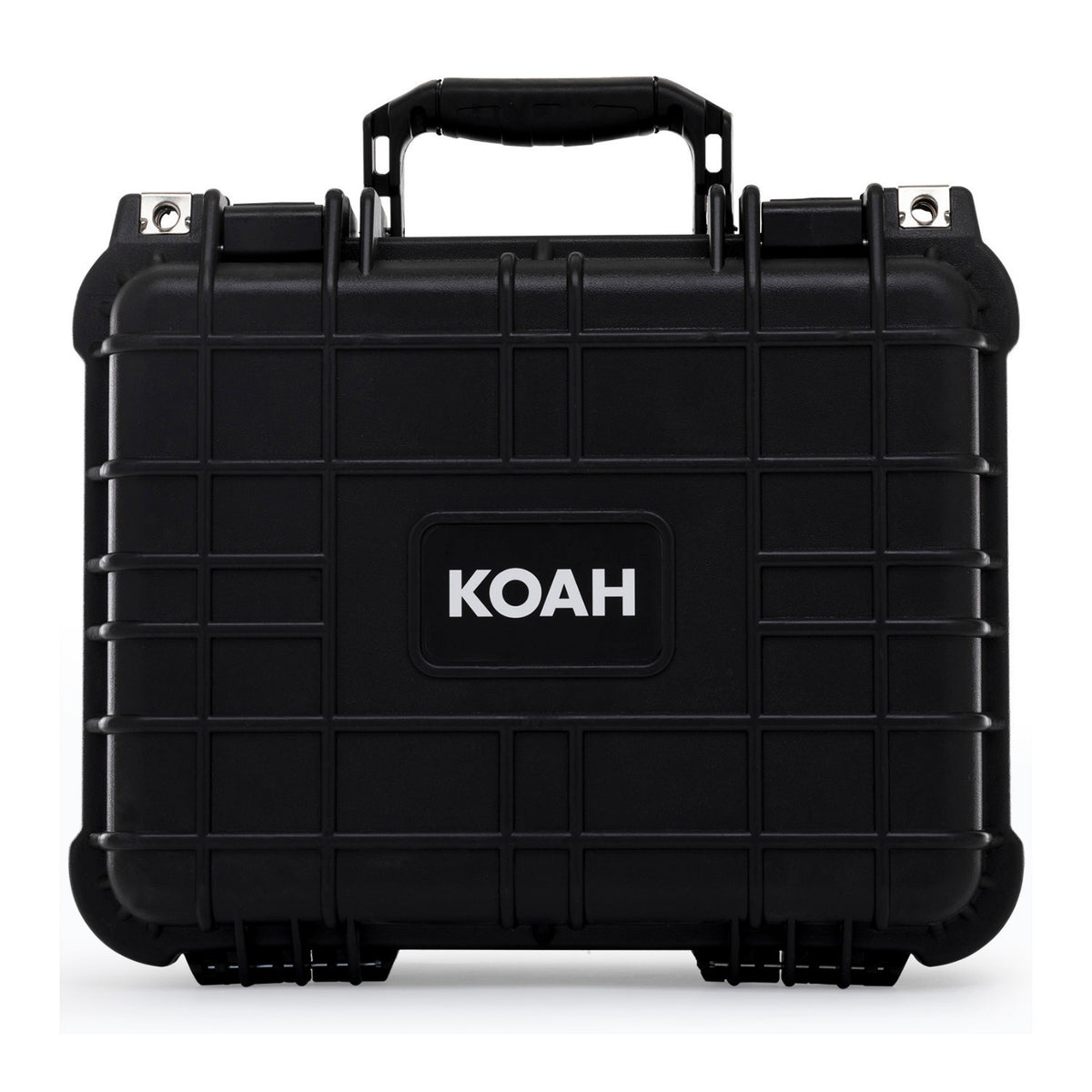

Koah Weatherproof Hard Case with Customizable Foam
The Weatherproof Hard Case with Customizable Foam by Koah is perfect for storage and transport of action cameras, camera bodies, lenses, or ammunition. Constructed with high-quality polypropylene, this injection molded hard shelled case complies with the high protection standards. The fully customizable foam keeps your valuables protected from the shocks and bumps on the road.
Durable and Functional Construction
The reinforced stainless steel provides the added strength and extra security while the solid construction ensures durable use. The high-quality pressure valve releases built-in air pressure while keeping water molecules out. Smarter and easier to open, this hard case features an easy to open with a light pull in just seconds thanks to its latches design and is also easy to go with the included portable handle design.

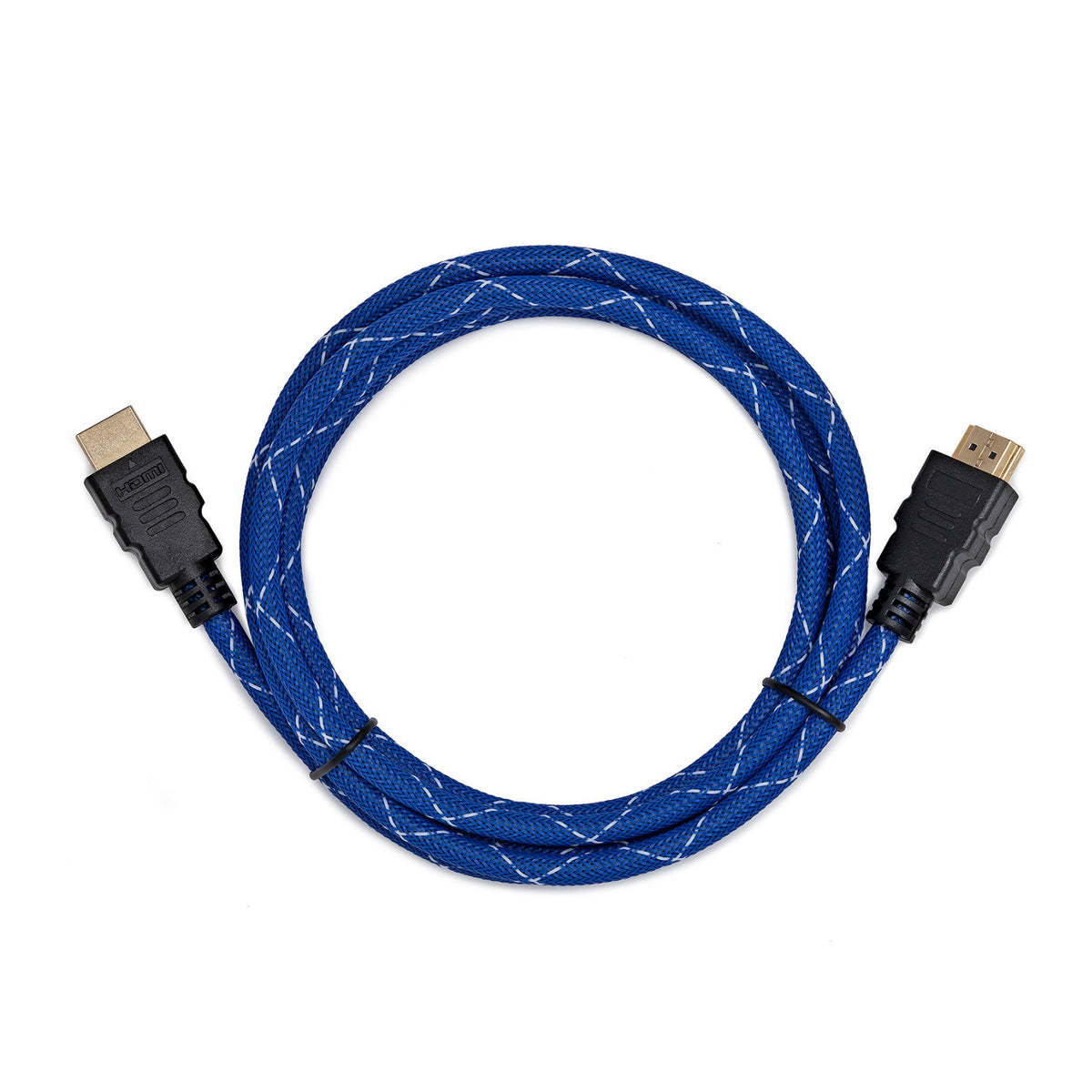

Knox Gear Nylon-Braided 4K High-Speed HDMI Cable with Ethernet
This Knox Gear Nylon-Braided High-Speed HDMI Cable with Ethernet makes it easy to connect two HDMI enabled devices. Use the cable to connect a small mobile device, home entertainment, or gaming device. It's compatible with many devices such as a Blu-ray player, Fire TV, Apple TV, PS4, PS3, Xbox One, Xbox 360, computer, or another HDMI-equipped device, to a High-definition television, an A/V receiver, or a computer display.
Complies with the latest HDMI Standards
The Knox Gear cable complies with the latest HDMI standards (4K video at 60 Hz, 2160p, 48 bit / PX color depth) for clear and vibrant video. In addition to 4K video, the cable also supports 3D, Audio Return Channel (ARC), and bandwidth up to 18 Gbps.
Compatible with Previous HDMI Standards
Because it is backward compatible, the HDMI cable can be used with a wide range of HDMI-enabled devices.
Ethernet Ready
The versatile integrated Ethernet cable allows you to share an Internet connection between multiple devices, without the need for separate Ethernet cables.
Blackmagic Design ATEM Mini Pro ISO

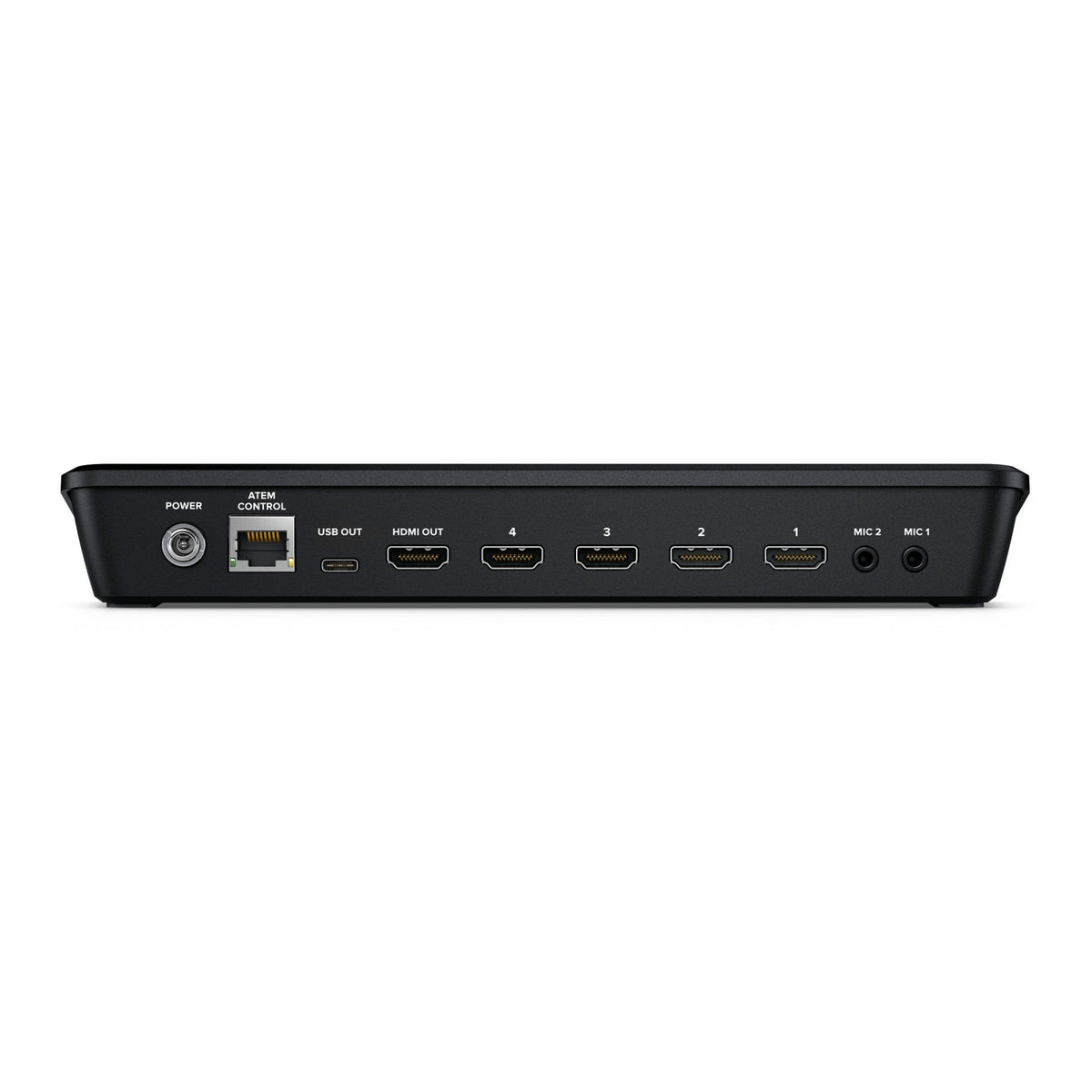

Connections
| Total video inputs | 4 |
| Total outputs | 2 |
| Total aux outputs | 1 |
| Total audio inputs | 2 x 3.5mm stereo mini jack. |
| HDMI video inputs |
|
| Video input re-sync | On all 4 HDMI inputs. |
| Frame rate and format converters | On all 4 HDMI inputs. |
| HDMI program outputs | 1 |
| Ethernet | Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. |
| Computer interface | 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. |
Standards
| HD video input standards |
|
| HD video output standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Video streaming standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Video sampling | 4:2:2 YUV |
| Color precision | 10-bit |
| Color space | Rec 709 |
| HDMI input resolutions from computers |
|
| Colorspace conversion | Hardware based real time |
Product Specifications
| Upstream keyers | 1 |
| Downstream keyers | 1 |
| Advanced chroma keyers | 1 |
| Linear/Luma keyers | 2 |
| Transition keyer | DVE only. |
| Total number of layer | 5 |
| Pattern generators | 1 |
| Color generators | 2 |
| DVE with borders and drop shadow | 1 |
| Interface | Minimum monitor resolution of 1366 x 768 |
Audio
| Audio mixer |
|
| Analog input | Unbalanced stereo |
| Analog input delay | Up to 8 frames |
| Input impedance | 1.8k |
| Max input level | +6dBV |
| Mic plug in power | Available on both 3.5mm mini jack connections |
Streaming
| Direct streaming | ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP). |
Recording
| Direct recording video and audio | USB-C 3.1 Gen 1 expansion port can record directly to external media. |
| Video recording |
|
| Audio recording | 6 x 2 channel audio inputs recorded as seperate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs. |
| Switching | Program switching recorded as a DaVinci Resolve project .drp file. |
| Media format | Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system. |
Multi View Monitoring
| Multi view monitoring | 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. |
| Multi view video standard | HD |
Media Player
| Media players | 1 |
| Channels | Fill and key for each Media Player. |
| Media pool still image capacity | 20 with fill and key. |
| Media pool still image format | PNG, TGA, BMP, GIF, JPEG and TIFF. |
Control
| Control panel | Built in control panel. Software control panel with camera control included. Supports optional hardware panel. |
| Control panel connection | Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software. |
| Control panel compatibilty | Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. |
| Control Panel included | ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only. |
Software
| Software updates | Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility. |
| Configuration | Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis. |
Power Requirements
| Power supply | 1 x External 12V power supply. |
| Power usage | 36W |
Environmental Specifications
| Operating temperature | 5 to 40 degree-C (41 to 104 degree-F) |
| Storage temperature | -10 to 60 degree-C (14 to 140 degree-F) |
| Relative humidity | 0% to 90% non-condensing |
Koah Weatherproof Hard Case with Customizable Foam
| Construction | High-quality polypropylene |
| Foam | Customizable |
| Design | Latches |
| Pressure relief valve | Yes |
| Shockproof | Yes |
| Waterproof | Yes |
| Dimensions | 13 x 11 x 6 Inch |
Knox Gear Nylon-Braided 4K High-Speed HDMI Cable with Ethernet
| Type of cable | HDMI |
| Length | 6-foot |
| Connector gender | Male-to-Male |
| Data transfer rate | 18 Gigabits per second |
| Cable supports | 4K, Ethernet, and ARC |
| Compatible devices | TV, PC, PlayStation, Xbox |
| Color | Blue |

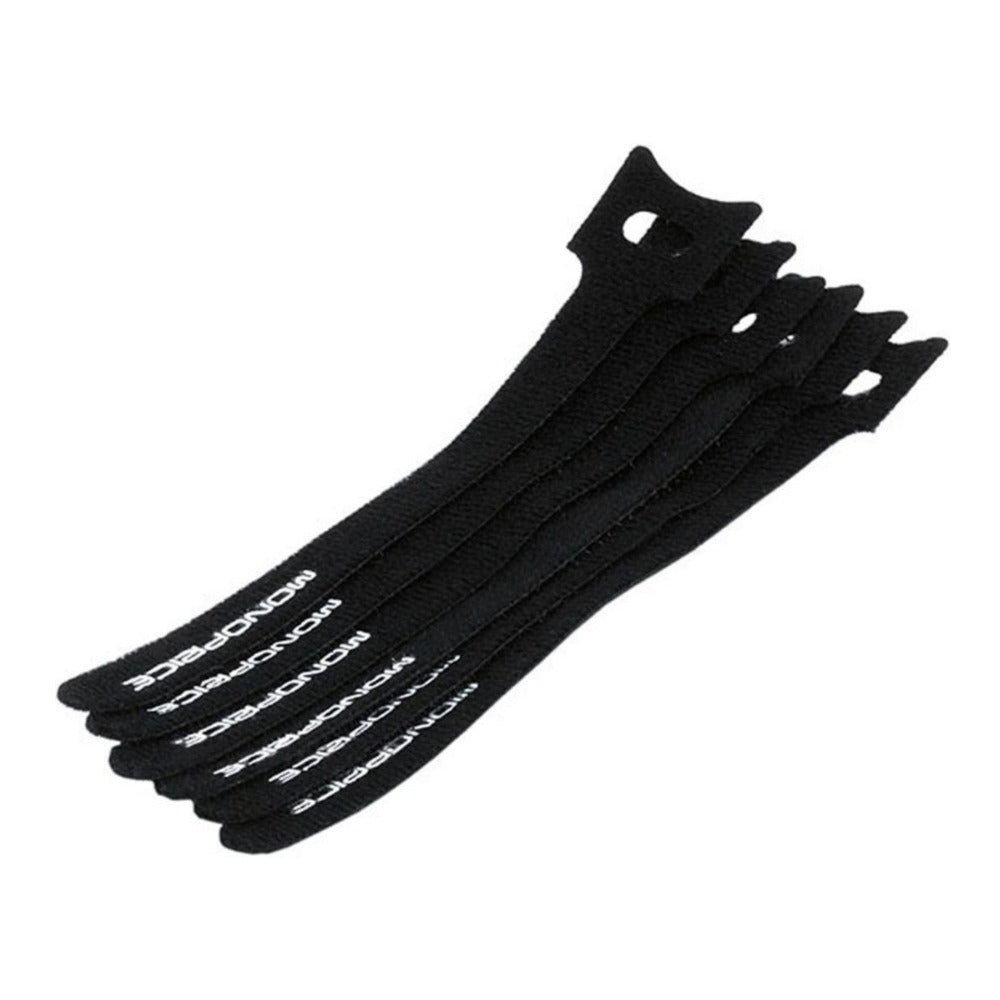

Monoprice 6-Inch Hook and Loop Fastening Cable Ties
| Length | 6 inch |
| Number of pieces | 10 |
| Color | Black |
