- Brydge Stone Pro TB5
- Universal Power Adapter (180W)
- Thunderbolt 5 Cable
- User Manual
Please note that Laptop, external display cables, and M.2 SSD are not included.
Trusted & Verified

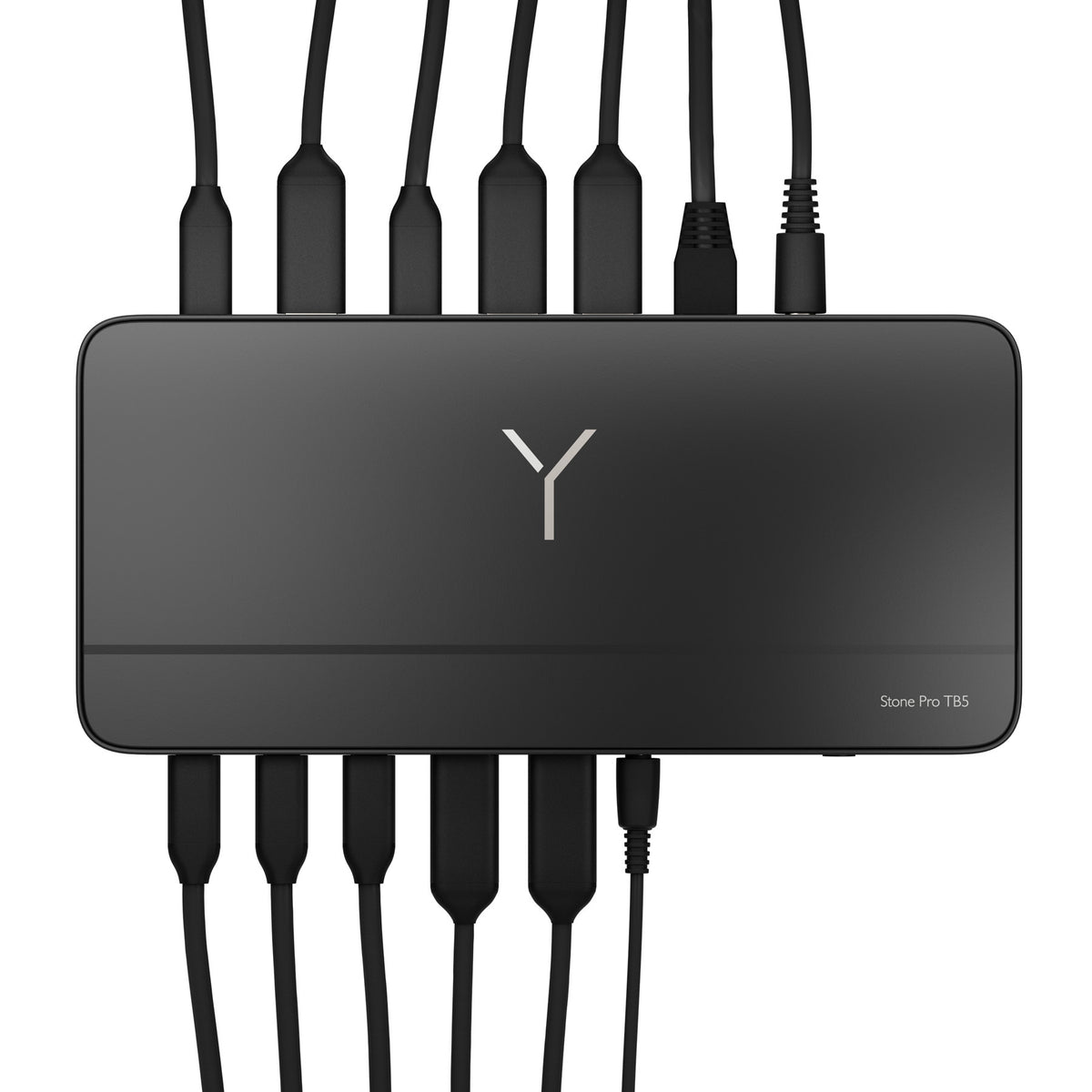

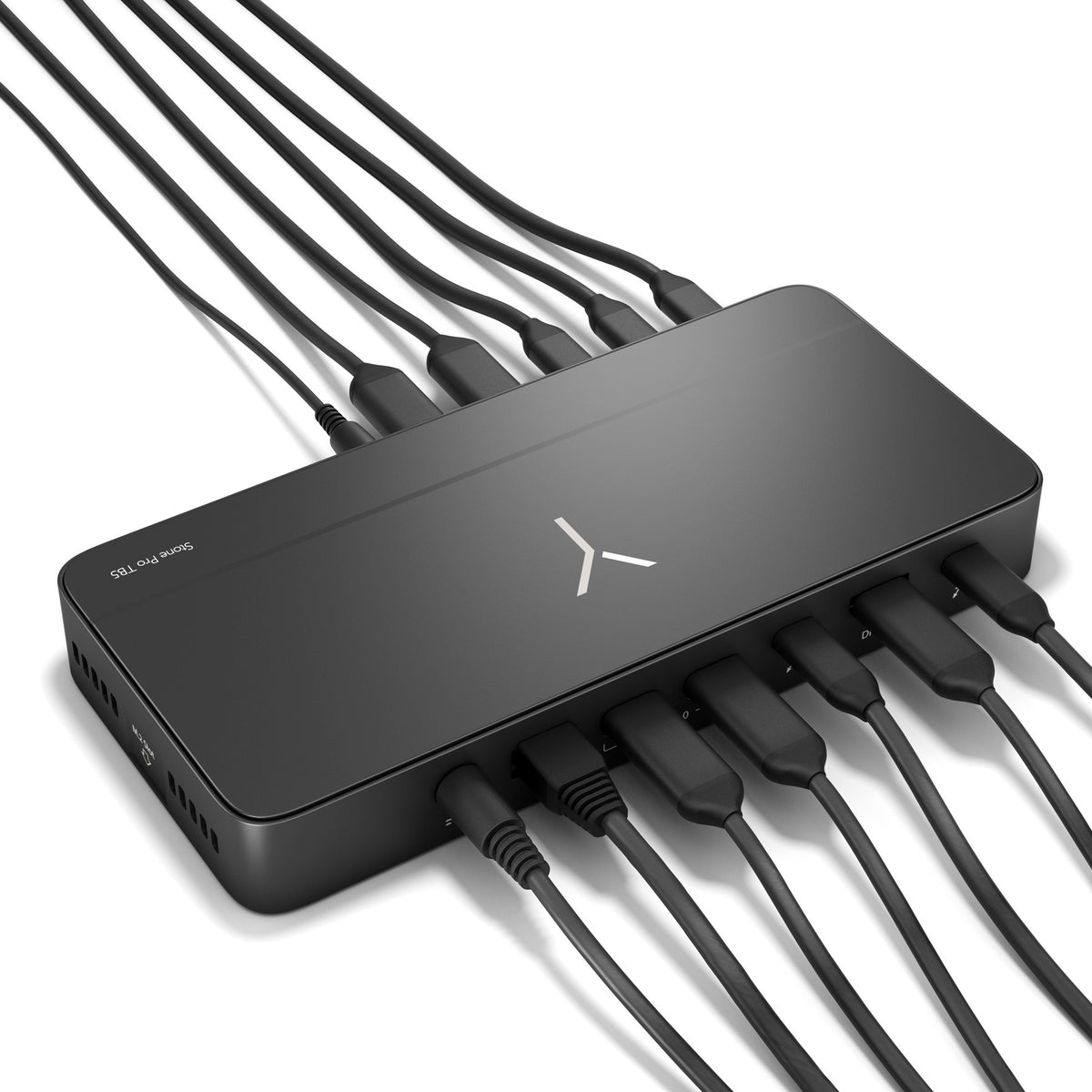

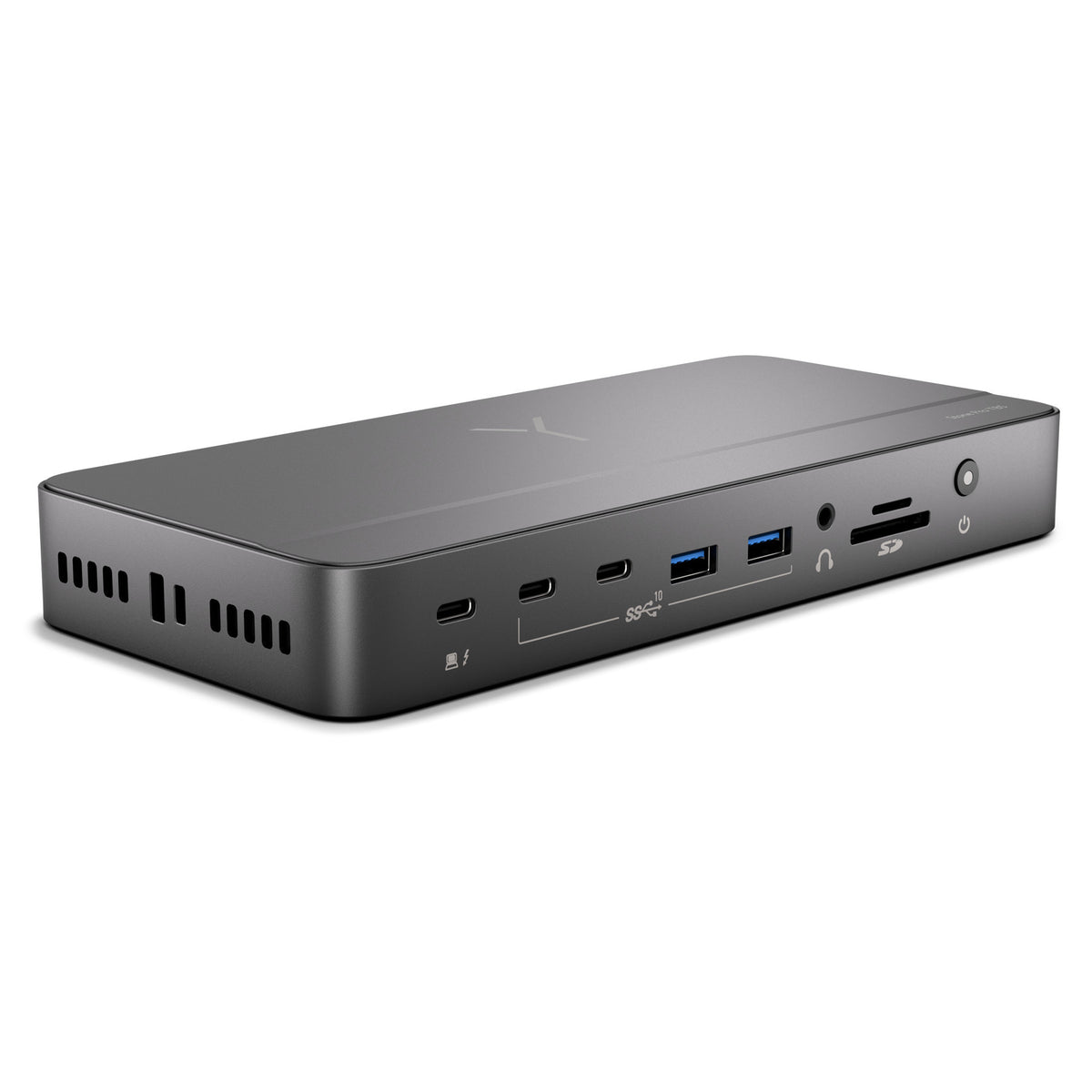

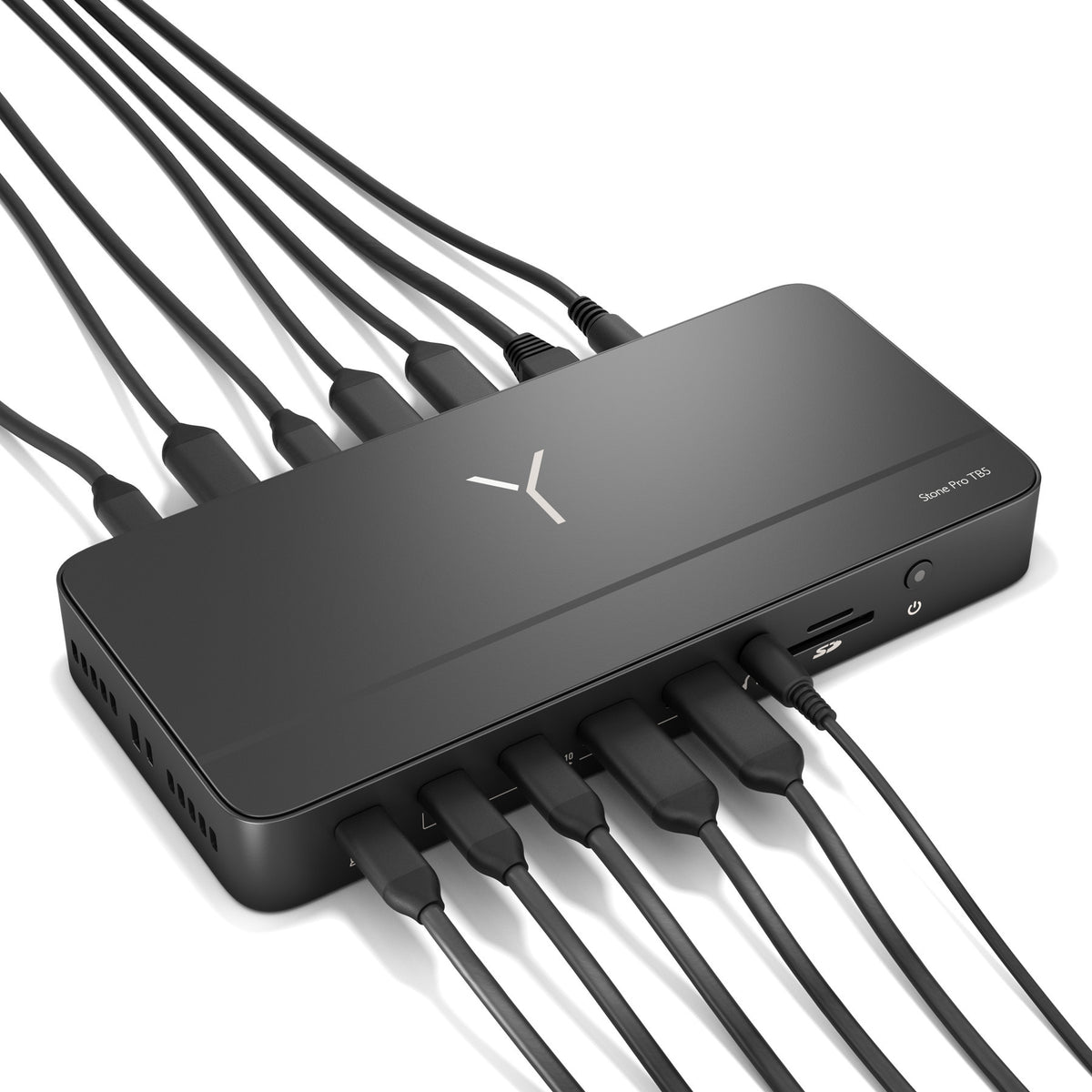

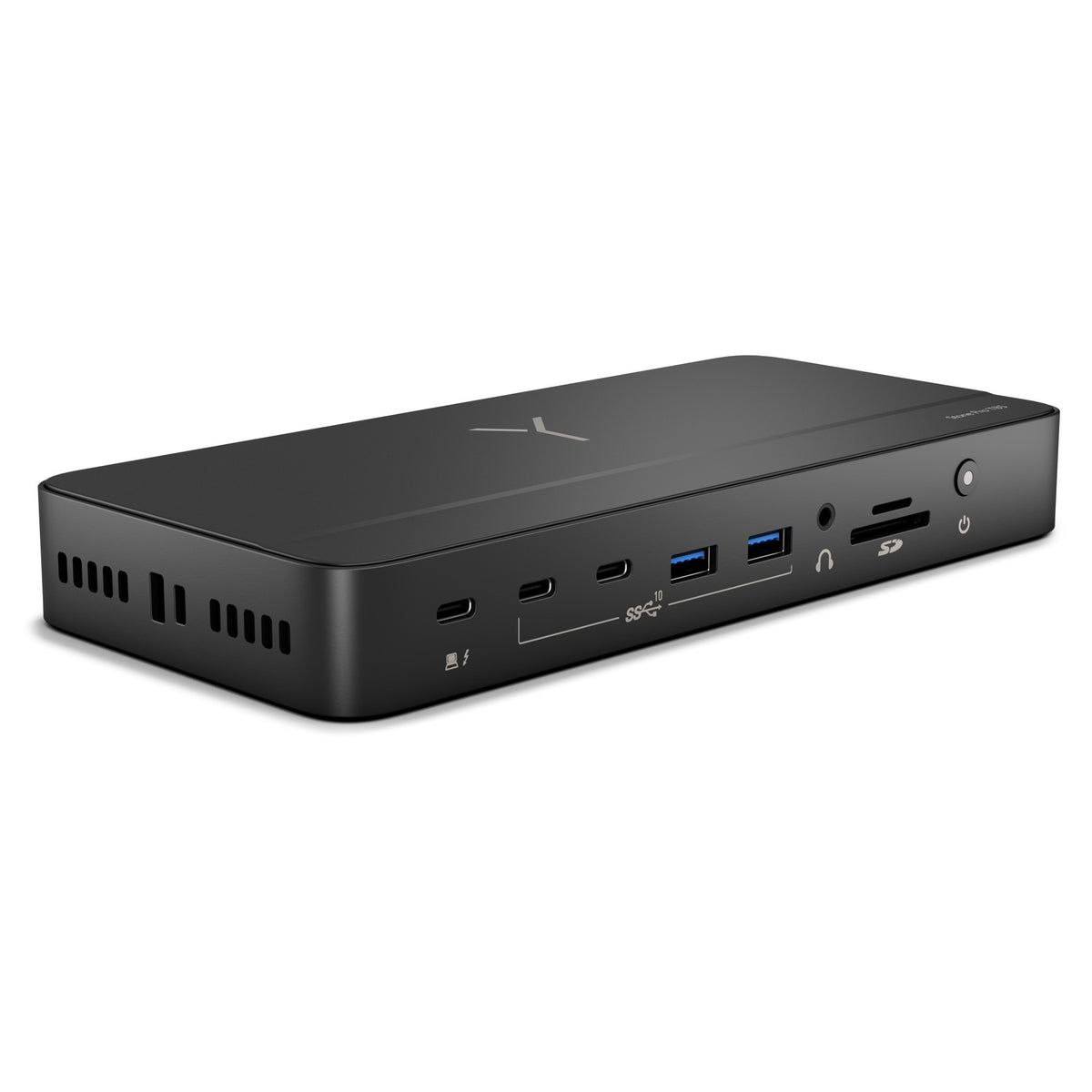

Brydge Stone Pro TB5 Thunderbolt 5 Docking Station (Black)
- Thunderbolt 5 dock compatible with Mac and Windows devices.
- Drive triple 4K displays at 144Hz or dual 8K displays at 60Hz.
- Delivers up to 140W of charging power to your connected laptop.
- Features 80Gbps data transfer speeds for rapid file access.
- Includes a built-in M.2 SSD slot for expandable storage.
- Equipped with a 2.5Gb Ethernet port for high-speed wired networking.
- Offers a total of 14 ports for extensive connectivity options.
- Actively cooled design ensures optimal performance during demanding tasks.
Thunderbolt 5 Docking Station for Mac and Windows
The Brydge Stone Pro TB5 brings display, power, storage, networking, and peripheral connections into one 14-port dock. It delivers 80Gbps Thunderbolt 5 bandwidth with up to 120Gbps Bandwidth Boost for display-intensive workflows and provides up to 140W Power Delivery to a compatible laptop.
Triple 4K and Dual 8K Display Support
Connect up to three 4K displays at 144Hz or two 8K displays at 60Hz through DisplayPort 2.1 and compatible USB-C display outputs. Display support depends on the host computer; base Apple M-series MacBook Air and MacBook Pro models are limited by Apple to one external display.
Built-In M.2 NVMe Storage Expansion
Add an M.2 NVMe PCIe Gen4x4 SSD for storage speeds up to 7,000 MB/s. The internal slot is actively cooled to support sustained performance during large transfers. M.2 SSD sold separately.
14 Ports for a Complete Workstation
Connect Thunderbolt 5, DisplayPort 2.1, USB-C, USB-A, 2.5Gb Ethernet, SD 4.0, and 3.5mm audio through a single dock. The Stone Pro TB5 is compatible with macOS and Windows, with backward compatibility for Thunderbolt 4 and USB4 hosts.
Compatibility
| Operating Systems | macOS and Windows |
| Host Compatibility | Thunderbolt 5; backward compatible with Thunderbolt 4 and USB4 |
| Thunderbolt 5 Performance | 80Gbps with up to 120Gbps Bandwidth Boost |
| Display Support | Up to three 4K displays at 144Hz or two 8K displays at 60Hz |
| Display Connections | DisplayPort 2.1 and compatible USB-C display outputs |
| Mac Display Note | MacBook Air and MacBook Pro models with base Apple M-series chips are limited by Apple to one external display |
Ports and Controls
| 1 x Upstream Thunderbolt 5 | 80Gbps, up to 120Gbps Bandwidth Boost, up to 140W PD charging |
| 2 x Thunderbolt 5 | 80Gbps, 15W PD |
| 1 x DisplayPort 2.1 | Up to 8K at 60Hz, backward compatible with earlier DisplayPort versions |
| 1 x M.2 Slot | NVMe PCIe Gen4x4, up to 7,000 MB/s, actively cooled |
| 1 x RJ45 Ethernet | 2.5Gbps |
| 1 x SD Card Reader | SD 4.0, up to 2.4Gbps / 300 MB/s |
| 2 x USB-C 3.1 Gen 1 | 10Gbps, 7.5W |
| 2 x USB-A 3.1 | 10Gbps, 7.5W |
| 2 x USB-A 2.0 | |
| 1 x 3.5mm Audio/Mic Combo Jack | |
| 1 x Power Button |
Storage
| SSD Type | M.2 NVMe PCIe Gen4x4 |
| Storage Speed | Up to 7,000 MB/s depending on installed drive |
| Cooling | Active thermal management |
| M.2 SSD | Sold separately |
Physical Specifications
| Body Material | Aluminum / Plastic |
| Length | 8.78 in (223 mm) |
| Width | 3.82 in (97 mm) |
| Height | 0.96 in (24.5 mm) |
| Weight | 0.81 lb (367 g) |
Power
| DC Power Input | 20V / 9A |
| Maximum Adapter Power | 180W |
| Laptop Power Delivery | Up to 140W |
| Power Adapter | Universal 180W Power Adapter |
Recommended Display Setup
| Thunderbolt or USB-C Monitors | Use Thunderbolt USB-C to USB-C cables; display cables are not included |
| HDMI Monitors | Use a USB-C to HDMI cable; cable is not included |
| 8K Display | Use DisplayPort 2.1 with a DP 2.1-rated cable |
Warranty
| 1-Year Limited Warranty |
