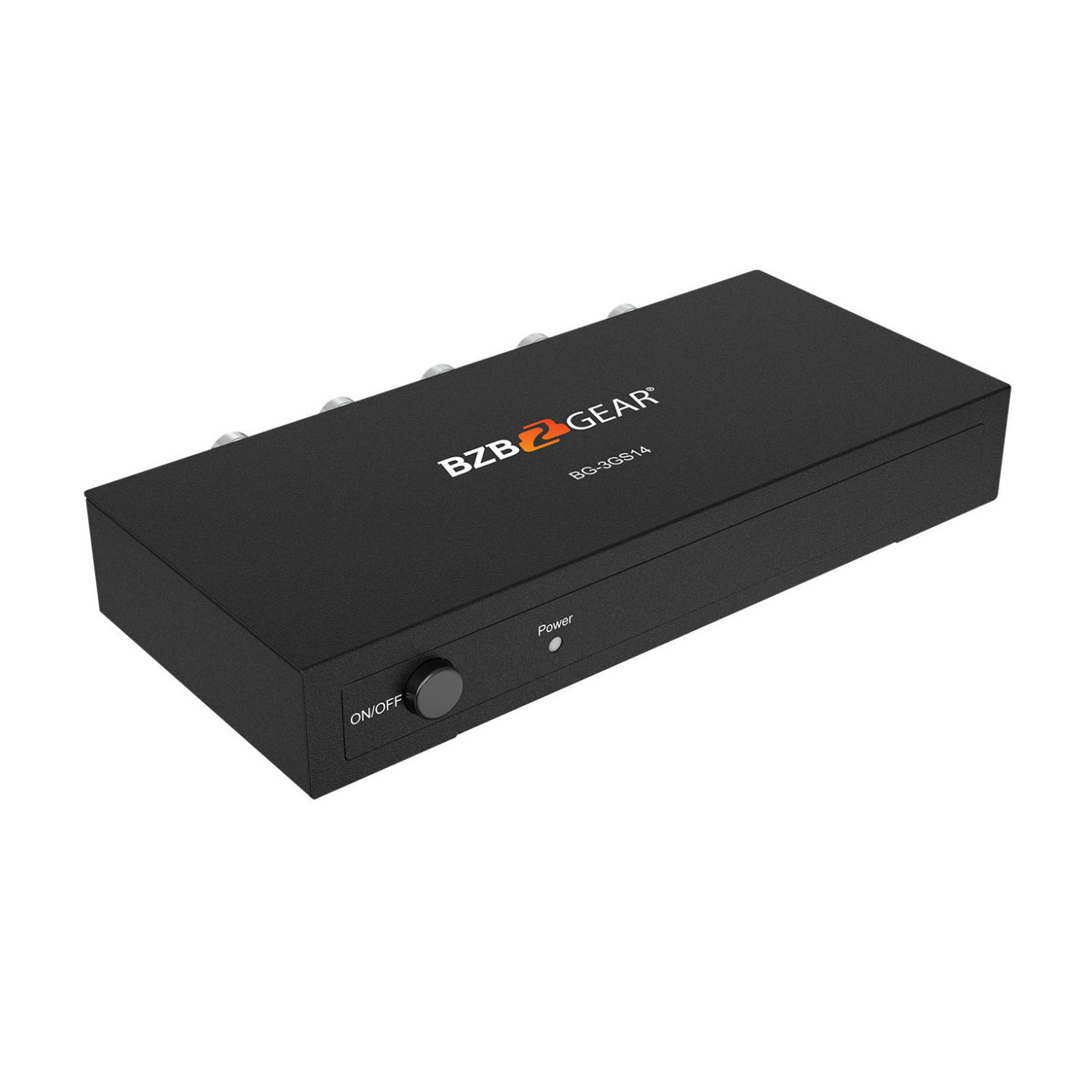

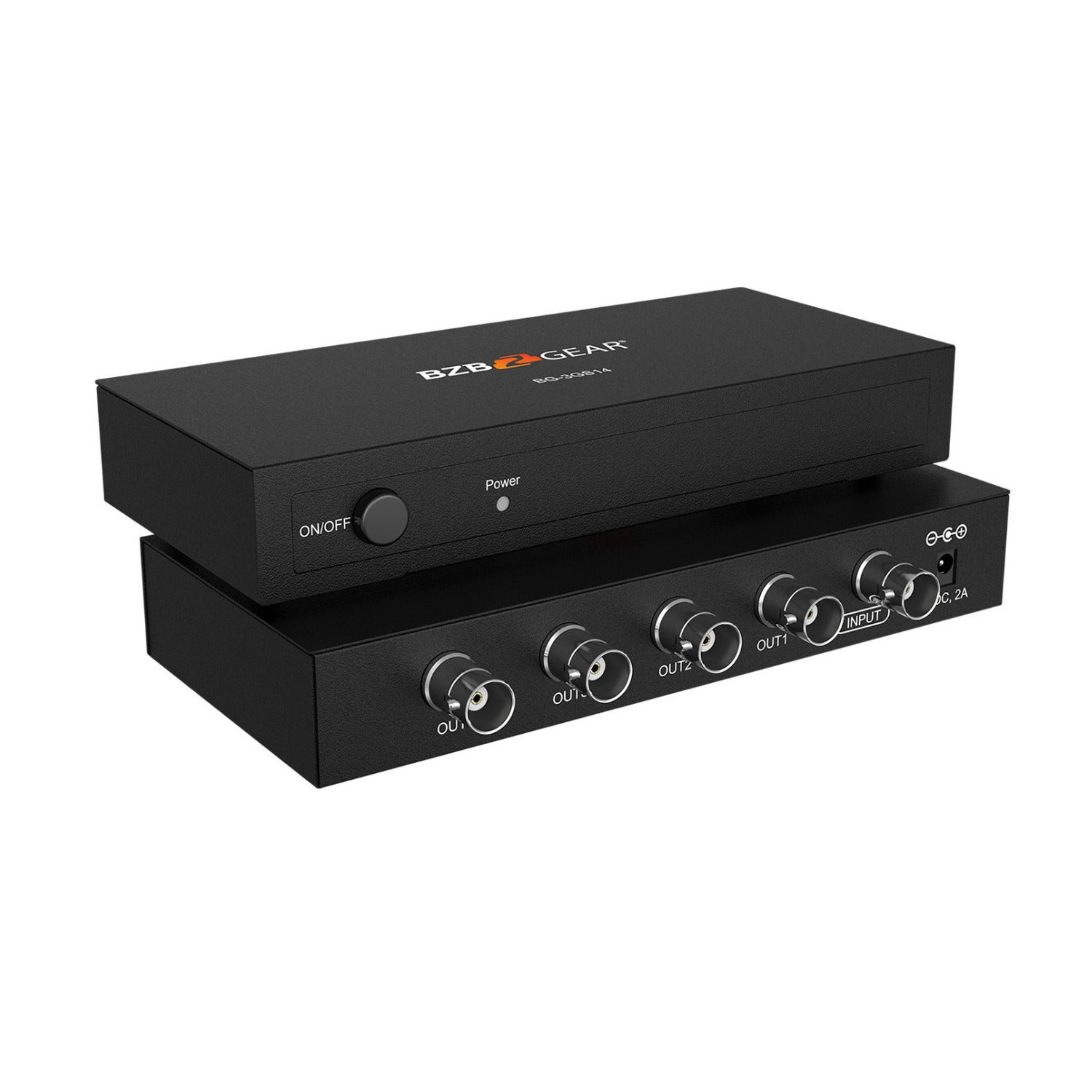

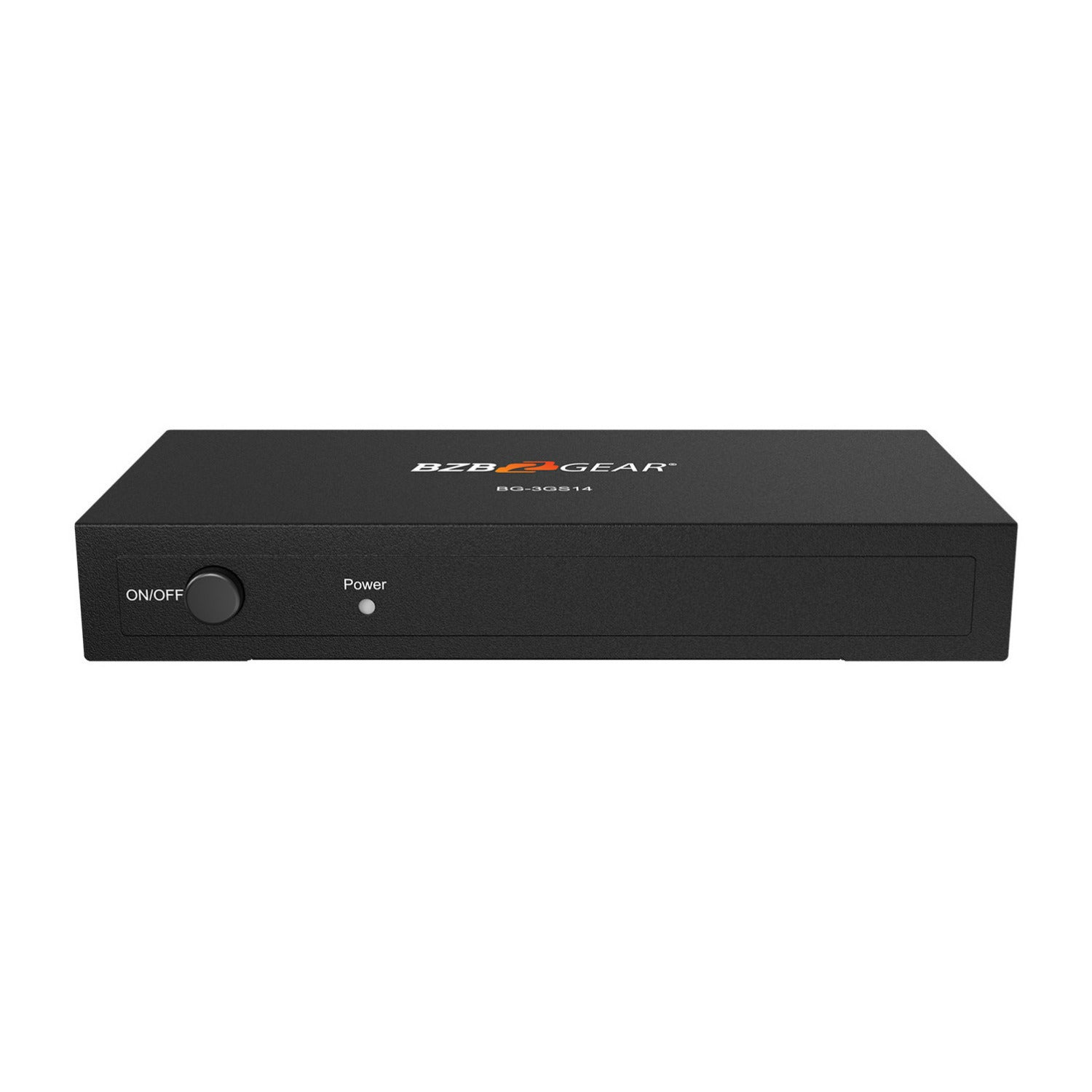

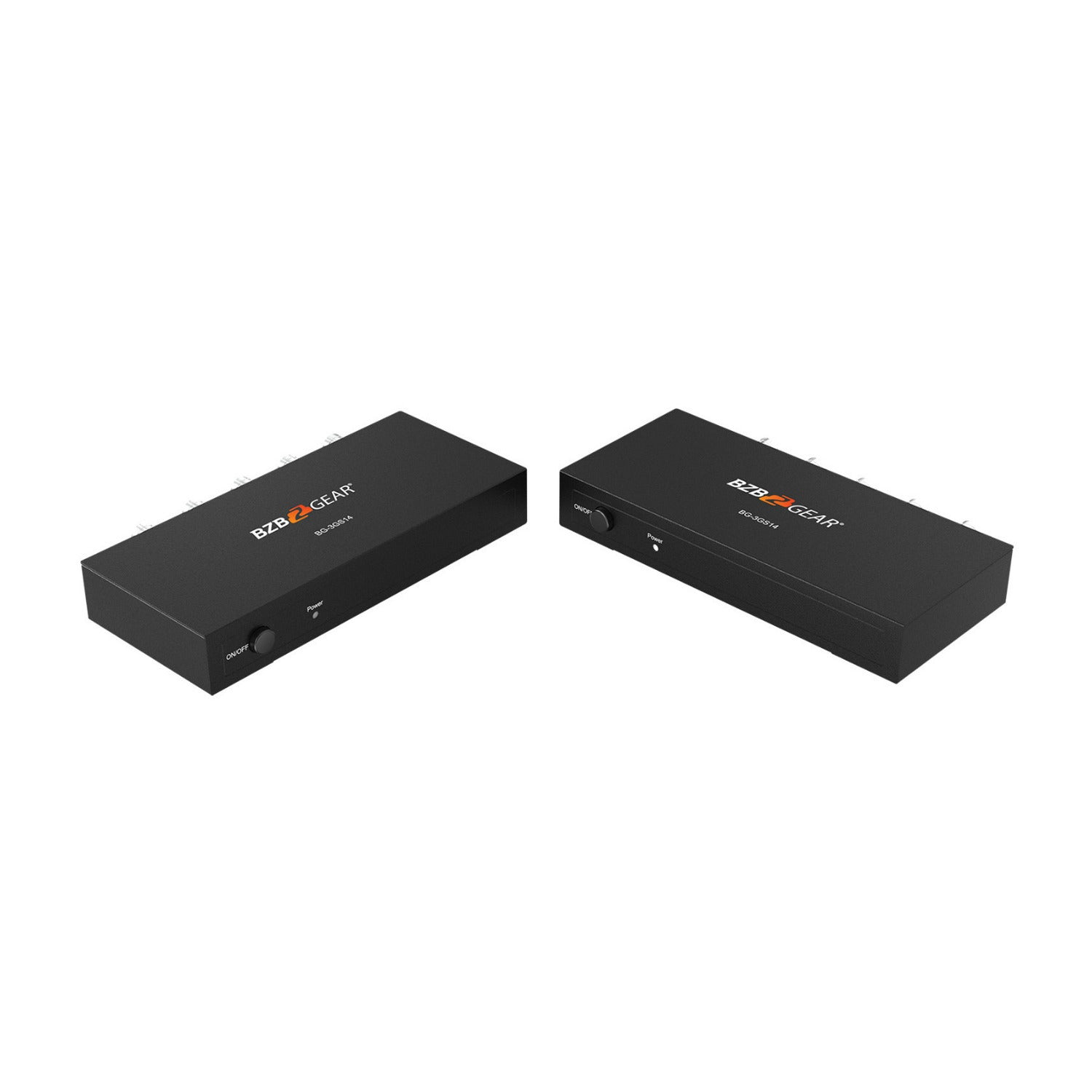

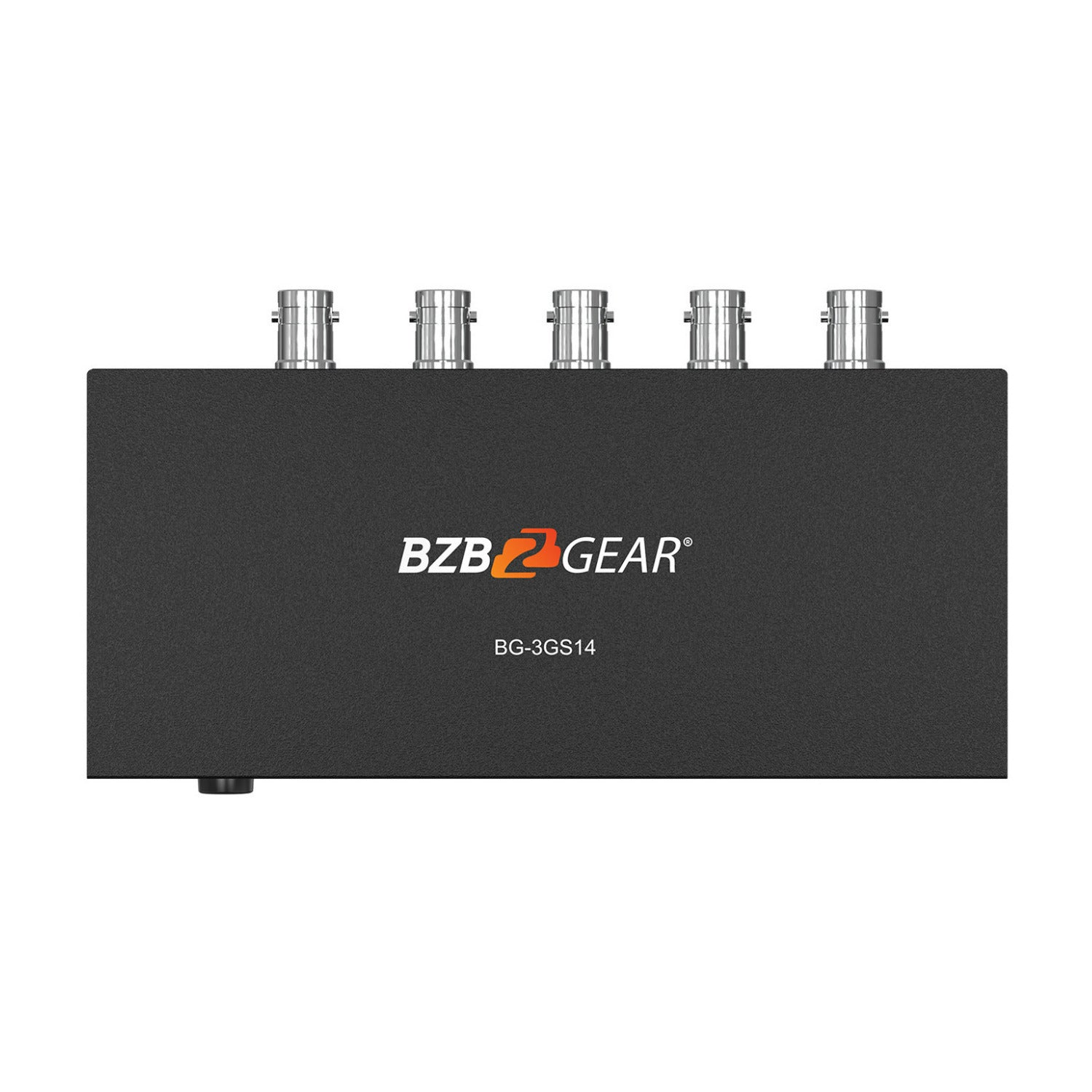

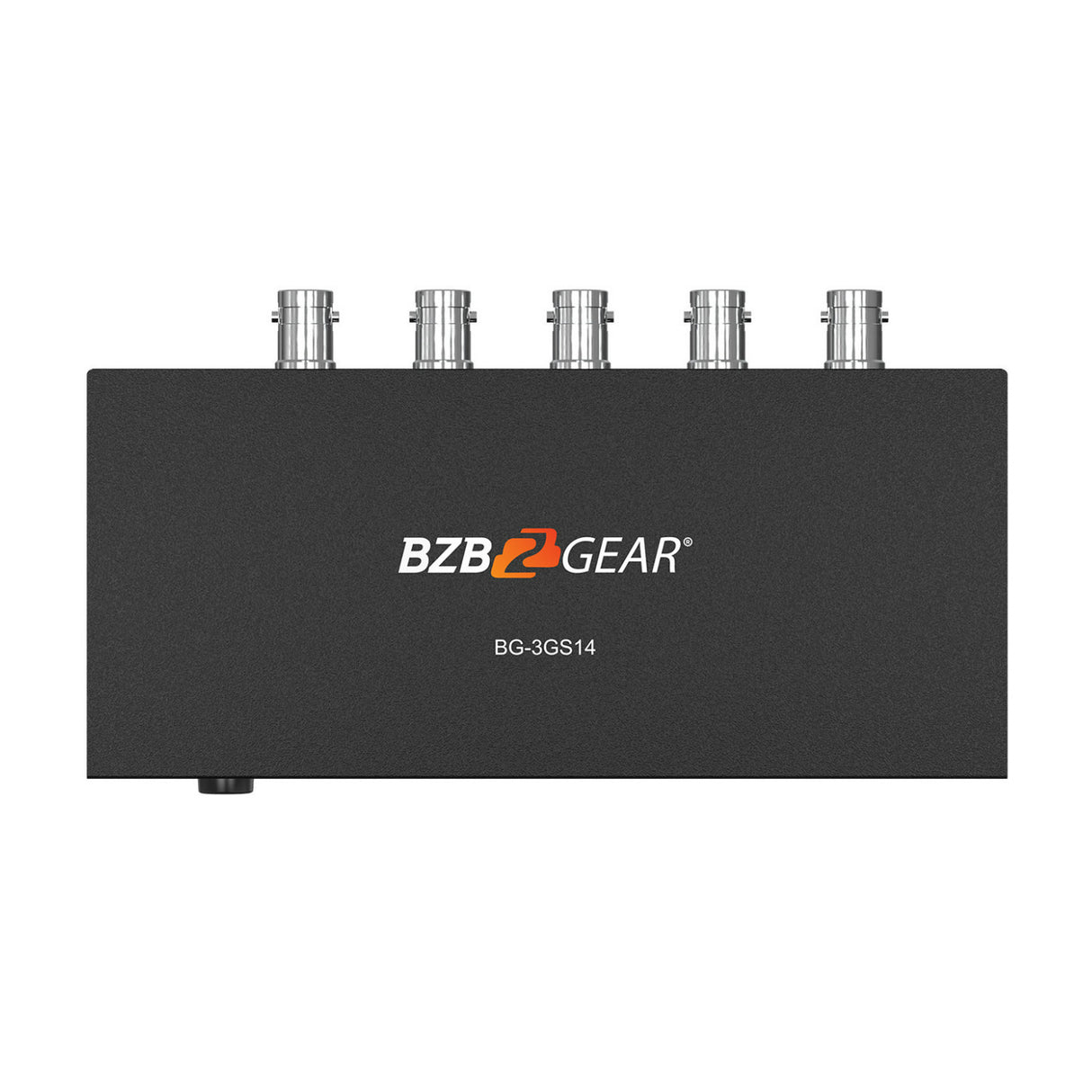

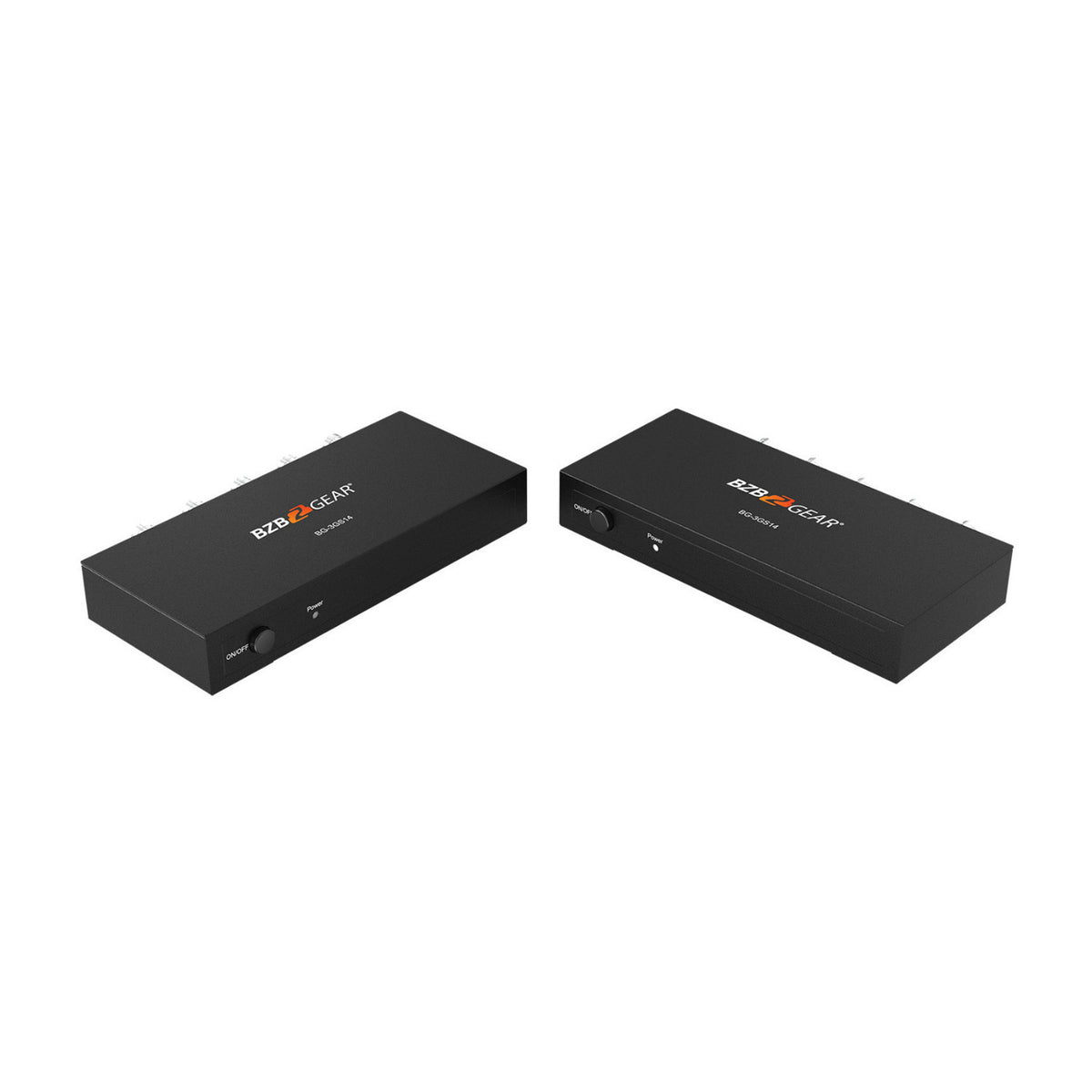

The BZBGear BG-3GS14 Splitter is a 1x4 3G-SDI Splitter that splits one SDI input into four SDI outputs simultaneously. With a signal relocking feature, it can also extend a video signal for long-distance transmission. This reliable and powerful tool provides consistent connections in a variety of different scenarios, like adding multiple outputs for monitoring a video feed on different displays, splitting the signal and cascading to multiple displays, or extending an SDI signal.
Connectivity and Features
The BG-3GS14 supports a maximum resolution of 1080p at 60Hz with the 3G-SDI signal. The device also supports a wide range of data rates from 270 Mbps at the low end to a maximum bandwidth of 2.97 Gbps. There is also support for multiple deep color settings such as 8-bit, 10-bit, and 12-bit. This splitter can also maintain SD signals for up to 200m, HD signals for 120m, and 3G for up to 80m. Multiple video resolutions are also available with this unit, including SD 480i, 576i and 625i, HD 720pat 24/25/30/50/60, 1080i at 50/60, 1080p at 24/25/30, and 3G 1080p at 50/60. It further supports multiple color spaces, including RGB or YCbCr 4:4:4 sampled, YCbCr 4:2:2 or 4:2:0 sampled.
Interlocking Design
This quality SDI connector provides reliability due to its interlocking design. This prevents SDI cables from being dislodged from the unit via accidental forces or from loose connections.
General
| Configuration | Core |
| AC Input Power | 5V DC |
| Ports | 1 |
Audio
| Tone Adjustment | No |
- 3G mode up to 80 m
- HD mode up to 120 m
- SD mode SD mode up to 200 m
BZBGear 3G-SDI 1 x 4 Splitter
Signal Input and Output
| Input connector | 1 x SDI BNC male |
| Output connector | 4 x SDI BNC male |
| SDI cable distance (RG59 cable) |
Mechanical
| Size (L x W x H) | 6.1 x 3.4 x 9.4 inch (155 x 86 x 23.5 mm) |
| Weight (net) | 0.6 lb (266 g) |
Environmental
| Operating temperature | 32 to 158-degree-F (0 to 70-degree-C) |
| Operating humidity | 10 to 85% RH (no |
| condensation) | |
| Storage temperature | 14 to 176-degree-F (-10 to 80-degree-C) |
| Storage humidity | 5 to 90% RH (no condensation) |
Power Requirement
| External power supply | 5V DC at 2A |
| Power consumption (max) | 1.2W |

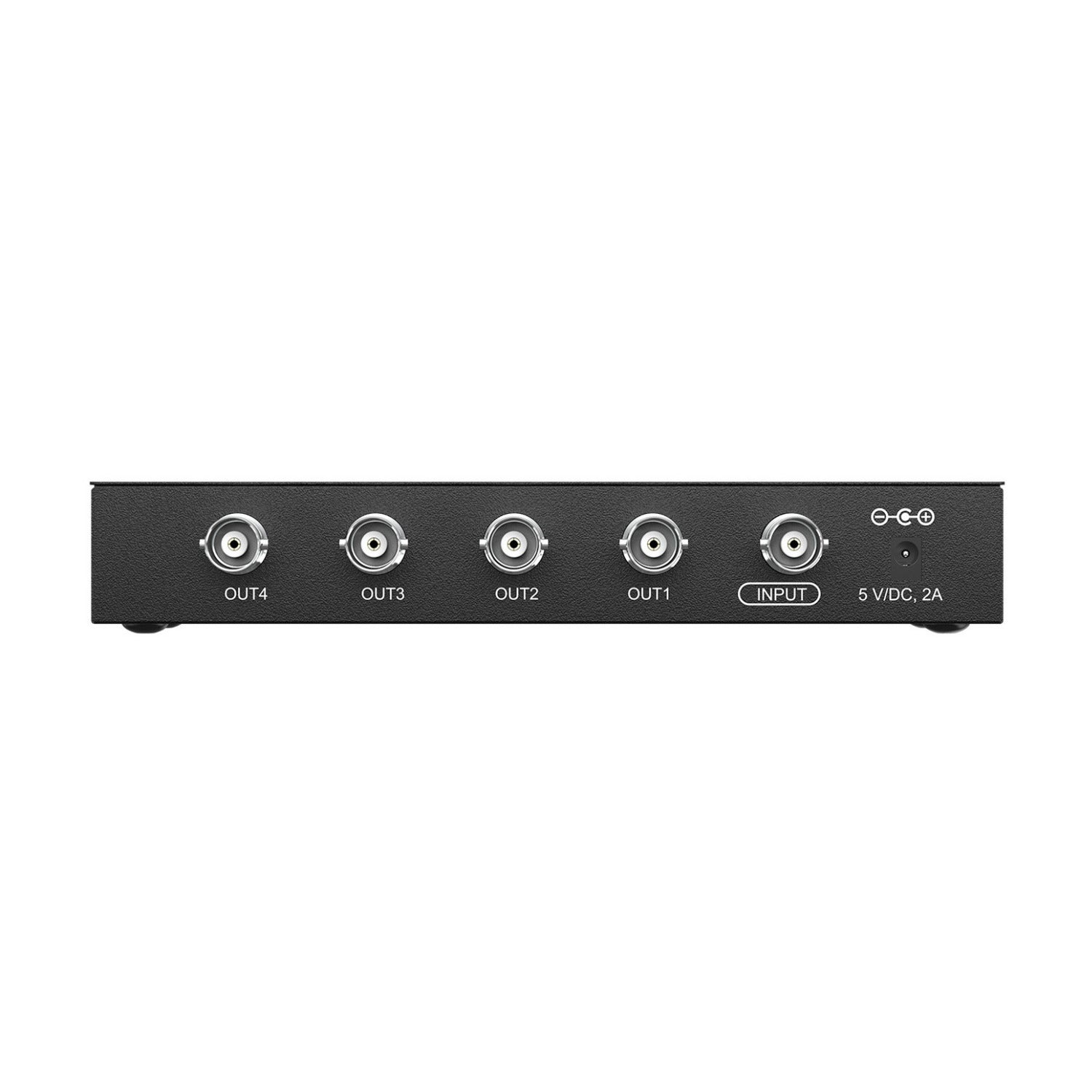

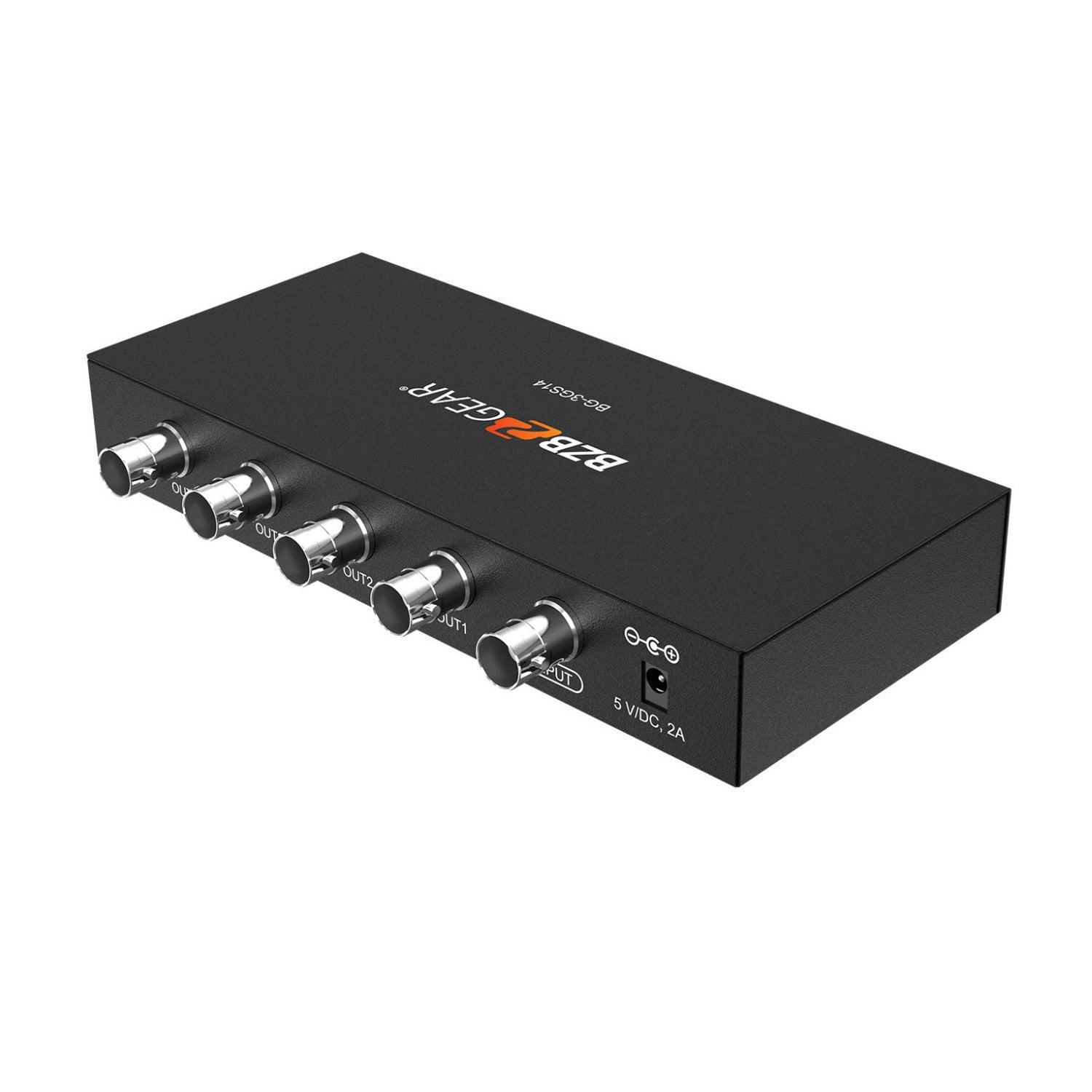

Interface:
| SDI output | Connect to SDI monitors or other SDI devices |
| SDI input | SDI input, connects to an SDI signal source, such as an SDI camera |
| DC 5V in | Power in, DC 5V/2A adapter |
Regulatory Approvals
| Converter unit | FCC, CE, UL |
| Power supply | UL, CE, FCC |
