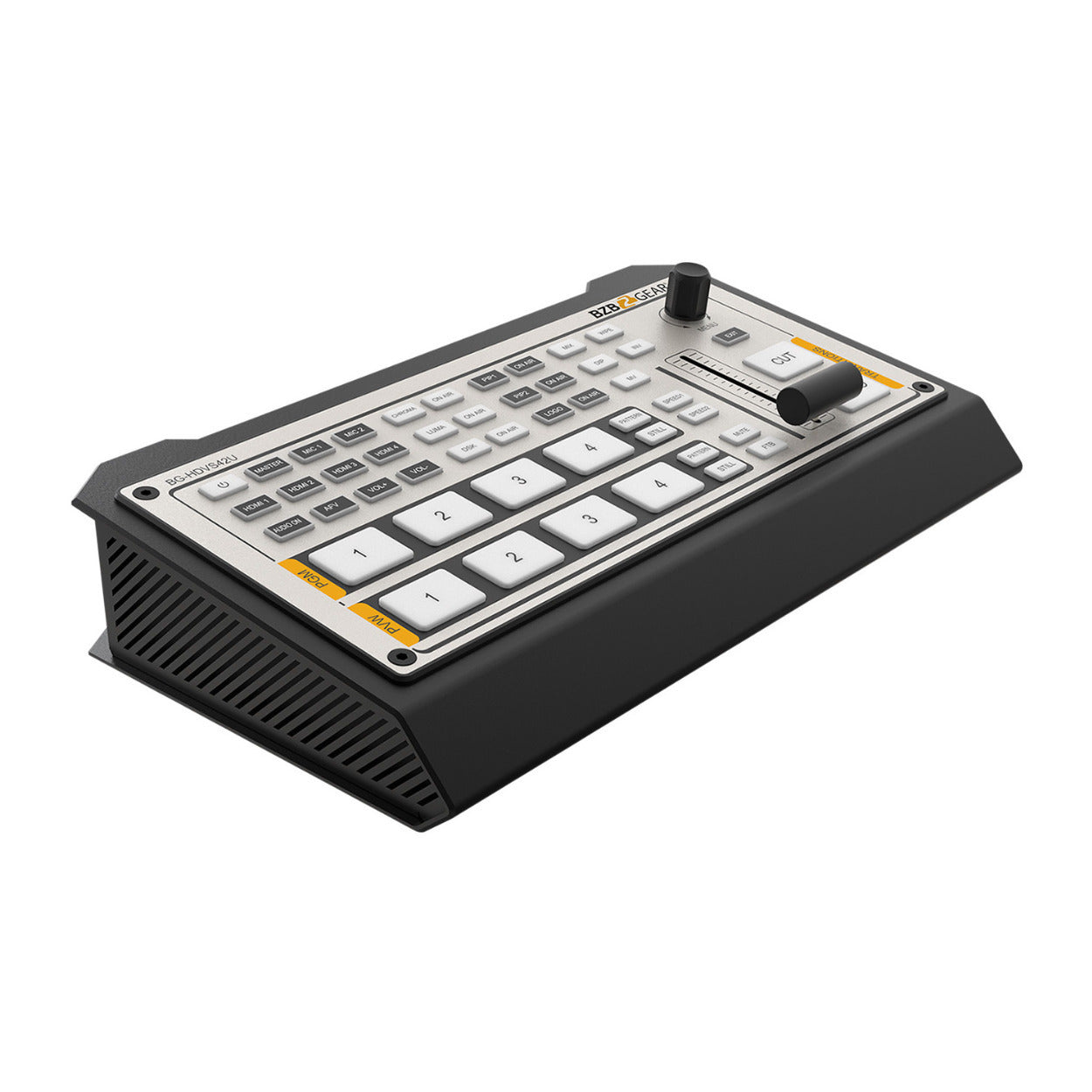

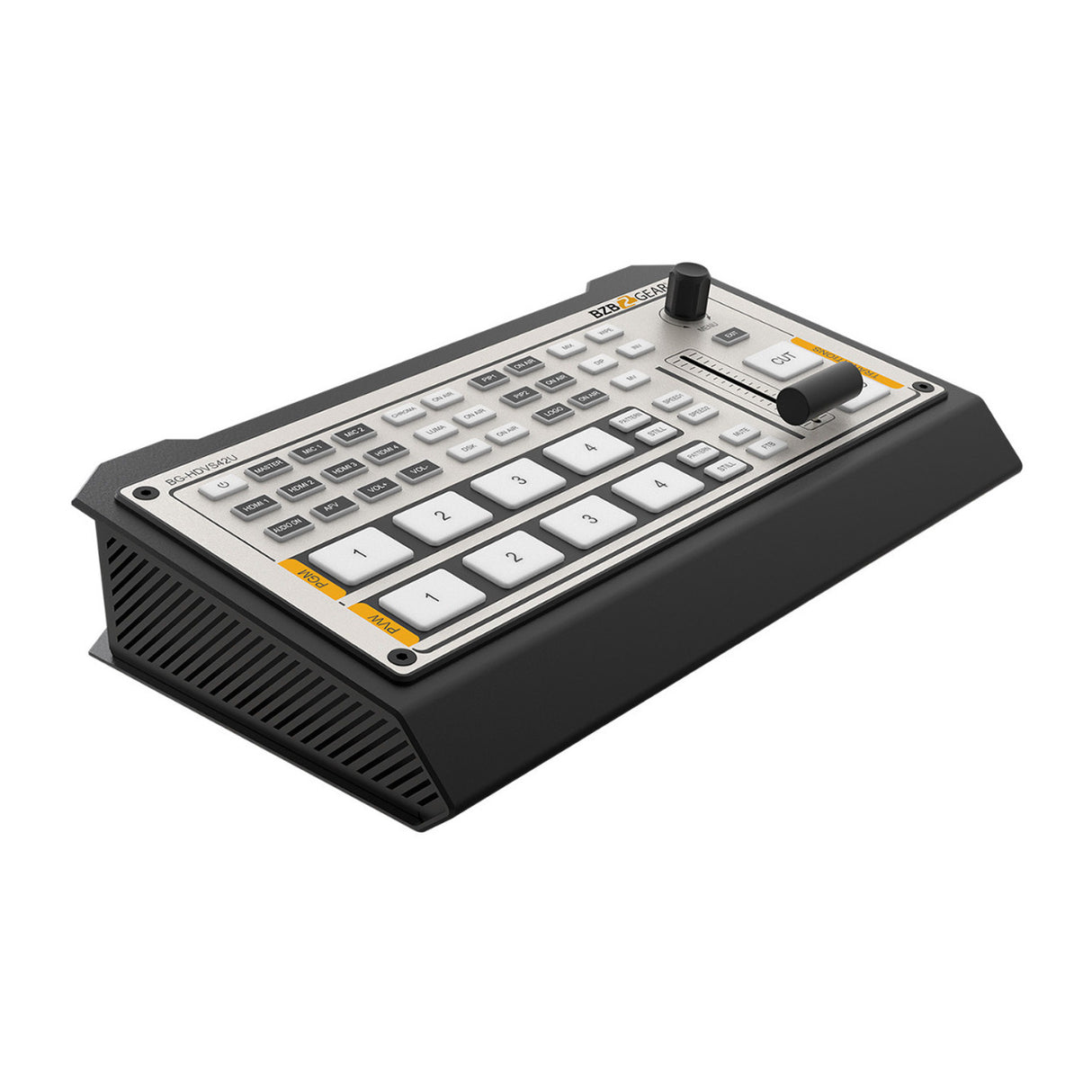

BZBGEAR 4-Channel Live Streaming Video Switcher/Audio Mixer
Compact and versatile, the BZBGear 4-Channel Live Streaming Video Switcher/Audio Mixer provides users with a powerful set of features designed to deliver professional-quality results. With full audio mixing capabilities, multiple transition options, graphic overlays, PC software utility, and USB-C program output, the BG-HDVS42U provides high-performance and tremendous value.
Connectivity and Features
The BG-HDVS42U’s four HDMI inputs support resolutions up to 1080p at 60Hz. Video outputs include one HDMI program output, one HDMI multiview output, and one USB type-C output. Audio can be de-embedded from all four HDMI sources and mixed with the two 3.5mm analog inputs. Each audio channel can be delayed to ensure proper sync with the video signal. The mixed audio is embedded into the HDMI and USB-C program outputs. The DB-15 Tally connection provides support for compatible systems.
Control
The BG-HDVS42U includes a full-featured PC control utility, offering enhanced access to all functions including switching, mixing, luma and chroma key, PIP, and POP. DSK and Logo overlays can also be controlled. A variety of transition effects include such as wipe, mix, and dip. The integrated media library comes with 49 default patterns, 16 imported images, 16 captured images, and two-color generators. Graphics can be imported and overlayed using this library, enabling operators to utilize their custom logos and overlays for video output.
General
| Color | Black |
Connections
| HDMI Inputs | 4 |
| External Ports | HDMI |
| Display Ports | 1 x HDMI |
| Ethernet | LAN |
- HDMI type-A PGM x1
- HDMI type-A Multiview x1
- USB2.0 type C x1 (Streaming on PC)
- Assignable HDMI 1~4, PGM, Clean PGM, PVW, Color bar, Multiview
- Upstream key: Luma Key x1/ Chroma Key x1/ PiP x2/ POP
- Downstream key: DSK x1/ Logo x1
- HDMI: x4 and MIC/ Line level x2
- Audio delay: 0-500ms
- Default image: 49 preset patterns
- Local image: up to 16 imported images
- Capture image: up to 16 captured images
- Pattern generator x1
- Color generators x2
- 1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98
- 1080i 50/ 59.94/ 60
- 720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98
- 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
- USB disk format support: FAT32, Ext3, Ext4, up to 256GB
- Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
- Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
- Logo size support: 10 x 10 pixel to 600 x 600 pixel
- Wide voltage: 7 to 24V
- Operating power: 12W (12V 1A)
- Working: -20 to 60-degree-C
- Storage: -30 to 70-degree-C
BZBGear 4-Channel Live Streaming Video Switcher/Audio Mixer

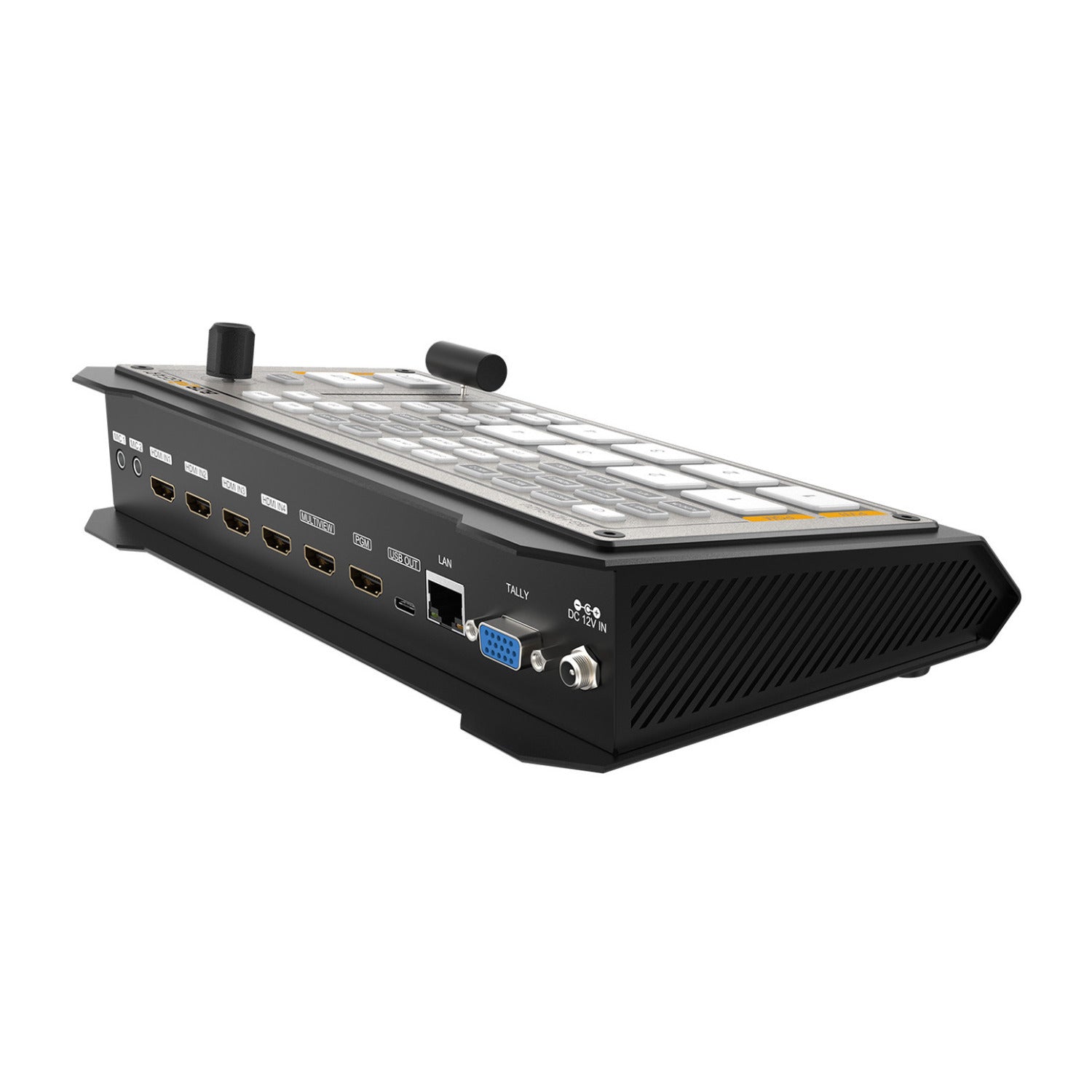

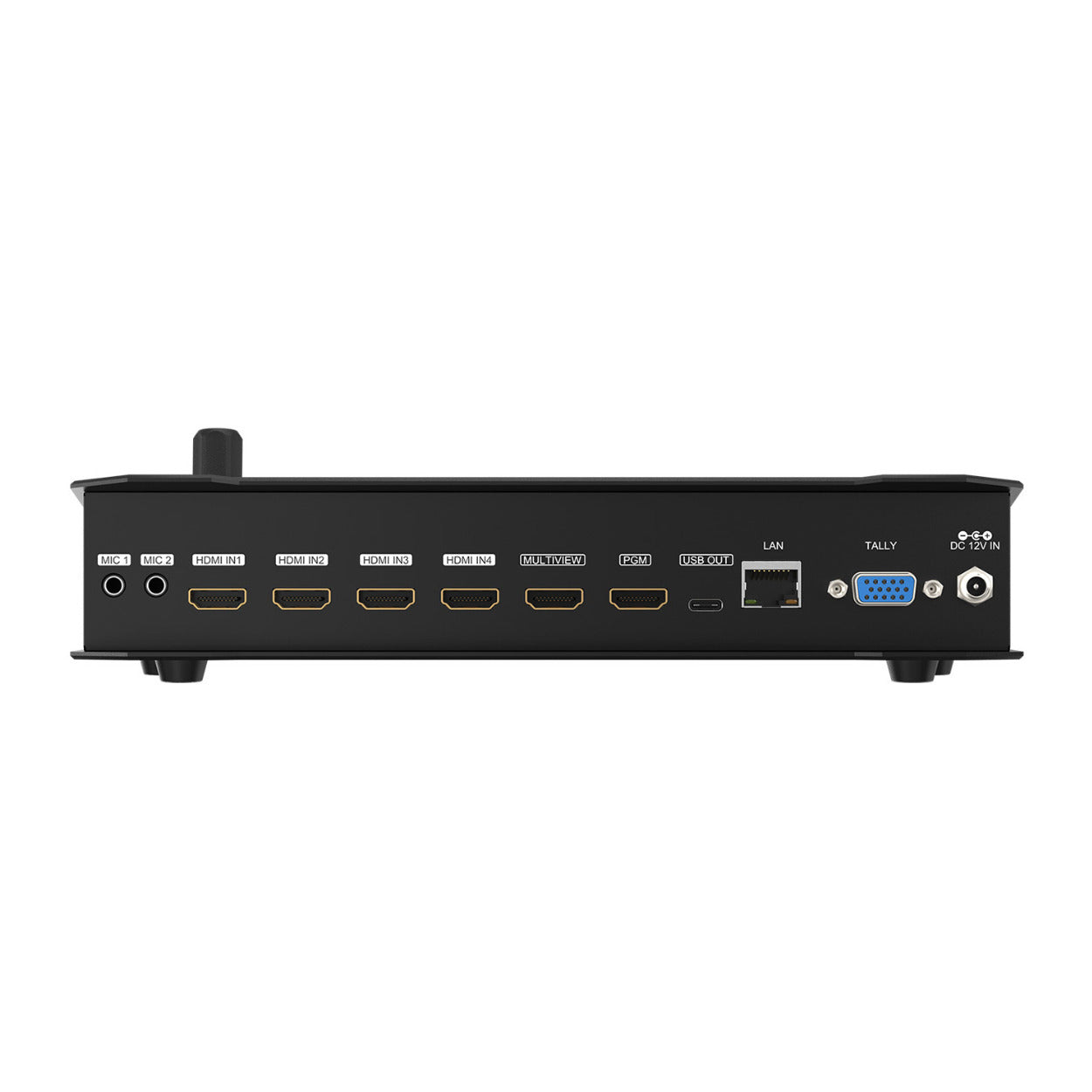

Connection
| Video in | HDMI type-A x4 |
| Video out | |
| Audio in | MIC/ Line level (3.5mm stereo audio) x2 |
| PC control port | LAN x1 |
| Media library | USB type-A x1 (USB disk port for image import and firmware upgrade) |
| Tally port | DB-15 x1 |
| Power in | DC 12V x1 |
Functions
| Transitions | T-Bar/ AUTO/ CUT |
| Effects | Wipe (9x2 patterns)/ Mix/ DIP/ Pattern/ Still (freeze)/ MUTE/ FTB |
| Layouts | 2 styles of Multiview layout (6 windows and status) |
| Keys | |
| Audio mixer | |
| Media | |
| Generators | |
Standards
| HDMI in format support | |
| HDMI PGM out | 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50 |
| HDMI multiview out | 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50 |
| HDMI color space | RGB/ YUV |
| USB capture out | MJPG, Up to 1080p at 60 |
| Media format | |
Others
| Power | |
| Dimension | 245 x 143 x 45 mm |
| Weight | 2.3 lb |
| Temperature | |
