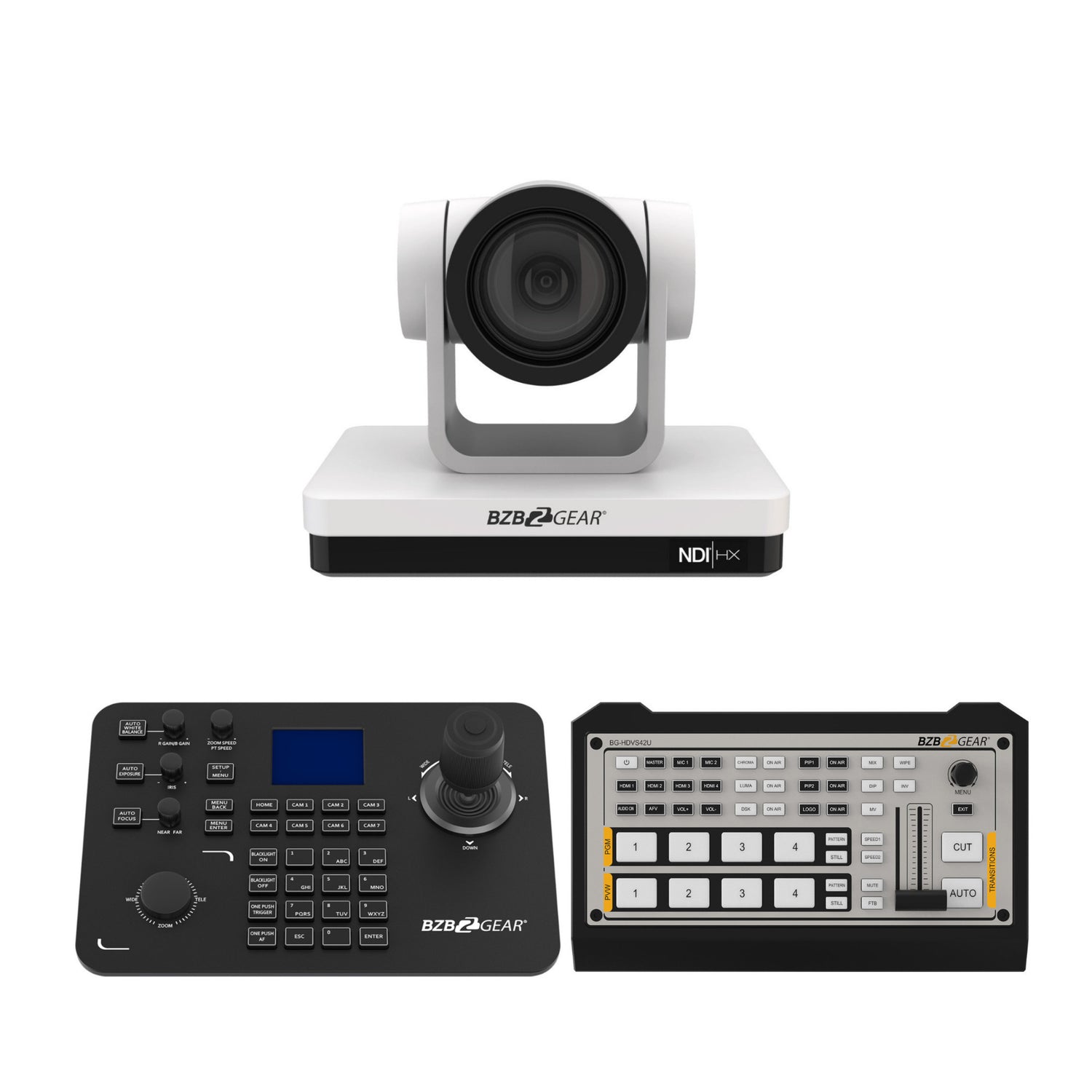

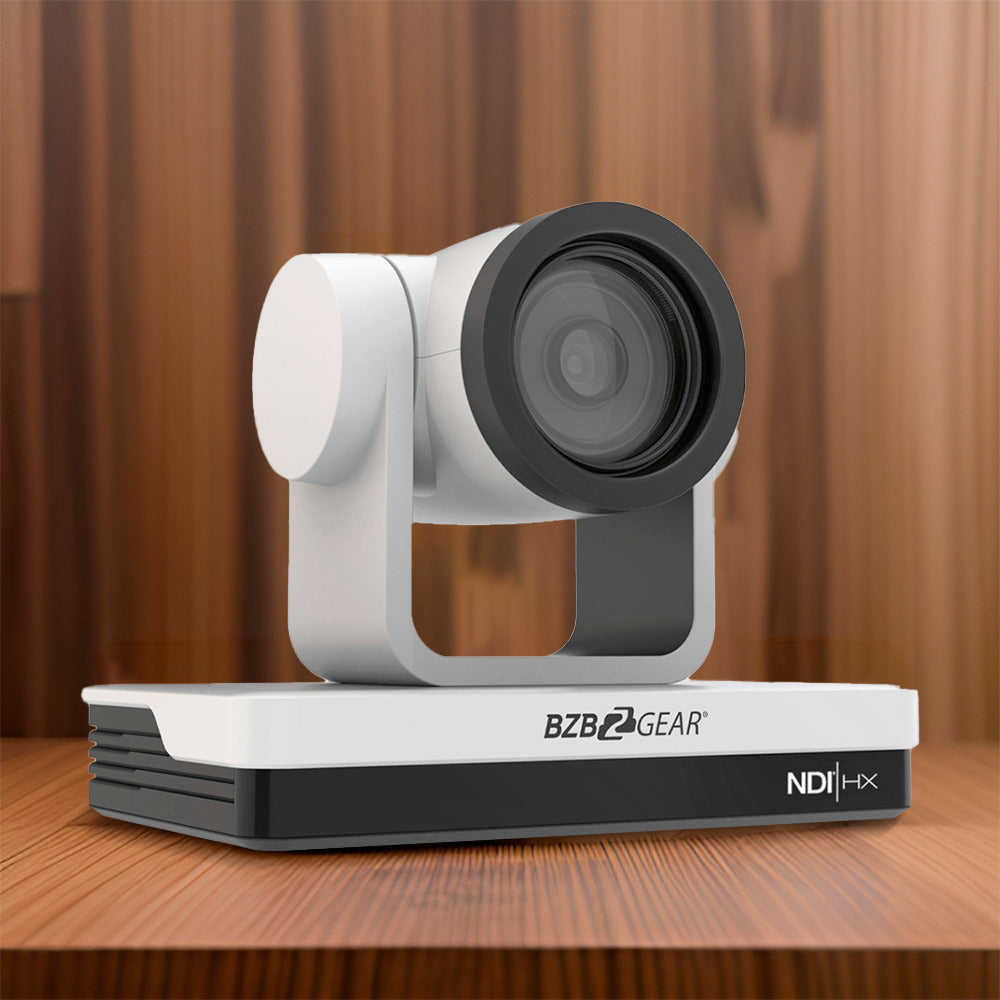

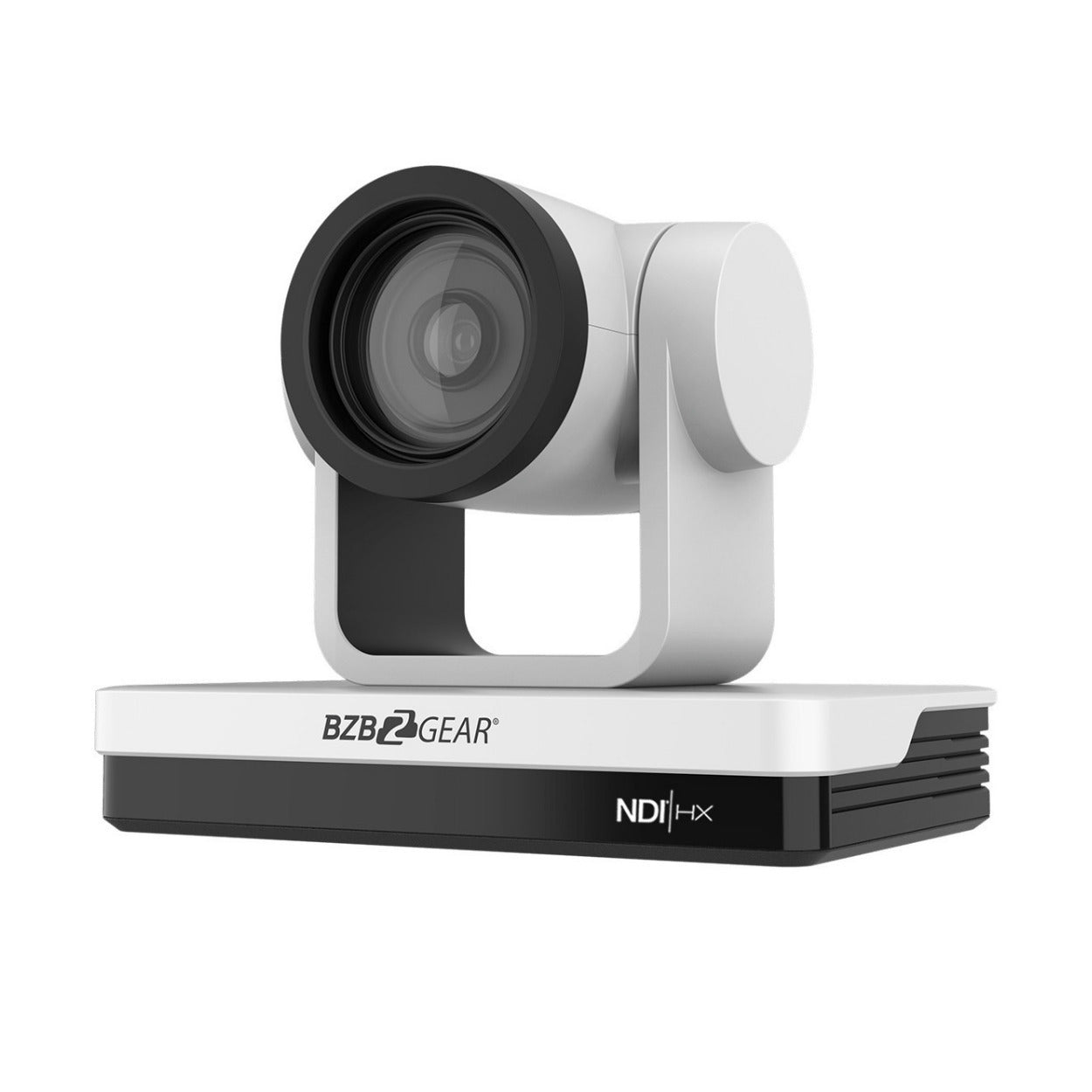

BZBGear Universal NDI/HDMI/SDI/USB Live Streaming PTZ Camera with 20x Zoom (White)

The BZBGear BG-UPTZ-ND Camera offers exceptional picture quality at resolutions up to 1080p at 60Hz with a 20x optical zoom lens that enables HD image captures at various distances supported by advanced autofocus algorithms. Thanks to a variety of video outputs including HDMI, 3G-SDI, USB 3.0, and NDI|HX, the BG-UPTZ-ND is ready to power virtually any production or live streaming platform.

Easy to Use

One of the best advantages of the BG-UPTZ-ND live-streaming camera is its ease of use. Users of this device enjoy utilizing the latest NDI technology and power over ethernet (PoE) functionality. This removes the need for additional video or power cables. The camera is also equipped with a stream encoder that supports H.264/H.265 video compression and the RTMP(S) network protocol. This allows users to easily stream directly from the camera to platforms like Facebook and YouTube. Users of this popular camera also enjoy its precise motor controller for smooth and quiet movement.

Network Device Interface

Network Device Interface (NDI) is a high-performance AV over IP standard that allows anyone to use real-time, ultra-low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices. With a single ethernet cable connection, professionals can merge all stages of production from start to finish. That way, all production tasks, and processes will be united, so accomplishing a creative vision will be simple. With the NDI 5.5 toolkit, users will also be able to connect any audio device as an NDI source with NDI’s Audio Direct tool. This adds audio over IP to NDI’s revolution.

NDI|HX2

NDI|HX2 is an updated version of NDI|HX1. NDI|HX2 also compresses the bandwidth but is more efficient than NDI|HX1. With compressed bandwidth, users can have more devices on their LAN without running into latency issues. NDI|HX2 provides good quality output, low bandwidth, and medium latency. The main difference compared to NDI|HX1 is that HX2 is truly a native NDI stream - all the way from the source device to the destination. This means it is a cleaner implementation than HX1 and can potentially be more reliable, provide lower latency and give a more flexible connection that shares all the usual features of NDI.

Camera and Output

The BZBGear BG-UPTZ-ND Camera owes its outstanding image quality to its optical sensor, a 1/2.8-inch high-quality HD progressive CMOS sensor. High-quality optical zoom is 20x available with this camera, but digital zoom of up to an additional 10x is also available. The camera has a field of view of up to 56-degree at 20x.

Control and Connectivity

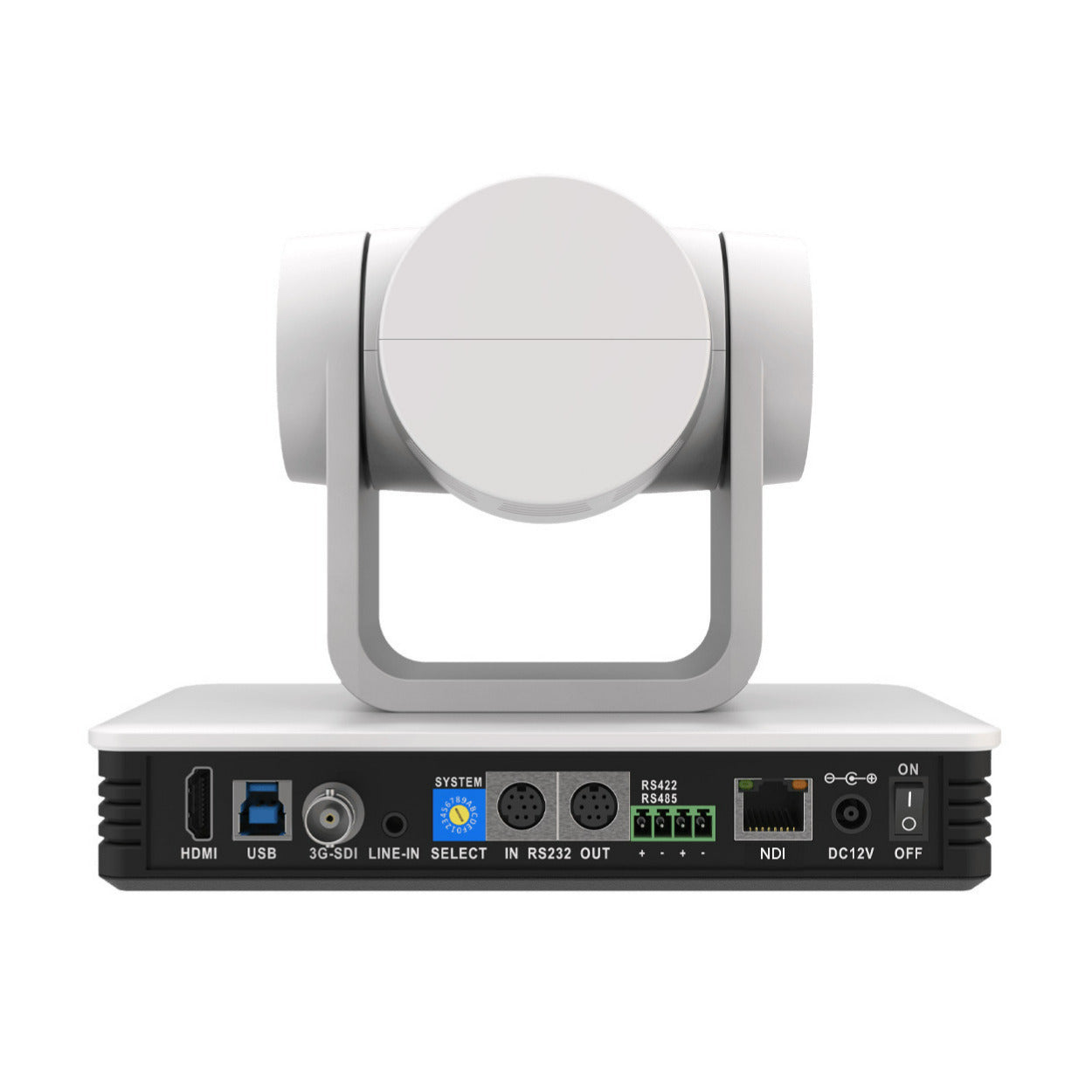

The BZBGear BG-UPTZ-ND Camera supports multiple control options, including WebGUI, NDI, IP VISCA, ONVIF, RS422/485, and cascading RS232 (VISCA/Pelco-P/D). The BG-UPTZ-ND also supports up to 255 preset positions and IR remote control. Whether you’re recording videoconferencing, remote learning, worship services, sporting events, concerts, or other events, the superior control this popular camera provides will get the job done.

PoE and NDI Technology

PoE and NDI technology eliminates the need for additional power and video cables, making this camera easy to install. The camera also enables operators to embed stereo audio with a 3.5mm jack.

Mounting Options

Mounting options for walls, ceilings, and tripods are also available for this device, making it an extremely flexible platform for recording and streaming your events.

Secure, Reliable, and Transport

The BZBGear BG-UPTZ-ND Camera supports SRT, enabling high-quality, low-latency video to be sent reliably over the internet.

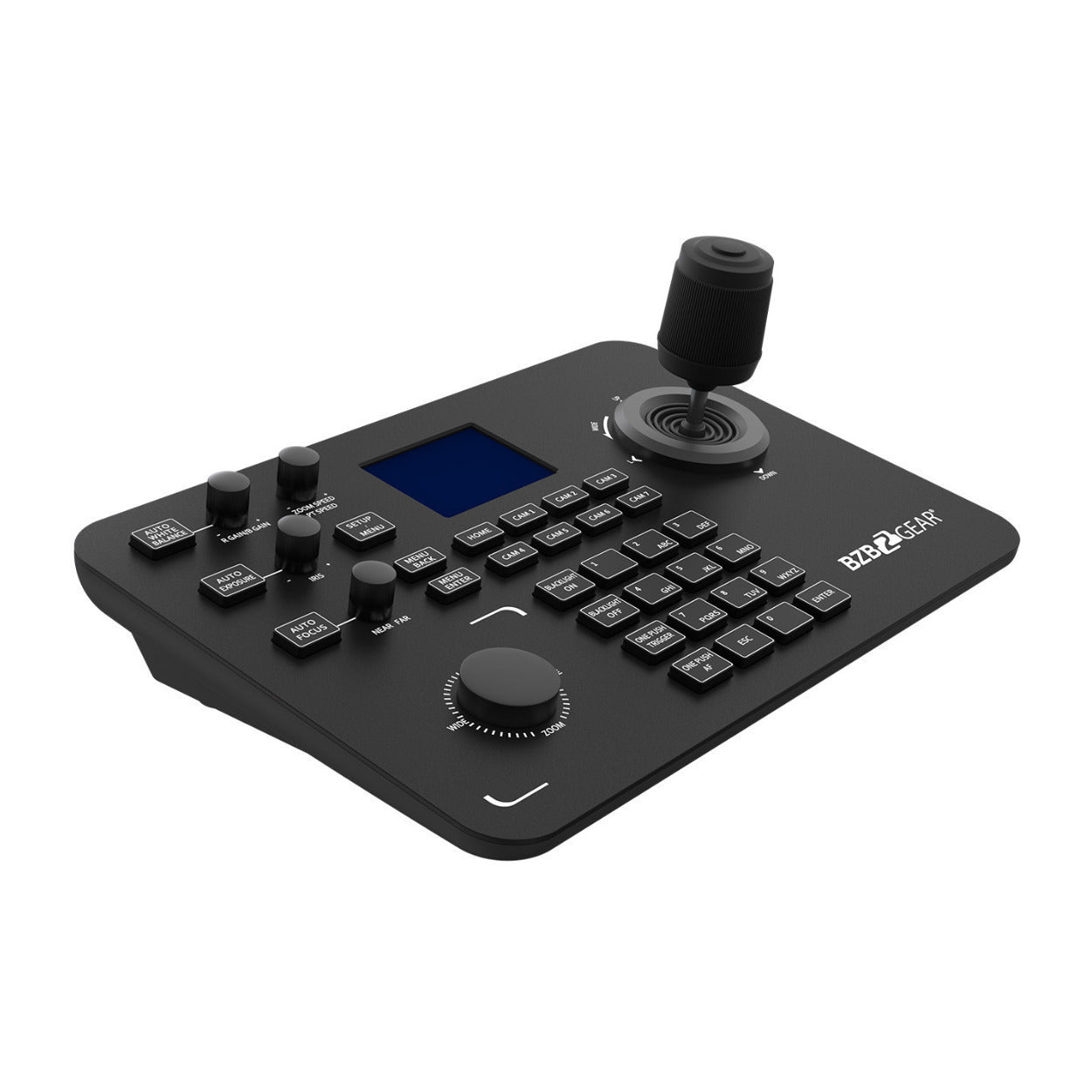

BZBGEAR Universal Advanced PTZ IP/RS-232/422 Controller with Joystick (3rd Gen)

The BZBGear BG-Commander PTZ Joystick Controller delivers precise control for both IP and serial PTZ cameras. With high-quality backlit buttons, the BG-Commander offers a pleasing user experience - even in low-light conditions. The solid metal chassis provides a durable, stable platform and is designed to stand up to years of heavy use, regardless of the setting. This controller is a great choice for live events, houses of worship, and broadcasting scenarios.

Control

With control for up to 7 cameras, the BG-Commander provides a clean and uncluttered platform ideally suited for small to medium-scale productions. The quick-select camera buttons allow instantaneous camera switching, and utilizing the 10 presets per camera is fast and easy using the press-and-hold and one-touch recall keys. Controls for white balance, focus, iris, and backlight settings allow quick image adjustments, while the high-contrast LCD screen provides camera information at a glance. Control for either IP or serial-based PTZ cameras is provided by a LAN port or RS232, RS422, and RS485 connections. The BG-Commander supports IP VISCA, ONVIF, VISCA, PELCO-D, and PELCO-P control protocols.

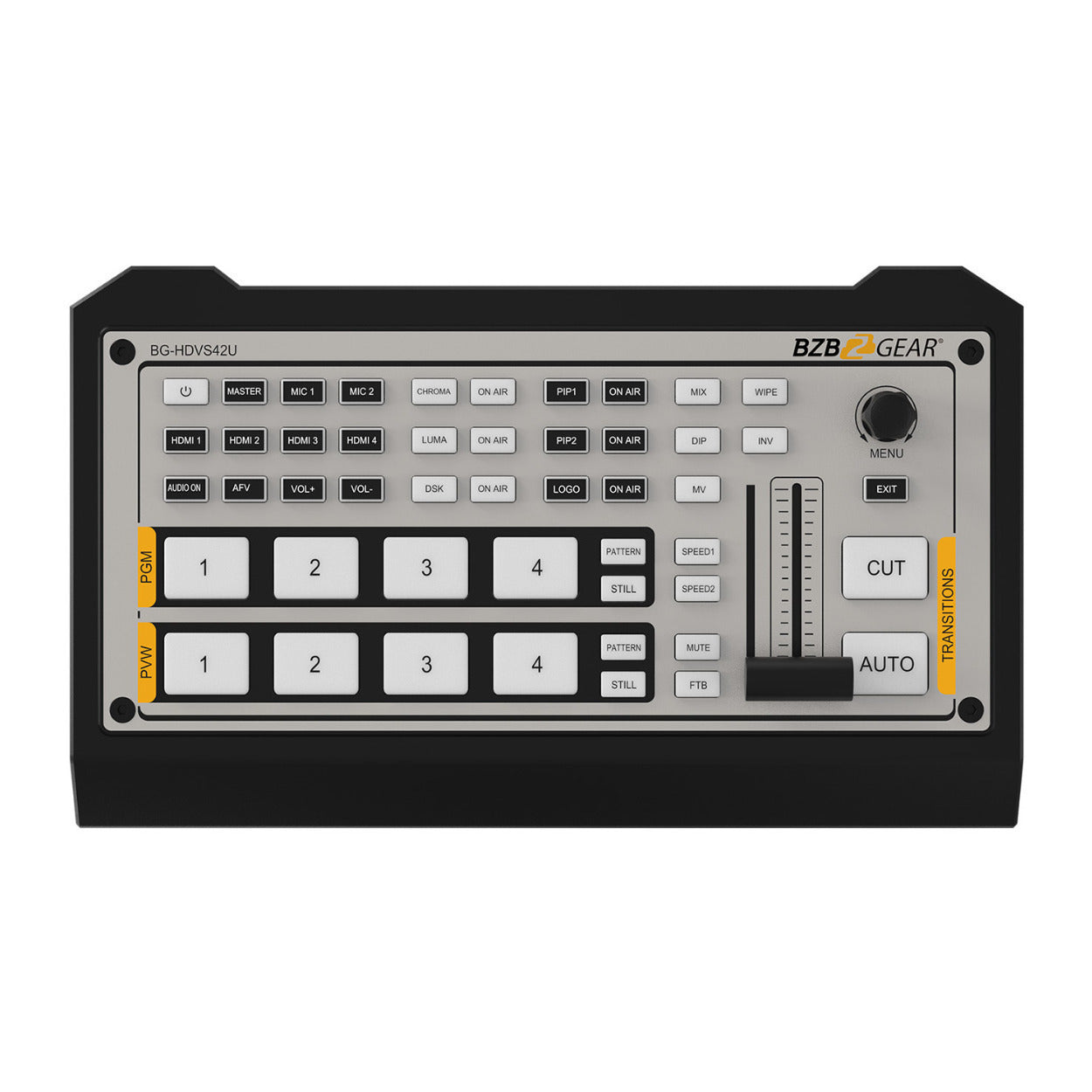

BZBGEAR 4-Channel Live Streaming Video Switcher/Audio Mixer

Compact and versatile, the BZBGear 4-Channel Live Streaming Video Switcher/Audio Mixer provides users with a powerful set of features designed to deliver professional-quality results. With full audio mixing capabilities, multiple transition options, graphic overlays, PC software utility, and USB-C program output, the BG-HDVS42U provides high-performance and tremendous value.

Connectivity and Features

The BG-HDVS42U’s four HDMI inputs support resolutions up to 1080p at 60Hz. Video outputs include one HDMI program output, one HDMI multiview output, and one USB type-C output. Audio can be de-embedded from all four HDMI sources and mixed with the two 3.5mm analog inputs. Each audio channel can be delayed to ensure proper sync with the video signal. The mixed audio is embedded into the HDMI and USB-C program outputs. The DB-15 Tally connection provides support for compatible systems.

Control

The BG-HDVS42U includes a full-featured PC control utility, offering enhanced access to all functions including switching, mixing, luma and chroma key, PIP, and POP. DSK and Logo overlays can also be controlled. A variety of transition effects include such as wipe, mix, and dip. The integrated media library comes with 49 default patterns, 16 imported images, 16 captured images, and two-color generators. Graphics can be imported and overlayed using this library, enabling operators to utilize their custom logos and overlays for video output.
