- 1 x Canon CR-X300 PTZ Camera
- 1 x Power Cable
- 1 x Connector Cover
- 1 x Manual
- 1 x EAC Leaflet
- 1 x Remote Camera Control Application
- 1 x Search Tool
Trusted & Verified

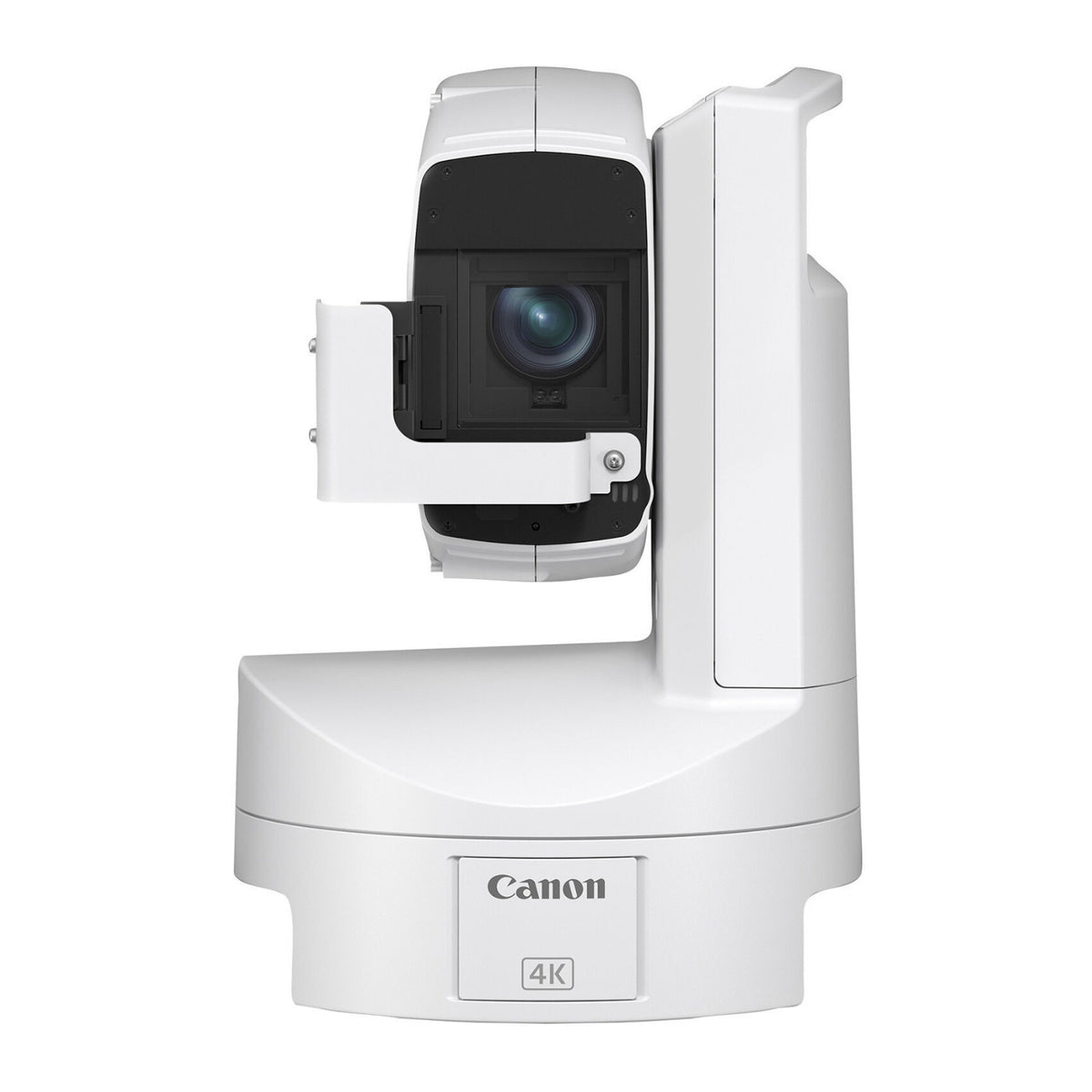

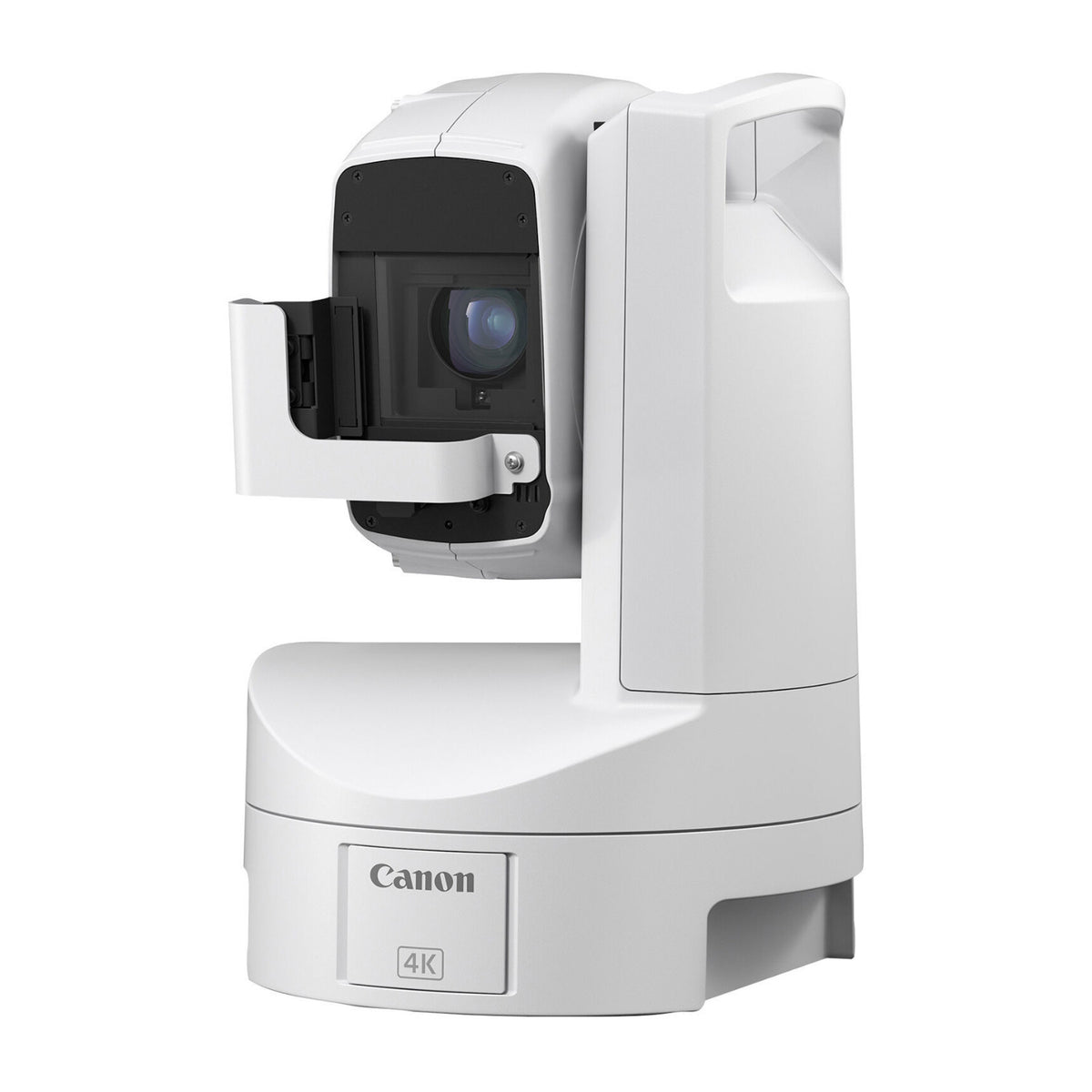

Canon CR-X300 Outdoor 4K PTZ Camera with 20x Optical Zoom Lens (Titanium White)
- Captures up to 4K 29.97P and Full HD 59.94P video
- 20x optical zoom covers approximately 29.3 to 601 mm equivalent in 4K
- Hybrid AF supports Face Detection AF and Tracking AF
- IP65 enclosure adds dust and water resistance for outdoor installation

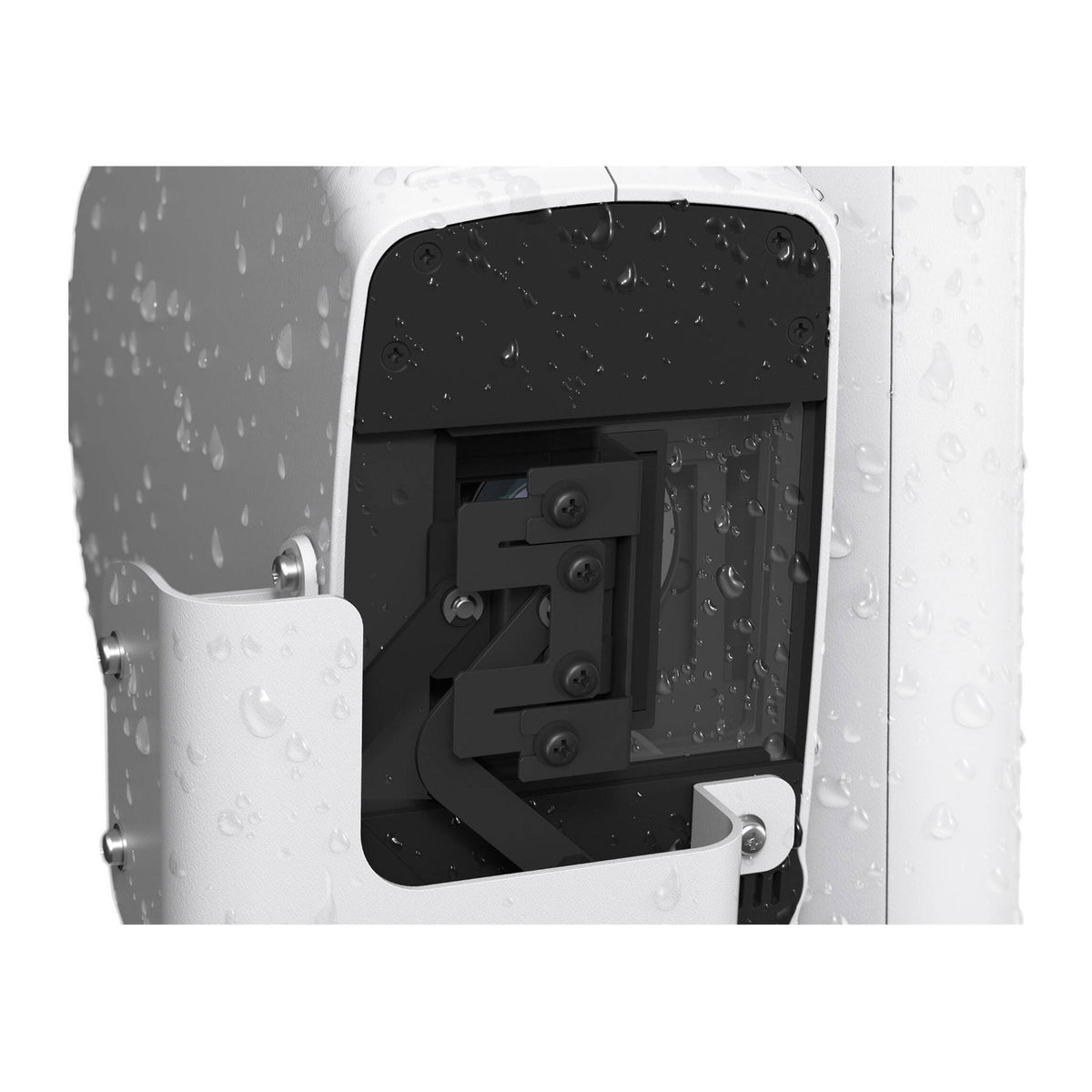

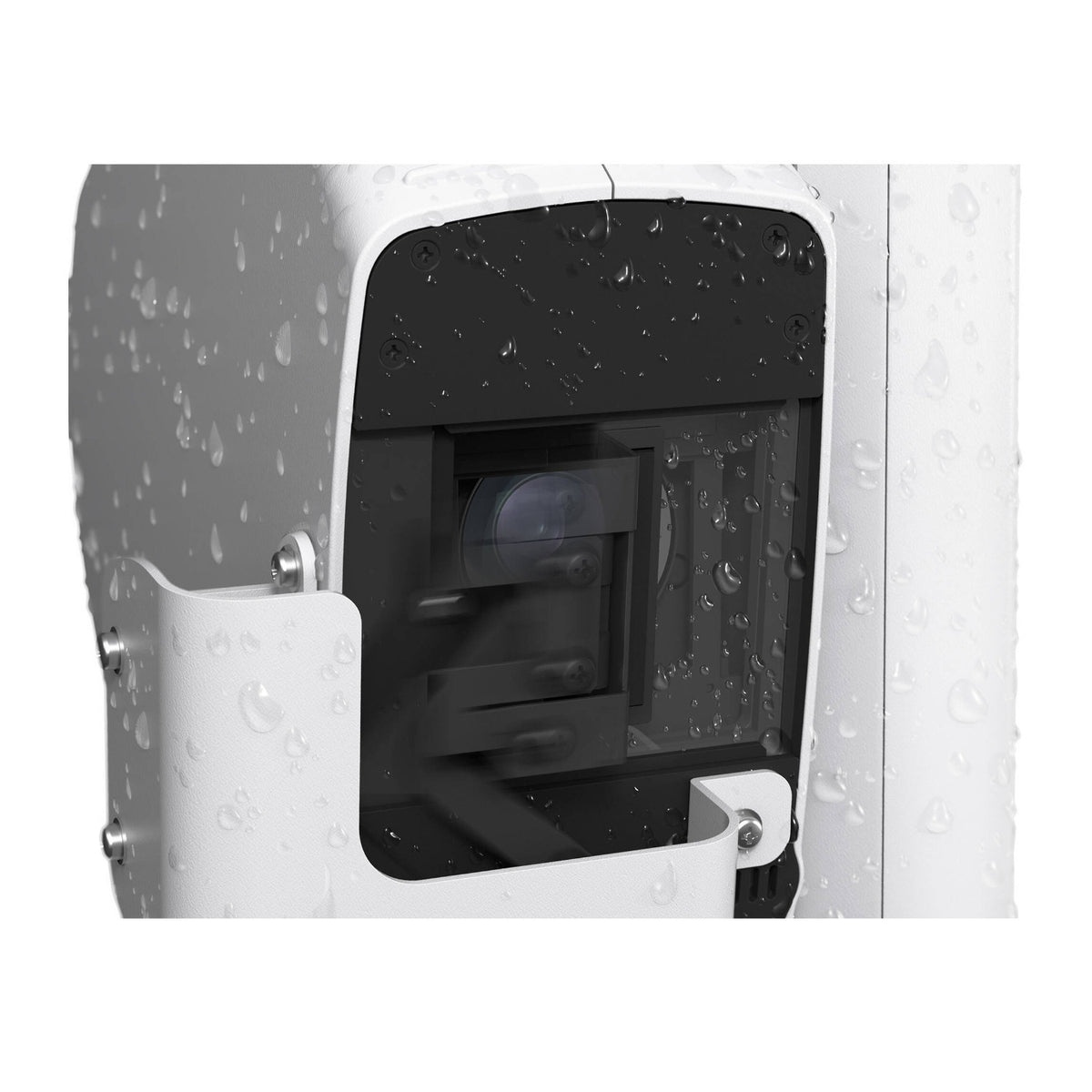

- Built-in wiper and internal fan support exposed installations
- PoE++ supplies power through the LAN connection
- Pan and tilt movement adjusts from 0.3 to 60 degrees per second

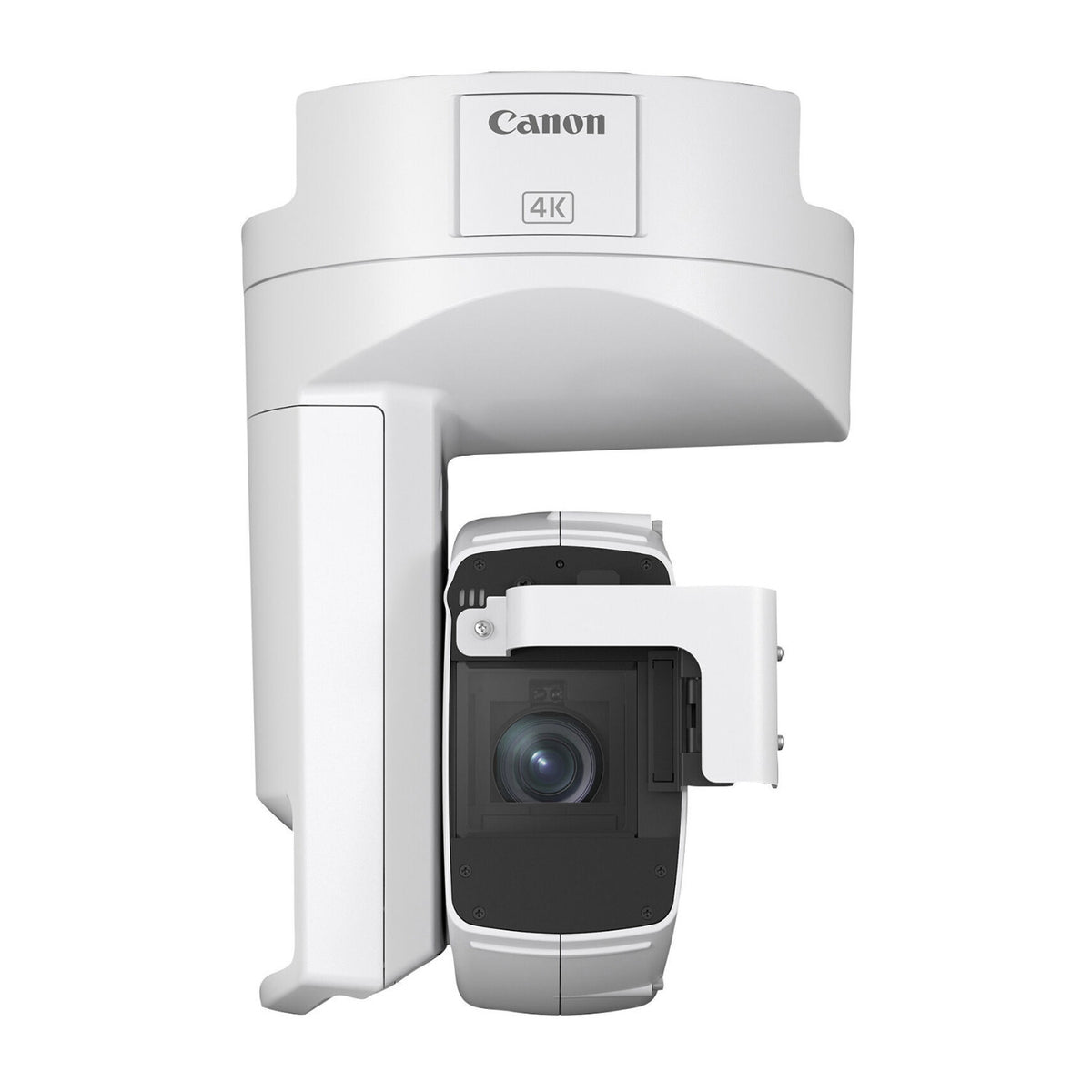

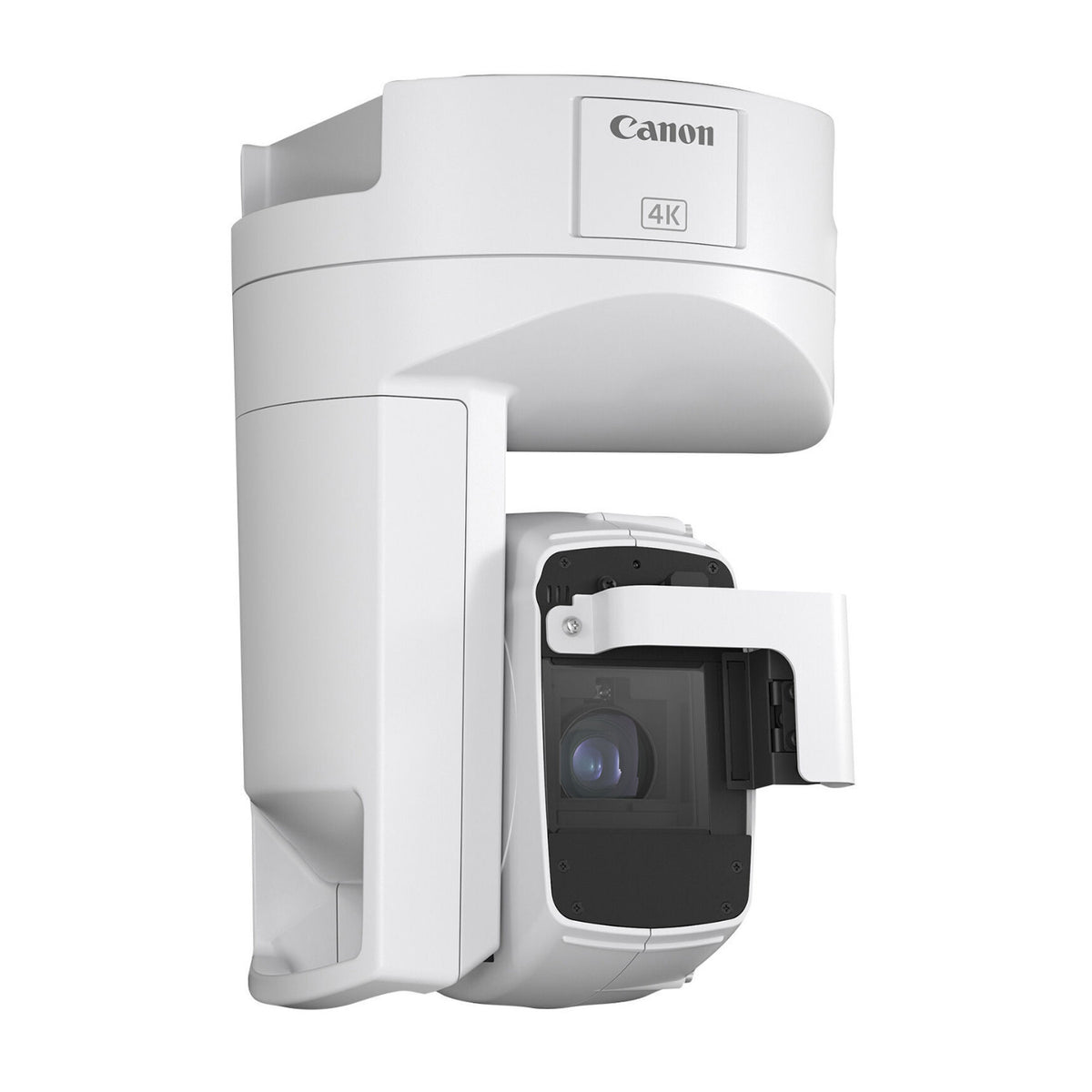

- Supports upright or ceiling installation with automatic image flip
The Canon CR-X300 brings remotely operated 4K imaging to outdoor productions where direct camera access may be limited. Its 1/2.3 inch CMOS sensor and DIGIC DV 6 processor support up to 4K 29.97P output, while the genuine Canon lens delivers 20x optical zoom. An IP65 enclosure, titanium white outdoor paint, built-in wiper, and die-cast aluminum body support installations exposed to demanding environmental conditions.
20x Zoom and Hybrid AF
The optical system covers an approximately 29.3 to 601 mm equivalent focal range in 4K. Hybrid AF combines phase difference and contrast AF technologies, while Face Detection AF and Tracking AF help maintain focus on people. Standard IS and Powered IS modes provide additional stabilization, including support for telephoto framing. Internal 1/8 ND filtration and an enhanced 1/32 ND filter expand exposure control for bright conditions.
Outdoor Build and Remote Integration

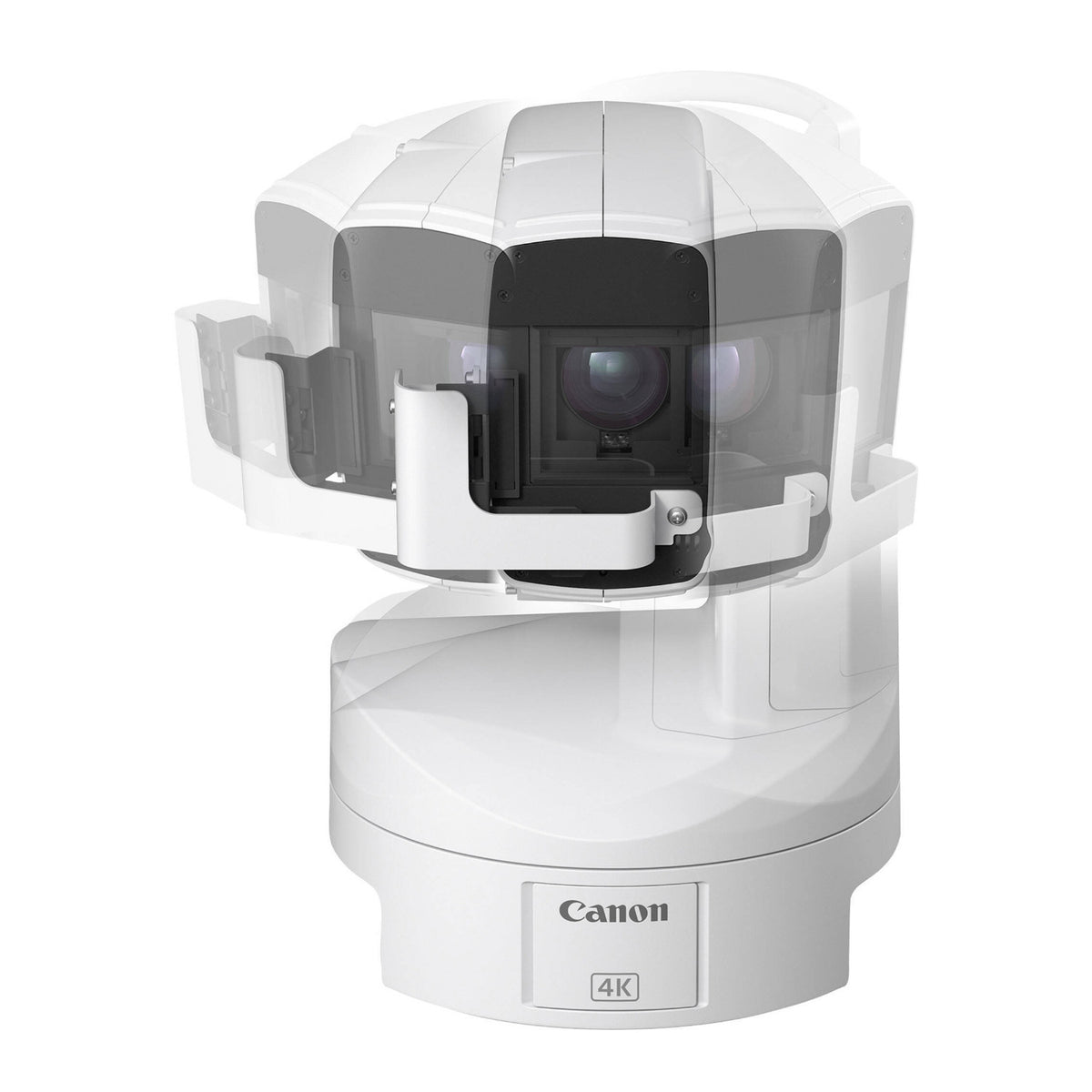

Pan movement spans 180 degrees in either direction, while tilt ranges from minus 40 to plus 215 degrees. Movement speed is adjustable from 0.3 to 60 degrees per second, and operators can store up to 100 presets. PoE++ can supply power through the LAN connection. The camera also supports 6G-SDI, IP video transmission, Genlock, RS-422 control, XC, SRT, RTMP, RTSP/RTP, FreeD, and NDI HX2 workflows.
Upright and ceiling installation are supported, with automatic image flip available for positioning flexibility. A waterproof built-in microphone, heat dissipation fan, 1000Base-T networking, and remote software control give production teams several ways to integrate the CR-X300 into broadcast, live event, sports, worship, and other remotely operated video systems.
Camera:
| Color | Titanium White |
| Image Sensor | Type 1/2.3 inch single plate CMOS sensor |
| Total Pixels | Approx. 21.14 megapixels |
| Effective Pixels | Approx. 8.29 megapixels, 3840 x 2160 pixels |
| Lens | 3.67 to 73.4 mm, F1.8 to F2.8, 20x optical zoom |
| 4K UHD Equivalent Focal Length | Approx. 29.3 to 601 mm |
| Full HD Equivalent Focal Length | Approx. 30.5 to 627 mm |
| Lens Configuration | 8 blade circular aperture, 12 elements in 10 groups, including 2 aspheric elements |
| Optical Zoom | 20x |
| Digital Zoom | 20x |
| Minimum Focusing Distance | 1 cm at maximum wide angle, 60 cm throughout the zoom range from the front window |
| 4K UHD Angle of View | Horizontal 65.6 to 3.6 degrees, vertical 39.8 to 2.0 degrees |
| Full HD Angle of View | Horizontal 63.5 to 3.4 degrees, vertical 38.4 to 1.9 degrees |
| Shutter Speed | 1/6 to 1/2000 second, depending on frame frequency |
| Focus Modes | Manual, Continuous AF, Face Detection AF, Tracking AF |
| AF Types | Hybrid AF, Contrast AF |
| Shooting Modes | F.Auto, P, Tv, Av, M |
| Scene Modes | Portrait, Sports, Low Light, Spotlight |
| Gamma | Normal1, Normal3 |
| Color Matrix | BT.709, BT.2020 |
| ND Filter | Up to 1/8 |
| Enhanced ND Filter | 1/32 |
| IR Mode | Electrically switchable |
| Image Stabilizer | Optical shift, Standard IS and Powered IS |
| White Balance | Auto, Set A, Set B, daylight approximately 5600 Kelvin, tungsten approximately 3200 Kelvin, 2000 to 15000 Kelvin adjustment, Manual |
| Gain | 0.0 to 36.0 dB |
| Minimum Subject Illumination | Approx. 3.0 lux at 1/60 second shutter, 59.94 Hz frame frequency, P shooting mode, auto slow shutter off |
| Video Flip | Upright and ceiling installation support with automatic flip function |
| Built-in Microphone | Waterproof microphone |
Video Output:
| 6G-SDI 3840 x 2160 Output | 29.97P, 25.00P, 23.98P, 4:2:2 10 bit |
| 6G-SDI 1920 x 1080 Output | 59.94P, 59.94i, 50.00P, 50.00i, 25.00P, 29.97P, 23.98P, 4:2:2 10 bit |
| 6G-SDI 1280 x 720 Output | 59.94P, 50.00P, 4:2:2 10 bit |
| High Definition Video and Audio 3840 x 2160 Output | 29.97P, 25.00P, 23.98P, 4:2:2 10 bit |
| High Definition Video and Audio 1920 x 1080 Output | 59.94P, 59.94i, 50.00P, 50.00i, 25.00P, 29.97P, 23.98P, 4:2:2 10 bit |
| High Definition Video and Audio 1280 x 720 Output | 59.94P, 50.00P, 4:2:2 10 bit |
| 59.94 Hz IP Output | 1920 x 1080, 1280 x 720, or 640 x 360 pixels at 59.94, 29.97, 14.99, or 5.00 fps, 4:2:0 8 bit |
| 29.97 Hz IP Output | 3840 x 2160, 1920 x 1080, 1280 x 720, or 640 x 360 pixels at 29.97, 14.99, or 5.00 fps, 4:2:0 8 bit |
| 50.00 Hz IP Output | 1920 x 1080, 1280 x 720, or 640 x 360 pixels at 50.00, 25.00, 12.50, or 5.00 fps, 4:2:0 8 bit |
| 25.00 Hz IP Output | 3840 x 2160, 1920 x 1080, 1280 x 720, or 640 x 360 pixels at 25.00, 12.50, or 5.00 fps, 4:2:0 8 bit |
| 23.98 Hz IP Output | 3840 x 2160, 1920 x 1080, 1280 x 720, or 640 x 360 pixels at 23.98, 11.99, or 5.99 fps, 4:2:0 8 bit |
| JPEG Resolution | 1280 x 720 pixels |
| JPEG Rate at 59.94 or 29.97 Hz | 14.99 fps |
| JPEG Rate at 50.00 or 25.00 Hz | 12.50 fps |
| JPEG Rate at 23.98 Hz | 11.99 fps |
Protocols:
| Video Transmission Protocols | XC, RTSP/RTP, NDI HX2, RTMP/RTMPS, SRT, FreeD |
| SRT | Adaptive bitrate support |
| FreeD | Up to 4 destinations |
| Control Protocols | XC, NU, NDI HX2, Standard Communication Serial, Standard Communication IP |
| Camera Presets | Maximum 100 including home position |
Interfaces:
| Communication Control | LAN, Serial |
| Network Terminal | 1 x RJ45, 1000Base-T |
| 6G-SDI Terminal | 1 x BNC output, 0.8 Vp-p per 75 ohm, unbalanced |
| 6G-SDI Standards | SMPTE 2081, 424, 425, ST 299-2 |
| 6G-SDI Features | Embedded audio, VITC and LTC time code |
| Genlock Terminal | 1 x BNC input, 1.0 Vp-p per 75 ohm |
| High Definition Video and Audio Output | 1 x output connector |
| RS-422 Terminal | 1 x RJ45 connector |
| External Device I/O Terminal | 1 x AUX connector |
Pan and Tilt:
| Pan Operation Range | 180 degrees left to 180 degrees right |
| Tilt Operation Range | Minus 40 to plus 215 degrees |
| Operation Speed | 0.3 to 60 degrees per second |
| Operating Noise | NC45 or lower at 60 degrees per second |
| Wiper | Equipped |
Operating Environment:
| Operating Temperature | 5 to 104 degrees Fahrenheit, minus 15 to 40 degrees Celsius |
| Startup Temperature | 14 to 104 degrees Fahrenheit, minus 10 to 40 degrees Celsius |
| Humidity | 90 percent or less without condensation |
| Wind Speed for Normal Operation | 15 meters per second |
| Wind Speed with Operation Possible | 30 meters per second |
| Non-Destructive Wind Speed | 60 meters per second |
Power and Physical:
| Installation | Upright or ceiling installation |
| Network Power | PoE++ through LAN connector, IEEE 802.3bt compliant |
| PoE Compatibility | PoE and PoE+ cannot be used |
| External Power | 12-volt DC using the included power cable with DC plug |
| PoE++ Power Consumption | Approx. 39.8 watts maximum, body only |
| DC Power Consumption | Approx. 37.7 watts maximum, body only |
| Power Supply Device Requirement | Class 5, 40.0 watts required |
| Dimensions | Approx. 8.54 inch W x 12.24 inch H x 8.54 inch D, excluding protrusions and connector cover |
| Metric Dimensions | Approx. 217 mm W x 311 mm H x 217 mm D, excluding protrusions and connector cover |
| Weight | Approx. 15.5 pounds, 7 kilograms, body only |
| Dust and Water Resistance | IP65 |
| Exterior Paint | Outdoor-use paint |
| Color | Titanium White |
| Supported Hardware Controllers | Canon RC-IP100, Canon RC-IP1000 |
| Supported Control Software | Remote Camera Control Application |
