- Canon Speedlite EL-5 (Version 2)
Trusted & Verified

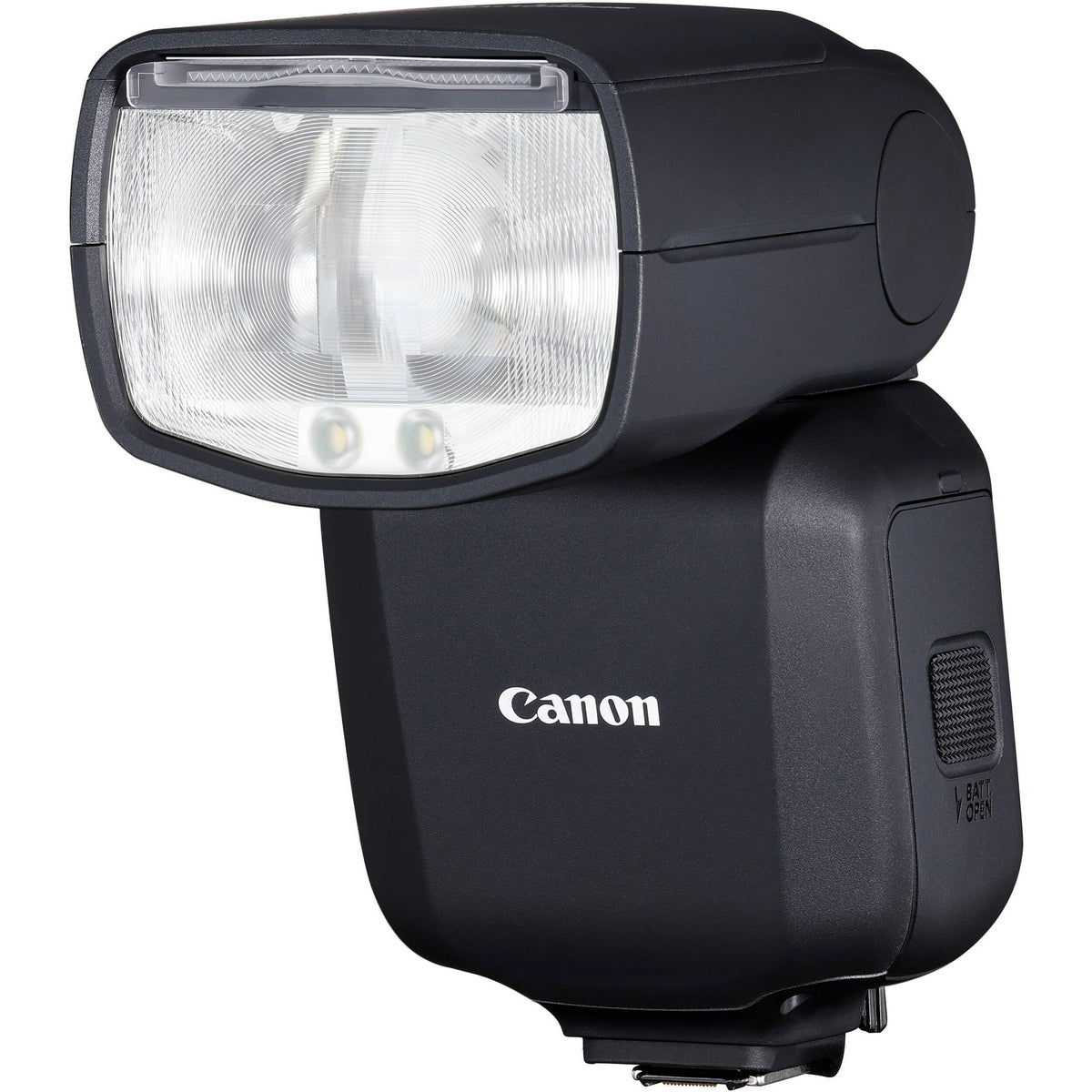

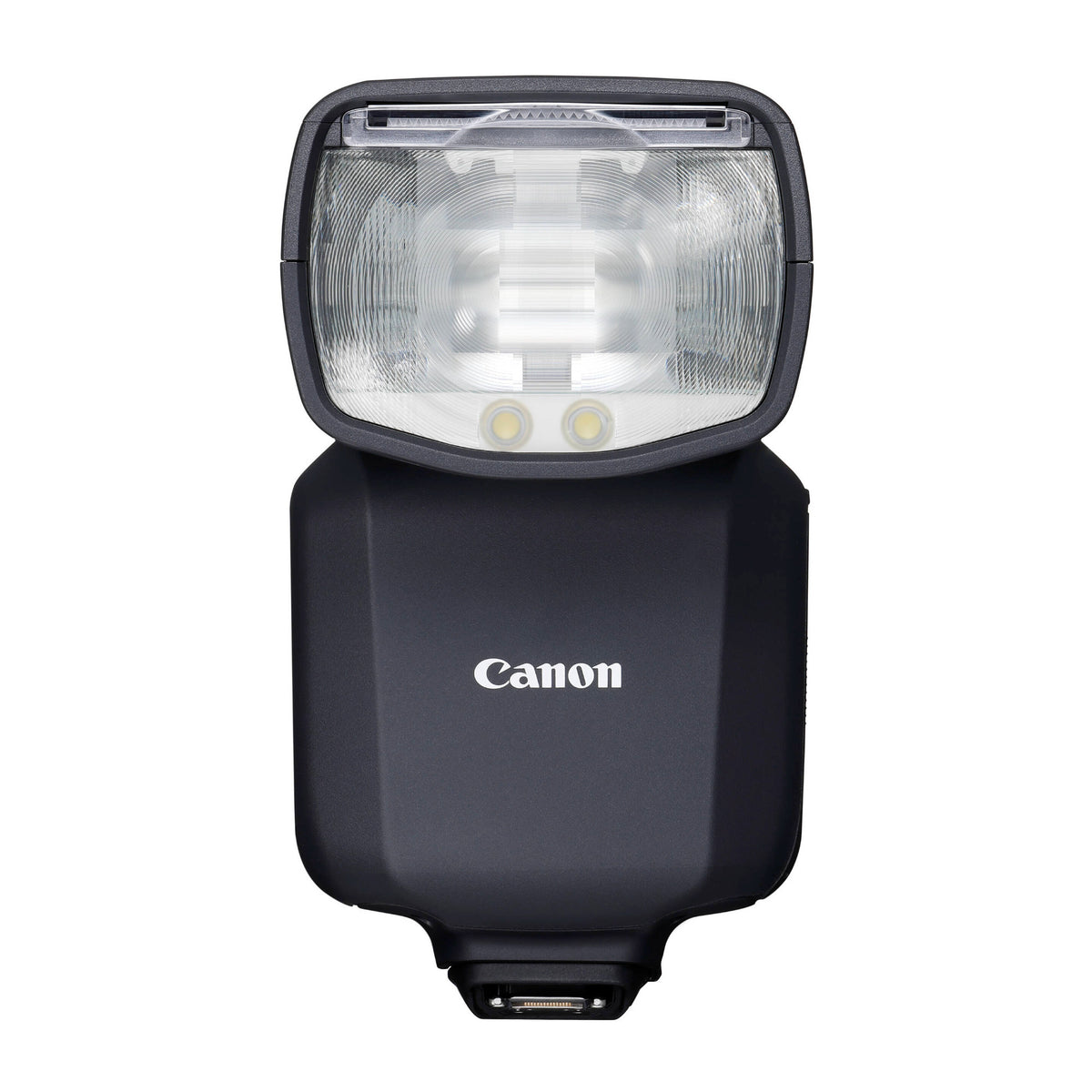

Canon Speedlite EL-5 (Version 2) Camera Flash - Compatible with Select EOS R Series Cameras
- Guide number 60 meters at ISO 100 for strong flash output
- Approx. 0.1 seconds to 1.2 seconds recycle time with a fully charged LP-EL battery
- 24 mm to 200 mm zoom coverage plus 14 mm wide panel coverage
- Manual flash output from full to 1/1024 power
- Built in radio transmission reaches approx. 50 meters in suitable conditions
- Head tilts 120 degrees up and rotates 180 degrees left or right for bounce lighting
- Dual white LED assist light plus a modeling lamp with 5 brightness levels
- Weather resistant construction with enhanced passive cooling
The Canon Speedlite EL-5 (Ver.2) external camera flash combines strong output, fast recycling, and flexible lighting control for portraits, weddings, events, and creative photography. Its guide number reaches 60 meters at ISO 100, while the zoom head covers 24 mm to 200 mm and the wide panel extends coverage to 14 mm. With a fully charged LP-EL battery, recycle time ranges from approximately 0.1 seconds to 1.2 seconds, helping photographers stay ready for fast moving moments.
Professional Lighting with Performance to Match
Capture important moments with GN60 rated flash output, fast recycle times, and support for long continuous bursts. A battery level indicator displays the remaining LP-EL battery charge in 5 levels or as a percentage for quick status checks during a shoot.
Multi Function Foot for Advanced Operation
Control the Speedlite EL-5 (Ver.2) directly from a compatible camera through Canon's Multi Function Foot interface. The connection supports improved communication between the flash and compatible camera systems while providing access to supported flash settings and functions.
Feature Packed for Creative Photography
Use FE Memory to speed up repeated lighting setups and Manual mode for precise output control down to 1/1024 power. Custom Flash Modes let photographers save settings and link them with compatible camera Custom settings for faster access to frequently used configurations.
Multi Flash Lighting for Studio Quality Shooting
Control up to 15 compatible Speedlites wirelessly using the built in radio transmitter with a transmission range of approximately 50 meters under suitable conditions. A dual white LED light provides adjustable brightness for additional lighting control during setup.

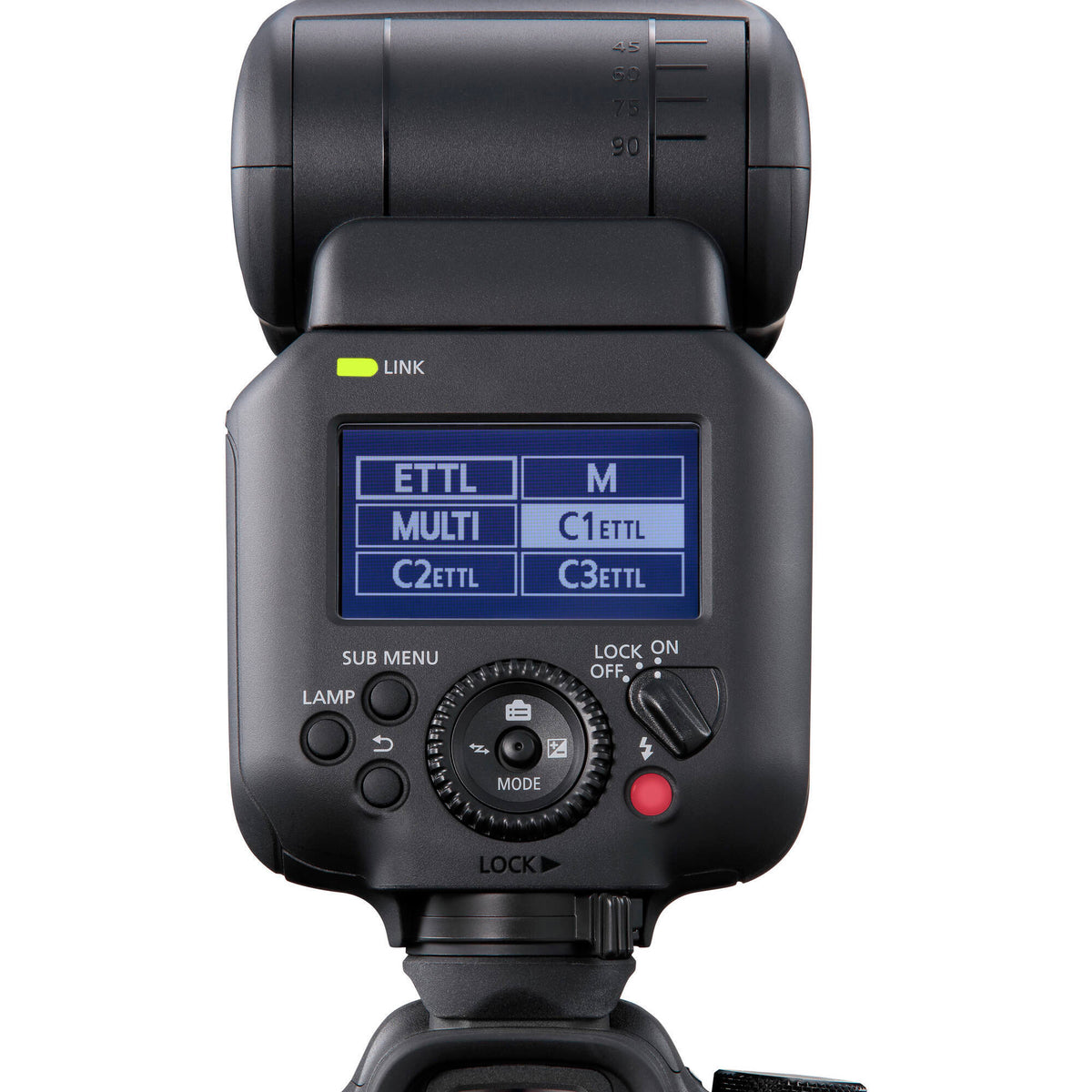

Intuitive Interface and Advanced Handling

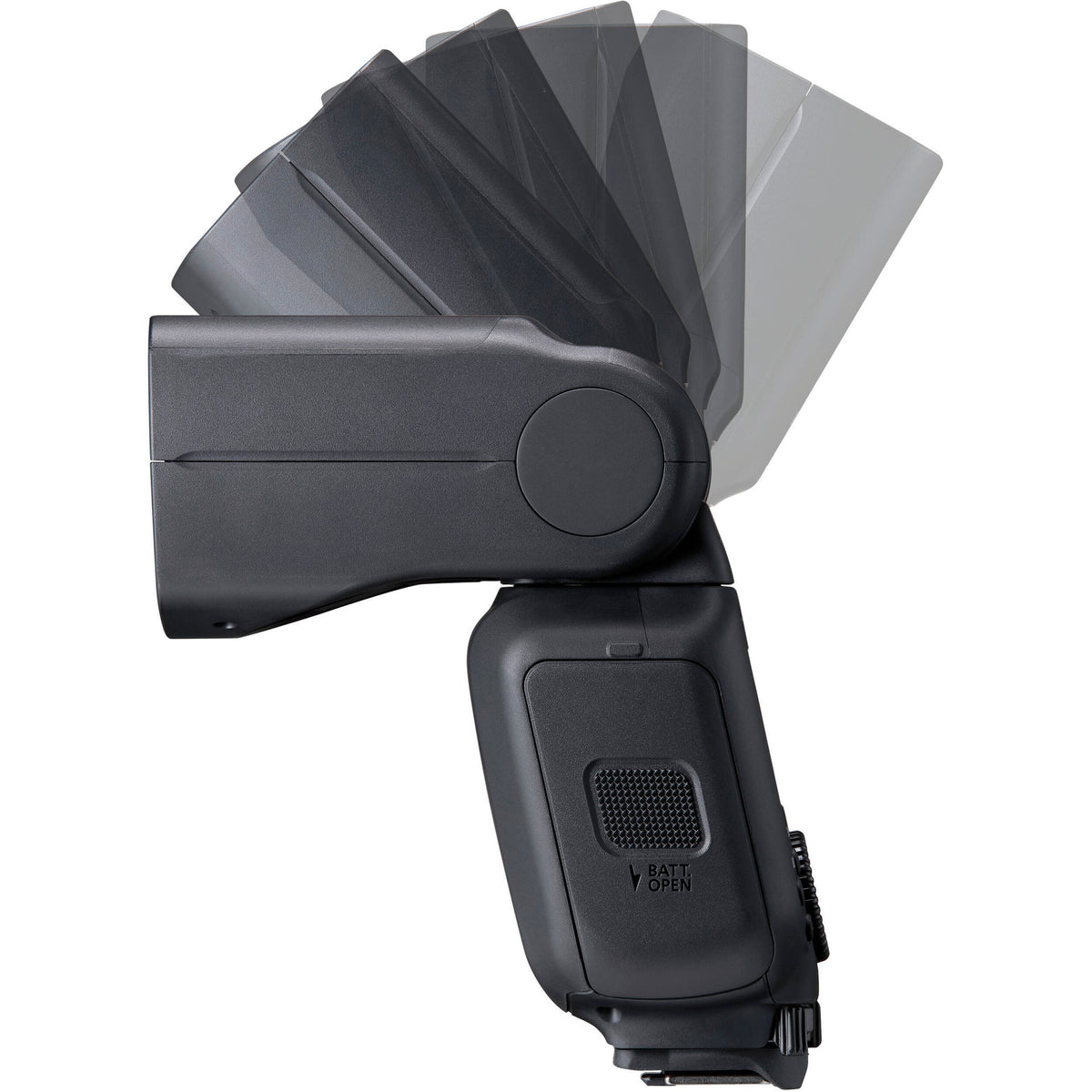

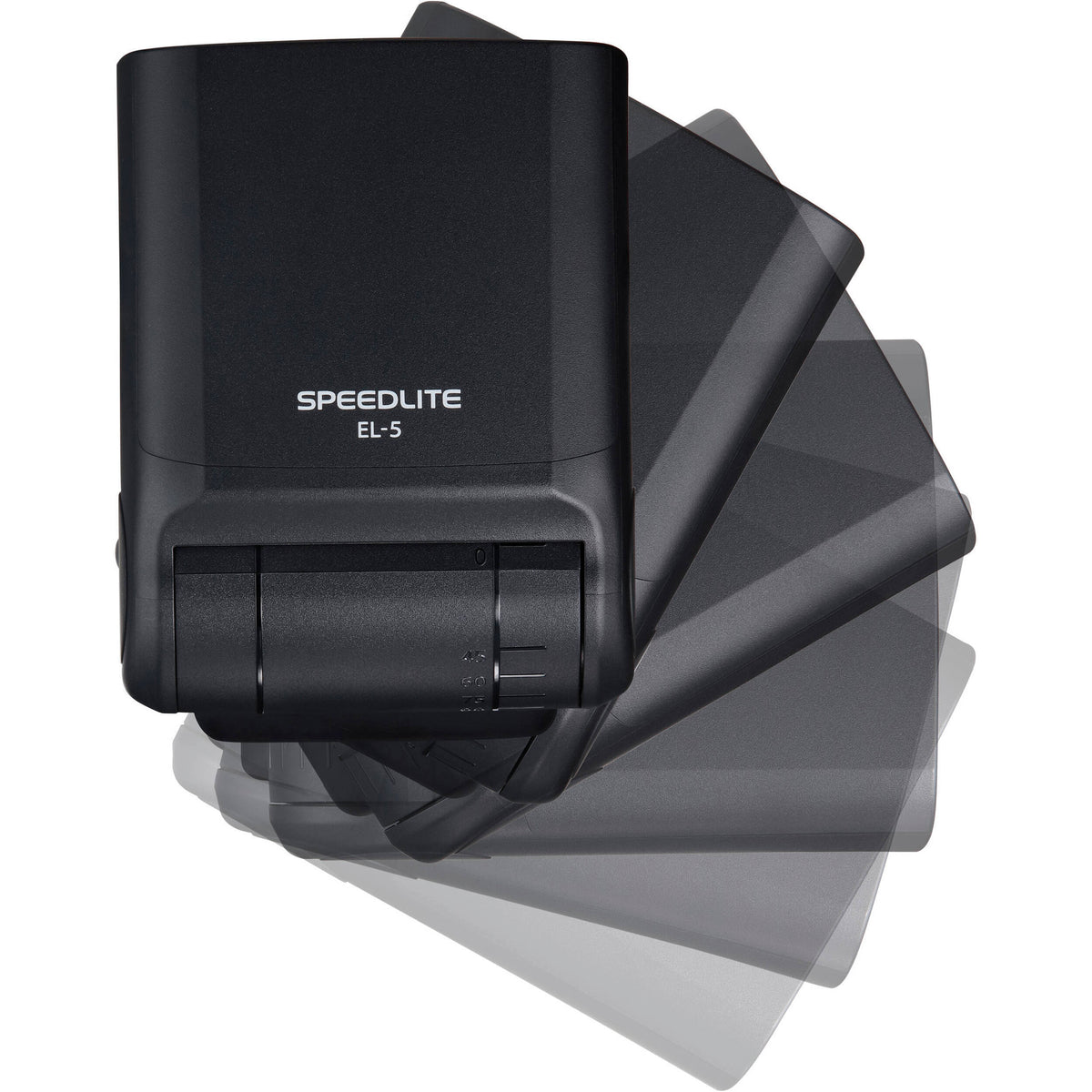

Adjust settings using the Speedlite joystick, access supported controls from a compatible camera through the Flash Direct Menu button, or use supported remote functions through the Camera Connect App. The flash head tilts upward to 120 degrees and rotates 180 degrees left or right for flexible bounce lighting.
Weather Resistant Construction
Weather resistant construction supports shooting in challenging conditions, while enhanced passive cooling helps manage heat during extended flash use. Together with rechargeable LP-EL battery power and flexible flash head positioning, the Speedlite EL-5 (Ver.2) is equipped for demanding photography workflows.
Power
| Guide Number at ISO 100 | 28.7 meters to 60.0 meters, 14.8 meters with wide panel |
Zoom
| Zoom Head | Auto / Manual |
| Focal Length Coverage | 24 mm to 200 mm |

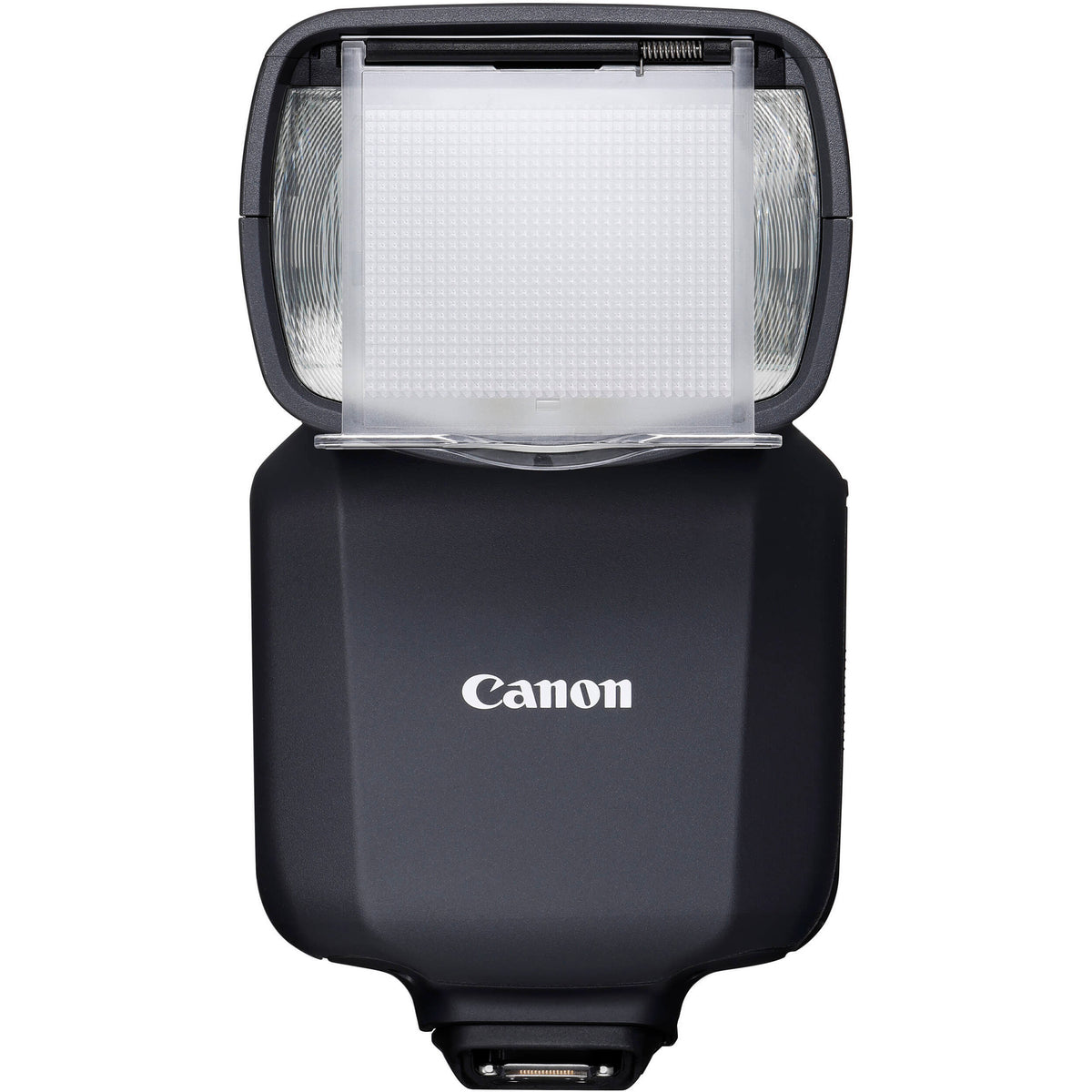

| Coverage with Wide Panel | 14 mm |
| Auto Zoom for Sensor Size | Yes |
| Active Cooling System | No, enhanced passive cooling |
Mounting and Compatibility
| Foot Type | Multi Function shoe |
| Camera Connection | Compatible Canon cameras with Multi Function shoe |
| Firmware Note | A firmware update may be required |
| Compatibility Note | Not all functions are supported with all cameras. Cinema EOS cameras, including EOS R5 C and EOS C50, and camcorders with Multi Function shoe are not supported |
Flash Modes
| Auto Exposure Control | E-TTL II / E-TTL |
| High Speed Sync | Yes |
| Manual Output Settings | Full to 1/1024 power |
| Minimum Output During High Speed Sync | 1/128 power |
| Manual Steps | 1/3 step |
| Stroboscopic Flash | Yes |
| Stroboscopic Output Setting Range | 1/1024 to 1/4 power |
| Continuous Shooting Priority Mode | No |
| Continuous Flashes in a Burst | Maximum approx. 85 at full power with a fully charged LP-EL battery under Canon testing conditions |
| Stroboscopic Frequency | 1 hertz to 500 hertz |
Flash Functions
| FE Lock | Yes |
| FE Memory | Yes |
| Flash Exposure Compensation | ±3 stops |
| Flash Exposure Bracketing | ±3 stops |
| First Curtain Flash Sync | Yes |
| Second Curtain Flash Sync | Yes |
| High Speed Sync | Yes |
| Modeling Flash | No |
| Modeling Lamp | Yes, 5 brightness levels |
| Color Temperature Information Communication | Yes |
Wireless Flash
| Transmitter | Yes |
| Transmission Type | Radio |
| Transmitter Range | Approx. 50 meters in good environmental conditions without radio interference |
| Wireless First Curtain Flash Sync | Yes |
| Wireless Second Curtain Flash Sync | Yes |
| Receiver | Yes |
| Maximum Transmitters / Receivers | 15 / 15, 16 total in any combination |
| Radio Groups | A, B, C, D, E |
| Radio Channels | 1 to 15, Auto |
| Linked Shooting | Yes |
| Compatible Speedlites | EL and EX series Speedlites with radio receiver function |
Flash Head Movement
| Upward Tilt | 120 degrees |
| Downward Tilt | 7 degrees |
| Left Rotation | 180 degrees |
| Right Rotation | 180 degrees |
AF Assist
| AF Assist Beam | Dual white LED light |
| Number of AF Points Supported | N/A |
| AF Assist Range at Center | Approx. 0.6 meters to 10 meters |
Power Source
| Battery | Rechargeable Battery Pack LP-EL |
| Battery Level Indicator | 5 levels or percentage for the internal battery |
| Minimum Recycling Time | Approx. 0.1 seconds to 1.2 seconds with a fully charged LP-EL battery under Canon testing conditions |
| Number of Flashes with Fully Charged Battery | Approx. 350 to 2450 |
| External Power Supply | No |
Construction
| Dust and Water Resistance | Yes |
Controls and Functions
| Custom Functions | 11 x C.Fn / 8 x P.Fn / 3 x Custom Modes |
| Flash Settings from Camera Menus | Yes, with compatible cameras |
| External Flash Exposure Sensor | No |
| PC Terminal | No |

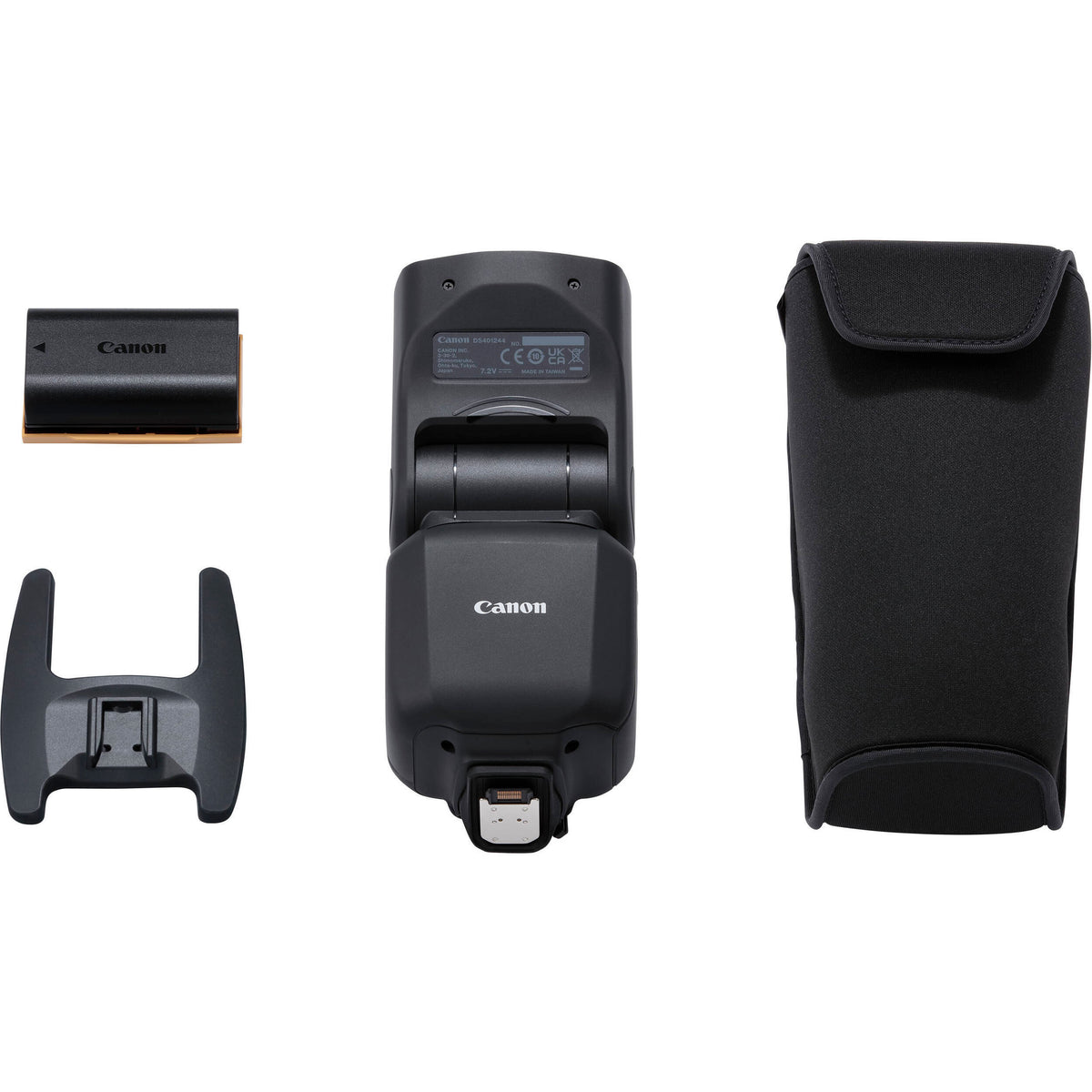

Included Accessories
| LP-EL Battery | |

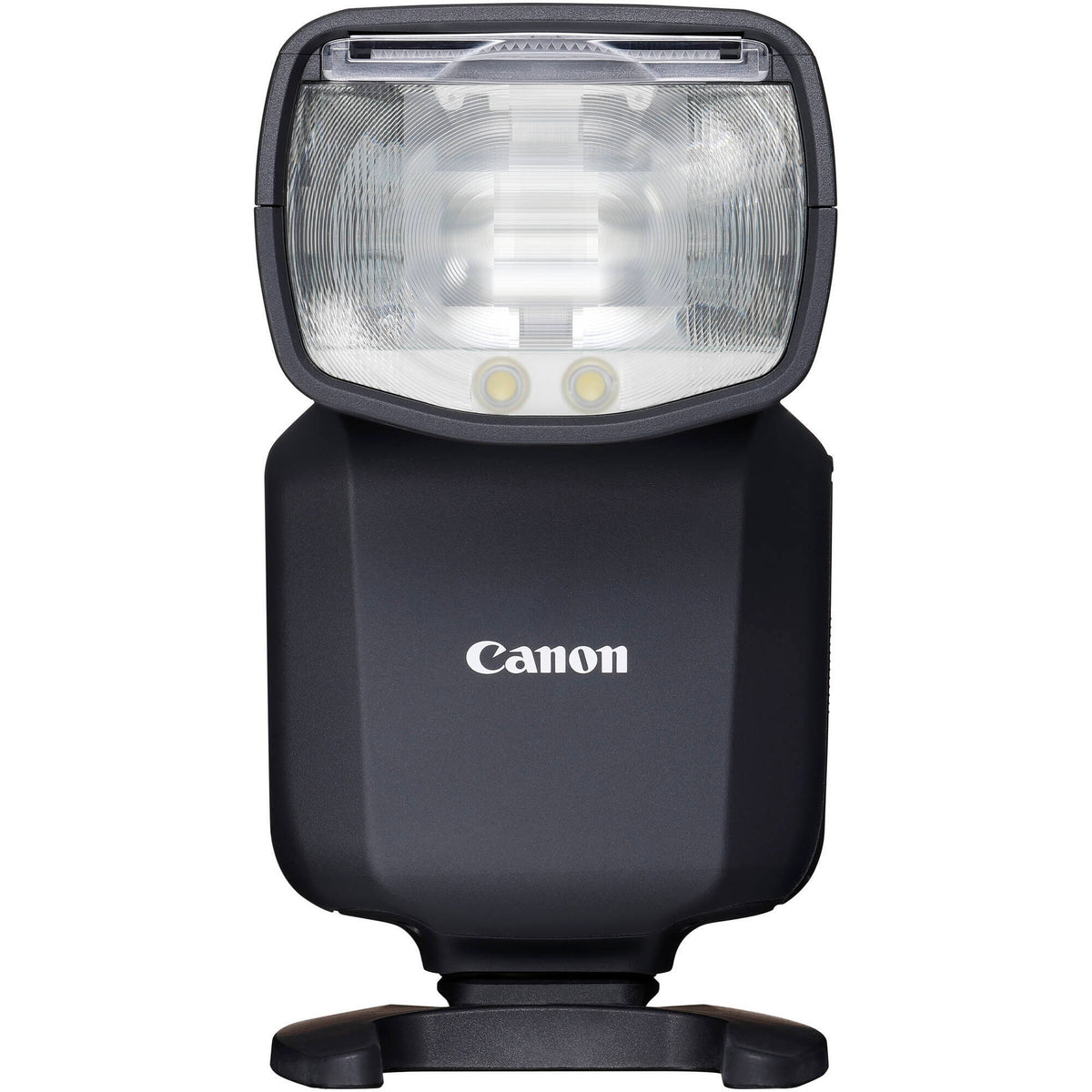

| Mini Stand | |
| Speedlite Case |
Optional Accessories
| Speedlite Transmitter ST-E3-RT v2/v3 | |
| Speedlite Transmitter ST-E10 | |
| Battery Pack LP-EL | |
| Battery Charger LC-E6E | |
| Off Camera Shoe Cord OC-E4A |
Physical Specifications
| Dimensions W x H x D | 80.2 mm x 139.9 mm x 123.3 mm |
| Weight | 487 grams |
