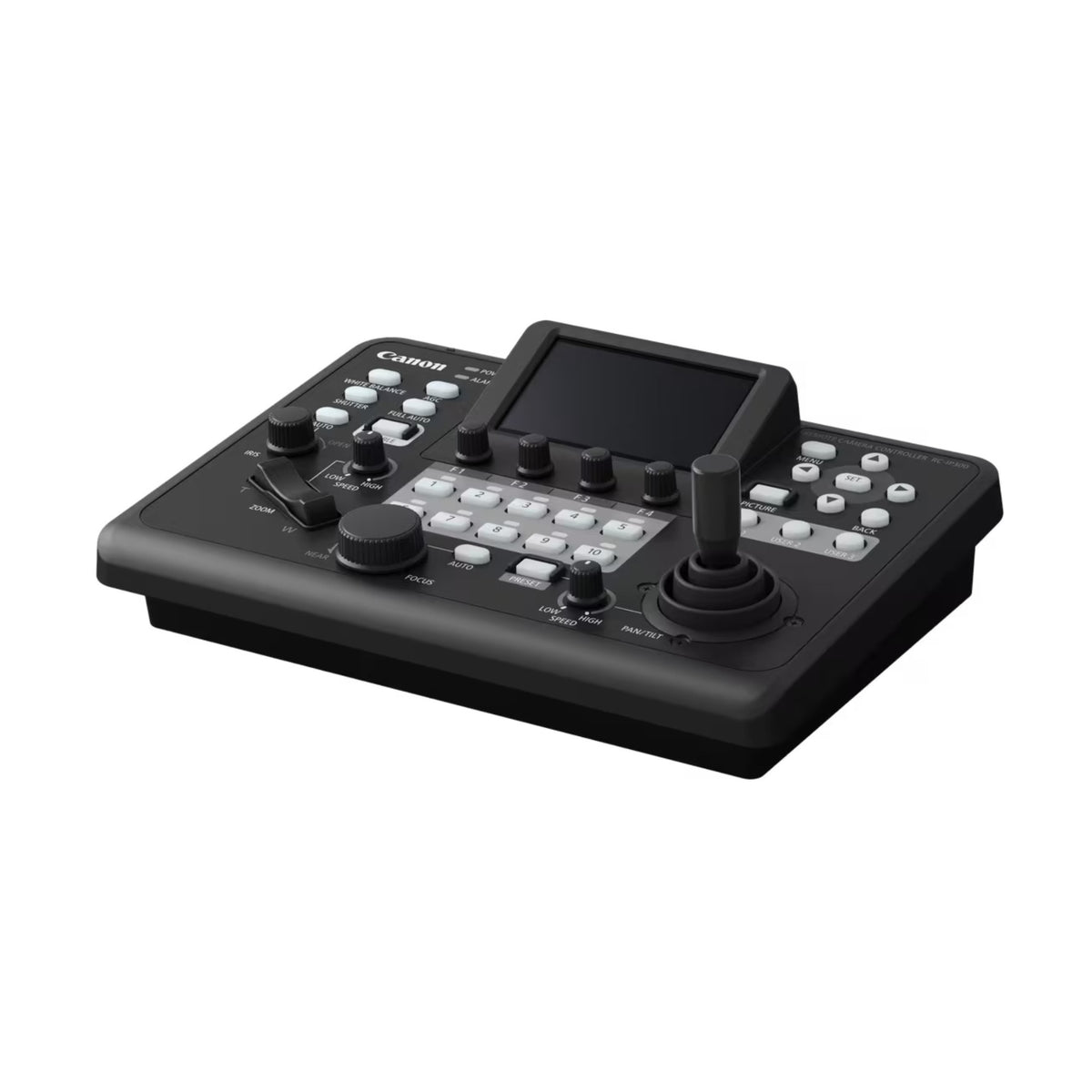

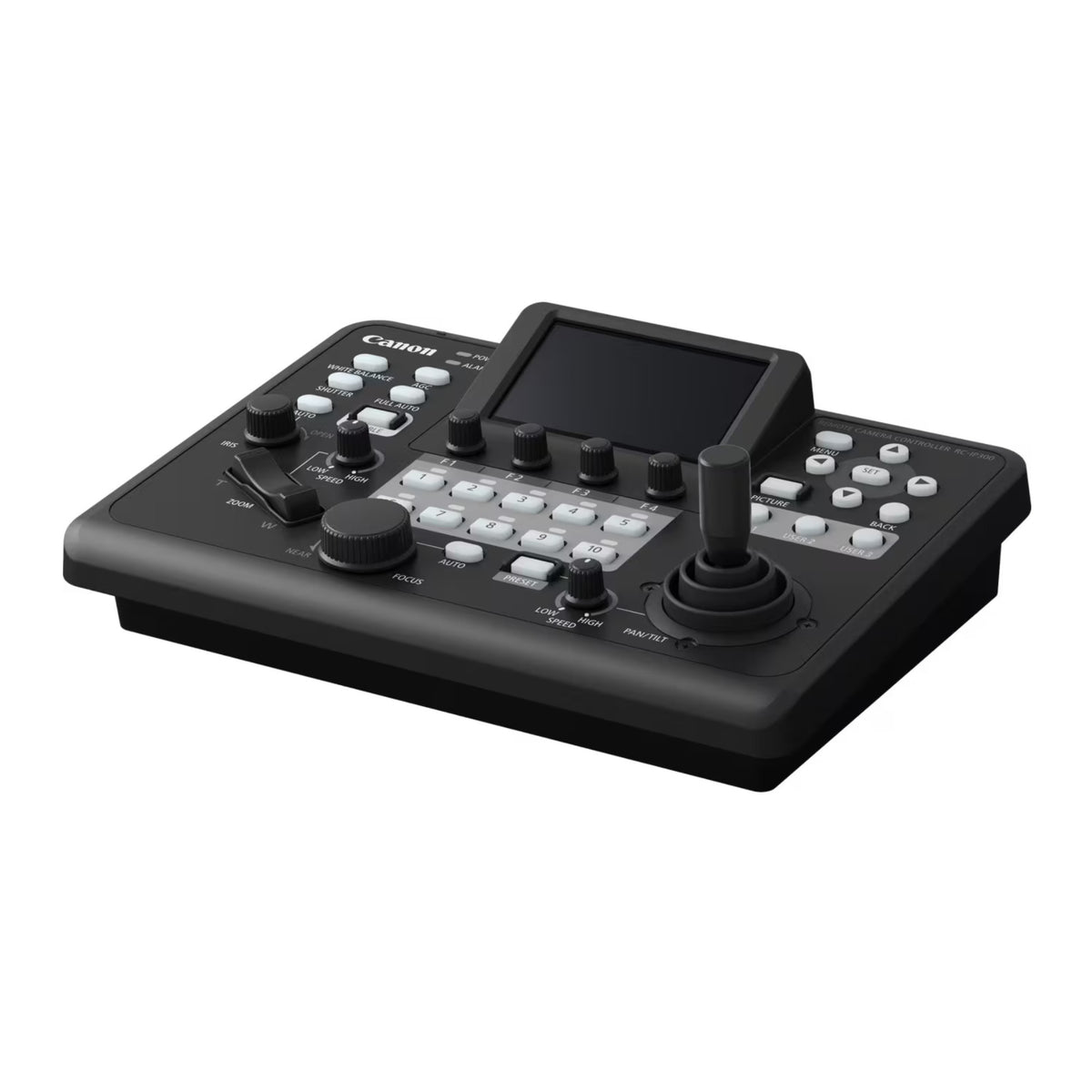

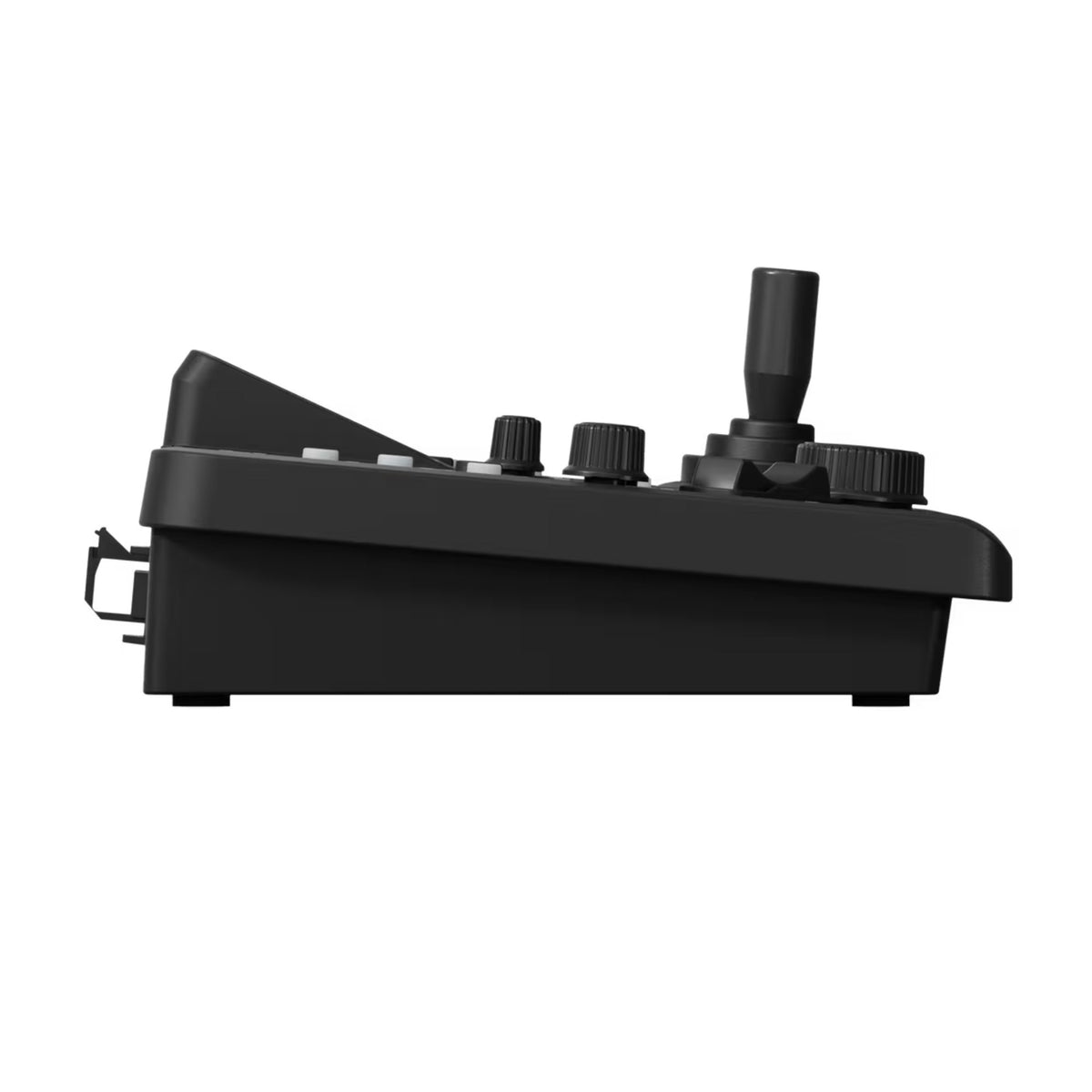

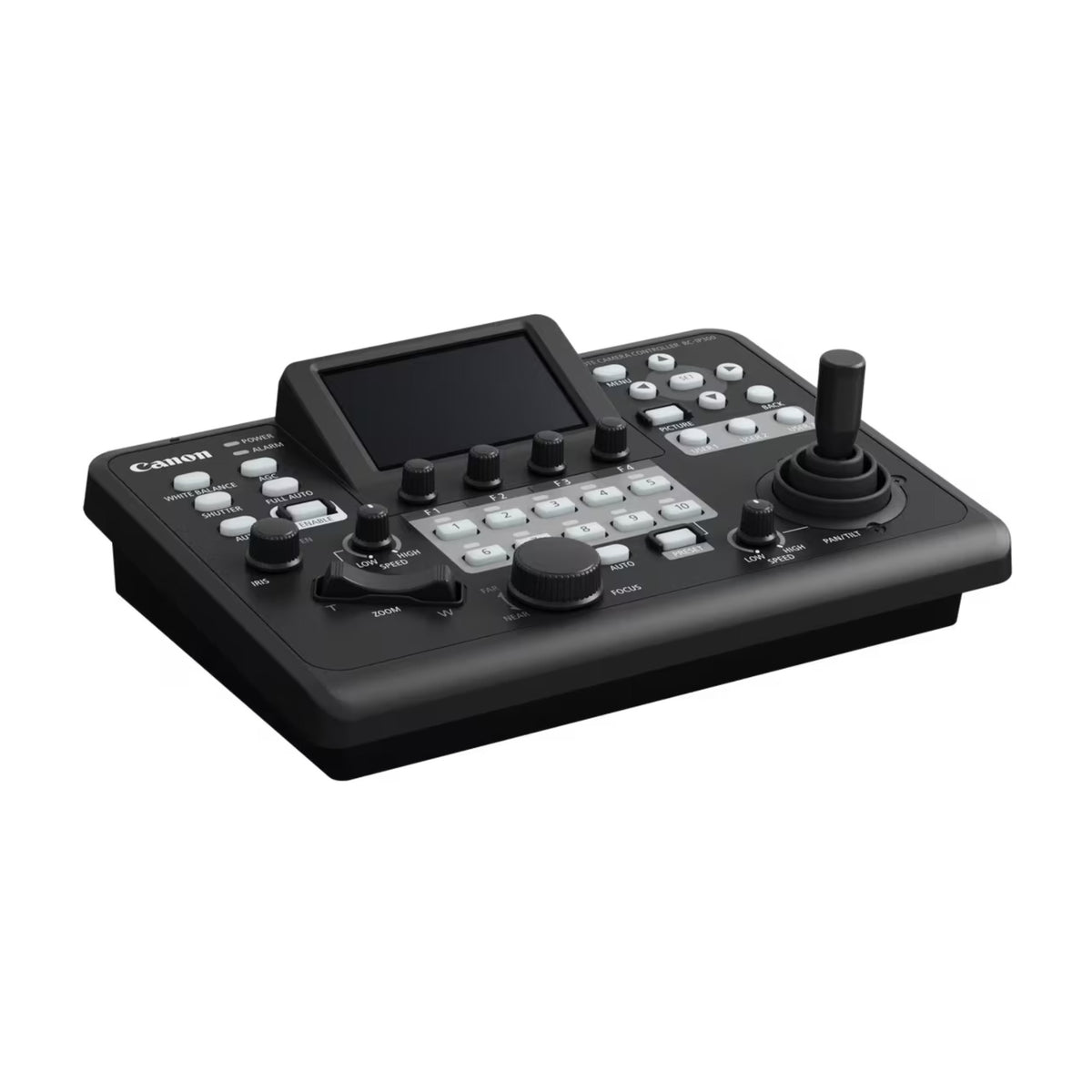

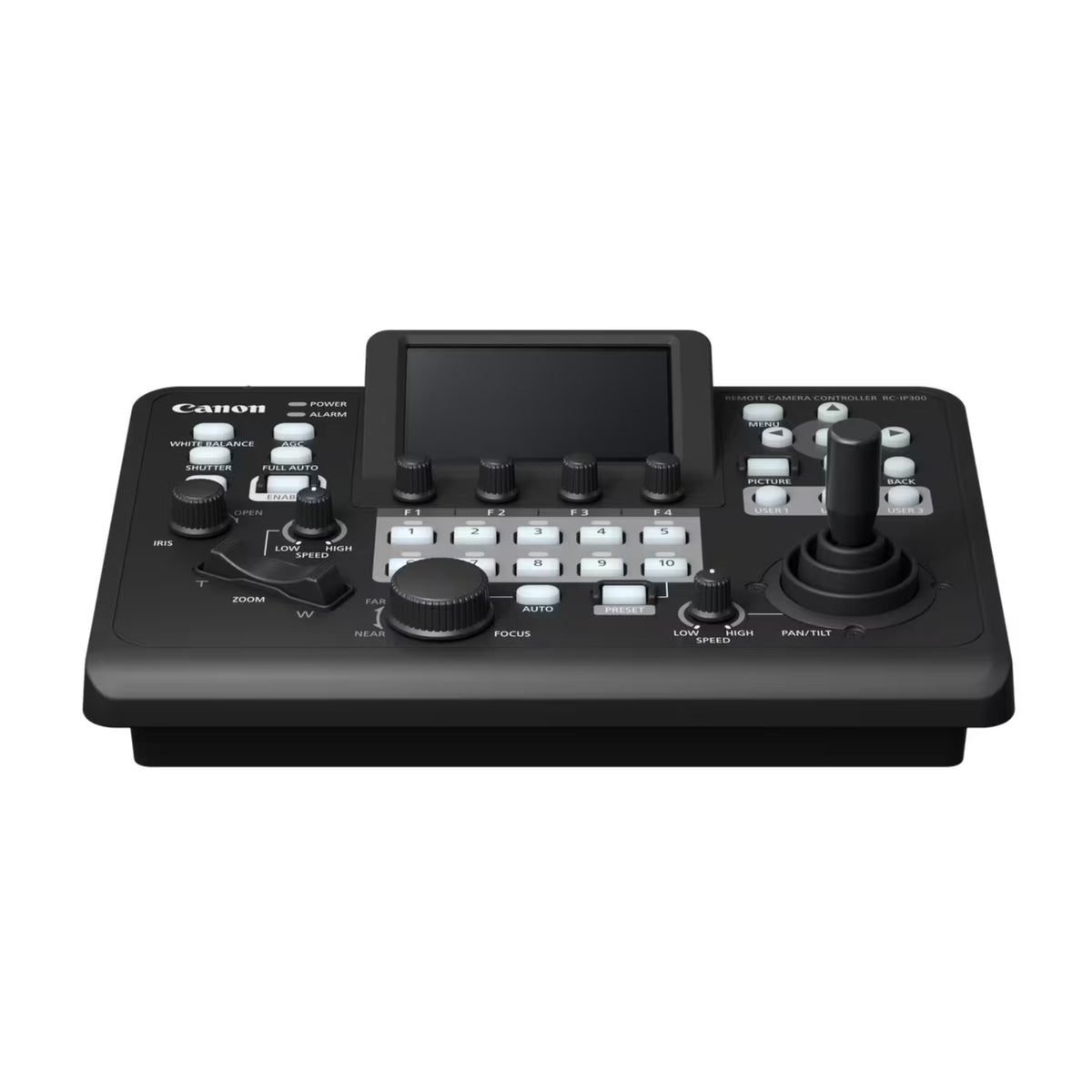

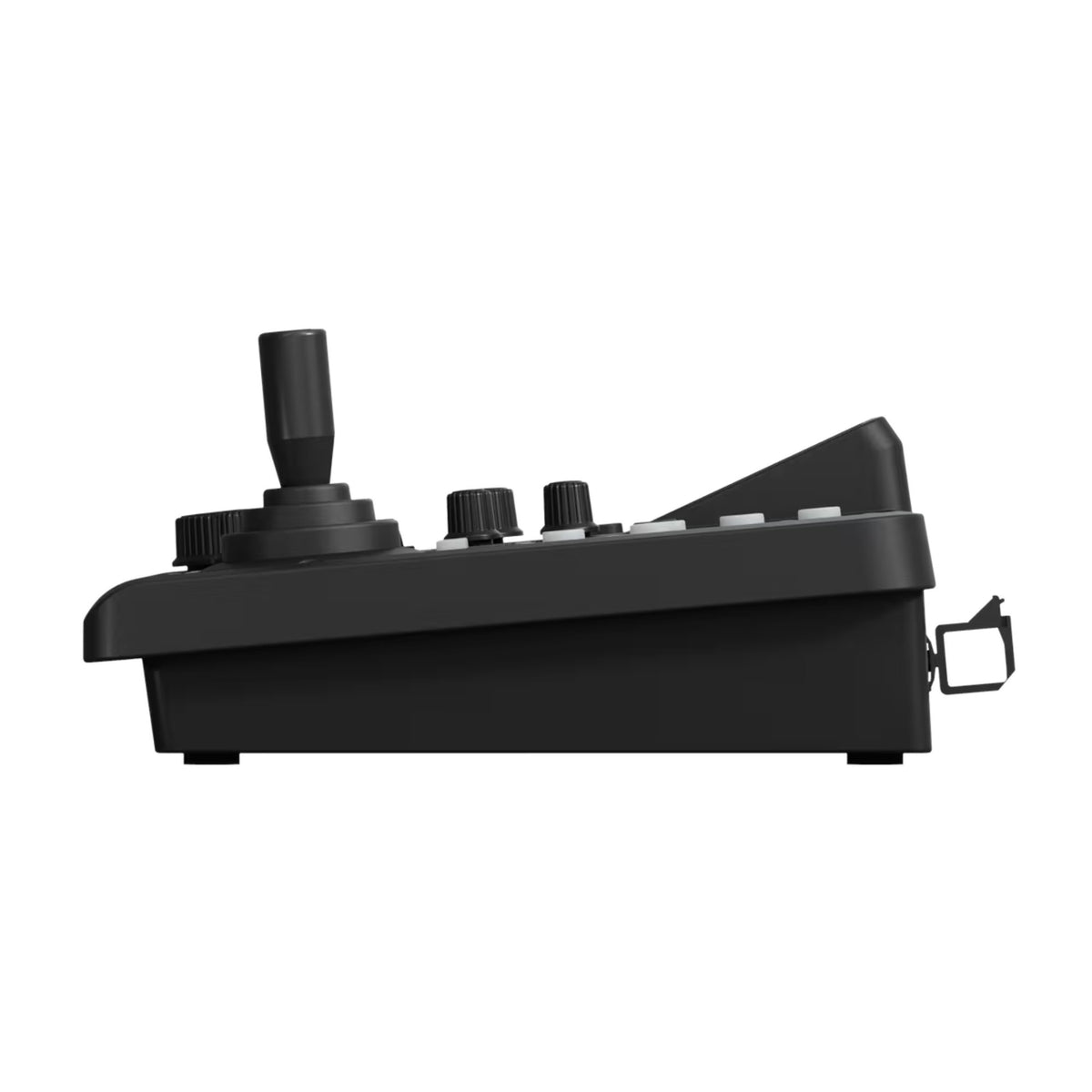

Canon RC-IP300 PTZ Camera Controller with 3.5-Inch Touchscreen Control-Panel Display
- Controls up to 200 cameras for large-scale productions
- Stores up to 100 presets per camera for quick shot recall
- Enables single-user multi-camera control
- Features a 3.5-inch touchscreen for live preview and adjustments
- Supports Auto Tracking with face and head detection
- Uses IP video inputs for streamlined connectivity
- Compact design fits desks and control stations easily
- Compatible with Canon PTZ, Cinema EOS, and camcorders
- Integrates with Stream Deck and Canon apps for custom control
- Supports PoE or 12V power for flexible setup

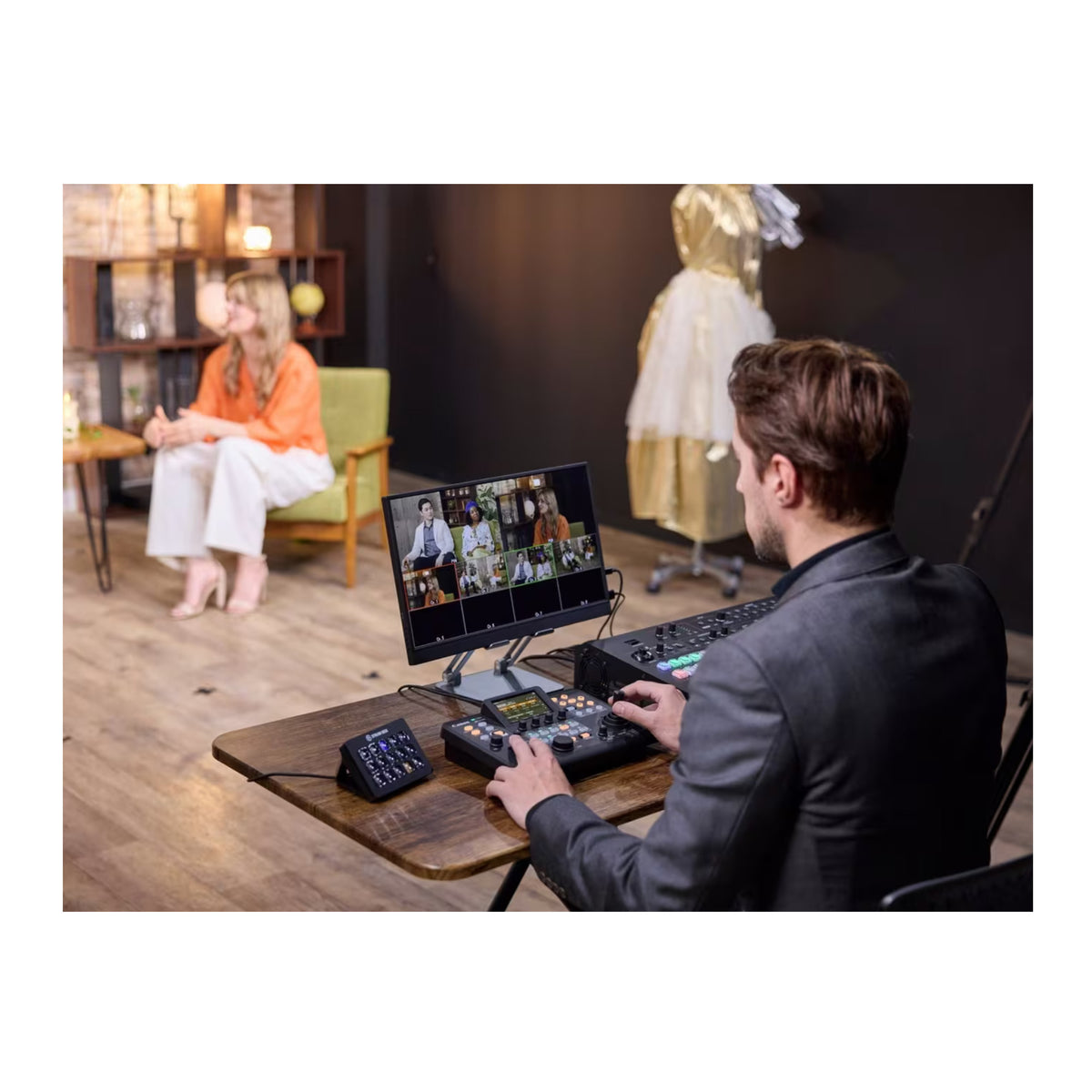

The Canon RC-IP300 PTZ Camera Controller is designed for efficient multi-camera control in broadcast, education, and live event environments. It allows a single user to manage complex productions with precision, speed, and consistency.
Control Up to 200 Cameras
Manage large-scale productions from a single controller. The RC-IP300 supports up to 200 cameras across multiple groups, making it suitable for expanding workflows without adding complexity.
Up to 100 Presets Per Camera
Store and recall up to 100 presets per camera. This enables quick shot changes, consistent framing, and faster production setup for repeatable results.
Single-User Workflow
Operate multiple cameras with one person. The joystick, touchscreen, and dedicated controls allow smooth movements and fast switching, reducing the need for additional crew.
3.5-Inch Touchscreen Preview
Monitor camera feeds directly on the built-in display. The touchscreen supports quick adjustments, framing checks, and efficient control during live operation.
Auto Tracking Support
Compatible with Canon Auto Tracking Application RA-AT001. Track subjects automatically using face and head detection, improving efficiency in lectures, events, and presentations.
IP-Based Control and Video Input
Streamline your setup with IP video inputs. Reduce cabling while maintaining reliable control across connected devices and network-based workflows.
Compact and Desk-Friendly Design
The compact form factor fits control rooms, studios, and mobile setups. It supports PoE or a 12V power adapter for flexible installation.
Canon Ecosystem Integration
Control PTZ cameras, Cinema EOS, and camcorders through Canon’s XC Protocol. Unified operation simplifies multi-device workflows.
Stream Deck and App Compatibility
Integrates with Canon apps and Stream Deck for customizable control. Assign shortcuts and automate functions for faster operation.
General
| Power Supply (Adapter) | DC12V |
| Power Supply (PoE) | Yes (PoE) |
| Exterior Dimensions | W 255mm x H 94mm x D 180mm (excluding protrusions) |
| Weight | Approx. 1.3 kg |
| Operating Temperature | 0°C - 40°C |
| Display | 3.5-inch touch panel |
| Supported Protocols | |
|
Connection Specifications
| Number of Camera Groups | 20 (10 units per 1 group) |
| Number of Connectible Cameras | 200 (IP), 1 (Serial) |
Input / Output
| Video Input / Output | IP IN (video switch with camera selection; 2x2/3x3 multi-camera video display) |
| Serial Interface | RJ45 x 1 |
| Tally / GPIO | D-sub 9pin x 1 |
| Video Display on Touch Panel | YES (IP) |
| USB | USB Type A x 1 (for firmware upgrades, saving settings, and Stream Deck connection) |
Memory
| Presets | Up to 100 for each camera (depends on camera specs) |
| Hard Button Support for Presets | Yes (used with camera number buttons) |
| Memory Trace | Up to 10 for each camera (depends on camera specs) |
Control Panel
| Menu Operation | Yes (touch panel or arrow button and SET/BACK buttons) |
| Number of User Buttons | 3 (USER1 to USER12 can be controlled from the touch panel) |
| Touch Focus from Panel | YES (IP) |
| Number of Camera Selectable Buttons | 10 (usable as preset select) |
Other
| Initial Camera Settings without PC | YES |
| Simultaneous Multi-Camera Setup | YES |
