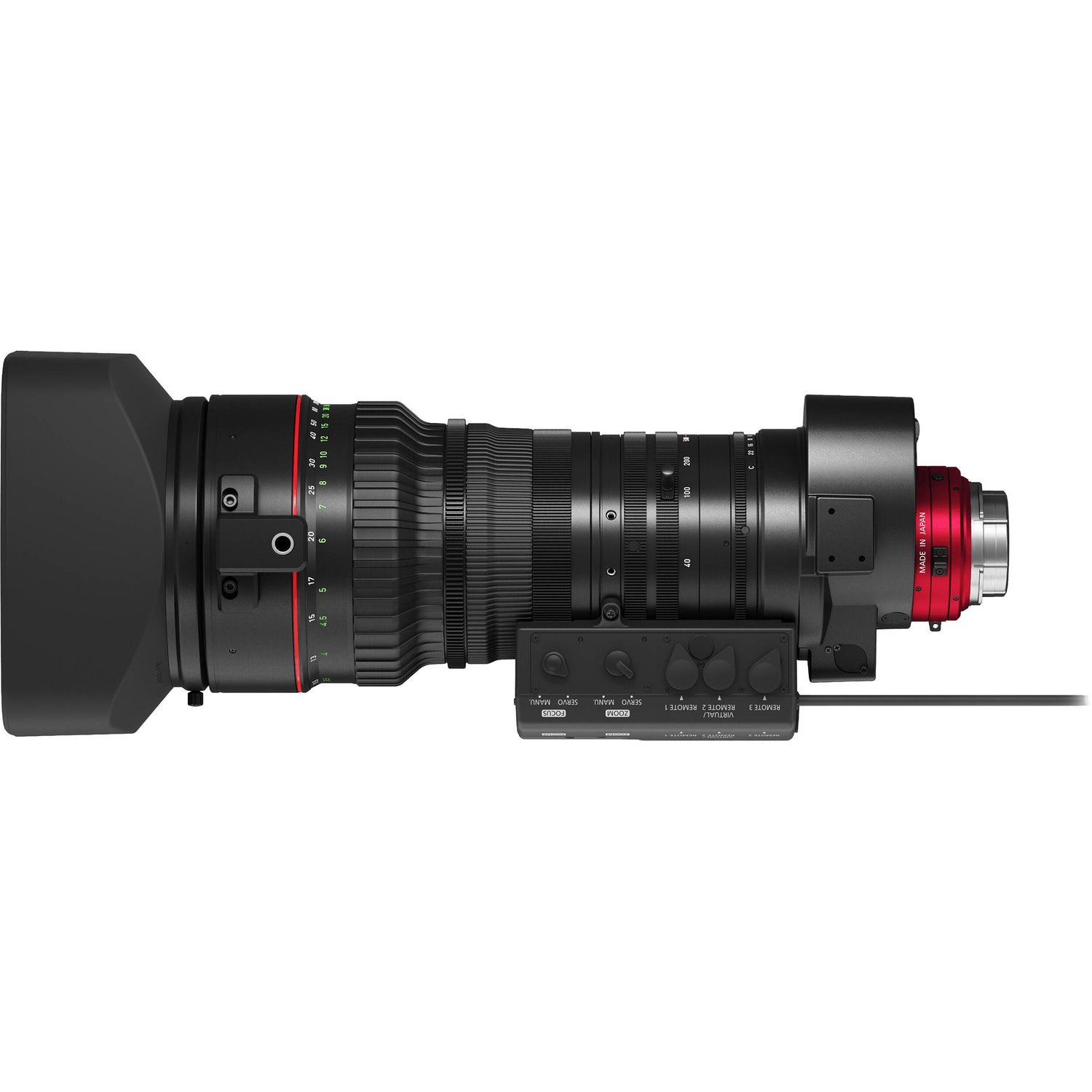

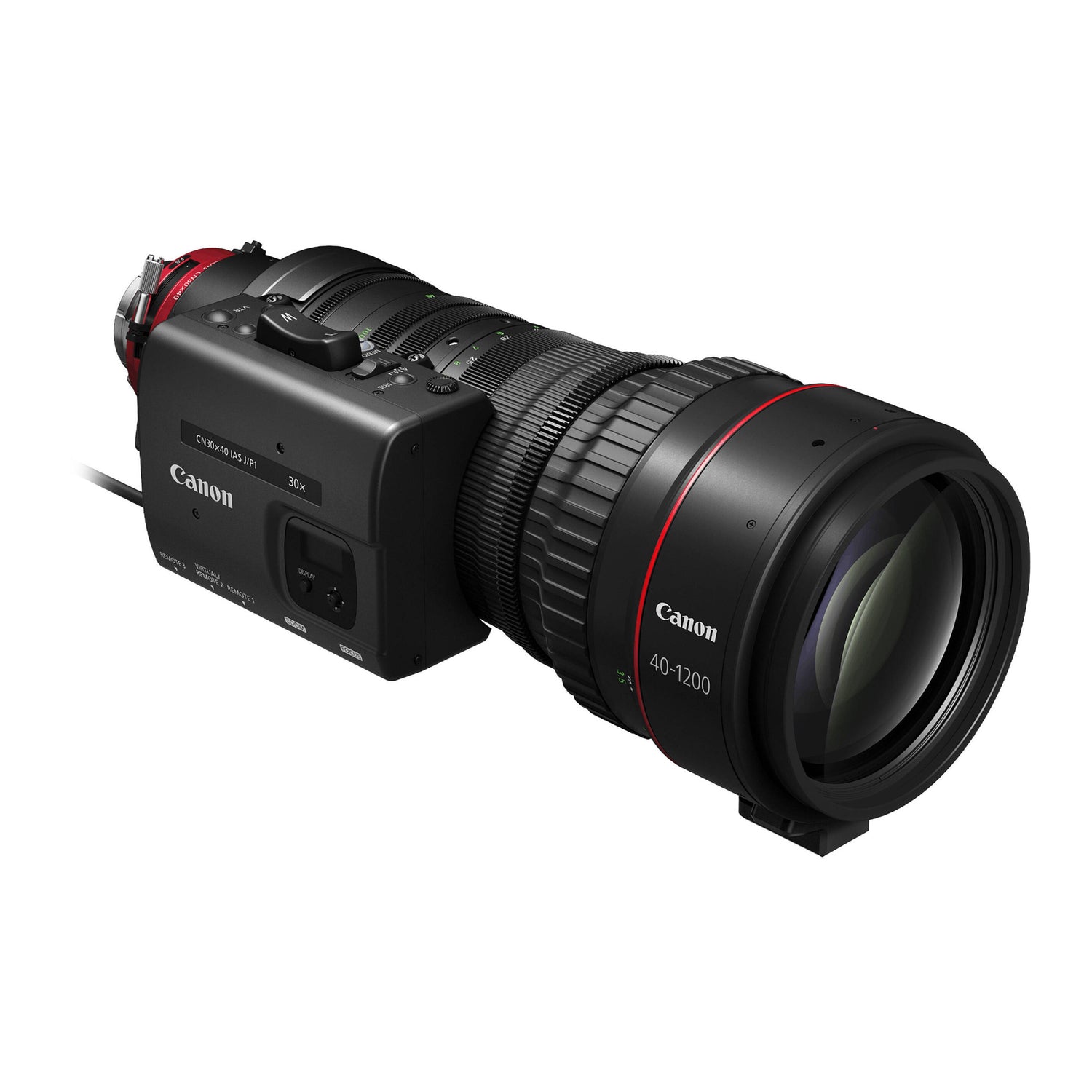

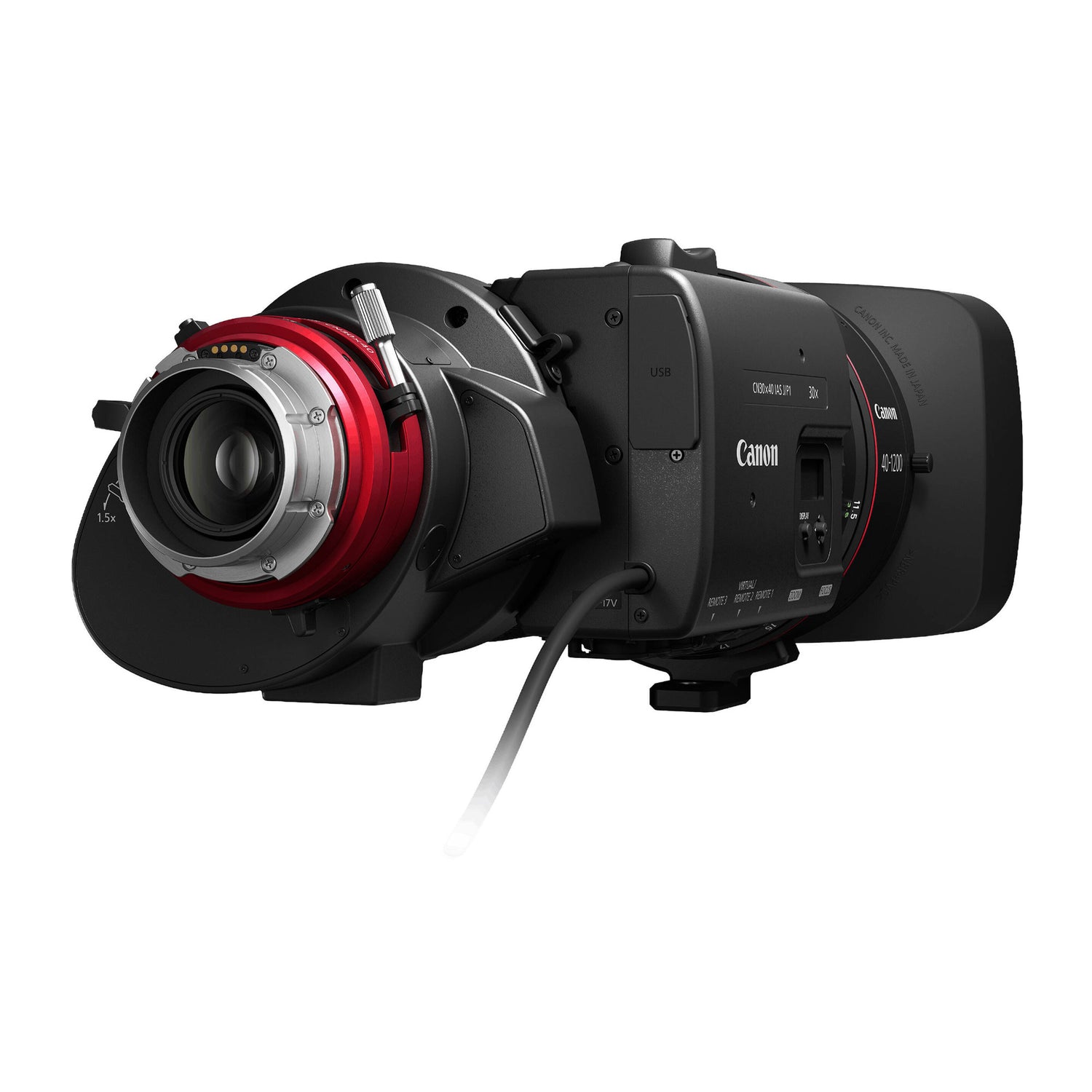

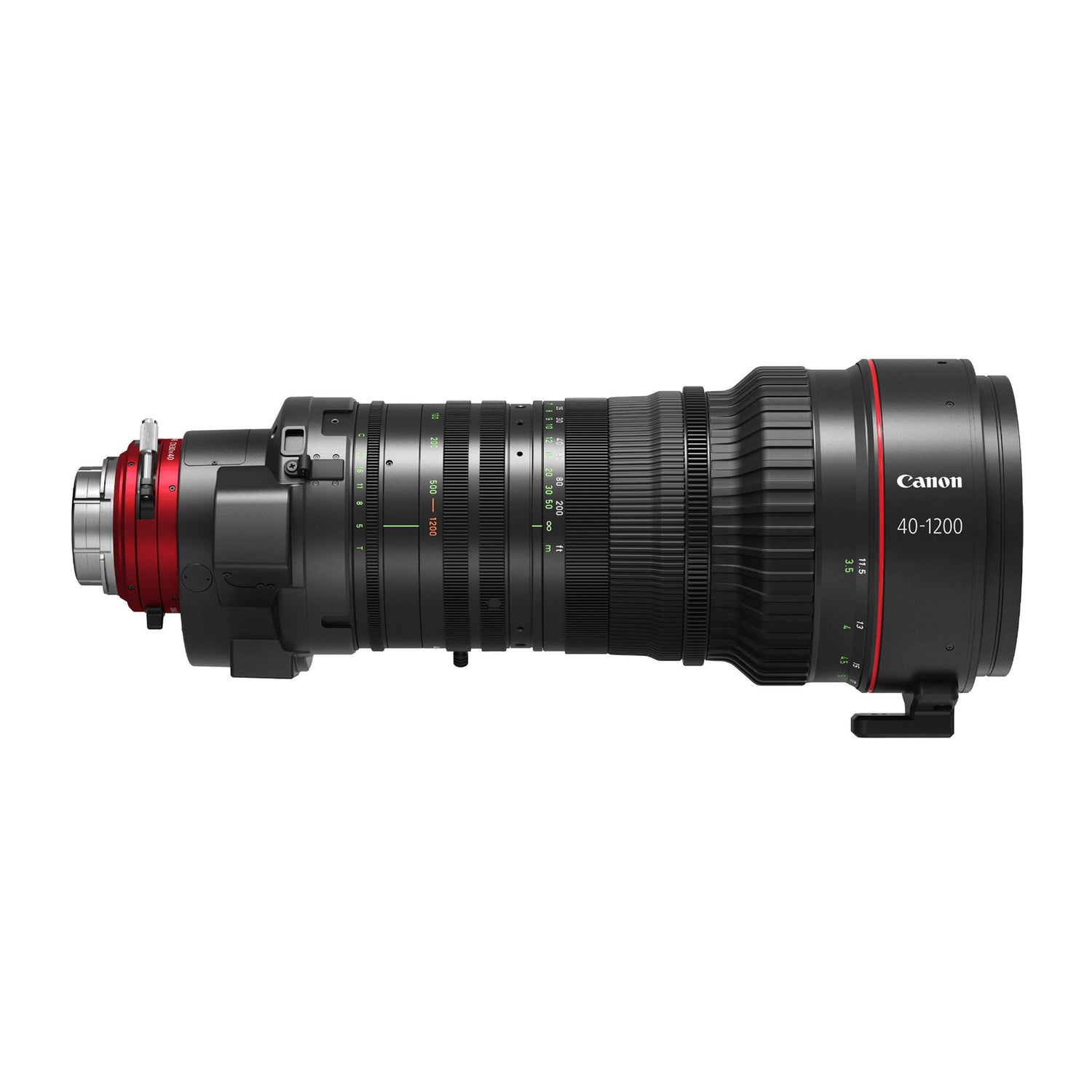

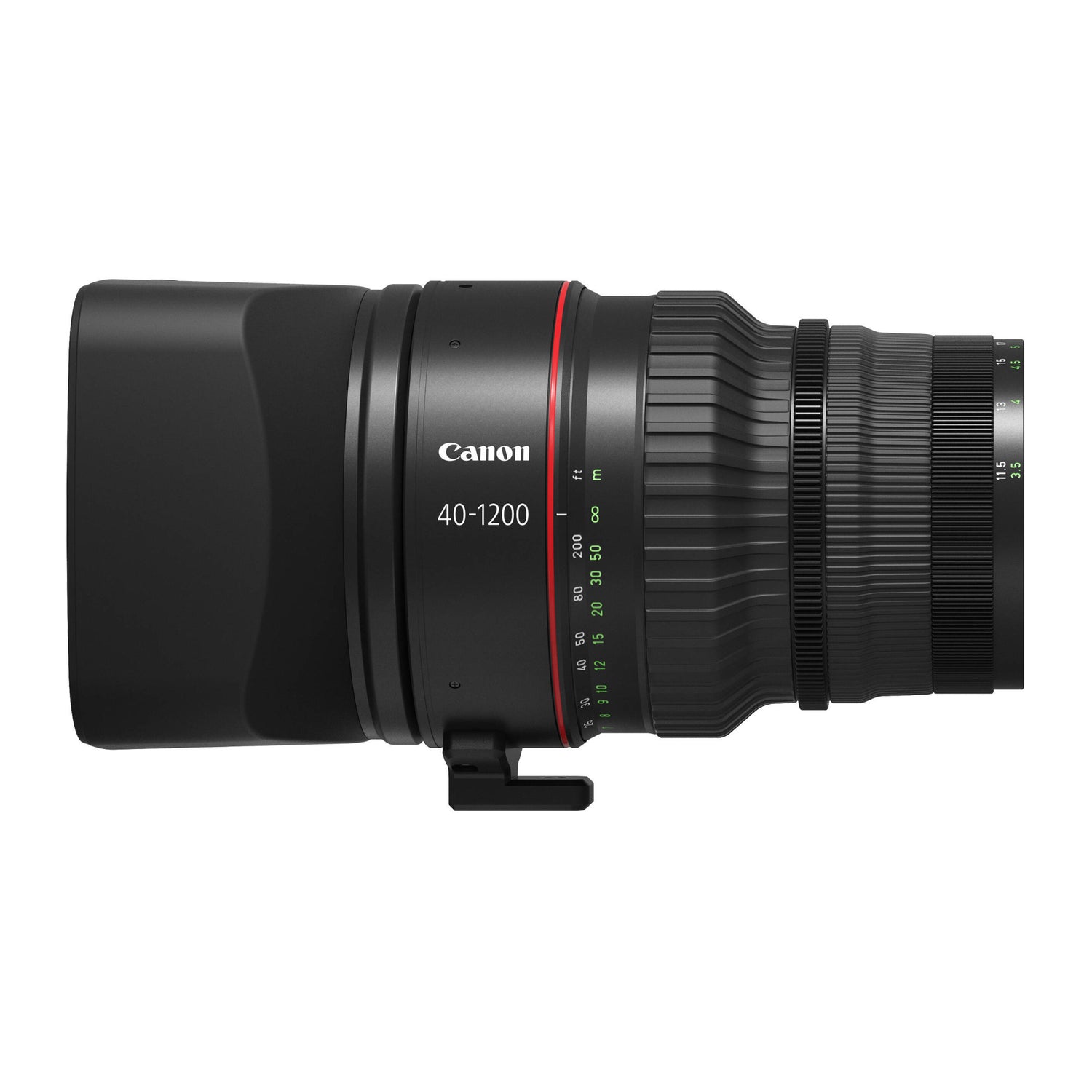

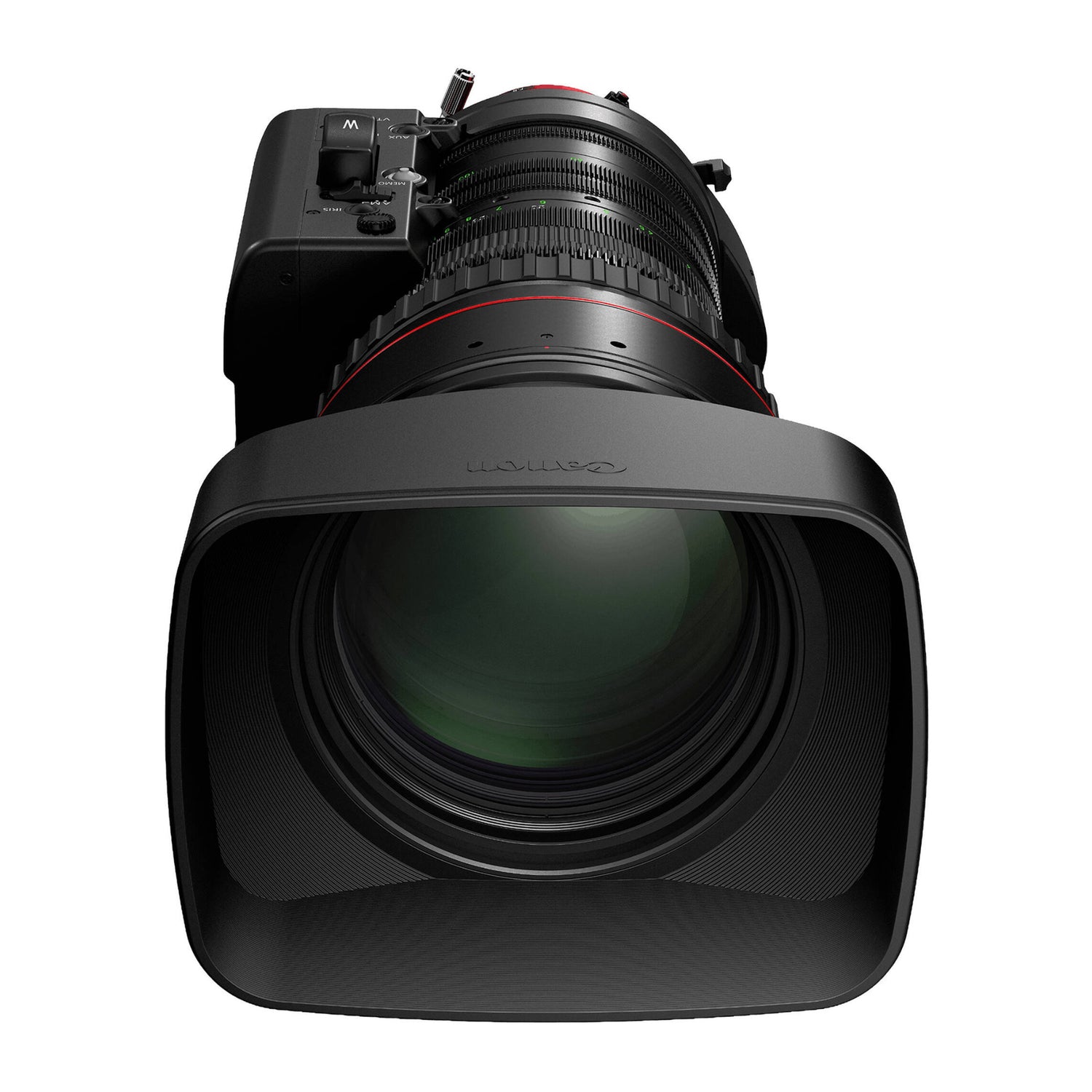

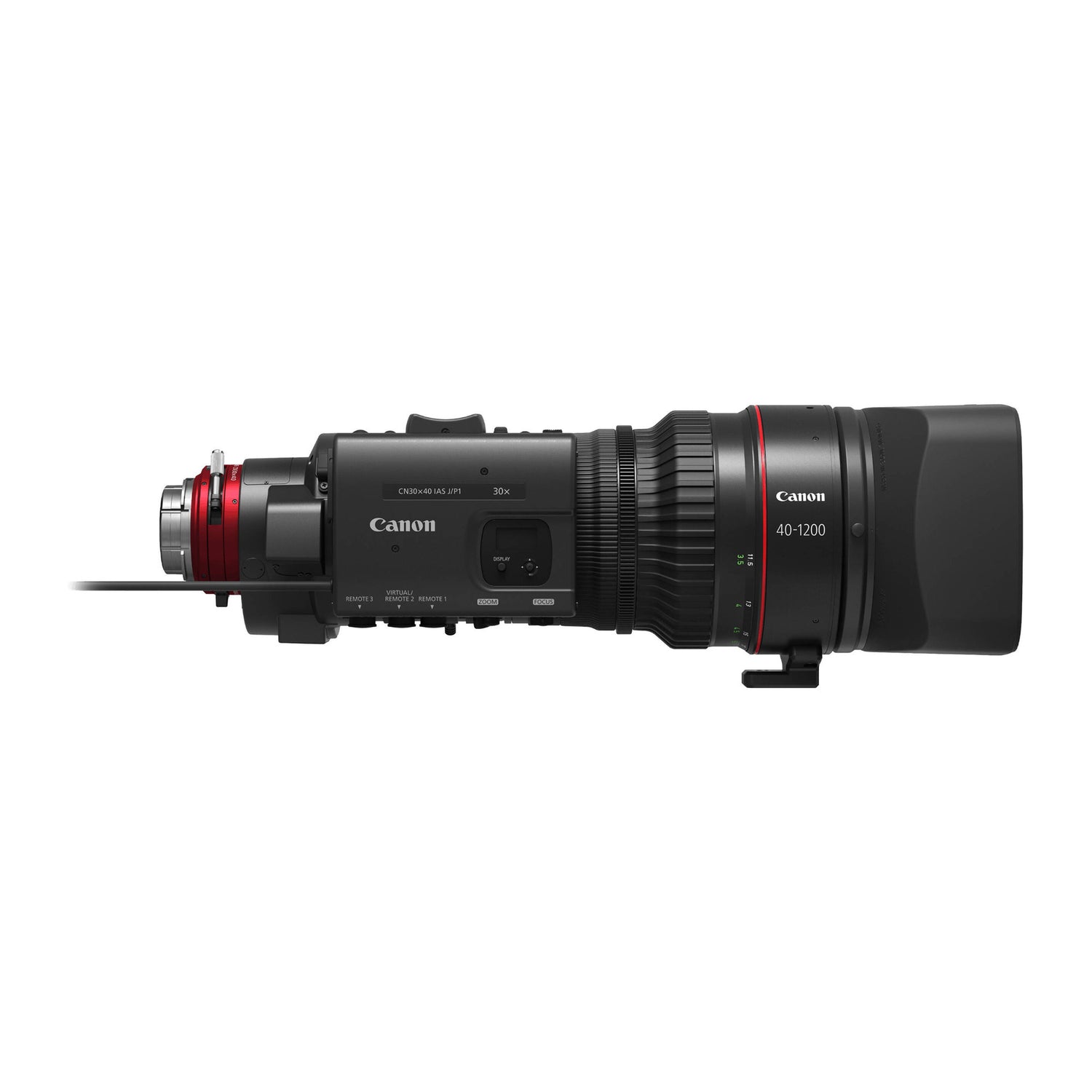

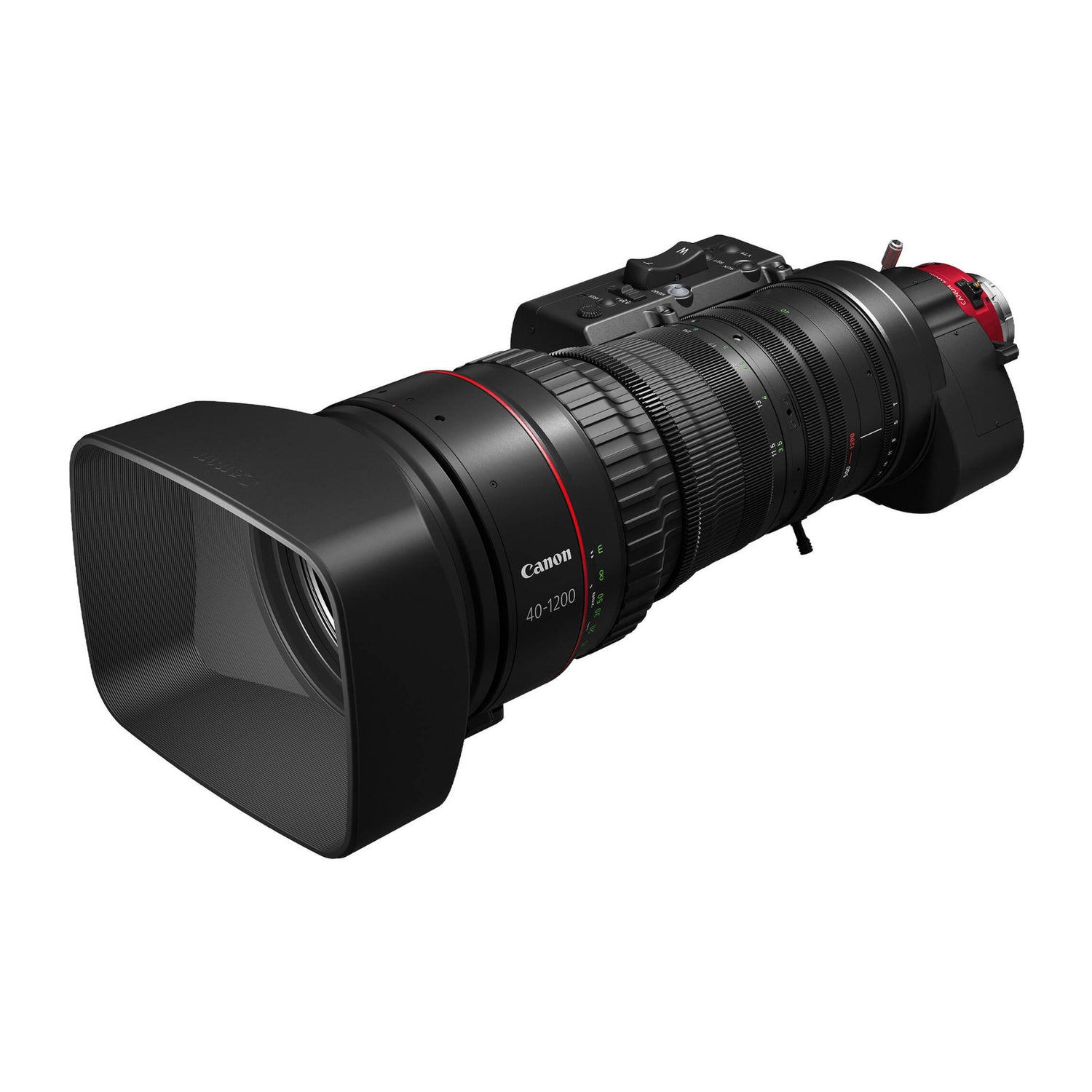

Canon CINE-SERVO 40-1200mm T5.0-10.8 Cinema Zoom Lens (ARRI PL)
The CINE SERVO 40-1200mm T5.0-10.8 available in ARRI PL mount, is a remarkable achievement in optics, offering a lightweight and compact design (approx. 14.6 lbs. and approx. 16.0 inches in length) while delivering unprecedented focal length. The built-in 1.5x extender allows the lens to reach an 1800mm equivalent focal length on Super 35mm sensors. Its size makes it ideal for either tripod use or car/aerial mounting, and the increased magnification allows you to capture details more closely. The lens natively covers Super 35mm sensors, with the integrated 1.5x extender further expanding its versatility to support full-frame sensor cameras.
Ultra-long Zoom Range 40-1200mm (60-1800mm with Extender)
With just one lens, you can cover everything from standard to super‑telephoto—unlocking dynamic, powerful shots that were previously out of reach. The built-in 1.5x extender expands the focal range to 1800mm equivalent focal length on Super 35mm sensors.
Optimal Portability for a Wide Range of Productions
This lens is 16.0 inches in length, and weighs just 14.6 lbs., which is similar to the CINE-SERVO 50-1000mm lens. The lens also keeps the same front diameter and the same zoom, focus, and iris ring positions as the CINE-SERVO 50-1000mm lens, allowing you to use it in similar situations with the same accessories.
Built-in 1.5x Extender Enables Support for Full-frame Sensor
The lens natively covers Super 35mm sensors. In addition, when the extender is engaged, the image circle is increased, and the lens will cover full-frame 35mm sensors.
8K Camera Support and HDR Compatibility
Canon’s optical technologies provide the optical performance to support 8K resolution throughout the zoom range. Aberrations are controlled as much as possible for outstanding performance from the center of the image to the edges.
Beautiful Bokeh with 11-Blade Iris
The 11-blade iris diaphragm gives natural bokeh that is nearly circular from fully open to minimum aperture.
The odd number of iris blades produce a soft and diffused glow on high-brightness subjects, with no overlap of diffracted light in the opposite direction, giving a soft and diffused glow.

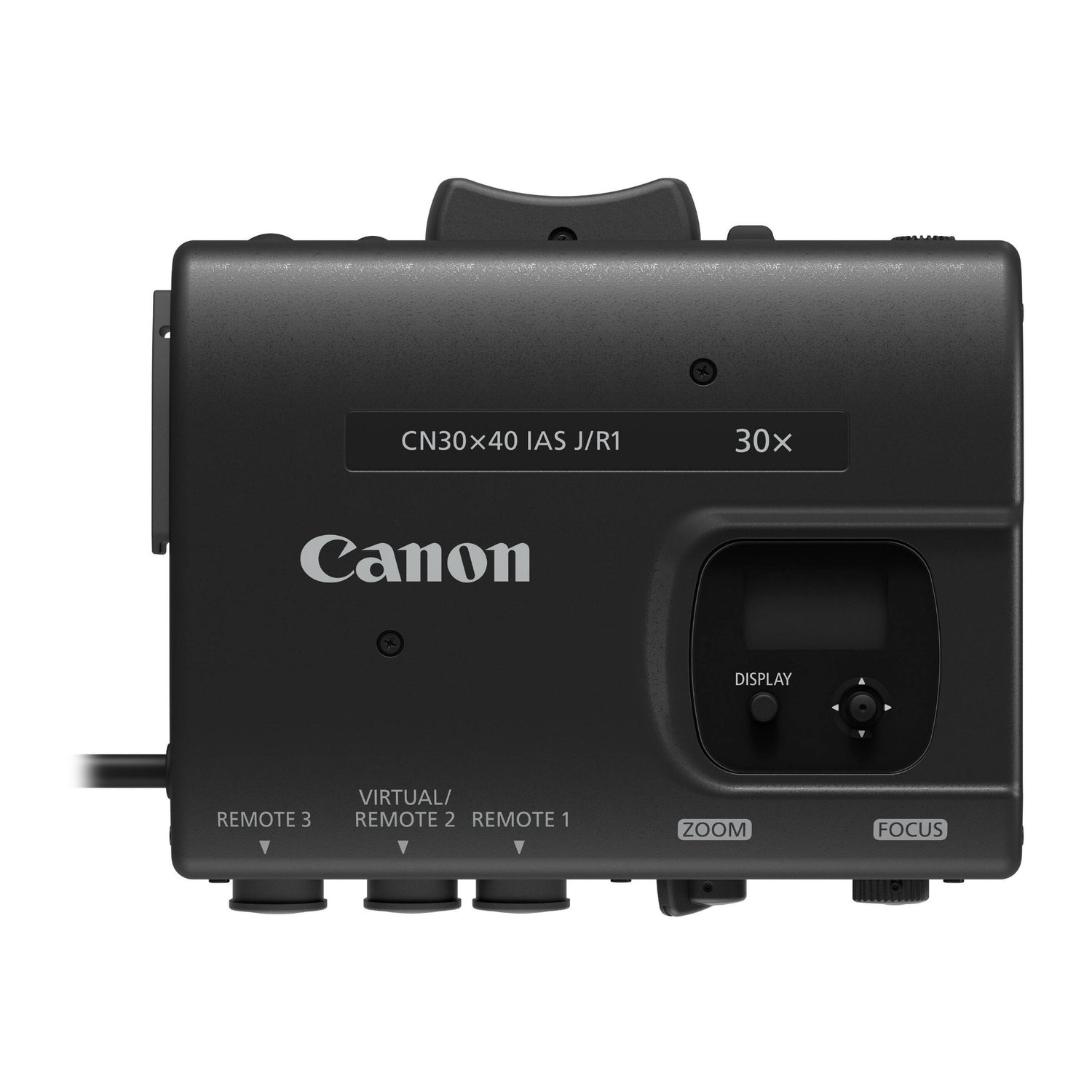

Newly-Developed Drive Unit
The drive unit has been redesigned with Focus Breathing Compensation and a USB-C port. When the USB-C port is powered via USB-C Power Delivery, the zoom servo speed from full wide to full tele improves from approximately 1.5 seconds to around 1 second. In addition, the focus servo speed is improved as well, decreasing from roughly 1.8 seconds to approximately 1.3 seconds.
- 24.6 × 13.8 mm
- 40 mm: 34.2° × 19.6° / 1200 mm: 1.17° × 0.66°
- 60 mm: 23.2° × 13.1° / 1800 mm: 0.78° × 0.44°
- 26.2 × 13.8 mm
- 40 mm: 36.3° × 19.6° / 1200 mm: 1.25° × 0.66°
- 60 mm: 24.6° × 13.1° / 1800 mm: 0.83° × 0.44°
- 38.1 × 20.1 mm
- 60 mm: 35.2° × 19.0° / 1800 mm: 1.21° × 0.64°
- 36 × 24 mm
- 60 mm: 33.4° × 22.6° / 1800 mm: 1.15° × 0.76°
- 24.6 × 13.8 mm
- 40 mm: 170.3 × 95.5 cm / 1200 mm: 5.9 × 3.3 cm
- 60 mm: 113.5 × 63.7 cm / 1800 mm: 3.9 × 2.2 cm
- 26.2 × 13.8 mm
- 40 mm: 181.4 × 95.5 cm / 1200 mm: 6.3 × 3.3 cm
- 60 mm: 175.8 × 92.8 cm / 1800 mm: 6.1 × 3.2 cm
- 38.1 × 20.1 mm
- 60 mm: 175.8 × 92.8 cm / 1800 mm: 6.1 × 3.2 cm
- 36 × 24 mm
- 60 mm: 166.1 × 110.7 cm / 1800 mm: 5.8 × 3.8 cm
- 1× Zoom
- 1× Focus
- 1× Virtual Lens Data
- Outer Dimensions (W × H × D): Approx. 174.9 × 170.6 × 405.2 mm
- Approx. 14.6 lbs (6.6 kg)
General
| Mount Type | ARRI PL |
| Lens Communication | Cooke/i Technology, ZEISS eXtended Data |
| Zoom Ratio | 30x |
| Built-in Extender | Yes (1.5x) |
Focal Length
| 40–1200 mm | |
| 60–1800 mm |
Maximum Aperture (T-number)
| T5.0 at 40–560 mm / T10.8 at 1200 mm | |
| T7.5 at 60–840 mm / T16.2 at 1800 mm |
Iris
| Number of Iris Blades | 11 blades |
Angle of View
| Aspect Ratio 1.78 | 1 |
| Aspect Ratio 1.9 | 1 |
| Aspect Ratio 1.9 | 1 |
| Aspect Ratio 1.5 | 1 |
Minimum Shooting Distance
| 3.5 m / 11.5 ft |
Field of View at Minimum Focus
| Aspect Ratio 1.78 | 1 |
| Aspect Ratio 1.9 | 1 |
| Aspect Ratio 1.9 | 1 |
| Aspect Ratio 1.5 | 1 |
Mechanical
| Front Diameter | Φ 136 mm |
| Image Circle | Φ 29.6 mm / Φ 43.3 mm |
| Filter Diameter (Hood/Lens) | Φ 127 mm |
Drive Unit
| 3× Hirose 20-pin | |
Physical
| Dimensions | |
| Weight | |
