Celestron Advanced VX 6-Inch Rowe-Ackermann Schmidt Astrograph (RAS...

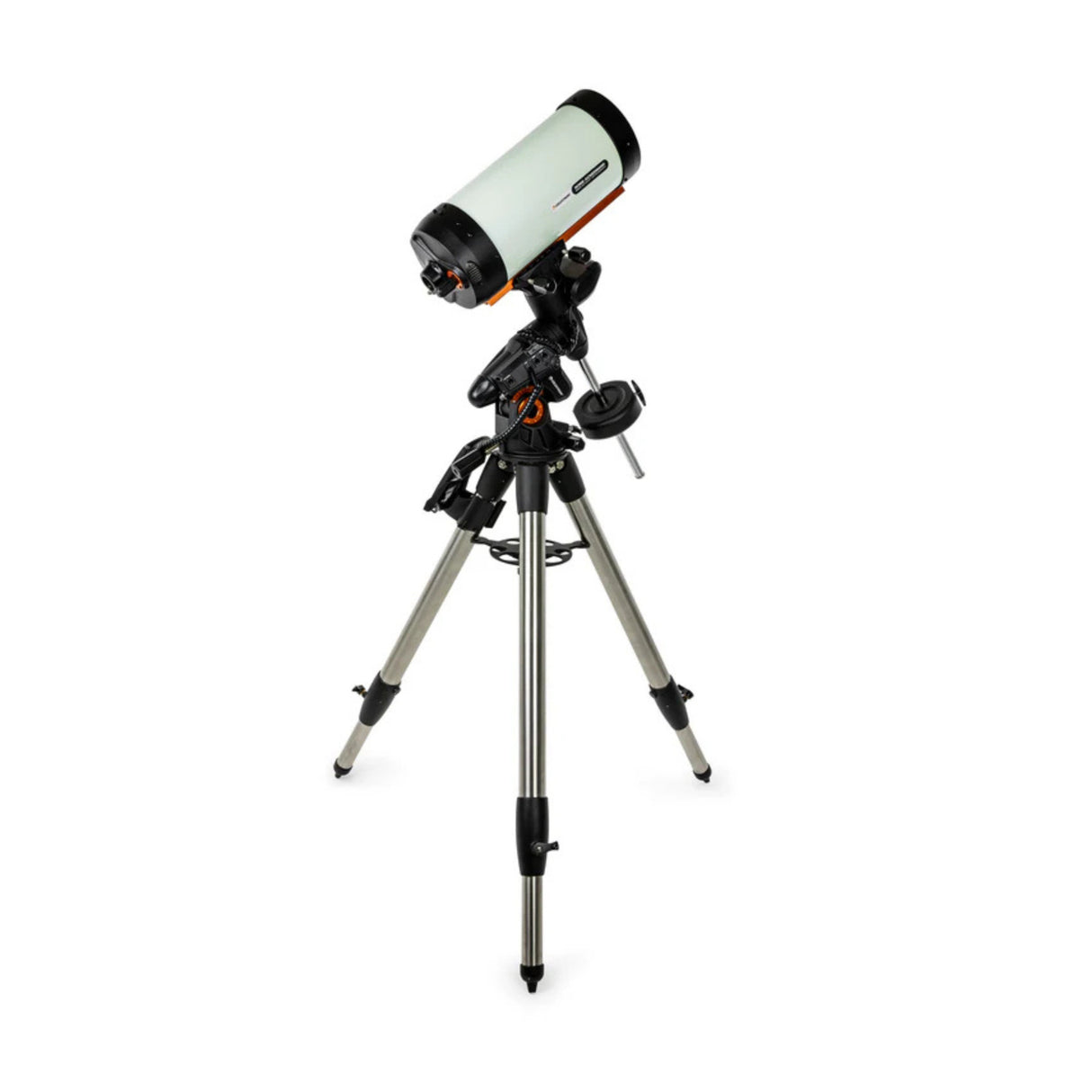

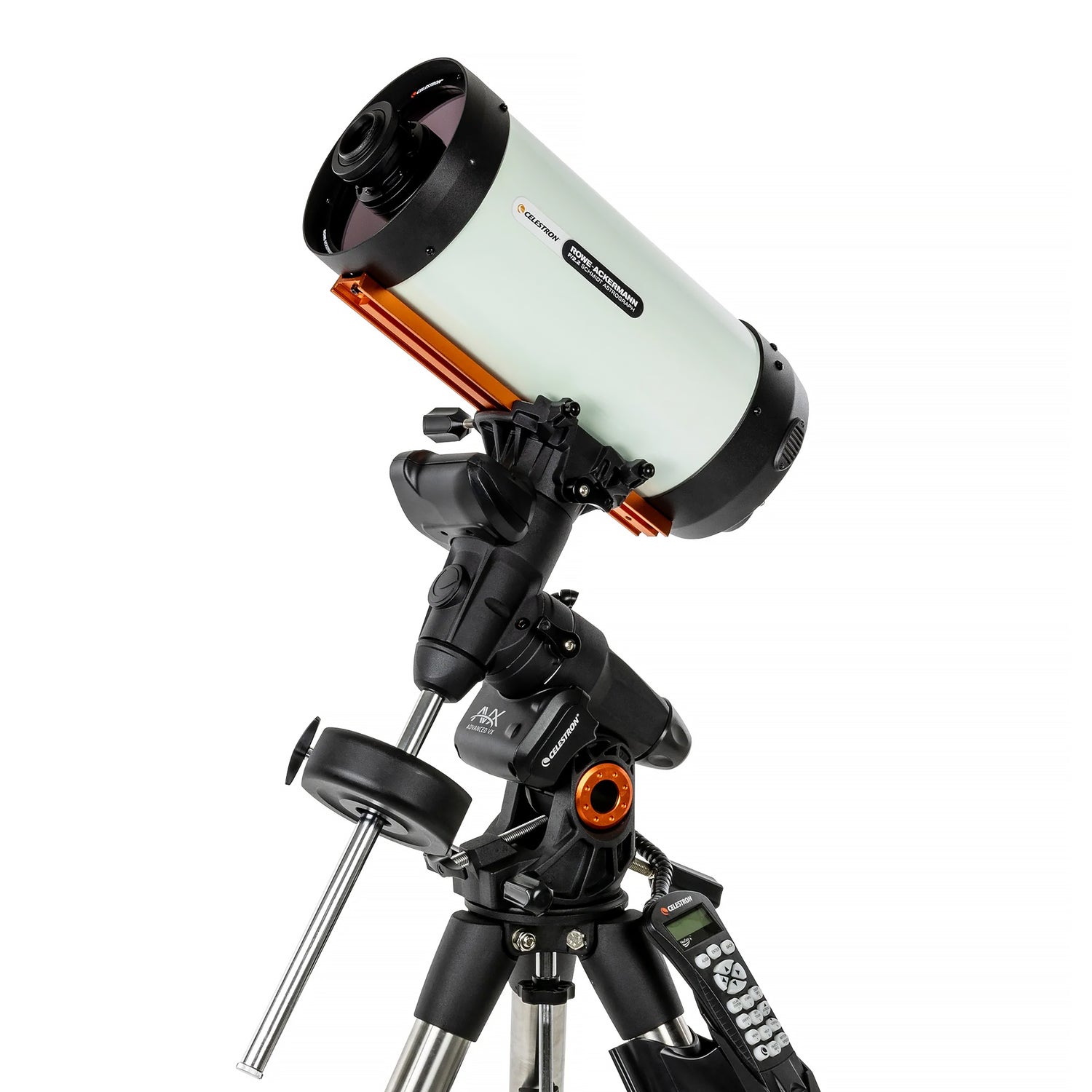

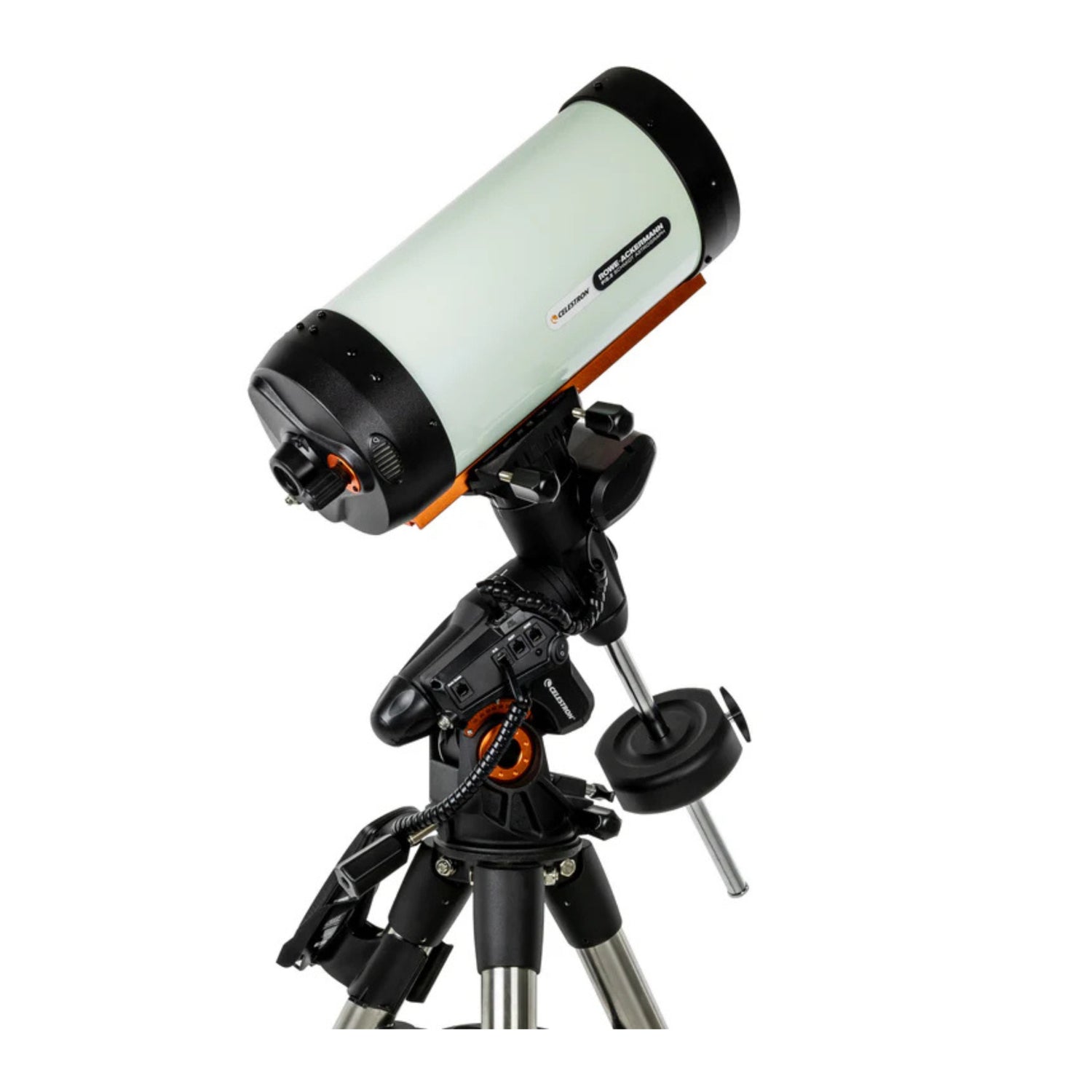

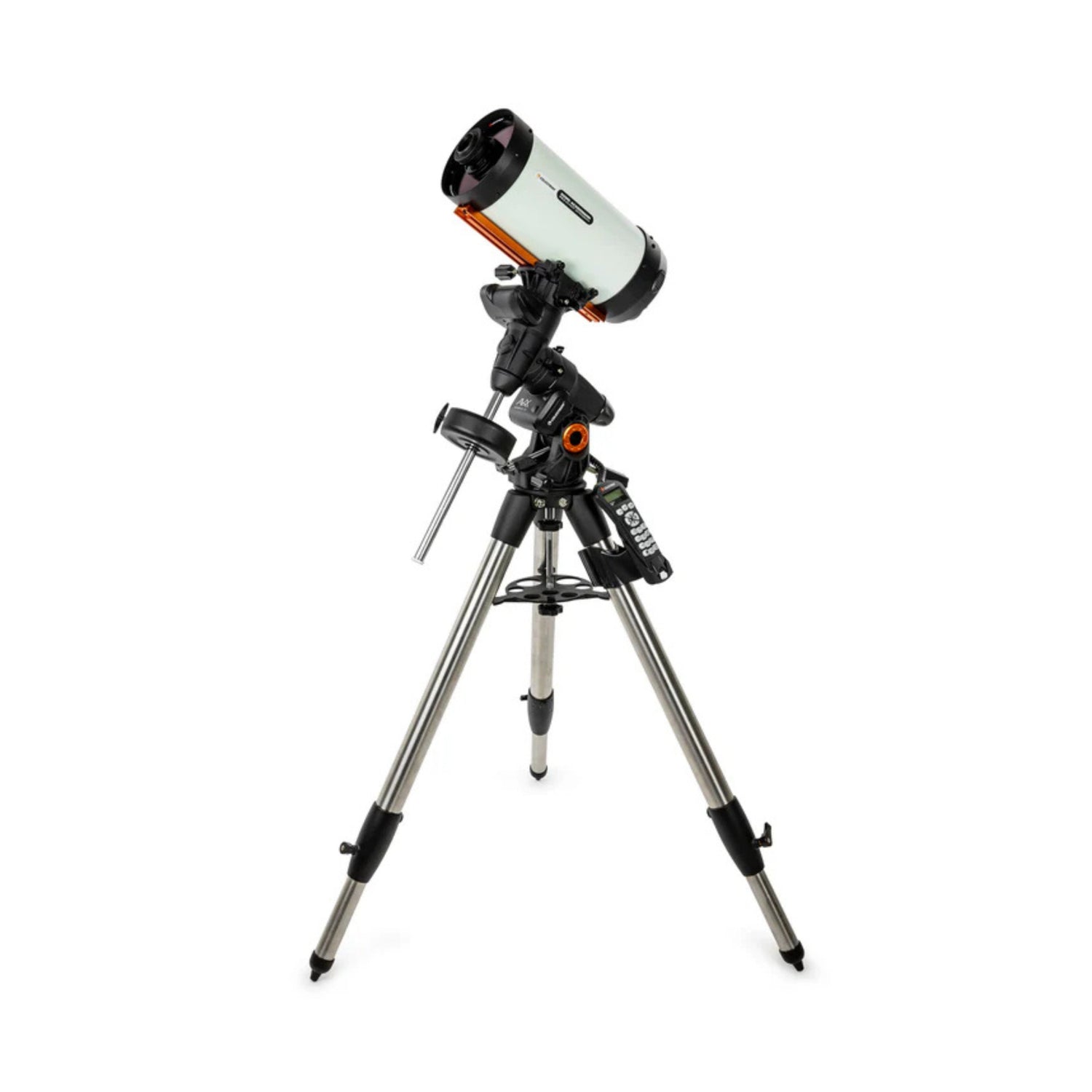

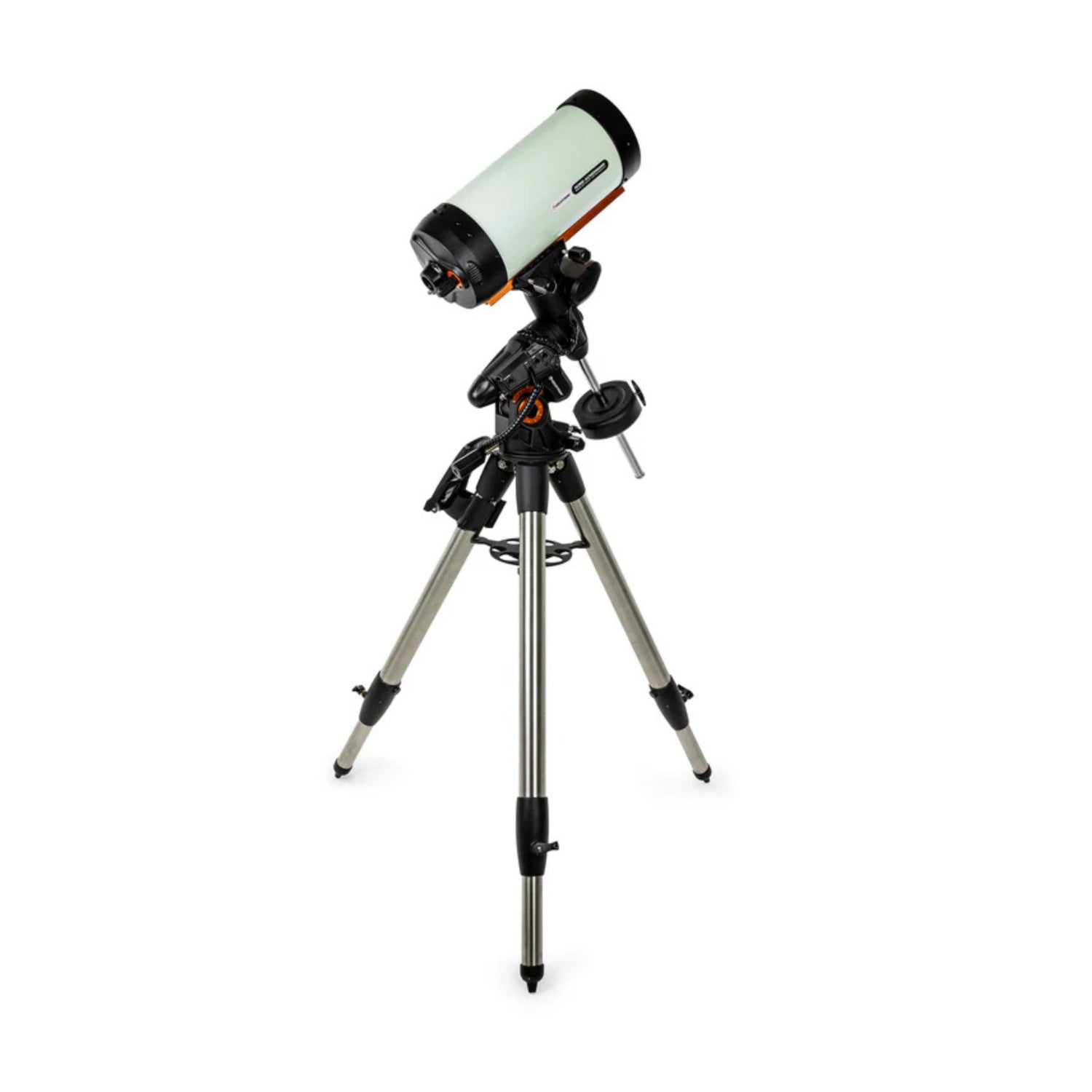

Celestron Advanced VX 6-Inch Rowe-Ackermann Schmidt Astrograph (RASA) Telescope with Ultra-Fast f/2.2 Optics
The RASA 6 with Advanced VX mount offers fast imaging performance with a wide field of view, designed for those who need reliable astrophotography capabilities on the move. This system simplifies setup, reduces exposure time, and delivers detailed deep-sky images.
Ultra-Fast f/2.2 Optics
Capture deep-sky objects with shorter sub-exposures and reduced total exposure time. The fast optics allow imaging without the need for autoguiding in many cases, which simplifies the workflow and saves time.
Sub-Arcsecond Resolution
The RASA 6 supports high-resolution sensors and favorable sky conditions to produce clear, sharp images. This feature allows for the capture of fine structures in galaxies and nebulae.
Wide Field of View
The system supports up to a 22mm sensor and provides a 3.8-degree field of view. This enables you to frame large targets like nebulae and star clusters in a single shot.
Advanced VX Mount Compatibility
The Advanced VX mount supports up to 30 lb of payload, offering stability during imaging sessions. It includes GoTo tracking, alignment tools, and compatibility with imaging accessories.

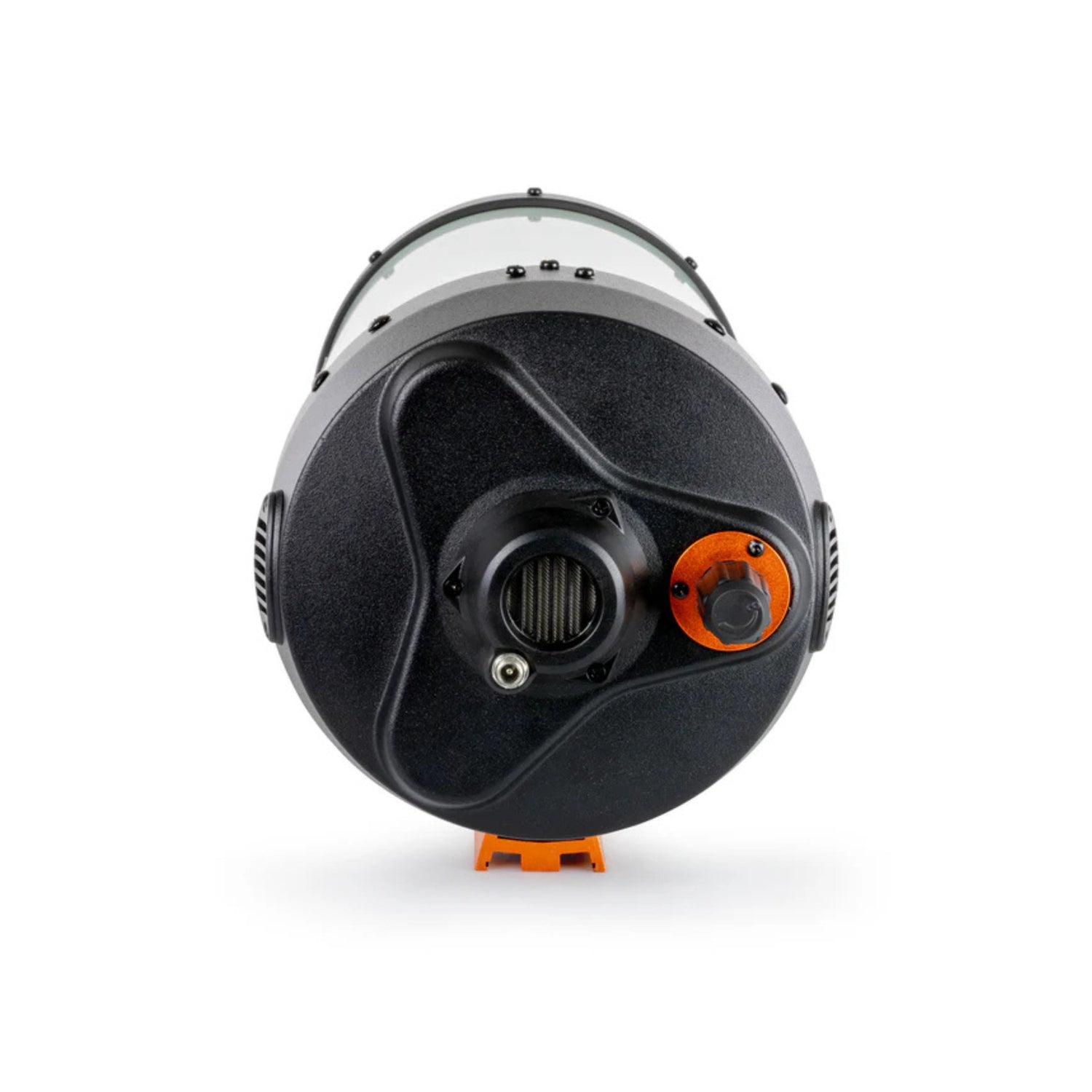

Integrated Filter and Cooling System
Built-in filter drawer and cooling fan allow quick adjustments and help maintain optical performance during long sessions. This improves efficiency and helps protect components from dust and overheating.
Portable and Lightweight
The RASA 6 tube weighs just 8.4 lb, making it easy to transport for remote imaging sessions. Combined with the compact Advanced VX mount, it’s suited for both field and backyard use.
- Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result.
- Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
- Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
Celestron Advanced VX 6-Inch Rowe-Ackermann Schmidt Astrograph (RASA) Telescope with Ultra-Fast f/2.2 Optics

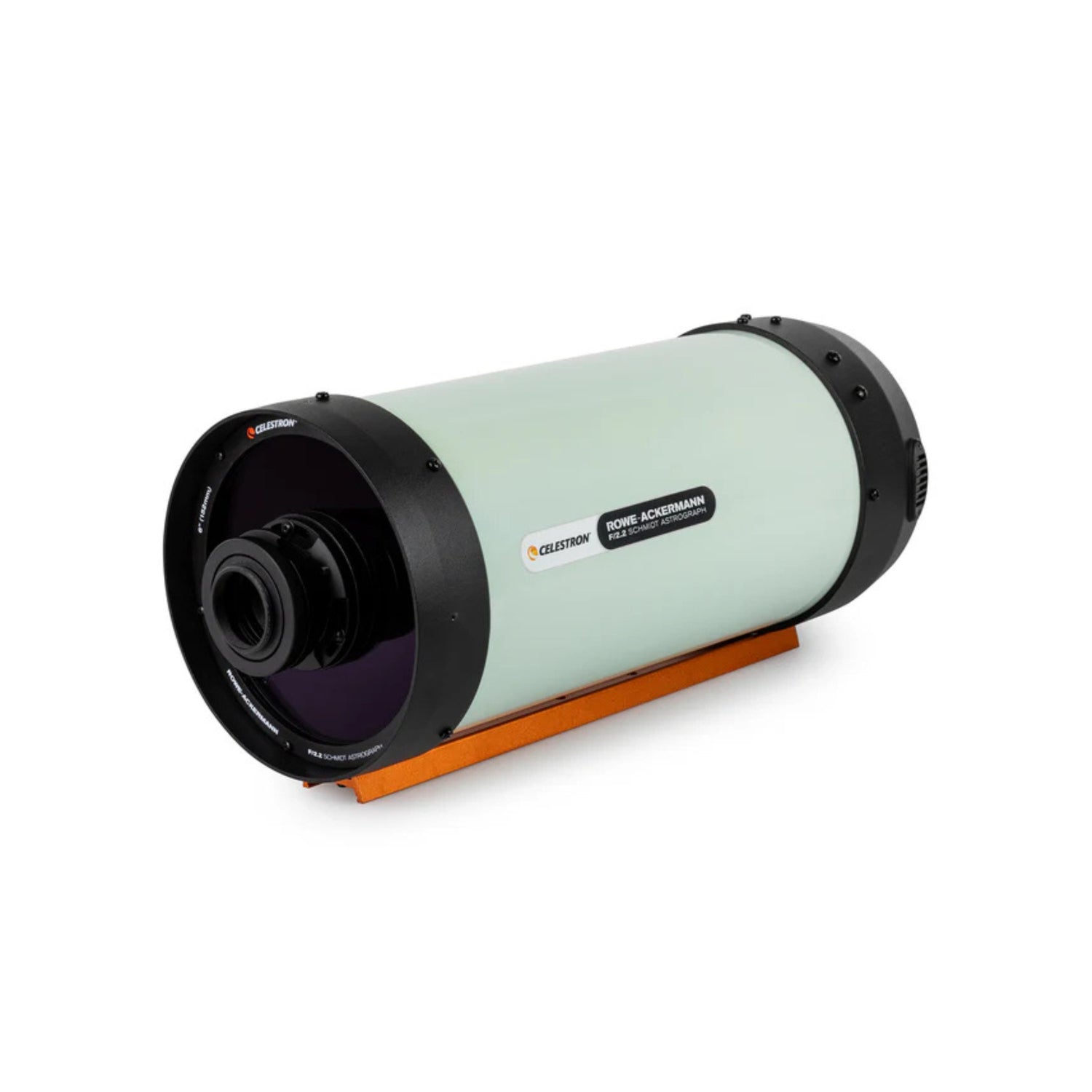

Optical Tube Info

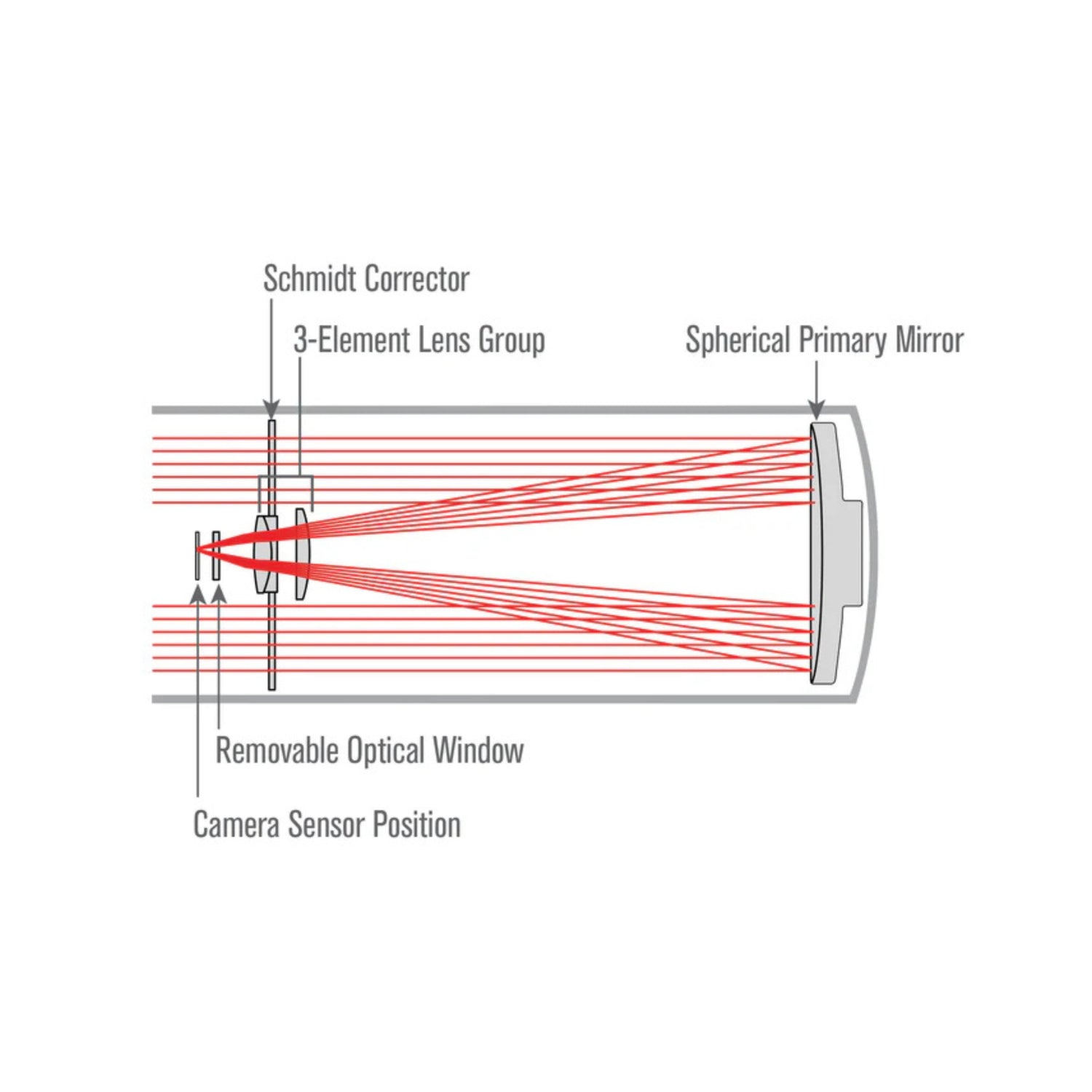

| Optical Design | Rowe-Ackermann Schmidt Astrograph |
| Aperture | 152mm (5.98 in) |
| Focal Length | 335mm (13.18 in) |
| Focal Ratio | f/2.2 |
| Central obstruction diameter | 77mm (3.03 in) (46% of aperture diameter) |
| Light Gathering Power (Compared to human eye) | 472x |
| Resolution (Rayleigh) | 0.91 arc seconds |
| Resolution (Dawes) | 0.76 arc seconds |
| Image Circle | 16mm (0.63 in) Ø, 2.74° |
| Useable field | 22mm (0.86 in) Ø, 3.76°, only minimal performance loss at edge of FOV |
| Wavelength range | 400 - 700 nm |
| Spot size | < 1.5 μm RMS across image circle |
| Optical Coatings | StarBright XLT |
| Off-axis Illumination | 91% at 8mm (0.31 in) off-axis |
| Back focus with included camera adapter | 17.5mm (0.69 in) |
| Optical Tube | Aluminum |
| Optical Tube Length | 609.6mm (24 in) |
| Optical Tube Diameter | 177.8mm (7 in) |
| Focuser | Standard Schmidt-Cassegrain focuser |
| Finderscope | Not included |
| Optical Tube Weight | 8.4 lbs (3.8 kg) |
| Other Features | Air-cooling system, integrated filter mount |
| Dovetail | CG-5 Dovetail Bar |
| Filter Drawer | Accept 2 in format filters, includes 1.25 in filter adapter |
| Clear Filter | 2 in filter, removable, 2mm glass thickness |
| Cooling Fan | 12V DC, MagLev |
| Camera Mounting Threads | M42 |

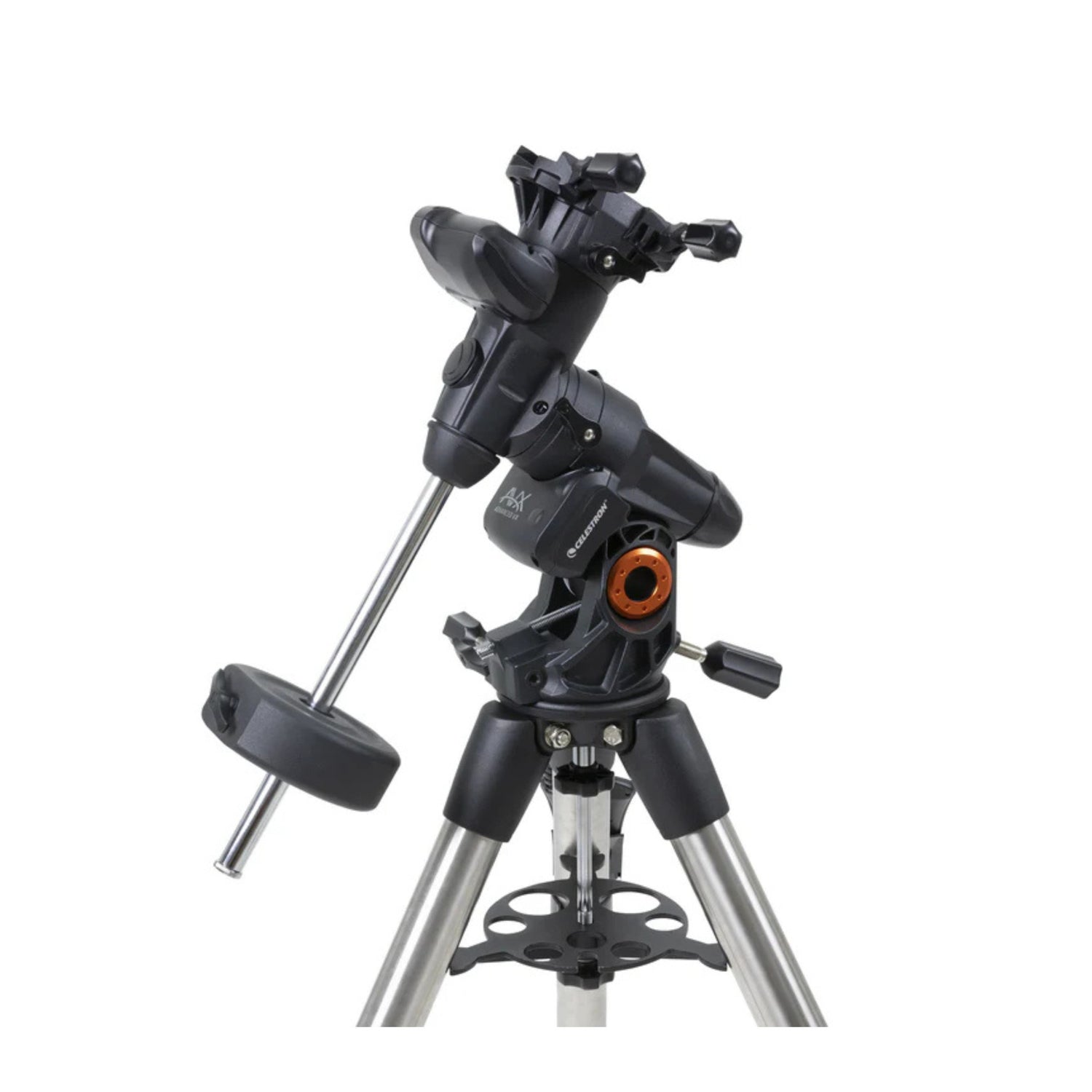

Mount Info
| Mount Type | Computerized Equatorial |
| Instrument load capacity | 30 lbs (13.6 kg) |
| Height adjustment range (includes mount and tripod) | 1118mm - 1626mm (44 in – 64 in) |
| Tripod Leg Diameter | 50.8mm (2 in) Stainless Steel |
| Latitude adjustment range | 7-degree to 77-degree |
| Mount Head Weight | 17 lbs (7.71 kg) |
| Accessory Tray | Yes |
| Tripod Weight | 18 lbs (8.16 kg) |
| Weight of Counterweights | 1 x 12 lbs |
| Slew Speeds | 9 slew speeds - max speed 4°/second |
| Tracking Rates | Sidereal, Solar and Lunar |
| Tracking Modes | EQ North and EQ South |
| GPS | N/A |
| Dovetail Compatibility | Dual saddle plates (CG-5 and CGE saddle) |
| Number of Auxiliary Ports | 3 AUX Ports (1 hand control and 2 AUX Ports for optional accessories) |
| Autoguide Port | Yes |
| USB Port | Yes, input on Hand Control |
| Power Requirements | 12V DC 3.5A (tip positive) |
| Motor Drive | DC servo motors |
| Alignment Procedures | 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align |
| Periodic Error Correction | Yes |
| Computerized Hand Control | NexStar+ hand control with LCD display, 19 fiber-optic backlit LED buttons |
| NexStar+ Database | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software | Celestron Starry Night Special Edition Software, CPWI, and SkyPortal App |
| Total Kit Weight | 55.4 lbs (25.13 kg) |
