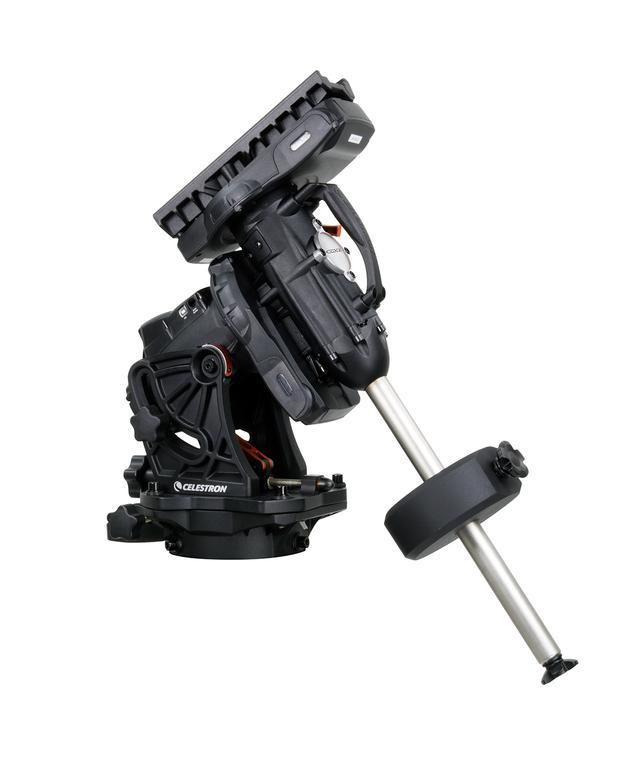

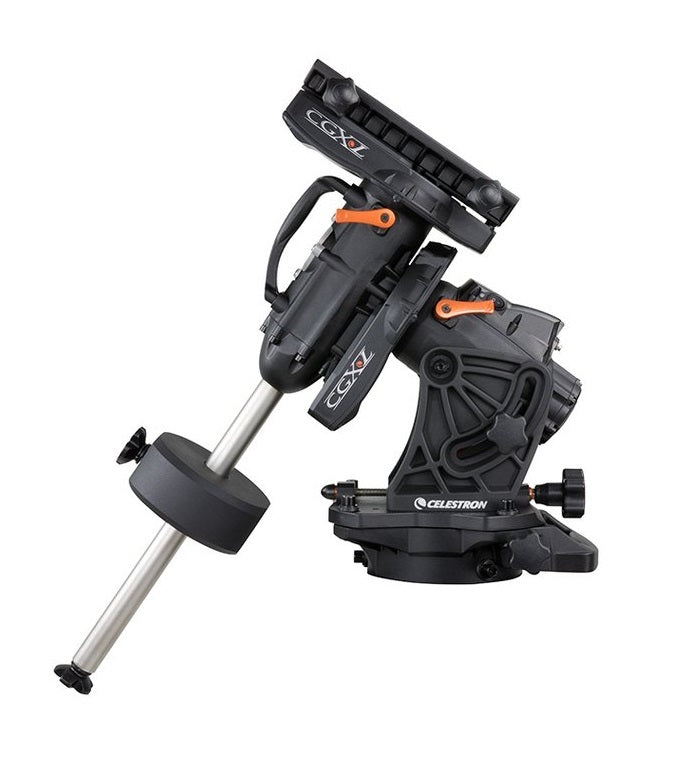

Celestron CGX-L Computerized Equatorial Mount (Head Only)
Couldn't load pickup availability
Product highlights
Product highlights

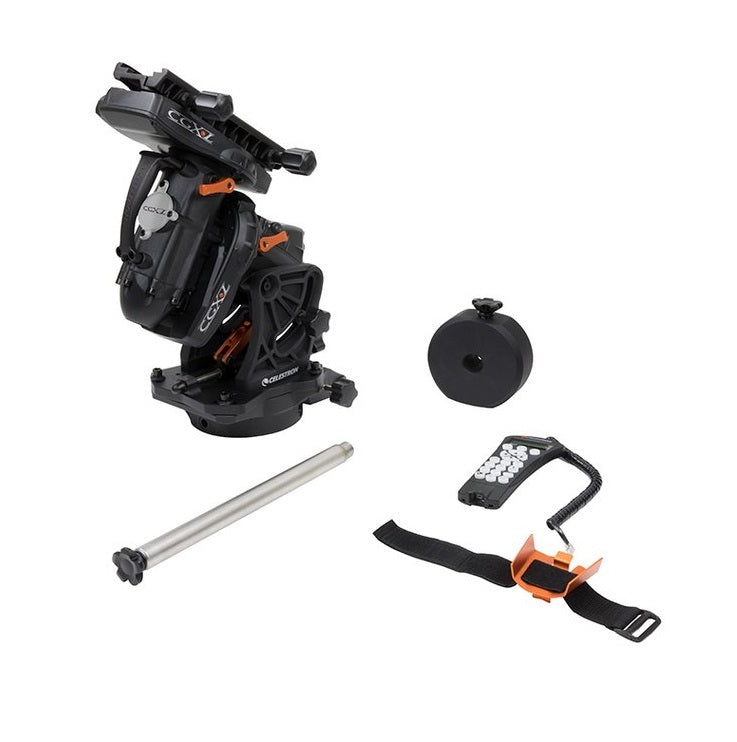

In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Celestron's newly designed CGX-L Computerized Equatorial mount is the latest addition to Celestron's fully computerized equatorial mount series. Capable of carrying Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.

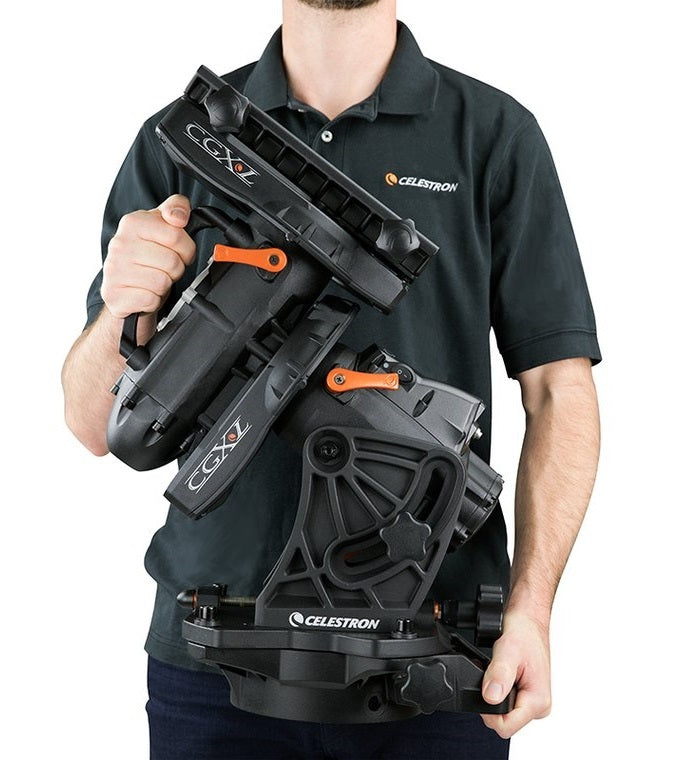

Compact, Ergonomic and Innovative
Key design goals included larger 144 mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loads, longer 270 mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. In addition to that, Celestron made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and easier to transport.
New CGX-L Features
- Increased 75 lb load capacity. Exceptional load capacity to weight ratio

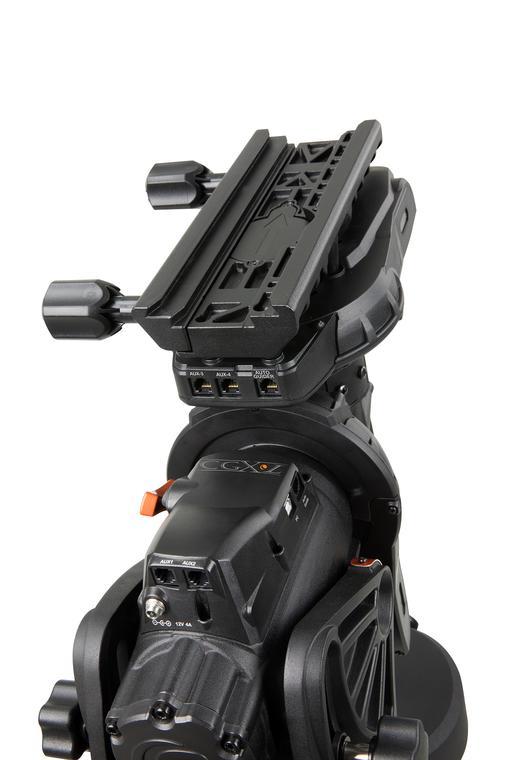

- Additional Aux accessory ports and autoguider port on the Dec axis for better cable management

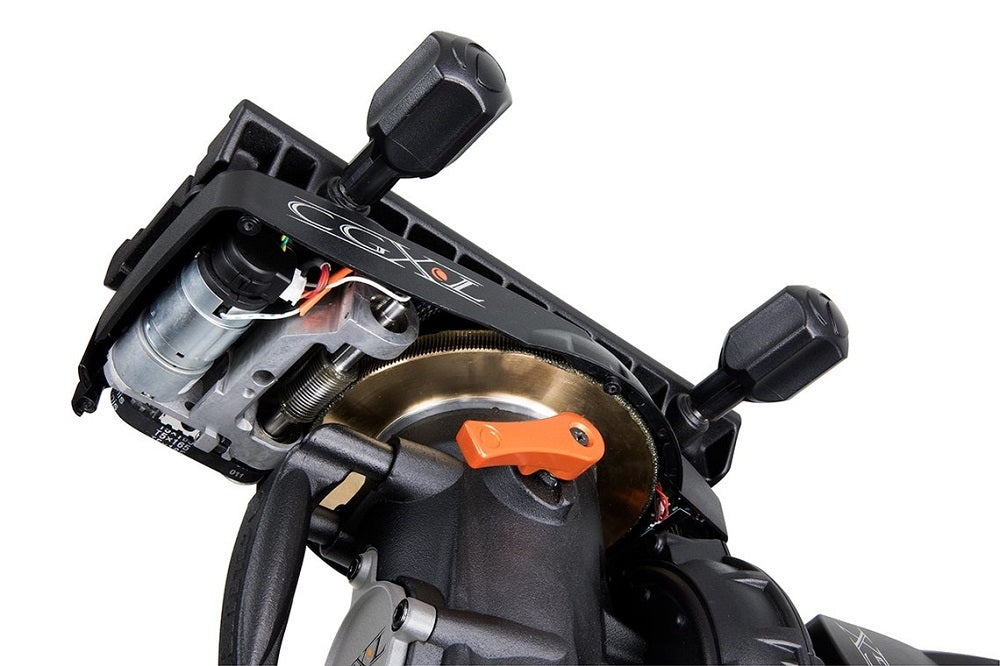

- Larger 144 mm diameter worm wheels to better and more accurately drive heavier loads
- Longer 270 mm dovetail saddle to better support larger optical tubes
- Heavy duty, 31.5 mm stainless steel counterweight shaft to support additional counterweights
- Optional add-on polar axis finderscope custom designed for CGX and CGX-L
- Supports WiFi and wireless operation accessories such as StarSense AutoAlign and SkyPortal WiFi Module (sold separately)
Main
| Configuration | Core |
- Motor
- Dual-axis servo motors
- Heavy-duty belt-drive system
- Digital optical encoders
| Mount Type | German Equatorial |
| Load Capacity | 75.0 lb / 34.0 kg, excluding counterweight |

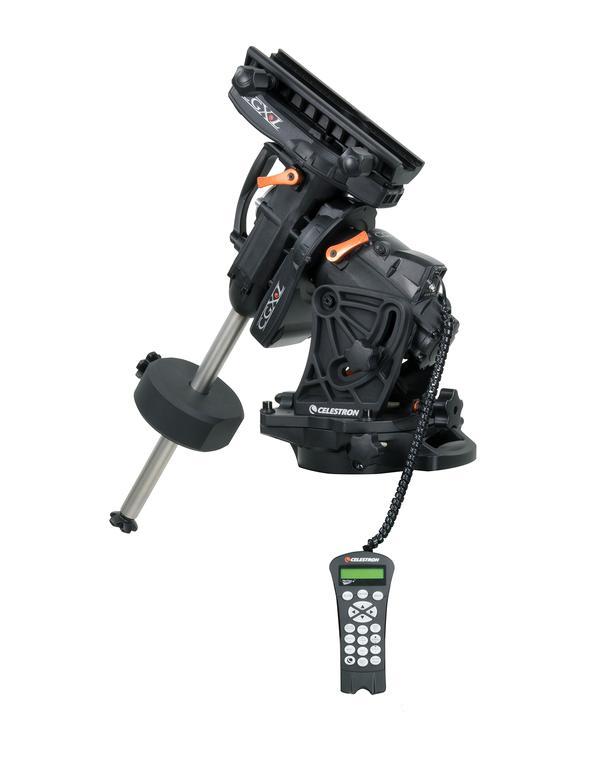

| GoTo Capability | Yes, NexStar+ hand controller |
| Latitude Adjustment Range | 3 - 65° |
| Polar Axis Scope | None |
| Power Source | 12 VDC, 3 A |
| Weight | 52.6 lb / 23.9 kg |
| The CGX-L requires 12 volts of DC power with at least 3 amperes of current. An AC to 12VDC 5A power supply is available from Celestron and includes a threaded barrel connector which is recommended. Portable 12 volt field batteries also make suitable power supplies. The mount includes a DC power cable with a cigarette lighter plug. | |
| The telescope must have a dovetail mounting bar that is either the CG-5/Vixen or CGE/Losmandy D format. CGX-L can fit either of these sizes on the dovetail saddle. | |
| For best performance, the total telescope payload should not exceed 75 lbs (34 kg), not including counterweights. | |
| Windows 7 or 10 for use with the telescope control software. | |
| USB cable with the standard A connector when plugged into the USB port on the mount (for PC use only). |
