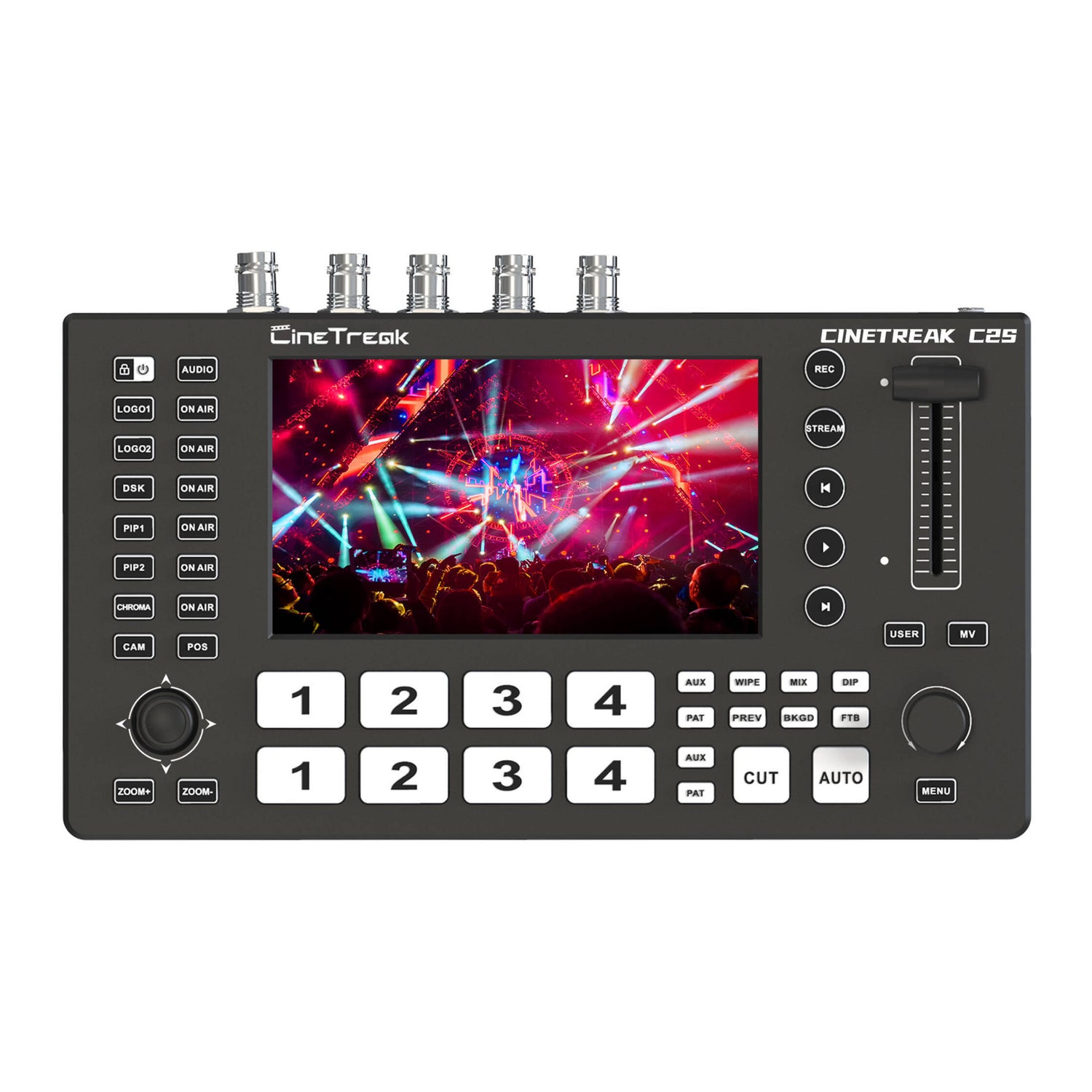

CineTreak C2S 8-Input Video Switcher with 5.5-inch Touch and PTZ Control
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The CineTreak C2S Video Switcher lets broadcasters and content creators streamline multicamera live production with four HDMI and four SDI inputs, one HDMI AUX output, and high-bit-rate Full HD recording. Its 5.5in LCD includes a Meeting mode for up to four windows, PTZ control supports four cameras via VISCA, and it easily switches between 16:9 and 9:16. Customizable PiP/PoP and luma/chroma-keying enable virtual studio setups, while dual RTMP streaming and wireless IP control from computers, smartphones, or iPads offer flexible broadcasting. Downstreaming via SD card or online code, plus a 12V/2A adapter and USB-A 3.0 cable, complete the package.
Downstream/Upstream Support and IP Control
Downstream and upstream functionality allows the use of web video sources like YouTube, Netflix, and Twitch, making the switcher a convenient multimedia platform across regions and distances.
Customized PoP and Dual PiP for Viewing Flexibility
Augmented with customized PoP (Picture-over-Picture) and dual PiP (Picture-in-Picture), the switcher allows you to customize the size and position of each screen, as well as zoom and free cropping to meet a wide range of application requirements across various scenarios.
Powerful DSK Functionality for Rich Visual Effects
Luma- and chroma-keying provide flexibility for subtitle and logo overlays, real-time subtitle display, and rich visual effects to enhance the viewer's experience.
External USB and SD Card Recording
The SD card slot and USB-A interface allow the direct recording of the program (PGM) output with support for up to 32 Mb/s encoding in MJPEG file format.
RTMP Streaming to Two Destinations
A USB-C port for UVC connectivity allows the switcher to operate in webcam mode, sending video and audio to a computer for live broadcasts to a variety of platforms, including OBS, vMix, Teams, Twitch, YouTube, Skype, VLC, and more. The integrated stream engine enables live streaming to two destinations simultaneously via an Ethernet connection without needing to connect to a computer.
Screen
| Size | 5.5 inches |
Interface

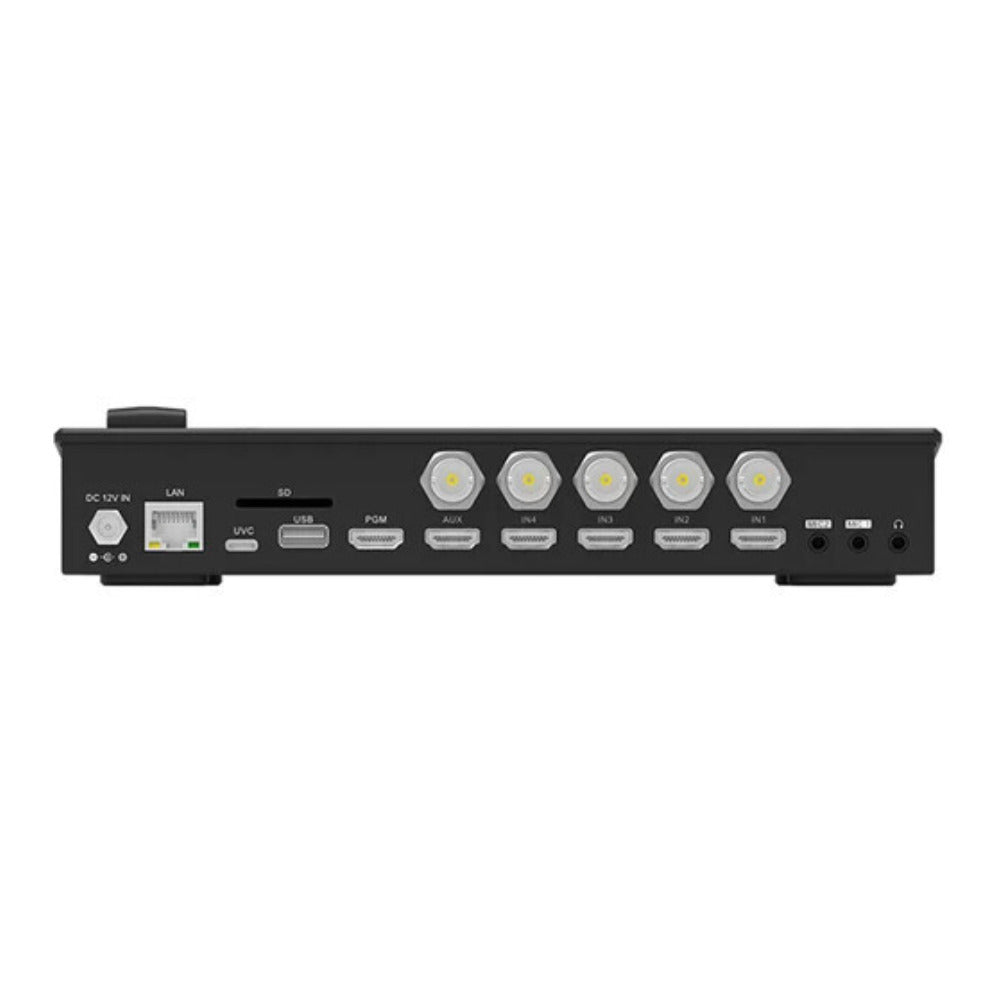

| Video Input | SDI ×4 + HDMI ×4 |
| Video Output | HDMI PGM ×1, AUX ×1 |
| Additional Outputs | SDI ×1, USB 3.1 (Type-C) ×1, LAN ×1 |
| Audio Input | Line (3.5mm stereo) ×2 |
| Audio Output | Line (3.5mm stereo) ×1 |
| Control Interface | LAN ×1 for livestreaming, PTZ control, and software control |
| UVC Output | USB-A ×1 |
| USB | For recording storage, camera connection, tally, logos, firmware updates |
| SD Card | For video recording storage |
Functionality
| Transition | T-Bar / AUTO / CUT |
| Effects | WIPE (multiple patterns), MIX, DIP, transition preview, background, STILL (freeze), MUTE, FTB |

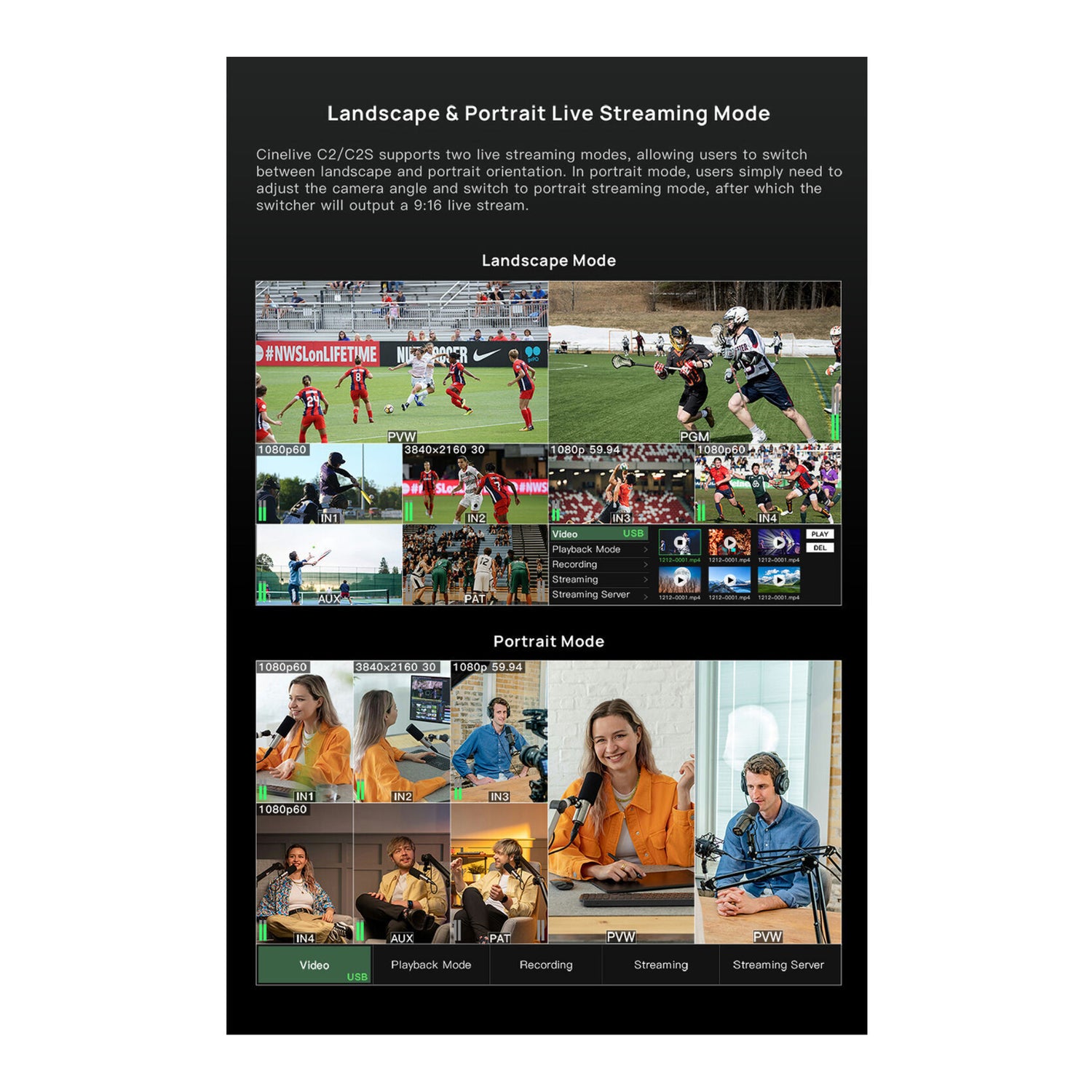

| Live Mode | Portrait mode & landscape mode |
| Keying | Upstream: Luma ×1, Chroma ×1, PIP ×2, POP Downstream: DSK ×1, LOGO ×2 |
| Layers | Up to 8 PGM layers |
| Audio | HDMI ×4, multimedia sources, 2 microphone/analog audio inputs |
| PTZ | VISCA IP protocol |
| Media Library | Preset backgrounds, logos, and video assets |
| Stream | H.264 with recording and RTMP/s support; independent streaming bit-rate separation |
| Logo Support | Max 940 × 540 resolution; transparent PNG with alpha channel |
| IP Control | Web server control; supports phone, PC, and iPad |
