CineTreak SDI to USB 3.0 Video Capture Device with SD/HD/3G SDI/ST2048 Support
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

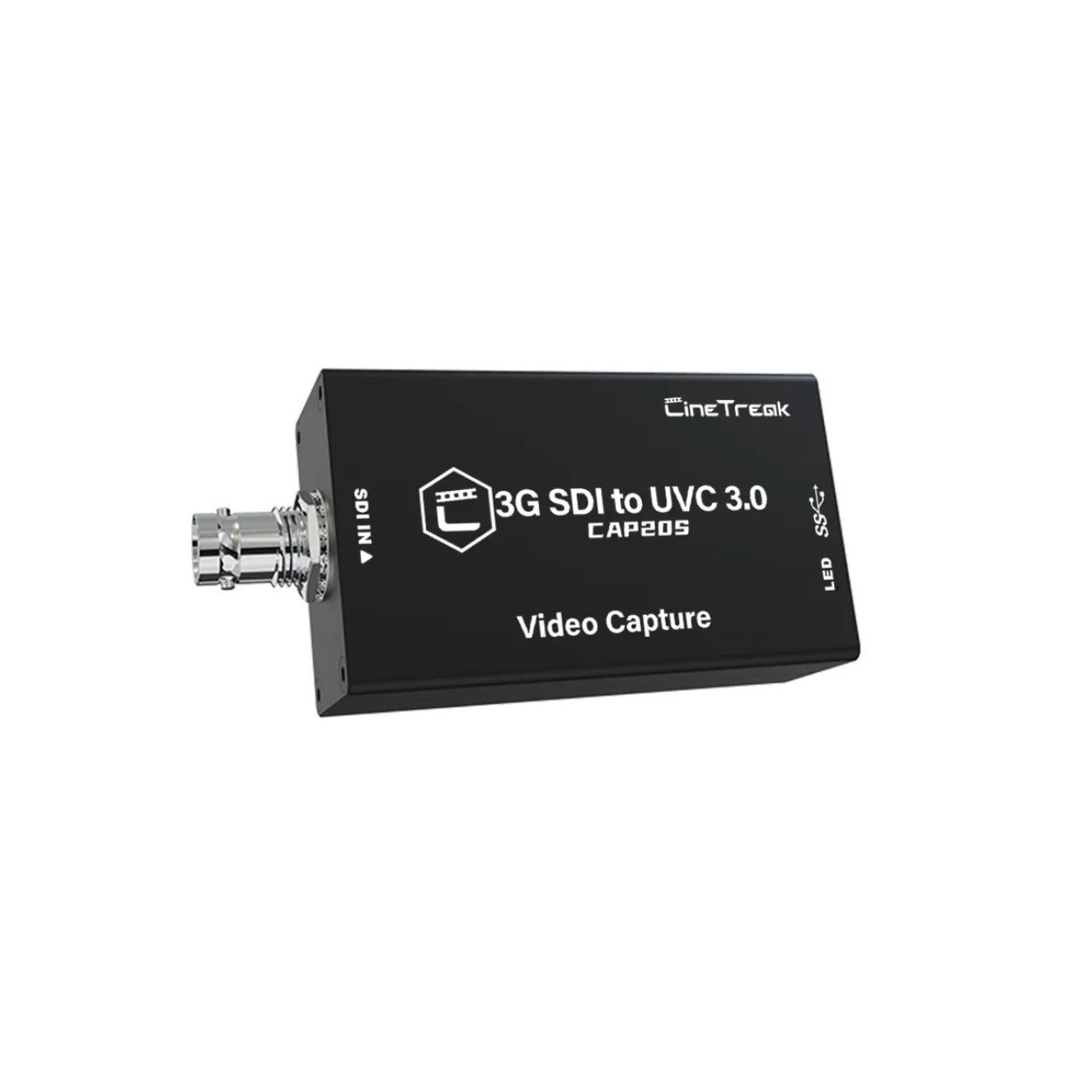

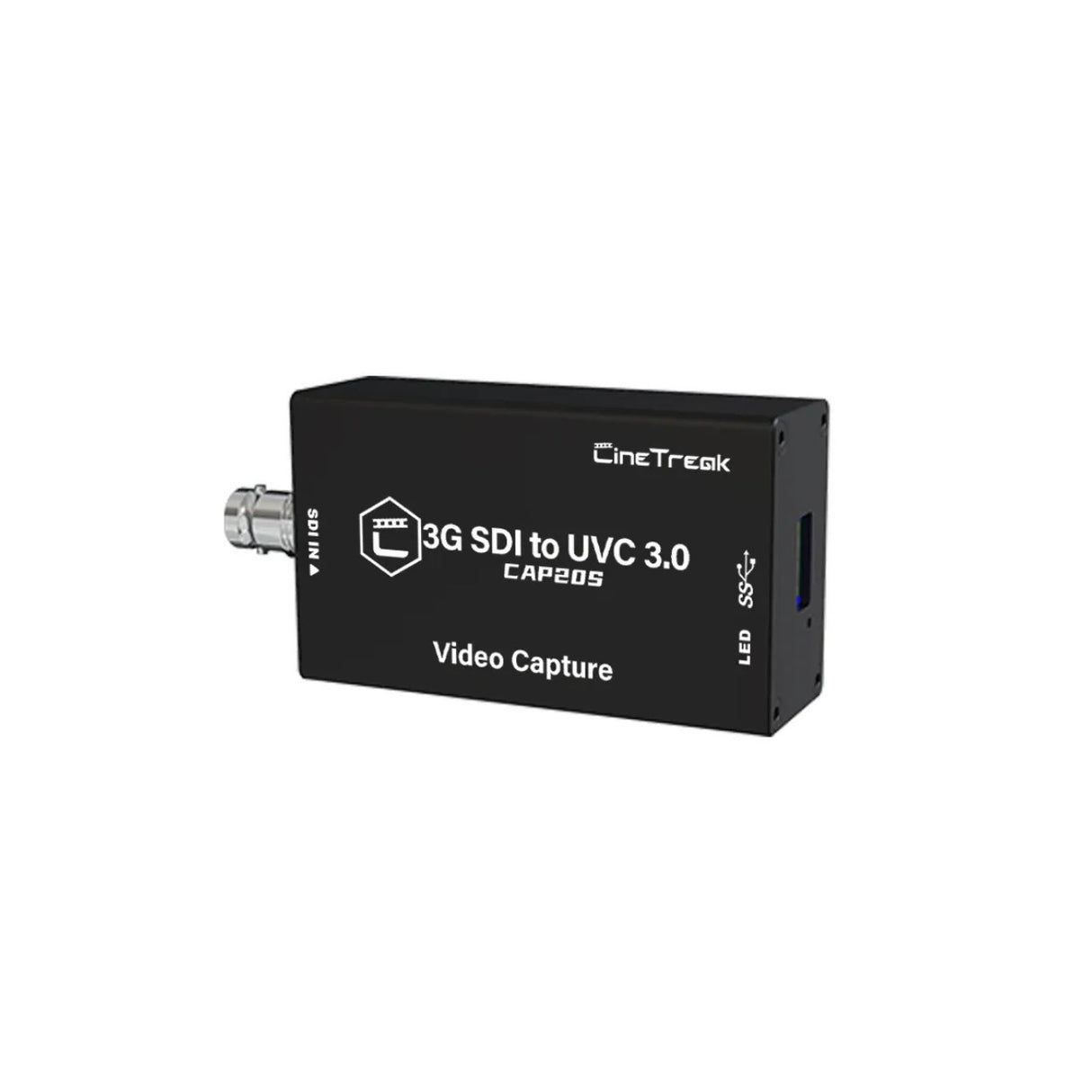

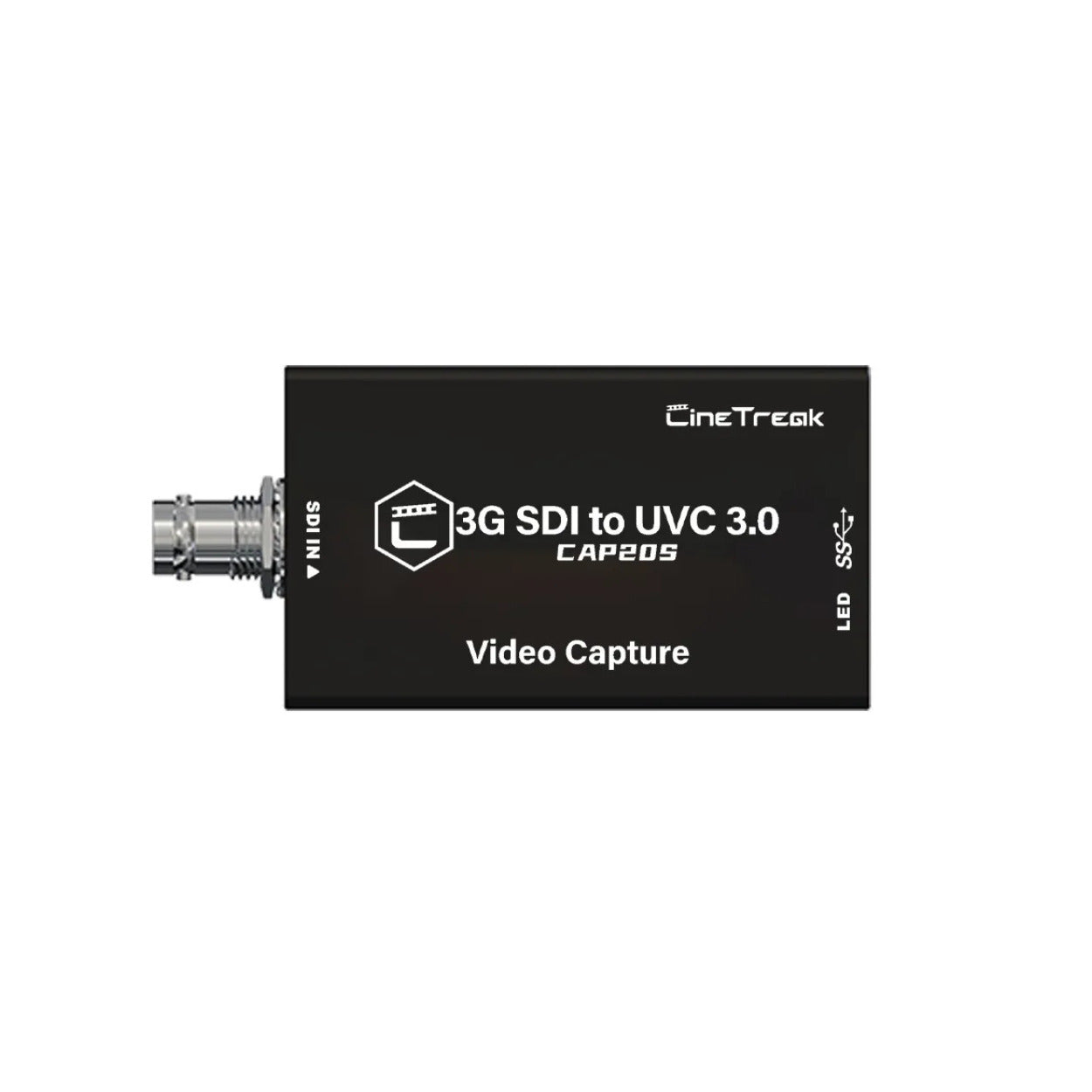

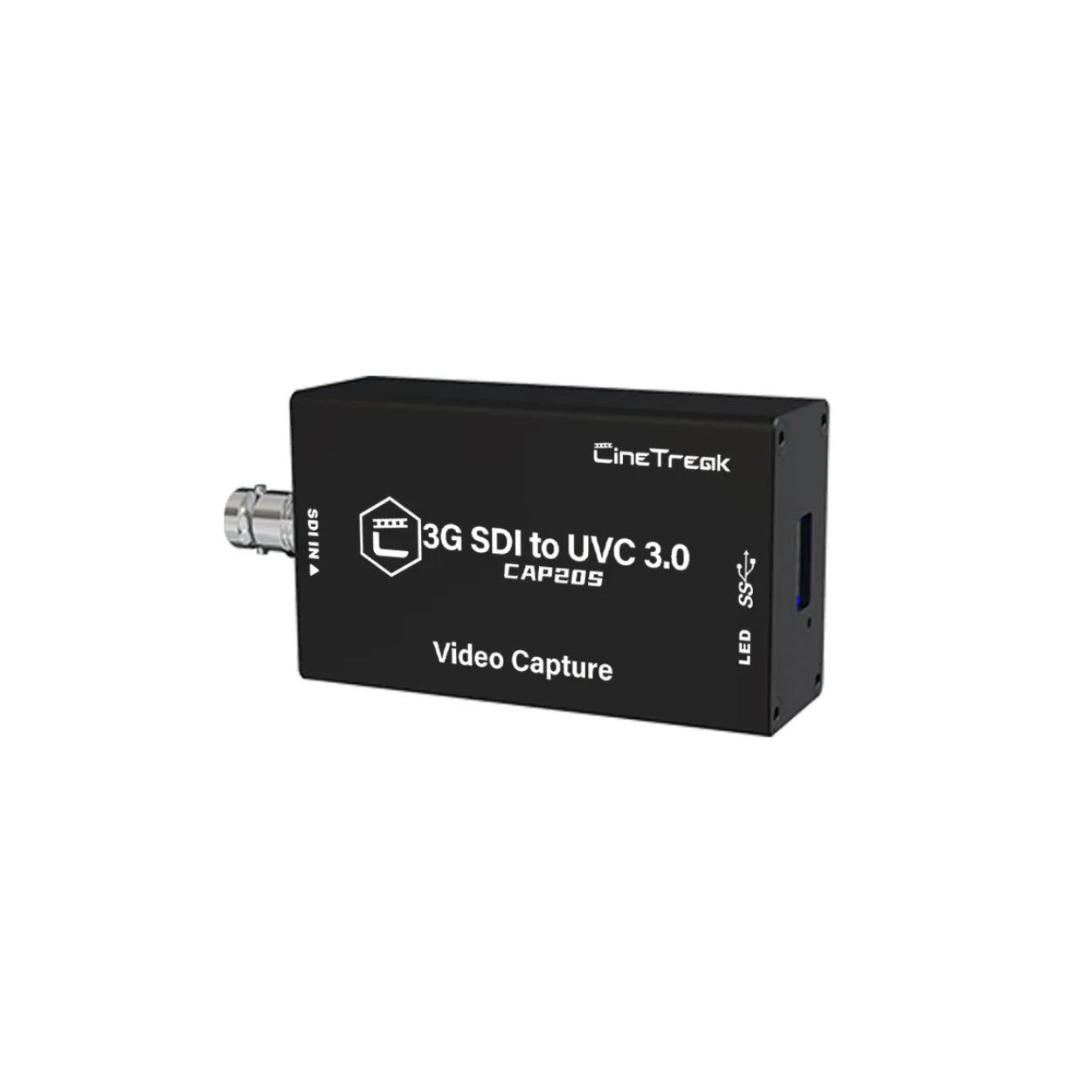

The CAP20S is an advanced SDI to USB 3.0 video capture device, offering high-performance capabilities for professional video applications. Designed to work seamlessly with SD, HD, and 3G SDI sources, as well as the ST2048 format, this device provides high-quality video capture with exceptional ease of use. Whether you’re involved in live broadcasting, streaming, or professional video production, the CAP20S ensures reliable, high-definition video capture with a variety of essential features.
Supports SD/HD/3G SDI and ST2048 Formats
The CAP20S is compatible with multiple video formats, including SD, HD, and 3G SDI, as well as the cinematic ST2048 format. This flexibility makes it ideal for a range of production scenarios, from professional filmmaking to standard broadcasting.
12-Bit Color Depth for Accurate Video
With 12-bit color depth, the CAP20S provides richer, more accurate colors and finer gradations in video, ensuring the highest quality video output for color-critical applications like color grading and professional video production.
17x17x17 3D LUT for Professional Color Grading
The device comes equipped with a 17x17x17 3D Look-Up Table (LUT) that allows for precise color grading and post-production adjustments. This ensures consistency and accuracy when working with video across various platforms and environments.
Uncompressed 1080p@60fps via USB 3.0
The CAP20S supports uncompressed 1080p video at 60 frames per second over USB 3.0, offering high-quality, real-time video capture without any loss in detail or performance, perfect for live streaming and high-resolution recordings.
MJPEG 1080p@50fps on USB 2.0
For lower bandwidth applications, the CAP20S supports MJPEG video capture at 1080p@50fps via USB 2.0. This feature provides a great balance of video quality and compression efficiency, suitable for applications with less demanding video requirements.
Adaptive Conversion for Easy Setup
With its adaptive conversion capabilities, the CAP20S automatically adjusts to the incoming video source, ensuring a hassle-free setup and seamless integration into your workflow.
UVC/UAC Support for Seamless Integration
The CAP20S supports both UVC (USB Video Class) and UAC (USB Audio Class) standards, making it compatible with most video and audio software without the need for additional drivers. This ensures quick and easy integration with a wide range of platforms.
Ultra Control Utility for Custom Settings
The device includes the Ultra Control Utility software, which allows for customized settings tailored to your specific needs. This provides greater flexibility and control over your video capture and streaming process.

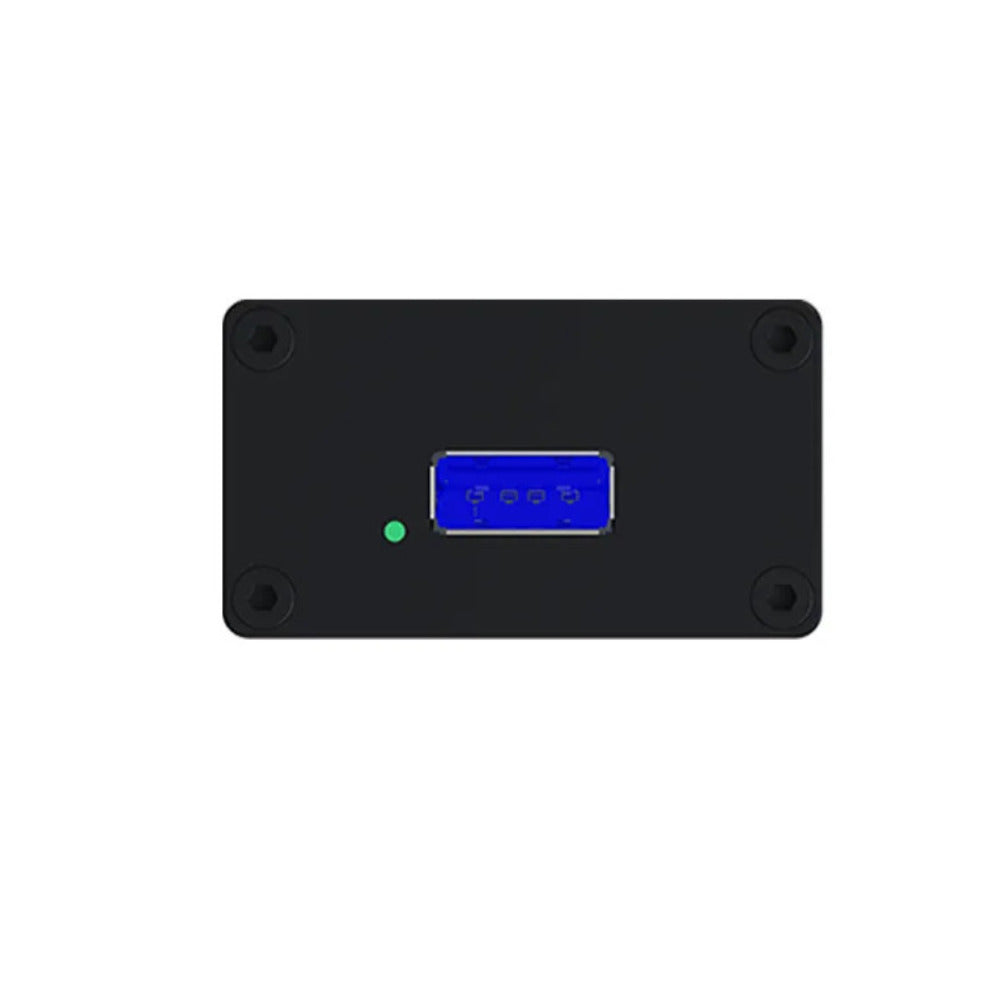

USB 3.0 Powered with LED Indicators
The CAP20S is powered via USB 3.0, simplifying the setup by eliminating the need for additional power adapters. LED indicators provide clear visual feedback of the device’s status, ensuring you’re always aware of its operational condition.
- SD-SDI
- HD-SDI
- 3G-SDI Level A
- 3G-SDI Level B-DL
- 3G-SDI Level B-DS
- YUV / MJPEG
- 1920×1080
- 1600×1200
- 1360×768
- 1280×720
- 1280×960
- 1280×1024
- 1024×768
- 800×600
- 720×480
- 720×576
- 640×480
- Working: 0°C – 50°C
- Storage: 0°C – 50°C
Interfaces

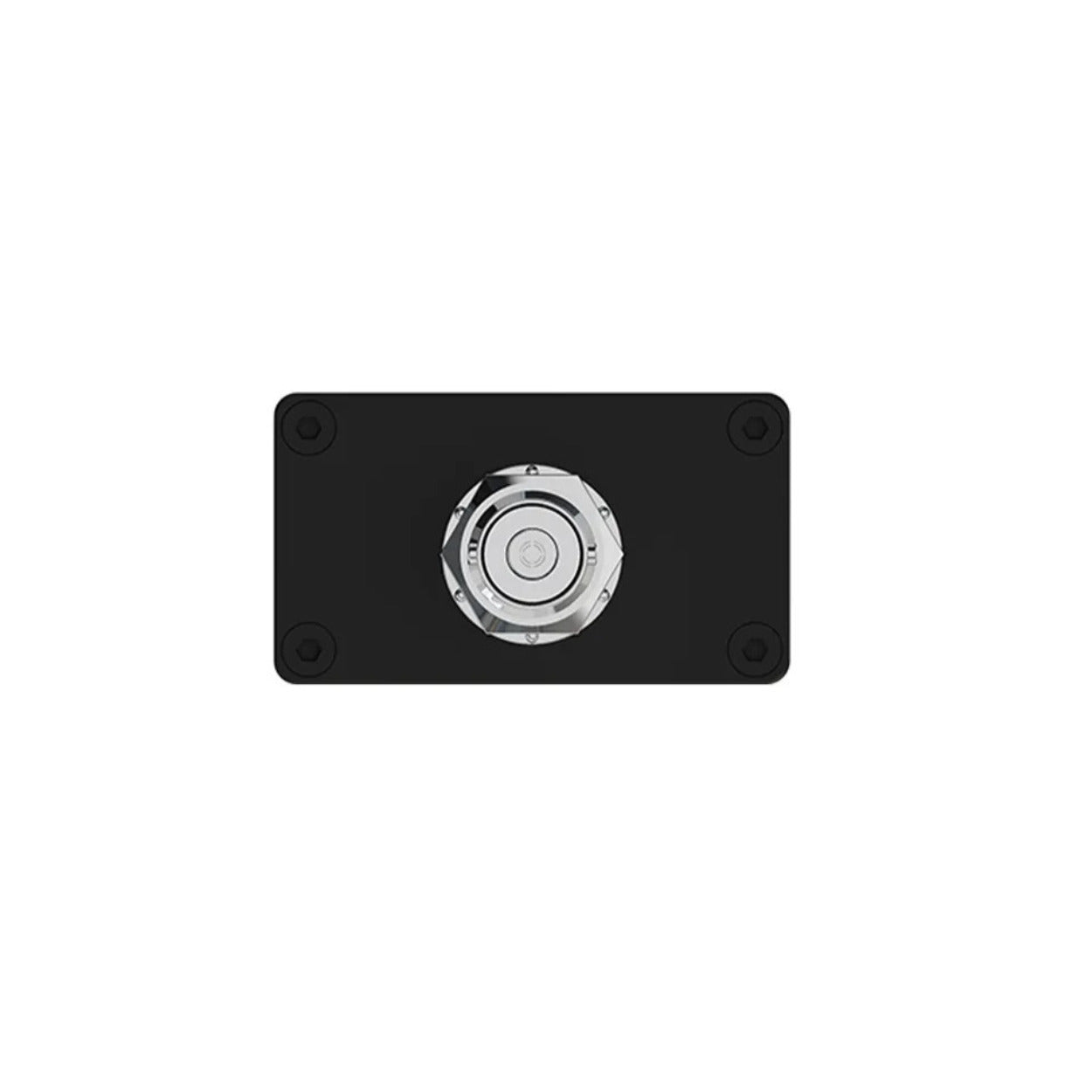

| Video In | 3G SDI × 1 |
| Video Out | USB 3.0 × 1 (Type-A) |
Function
| 3D LUT | 17 × 17 × 17 3D LUT |
| 3D LUT File Storage | Built-in storage for 16 LUT files |
Format Support
| SDI Input Formats | |
| UVC Input (Video Formats) | |
Other
| Power Supply | 5V (USB Type-A) |
| Size (L × D × W) | 93 × 43 × 25 mm |
| Weight | 93 g |
| Temperature |
