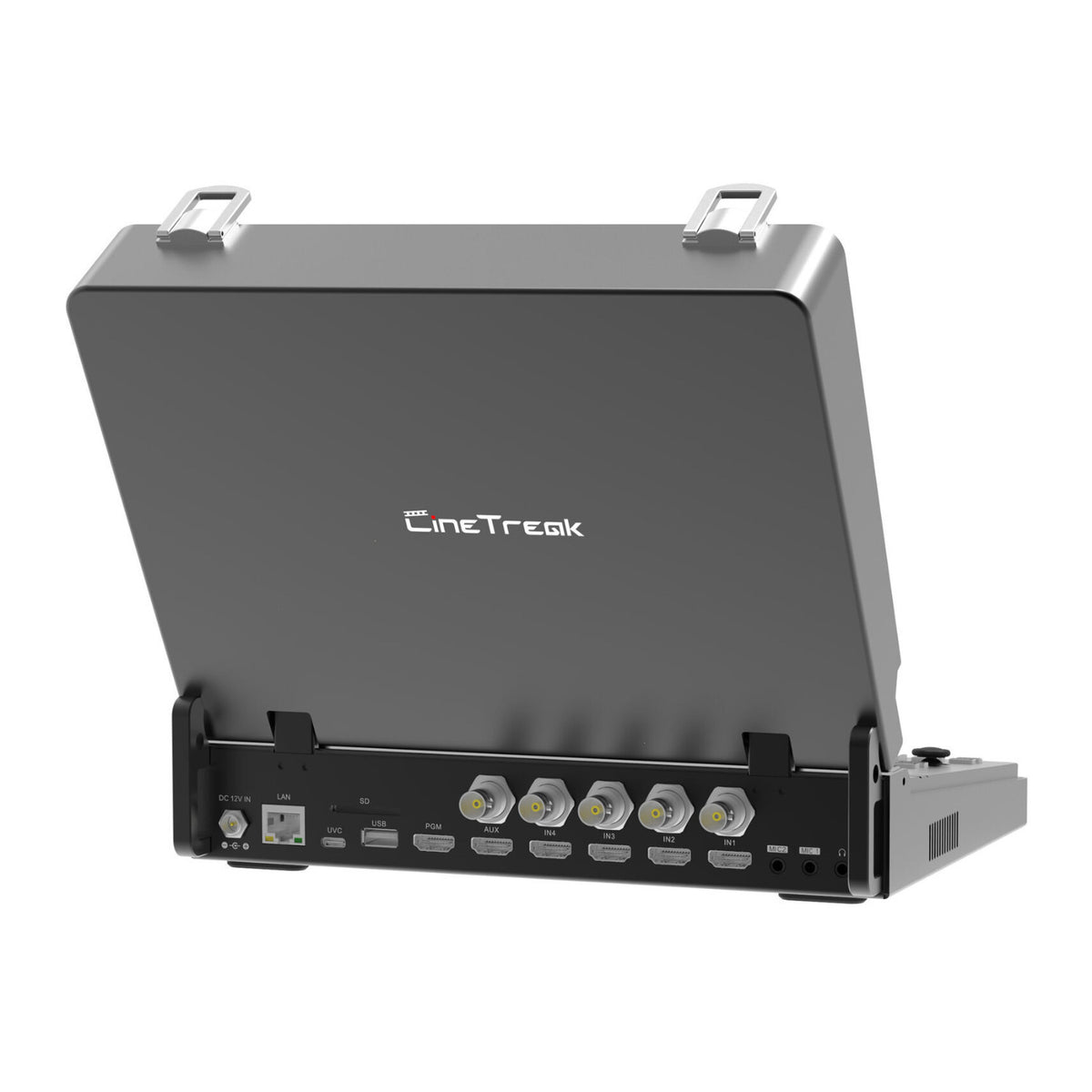

CineTreak Stream Master SDI Video Switcher
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

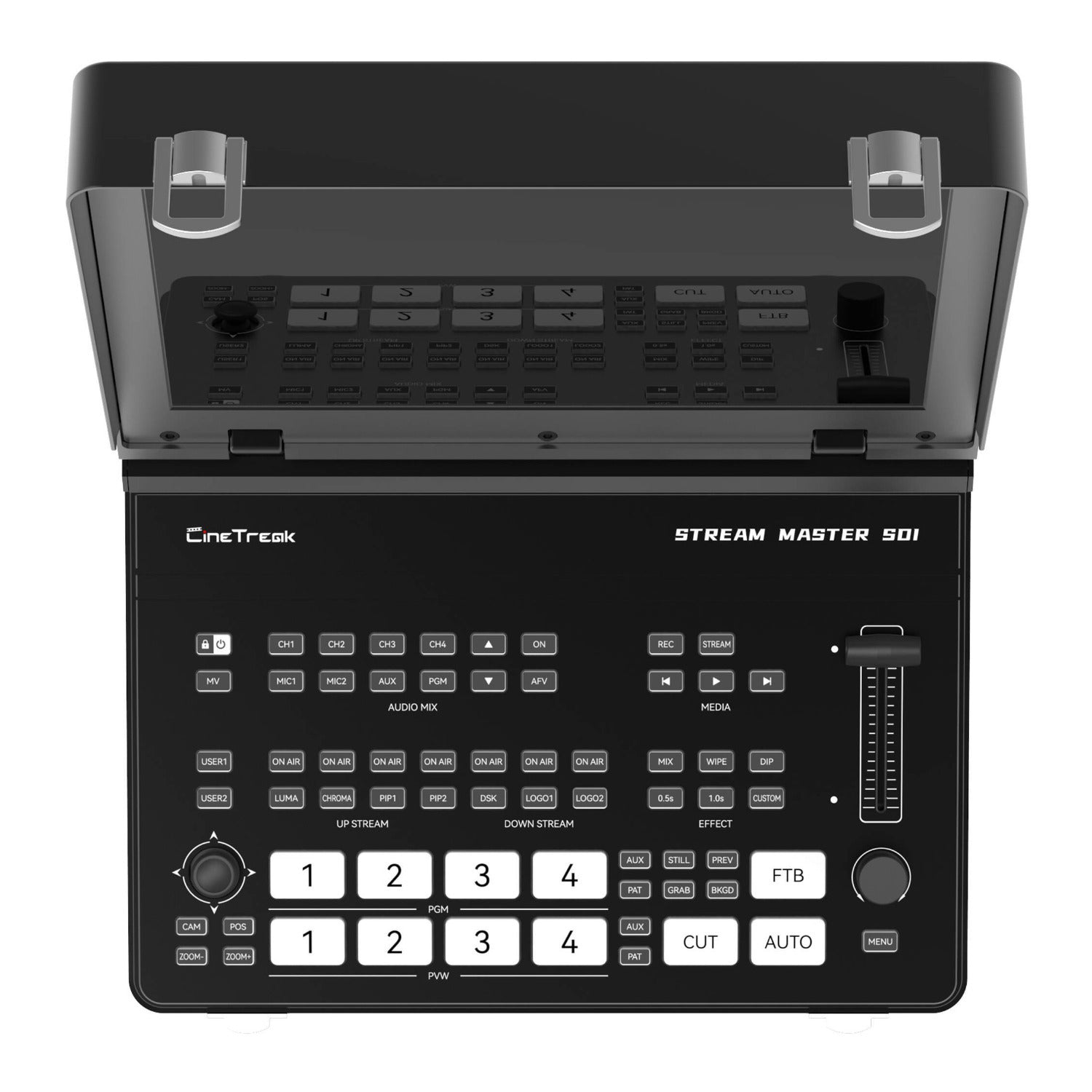

The CineTreak Stream Master SDI Video Switcher is a powerful all-in-one live production solution designed for broadcasters, event producers, and content creators who need reliable multicamera switching and professional streaming tools. It features 4 HDMI inputs, 4 SDI inputs, HDMI PGM and SDI AUX outputs, and a built-in foldable 10-inch HD screen for easy monitoring. With Full HD recording, instant playback, advanced chroma-keying, PTZ camera control, and simultaneous dual-platform streaming, this switcher delivers a complete workflow for both studio and on-site productions. Its wireless IP control, customizable PiP/PoP layouts, and support for landscape and portrait modes make it versatile for webinars, interviews, live events, and virtual studio environments.
All-in-One Live Streaming Switcher
Combines video switching, monitoring, recording, streaming, and PTZ control in a single compact unit, eliminating the need for multiple devices.

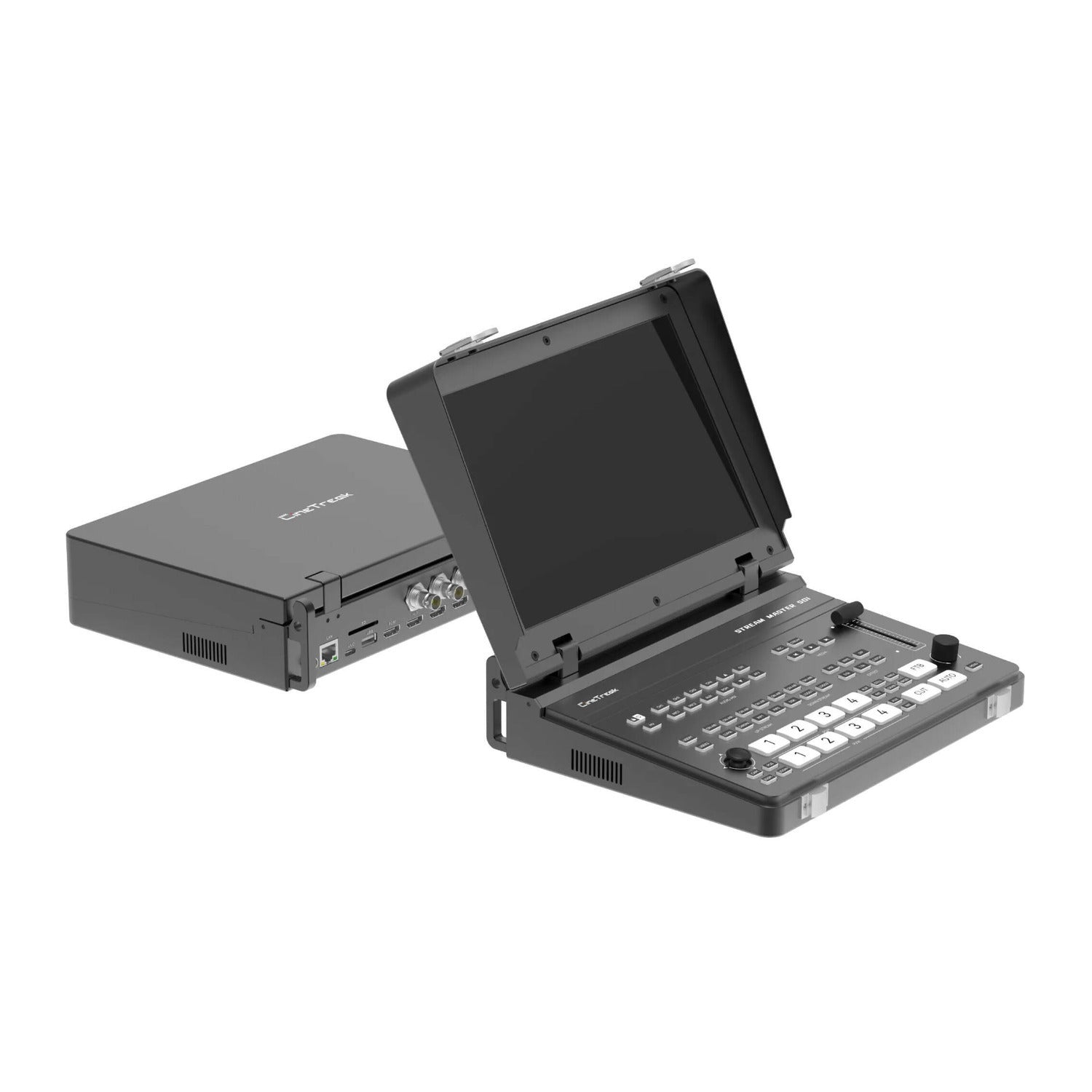

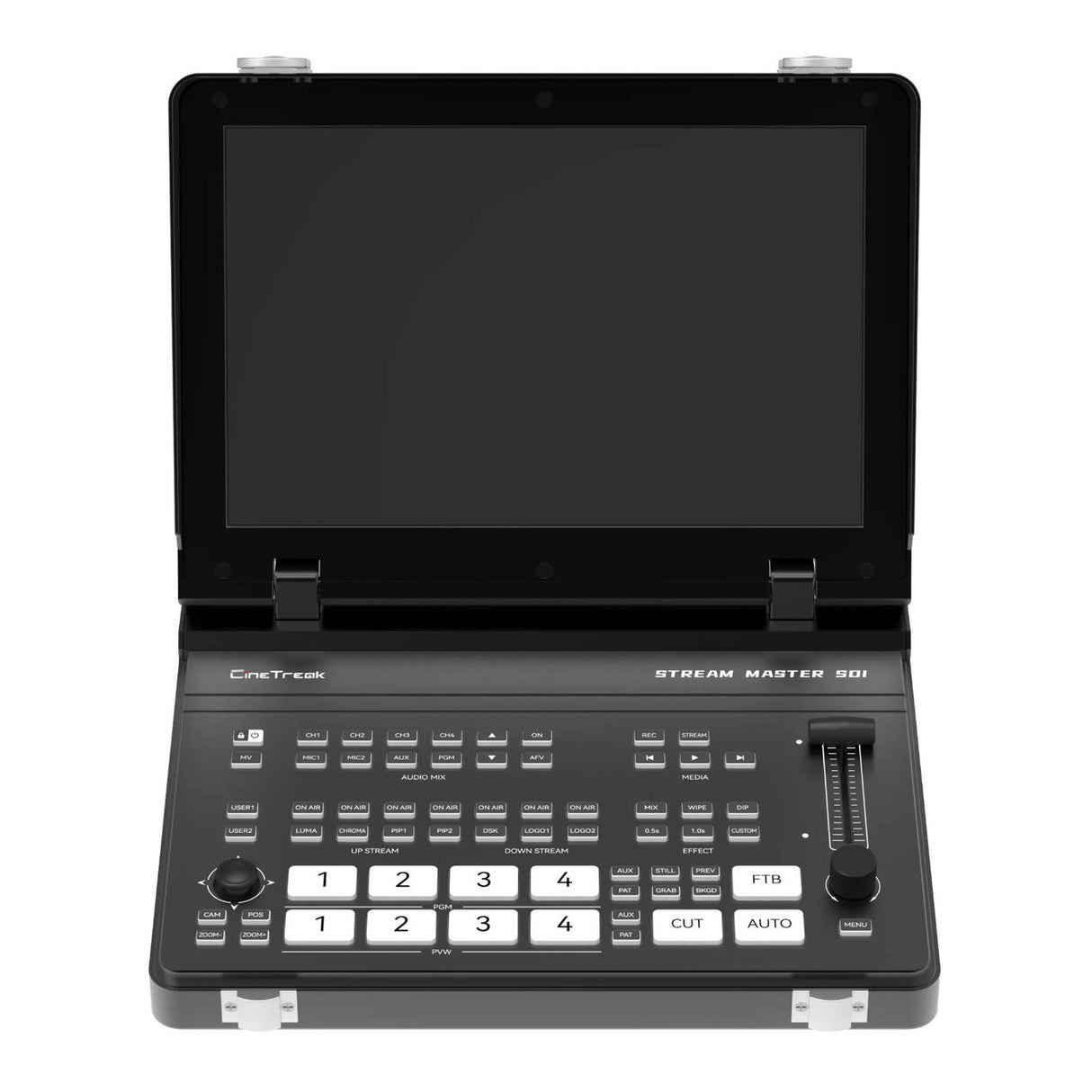

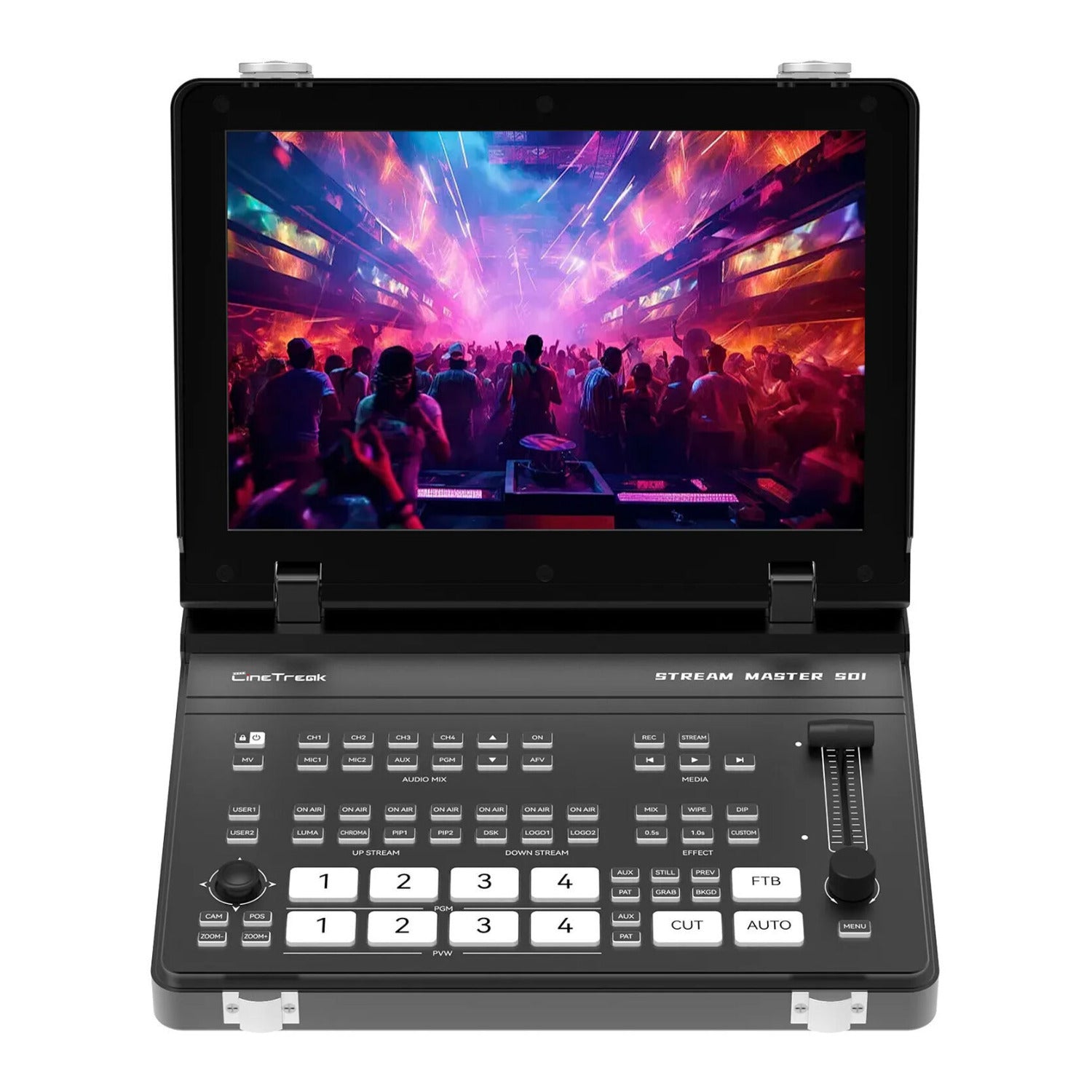

Foldable 10-inch HD Screen
Integrated high-definition monitor provides real-time preview and program monitoring without external displays.

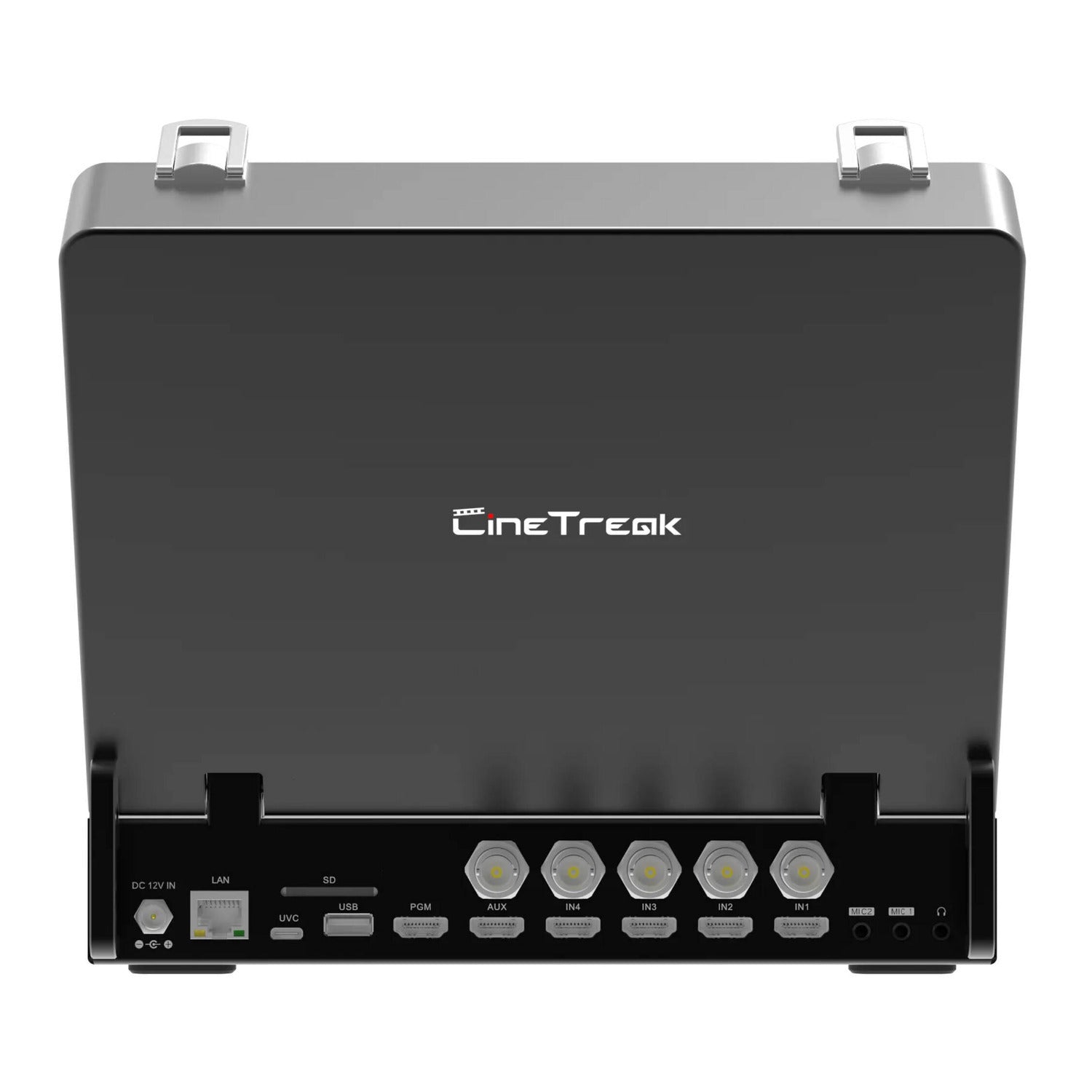

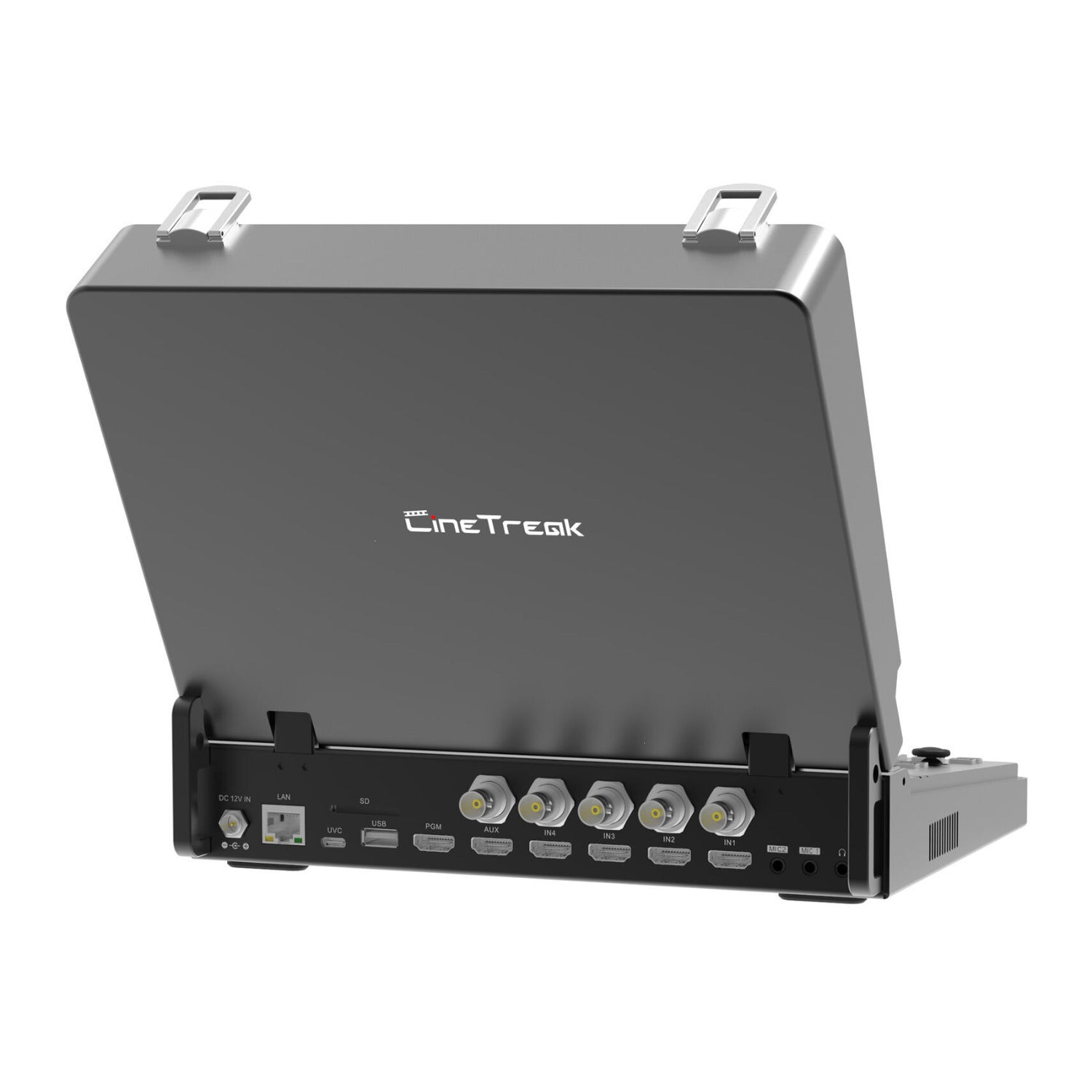

4 HDMI and 4 SDI Inputs
Supports multiple professional and consumer video sources with flexible connectivity for multicamera setups.
HDMI PGM and SDI AUX Outputs
Allows simultaneous program output and auxiliary routing for confidence monitoring, projectors, or additional streaming devices.
PTZ Camera Control via VISCA
Controls up to four PTZ cameras directly from the switcher, streamlining camera movement and shot management.
Wireless IP Control
Operate the switcher from a computer, smartphone, or tablet for remote productions and mobile workflows.
Full HD Recording with Instant Playback
Captures high-bit-rate recordings to SD card or USB storage for immediate review, replay, and post-production.
Downstreaming Support
Integrates online content such as YouTube, Netflix, and Twitch directly as video sources for added creative flexibility.
Dual RTMP Streaming Destinations
Simultaneously streams to two live platforms, reducing the need for additional encoders or computers.
Landscape and Portrait Mode Switching
Quickly switches between 16:9 and 9:16 formats for traditional or vertical social-media streaming.
Customizable PiP & PoP Layouts
Offers adjustable picture-in-picture and picture-over-picture windows with free cropping and zoom for flexible screen compositions.
DSK with Luma/Chroma Key
Advanced downstream keying enables professional overlays, virtual studio setups, subtitles, and logo graphics.

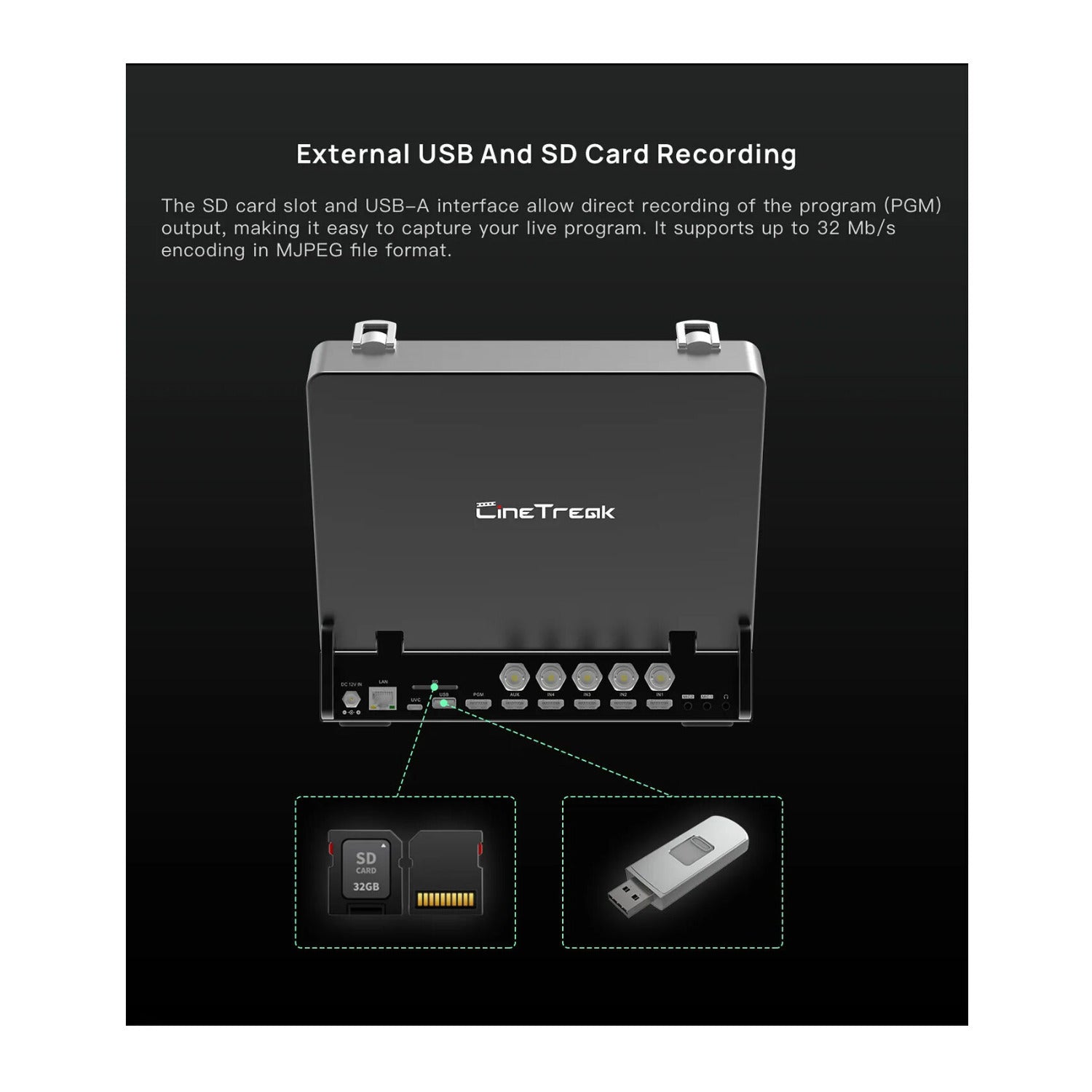

External USB and SD Card Recording
Supports direct recording of the PGM output in MJPEG format up to 32 Mb/s.
USB-C UVC Webcam Mode
Allows the switcher to function as a webcam source for streaming software, conferencing apps, and online platforms.
Broad Platform Compatibility
Works with OBS, vMix, Twitch, YouTube Live, Teams, Skype, VLC, Facebook Live, and more.
Processing
| Color Processing | RGB, YUV |
Video Inputs
| 4 × HDMI (2× HDMI 2.0 + 2× HDMI) | |
| 4 × BNC (3G-SDI) |
Input Video Format (HDMI)
| UHD 4K at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 fps | |
| 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 fps | |
| 1080i at 50 / 59.94 fps |
Input Video Format (SDI)
| 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 fps |
Audio Inputs
| 2 × 1/8 inch (3.5 mm) TRS stereo line inputs |
Video Outputs
| 1 × BNC (3G-SDI) | |
| 1 × HDMI (Program) | |
| 1 × HDMI (Preview) | |
| 1 × USB-C (3.1) | |
| 1 × RJ45 (Ethernet) |
Output Video Format
| HDMI | 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps |
| HDMI | 1080i at 50 / 59.94 fps |
Audio Output
| 1 × 1/8 inch (3.5 mm) TRS stereo line output | |
| Embedded audio over HDMI, SDI, USB-C |
Monitor Output
| 1 × HDMI |
IP Video / Streaming
| H.264 encoding at 1920 × 1080 | |
| Protocol | RTMP |
| Compatible services | OBS, vMix, YouTube Live, Twitch, Facebook Live, Teams, Skype, VLC |
Hardware / Connectivity
| Power input | Barrel connector (7 to 24 VDC) |
| Includes 12V 2A power adapter | |
| Includes USB-A 3.0 cable | |
| USB-C (3.1) for UVC webcam mode |
Power Consumption
| 20 W |
Physical
| Dimensions | 9.8 × 8.1 × 2.5 inch (250 × 206 × 63 mm) |
| Weight | 4.4 lb (2 kg) |
Packaging
| Package weight | 6.905 lb |
| Box dimensions | 14.1 × 11.9 × 4.2 inch |
