- Cooler Master TD500 MAX ATX Mid-Tower Case
- ARGB Hub
- Warranty: 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)
Cooler Master TD500 MAX ATX Mid-Tower PC Case with Atmos 360 MAX AIO Cooler
- Pre-installed ML360 Atmos MAX ver. AIO liquid cooler
- Pre-installed GX II Gold 850W ATX 3.0 MAX ver. PSU
- Patented 2-Stage cable connectors (pre-connected)
- Integrated screw storage pad
- Pre-installed Mobius 120P ARGB fans (front AIO)
- Pre-installed CF120 ARGB fan (rear)
- Motherboard support: Mini-ITX, Micro-ATX, ATX
- 7 expansion slots
- ARGB Hub included
- Polygonal mesh front panel
- Crystalline tempered glass side panel
- Dust filters: Top, Bottom
The TD500 MAX, Cooler Master's first AT case in the MAX series, features a preinstalled customized AlO cooler, GXII Gold 850W ATX 3.0 PSU, patented 2-stage cable connectors, and a screw storage pad. It aims to revive users' passion for PC building while reducing the challenges faced putting together high-end PCs.
Ultimate Performance
To accelerate heat dissipation and achieve superior cooling, Cooler Master the premium 360 Atmos AlO cooler features a 38mm thicker radiator.
Storage Design

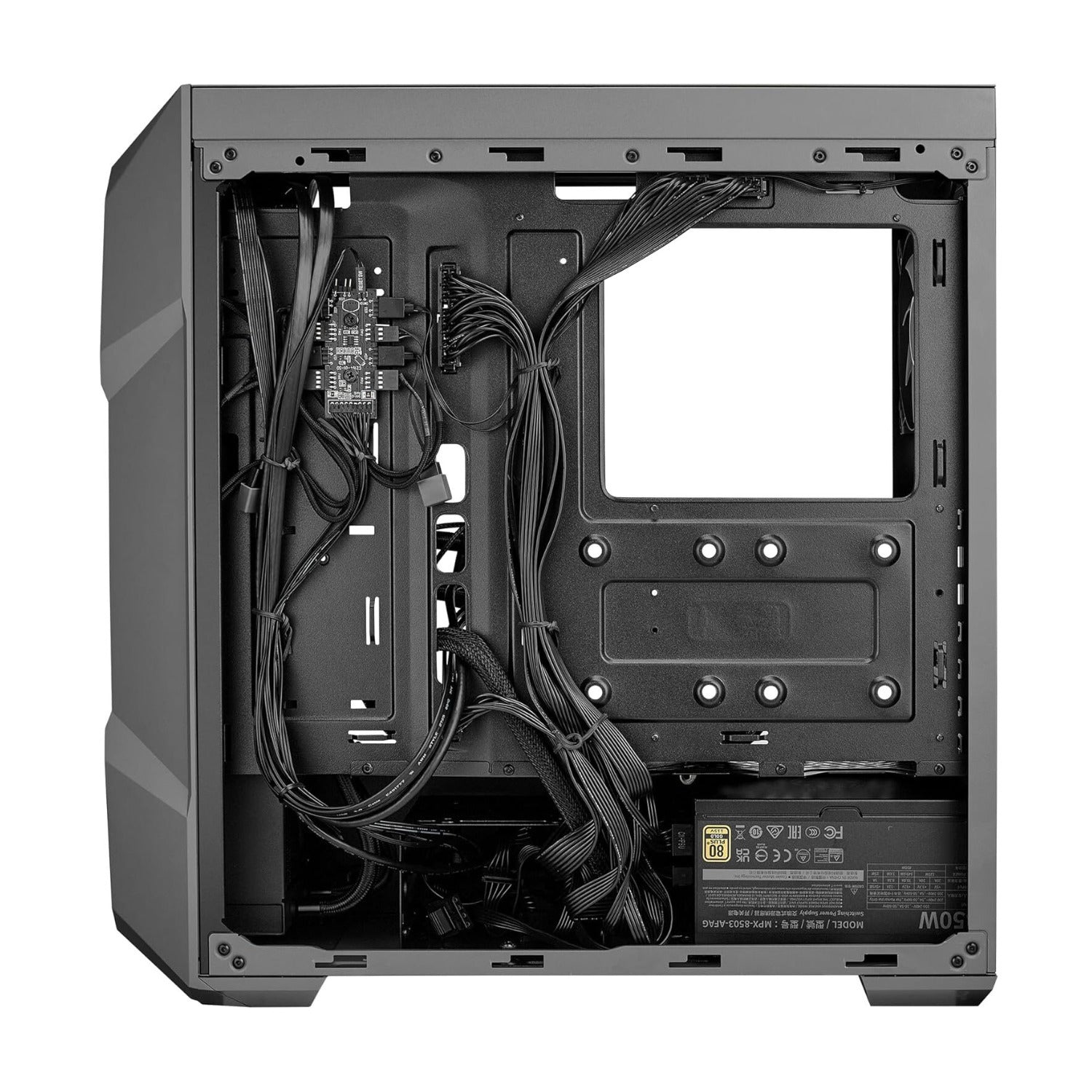

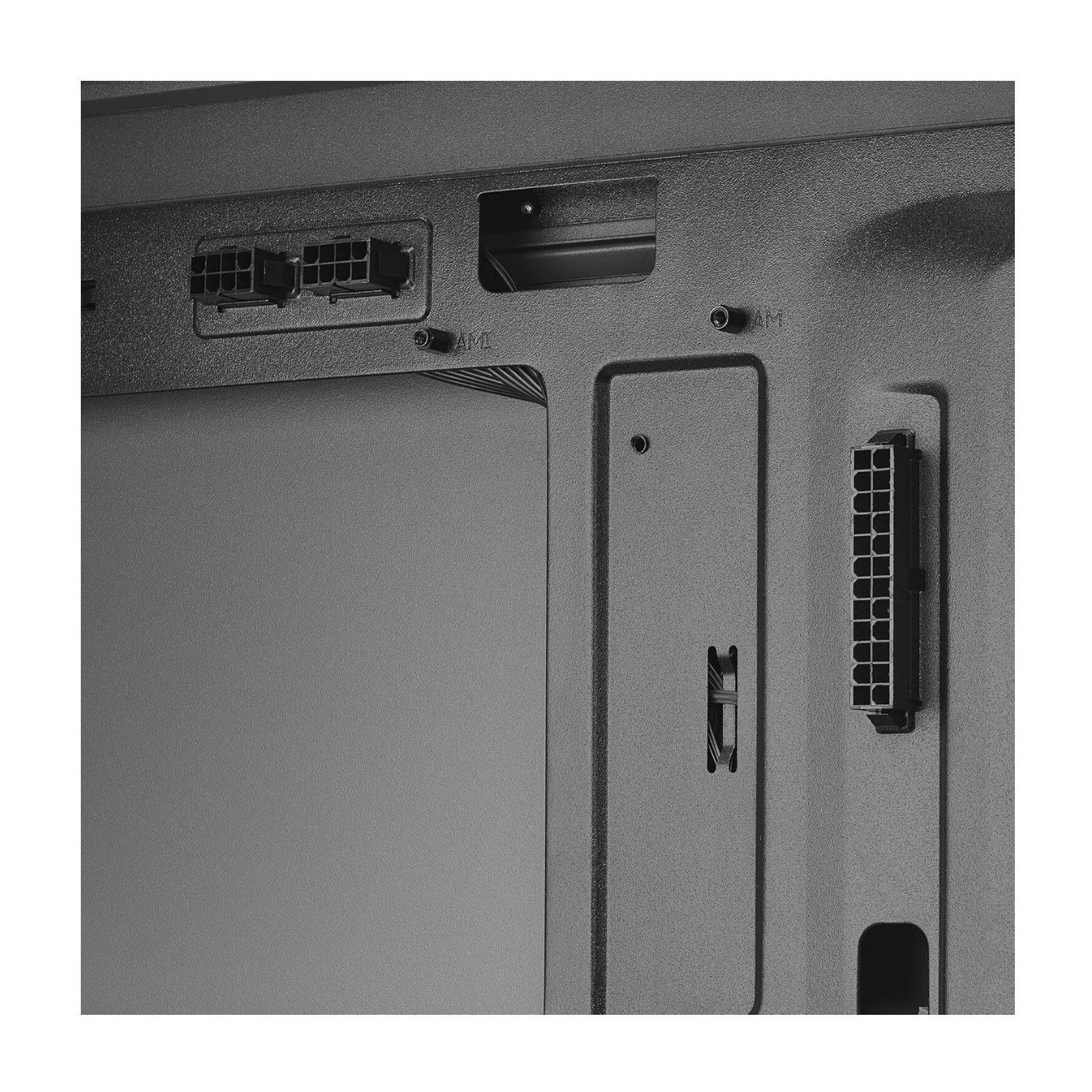

The TD500 MAX streamlines PC building by pre-connecting the GXII PSU with 2-stage Cable Connectors and providing a screw storage pad under the PSU Cover. This allows quick and elegant builds, with the added convenience of replacing the motherboard without opening the back panel.
Fans
Cooler Master integrated flagship Mobius 120P ARGB fans in the premium 360 Atmos AlO cooler, offering users an even higher- performance cooling solution.
Flexible Design

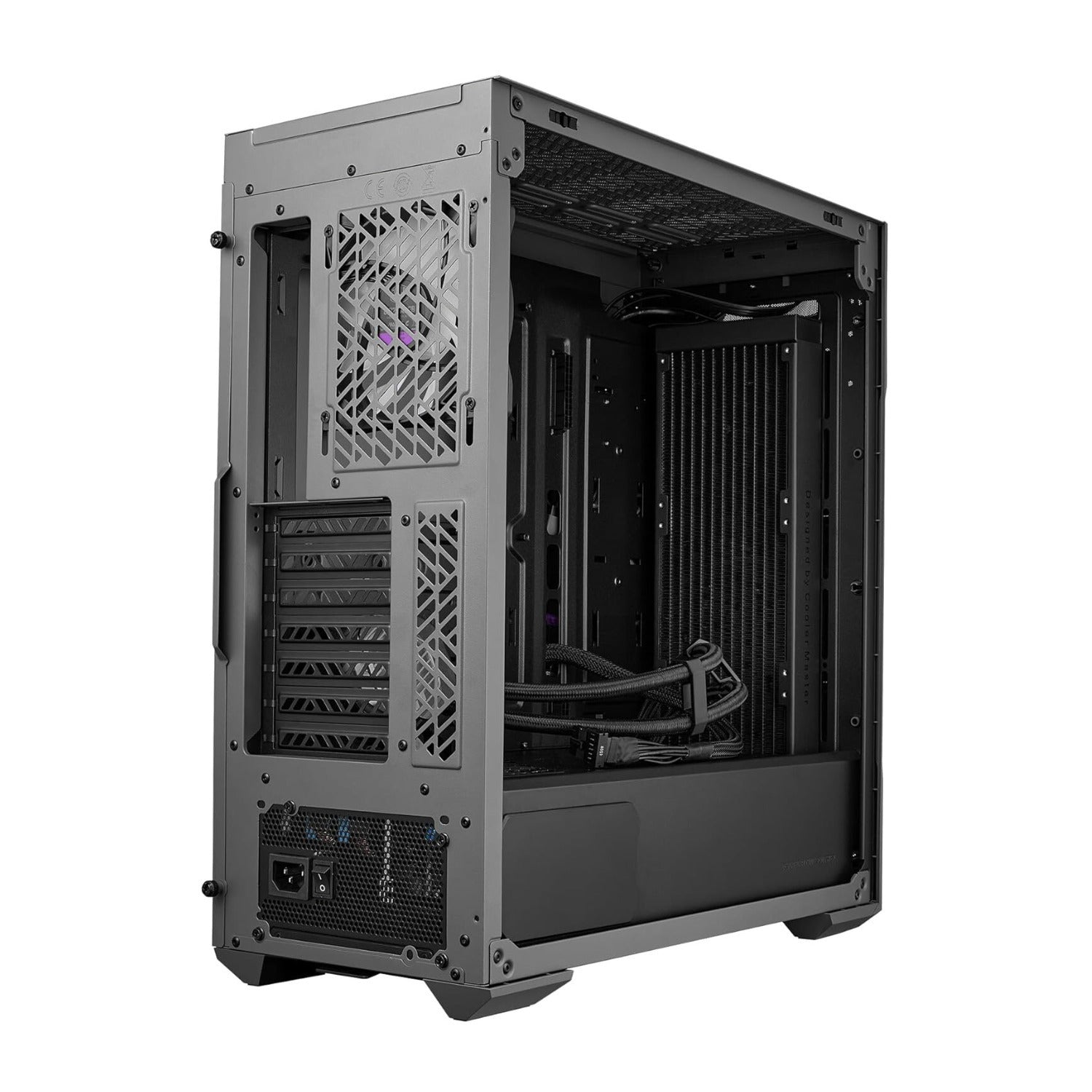

Despite its integrated design, the TD500 MAX is designed for future upgrades. It supports PSUs up to 200mm when an AlO cooler is front-installed, accommodates GPUs up to 380mm, and allows for the addition of three fans on the top if needed.
| Product Number | TD500V2-MGNN85-SL0 |
| Exterior Color | Gun metal |
| Materials - Exterior | Steel, Plastic, Tempered Glass |
| Materials - Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 499 x 210 x 500mm (incl. Protrusions), 482 x 210 x 477mm (excl. Protrusions) |
| Volume | 48L |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| Expansion Slots | 7 |
| Drive Bays | 0x 5.25 inch ODD, 2x 3.5 inch HDD, 3x 2.5 inch SSD |
| I/O Panel | 2x USB 3.2 Gen 1 + 1x USB 3.2 Gen 2x2 type C, 1x Audio combo |
| Included Accessories | ARGB Hub |
| Pre-installed Components | ML360 Atmos MAX ver. Radiator, GX II Gold 850W ATX3.0 MAX ver. Power Supply Unit, 3 x 120mm (AIO Mobius120P ARGB fan) Front Fans, 1 x CF120 ARGB fan Rear Fan. An extra PCI-e 6+2 Pin cable for the PSU may be requested from local Customer Service. |
| Fan Support | 3 x 120mm / 2 x 140mm (Front), 3 x 120mm / 2 x 140mm (Top), 1 x 120mm (Rear) |
| Radiator Support | 360mm / 240mm (Front), 360mm / 240mm (Top), 120mm (Rear) |
| Clearances | 165mm (CPU Cooler), 200mm (Power Supply - Pre-installed PSU Length 160mm), 380mm (Graphics Card - with pre-installed AIO on front) |
| Cable Routing - Behind MB Tray | 19mm |
| Dust Filters | Top, Bottom |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
| Size | ATX |
