CyberPower Ecologic EC850LCD Uninterruptible Power Supply with Surge Protection
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
A compact UPS with standby topology, the CyberPower Ecologic EC850LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC850LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required).
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
ECO Mode
Is an energy-efficient, user selectable feature for some surge-protected outlets. When the computer is off or is in sleep mode, the UPS automatically cuts power to computer peripherals connected to any outlets in ECO mode.
Multifunction LCD
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
Widely Spaced Outlets
The widely-spaced outlet allow you to conveniently add transformer-sized plugs without blocking other outlets.
Audible Alarms
Provides audible notification of certain events such as running on battery power, low battery, or overload conditions.
LED Status Lights
Indicate Power On, ECO On/Off.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
Energy Star
This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices.
GreenPower UPS High-Efficiency
Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
Standby Topology
Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.
Simulated Sine Wave Output
Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
PowerPanel Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS.
3-Year Limited Manufacturer Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
General
| Energy Saving | GreenPower UPS High-Efficiency |
| Energy Star Certified | Yes |
| UPS Topology | Standby |
Battery
| Battery Quantity | 1 |
| Battery Size | 12 V |
| Battery Type | Sealed Lead-Acid Battery |
| Field-serviceable Battery | Replaceable by qualified technician |
| Replacement Battery Cartridge | RB1270B |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 2.3 min |
| Runtime at Half Load | 7.9 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | No |
Input
| Circuit Breaker | 15 A |
| Cord Length | 5 ft (1.5 m) |
| Input Frequency Range | 47 to 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right angle, 45-degrees Offset |
Output
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz +/- 1% (auto-sensing) |
| On Battery Voltage | 120 VAC +/- 5% |
| On Battery Waveform | Simulated Sine Wave |

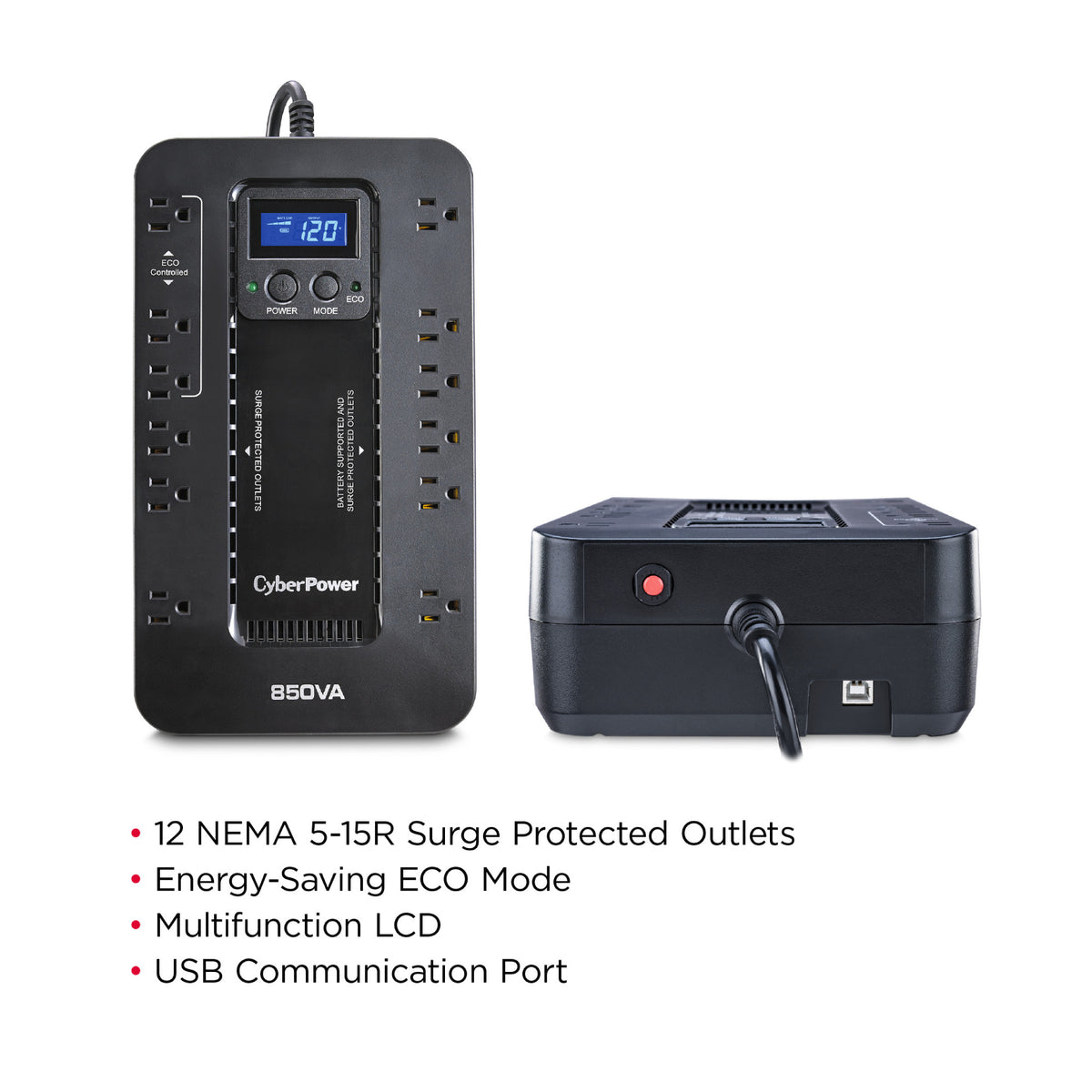

| Outlet Type | 12 - NEMA 5-15R |
| Outlets Total | 12 |
| Outlets (Battery and Surge Protected) | 6 |
| Outlets (Eco Controlled) | 3 |
| Outlets (Surge-Only Protected) | 6 |
| Outlets (Widely Spaced) | 4 |
| Output Power Factor | 0.6 |
| Overload Protection | Internal Circuitry Limiting / Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port | No |
| VA | 850 VA |
| Watts | 510 W |
Surge Protection and Filtering
| EMI/RFI Filtration | Yes |
| Surge Suppression | 526 Joules |
Management and Communications
| Audible Alarms | Battery Mode |
| Low Battery | Overload |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On, ECO On/Off |
| Management Cable | USB Cable |
| Software (Free Download) | PowerPanel Personal |
Physical
| Color | Black |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes |
| Material of Construction | Plastic |
Dimensions and Weight

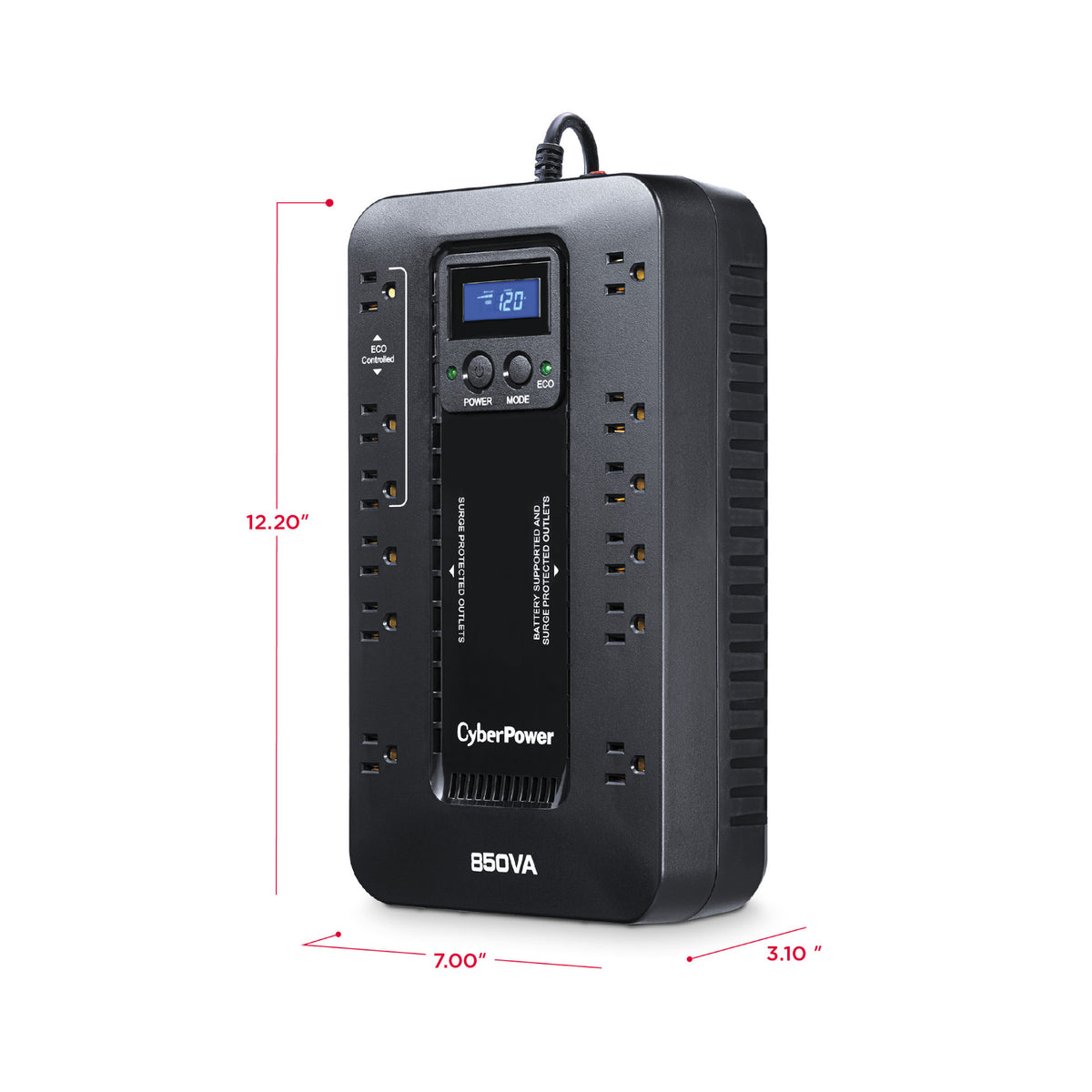

| Net Dimensions (WxHxD) | 30.99 x 7.87 x 17.78 cm (12.2 x 3.1 x 7 inches) |
| Shipping Dimensions (WxHxD) | 10.97 x 24.13 x 38.1 cm (4.32 x 9.5 x 15 inches) |
| Net Weight | 7.7 lbs. (3.49 kg) |
| Shipping Weight | 19.75 lbs. (8.96 kg) |
Environmental
| Operating Elevation | 0 to 10000 ft (0 to 3048 m) |
| Storage Elevation | 0 to 50000 ft (0 to 15239 m) |
| Operating Relative Humidity | 0 to 90% (non-condensing) |
| Storage Relative Humidity | 0 to 95% (non-condensing) |
| Operating Temperature | 32 to 104 degrees F (0 to 40 degrees C) |
| Storage Temperature | 5 to 113 degrees F (-15 to 45 degrees C) |
Certifications
| Environmental | RoHS Compliant |
| Safety | UL1778 / FCC Part 15 Class B / CSA C22.2 No. 107.3-05 / FCC DOC Class B |
