- UPS System
- User Manual
- Registration Card
- 2 x Rackmount Rails
- 2 x Rackmount Ears
- 2 x Hanging Brackets
- Phone Line
- USB Communication Cable
- Serial Interface Cable, RS 232
- 8 x M5 x 7L Black Flat Head Screws
- 12 x M5 x 12L Black Pan Head Screws
- 6 x M5 x 6L Silver Pan Head Screws
- 8 x Plastic Washers
- 12 x Screw Hole Dust Covers
- 12 x Rubber Pads
- Software Download Card
Trusted & Verified

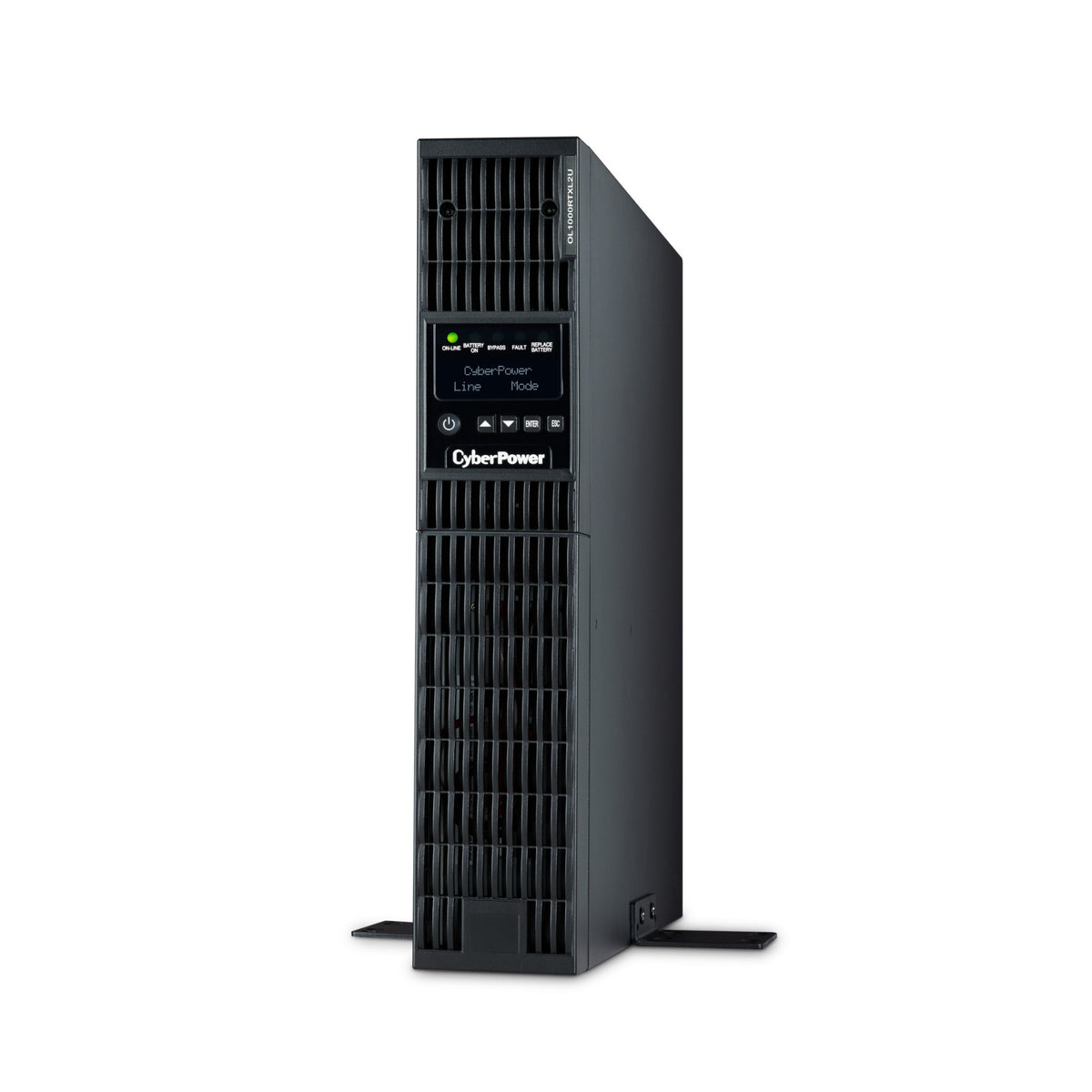

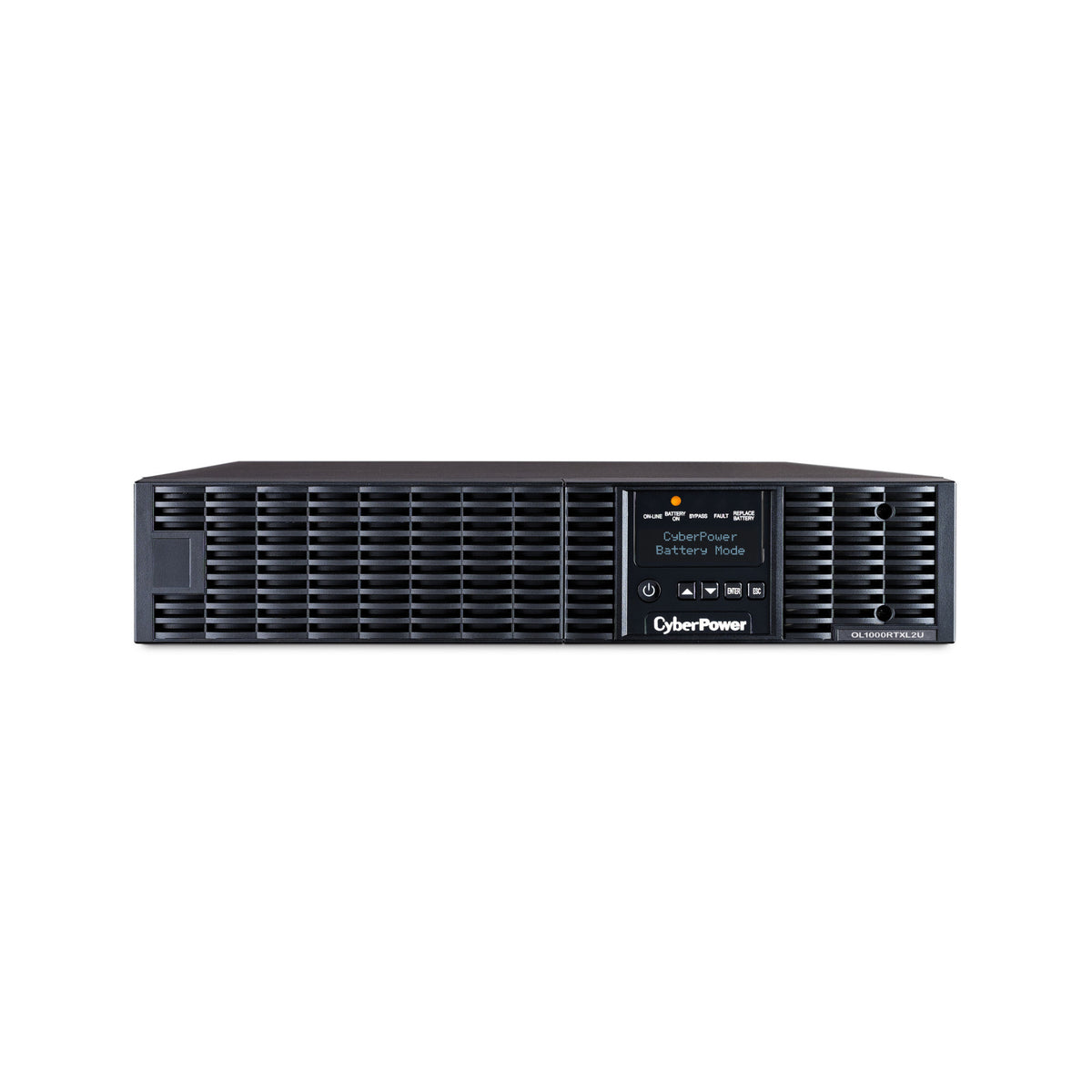

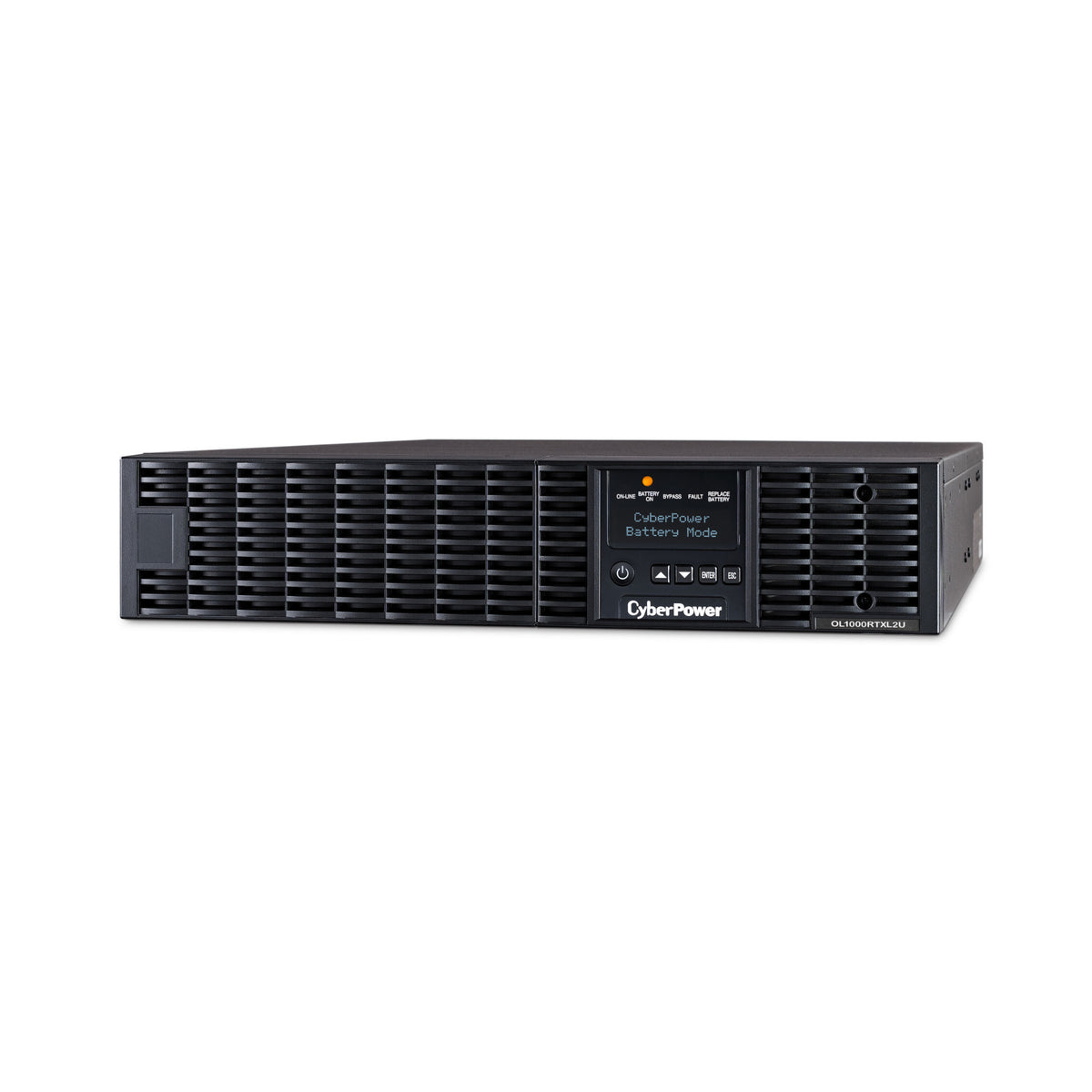

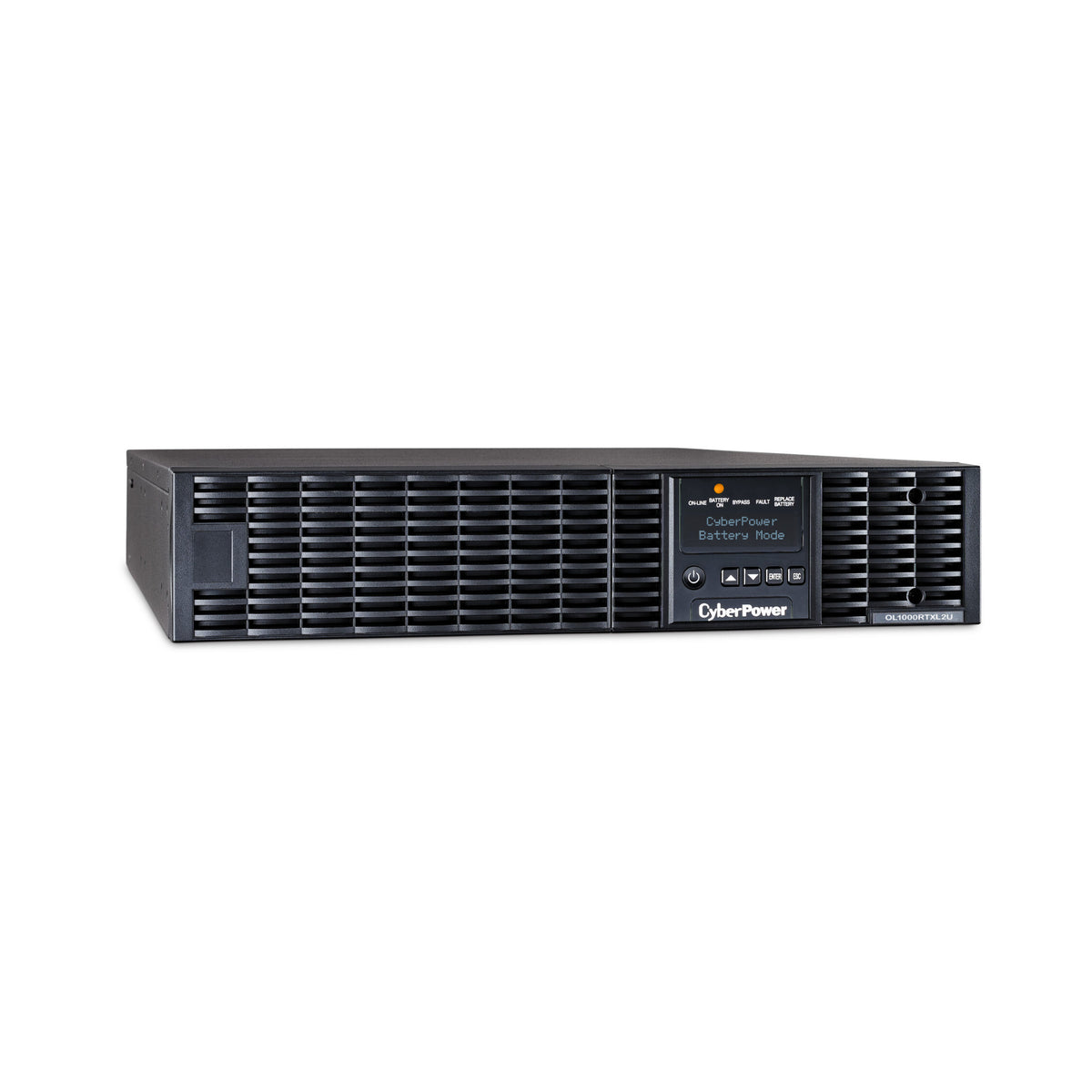

CyberPower OL1000RTXL2U 1000VA/900W Smart App Online 2U Rack/Tower Sine Wave UPS
- Double conversion topology provides consistent, clean power for sensitive electronic equipment
- Sine wave output helps prevent unnecessary shutdowns caused by gaps from simulated sine waves
- Zero transfer time provides battery power when utility power is lost
- Extended Battery Module support expands runtime with up to 10 EBMs
- Fast Charge Technology restores charge from 0 to 90% within 4 hours
- Smart Battery Management helps improve battery life and reduce excessive heat

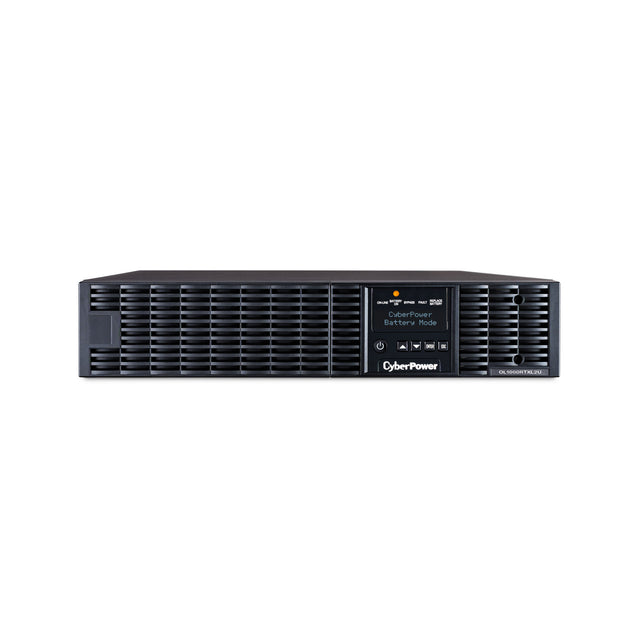

- Extendable LCD control panel displays UPS status data and operating settings
- Generator compatibility provides stable sine wave output when using generator input power
- GreenPower UPS ECO Mode improves UPS efficiency up to 94%

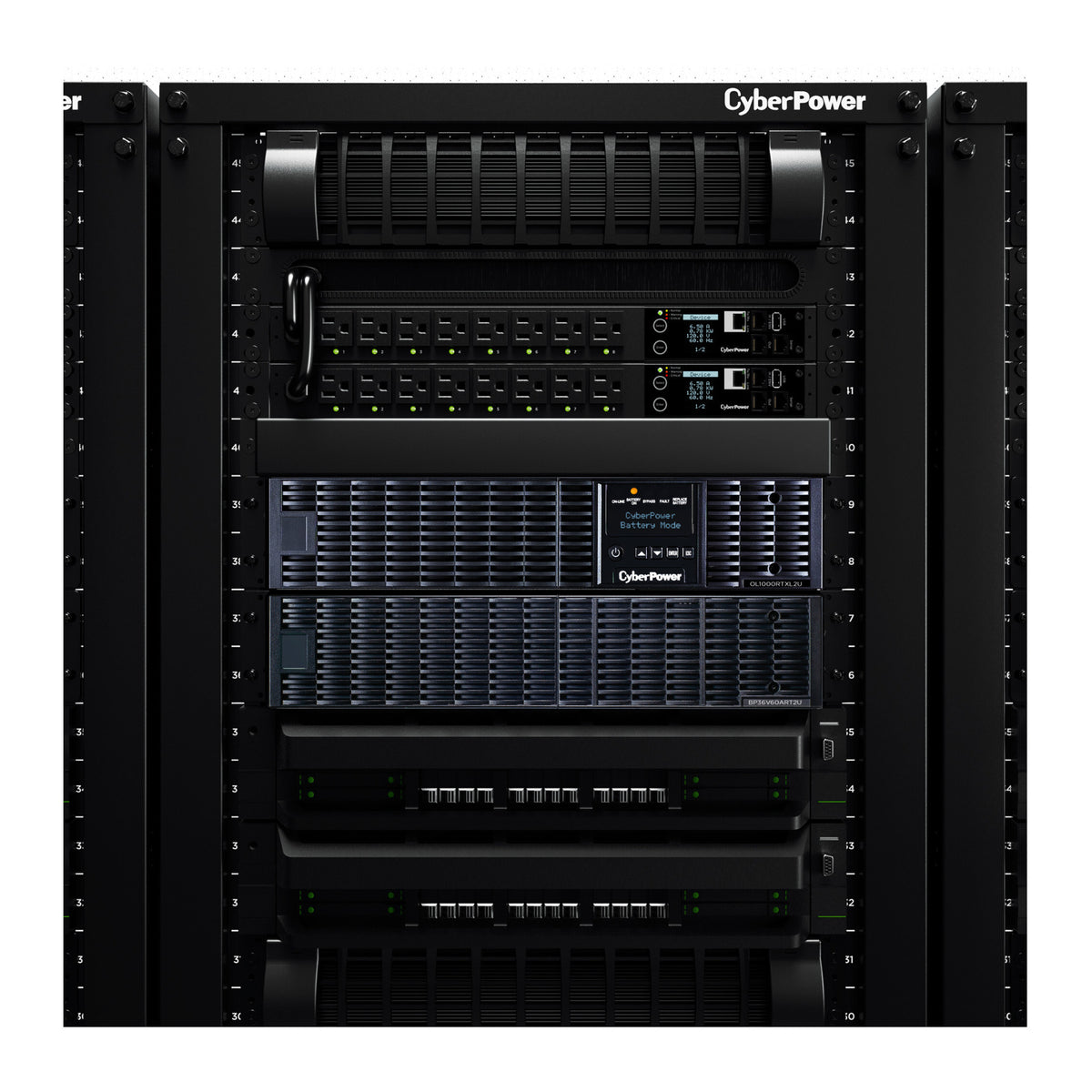

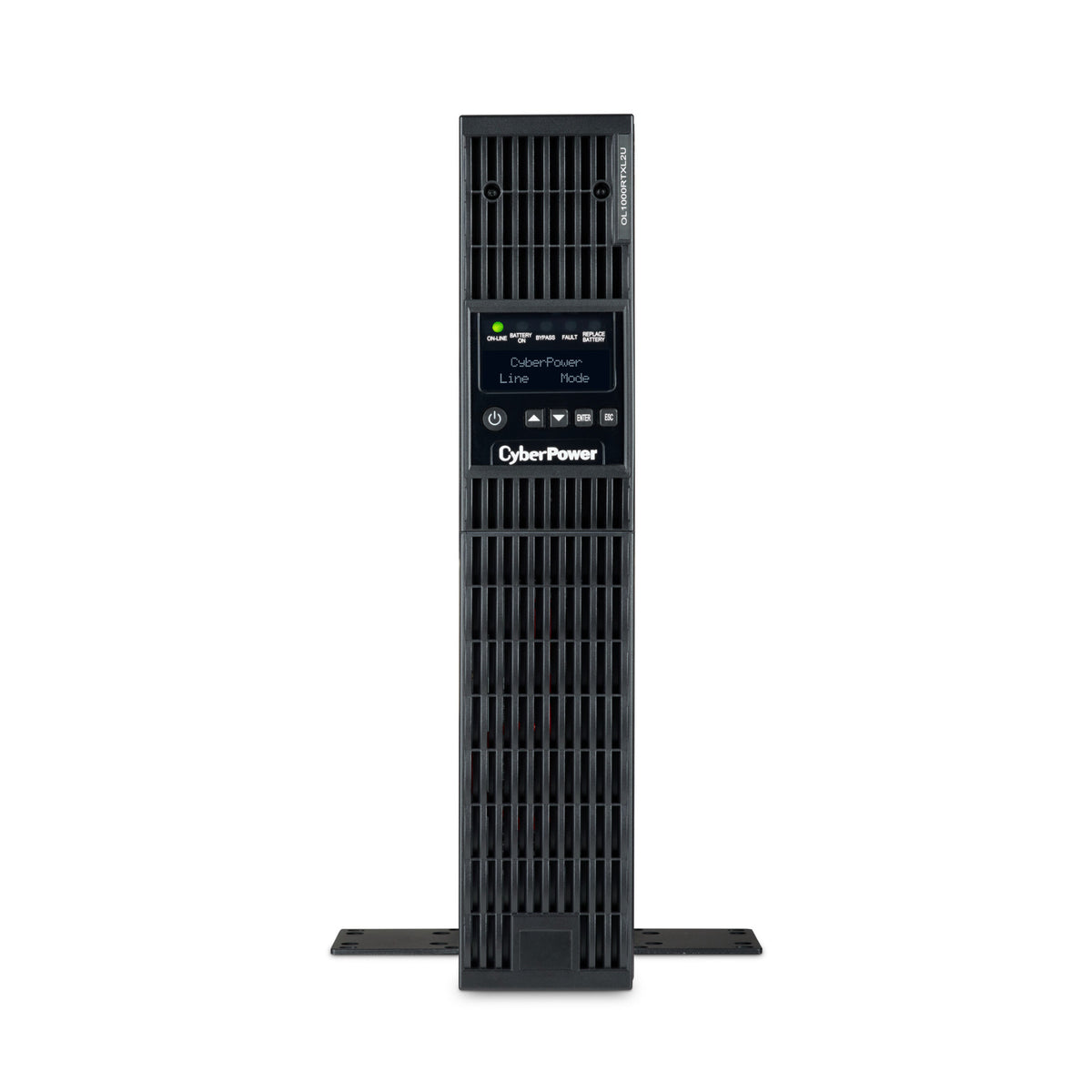

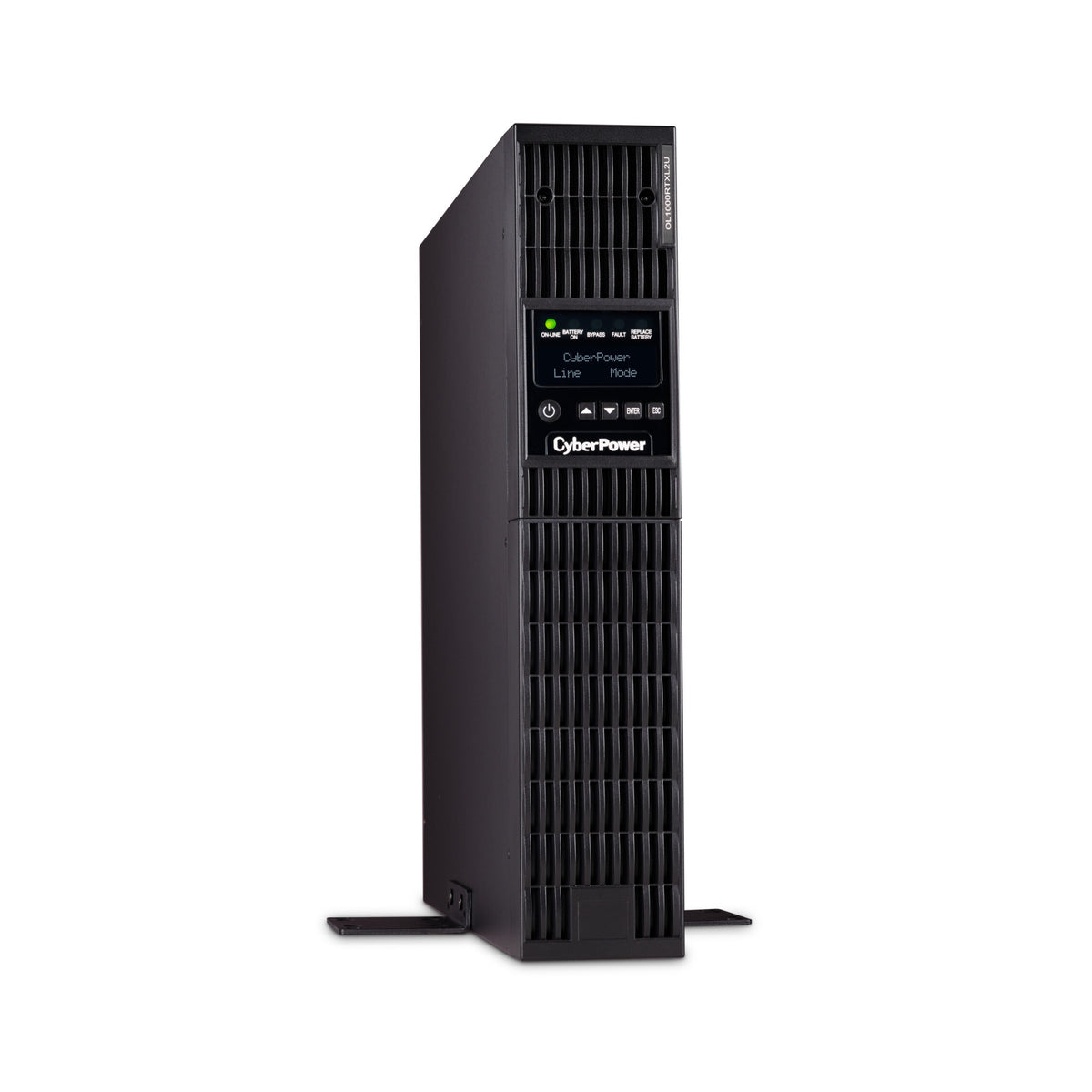

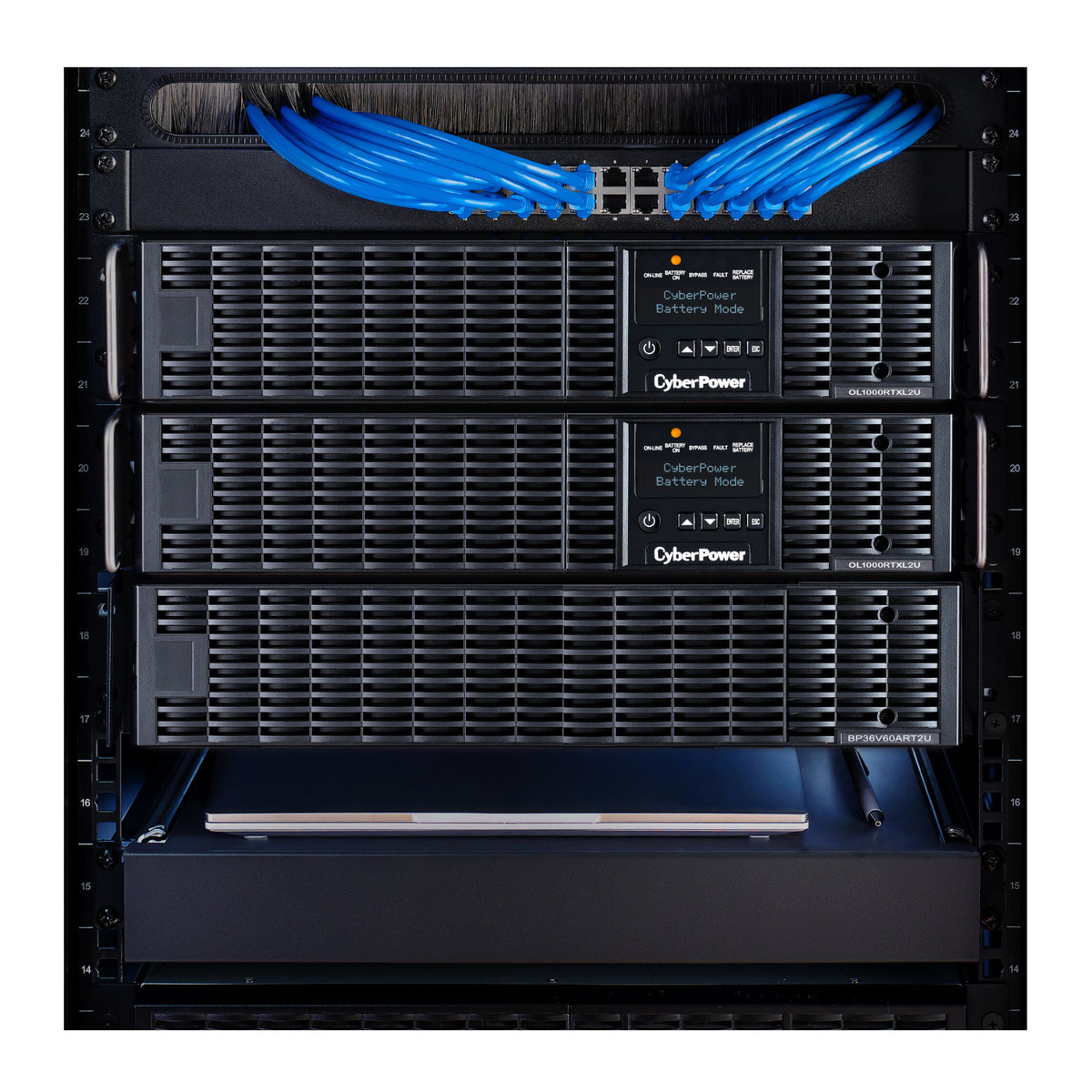

- Rack and tower versatility supports horizontal rack or vertical tower installation
Prevent business interruptions and safeguard mission critical enterprise network equipment with the CyberPower OL1000RTXL2U rack and tower UPS. Double conversion topology provides consistent, clean power to critical applications and equipment that require seamless power correction. Sine wave output and zero transfer time help sensitive equipment keep working when utility power is lost.
Clean Power for Critical Applications
The OL1000RTXL2U delivers sine wave output to high end system components, corporate servers, lab equipment, network and storage devices, and other sensitive electronic devices. Generator compatibility provides stable sine wave output without switching to battery mode when running on generator input power. Converter Mode also provides the flexibility to select 50Hz or 60Hz output from the LCD control panel.
Extended Runtime and Battery Management
The Extended Battery Module expands runtime by adding up to 10 EBMs. Fast Charge Technology restores charge from 0 to 90% within 4 hours regardless of the number of EBMs. Smart Battery Management uses a three cycle charging process to improve and extend battery life while reducing excessive heat during work cycles. Hot swappable batteries help keep connected equipment running during battery replacement.
Flexible Monitoring and Power Control
The extendable LCD control panel displays UPS status data and configures operating settings from up to 10 feet away. PowerPanel Business Edition Software supports remote monitoring, UPS management, and automated shutdown of multiple devices. Critical and non critical load control can provide additional runtime for critical load outlets, while GreenPower UPS ECO Mode improves UPS efficiency up to 94% to reduce electrical and cooling costs.
Power
| Energy Saving | ECO Mode Efficiency Greater Than 94% |
| UPS Topology | Online Double Conversion |
| VA | 1000 VA |
| Watts | 900 W |
| Output Power Factor | 0.9 |
| Typical Transfer Time | 0 ms |
Battery
| Battery Quantity | 3 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead Acid Battery |
| Extended Battery Module | BP36V60ART2U |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X3L |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 8 min |
| Runtime at Half Load | 21 min |
| Smart Battery Management Mode | Yes |
| Typical Recharge Time | 4 Hours, 0% to 90% Charged |
| User Replaceable Battery | Yes |
Input
| Circuit Breaker | 15 A |
| Cold Start | Yes |
| Cord Length | 10 feet |
| Input Frequency Range | 40 Hz to 70 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Power Factor | 0.99 |
| Input Voltage Range | 60 VAC to 69 VAC for 0 to 60% Load |
| Input Voltage Range | 70 VAC to 79 VAC for 0 to 70% Load |
| Input Voltage Range | 80 VAC to 89 VAC for 0 to 80% Load |
| Input Voltage Range | 90 VAC to 95 VAC for 0 to 90% Load |
| Input Voltage Range | 96 VAC to 150 VAC for 0 to 100% Load |
| Nominal Input Voltage | 100 VAC to 125 VAC |
Output
| Bypass | Internal Bypass, Automatic and Manual |
| Crest Factor | 3:1 |
| ECO Mode Voltage Regulation | ±10%, ±15%, Configurable |
| Harmonic Distortion at Linear Load | Less Than 3% |
| Harmonic Distortion at Non Linear Load | Less Than 5% |
| On AC Waveform | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 0.25 Hz, Auto Sensing or Configurable |
| On Battery Voltage | 100/110/115/120/125 VAC ± 2%, Configurable |
| On Battery Waveform | Sine Wave |

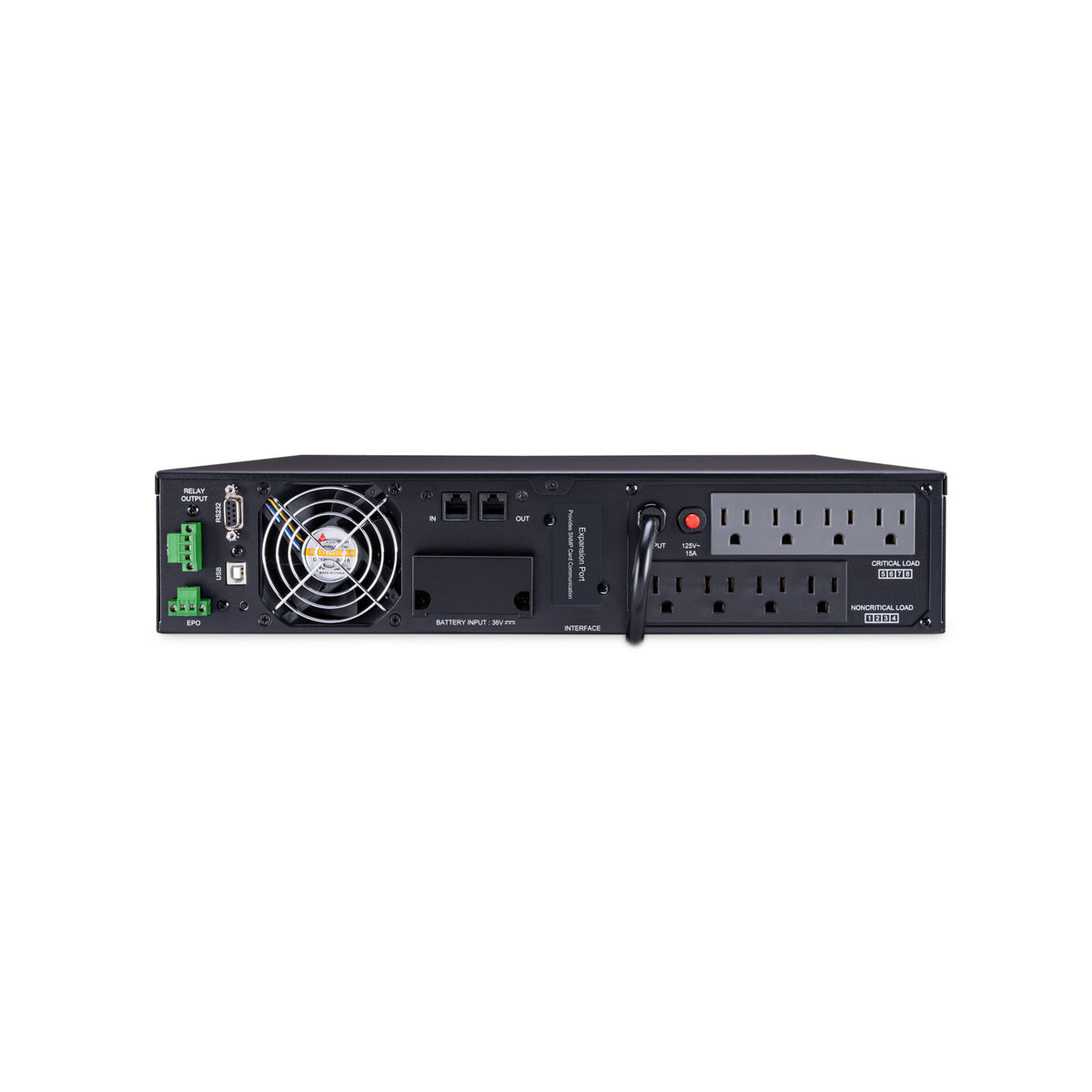

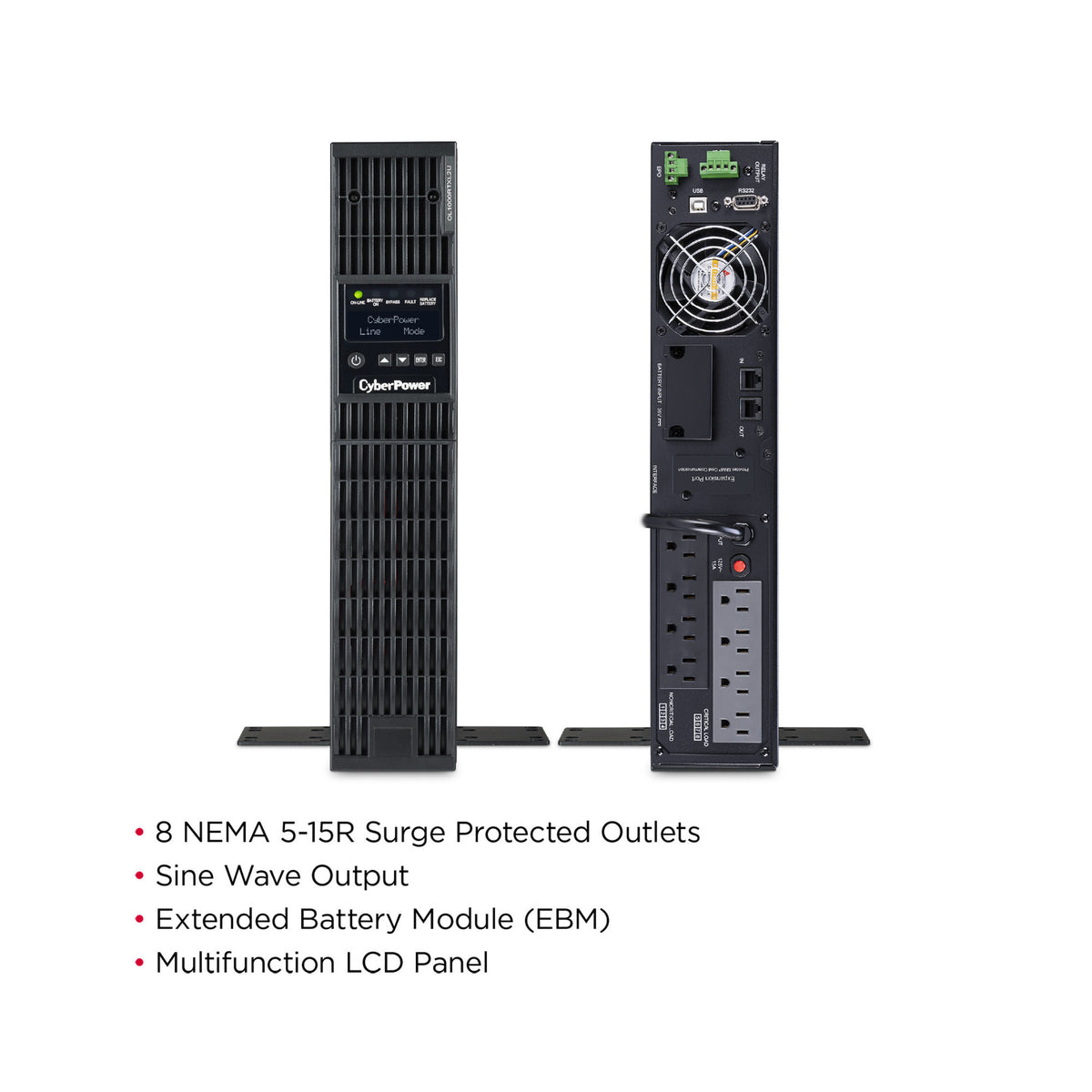

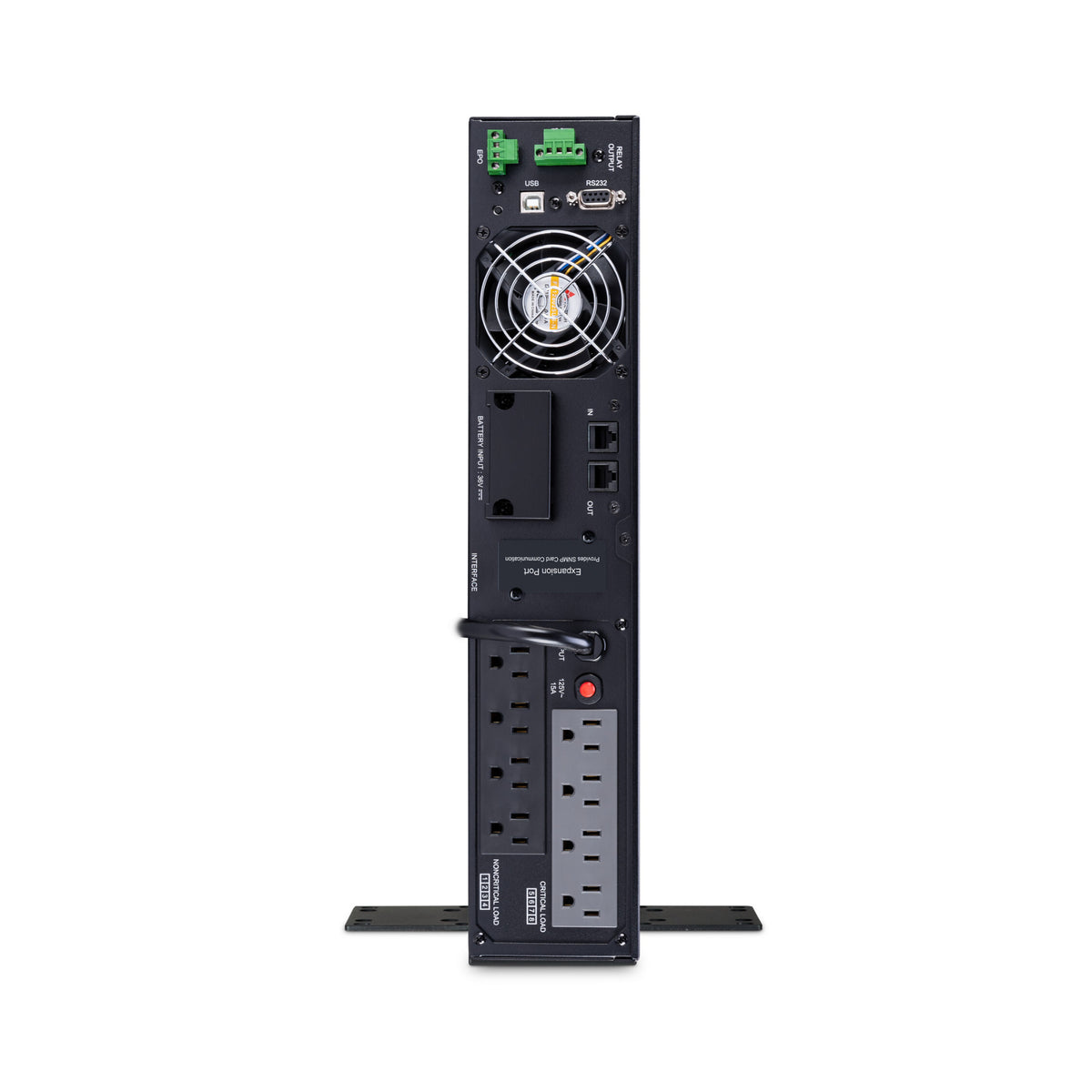

| Outlet Type | 8 NEMA 5-15R |
| Outlets Total | 8 |
| Overload Protection, Line Mode | 105% to 125% Load for 1 min |
| Overload Protection, Line Mode | 126% to 150% Load for 10 sec |
| Overload Protection, Battery Mode | 105% to 130% Load for 10 sec |
| Overload Protection, Battery Mode | 131% to 150% Load for 2 sec |
| Short Circuit Protection | UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection |
| USB Charge Port | No |
Surge Protection and Filtering
| EMI/RFI Filtration | Yes |
| Phone / Network Protection RJ11/RJ45 | 1 In / 1 Out, Combo |
| Surge Suppression | 1780 J |
Management and Communications
| Audible Alarms | Battery Mode, Low Battery, Overload, UPS Fault |
| Dry Contacts | Yes |
| Emergency Power Off Port | Yes |
| Expansion Slot | Yes, with Optional RMCARD205 or RELAYIO500 |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery |
| Management Cable | USB Cable |
| Removable LCD Control Panel Option | Yes, Requires DB26 Cable, Not Included |
| Rotatable LCD Control Panel Option | Yes |
| Serial Port | 1 Serial |
| Software | PowerPanel Business |
| Upgradeable Firmware | Yes |
Physical
| Color | Black |
| Form Factor | Rack / Tower |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 2U |

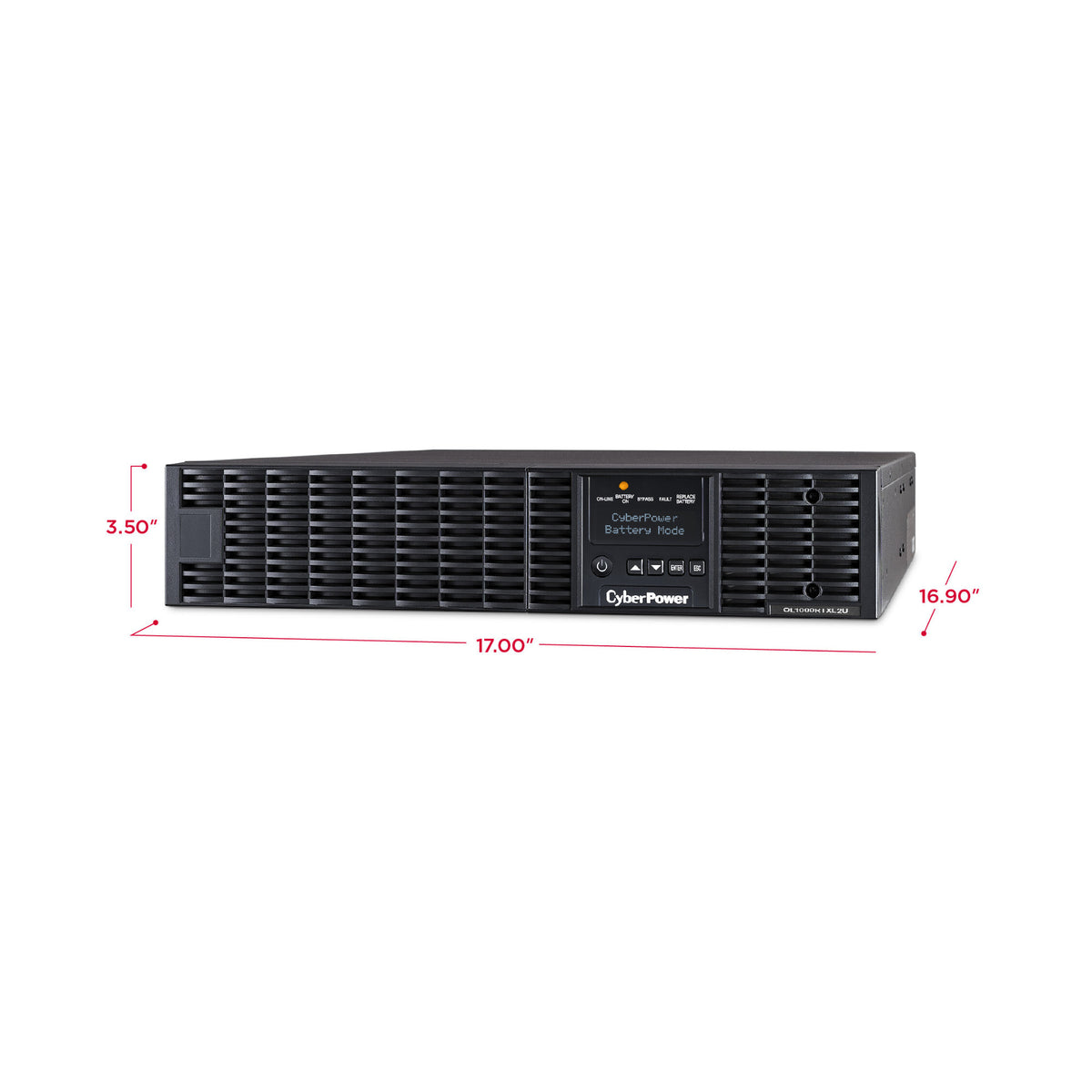

| Physical Dimensions, Width x Height x Depth | 17 x 3.5 x 16.9 inches |
| Physical Dimensions, Width x Height x Depth | 43.18 x 8.89 x 42.93 cm |
| Physical Dimensions, Width x Height x Depth | 432 x 89 x 429 mm |
| Physical Weight | 39.6 lb |
| Physical Weight | 17.96 kg |
Shipping
| Shipping Weight | 53.5 lb |
| Shipping Weight | 24.26 kg |
| Shipping Dimensions, Width x Height x Depth | 21.5 x 9.27 x 22.5 inches |
| Shipping Dimensions, Width x Height x Depth | 54.61 x 23.55 x 57.15 cm |
| Shipping Dimensions, Width x Height x Depth | 546.1 x 235.46 x 571.5 mm |
Environmental
| Audible Noise at 1 Meter From Unit Surface | 38 dBA to 55 dBA, 0 to 100% Load |
| ECO Mode Thermal Dissipation | 108 BTU/hr |
| Online Thermal Dissipation | 274 BTU/hr |
| Operating Elevation | 0 to 10000 feet, 0 to 3048 m |
| Operating Relative Humidity | 0 to 90%, Non Condensing |
| Operating Temperature | 32 to 104 °F, 0 to 40 °C |
| Storage Elevation | 0 to 50000 feet, 0 to 15239 m |
| Storage Relative Humidity | 0 to 95%, Non Condensing |
| Storage Temperature | 4 °F Below Zero to 113 °F, 20 °C Below Zero to 45 °C |
Certifications
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| Safety | FCC Part 15 Class B |
| Safety | CSA C22.2 No. 107.3 |
